Page 371 of 627

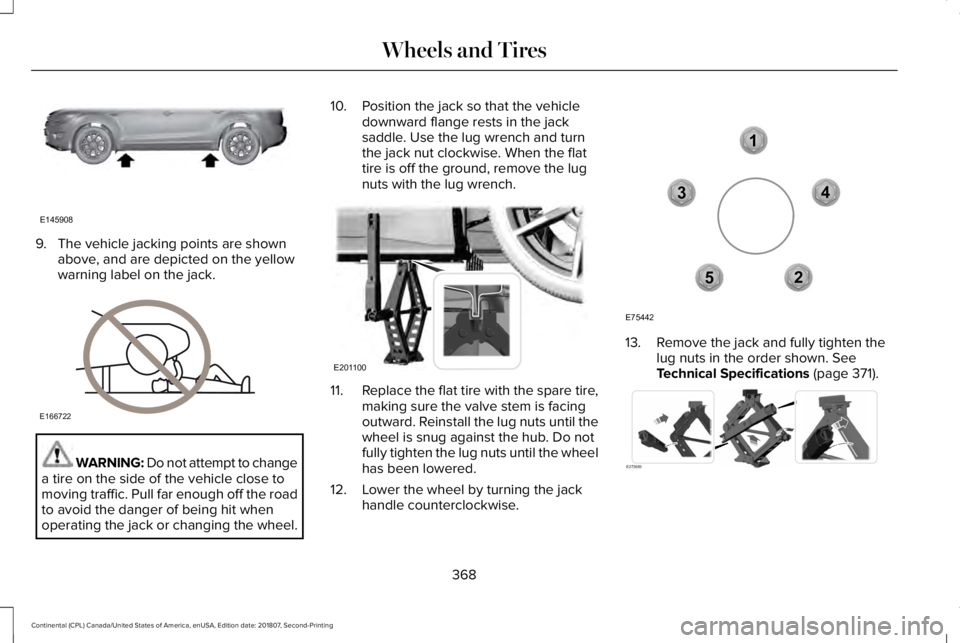

LINCOLN CONTINENTAL 2019  Owners Manual 9. The vehicle jacking points are shown
above, and are depicted on the yellow
warning label on the jack. WARNING: Do not attempt to change
a tire on the side of the vehicle close to
moving traffic. Pu

Page 372 of 627

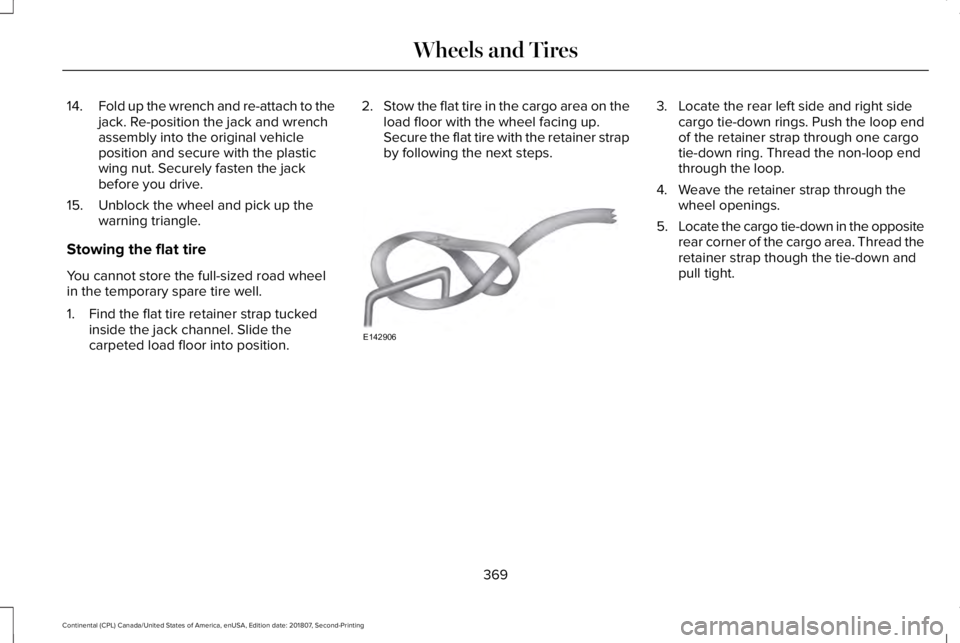

LINCOLN CONTINENTAL 2019  Owners Manual 14.
Fold up the wrench and re-attach to the
jack. Re-position the jack and wrench
assembly into the original vehicle
position and secure with the plastic
wing nut. Securely fasten the jack
before you

Page 373 of 627

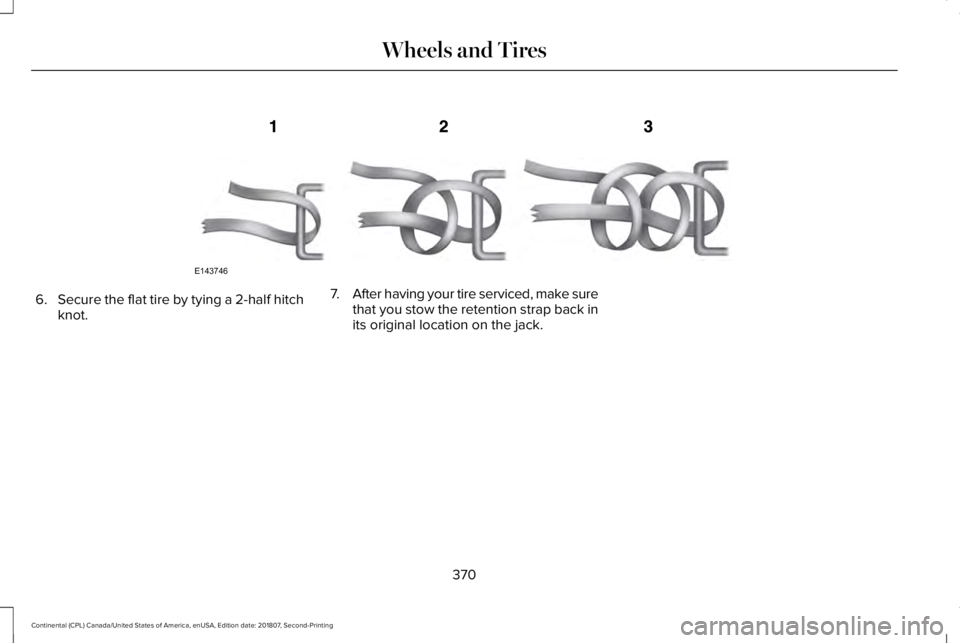

LINCOLN CONTINENTAL 2019  Owners Manual 6.
Secure the flat tire by tying a 2-half hitch
knot. 7.
After having your tire serviced, make sure
that you stow the retention strap back in
its original location on the jack.
370
Continental (CPL) C

Page 374 of 627

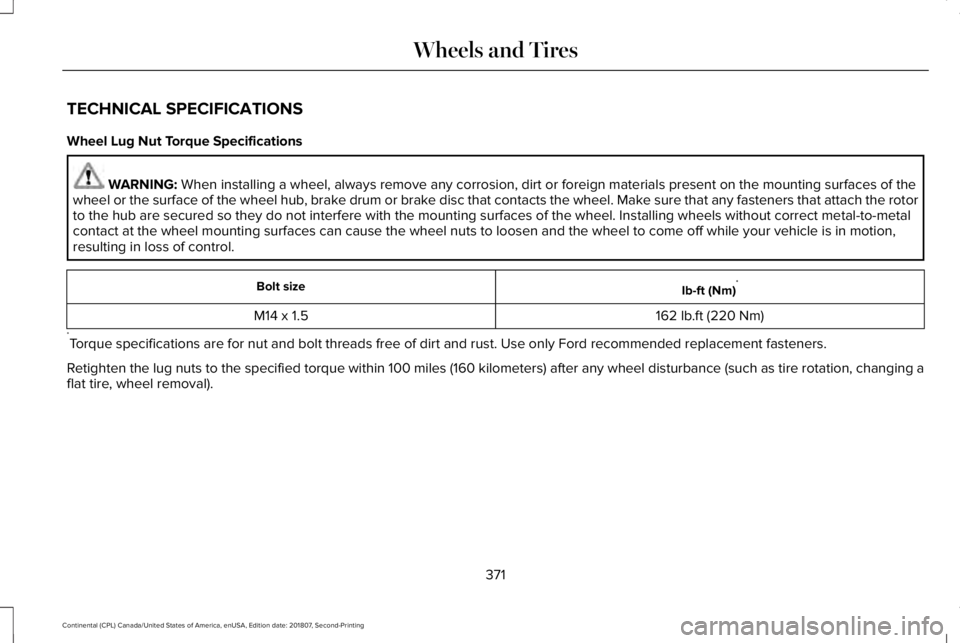

LINCOLN CONTINENTAL 2019  Owners Manual TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When installing a wheel, always remove any corrosion, dirt or foreign ma\
terials present on the mounting surfaces of the
wheel or

Page 375 of 627

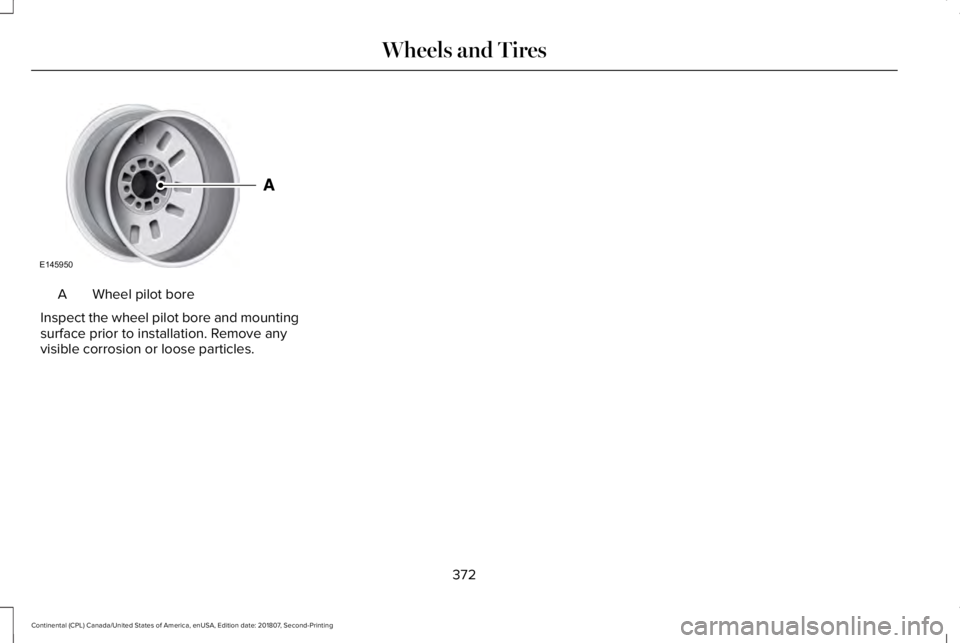

LINCOLN CONTINENTAL 2019  Owners Manual Wheel pilot bore
A
Inspect the wheel pilot bore and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.
372
Continental (CPL) Canada/United States of America, enUS

Page 376 of 627

LINCOLN CONTINENTAL 2019  Owners Manual ENGINE SPECIFICATIONS - 2.7L
Specification
Measurement
164
Cubic inches.
1-4-2-5-3-6
Firing order.
10.0:1
Compression ratio.
0.028–0.031 in (0.7–0.8 mm)
Spark plug gap.
Coil in plug
Ignition syste

Page 377 of 627

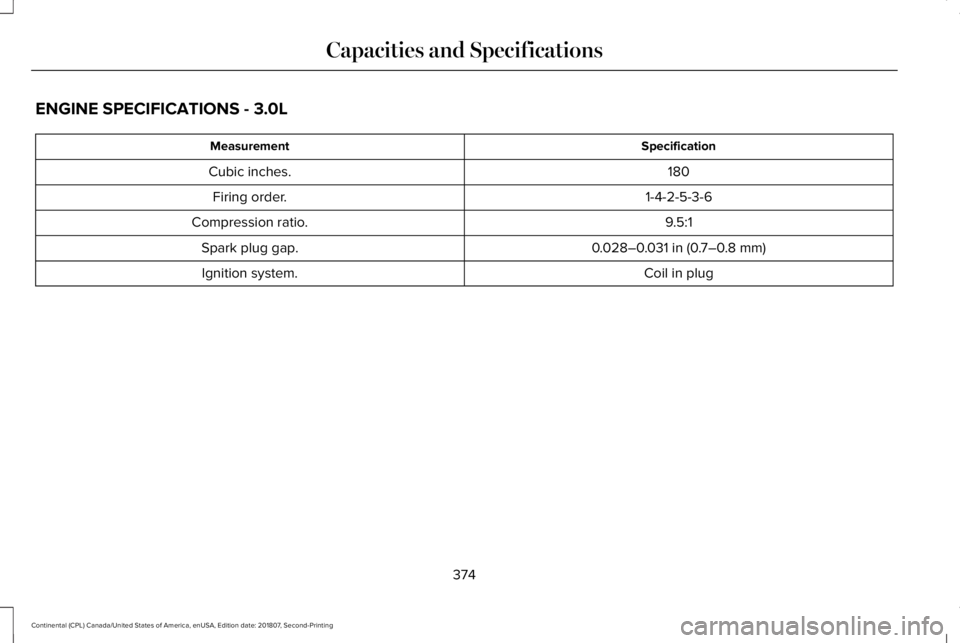

LINCOLN CONTINENTAL 2019  Owners Manual ENGINE SPECIFICATIONS - 3.0L
Specification
Measurement
180
Cubic inches.
1-4-2-5-3-6
Firing order.
9.5:1
Compression ratio.
0.028–0.031 in (0.7–0.8 mm)
Spark plug gap.
Coil in plug
Ignition system

Page 378 of 627

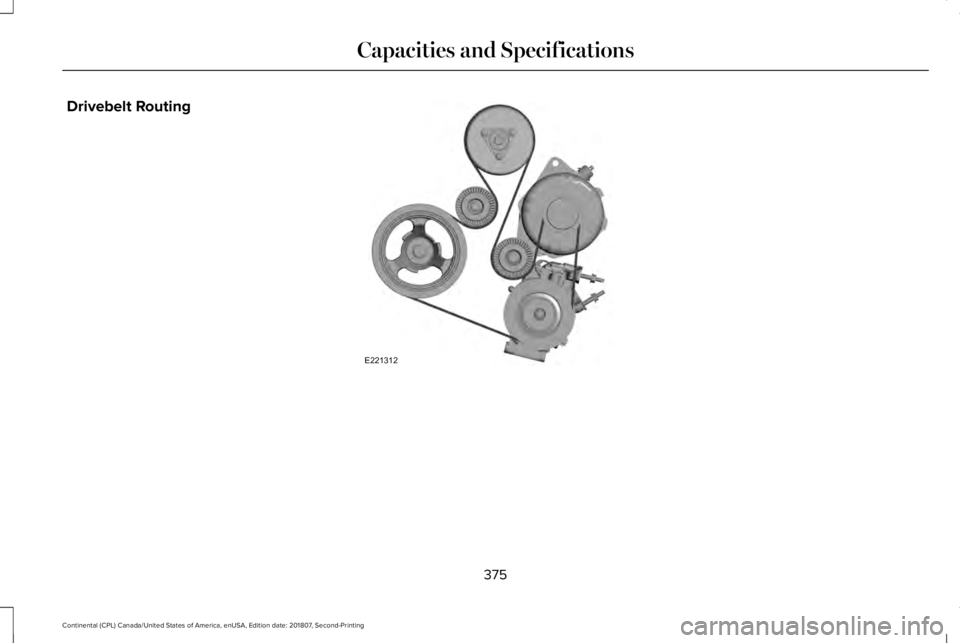

LINCOLN CONTINENTAL 2019  Owners Manual Drivebelt Routing
375
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Capacities and SpecificationsE221312

Page 379 of 627

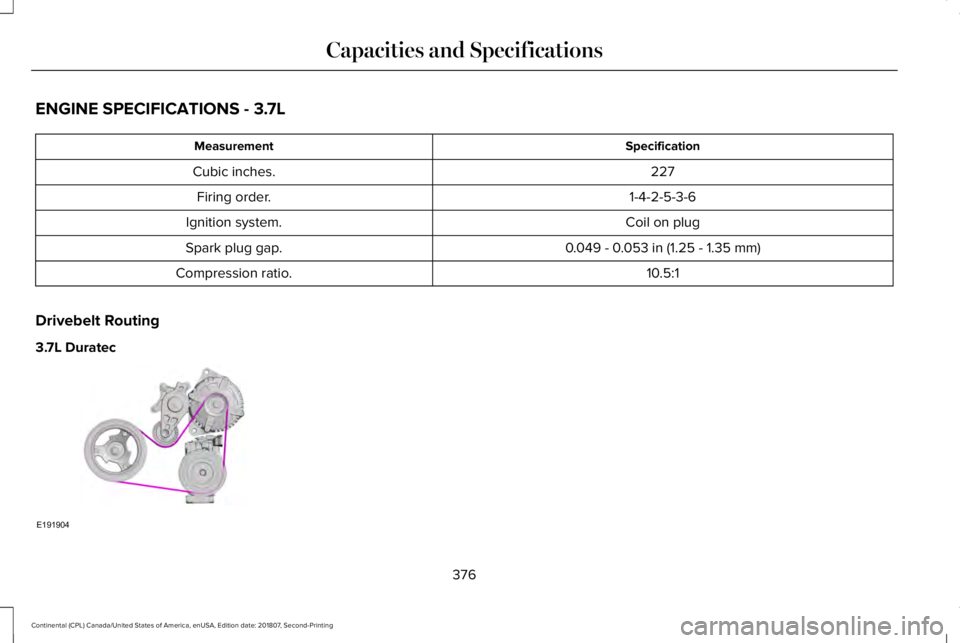

LINCOLN CONTINENTAL 2019  Owners Manual ENGINE SPECIFICATIONS - 3.7L
Specification
Measurement
227
Cubic inches.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
0.049 - 0.053 in (1.25 - 1.35 mm)
Spark plug gap.
10.5:1
Compression ra

Page 380 of 627

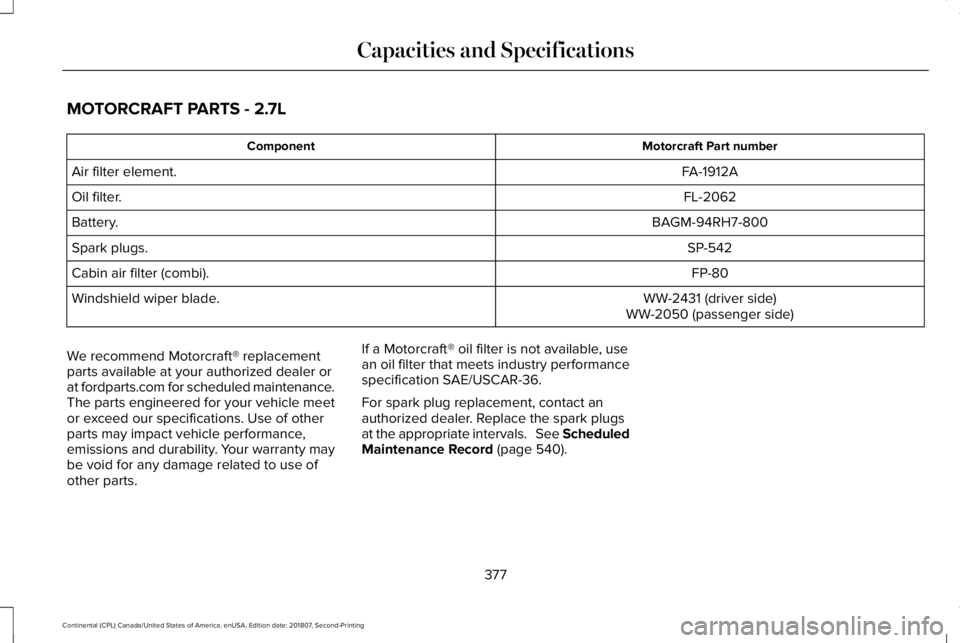

LINCOLN CONTINENTAL 2019  Owners Manual MOTORCRAFT PARTS - 2.7L
Motorcraft Part number
Component
FA-1912A
Air filter element.
FL-2062
Oil filter.
BAGM-94RH7-800
Battery.
SP-542
Spark plugs.
FP-80
Cabin air filter (combi).
WW-2431 (driver si
