lane assist LINCOLN CONTINENTAL 2019 Owners Manual

Cruise Control
Principle of Operation
................................234
Using Adaptive Cruise Control ................
234
Driving Aids
Driver Alert ....................................................
243
Lane Keeping System ................................
244
Blind Spot Information System ................
250
Cross Traffic Alert ........................................
252
Steering .........................................................
256
Pre-Collision Assist .....................................
257
Drive Control .................................................
261
Load Carrying
Load Limit ......................................................
263
Towing
Towing a Trailer ...........................................
268
Recommended Towing Weights .............
269
Essential Towing Checks ..........................
270
Towing the Vehicle on Four Wheels ......
272Driving Hints
Breaking-In
....................................................
273
Economical Driving .....................................
273
Driving Through Water ...............................
273
Floor Mats ......................................................
274
Roadside Emergencies
Roadside Assistance ..................................
276
Hazard Flashers ...........................................
277
Fuel Shutoff ...................................................
277
Jump Starting the Vehicle .........................
278
Post-Crash Alert System ............................
281
Transporting the Vehicle ...........................
282
Customer Assistance
Getting the Services You Need ...............
283
In California (U.S. Only) ..............................
284
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) .......................
285
Utilizing the Mediation/Arbitration Program (Canada Only) ..........................................
286
Getting Assistance Outside the U.S. and Canada ......................................................
287Ordering Additional Owner's Literature
......................................................................
289
Reporting Safety Defects (U.S. Only) ......
290
Reporting Safety Defects (Canada Only) ......................................................................
290
Fuses
Fuse Specification Chart ...........................
292
Changing a Fuse .........................................
307
Maintenance
General Information ....................................
310
Opening and Closing the Hood ...............
310
Under Hood Overview - 2.7L/3.0L ...........
312
Under Hood Overview - 3.7L .....................
314
Engine Oil Dipstick - 2.7L/3.0L ..................
316
Engine Oil Dipstick - 3.7L ...........................
316
Engine Oil Check .........................................
316
Oil Change Indicator Reset ........................
317
Engine Coolant Check ................................
318
Automatic Transmission Fluid Check ......
323
Brake Fluid Check .......................................
323
Power Steering Fluid Check .....................
324
4
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Table of Contents

Settings
Settings
See Display Options
Info/Trip/Fuel
Gauges
Traction Control
Select Your Setting
Handling in D
Drive Control
Handling in S
Performance in
S
Blindspot
Driver Assistance
Cross Traffic AlertSelect Your Setting
Cruise Control
Driver Alert
Select Your Setting
Mode
Lane Keeping
System
Intensity
Alert Sensitivity
Pre-Collision
Active Braking
114
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Information Displays

Action
Message
Displays when the brake pedal needs to be depressed to enable the transmission to shift from park.
Depress Brake to Shift from Park
Displays when neutral hold is active. See Automatic Transmission (page 191).
Stay in Neutral Mode Engaged
Displays when the neutral button N needs to be pressed again to enter ne\
utral hold. See Auto-matic Transmission
(page 191).
To Stay in Neutral When Exiting Vehicle
Select N Again
HEAD UP DISPLAY
(IF EQUIPPED)
Head Up Display (HUD)
This is a visual system that shows information
in your field of view as you drive. The
information comes from various vehicle
systems and includes vehicle speed, speed
limit, navigation, and advanced driver
assistance systems (ADAS), such as adaptive
cruise control (ACC) and the lane keeping
system. This system projects the information
off the windshield, and focuses the image near the end of the hood approximately
7 ft
(2 m) in front of the driver. Viewing this
information does not require you to
significantly move your head, allowing you
to keep your eyes on the road while having
quick and easy access to information. Head Up Display Information Signaling and Traffic Indication.
A
Left Information Group.
B
ADAS Display Area.
C
139
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Information DisplaysE228521

WARNING: The sensor may
incorrectly track lane markings as other
structures or objects. This can result in a
false or missed warning. WARNING:
The system may not
operate properly if the sensor is blocked.
Keep the windshield free from obstruction. WARNING:
If damage occurs in the
immediate area surrounding the sensor,
have your vehicle checked as soon as
possible. WARNING:
The system may not
correctly operate if your vehicle is fitted
with a suspension kit not approved by us.
Note: The system works as long as the
camera can detect one lane marking.
Note: When aid or alert and aid modes are
selected and the system detects no steering
activity for a short period, the system alerts
you to put your hands on the steering wheel.
The system may detect a light grip or touch
on the steering wheel as hands off driving. Note:
The system may not function with a
blocked camera, or a damaged or dirty
windshield. The system does not function if
the operational speed of the vehicle is less
than
40 mph (64 km/h). When you switch the system on and it
detects an unintentional drift out of your lane
is likely to occur, the system notifies or
assists you to stay in your lane through the
steering system and information display. In
Alert mode, the system provides a warning
by vibrating the steering wheel. In Aid mode,
the system provides steering assistance by
gently counter steering your vehicle back
into the lane.When the system is functioning in the
combined Alert and Aid mode, the system
first provides steering assistance by gently
counter steering your vehicle back into the
lane, followed by a warning by vibrating the
steering wheel if the vehicle is still out of the
lane markings.
Switching the System On and Off
Note:
The system on or off setting is stored
until it is manually changed unless a MyKey
is detected. If the system detects a MyKey
it defaults to on and the mode is set to Alert. Press the button on the direction indicator
stalk to switch the system on or off.
245
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Driving AidsE249505 E132099

System Settings
The system has optional setting menus
available. To view or adjust the settings, See
Settings (page 485). The system stores the
last-known selection for each of these
settings. You do not need to readjust your
settings each time you switch the system on.
Mode: This setting allows you to select which
of the system features you can enable. Alert only – Provides a steering wheel
vibration when the system detects an
unintended lane departure. Aid only – Provides steering assistance
toward the lane center when the system
detects an unintended lane departure.
AlertA
AidB
Alert + Aid – Provides steering assistance
toward the lane center.
If your vehicle continues drifting out of the
lane, the system provides a steering wheel
vibration.
Note: The alert and aid diagrams illustrate
general zone coverage. They do not provide
exact zone parameters.
246
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Driving AidsE165515 E165516 E165517

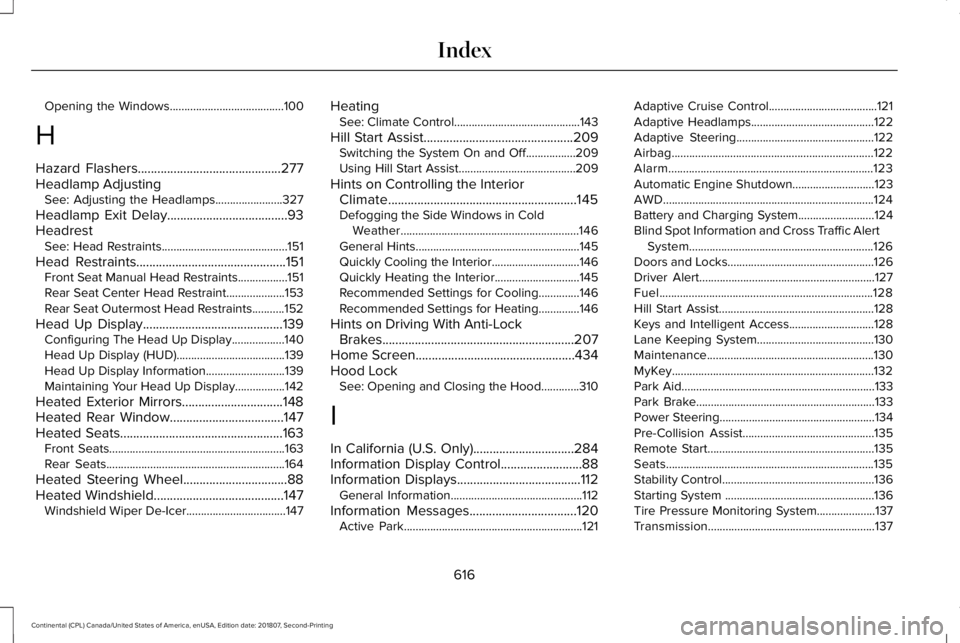

Opening the Windows.......................................100
H
Hazard Flashers............................................277
Headlamp Adjusting See: Adjusting the Headlamps.......................327
Headlamp Exit Delay.....................................93
Headrest See: Head Restraints...........................................151
Head Restraints
..............................................151
Front Seat Manual Head Restraints.................151
Rear Seat Center Head R
estraint....................153
Rear Seat Outermost Head Restraints...........152
Head Up Display...........................................139 Configuring The Head Up Display

..................140
Head Up Display (HUD).....................................139
Head Up Display Information...........................139
Maintaining Your Head Up Display.................142
Heated Exterior Mirrors...............................148
Heated Rear Window...................................147
Heated Seats..................................................163 Front Seats............................................................163
Rear Seats.............................................................164
Heated Steering Wheel................................88
Heated Windshield........................................147 Windshield Wiper De-Icer..................................147 Heating
See: Climate Control...........................................143
Hill Start Assist
..............................................209
Switching the System On and Off.................209
Using Hill Start Assist........................................209
Hints on Controlling the Interior Climate..........................................................145
Defogging the Side Windows in Cold Weather.............................................................146
General Hints........................................................145
Quickly Cooling the Interior..............................146
Quickly Heating the Interior.............................145
Recommended Settings for Cooling..............146
Recommended Settings for Heating

..............146
Hints on Driving With Anti-Lock Brak
es
...........................................................207
Home Screen.................................................434
Hood Lock See: Opening and Closing the Hood.............310
I
In California (U.S. Only)...............................284
Information Display Control
.........................88
Information Displays......................................112
General Information.............................................112
Information Messages
.................................120
Active Park.............................................................121 Adaptive Cruise Control.....................................121
Adaptive Headlamps..........................................122
Adaptive Steering...............................................122
Airbag.....................................................................122
Alarm......................................................................123
Automatic Engine Shutdown............................123
AWD........................................................................\
124
Battery and Charging System..........................124
Blind Spot Information and Cross Traffic Alert
System...............................................................126
Doors and Locks..................................................126
Driver Alert............................................................127
Fuel........................................................................\
.128
Hill Start Assist.....................................................128
Keys and Intelligent Access.............................128
Lane Keeping System........................................130
Maintenance.........................................................130
MyKey.....................................................................132
Park Aid..................................................................133
Park Brake.............................................................133
Power Steering.....................................................134
Pre-Collision Assist.............................................135
Remote Start.........................................................135
Seats.......................................................................135
Stability Control....................................................136
Starting System ...................................................136
Tire Pressure Monitoring System....................137
Transmission.........................................................137
616
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Index
