LINCOLN CORSAIR 2022 Owners Manual

SPECIAL OPERATING CONDITIONS
SCHEDULED MAINTENANCE
If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance as indicated. If
you operate your vehicle occasionally under
any of these conditions, it is not necessary
to perform the extra maintenance. For
specific recommendations, see your
dealership service advisor or technician. Perform the services shown in the following
tables when specified or within
3,000 mi
(4,800 km) of the message appearing in the
information display prompting you to change
your oil.
• Example 1
: The message comes on at
28,750 mi (46,270 km). Perform the
30,000 mi (48,000 km) automatic
transmission fluid replacement.
• Example 2
: The message has not come
on, but the odometer reads 30,000 mi
(48,000 km) (for example, the Intelligent
Oil-Life Monitor was reset at 25,000 mi
(40,000 km). Perform the engine air filter
replacement.
588
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Scheduled Maintenance

Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information display and\
perform services listed in the Normal
Scheduled Maintenance chart.
As required
Inspect rear axle and U-joints (AWD).
Inspect frequently, service
as required
Change automatic transmission fluid.
Every 30,000 mi
(48,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km) Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use Such as Delivery, Taxi, Patrol Car or Livery
Change engine oil and filter as indicated by the information display and\
perform services listed in the Normal
Scheduled Maintenance chart.
As required
Replace cabin air filter.1
Inspect frequently, service
as required
Replace engine air filter.
589
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Scheduled Maintenance

Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use Such as Delivery, Taxi, Patrol Car or Livery
Change automatic transmission fluid.
Every 30,000 mi
(48,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km)
1 This is an optional feature. Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Replace cabin air filter. 1
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
Every
5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread depth.
Change engine oil and filter. 2
Every
5,000 mi (8,000 km)
or six months
590
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Scheduled Maintenance

Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Perform multi-point inspection.
Change automatic transmission fluid.
Every 30,000 mi
(48,000 km)
1 This is an optional feature.
2 Reset your Intelligent Oil-Life Monitor after engine oil and filter chang\
es.
See Oil Change Indicator Reset (page 397).
Exceptions
There are several exceptions to the Normal
Schedule:
Axle and PTU Maintenance
The Power Transfer Unit (PTU) and rear axle
(AWD only) in your vehicle does not require
any normal scheduled maintenance unless
the vehicle has experienced extended
periods of extreme/severe duty cycle driving
or the PTU and/or the rear axle has been
submerged in water. Checking the PTU and
rear axle fluid is not necessary unless the
unit shows signs of leakage. Contact an
authorized dealer for service. California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. We however, urge you to have all
recommended maintenance services
performed at the specified intervals and to
record all vehicle service.
Engine Air Filter and Cabin Air Filter
Replacement
The life of the engine air filter and cabin air
filter is dependent on exposure to dusty and
dirty conditions. Vehicles operated in these
conditions require frequent inspection and
replacement of the engine air filter and cabin
air filter.
591
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Scheduled Maintenance

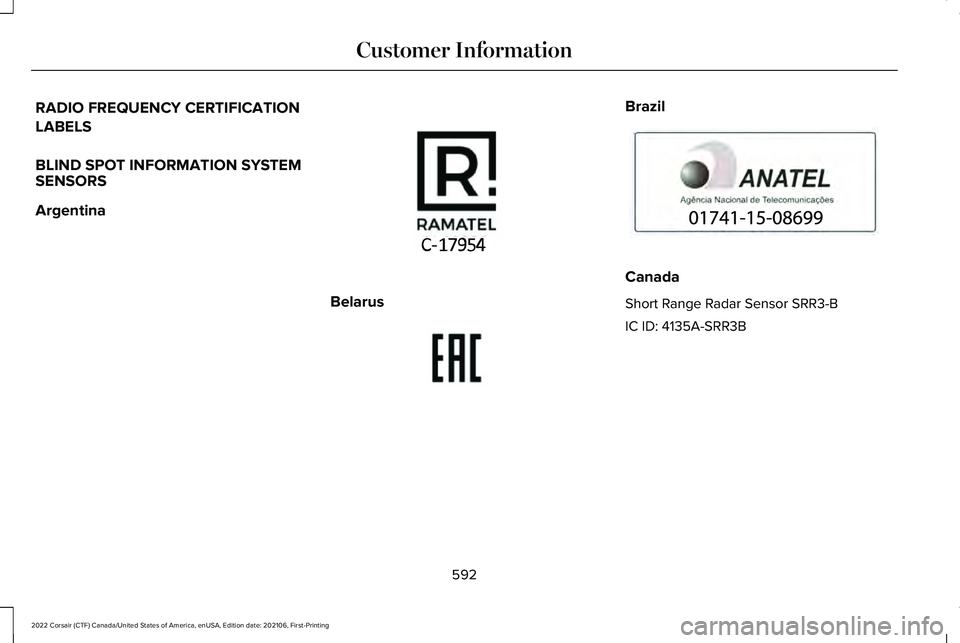

RADIO FREQUENCY CERTIFICATION
LABELS
BLIND SPOT INFORMATION SYSTEM
SENSORS
Argentina
Belarus Brazil
Canada
Short Range Radar Sensor SRR3-B
IC ID: 4135A-SRR3B
592
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Customer InformationE363578 E253816 E340204

593
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Customer InformationE351800

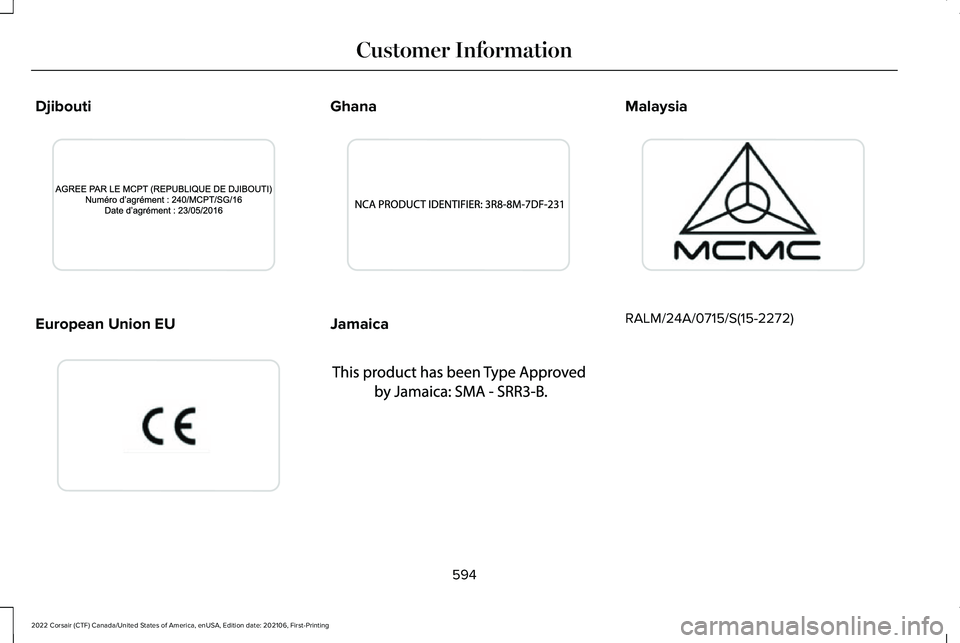

Djibouti
European Union EU Ghana
Jamaica Malaysia
RALM/24A/0715/S(15-2272)
594
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Customer InformationE340826 E310043 E269695 E340517 E269697

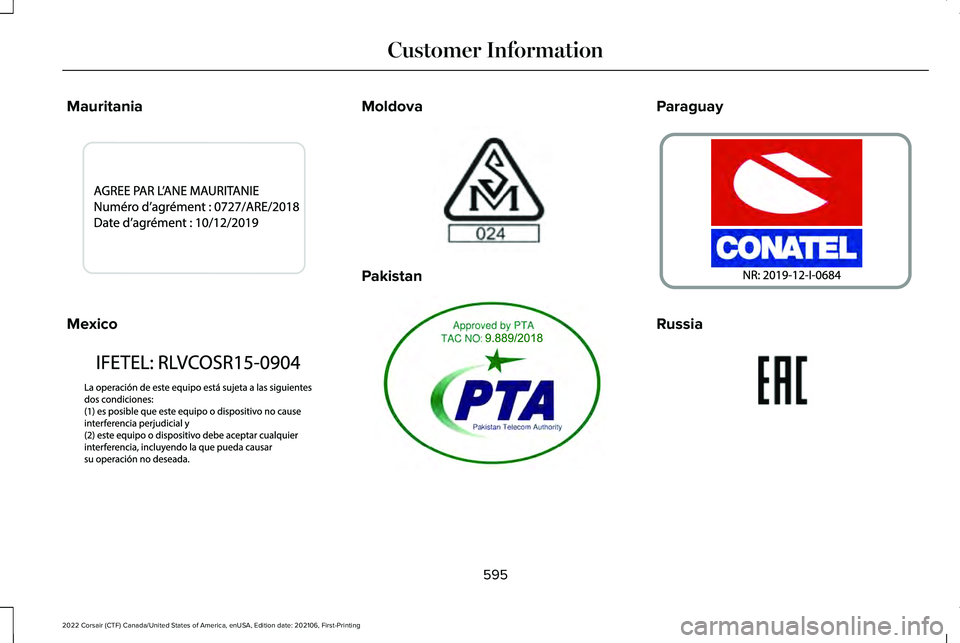

Mauritania
Mexico Moldova
Pakistan Paraguay
Russia
595
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Customer InformationE353342 E353300 E337971 E352429 E337181 E253816

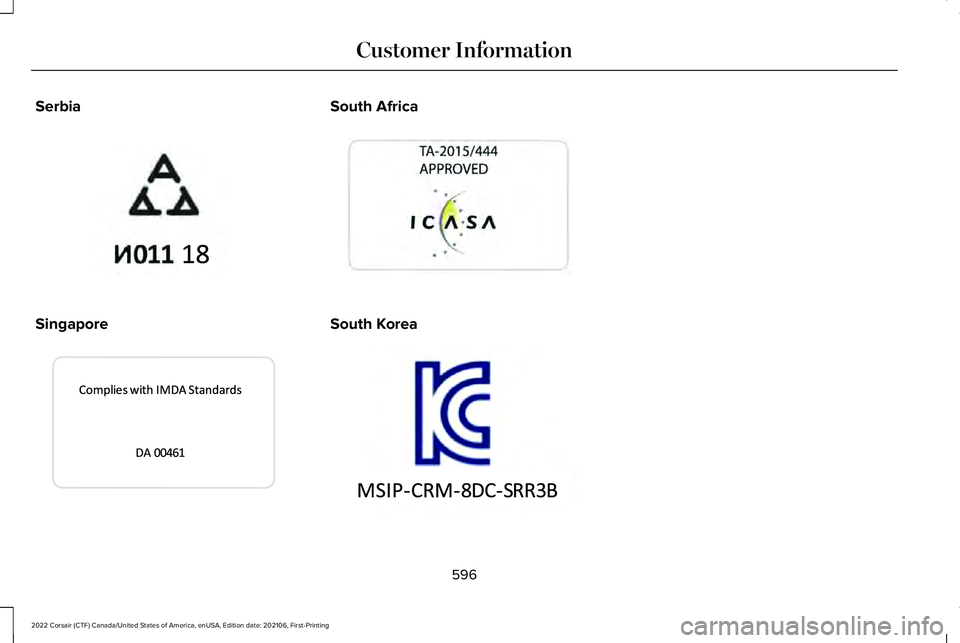

Serbia
Singapore South Africa
South Korea
596
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Customer InformationE340200 E339940 E269696 E351001

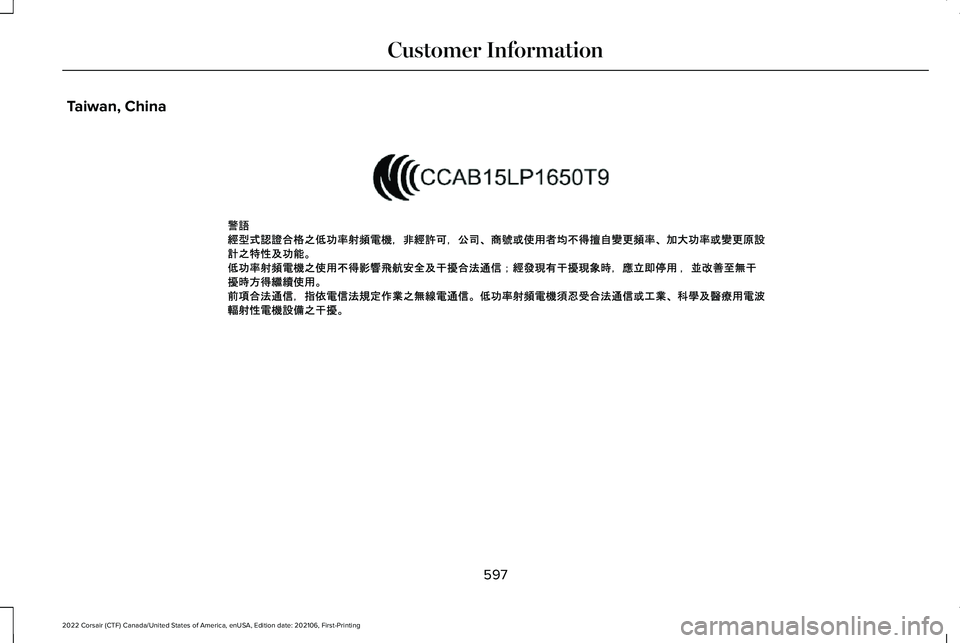

Taiwan, China
597
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Customer InformationE340203
