Introduction
About This Manual
..........................................11
Symbols Glossary ............................................
11
Data Recording ...............................................
14
Perchlorate .......................................................
18
Lincoln Automotive Financial Services ........................................................................\
..
18
Replacement Parts Recommendation ........................................................................\
..
19
Special Notices ...............................................
19
Mobile Communications Equipment .........
21
Export Unique Options ..................................
21
Environment
Protecting the Environment ........................
23
At a Glance
Instrument Panel ............................................
24
Child Safety
General Information ......................................
27
Installing Child Restraints ............................
29
Booster Seats .................................................
35Child Restraint Positioning
..........................
38
Child Safety Locks .........................................
40
Seatbelts
Principle of Operation ..................................
42
Fastening the Seatbelts ...............................
43
Seatbelt Height Adjustment .......................
46
Seatbelt Warning Lamp and Indicator Chime ...........................................................
46
Seatbelt Reminder .........................................
47
Child Restraint and Seatbelt Maintenance ........................................................................\
.
49
Seatbelt Extensions ......................................
49
Personal Safety System ™
Personal Safety System ™..............................
51
Supplementary Restraints System
Principle of Operation ..................................
52
Driver and Passenger Airbags ...................
53
Front Passenger Sensing System .............
55
Side Airbags ....................................................
57Driver and Passenger Knee Airbags
........
58
Safety Canopy™ ..............................................
59
Crash Sensors and Airbag Indicator ........
60
Airbag Disposal ...............................................
61
Pedestrian Protection
Pedestrian Alert System ..............................
62
911 Assist
What Is 911 Assist ...........................................
63
Emergency Call Requirements ...................
63
Emergency Call Limitations ........................
64
Keys and Remote Controls
General Information on Radio Frequencies ........................................................................\
65
Remote Control ..............................................
65
Replacing a Lost Key or Remote Control ........................................................................\
68
Phone as a Key
What Is Phone As a Key ...............................
69
Phone as a Key Limitations .........................
69
1
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Table of Contents

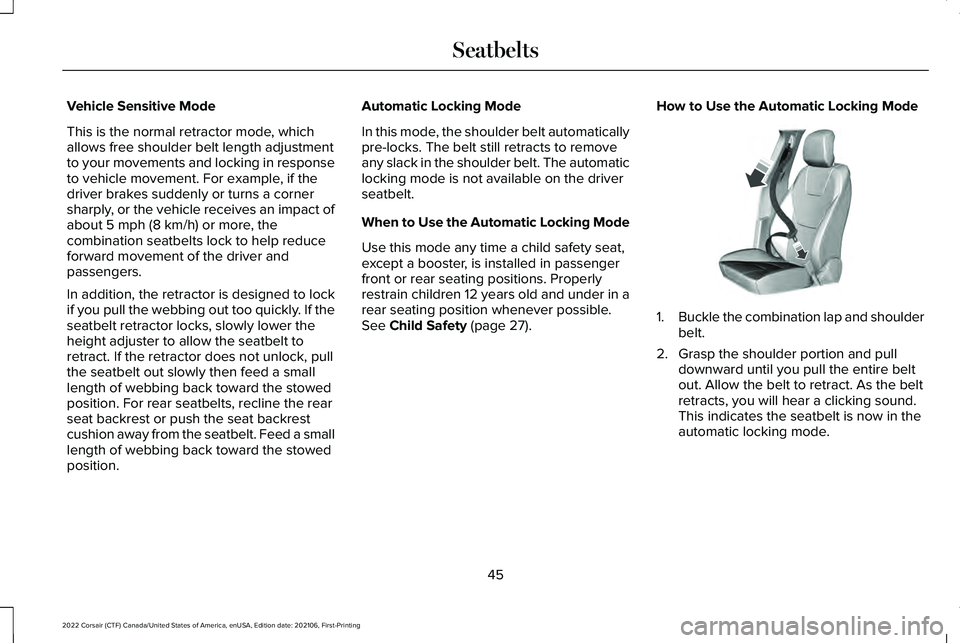

Vehicle Sensitive Mode
This is the normal retractor mode, which
allows free shoulder belt length adjustment
to your movements and locking in response
to vehicle movement. For example, if the
driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of
about 5 mph (8 km/h) or more, the
combination seatbelts lock to help reduce
forward movement of the driver and
passengers.
In addition, the retractor is designed to lock
if you pull the webbing out too quickly. If the
seatbelt retractor locks, slowly lower the
height adjuster to allow the seatbelt to
retract. If the retractor does not unlock, pull
the seatbelt out slowly then feed a small
length of webbing back toward the stowed
position. For rear seatbelts, recline the rear
seat backrest or push the seat backrest
cushion away from the seatbelt. Feed a small
length of webbing back toward the stowed
position. Automatic Locking Mode
In this mode, the shoulder belt automatically
pre-locks. The belt still retracts to remove
any slack in the shoulder belt. The automatic
locking mode is not available on the driver
seatbelt.
When to Use the Automatic Locking Mode
Use this mode any time a child safety seat,
except a booster, is installed in passenger
front or rear seating positions. Properly
restrain children 12 years old and under in a
rear seating position whenever possible.
See
Child Safety (page 27).
How to Use the Automatic Locking Mode 1.
Buckle the combination lap and shoulder
belt.
2. Grasp the shoulder portion and pull downward until you pull the entire belt
out. Allow the belt to retract. As the belt
retracts, you will hear a clicking sound.
This indicates the seatbelt is now in the
automatic locking mode.
45
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing SeatbeltsE142591

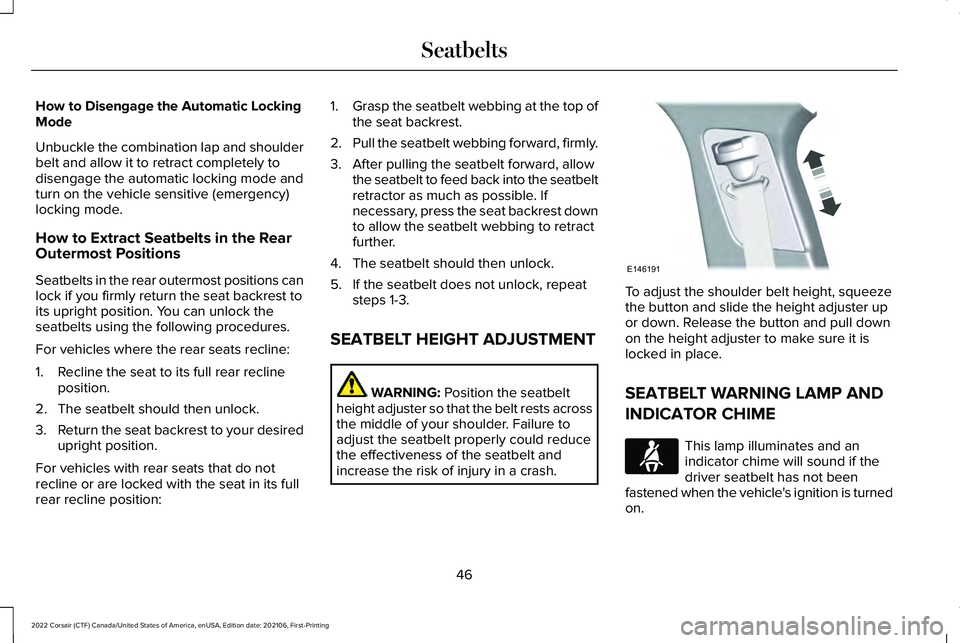

How to Disengage the Automatic Locking
Mode
Unbuckle the combination lap and shoulder
belt and allow it to retract completely to
disengage the automatic locking mode and
turn on the vehicle sensitive (emergency)
locking mode.
How to Extract Seatbelts in the Rear
Outermost Positions
Seatbelts in the rear outermost positions can
lock if you firmly return the seat backrest to
its upright position. You can unlock the
seatbelts using the following procedures.
For vehicles where the rear seats recline:
1. Recline the seat to its full rear recline
position.
2. The seatbelt should then unlock.
3. Return the seat backrest to your desired
upright position.
For vehicles with rear seats that do not
recline or are locked with the seat in its full
rear recline position: 1.
Grasp the seatbelt webbing at the top of
the seat backrest.
2. Pull the seatbelt webbing forward, firmly.
3. After pulling the seatbelt forward, allow the seatbelt to feed back into the seatbelt
retractor as much as possible. If
necessary, press the seat backrest down
to allow the seatbelt webbing to retract
further.
4. The seatbelt should then unlock.
5. If the seatbelt does not unlock, repeat steps 1-3.
SEATBELT HEIGHT ADJUSTMENT WARNING: Position the seatbelt
height adjuster so that the belt rests across
the middle of your shoulder. Failure to
adjust the seatbelt properly could reduce
the effectiveness of the seatbelt and
increase the risk of injury in a crash. To adjust the shoulder belt height, squeeze
the button and slide the height adjuster up
or down. Release the button and pull down
on the height adjuster to make sure it is
locked in place.
SEATBELT WARNING LAMP AND
INDICATOR CHIME
This lamp illuminates and an
indicator chime will sound if the
driver seatbelt has not been
fastened when the vehicle's ignition is turned
on.
46
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing SeatbeltsE146191 E71880

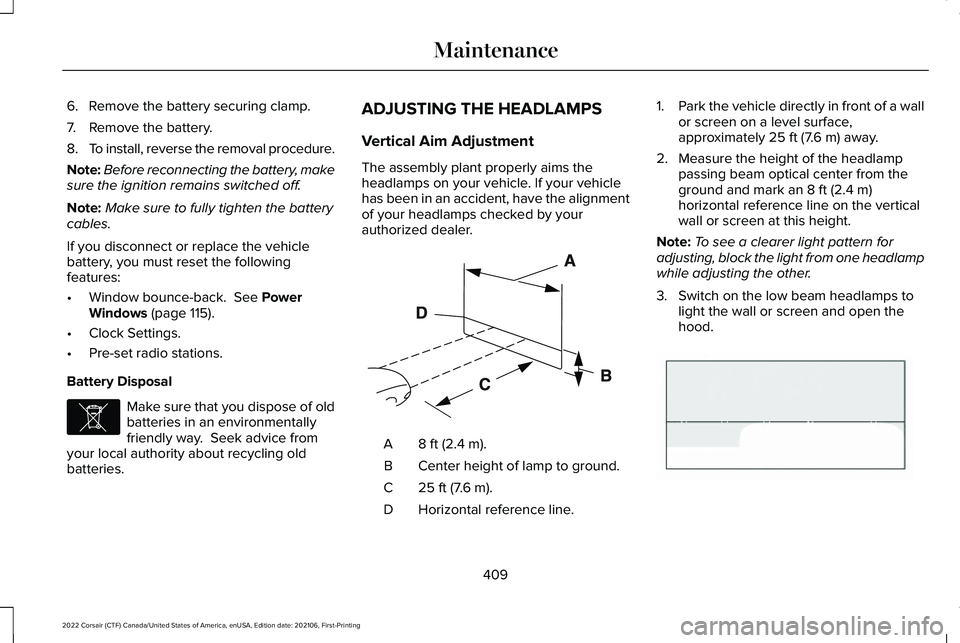

6. Remove the battery securing clamp.
7. Remove the battery.
8.
To install, reverse the removal procedure.
Note: Before reconnecting the battery, make
sure the ignition remains switched off.
Note: Make sure to fully tighten the battery
cables.
If you disconnect or replace the vehicle
battery, you must reset the following
features:
• Window bounce-back. See Power
Windows (page 115).
• Clock Settings.
• Pre-set radio stations.
Battery Disposal Make sure that you dispose of old
batteries in an environmentally
friendly way. Seek advice from
your local authority about recycling old
batteries. ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The assembly plant properly aims the
headlamps on your vehicle. If your vehicle
has been in an accident, have the alignment
of your headlamps checked by your
authorized dealer.
8 ft (2.4 m).
A
Center height of lamp to ground.
B
25 ft (7.6 m).
C
Horizontal reference line.
D 1.
Park the vehicle directly in front of a wall
or screen on a level surface,
approximately
25 ft (7.6 m) away.
2. Measure the height of the headlamp passing beam optical center from the
ground and mark an
8 ft (2.4 m)
horizontal reference line on the vertical
wall or screen at this height.
Note: To see a clearer light pattern for
adjusting, block the light from one headlamp
while adjusting the other.
3. Switch on the low beam headlamps to light the wall or screen and open the
hood. 409
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing MaintenanceE107998 E142592 E142465

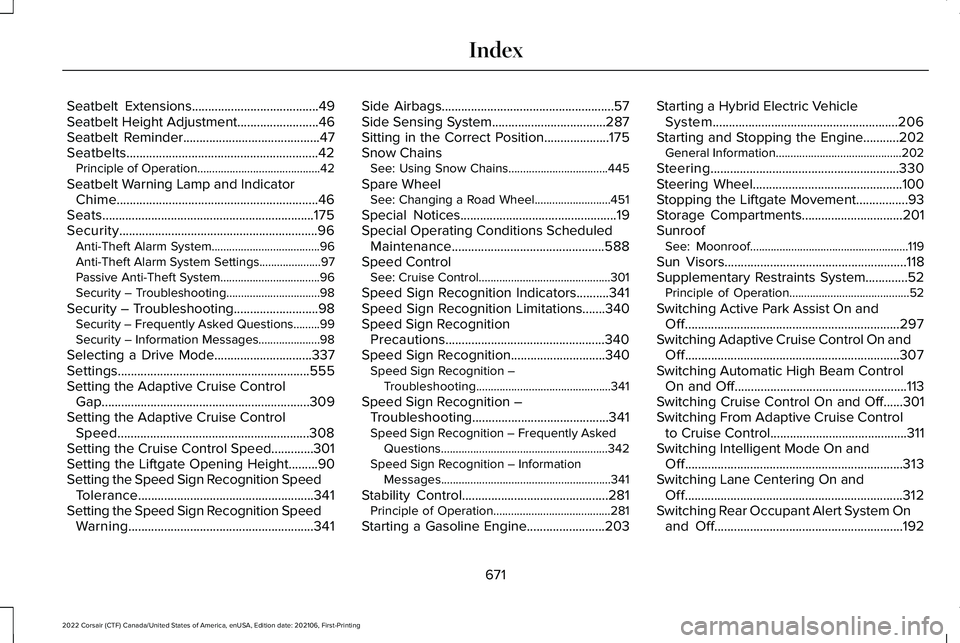

Seatbelt Extensions.......................................49
Seatbelt Height Adjustment.........................46
Seatbelt Reminder..........................................47
Seatbelts...........................................................42 Principle of Operation..........................................42
Seatbelt Warning Lamp and Indicator Chime..............................................................46
Seats.................................................................175
Security.............................................................96 Anti-Theft Alarm System.....................................96
Anti-Theft Alarm System Settings.....................
97
Passive Anti-Theft System..................................96
Security – Troubleshooting................................98
Security – Troubleshooting..........................98 Security – Frequently Asked Questions.........99
Security – Information Messages.....................
98
Selecting a Drive Mode..............................337
Settings...........................................................555
Setting the Adaptive Cruise Control Gap................................................................309
Setting the Adaptive Cruise Control Speed...........................................................308
Setting the Cruise Control Speed.............301
Setting the Liftgate Opening Height.........90
Setting the Speed Sign Recognition Speed Tolerance......................................................341
Setting the Speed Sign Recognition Speed Warning.........................................................341 Side Airbags
.....................................................57
Side Sensing System...................................287
Sitting in the Correct Position....................175
Snow Chains See: Using Snow Chains..................................445
Spare Wheel See: Changing a Road Wheel..........................451
Special Notices
................................................19
Special Operating Conditions Scheduled Maintenance
...............................................588
Speed Control See: Cruise Control.............................................301
Speed Sign Recognition Indicators..........341
Speed Sign Recognition Limitations.......340
Speed Sign Recognition Precautions.................................................340
Speed Sign Recognition.............................340 Speed Sign Recognition –
Troubleshooting..............................................341
Speed Sign Recognition – Troubleshooting..........................................341
Speed Sign Recognition – Frequently Asked Questions.........................................................342
Speed Sign Recognition – Information Messages..........................................................341
Stability Control
.............................................281
Principle of Operation........................................281
Starting a Gasoline Engine
........................203 Starting a Hybrid Electric Vehicle
System.........................................................206
Starting and Stopping the Engine...........202 General Information...........................................202
Steering..........................................................330
Steering Wheel
..............................................100
Stopping the Liftgate Movement................93
Storage Compartments
...............................201
Sunroof See: Moonroof......................................................119
Sun Visors........................................................118
Supplementary Restraints System.............52 Principle of Operation.........................................52
Switching Active Park Assist On and Off..................................................................297
Switching Adaptive Cruise Control On and Off..................................................................307
Switching Automatic High Beam Control On and Off.....................................................113
Switching Cruise Control On and Off......301
Switching From Adaptive Cruise Control to Cruise Control..........................................311
Switching Intelligent Mode On and Off...................................................................313
Switching Lane Centering On and Off...................................................................312
Switching Rear Occupant Alert System On and Off..........................................................192
671
2022 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202106, First-Printing Index
