Warnings Status
Low brake fluid level Warning returns after the ignition key
is turned from OFF to RUN
Check tail lamps
Check brake lamps
Check front turn lamps
Check side repeater lamps (if
equipped)
Check rear turn lamps
Check Traction Control
Check AdvanceTrac (if
equipped)
Trunk ajar
Low washer fluid
Check AC (cabin) filter
Change oil soon
Oil change required
Service park brake
Apply park brake
Data error
ENGINE POWER REDUCED.Displayed when the engine is
overheating. Stop the vehicle as soon as safely possible and turn off the
engine. If this warning stays on, contact your dealer as soon as possible.
PULL OFF ROAD SAFELY.Displayed when the engine is overheating.
Stop the vehicle as soon as safely possible and turn off the engine. If this
warning stays on, contact your dealer as soon as possible.
TURN OFF IGNITION.Displayed when the engine is overheating. Turn
off the engine. If this warning stays on, contact your dealer as soon as
possible.
DRIVER’S DOOR AJAR.Displayed when the driver’s door is not
completely closed.
PASSENGER DOOR AJAR.Displayed when the passenger side door is
not completely closed.
DRIVER’S REAR DOOR AJAR.Displayed when the driver’s rear door
is not completely closed.
PASSENGER REAR DOOR AJAR.Displayed when the passenger side
rear door is not completely closed.
Driver Controls
112

ToresettheA/C filter monitoring system to 100% after each A/C Filter
change:
1. Press the STATUS control to
access the System Check function,
the message center will display A/C
FILTER XXX% RESET FOR NEW.
2. Press and hold the RESET
control to set to 100%, the message
center will display IF NEW FILTER
HOLD RESET.
3. After a successful reset, the
message center will display A/C
FILTER LIFE SET TO 100%.
CHANGE OIL SOON/OIL CHANGE REQUIRED.Displayed when the
engine oil life remaining is 5 percent or less. When oil life left is between
5% and 0%, the CHANGE OIL SOON message will be displayed. When oil
life left reaches 0%, the OIL CHANGE REQUIRED message will be
displayed.
An oil change is required whenever indicated by the message center.
USE ONLY RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change
[approximately 8,000 km (5,000 miles) or 180 days] perform the
following:
1. Press the STATUS control to
access the System Check function.
Press RESET to reset oil %.
2. Press and hold the RESET
control to set to 100%.
Driver Controls
115

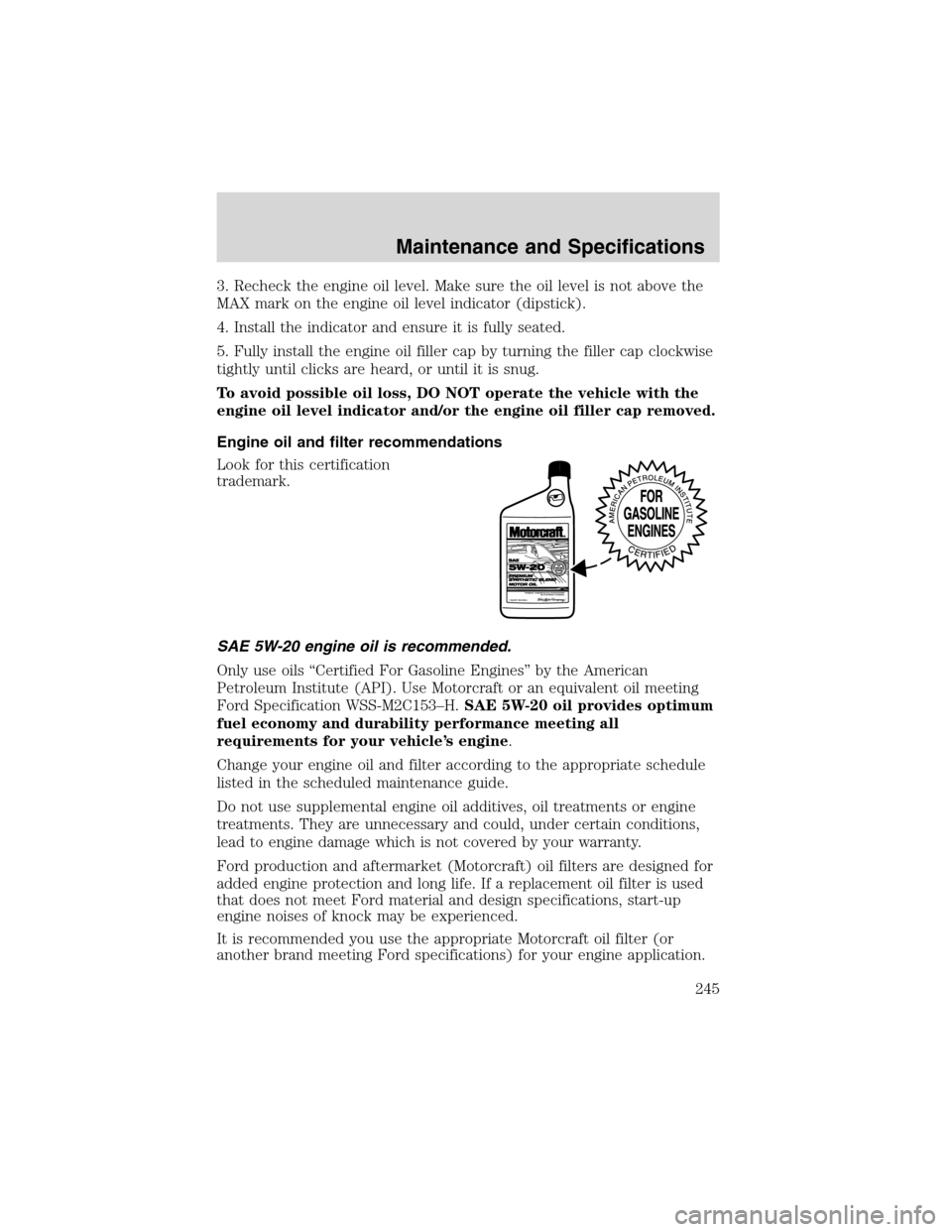

3. Recheck the engine oil level. Make sure the oil level is not above the
MAX mark on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
tightly until clicks are heard, or until it is snug.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
SAE 5W-20 engine oil is recommended.
Only use oils“Certified For Gasoline Engines”by the American
Petroleum Institute (API). Use Motorcraft or an equivalent oil meeting
Ford Specification WSS-M2C153–H.SAE 5W-20 oil provides optimum
fuel economy and durability performance meeting all
requirements for your vehicle’s engine.
Change your engine oil and filter according to the appropriate schedule
listed in the scheduled maintenance guide.
Do not use supplemental engine oil additives, oil treatments or engine
treatments. They are unnecessary and could, under certain conditions,
lead to engine damage which is not covered by your warranty.
Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises of knock may be experienced.
It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
Maintenance and Specifications
245

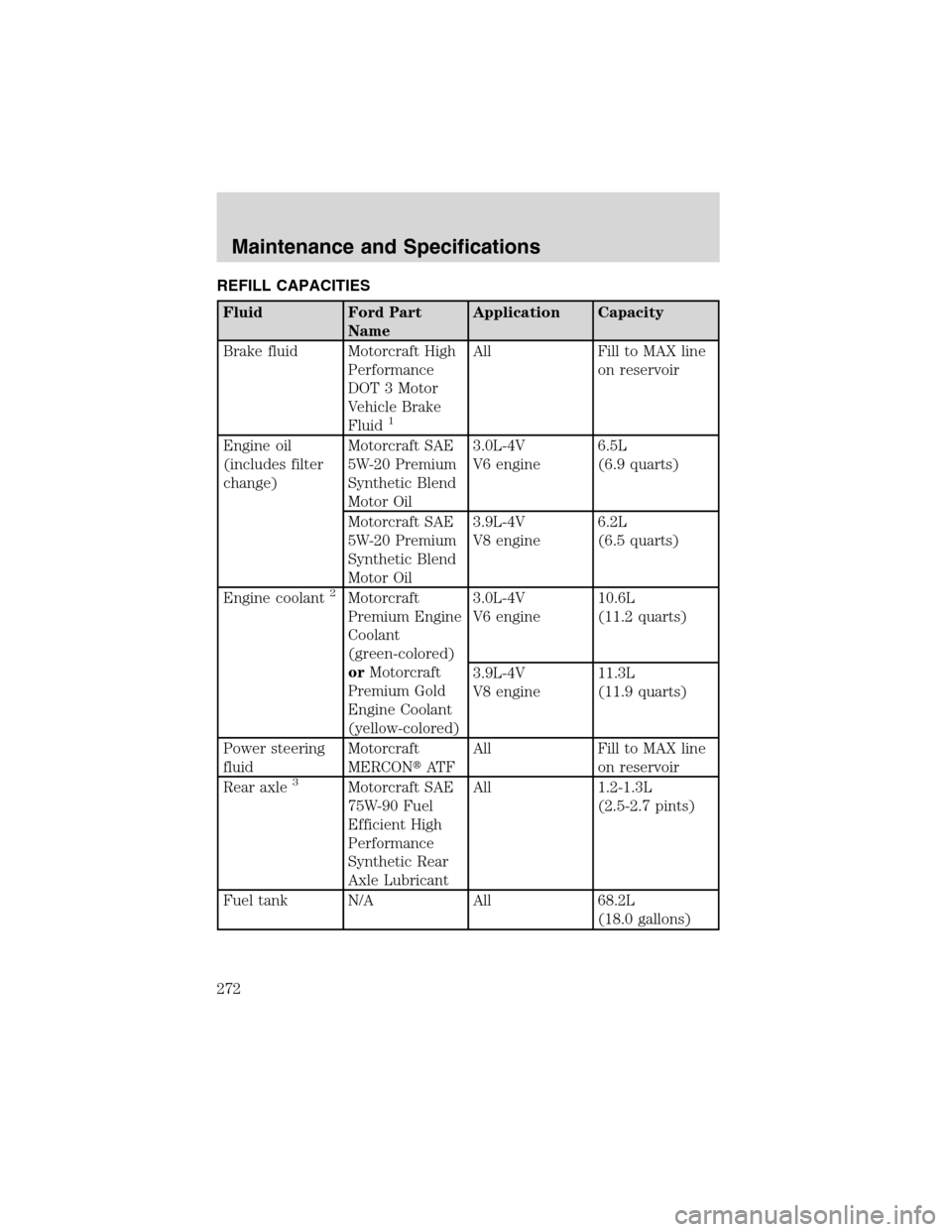

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
All Fill to MAX line
on reservoir
Engine oil
(includes filter
change)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil3.0L-4V
V6 engine6.5L
(6.9 quarts)
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil3.9L-4V
V8 engine6.2L
(6.5 quarts)
Engine coolant
2Motorcraft
Premium Engine
Coolant
(green-colored)
orMotorcraft
Premium Gold
Engine Coolant
(yellow-colored)3.0L-4V
V6 engine10.6L
(11.2 quarts)
3.9L-4V
V8 engine11.3L
(11.9 quarts)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to MAX line
on reservoir
Rear axle
3Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle LubricantAll 1.2-1.3L
(2.5-2.7 pints)
Fuel tank N/A All 68.2L
(18.0 gallons)
Maintenance and Specifications
272

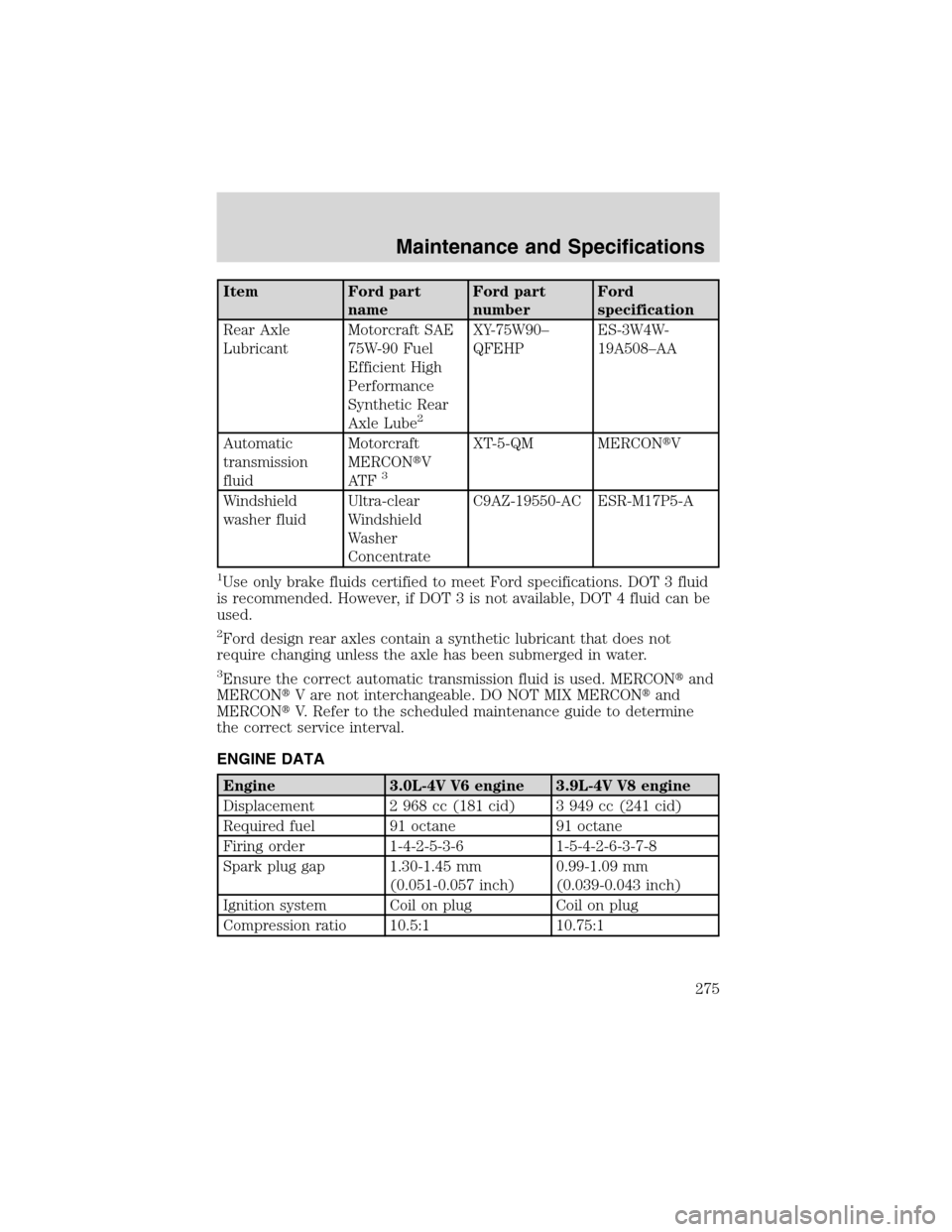

Item Ford part
nameFord part
numberFord
specification
Rear Axle
LubricantMotorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lube
2
XY-75W90–
QFEHPES-3W4W-
19A508–AA
Automatic
transmission
fluidMotorcraft
MERCONV
AT F
3
XT-5-QM MERCONV
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid
is recommended. However, if DOT 3 is not available, DOT 4 fluid can be
used.
2Ford design rear axles contain a synthetic lubricant that does not
require changing unless the axle has been submerged in water.
3Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT MIX MERCONand
MERCONV. Refer to the scheduled maintenance guide to determine
the correct service interval.
ENGINE DATA
Engine 3.0L-4V V6 engine 3.9L-4V V8 engine
Displacement 2 968 cc (181 cid) 3 949 cc (241 cid)
Required fuel 91 octane 91 octane
Firing order 1-4-2-5-3-6 1-5-4-2-6-3-7-8
Spark plug gap 1.30-1.45 mm
(0.051-0.057 inch)0.99-1.09 mm
(0.039-0.043 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 10.5:1 10.75:1
Maintenance and Specifications
275

J
Jack ............................................211
positioning ...............................211
storage .....................................211
Jump-starting your vehicle ......216
K
Keyless entry system ...............129
autolock ...................................128
Keys ...........................................120
positions of the ignition .........181
valet key ..................................120
L
Lamps
autolamp system .......................77
bulb replacement
specifications chart ..................81
cargo lamps ...............................79
daytime running light ...............78
fog lamps ...................................78
headlamps .................................77
headlamps, flash to pass ..........79
instrument panel, dimming .....79
interior lamps .....................81–82
replacing bulbs ...................81–85
Lane change indicator
(see Turn signal) ........................81
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........184
Load limits .................................198
GAWR ......................................198
GVWR ......................................198
trailer towing ..........................198
Locks
autolock ...................................128
childproof ................................122doors ........................................120
Lubricant specifications ...274–275
Lug nuts, anti-theft ...................215
Lumbar support, seats .............136
M
Message center .................106, 108
select button ...........................106
warning messages ...................110
Mirrors ...................................89, 92
automatic dimming
rearview mirror .........................92
fold away ...................................95
heated ........................................94
programmable memory ..........128
side view mirrors (power) .......94
Moon roof ..................................101
Motorcraft parts ................258, 271
N
Navigation system .......................24
cd functions ..............................35
destination mode ......................48
map mode .................................39
quick start .................................27
radio functions ..........................29
O
Octane rating ............................257
Oil (see Engine oil) ..................243
P
Parking brake ............................185
Parts (see Motorcraft parts) ....271
