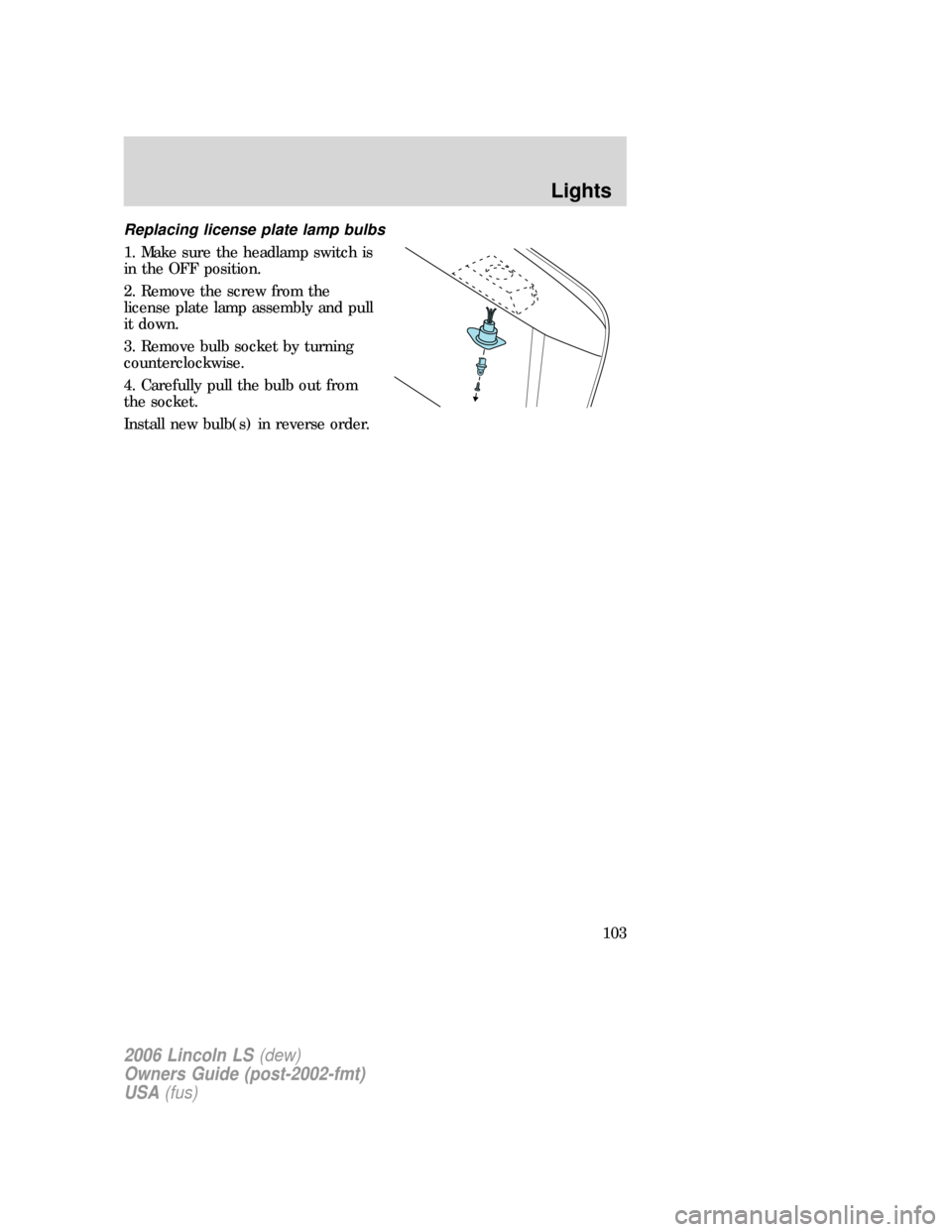

Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the screw from the
license plate lamp assembly and pull
it down.
3. Remove bulb socket by turning
counterclockwise.
4. Carefully pull the bulb out from
the socket.
Install new bulb(s) in reverse order.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
103

Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
•Make sure the gearshift is in P (Park).
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
220

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
13 30A** Heated wiper park
14 30A** ABS module
15 — Not used
16 30A** Blower motor
17 — Not used
18 — Not used
19 30A** Electric park brake
20 30A** Wiper motor
21 30A** Starter solenoid
22 40A** ABS motor
23 — Not used
24 — Not used
Relay 01 — Not used
Relay 02 — Not used
Relay 03 — Coil-on-plug and HEGOs
Relay 04 — Right-hand HID headlamps
Relay 05 — Auxiliary coolant pump
Relay 06 — Left-hand HID headlamps
Relay 07 — Fog lamps
Relay 08 — A/C clutch
Fuse 09 — Not used
Relay 10 — Blower motor
Relay 11 — Not used
Relay 12 — Heated wiper park
Relay 13 — Horn
Relay 14 — PCM power
Relay 15 — Starter motor
Diode — PCM
*Mini fuses **Cartridge fuses
In-line fuse for electric cooling fan
There is a 60A maxi fuse for the electric cooling fan located in a wiring
harness behind the front passenger side trim panel under the dash panel.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
246

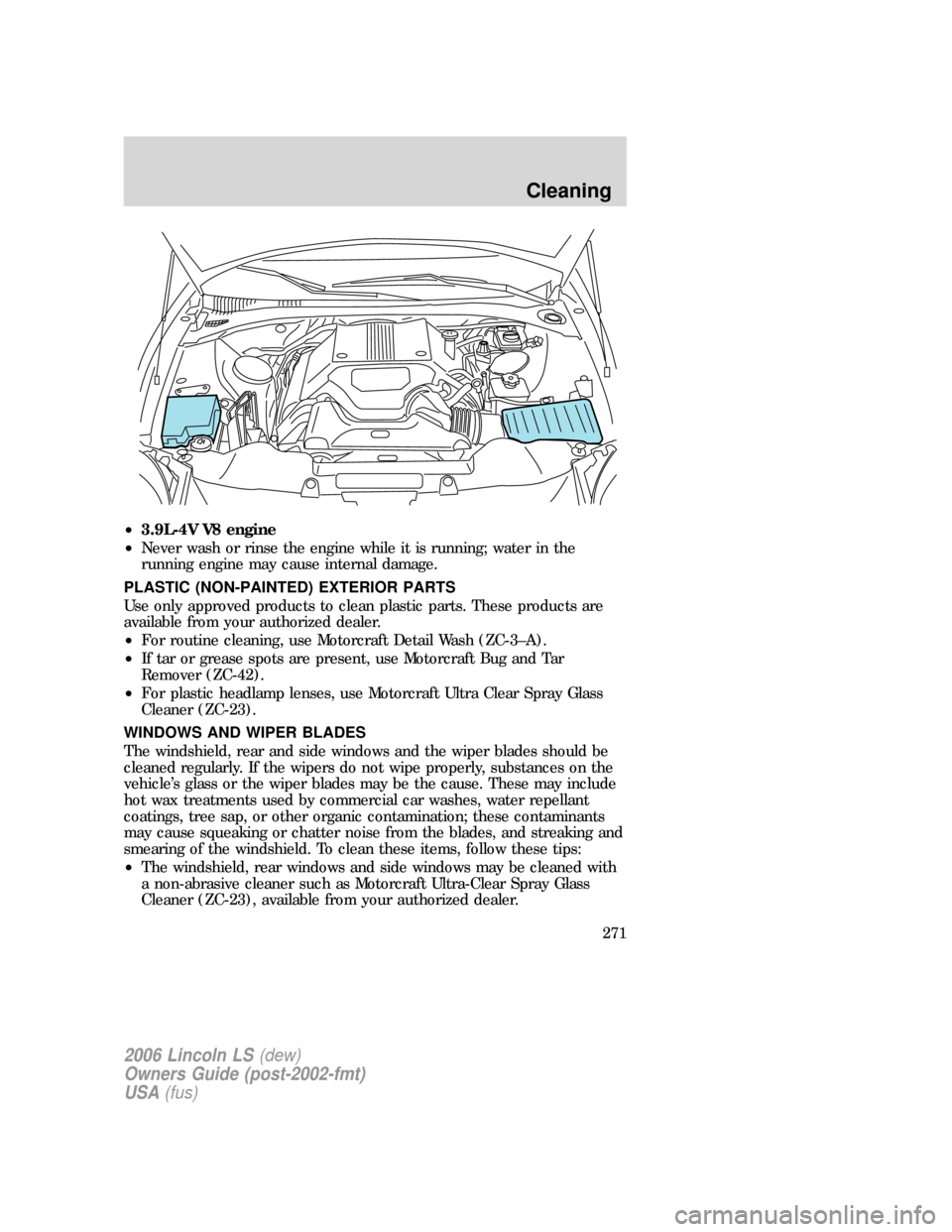

•3.9L-4V V8 engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellant
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
271

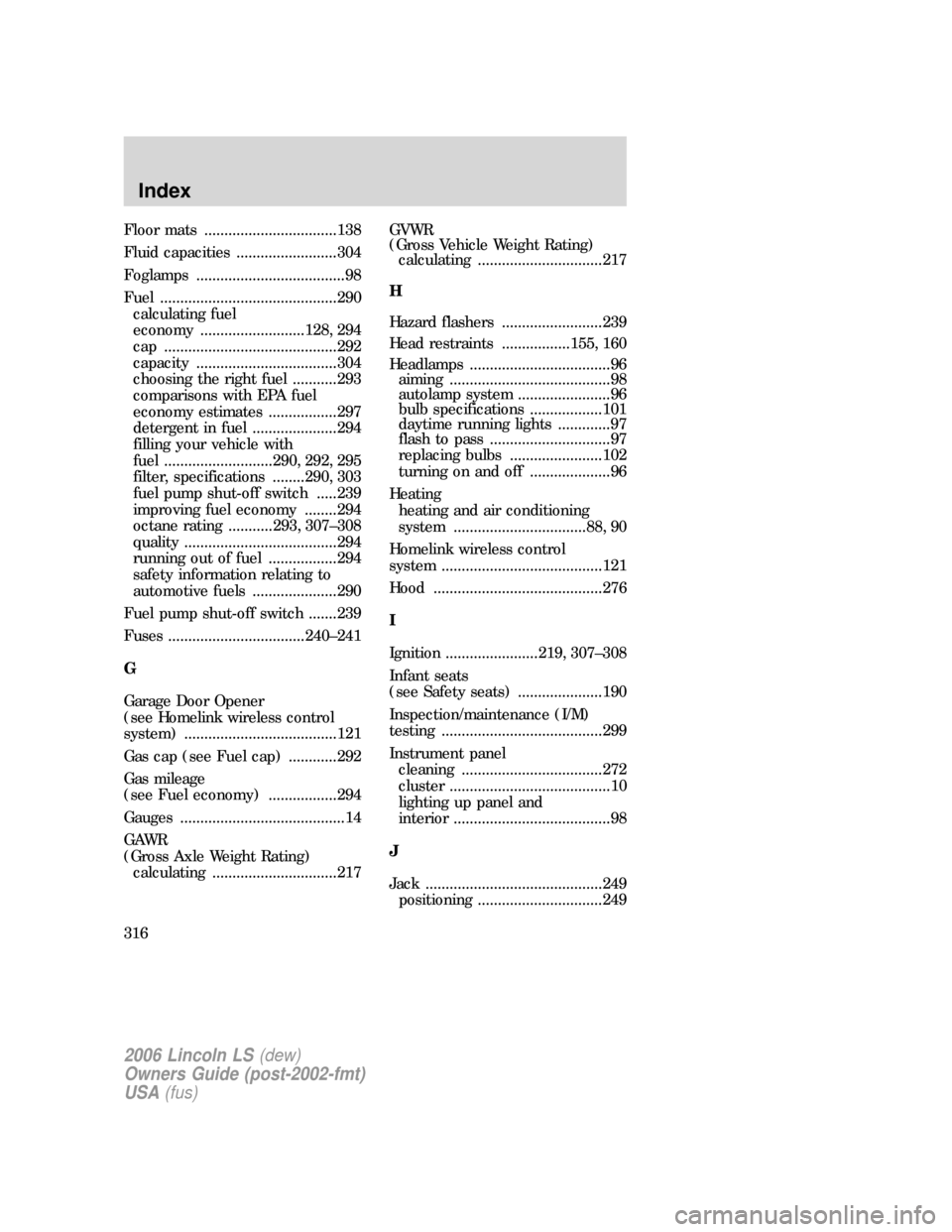

Floor mats .................................138
Fluid capacities .........................304
Foglamps .....................................98
Fuel ............................................290
calculating fuel
economy ..........................128, 294
cap ...........................................292
capacity ...................................304
choosing the right fuel ...........293
comparisons with EPA fuel
economy estimates .................297
detergent in fuel .....................294
filling your vehicle with
fuel ...........................290, 292, 295
filter, specifications ........290, 303
fuel pump shut-off switch .....239
improving fuel economy ........294
octane rating ...........293, 307–308
quality ......................................294
running out of fuel .................294
safety information relating to
automotive fuels .....................290
Fuel pump shut-off switch .......239
Fuses ..................................240–241
G
Garage Door Opener
(see Homelink wireless control
system) ......................................121
Gas cap (see Fuel cap) ............292
Gas mileage
(see Fuel economy) .................294
Gauges .........................................14
GAWR
(Gross Axle Weight Rating)
calculating ...............................217GVWR
(Gross Vehicle Weight Rating)
calculating ...............................217
H
Hazard flashers .........................239
Head restraints .................155, 160
Headlamps ...................................96
aiming ........................................98
autolamp system .......................96
bulb specifications ..................101
daytime running lights .............97
flash to pass ..............................97
replacing bulbs .......................102
turning on and off ....................96
Heating
heating and air conditioning
system .................................88, 90
Homelink wireless control
system ........................................121
Hood ..........................................276
I
Ignition .......................219, 307–308
Infant seats
(see Safety seats) .....................190
Inspection/maintenance (I/M)
testing ........................................299
Instrument panel
cleaning ...................................272
cluster ........................................10
lighting up panel and
interior .......................................98
J
Jack ............................................249
positioning ...............................249
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Index
316

storage .....................................249
Jump-starting your vehicle ......255
K
Keyless entry system ...............149
autolock ...................................148
Keys ...........................................139
positions of the ignition .........219
valet key ..................................139
L
Lamps
autolamp system .......................96
bulb replacement
specifications chart ................101
daytime running light ...............97
fog lamps ...................................98
headlamps .................................96
headlamps, flash to pass ..........97
instrument panel, dimming .....98
interior lamps .................100–102
replacing bulbs ...............100–103
Lane change indicator
(see Turn signal) ......................100
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........223
Load limits .................................212
Locks
autolock ...................................148
childproof ................................141
doors ........................................139
Lubricant specifications ...306–307
Lug nuts ....................................254
Lumbar support, seats .............156
M
Message center .................126–127select button ...........................126
warning messages ...................130
Mirrors .......................................106
automatic dimming rearview
mirror ......................................110
fold away .................................113
heated ......................................113
programmable memory ..........148
side view mirrors (power) .....113
Moon roof ..................................120
Motorcraft parts ........273, 290, 303
N
Navigation system .......................25
cd functions ..............................43
destination mode ......................67
DVD location .............................87
map mode .................................47
quick start .................................28
radio functions ..........................35
O
Octane rating ............................293
Oil (see Engine oil) ..................279
P
Parking brake ............................223
Parts (see Motorcraft parts) ....303
Pedals (see Power adjustable
foot pedals) ...............................114
Power adjustable foot pedals ...114
Power distribution box
(see Fuses) .......................244, 247
Power door locks ......................139
Power mirrors ...........................113
Power steering ..........................228
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Index
317
