hood open LINCOLN LS 2006 Owners Manual

1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters)
away.
•(1) 8 feet (2.4 meters)
•(2) VOL - subtract 2.1 inches (50
mm) from the measurement of
the center of the low beam lamp
to the ground.
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height from the center of your headlamp to the ground
and mark an 8 foot (2.4 meter) horizontal reference line on the vertical
wall or screen 2.1 inches (50 mm) below this height (a piece of masking
tape works well). The center of the lamp is marked by a 3.0 mm circle
on the headlamp lens (use the low beam center mark).
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will
observe a light pattern with flat
edges at the top of the beam
pattern. If the flat edges are not at
the horizontal reference line, the
beam will need to be adjusted.
To see a clearer light pattern for
adjusting, you may want to block
the light from one headlamp while adjusting the other.
5. Remove the sight shield, locate the vertical adjuster on each
headlamp, then usea6mmsocket wrench or screwdriver to adjust the
headlamp up or down.
6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
7. Close the hood and turn off the lamps.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
99

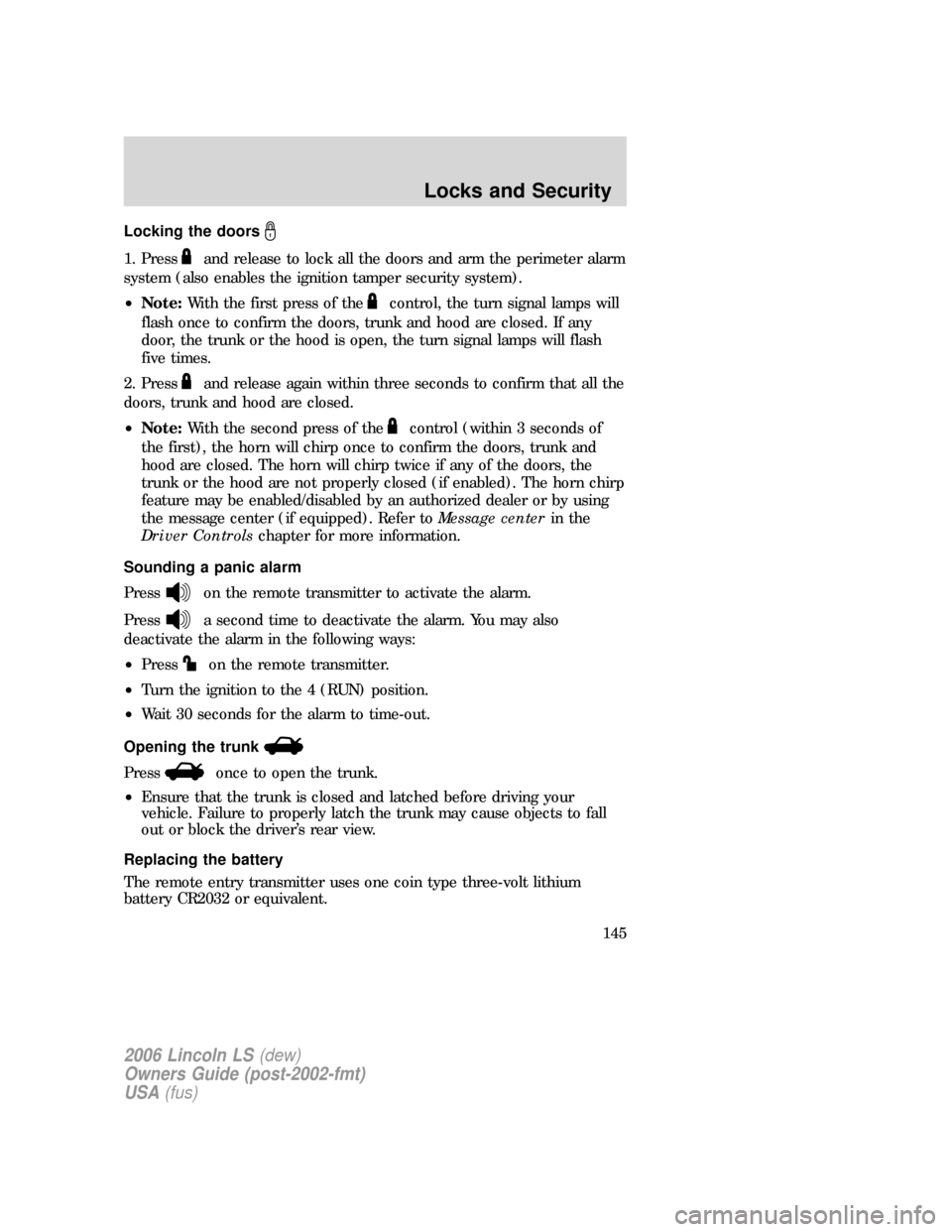

Locking the doors
1. Pressand release to lock all the doors and arm the perimeter alarm
system (also enables the ignition tamper security system).
•Note:With the first press of the
control, the turn signal lamps will
flash once to confirm the doors, trunk and hood are closed. If any
door, the trunk or the hood is open, the turn signal lamps will flash
five times.
2. Press
and release again within three seconds to confirm that all the
doors, trunk and hood are closed.
•Note:With the second press of the
control (within 3 seconds of
the first), the horn will chirp once to confirm the doors, trunk and
hood are closed. The horn will chirp twice if any of the doors, the
trunk or the hood are not properly closed (if enabled). The horn chirp
feature may be enabled/disabled by an authorized dealer or by using
the message center (if equipped). Refer toMessage centerin the
Driver Controlschapter for more information.
Sounding a panic alarm
Press
on the remote transmitter to activate the alarm.
Press
a second time to deactivate the alarm. You may also
deactivate the alarm in the following ways:
•Press
on the remote transmitter.
•Turn the ignition to the 4 (RUN) position.
•Wait 30 seconds for the alarm to time-out.
Opening the trunk
Pressonce to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
145

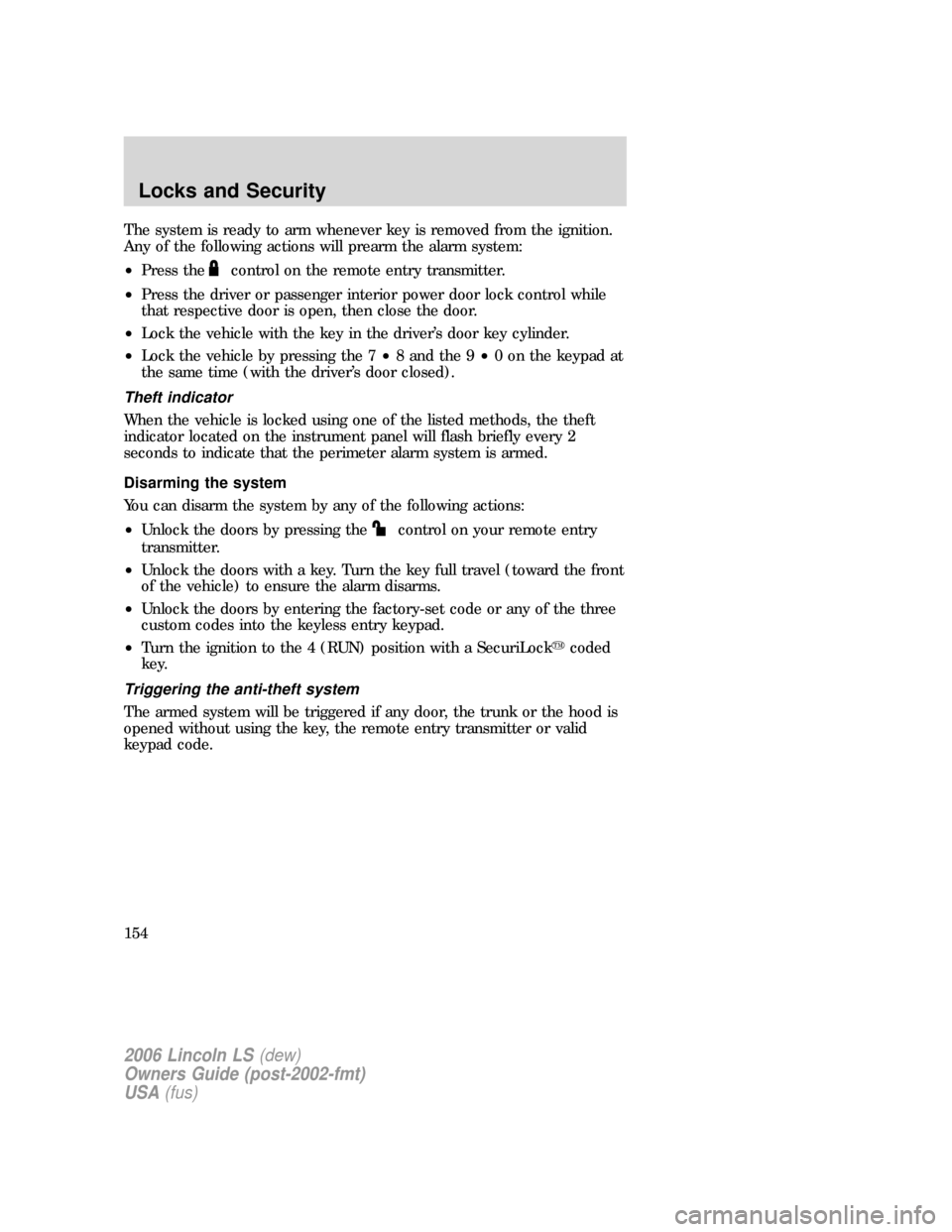

The system is ready to arm whenever key is removed from the ignition.
Any of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Press the driver or passenger interior power door lock control while
that respective door is open, then close the door.
•Lock the vehicle with the key in the driver’s door key cylinder.
•Lock the vehicle by pressing the 7•8 and the 9•0 on the keypad at
the same time (with the driver’s door closed).
Theft indicator
When the vehicle is locked using one of the listed methods, the theft
indicator located on the instrument panel will flash briefly every 2
seconds to indicate that the perimeter alarm system is armed.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Unlock the doors by entering the factory-set code or any of the three
custom codes into the keyless entry keypad.
•Turn the ignition to the 4 (RUN) position with a SecuriLockcoded
key.
Triggering the anti-theft system
The armed system will be triggered if any door, the trunk or the hood is
opened without using the key, the remote entry transmitter or valid
keypad code.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
154

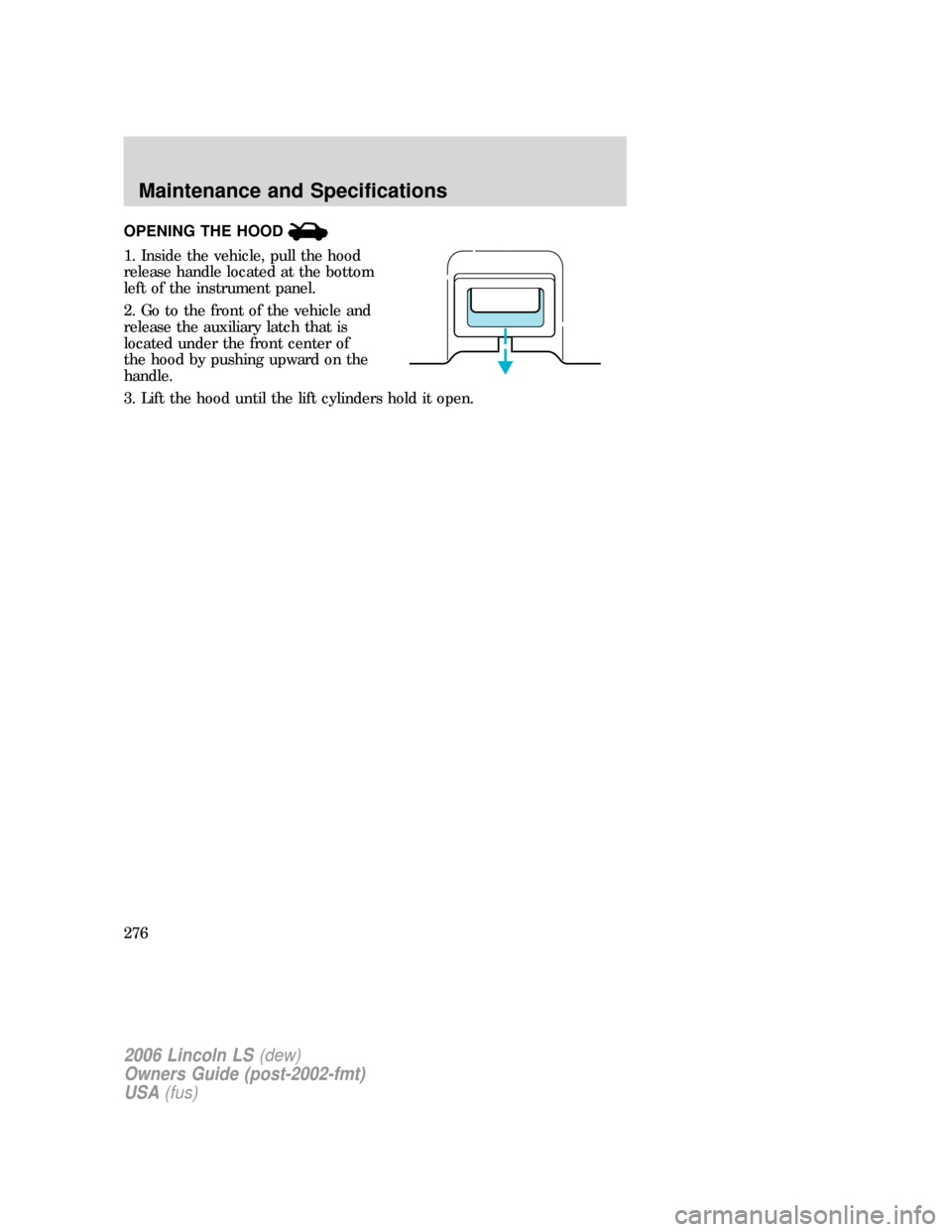

OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located at the bottom
left of the instrument panel.
2. Go to the front of the vehicle and
release the auxiliary latch that is
located under the front center of
the hood by pushing upward on the
handle.
3. Lift the hood until the lift cylinders hold it open.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
276

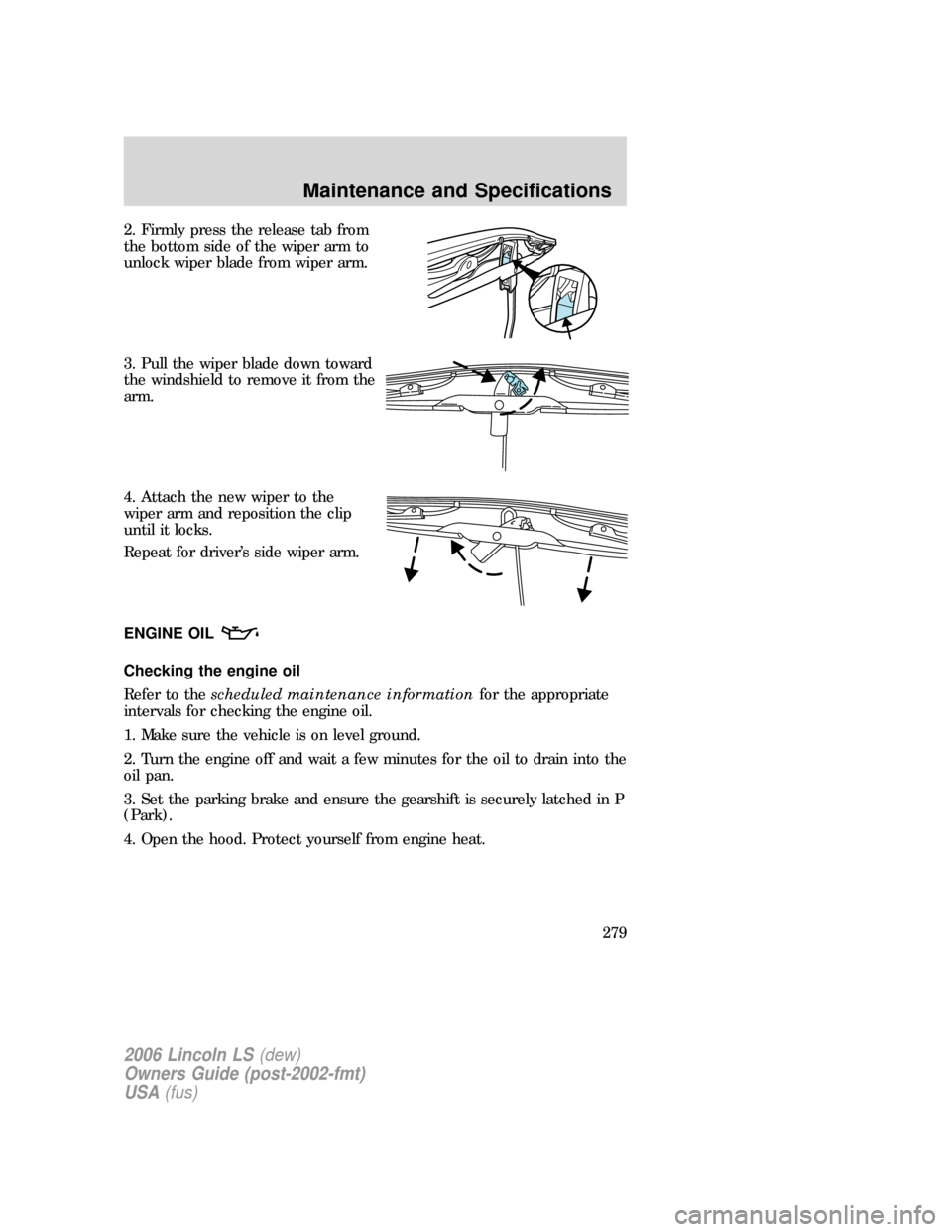

2. Firmly press the release tab from
the bottom side of the wiper arm to
unlock wiper blade from wiper arm.
3. Pull the wiper blade down toward
the windshield to remove it from the
arm.
4. Attach the new wiper to the
wiper arm and reposition the clip
until it locks.
Repeat for driver’s side wiper arm.
ENGINE OIL
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
279

Floor mats .................................138
Fluid capacities .........................304
Foglamps .....................................98
Fuel ............................................290
calculating fuel
economy ..........................128, 294
cap ...........................................292
capacity ...................................304
choosing the right fuel ...........293
comparisons with EPA fuel
economy estimates .................297
detergent in fuel .....................294
filling your vehicle with
fuel ...........................290, 292, 295
filter, specifications ........290, 303
fuel pump shut-off switch .....239
improving fuel economy ........294
octane rating ...........293, 307–308
quality ......................................294
running out of fuel .................294
safety information relating to
automotive fuels .....................290
Fuel pump shut-off switch .......239
Fuses ..................................240–241
G
Garage Door Opener
(see Homelink wireless control
system) ......................................121
Gas cap (see Fuel cap) ............292
Gas mileage
(see Fuel economy) .................294
Gauges .........................................14
GAWR
(Gross Axle Weight Rating)
calculating ...............................217GVWR
(Gross Vehicle Weight Rating)
calculating ...............................217
H
Hazard flashers .........................239
Head restraints .................155, 160
Headlamps ...................................96
aiming ........................................98
autolamp system .......................96
bulb specifications ..................101
daytime running lights .............97
flash to pass ..............................97
replacing bulbs .......................102
turning on and off ....................96
Heating
heating and air conditioning
system .................................88, 90
Homelink wireless control
system ........................................121
Hood ..........................................276
I
Ignition .......................219, 307–308
Infant seats
(see Safety seats) .....................190
Inspection/maintenance (I/M)
testing ........................................299
Instrument panel
cleaning ...................................272
cluster ........................................10
lighting up panel and
interior .......................................98
J
Jack ............................................249
positioning ...............................249
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Index
316
