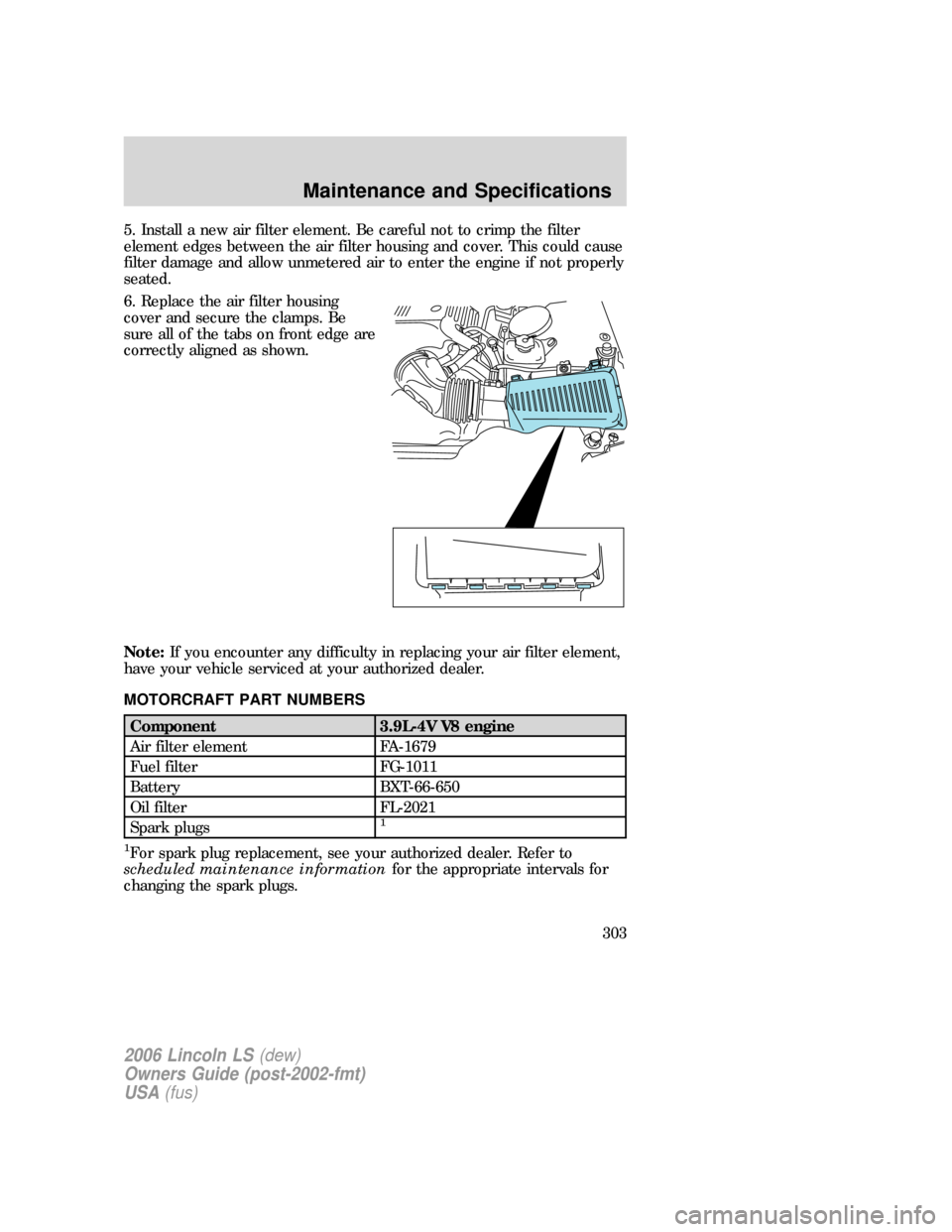

5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unmetered air to enter the engine if not properly
seated.
6. Replace the air filter housing
cover and secure the clamps. Be
sure all of the tabs on front edge are
correctly aligned as shown.
Note:If you encounter any difficulty in replacing your air filter element,
have your vehicle serviced at your authorized dealer.
MOTORCRAFT PART NUMBERS
Component 3.9L-4V V8 engine
Air filter element FA-1679
Fuel filter FG-1011
Battery BXT-66-650
Oil filter FL-2021
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
303

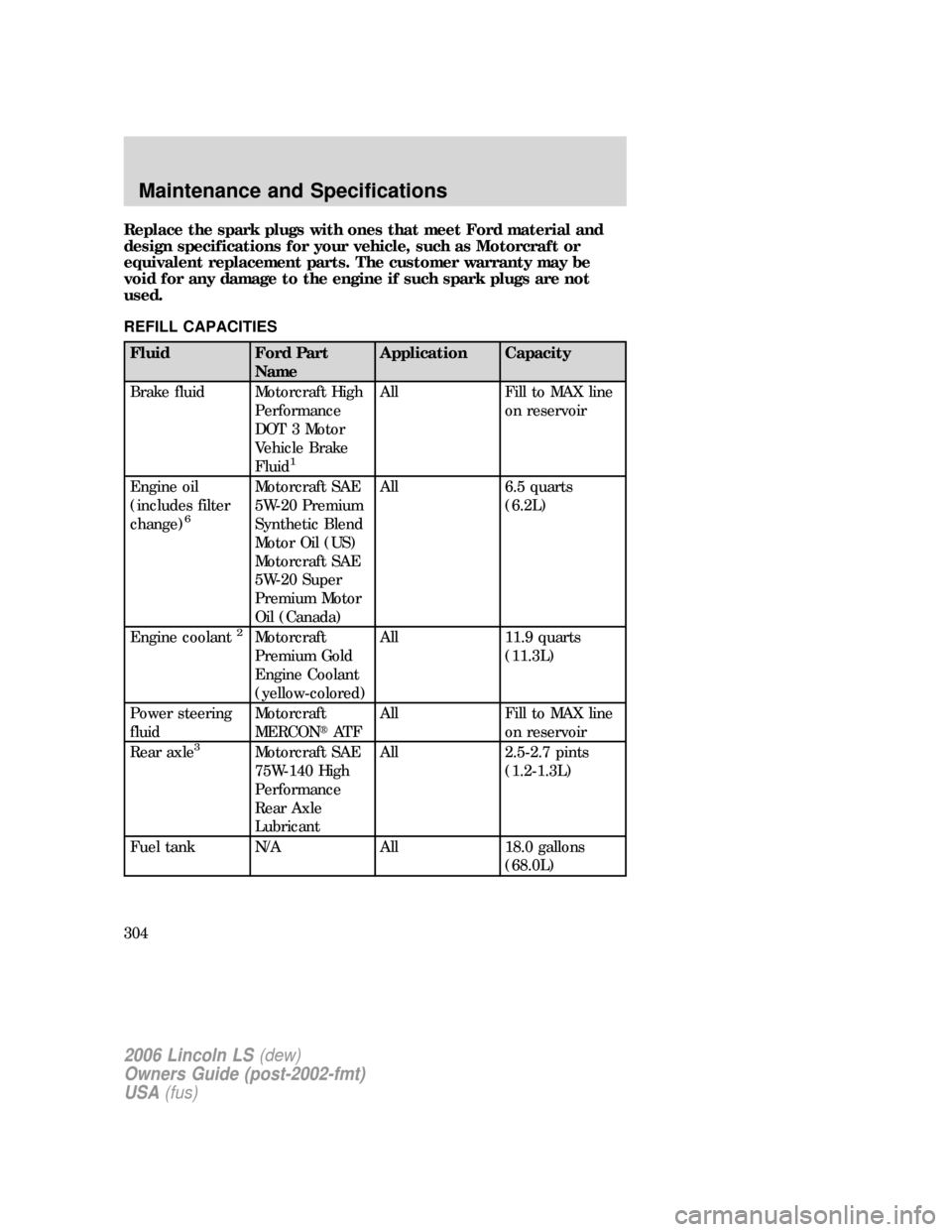

Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
All Fill to MAX line
on reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)All 6.5 quarts
(6.2L)
Engine coolant
2Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)All 11.9 quarts
(11.3L)
Power steering
fluidMotorcraft
MERCON
AT FAll Fill to MAX line
on reservoir
Rear axle
3Motorcraft SAE
75W-140 High
Performance
Rear Axle
LubricantAll 2.5-2.7 pints
(1.2-1.3L)
Fuel tank N/A All 18.0 gallons
(68.0L)
2006 Lincoln LS(dew)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
304
