Power steering fluid LINCOLN MARK LT 2006 Owners Manual

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check fuel capLow tire warning
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
9

Parking brake
To set the parking brake (1), press
the parking brake pedal down until
the pedal stops.
The BRAKE warning lamp will
illuminate and will remain
illuminated until the parking brake
is released.
To release, pull the lever (2).
Always set the parking brake fully and make sure that the
gearshift is securely latched in P (Park).
STEERING
To prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump reservoir
fluid level (below the MIN mark on the reservoir).
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
P!
BRAKE
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
156

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
5.4L V8
1. Battery
2. Transmission fluid dipstick (automatic transmission)
3. Air filter assembly
4. Power steering fluid reservoir
5. Engine oil dipstick
6. Brake fluid reservoir
7. Engine coolant reservoir
8. Engine oil filler cap
9. Windshield washer fluid reservoir
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
206

Readiness for Inspection/Maintenance (I/M) testing
In some localities, it may be a legal requirement to pass an I/M test of
the on-board diagnostics system. If yourService engine soonlight is on,
refer to the description in theWarning lights and chimessection of the
Instrument Clusterchapter. Your vehicle may not pass the I/M test with
theService engine soonlight on.
If the vehicle’s powertrain system or its battery has just been serviced,
the on-board diagnostics system is reset to a “not ready for I/M test”
condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.
POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules.If adding fluid is
necessary, use only MERCON
AT F.
1. Start the engine and let it run until it reaches normal operating
temperature (the engine coolant temperature gauge indicator will be
near the center of the normal area between H and C).
2. While the engine idles, turn the steering wheel left and right several
times.
3. Turn the engine off.
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
228

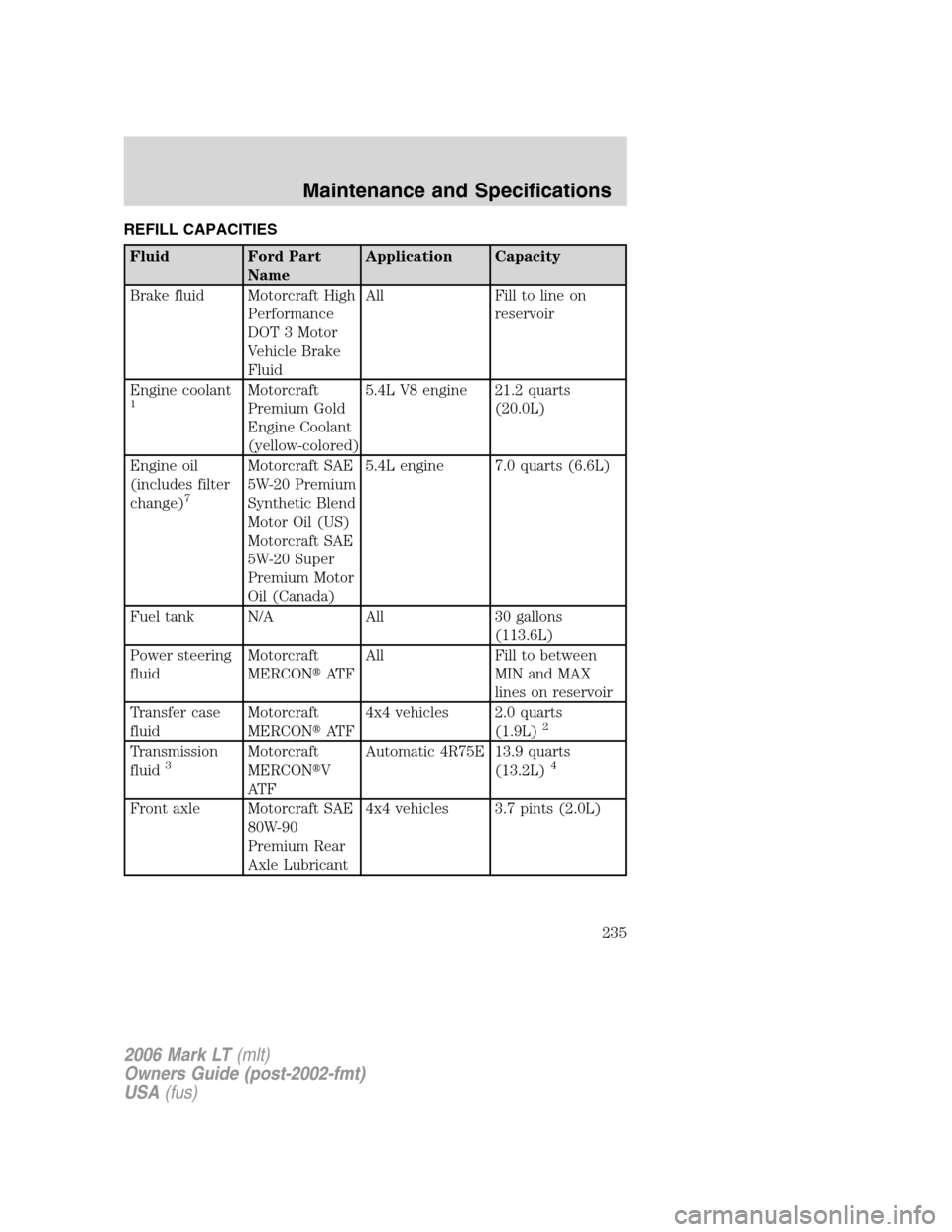

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 21.2 quarts
(20.0L)
Engine oil
(includes filter
change)
7
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)5.4L engine 7.0 quarts (6.6L)
Fuel tank N/A All 30 gallons
(113.6L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on reservoir
Transfer case
fluidMotorcraft
MERCONAT F4x4 vehicles 2.0 quarts
(1.9L)
2
Transmission
fluid3Motorcraft
MERCONV
AT FAutomatic 4R75E 13.9 quarts
(13.2L)4
Front axle Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant4x4 vehicles 3.7 pints (2.0L)
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
235

ItemFord part
name or
equivalentFord part
numberFord
specification
Engine oilMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
and API
Certification
Mark
Seat tracksMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or ESB-M1C93-B
Hinges, latches,
striker plates,
fuel filler door
hinge and door
check armMulti-Purpose
GreaseXG-4 or XL-5 ESE-M1C171–A
Lock cylindersMotorcraft
Penetrating and
Lock LubricantXL-1 none
Transmission
/steering/parking
brake linkages
and pivots,
brake and clutch
pedal shaft (if
equipped)Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid, transfer
case fluid (4X4)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R75 E)
2
Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
238

Clock adjust
6-CD in dash .............................17
Compass, electronic
set zone adjustment .................53
Console ........................................40
overhead ....................................36
Controls
power seat .................................79
steering column ........................46
Coolant
checking and adding ..............212
refill capacities ................216, 235
specifications ..................237, 239
Cruise control
(see Speed control) ....................44
Customer Assistance ................174
Ford accessories for your
vehicle .....................................203
Ford Extended Service
Plan ..........................................195
Getting assistance outside
the U.S. and Canada ..............196
Getting roadside assistance ...174
Getting the service you
need .........................................189
Ordering additional owner’s
literature .................................196
The Dispute Settlement
Board .......................................192
Utilizing the
Mediation/Arbitration
Program ...................................194
D
Daytime running lamps
(see Lamps) ................................25
Dipstick
automatic transmission
fluid ..........................................229engine oil .................................207
Doors
lubricant specifications ..........237
Driveline universal joint and
slip yoke ....................................232
Driving under special
conditions ..................162, 167, 170
sand .........................................169
snow and ice ...........................171
through water .................170, 172
DVD system .................................19
E
Electronic message center .........52
Emergencies, roadside
jump-starting ..........................183
Emergency Flashers .................175
Emission control system ..........226
Engine ................................239–240
cleaning ...................................200
coolant .....................................212
fail-safe coolant ......................217
idle speed control ...................210
lubrication specifications ......237,
239
refill capacities ........................235
service points ..........................206
starting after a collision .........175
Engine block heater .................154
Engine oil ..................................207
change oil soon warning,
message center .......................207
checking and adding ..............207
dipstick ....................................207
filter, specifications ........209, 234
recommendations ...................209
refill capacities ........................235
specifications ..................237, 239
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
247

J
Jack
storage .....................................126
Jump-starting your vehicle ......183
K
Keyless entry system .................73
autolock .....................................71
programming entry code .........73
Keys .............................................76
positions of the ignition .........151
L
Lamps
autolamp system .......................24
bulb replacement
specifications chart ..................29
daytime running light ...............25
fog lamps ...................................24
headlamps .................................24
headlamps, flash to pass ..........25
instrument panel, dimming .....26
interior lamps .....................27–28
replacing bulbs ...................29–33
Lane change indicator
(see Turn signal) ........................27
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........155
Load limits .................................139
Loading instructions .................146
Locks
autolock .....................................71
childproof ..................................64
doors ..........................................63
Lubricant specifications ...237, 239
Lug nuts ....................................130Lumbar support, seats ...............79
M
Message center ...........................52
english/metric button ...............56
system check button ................56
warning messages .....................58
Mirrors .........................................35
automatic dimming rearview
mirror ........................................42
heated ........................................43
programmable memory ......67, 80
side view mirrors (power) .......42
signal .........................................43
Moon roof ....................................47
Motorcraft parts ................222, 234
O
Octane rating ............................221
Oil (see Engine oil) ..................207
P
Parking brake ............................156
Parts (see Motorcraft parts) ....234
Passenger Occupant
Classification Sensor ...................84
Power distribution box
(see Fuses) ...............................177
Power door locks ........................63
Power mirrors .............................42
Power point .................................38
Power steering ..........................156
fluid, checking and adding ....228
fluid, refill capacity ................235
fluid, specifications .........237, 239
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
249
