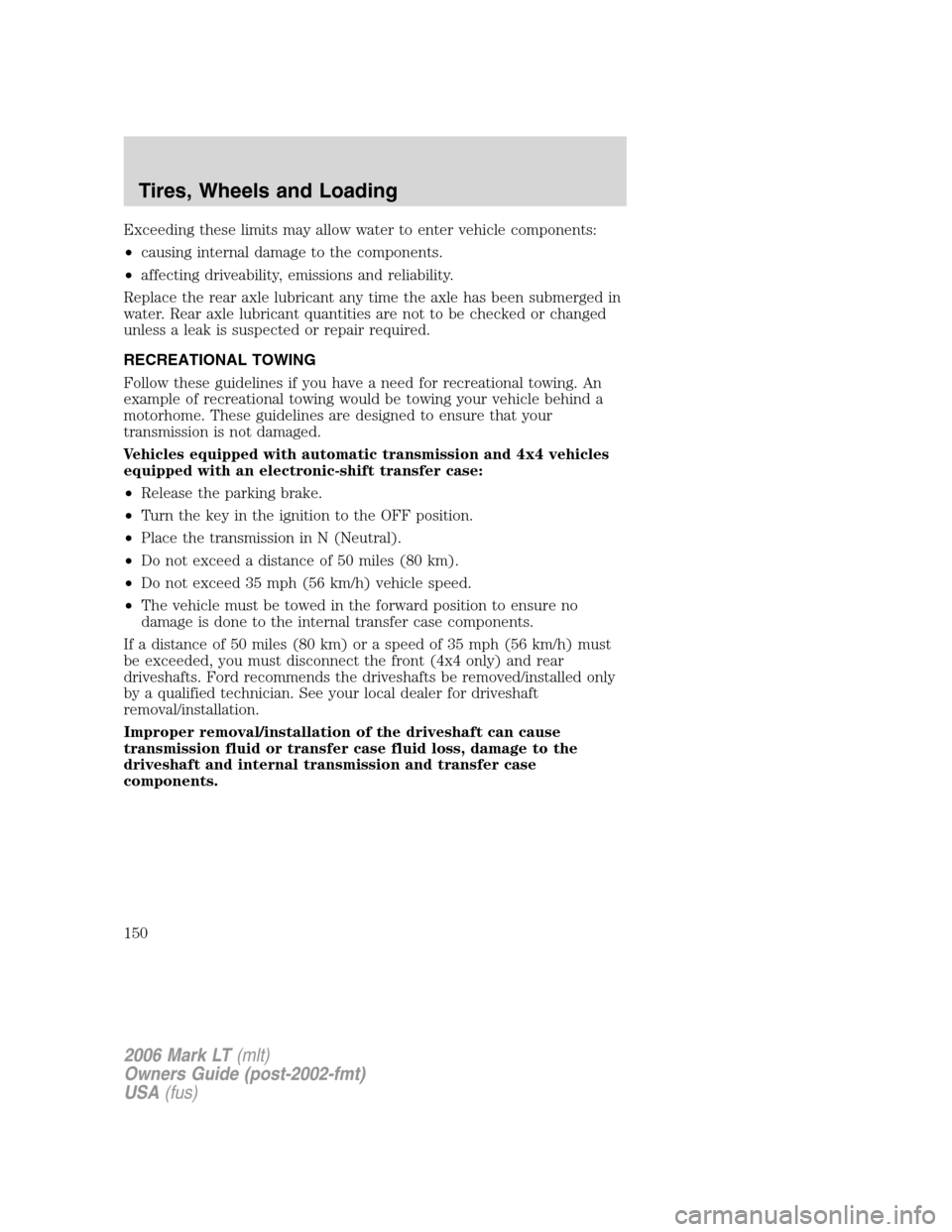

Exceeding these limits may allow water to enter vehicle components:
•causing internal damage to the components.
•affecting driveability, emissions and reliability.
Replace the rear axle lubricant any time the axle has been submerged in
water. Rear axle lubricant quantities are not to be checked or changed
unless a leak is suspected or repair required.
RECREATIONAL TOWING
Follow these guidelines if you have a need for recreational towing. An
example of recreational towing would be towing your vehicle behind a
motorhome. These guidelines are designed to ensure that your
transmission is not damaged.
Vehicles equipped with automatic transmission and 4x4 vehicles
equipped with an electronic-shift transfer case:
•Release the parking brake.
•Turn the key in the ignition to the OFF position.
•Place the transmission in N (Neutral).
•Do not exceed a distance of 50 miles (80 km).
•Do not exceed 35 mph (56 km/h) vehicle speed.
•The vehicle must be towed in the forward position to ensure no
damage is done to the internal transfer case components.
If a distance of 50 miles (80 km) or a speed of 35 mph (56 km/h) must
be exceeded, you must disconnect the front (4x4 only) and rear
driveshafts. Ford recommends the driveshafts be removed/installed only
by a qualified technician. See your local dealer for driveshaft
removal/installation.
Improper removal/installation of the driveshaft can cause
transmission fluid or transfer case fluid loss, damage to the
driveshaft and internal transmission and transfer case
components.
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Tires, Wheels and Loading
150

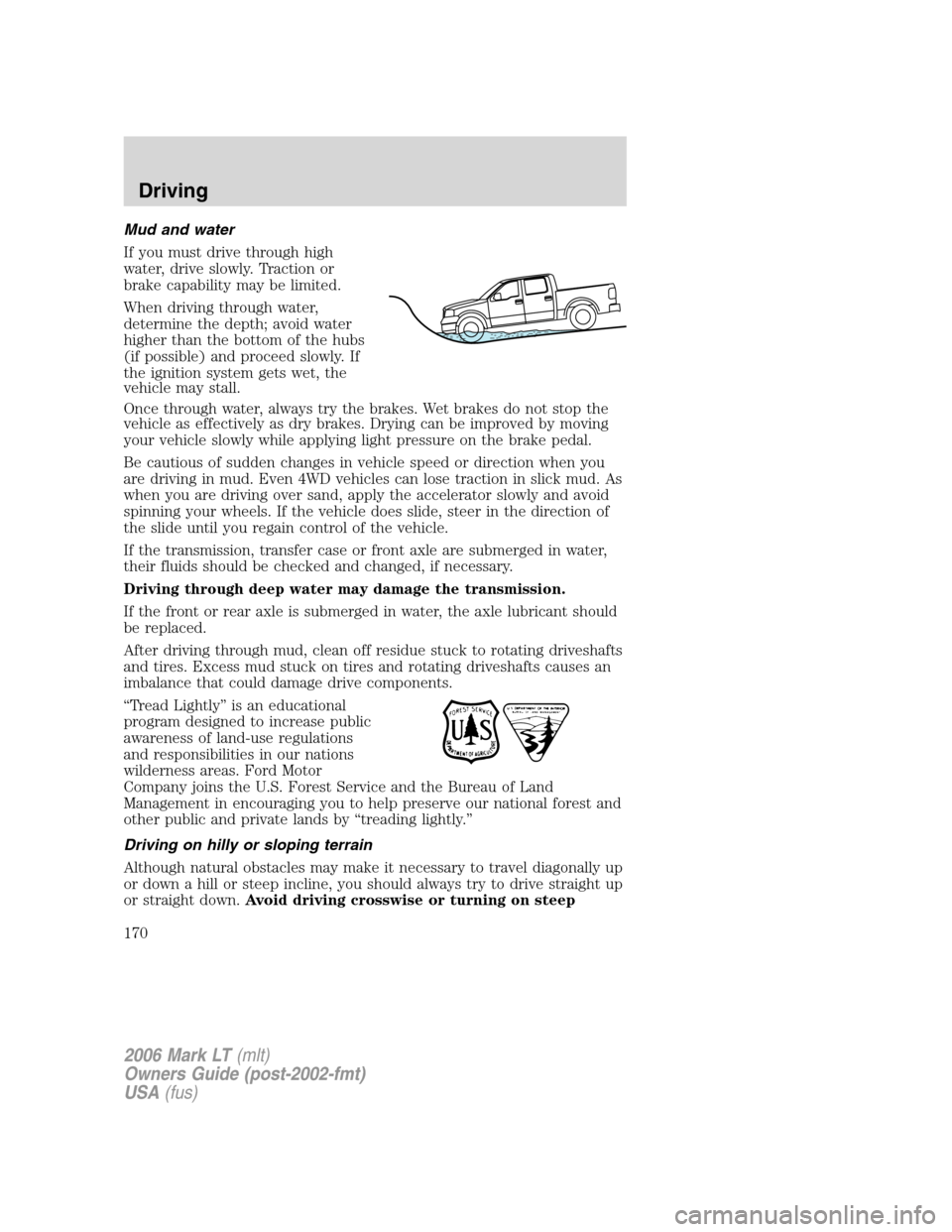

Mud and water
If you must drive through high
water, drive slowly. Traction or
brake capability may be limited.
When driving through water,
determine the depth; avoid water
higher than the bottom of the hubs
(if possible) and proceed slowly. If
the ignition system gets wet, the
vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even 4WD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
If the transmission, transfer case or front axle are submerged in water,
their fluids should be checked and changed, if necessary.
Driving through deep water may damage the transmission.
If the front or rear axle is submerged in water, the axle lubricant should
be replaced.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nations
wilderness areas. Ford Motor
Company joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
Driving on hilly or sloping terrain
Although natural obstacles may make it necessary to travel diagonally up
or down a hill or steep incline, you should always try to drive straight up
or straight down.Avoid driving crosswise or turning on steep
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
170

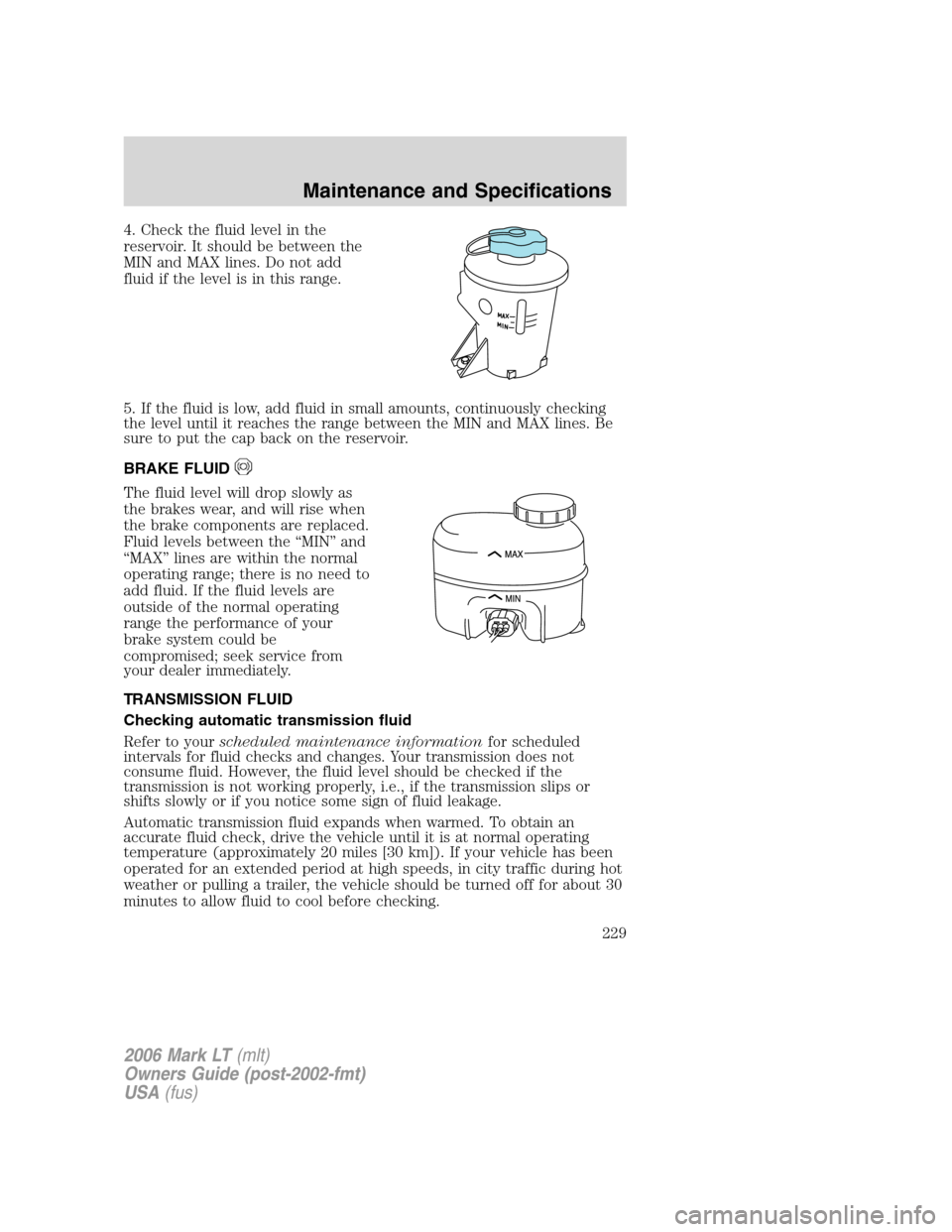

4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of your
brake system could be
compromised; seek service from
your dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is at normal operating
temperature (approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic during hot
weather or pulling a trailer, the vehicle should be turned off for about 30
minutes to allow fluid to cool before checking.
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
229

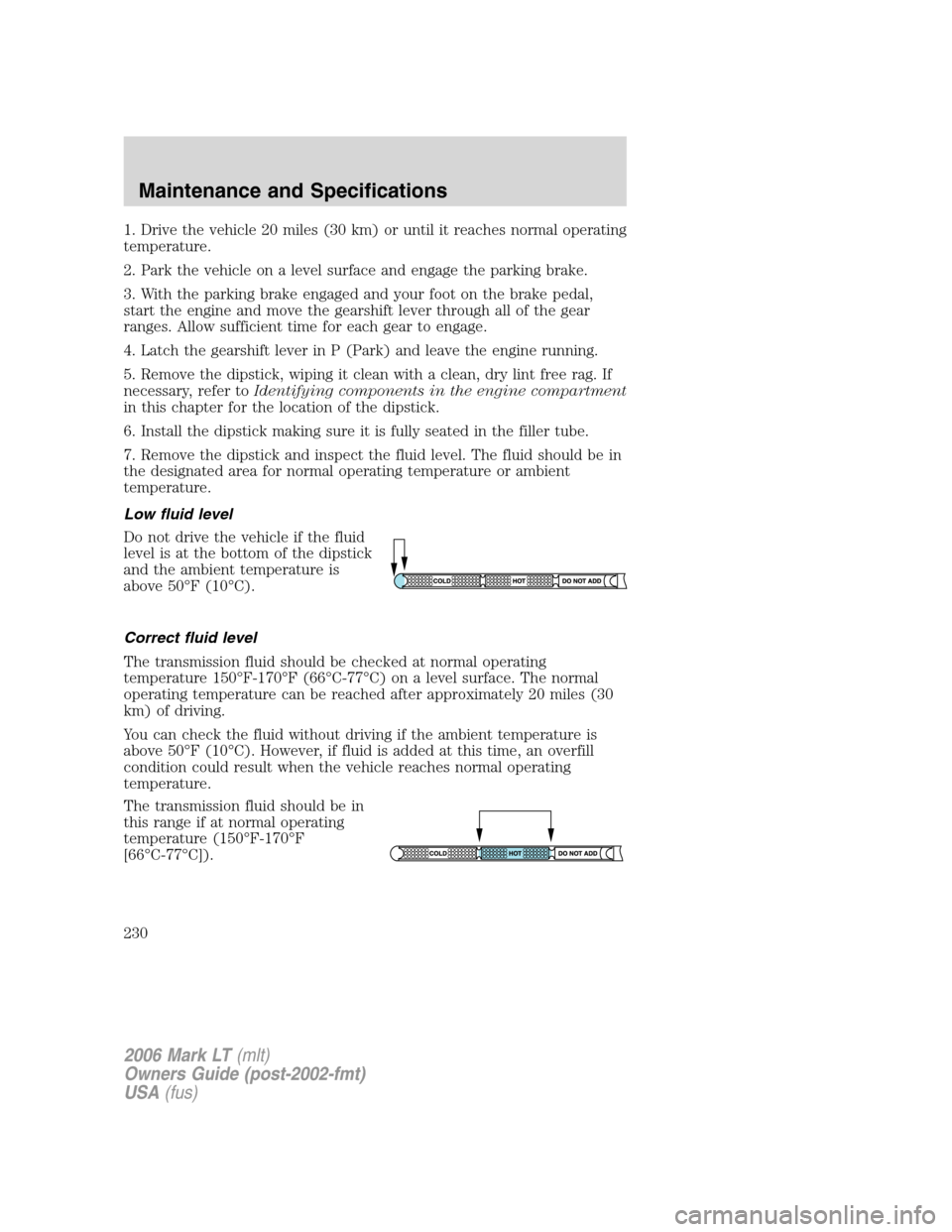

1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the designated area for normal operating temperature or ambient
temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the ambient temperature is
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperature 150°F-170°F (66°C-77°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles (30
km) of driving.
You can check the fluid without driving if the ambient temperature is
above 50°F (10°C). However, if fluid is added at this time, an overfill
condition could result when the vehicle reaches normal operating
temperature.
The transmission fluid should be in
this range if at normal operating
temperature (150°F-170°F
[66°C-77°C]).
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
230

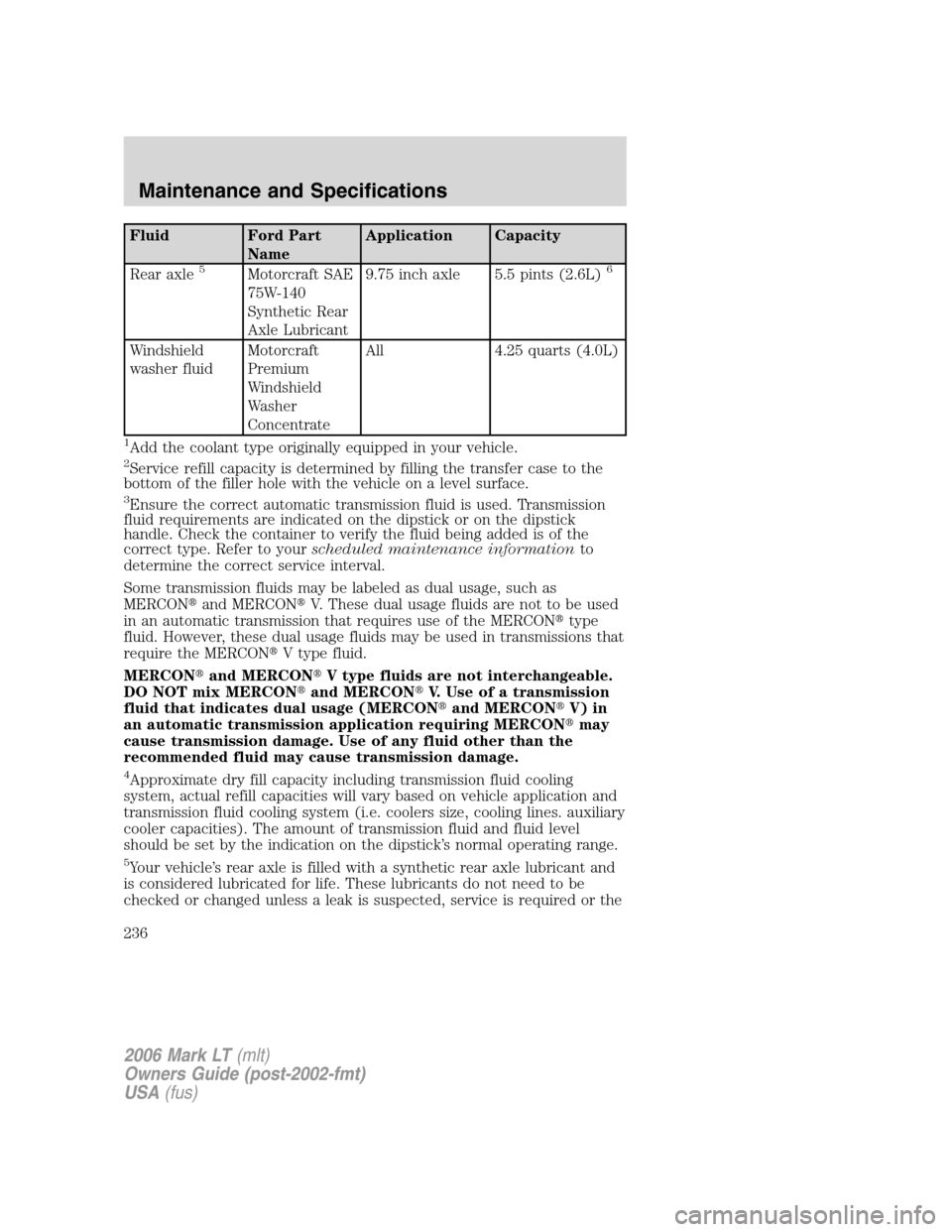

Fluid Ford Part
NameApplication Capacity
Rear axle
5Motorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant9.75 inch axle 5.5 pints (2.6L)6
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.25 quarts (4.0L)
1Add the coolant type originally equipped in your vehicle.2Service refill capacity is determined by filling the transfer case to the
bottom of the filler hole with the vehicle on a level surface.
3Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourscheduled maintenance informationto
determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
4Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
5Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
236

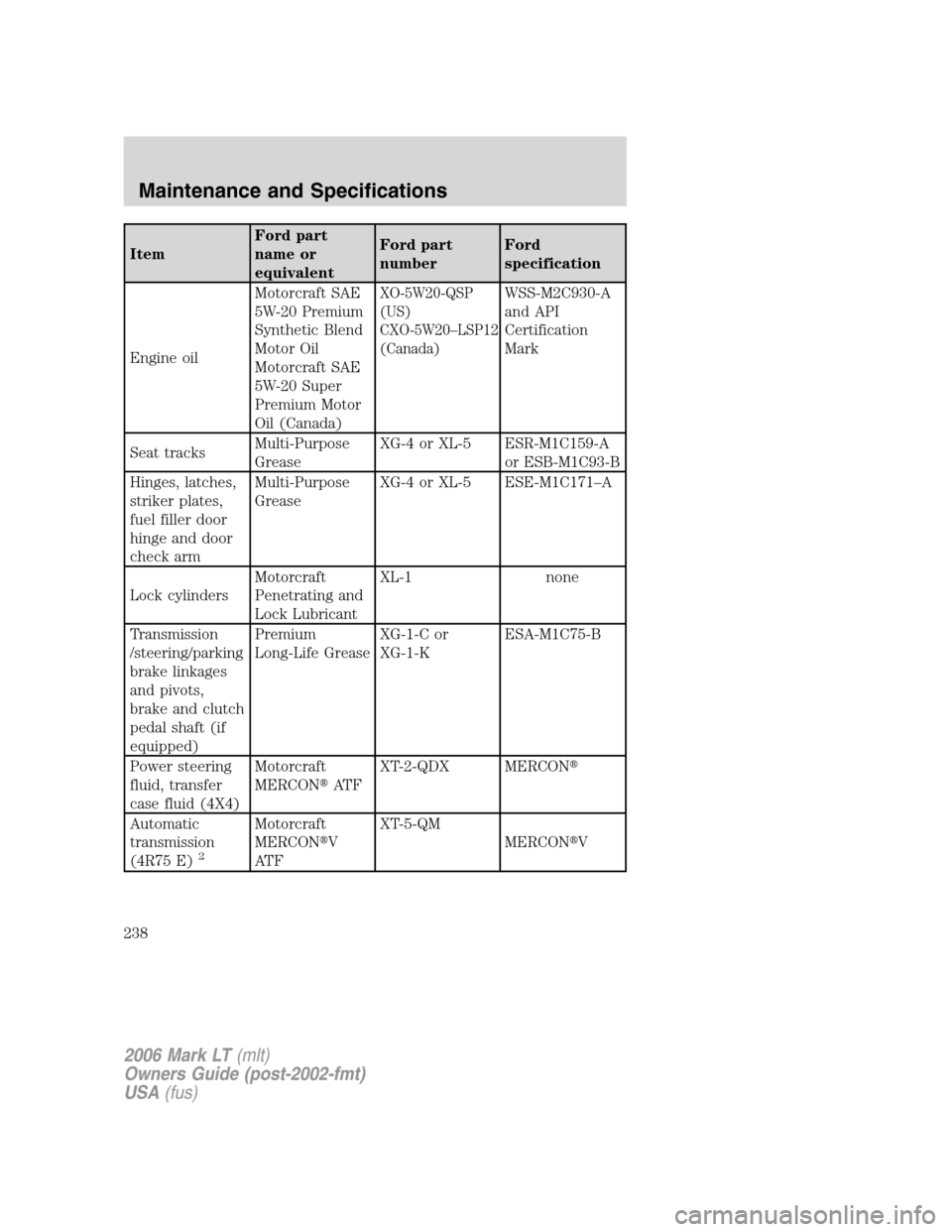

ItemFord part
name or
equivalentFord part
numberFord
specification
Engine oilMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
and API
Certification
Mark
Seat tracksMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or ESB-M1C93-B
Hinges, latches,
striker plates,
fuel filler door
hinge and door
check armMulti-Purpose
GreaseXG-4 or XL-5 ESE-M1C171–A
Lock cylindersMotorcraft
Penetrating and
Lock LubricantXL-1 none
Transmission
/steering/parking
brake linkages
and pivots,
brake and clutch
pedal shaft (if
equipped)Premium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid, transfer
case fluid (4X4)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R75 E)
2
Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
238

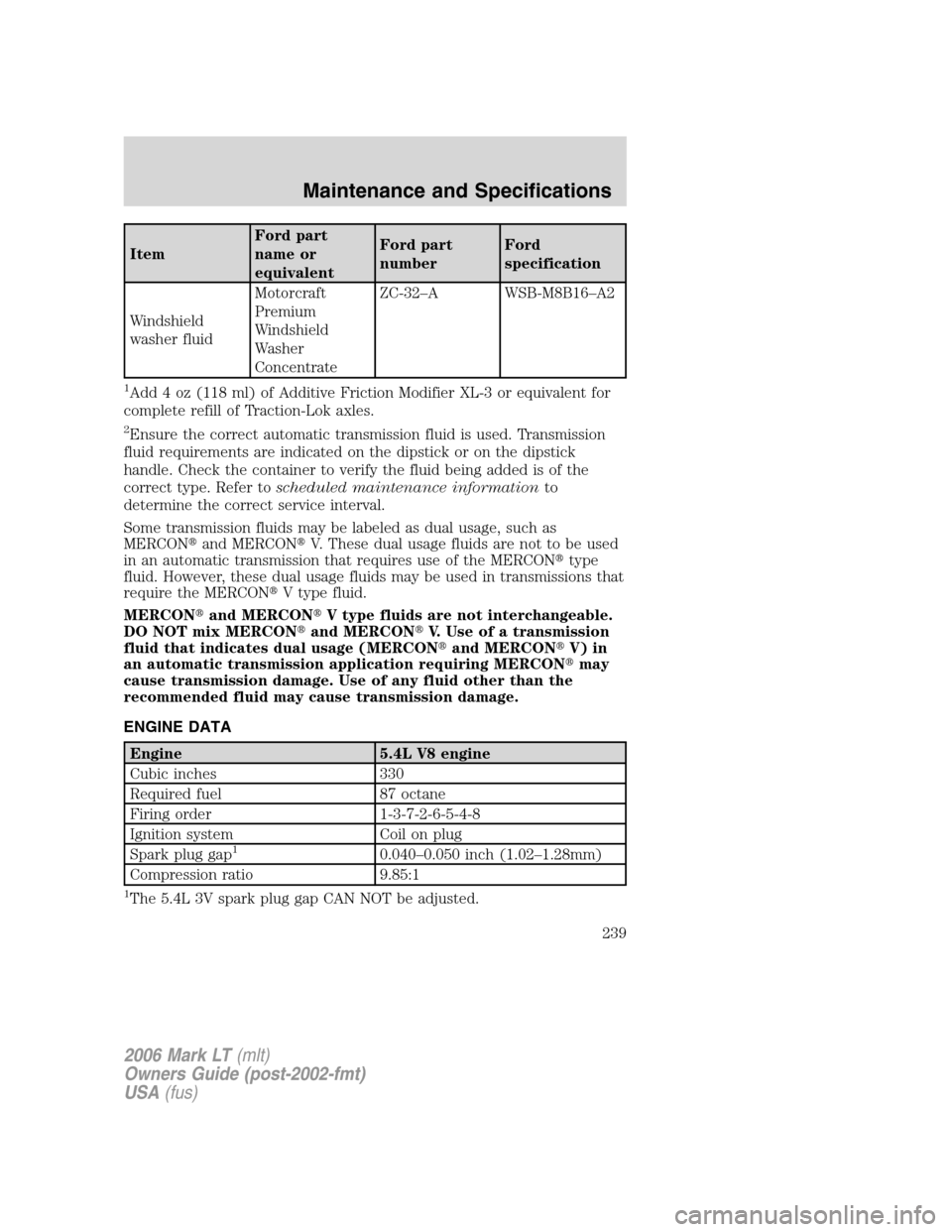

ItemFord part
name or
equivalentFord part
numberFord
specification
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Add 4 oz (118 ml) of Additive Friction Modifier XL-3 or equivalent for
complete refill of Traction-Lok axles.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer toscheduled maintenance informationto
determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap
10.040–0.050 inch (1.02–1.28mm)
Compression ratio 9.85:1
1The 5.4L 3V spark plug gap CAN NOT be adjusted.
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
239

A
Accessory delay ..........................42
Air cleaner filter ...............233–234
Air conditioning ..........................21
Airbag supplemental restraint
system ....................................97–98
and child safety seats ............100
description ................................98
disposal ....................................102
driver airbag ......................98, 100
indicator light .........................101
operation ...........................98, 100
passenger airbag ...............98, 100
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................212
Anti-lock brake system
(see Brakes) ..............................155
Audio system (see Radio) .........16
Automatic transmission
driving an automatic
overdrive .................................159
fluid, adding ............................229
fluid, checking ........................229
fluid, refill capacities ..............235
fluid, specification ..................239
Axle
lubricant specifications ..237, 239
refill capacities ........................235
traction lok ..............................157
B
Battery .......................................210
acid, treating emergencies .....210
jumping a disabled battery ....183
maintenance-free ....................210
replacement, specifications ...234servicing ..................................210
Bed extender ..............................61
Brakes ........................................155
anti-lock ...................................155
anti-lock brake system (ABS)
warning light ...........................155
fluid, checking and adding ....229
fluid, refill capacities ..............235
fluid, specifications .........237, 239
lubricant specifications ..237, 239
parking ....................................156
shift interlock ..........................157
Bulbs ............................................29
C
Capacities for refilling fluids ....235
Cell phone use ..............................7
Certification Label ....................241
Child safety restraints ..............105
child safety belts ....................105
Child safety seats ......................108
attaching with tether straps ..112
in front seat ............................109
in rear seat ..............................109
Cleaning your vehicle
engine compartment ..............200
instrument panel ....................201
interior .....................................202
interior trim ............................201
plastic parts ............................200
safety belts ..............................202
washing ....................................198
waxing .....................................198
wheels ......................................199
wiper blades ............................201
Climate control (see Air
conditioning or Heating) ............21
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
246

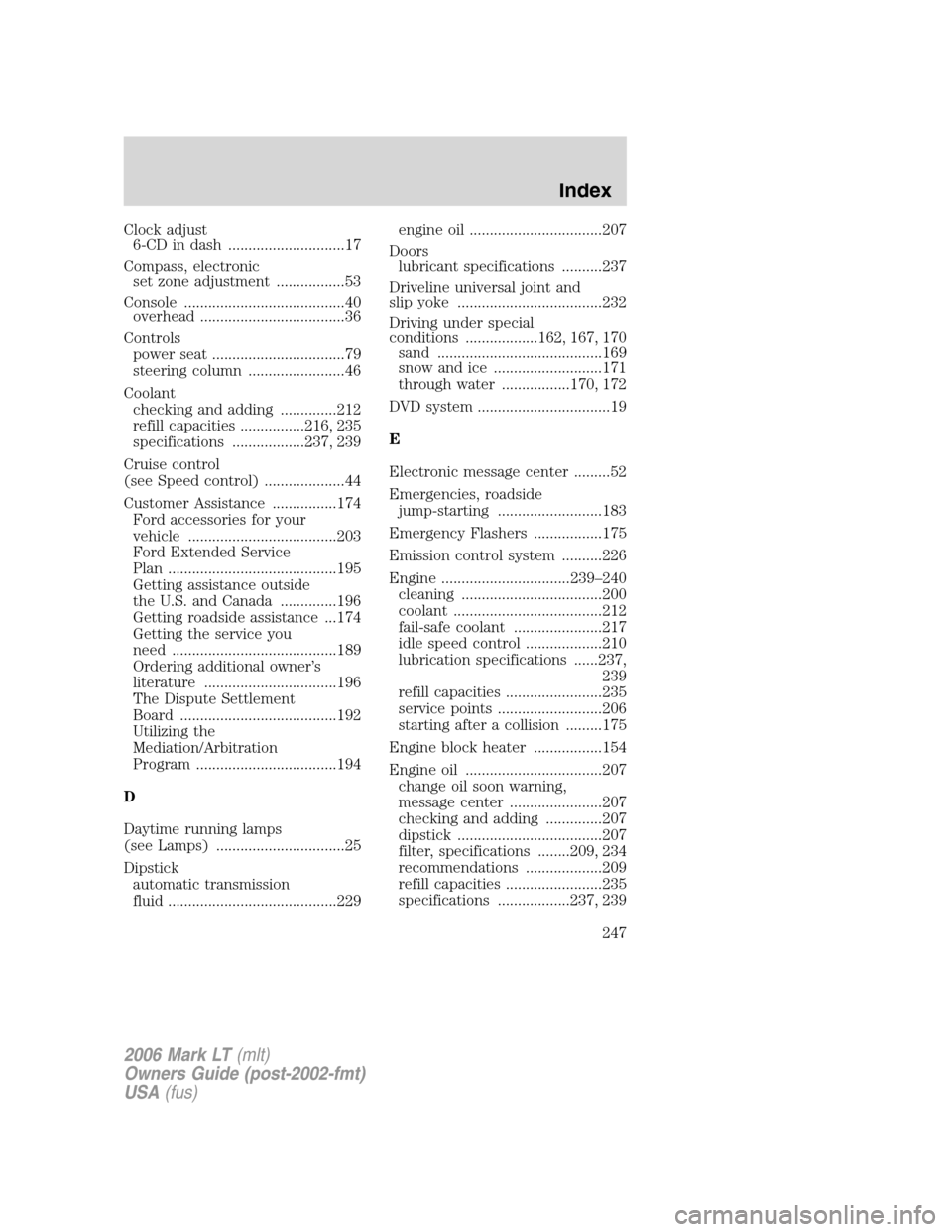

Clock adjust
6-CD in dash .............................17
Compass, electronic
set zone adjustment .................53
Console ........................................40
overhead ....................................36
Controls
power seat .................................79
steering column ........................46
Coolant
checking and adding ..............212
refill capacities ................216, 235
specifications ..................237, 239
Cruise control
(see Speed control) ....................44
Customer Assistance ................174
Ford accessories for your
vehicle .....................................203
Ford Extended Service
Plan ..........................................195
Getting assistance outside
the U.S. and Canada ..............196
Getting roadside assistance ...174
Getting the service you
need .........................................189
Ordering additional owner’s
literature .................................196
The Dispute Settlement
Board .......................................192
Utilizing the
Mediation/Arbitration
Program ...................................194
D
Daytime running lamps
(see Lamps) ................................25
Dipstick
automatic transmission
fluid ..........................................229engine oil .................................207
Doors
lubricant specifications ..........237
Driveline universal joint and
slip yoke ....................................232
Driving under special
conditions ..................162, 167, 170
sand .........................................169
snow and ice ...........................171
through water .................170, 172
DVD system .................................19
E
Electronic message center .........52
Emergencies, roadside
jump-starting ..........................183
Emergency Flashers .................175
Emission control system ..........226
Engine ................................239–240
cleaning ...................................200
coolant .....................................212
fail-safe coolant ......................217
idle speed control ...................210
lubrication specifications ......237,
239
refill capacities ........................235
service points ..........................206
starting after a collision .........175
Engine block heater .................154
Engine oil ..................................207
change oil soon warning,
message center .......................207
checking and adding ..............207
dipstick ....................................207
filter, specifications ........209, 234
recommendations ...................209
refill capacities ........................235
specifications ..................237, 239
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
247

spare tire .................................125
terminology .............................120
tire grades ...............................120
treadwear ........................119, 135
Towing .......................................146
recreational towing .................150
trailer towing ..........................146
Traction-lok rear axle ...............157
Transfer case
fluid checking .........................232
Transmission .............................157
brake-shift interlock (BSI) ....157
fluid, checking and adding
(automatic) .............................229
fluid, refill capacities ..............235
lubricant specifications ..237, 239
Turn signal ..................................27
V
Vehicle dimensions ...........240–241Vehicle Identification Number
(VIN)
..........................................242
Vehicle loading
..........................139
Ventilating your vehicle
...........154
W
Warning lights (see Lights)
.......10
Washer fluid
..............................207
Water, Driving through
.............172
Windows
power
.........................................40
power down back window
.......41
Windshield washer fluid and
wipers
..........................................34
checking and adding fluid
.....207
replacing wiper blades
.............34
2006 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
251
