Do not put engine coolant in the windshield washer fluid
container. If sprayed on the windshield, engine coolant could
make it difficult to see through the windshield.
•Add Motorcraft Premium Gold Engine Coolant or equivalent
meeting Ford specification WSS-M97B51-A1.Refer to
Maintenance product specifications and capacitiesin this chapter.
Note:Use of Motorcraft Cooling System Stop Leak Pellets or an
equivalent product meeting Ford specification WSS-M99B37-B6, may
darken the color of Motorcraft Premium Gold Engine Coolant from
yellow to golden tan.
•Do not add/mix an orange-colored, extended life coolant such
as Motorcraft Specialty Orange Engine Coolant, meeting Ford
specification WSS-M97B44-D, with the factory-filled coolant.
Mixing Motorcraft Specialty Orange Engine Coolant or any
orange-colored extended life product with your factory filled coolant
can result in degraded corrosion protection.
•A large amount of water without engine coolant may be added, in case
of emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained and refilled with a 50/50 mixture of
engine coolant and distilled water as soon as possible. Water alone
(without engine coolant) can cause engine damage from corrosion,
overheating or freezing.
•Do not use alcohol, methanol, brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
Add the proper mixture of coolant and water to the “COLD FILL
RANGE”. Follow these steps to add engine coolant.
To reduce the risk of personal injury, make sure the engine is
cool before unscrewing the coolant pressure relief cap. The
cooling system is under pressure; steam and hot liquid can come out
forcefully when the cap is loosened slightly.
1. Before you begin, turn the engine off and let it cool.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
270

2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (an opaque plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture (see
above), to within the “COLD FILL RANGE”.
6. Replace the cap. Turn until tightly installed. Turn cap until click is
heard/felt to ensure it is tightly installed.
After any coolant has been added, check the coolant concentration, refer
toChecking engine coolantsection. If the concentration is not 50/50
(protection to –34° F/–36° C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant in vehicles originally equipped with Motorcraft Premium Gold
Engine Coolant since a Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
271

Severe climates
If you drive in extremely cold climates (less than –34° F [–36° C ]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling (if equipped)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature gauge will move to the red (hot)
area.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
272

•The message center will indicate a system warning, refer toMessage
Centerin theDriver Controlschapter.
•TheService engine soonindicator light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
For fuel filter replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the fuel filter.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
273

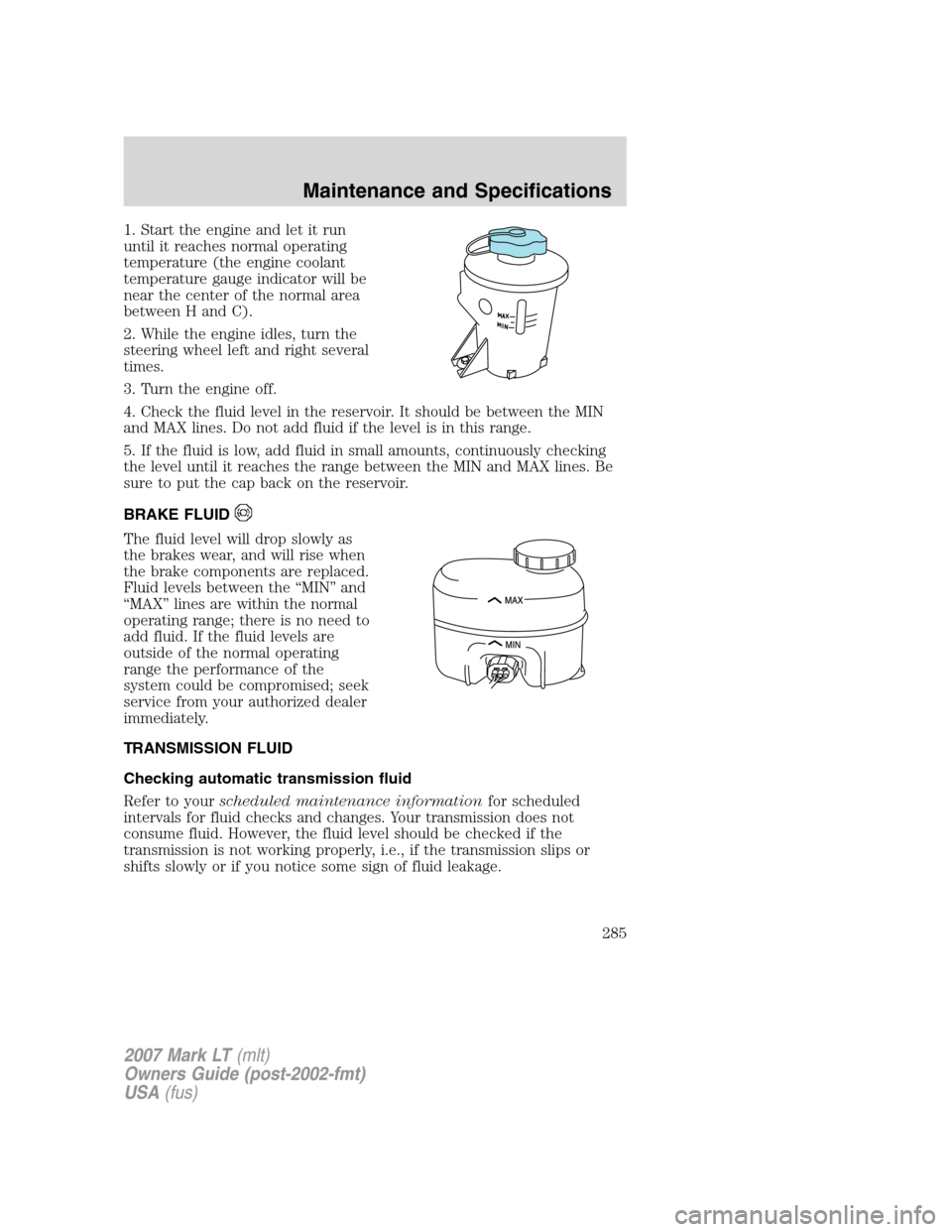

1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
285

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine coolant21.2 quarts
(20.0L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Front axle (4X4) fluid 3.7 pints (2.0L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid– 9.75
inch
3
5.5 pints (2.6L)
4
Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
5
Motorcraft MERCONV
AT F
6
XT-5-QM /
MERCONV
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft MERCON
AT FXT-2-QDX /
MERCON
Transfer case fluid
(4X4)2.0 quarts (1.9L)
7
Windshield washer fluid 4.25 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
(5.5’ box)30 gallons
(113.6L)——
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
292

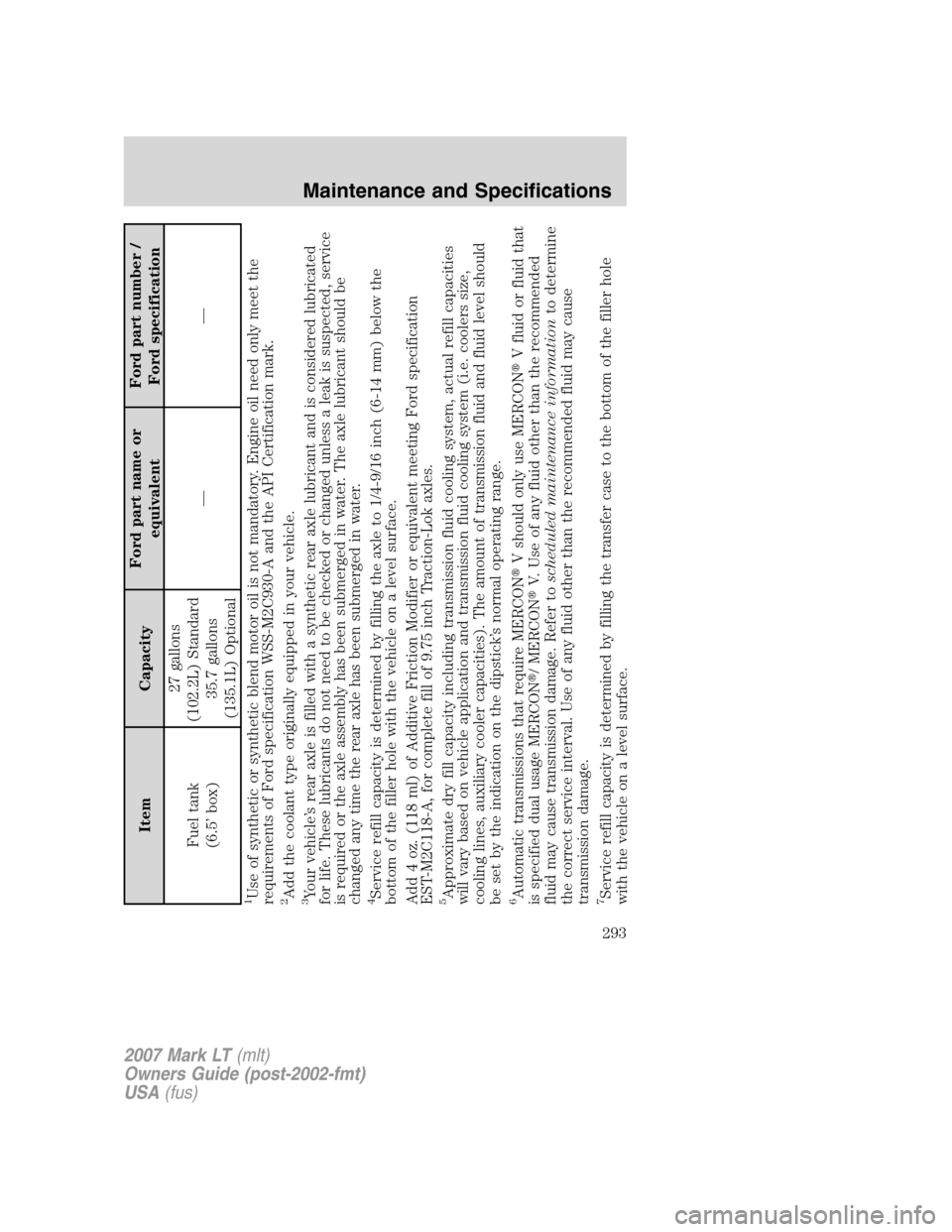

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
(6.5’ box)27 gallons
(102.2L) Standard
35.7 gallons
(135.1L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.4Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 9.75 inch Traction-Lok axles.5Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.6Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/ MERCONV. Use of any fluid other than the recommended
fluid may cause transmission damage. Refer toscheduled maintenance informationto determine
the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.7Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
293

A
Accessory delay ..........................85
Air cleaner filter ...............289–290
Air conditioning ..........................63
Airbag supplemental restraint
system ................................142–143
and child safety seats ............145
description ..............................143
disposal ....................................147
driver airbag ....................143, 146
indicator light .........................147
operation .........................143, 146
passenger airbag .............143, 146
Ambulance packages ....................9
Antifreeze
(see Engine coolant) ................268
Anti-lock brake system
(see Brakes) ..............................200
Anti-theft system ......................119
arming the system ..................120
Audio system (see Radio) ...19, 23
Automatic transmission
driving an automatic
overdrive .................................206
fluid, adding ............................285
fluid, checking ........................285
fluid, refill capacities ..............291
fluid, specification ..................291
Auxiliary Input Jack ...................30
Axle
lubricant specifications ..........291
refill capacities ........................291
traction lok ..............................203
B
Battery .......................................266acid, treating emergencies .....266
jumping a disabled battery ....238
maintenance-free ....................266
replacement, specifications ...290
servicing ..................................266
Belt-Minder.............................137
deactivating/activating the
Belt-Minder...........................140
Brakes ........................................199
anti-lock ...................................200
anti-lock brake system (ABS)
warning light ...........................200
fluid, checking and adding ....285
fluid, refill capacities ..............291
fluid, specifications .................291
lubricant specifications ..........291
parking ....................................201
shift interlock ..........................204
Bulbs ............................................72
C
Capacities for refilling fluids ....291
Cargo cage .................................106
Cell phone use ..............................9
Changing a tire .........................230
Child safety restraints ..............151
child safety belts ....................151
Child safety seats ......................155
attaching with tether straps ..159
in front seat ............................156
in rear seat ..............................156
Cleaning your vehicle
engine compartment ..............254
instrument panel ....................255
interior .....................................256
plastic parts ............................254
safety belts ..............................256
washing ....................................252
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
299

waxing .....................................253
wheels ......................................253
wiper blades ............................255
Climate control (see Air
conditioning or Heating) ............63
Clock adjust
6-CD in dash .............................24
Compass, electronic
set zone adjustment .................98
Console ........................................78
overhead ....................................79
Controls
power seat ...............................124
steering column ........................90
Coolant
checking and adding ..............268
refill capacities ................271, 291
specifications ..........................291
Cruise control
(see Speed control) ....................88
Customer Assistance ................220
Ford Extended Service
Plan ..........................................248
Getting assistance outside the
U.S. and Canada .....................249
Getting roadside assistance ...220
Getting the service you
need .........................................244
Ordering additional owner’s
literature .................................250
Utilizing the
Mediation/Arbitration
Program ...................................248
D
Daytime running lamps
(see Lamps) ................................68Dipstick
automatic transmission
fluid ..........................................285
engine oil .................................263
Driveline universal joint and
slip yoke ....................................288
Driving under special
conditions ..................208, 214, 217
sand .........................................215
snow and ice ...........................218
through water .................216, 219
DVD system .................................37
E
Electronic message center .........96
Emergencies, roadside
jump-starting ..........................238
Emergency Flashers .................222
Emission control system ..........282
Engine ........................................294
cleaning ...................................254
coolant .....................................268
fail-safe cooling .......................272
idle speed control ...................266
lubrication specifications .......291
refill capacities ........................291
service points ..........................261
starting after a collision .........222
Engine block heater .................199
Engine oil ..................................263
change oil soon warning,
message center .......................263
checking and adding ..............263
dipstick ....................................263
filter, specifications ........265, 290
recommendations ...................265
refill capacities ........................291
specifications ..........................291
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
300
