LINCOLN MARK LT 2007 Owners Manual

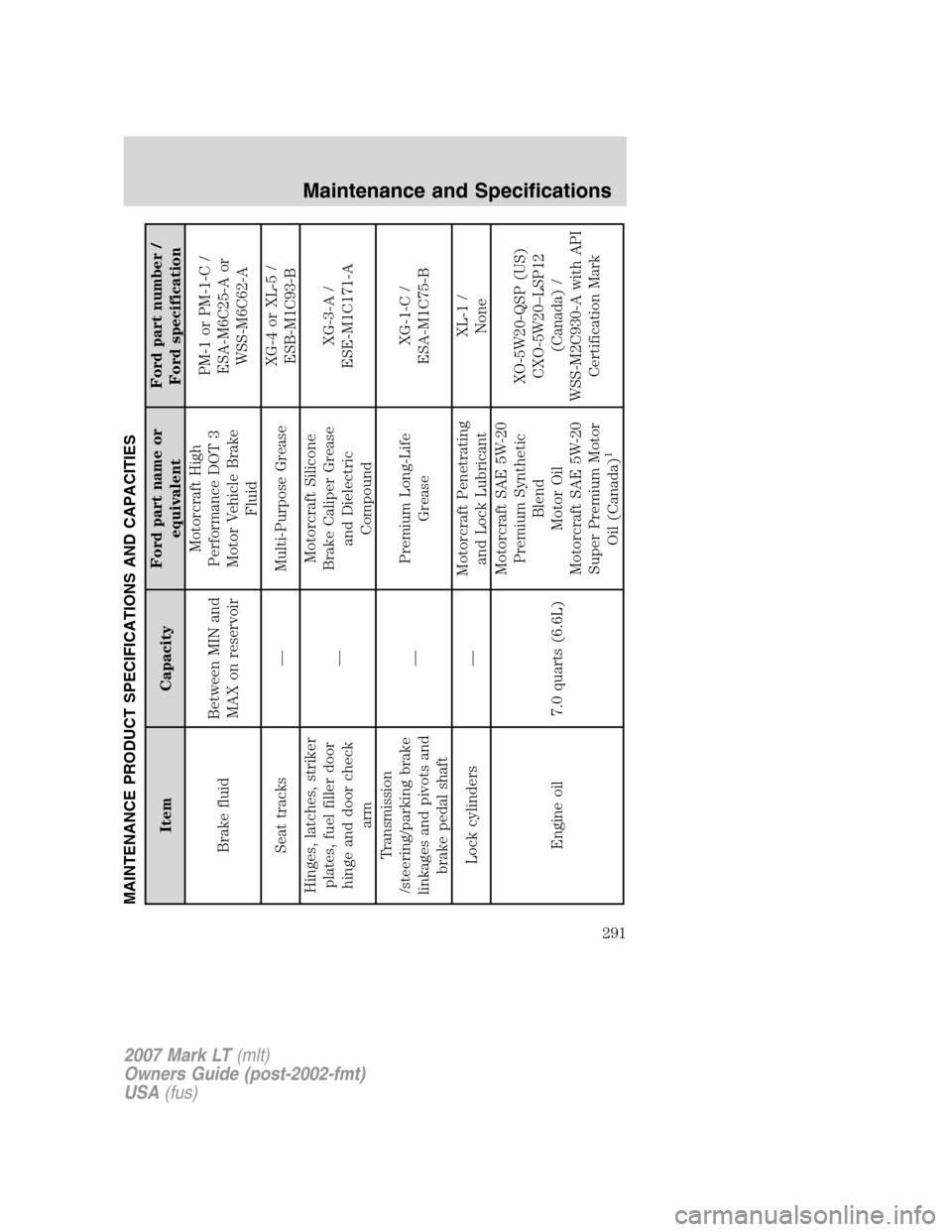

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1 or PM-1-C /
ESA-M6C25-A or
WSS-M6C62-A
Seat tracks — Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Hinges, latches, striker
plates, fuel filler door
hinge and door check
arm—Motorcraft Silicone
Brake Caliper Grease
and Dielectric
CompoundXG-3-A /
ESE-M1C171-A
Transmission
/steering/parking brake
linkages and pivots and
brake pedal shaft—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Engine oil 7.0 quarts (6.6L)Motorcraft SAE 5W-20
Premium Synthetic
Blend
Motor Oil
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
1
XO-5W20-QSP (US)
CXO-5W20–LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
291

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine coolant21.2 quarts
(20.0L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Front axle (4X4) fluid 3.7 pints (2.0L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid– 9.75
inch
3
5.5 pints (2.6L)
4
Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
5
Motorcraft MERCONV
AT F
6
XT-5-QM /
MERCONV
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft MERCON
AT FXT-2-QDX /
MERCON
Transfer case fluid
(4X4)2.0 quarts (1.9L)
7
Windshield washer fluid 4.25 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
(5.5’ box)30 gallons
(113.6L)——
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
292

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
(6.5’ box)27 gallons
(102.2L) Standard
35.7 gallons
(135.1L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.4Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 9.75 inch Traction-Lok axles.5Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.6Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/ MERCONV. Use of any fluid other than the recommended
fluid may cause transmission damage. Refer toscheduled maintenance informationto determine
the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.7Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
293

ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap
10.040–0.050 inch (1.02–1.28mm)
Compression ratio 9.85:1
1The spark plug gap can not be adjusted.
Engine drivebelt routing
•5.4L V8 Engine
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
294

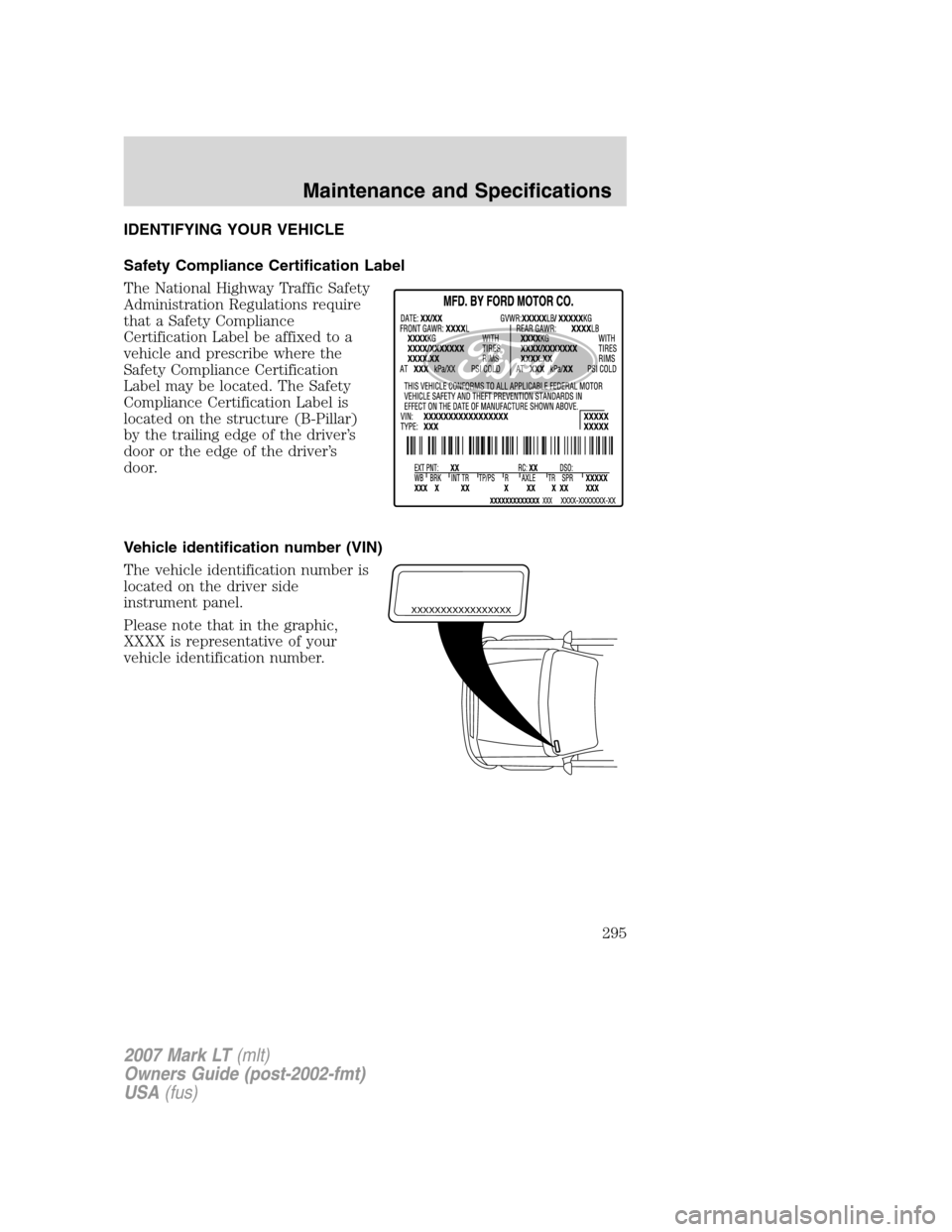

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
295

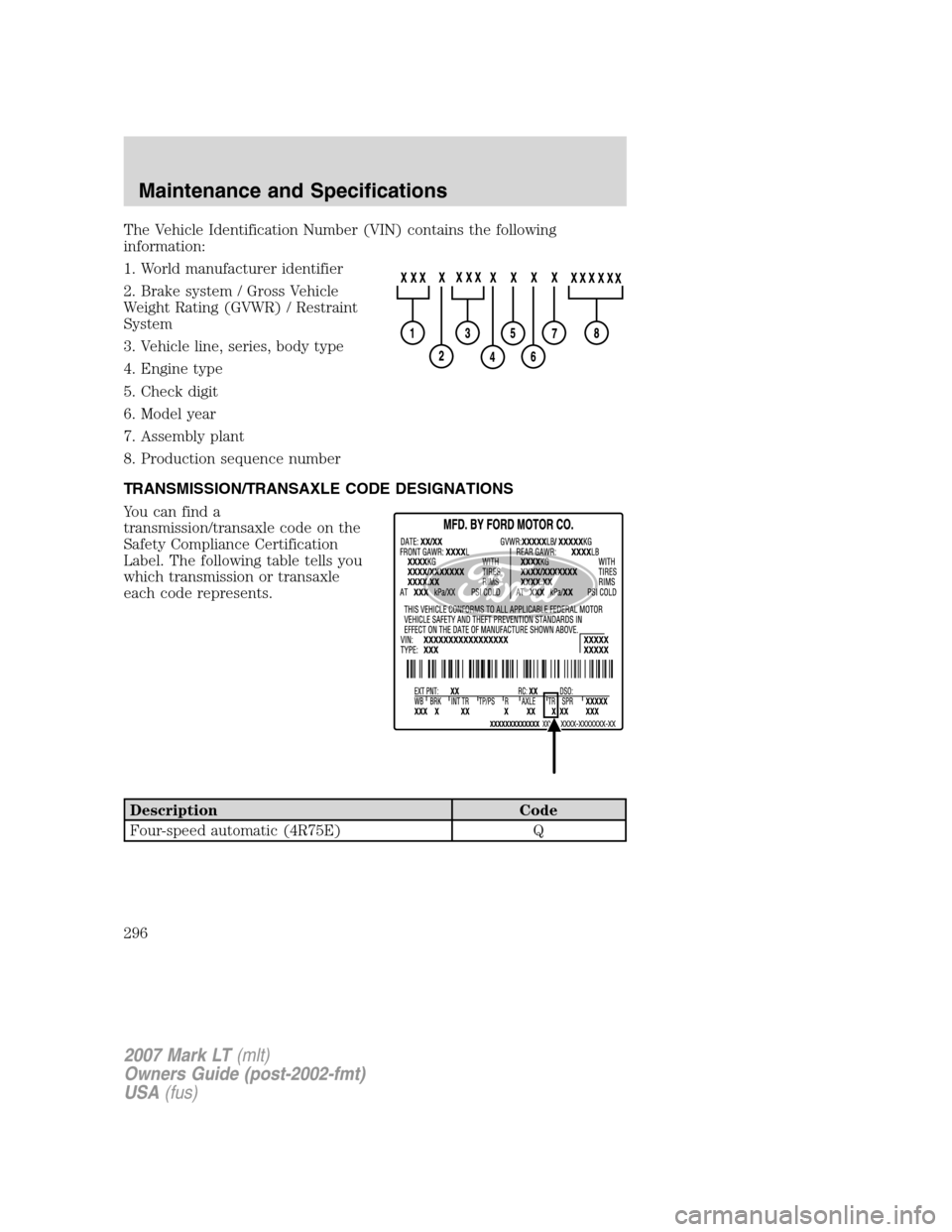

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic (4R75E) Q
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
296

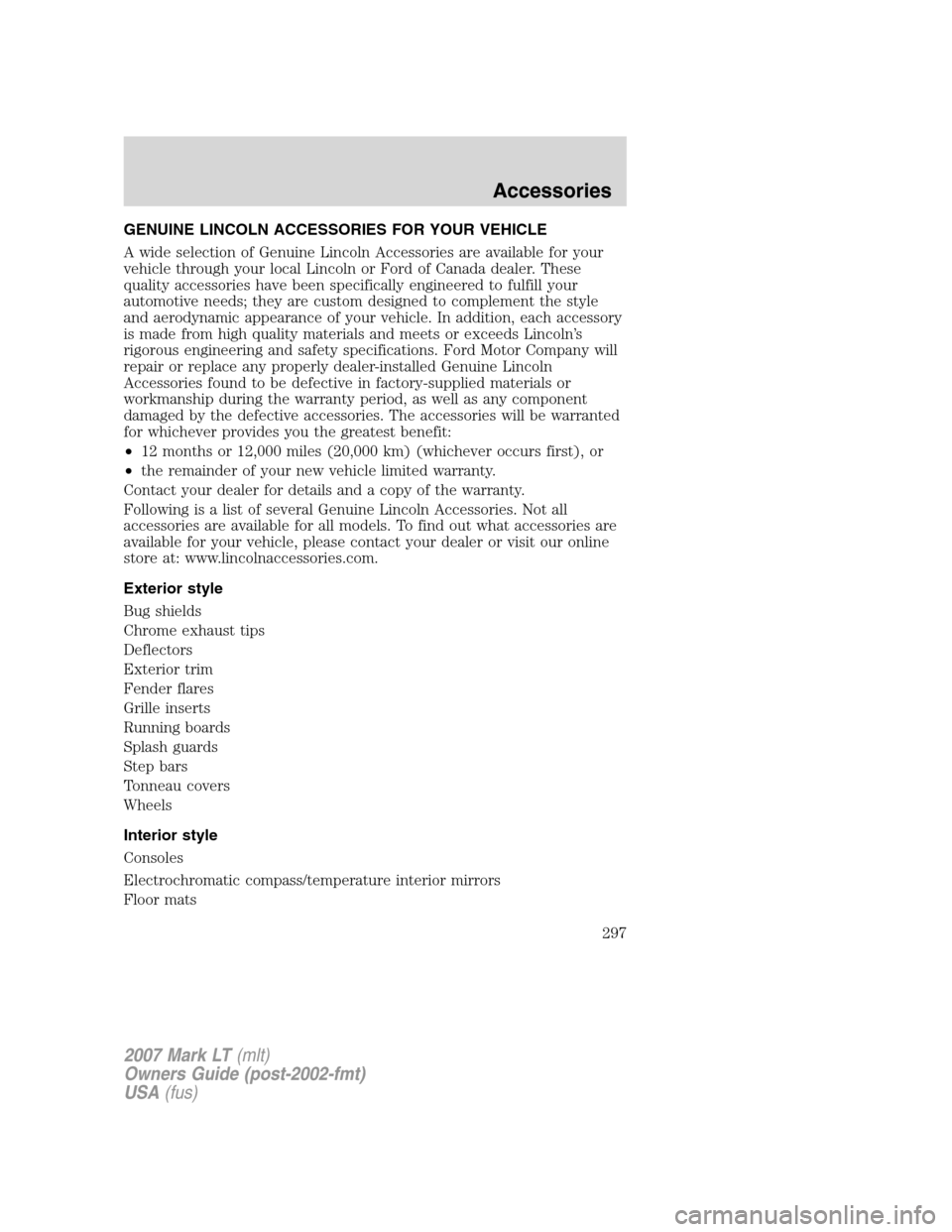

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Exterior trim
Fender flares
Grille inserts
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
Interior style
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
297

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-easehands-free communication system
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
298

A
Accessory delay ..........................85
Air cleaner filter ...............289–290
Air conditioning ..........................63
Airbag supplemental restraint
system ................................142–143
and child safety seats ............145
description ..............................143
disposal ....................................147
driver airbag ....................143, 146
indicator light .........................147
operation .........................143, 146
passenger airbag .............143, 146
Ambulance packages ....................9
Antifreeze
(see Engine coolant) ................268
Anti-lock brake system
(see Brakes) ..............................200
Anti-theft system ......................119
arming the system ..................120
Audio system (see Radio) ...19, 23
Automatic transmission
driving an automatic
overdrive .................................206
fluid, adding ............................285
fluid, checking ........................285
fluid, refill capacities ..............291
fluid, specification ..................291
Auxiliary Input Jack ...................30
Axle
lubricant specifications ..........291
refill capacities ........................291
traction lok ..............................203
B
Battery .......................................266acid, treating emergencies .....266
jumping a disabled battery ....238
maintenance-free ....................266
replacement, specifications ...290
servicing ..................................266
Belt-Minder.............................137
deactivating/activating the
Belt-Minder...........................140
Brakes ........................................199
anti-lock ...................................200
anti-lock brake system (ABS)
warning light ...........................200
fluid, checking and adding ....285
fluid, refill capacities ..............291
fluid, specifications .................291
lubricant specifications ..........291
parking ....................................201
shift interlock ..........................204
Bulbs ............................................72
C
Capacities for refilling fluids ....291
Cargo cage .................................106
Cell phone use ..............................9
Changing a tire .........................230
Child safety restraints ..............151
child safety belts ....................151
Child safety seats ......................155
attaching with tether straps ..159
in front seat ............................156
in rear seat ..............................156
Cleaning your vehicle
engine compartment ..............254
instrument panel ....................255
interior .....................................256
plastic parts ............................254
safety belts ..............................256
washing ....................................252
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
299

waxing .....................................253
wheels ......................................253
wiper blades ............................255
Climate control (see Air
conditioning or Heating) ............63
Clock adjust
6-CD in dash .............................24
Compass, electronic
set zone adjustment .................98
Console ........................................78
overhead ....................................79
Controls
power seat ...............................124
steering column ........................90
Coolant
checking and adding ..............268
refill capacities ................271, 291
specifications ..........................291
Cruise control
(see Speed control) ....................88
Customer Assistance ................220
Ford Extended Service
Plan ..........................................248
Getting assistance outside the
U.S. and Canada .....................249
Getting roadside assistance ...220
Getting the service you
need .........................................244
Ordering additional owner’s
literature .................................250
Utilizing the
Mediation/Arbitration
Program ...................................248
D
Daytime running lamps
(see Lamps) ................................68Dipstick
automatic transmission
fluid ..........................................285
engine oil .................................263
Driveline universal joint and
slip yoke ....................................288
Driving under special
conditions ..................208, 214, 217
sand .........................................215
snow and ice ...........................218
through water .................216, 219
DVD system .................................37
E
Electronic message center .........96
Emergencies, roadside
jump-starting ..........................238
Emergency Flashers .................222
Emission control system ..........282
Engine ........................................294
cleaning ...................................254
coolant .....................................268
fail-safe cooling .......................272
idle speed control ...................266
lubrication specifications .......291
refill capacities ........................291
service points ..........................261
starting after a collision .........222
Engine block heater .................199
Engine oil ..................................263
change oil soon warning,
message center .......................263
checking and adding ..............263
dipstick ....................................263
filter, specifications ........265, 290
recommendations ...................265
refill capacities ........................291
specifications ..........................291
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
300
