Audio displays
Your DVD system interacts closely with the front audio system. Status
messages will appear in the radio display showing the DVD status. Some
possible radio display messages:
•SINGLE PLAY or DUAL PLAY
•DVD LOAD
•DVD MENU
•DVD STOP
Audio interaction
You can then also use the front audio controls to advance, reverse, play
and pause a DVD. While a DVD is playing you may use the following
controls on the front radio:
•SEEK: Press to advance to the previous (
) or next () DVD
chapters.
•
: Press to play a DVD or to pause the DVD.
When the radio displays “DVD MENU”, press PLAY on the radio
(memory preset #6), to play the disc.
Parental control for the DVD system
Your Family Entertainment System (FES) allows you to have control
over the rear seat controls in a few different ways. The DVD system is
automatically activated when the vehicle ignition is ON, which allows the
rear seat passengers to use the DVD system.
There are three levels of control of
the FES buttons. The states are
FULL (enabled), LOCAL or
LOCKED (disabled). To change the level of control, press the memory
preset controls 3 and 5 simultaneously on the front audio controls. The
control level will cycle each time the buttons are pressed simultaneously.
The three states are described as:
FULL(enabled): The FES has control over the primary (speaker) and
secondary (headphone) audio sources.
LOCAL: The FES has control over the secondary source (headphones)
only. The radio will ignore button presses that affect the primary
(speaker) audio source.
LOCKED(disabled): The FES buttons are locked and all FES button
presses are ignored by the radio and the FES except for load and eject.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
58
Page 59 of 304
When the DVD system is ON, you
can then press the memory preset
controls 2 and 4 simultaneously to
toggle between Single Play and Dual Play. In Single Play mode, all
speakers listen to the same media. In Dual Play mode, rear seat
passengers can use the infrared wireless, or wired (not included)
headphones to listen to a different playing media than the front seat
passengers.
General information
Macrovision:This product incorporates copyright protection technology
that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended for home and
other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
MP3:Supply of this product only conveys a license for private,
non-commercial use and does not convey a license nor imply any right to
use this product in any commercial (i.e. revenue generating) real time
broadcasting (terrestrial, satellite, cable and /or any other media)
broadcasting/streaming via internet, intranets and/or other networks or in
other electronic content distribution systems, such as pay-audio or
audio-on-demand applications. An independent license for such use is
required. For details, please visit http:// www.mp3licensing.com.
Safety information
Read all of the safety and operating instructions before operating the
system and retain for future reference.
Do not attempt to service, repair or modify the Family Entertainment
System (FES). See your dealer.
Do not insert foreign objects into the DVD compartment.
Do not leave children unattended in the vehicle and do not let
children operate the system while unsupervised. If wired
headphones or auxiliary systems are used, children may become
entangled in the cords and seriously injure themselves.
123456
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
59
Page 113 of 304
5. Turn the ignition to the 1 (OFF/LOCK) position to exit programming.
Note:After exiting the driver configuration mode, the horn will chirp
once to indicate a feature has been activated/deactivated.
Sounding a panic alarm
Press
to activate the alarm. Press again or turn the ignition to 2
(ACCESSORY) or 3 (ON) to deactivate.
Note:The panic alarm will only operate when the ignition is in the 1
(OFF/LOCK) position.
Memory feature
The remote entry system can also control the memory feature.
Press the
control once to unlock the driver’s door. Pressing the
control will automatically move the seat, adjustable pedals (if equipped)
and power mirrors to the desired memory position (the memory position
corresponds to the transmitter being used).
Activating the memory feature
To activate this feature:
1. Position the seat, adjustable pedals (if equipped), and power mirrors
to the positions you desire.
2. Press the SET control on the
driver’s seat.
3. Within 5 five seconds, press one
control on the remote transmitter
and then press the 1 or 2 control on
the driver’s seat to which you would
like to associate with Driver 1 or
Driver 2 positions.
4. Repeat this procedure for another
remote transmitter if desired.
Deactivating the memory feature
To deactivate this feature:
1. Press the SET control on the driver’s door seat.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver’s seat.
3. Repeat this procedure for another remote transmitter if desired.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
113

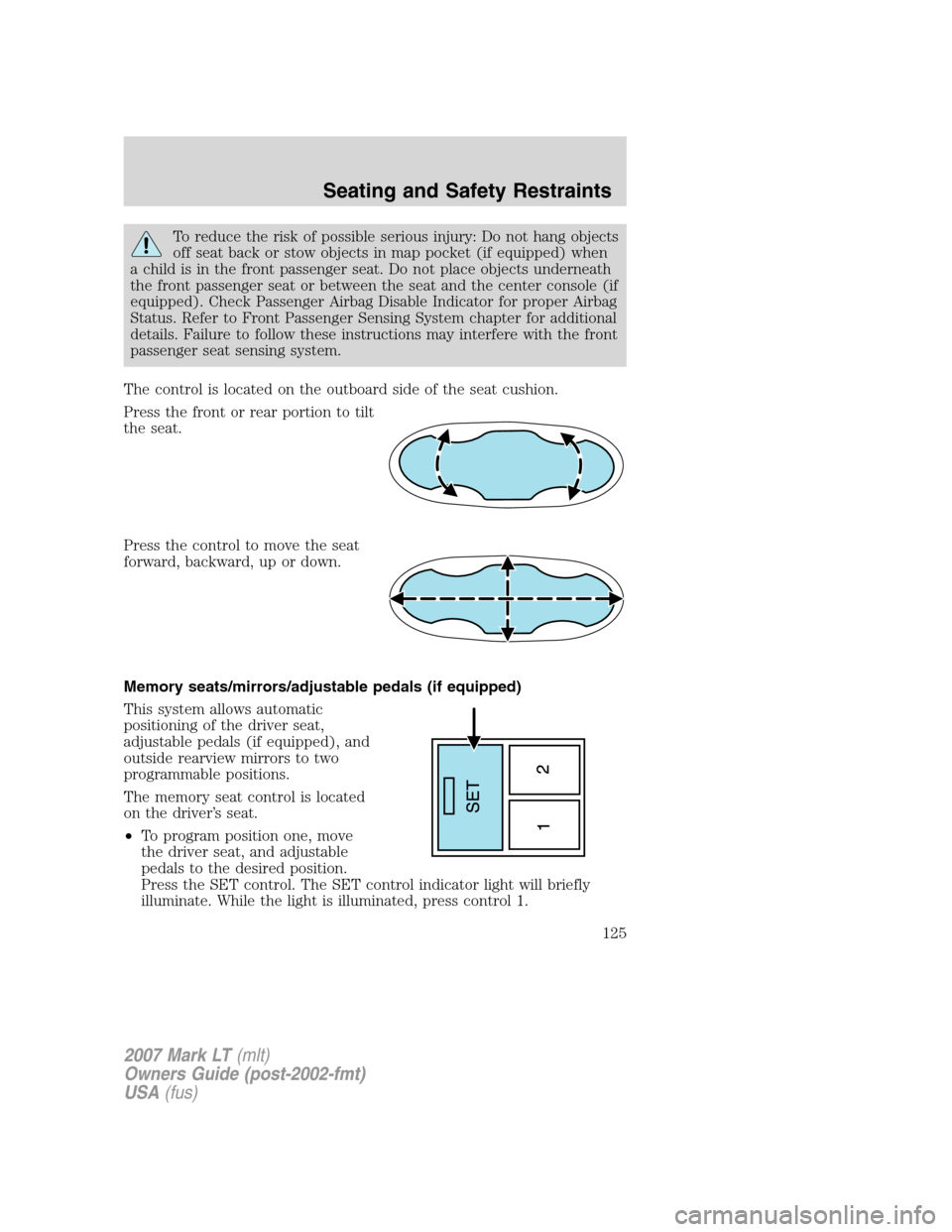

Page 125 of 304
To reduce the risk of possible serious injury: Do not hang objects
off seat back or stow objects in map pocket (if equipped) when
a child is in the front passenger seat. Do not place objects underneath
the front passenger seat or between the seat and the center console (if
equipped). Check Passenger Airbag Disable Indicator for proper Airbag
Status. Refer to Front Passenger Sensing System chapter for additional
details. Failure to follow these instructions may interfere with the front
passenger seat sensing system.
The control is located on the outboard side of the seat cushion.
Press the front or rear portion to tilt
the seat.
Press the control to move the seat
forward, backward, up or down.
Memory seats/mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat,
adjustable pedals (if equipped), and
outside rearview mirrors to two
programmable positions.
The memory seat control is located
on the driver’s seat.
•To program position one, move
the driver seat, and adjustable
pedals to the desired position.
Press the SET control. The SET control indicator light will briefly
illuminate. While the light is illuminated, press control 1.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
125

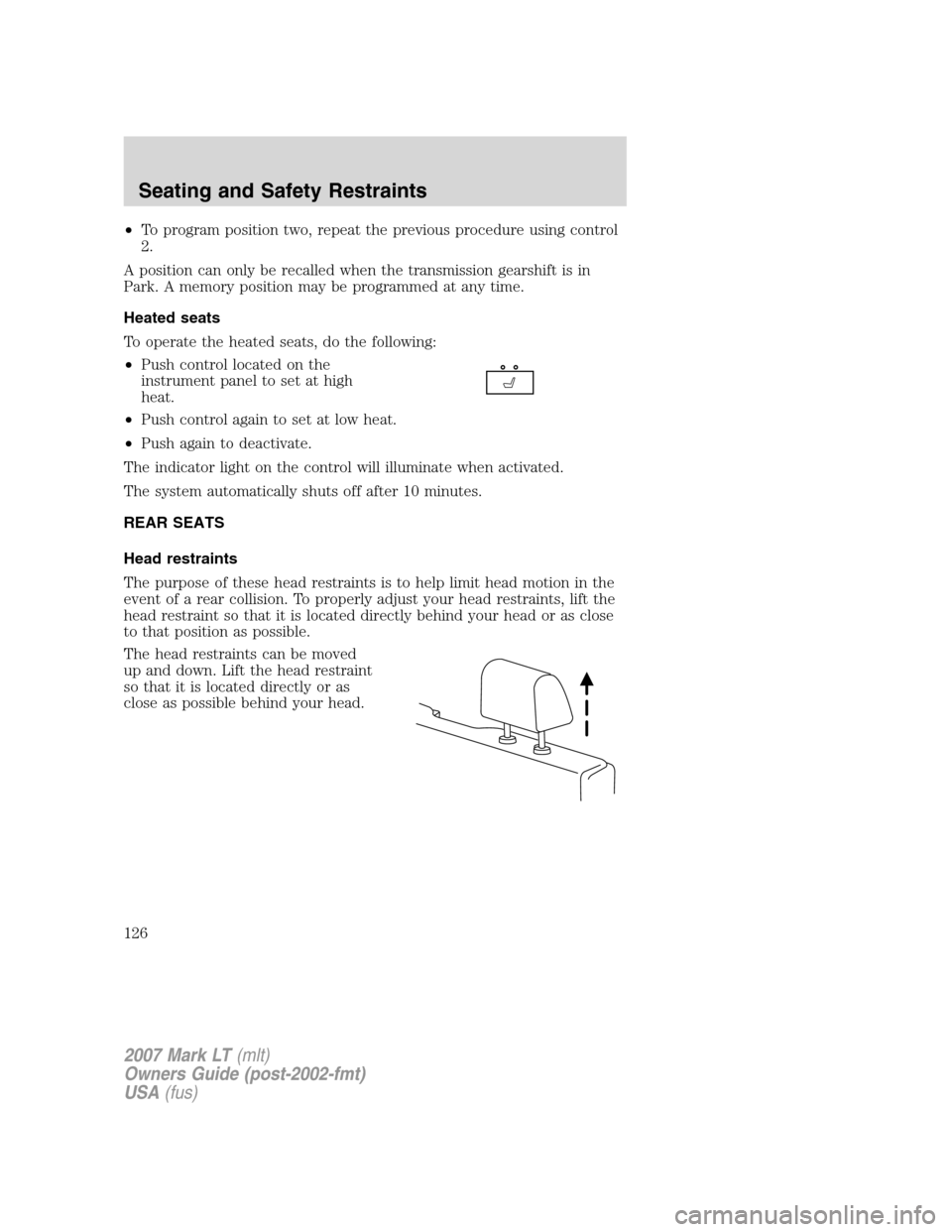

Page 126 of 304
•To program position two, repeat the previous procedure using control
2.
A position can only be recalled when the transmission gearshift is in
Park. A memory position may be programmed at any time.
Heated seats
To operate the heated seats, do the following:
•Push control located on the
instrument panel to set at high
heat.
•Push control again to set at low heat.
•Push again to deactivate.
The indicator light on the control will illuminate when activated.
The system automatically shuts off after 10 minutes.
REAR SEATS
Head restraints
The purpose of these head restraints is to help limit head motion in the
event of a rear collision. To properly adjust your head restraints, lift the
head restraint so that it is located directly behind your head or as close
to that position as possible.
The head restraints can be moved
up and down. Lift the head restraint
so that it is located directly or as
close as possible behind your head.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
126

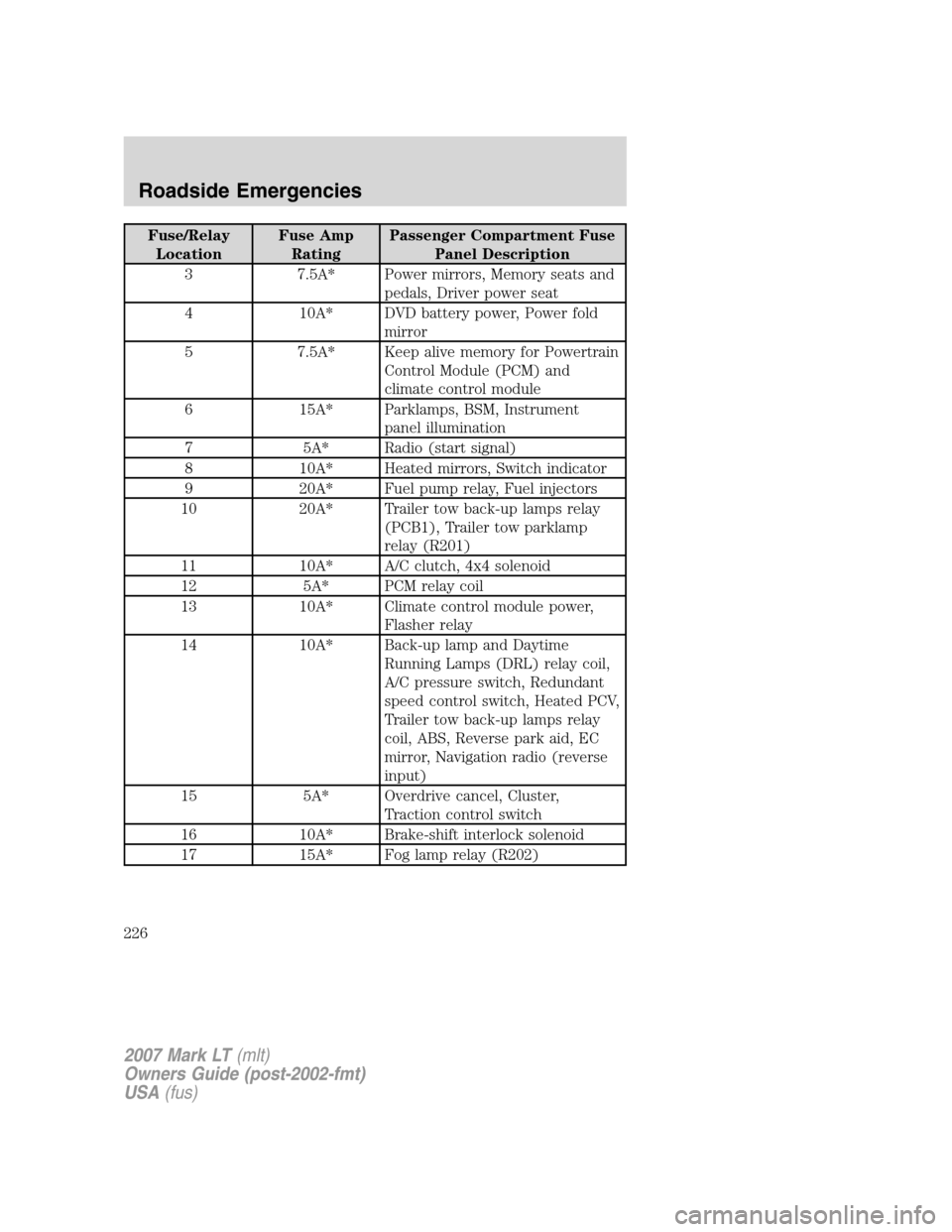

Page 226 of 304
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
3 7.5A* Power mirrors, Memory seats and
pedals, Driver power seat
4 10A* DVD battery power, Power fold
mirror
5 7.5A* Keep alive memory for Powertrain
Control Module (PCM) and
climate control module
6 15A* Parklamps, BSM, Instrument
panel illumination
7 5A* Radio (start signal)
8 10A* Heated mirrors, Switch indicator
9 20A* Fuel pump relay, Fuel injectors
10 20A* Trailer tow back-up lamps relay
(PCB1), Trailer tow parklamp
relay (R201)
11 10A* A/C clutch, 4x4 solenoid
12 5A* PCM relay coil
13 10A* Climate control module power,
Flasher relay
14 10A* Back-up lamp and Daytime
Running Lamps (DRL) relay coil,
A/C pressure switch, Redundant
speed control switch, Heated PCV,
Trailer tow back-up lamps relay
coil, ABS, Reverse park aid, EC
mirror, Navigation radio (reverse
input)
15 5A* Overdrive cancel, Cluster,
Traction control switch
16 10A* Brake-shift interlock solenoid
17 15A* Fog lamp relay (R202)
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
226
Page 228 of 304
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
35 20A* Instrument cluster high beam
indicator, High beam headlamps
36 10A* Trailer tow right turn/stop lamps
37 20A* Rear power point, Center console
power point
38 25A* Subwoofer power
39 — Not used
40 20A* Low beam headlamps, DRL
41 — Not used
42 10A* Trailer tow left turn/stop lamps
101 30A** Starter solenoid
102 20A** Ignition switch feed
103 20A** ABS valves
104 — Not used
105 30A** Electric trailer brakes
106 30A** Trailer tow battery charge
107 30A** Power door locks (BSM)
108 30A** Passenger power seat
109 30A** Driver power seat, Adjustable
pedals, Memory module (pedals,
seat, mirror)
110 20A** Cigar lighter, Diagnostic connector
power
111 30A** 4x4 relays
112 40A** ABS pump power
113 30A** Wipers and washer pump
114 40A** Heated backlite, Heated mirror
power
115 20A** Moon roof
116 30A** Blower motor
117 20A** Instrument panel power point
118 30A** Heated seats
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
228
Page 302 of 304
J
Jack ............................................230
positioning ...............................230
storage .............................230, 233
Jump-starting your vehicle ......238
K
Keyless entry system ...............117
autolock ...................................108
keypad .....................................117
locking and unlocking doors ..119
programming entry code .......117
Keys ...................................108, 120
positions of the ignition .........196
L
Lamps
autolamp system .......................67
bulb replacement
specifications chart ..................72
daytime running light ...............68
fog lamps ...................................67
headlamps .................................67
headlamps, flash to pass ..........68
instrument panel, dimming .....69
interior lamps ...........................71
replacing bulbs ...................73, 76
Lane change indicator
(see Turn signal) ........................70
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........200
Load limits .................................184
Loading instructions .................190
Locks
autolock ...................................108
childproof ................................110
doors ........................................108Lubricant specifications ...........291
Lug nuts ....................................237
Lumbar support, seats .............124
M
Message center .....................96–97
english/metric button .............101
system check button ..............100
warning messages ...................102
Mirrors .........................................85
automatic dimming rearview
mirror ........................................85
fold away ...................................86
heated ........................................87
programmable memory ..113, 125
side view mirrors (power) .......85
signal .........................................87
Moon roof ....................................91
Motorcraft parts ........257, 273, 290
N
Navigation system .......................62
O
Octane rating ............................277
Oil (see Engine oil) ..................263
P
Parking brake ............................201
Parts (see Motorcraft parts) ....290
Passenger Occupant
Classification Sensor .................129
Power distribution box
(see Fuses) ...............................224
Power door locks ......................108
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
302
Page 303 of 304
Power mirrors .............................85
Power point .................................81
Power steering ..........................202
fluid, checking and adding ....284
fluid, refill capacity ................291
fluid, specifications .................291
Power Windows ...........................83
Preparing to drive your
vehicle ........................................203
R
Radio ......................................19, 23
Rear seat entertainment
system ..........................................37
Relays ........................................223
Remote entry system ...............111
illuminated entry ....................116
locking/unlocking
doors ................................111–112
panic alarm .............................113
replacement/additional
transmitters .............................115
replacing the batteries ...........114
Reverse sensing system ...........208
Roadside assistance ..................220
S
Safety Belt Maintenance ..........142
Safety belts (see Safety
restraints) ..........128, 131–134, 136
Safety defects, reporting ..250–251
Safety restraints ........128, 131–136
Belt-Minder...........................137
Belt-Minder,
deactivating/activating ...........140
extension assembly ................141for adults .........................132–134
for children .............................151
Occupant Classification
Sensor ......................................129
safety belt maintenance .........142
warning light and
chime ...............................136–137
Safety seats for children ..........155
Safety Compliance
Certification Label ....................295
Satellite Radio Information ........34
Seat belts
(see Safety restraints) .............128
Seats ..........................................122
child safety seats ....................155
heated ................................63, 126
memory seat ...................113, 125
SecuriLock passive anti-theft
system ................................119–120
Servicing your vehicle ..............259
Setting the clock
AM/FM/In-dash 6 CD ................24
Snowplowing .........................9, 219
Spare tire
(see Changing the Tire) ...........233
Spark plugs,
specifications .....................290, 294
Special notice
ambulance conversions ..............9
utility-type vehicles ....................8
Specification chart,
lubricants ...................................291
Speed control ..............................88
Starting your vehicle ........196–198
jump starting ..........................238
Steering wheel
controls ......................................90
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
303
