wiper fluid LINCOLN MARK LT 2007 Owners Manual

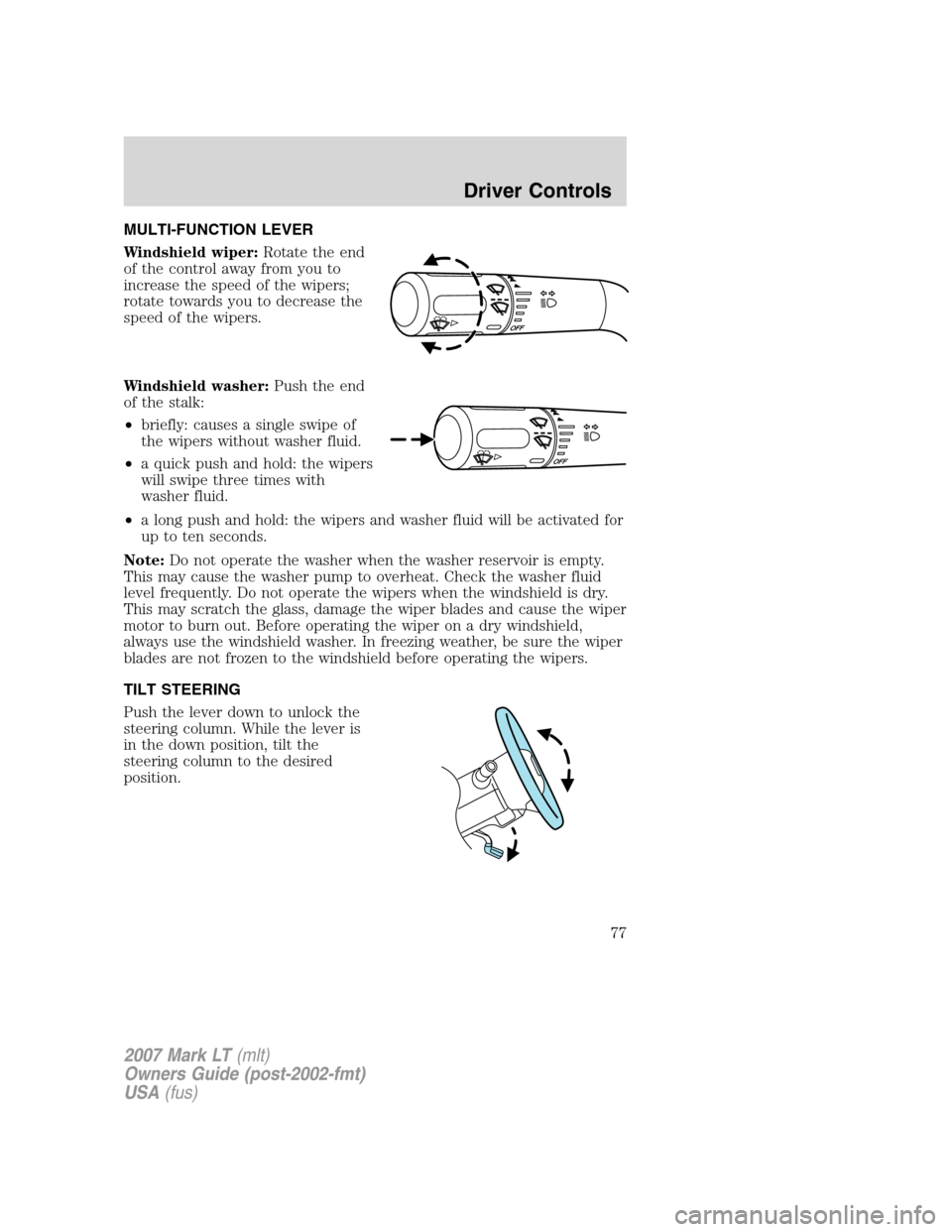

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
TILT STEERING
Push the lever down to unlock the
steering column. While the lever is
in the down position, tilt the
steering column to the desired
position.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
77

Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box and Auxiliary Relay Box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 10A* Run/Accessory - Wipers,
Instrument cluster
2 20A* Stop/Turn lamps, Brake on/off
switch, Hazard flashers
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
225

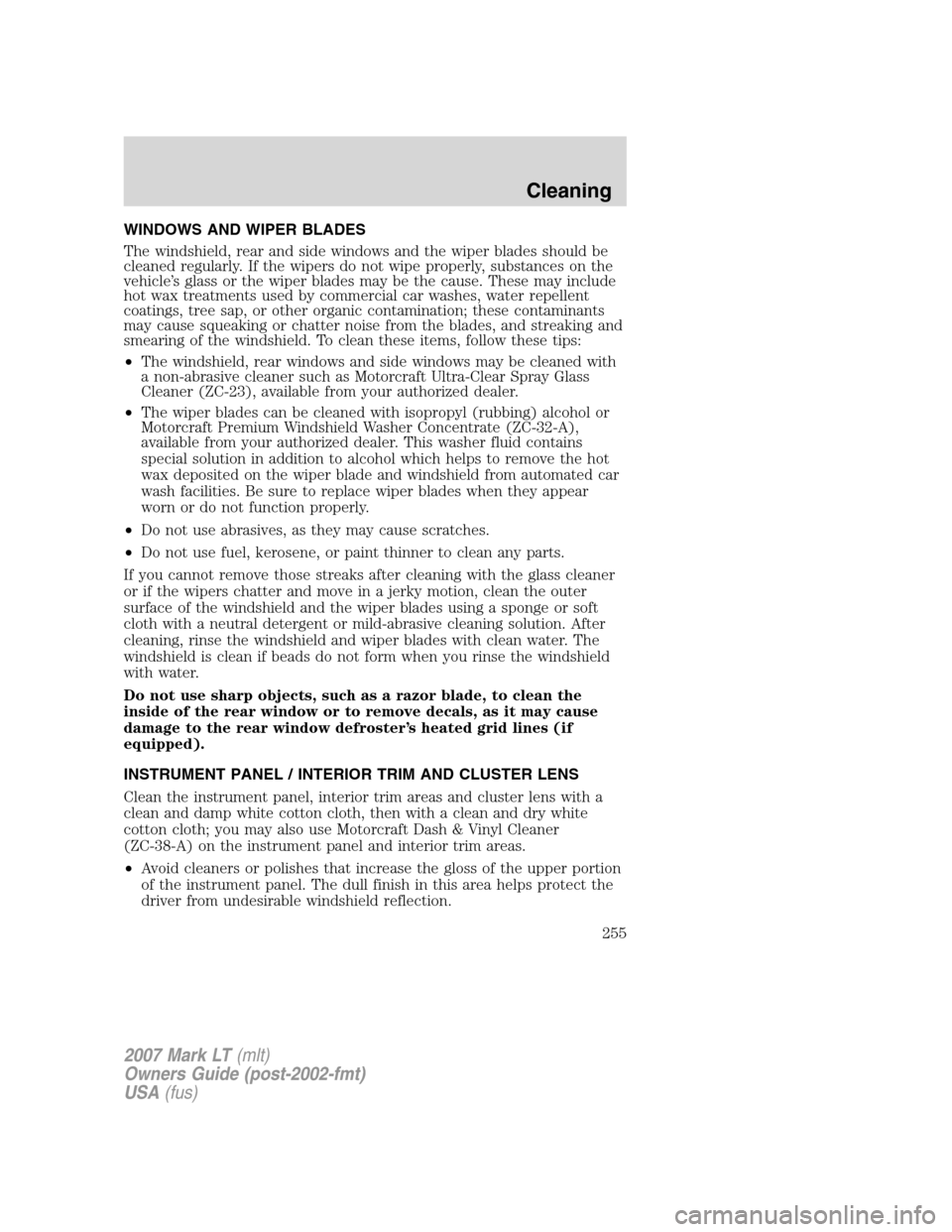

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines (if
equipped).
INSTRUMENT PANEL / INTERIOR TRIM AND CLUSTER LENS
Clean the instrument panel, interior trim areas and cluster lens with a
clean and damp white cotton cloth, then with a clean and dry white
cotton cloth; you may also use Motorcraft Dash & Vinyl Cleaner
(ZC-38-A) on the instrument panel and interior trim areas.
•Avoid cleaners or polishes that increase the gloss of the upper portion
of the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
255

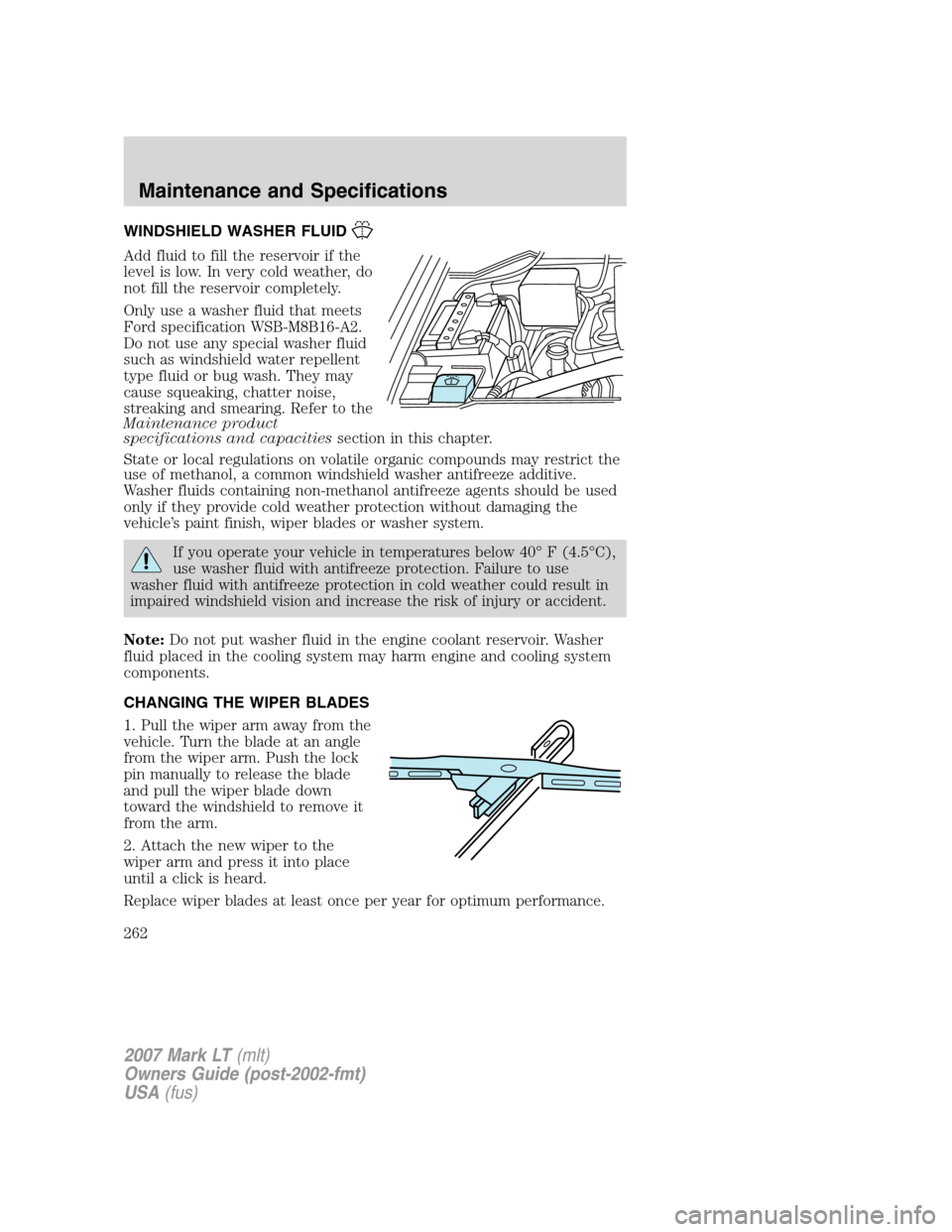

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16-A2.
Do not use any special washer fluid
such as windshield water repellent
type fluid or bug wash. They may
cause squeaking, chatter noise,
streaking and smearing. Refer to the
Maintenance product
specifications and capacitiessection in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
If you operate your vehicle in temperatures below 40° F (4.5°C),
use washer fluid with antifreeze protection. Failure to use
washer fluid with antifreeze protection in cold weather could result in
impaired windshield vision and increase the risk of injury or accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Push the lock
pin manually to release the blade
and pull the wiper blade down
toward the windshield to remove it
from the arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
Replace wiper blades at least once per year for optimum performance.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
262

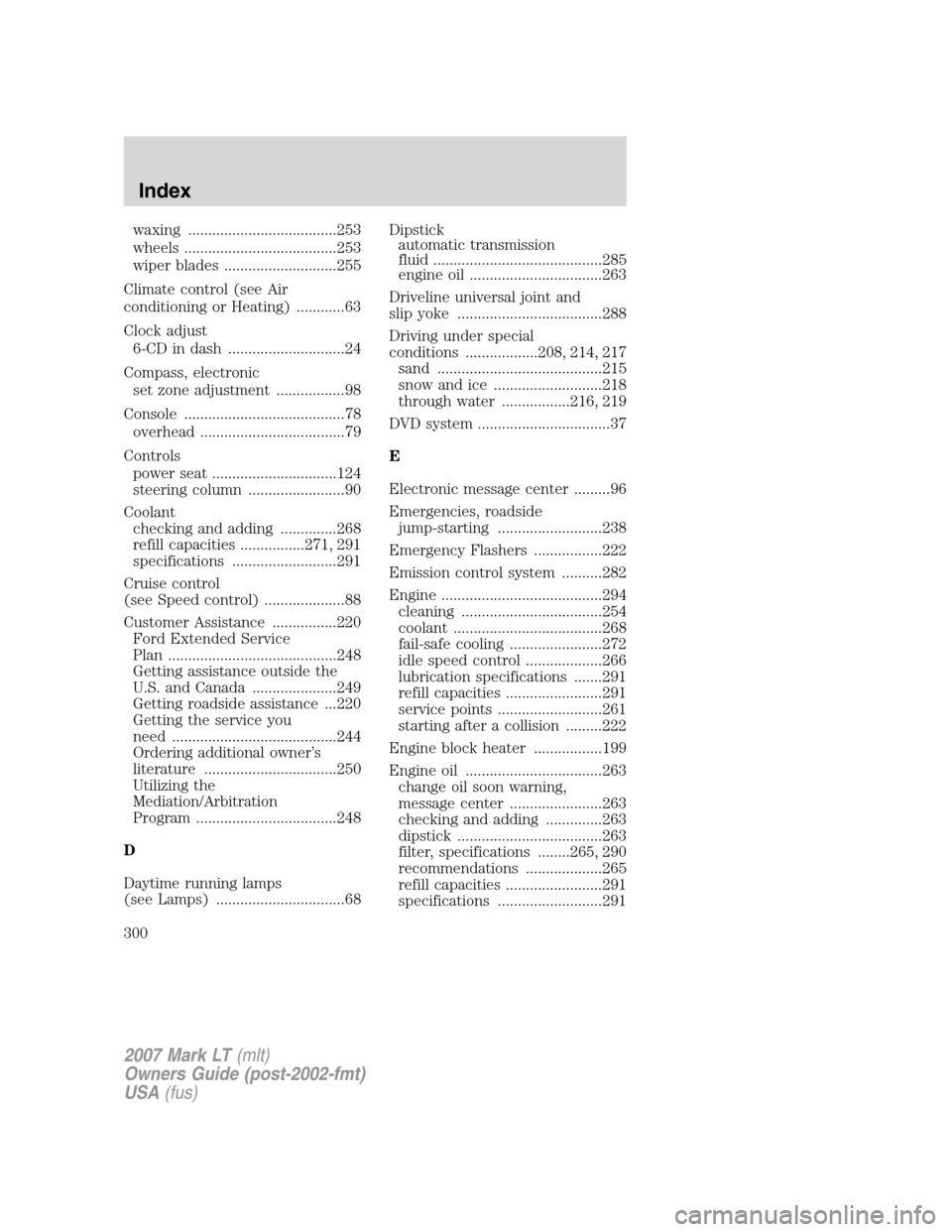

waxing .....................................253
wheels ......................................253
wiper blades ............................255
Climate control (see Air
conditioning or Heating) ............63
Clock adjust
6-CD in dash .............................24
Compass, electronic
set zone adjustment .................98
Console ........................................78
overhead ....................................79
Controls
power seat ...............................124
steering column ........................90
Coolant
checking and adding ..............268
refill capacities ................271, 291
specifications ..........................291
Cruise control
(see Speed control) ....................88
Customer Assistance ................220
Ford Extended Service
Plan ..........................................248
Getting assistance outside the
U.S. and Canada .....................249
Getting roadside assistance ...220
Getting the service you
need .........................................244
Ordering additional owner’s
literature .................................250
Utilizing the
Mediation/Arbitration
Program ...................................248
D
Daytime running lamps
(see Lamps) ................................68Dipstick
automatic transmission
fluid ..........................................285
engine oil .................................263
Driveline universal joint and
slip yoke ....................................288
Driving under special
conditions ..................208, 214, 217
sand .........................................215
snow and ice ...........................218
through water .................216, 219
DVD system .................................37
E
Electronic message center .........96
Emergencies, roadside
jump-starting ..........................238
Emergency Flashers .................222
Emission control system ..........282
Engine ........................................294
cleaning ...................................254
coolant .....................................268
fail-safe cooling .......................272
idle speed control ...................266
lubrication specifications .......291
refill capacities ........................291
service points ..........................261
starting after a collision .........222
Engine block heater .................199
Engine oil ..................................263
change oil soon warning,
message center .......................263
checking and adding ..............263
dipstick ....................................263
filter, specifications ........265, 290
recommendations ...................265
refill capacities ........................291
specifications ..........................291
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
300

tilting .........................................77
T
Tailgate ..............................105–106
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....180
Tires ...........................165–167, 230
alignment ................................174
care ..........................................170
changing ..................230, 233–234
checking the pressure ............170
inflating ...................................168
label .........................................179
replacing ..................................171
rotating ....................................174
safety practices .......................173
sidewall information ...............175
snow tires and chains ............184
spare tire .................................231
terminology .............................167
tire grades ...............................166
treadwear ........................166, 170
Towing .......................................190
recreational towing .................195
trailer towing ..........................190
Traction control ........................201
Traction-lok rear axle ...............203Transfer case
fluid checking .........................288
Transmission .............................204
brake-shift interlock (BSI) ....204
fluid, checking and adding
(automatic) .............................285
fluid, refill capacities ..............291
lubricant specifications ..........291
Turn signal ..................................70
V
Vehicle Identification Number
(VIN) ..........................................295
Vehicle loading ..........................184
Ventilating your vehicle ...........199
W
Warning lights (see Lights) .......12
Washer fluid ..............................262
Water, Driving through .............219
Windows
power .........................................83
power down back window .......84
Windshield washer fluid and
wipers ..........................................77
checking and adding fluid .....262
replacing wiper blades ...........262
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
304
