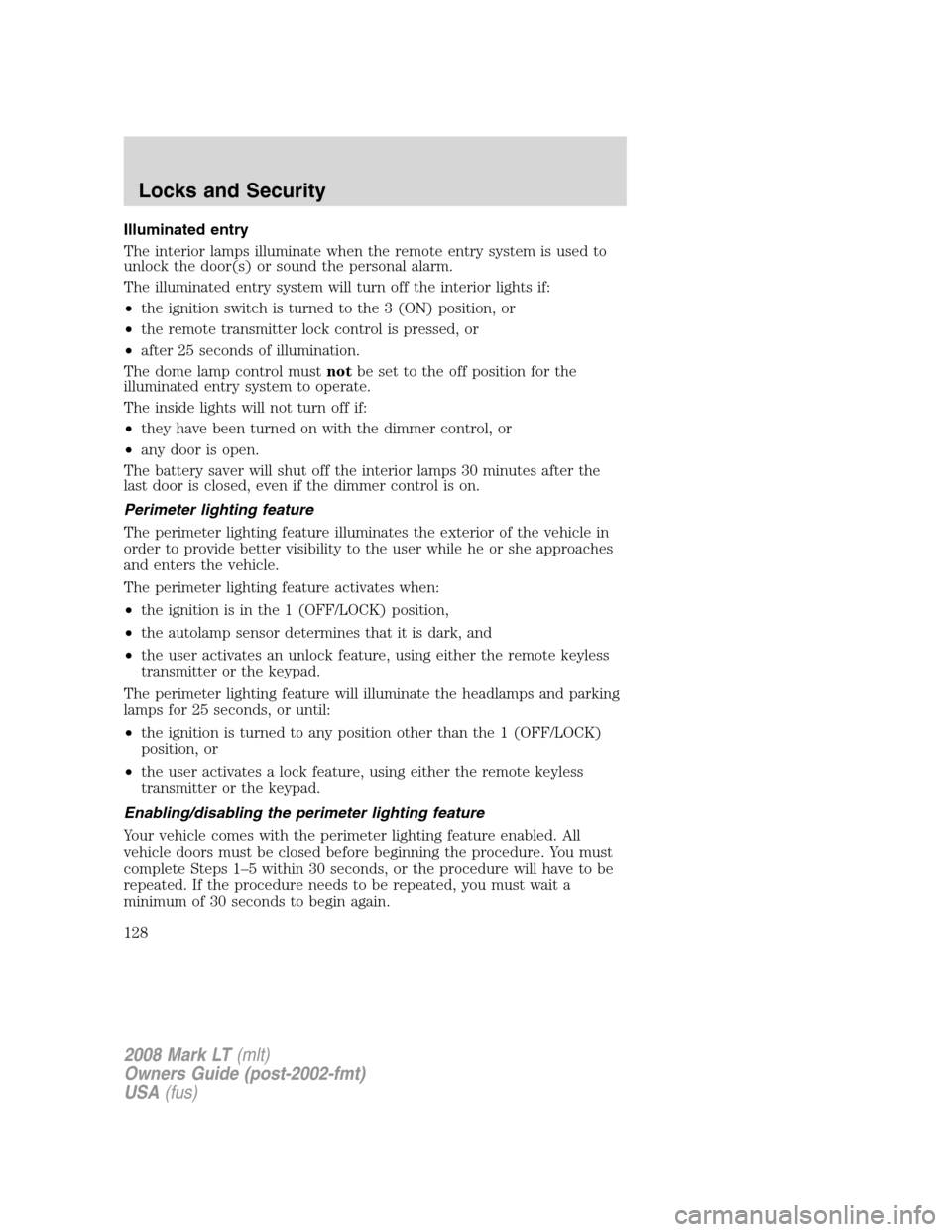

Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 3 (ON) position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control mustnotbe set to the off position for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
The battery saver will shut off the interior lamps 30 minutes after the
last door is closed, even if the dimmer control is on.
Perimeter lighting feature
The perimeter lighting feature illuminates the exterior of the vehicle in
order to provide better visibility to the user while he or she approaches
and enters the vehicle.
The perimeter lighting feature activates when:
•the ignition is in the 1 (OFF/LOCK) position,
•the autolamp sensor determines that it is dark, and
•the user activates an unlock feature, using either the remote keyless
transmitter or the keypad.
The perimeter lighting feature will illuminate the headlamps and parking
lamps for 25 seconds, or until:
•the ignition is turned to any position other than the 1 (OFF/LOCK)
position, or
•the user activates a lock feature, using either the remote keyless
transmitter or the keypad.
Enabling/disabling the perimeter lighting feature
Your vehicle comes with the perimeter lighting feature enabled. All
vehicle doors must be closed before beginning the procedure. You must
complete Steps 1–5 within 30 seconds, or the procedure will have to be
repeated. If the procedure needs to be repeated, you must wait a
minimum of 30 seconds to begin again.
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
128

Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
A computer system controls the engine’s idle revolutions per minute
(RPM). When the engine starts, the idle RPM runs higher than normal in
order to warm the engine. If the engine idle speed does not slow down
automatically, have the vehicle checked. If the vehicle is operated in a
heavy snow storm or blowing snow conditions, the engine air induction
may become partially clogged with snow and/or ice. If this occurs the
engine may experience a significant reduction in power output. At the
earliest opportunity, clear all snow and/or ice away from the air induction
inlet. Do not allow the vehicle to idle for more than 10 minutes at the
higher engine RPM.
Before starting the vehicle:
1. Make sure all vehicle occupants have buckled their safety belts. For
more information on safety belts and their proper usage, refer to the
Seating and Safety Restraintschapter.
2. Make sure the headlamps and vehicle accessories are off.
3. Make sure the gearshift is in P
(Park).
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
211

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
18 10A* Run/Start feed - Overhead power
point, Electrochromatic mirror,
Heated seats, BSM, Compass, RSS
(Reverse Sensing System)
19 10A* Restraints (Air bag module), OCS
20 10A* Battery feed for overhead power
point
21 15A* Cluster keep alive power
22 10A* Delayed accessory power for
audio, power door lock switch and
moon roof switch illumination
23 10A* RH low beam headlamp
24 15A* Battery saver power for demand
lamps
25 10A* LH low beam headlamp
26 20A* Horn relay (PCB3), Horn power
27 5A* Passenger Air bag Deactivation
(PAD) warning lamp, Cluster RUN
/START power
28 5A* SecuriLock transceiver (PATS)
29 15A* PCM 4x4 power
30 15A* PCM 4x4 power
31 20A* Radio power, Satellite radio
module
32 15A* Vapor Management Valve (VMV),
A/C clutch relay, Canister vent,
Heated Exhaust Gas Oxygen
(HEGO) sensors #11 and #21,
CMCV, Mass Air Flow (MAF)
sensor, VCT, Electronic fan clutch
33 15A* Shift solenoid, CMS #12 and #22
34 15A* Fuel injectors and PCM power
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
244

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
35 20A* Instrument cluster high beam
indicator, High beam headlamps
36 10A* Trailer tow right turn/stop lamps
37 20A* Rear power point, Center console
power point
38 25A* Subwoofer power
39 — Not used
40 20A* Low beam headlamps, DRL
41 — Not used
42 10A* Trailer tow left turn/stop lamps
101 30A** Starter solenoid
102 20A** Ignition switch feed
103 20A** ABS valves
104 — Not used
105 30A** Electric trailer brakes
106 30A** Trailer tow battery charge
107 30A** Power door locks (BSM)
108 30A** Passenger power seat
109 30A** Driver power seat, Adjustable
pedals, Memory module (pedals,
seat, mirror)
110 20A** Cigar lighter, Diagnostic connector
power
111 30A** 4x4 relays
112 40A** ABS pump power
113 30A** Wipers and washer pump
114 40A** Heated backlite, Heated mirror
power
115 20A** Moon roof
116 30A** Blower motor
117 20A** Instrument panel power point
118 30A** Heated seats
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
245

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
401 30A Circuit
breakerDelayed accessory power: Power
windows, Moon roof, Power
sliding backlite
R01 Full ISO relay Starter solenoid
R02 Full ISO relay Accessory delay
R03 Full ISO relay Hi-beam headlamps
R04 Full ISO relay Heated backlite
R05 Full ISO relay Trailer tow battery charge
R06 Full ISO relay Blower motor
R201 Half ISO relay Trailer tow park lamps
R202 Half ISO relay Fog lamps
R203 Half ISO relay PCM
* Mini fuses ** Cartridge fuses
Auxiliary relay box
The relay box is located in the engine compartment on the left fender.
•With Daytime Running Lamp (DRL) or 4x4 options
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
246

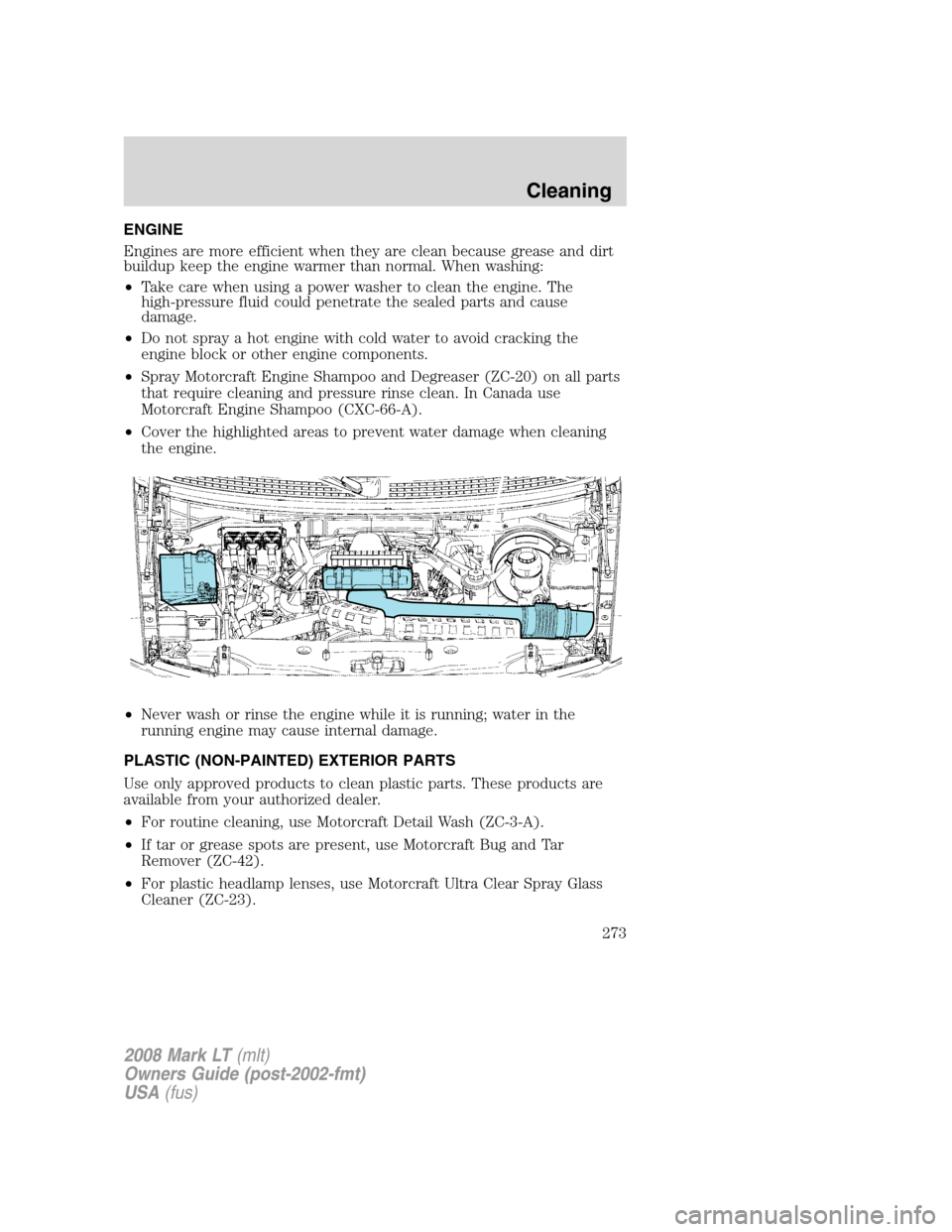

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts
that require cleaning and pressure rinse clean. In Canada use
Motorcraft Engine Shampoo (CXC-66-A).
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
273

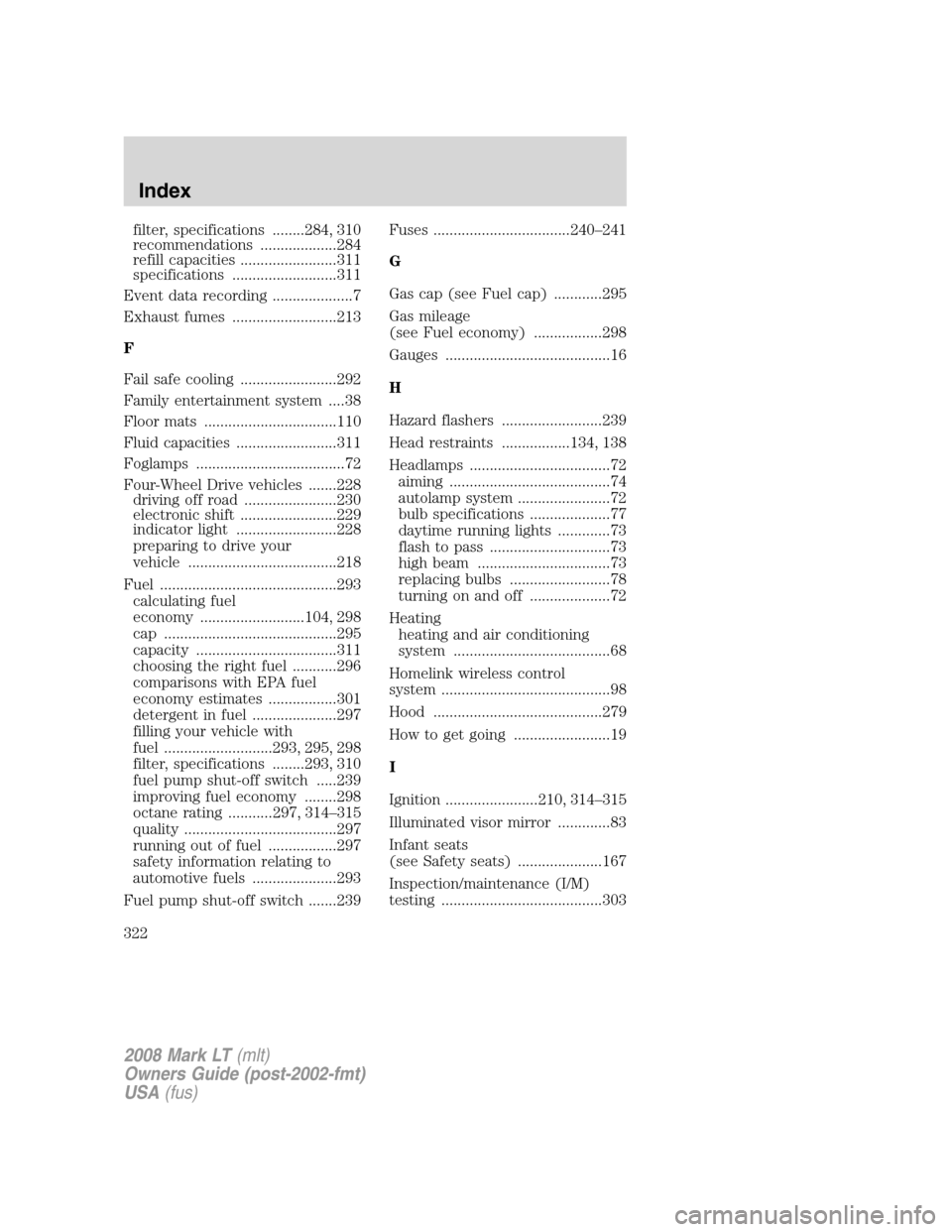

filter, specifications ........284, 310
recommendations ...................284
refill capacities ........................311
specifications ..........................311
Event data recording ....................7
Exhaust fumes ..........................213
F
Fail safe cooling ........................292
Family entertainment system ....38
Floor mats .................................110
Fluid capacities .........................311
Foglamps .....................................72
Four-Wheel Drive vehicles .......228
driving off road .......................230
electronic shift ........................229
indicator light .........................228
preparing to drive your
vehicle .....................................218
Fuel ............................................293
calculating fuel
economy ..........................104, 298
cap ...........................................295
capacity ...................................311
choosing the right fuel ...........296
comparisons with EPA fuel
economy estimates .................301
detergent in fuel .....................297
filling your vehicle with
fuel ...........................293, 295, 298
filter, specifications ........293, 310
fuel pump shut-off switch .....239
improving fuel economy ........298
octane rating ...........297, 314–315
quality ......................................297
running out of fuel .................297
safety information relating to
automotive fuels .....................293
Fuel pump shut-off switch .......239Fuses ..................................240–241
G
Gas cap (see Fuel cap) ............295
Gas mileage
(see Fuel economy) .................298
Gauges .........................................16
H
Hazard flashers .........................239
Head restraints .................134, 138
Headlamps ...................................72
aiming ........................................74
autolamp system .......................72
bulb specifications ....................77
daytime running lights .............73
flash to pass ..............................73
high beam .................................73
replacing bulbs .........................78
turning on and off ....................72
Heating
heating and air conditioning
system .......................................68
Homelink wireless control
system ..........................................98
Hood ..........................................279
How to get going ........................19
I
Ignition .......................210, 314–315
Illuminated visor mirror .............83
Infant seats
(see Safety seats) .....................167
Inspection/maintenance (I/M)
testing ........................................303
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
322

Instrument panel
cleaning ...................................275
cluster ........................................12
lighting up panel and
interior .......................................74
J
Jack ............................................247
positioning ...............................247
storage .............................247, 250
Jump-starting your vehicle ......255
K
Keyless entry system ...............129
autolock ...................................120
keypad .....................................129
locking and unlocking doors ..131
programming entry code .......129
Keys ...................................120, 132
positions of the ignition .........210
L
Lamps
autolamp system .......................72
bulb replacement
specifications chart ..................77
daytime running light ...............73
fog lamps ...................................72
headlamps .................................72
headlamps, flash to pass ..........73
instrument panel, dimming .....74
interior lamps ...........................76
replacing bulbs ...................78, 81
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........215
Load limits .................................198
Loading instructions .................204Locks
autolock ...................................120
childproof ................................122
doors ........................................120
Lubricant specifications ...........311
Lug nuts ....................................254
Lumbar support, seats .............136
M
Message center .........................102
english/metric button .............106
system check button ..............106
warning messages ...................107
Mirrors ...................................90–91
automatic dimming rearview
mirror ........................................90
fold away ...................................91
heated ........................................92
programmable memory ..125, 137
side view mirrors (power) .......91
signal .........................................92
Moon roof ....................................97
Motorcraft parts ........277, 293, 310
N
Navigation system .......................67
O
Octane rating ............................297
Oil (see Engine oil) ..................282
P
Parking brake ............................216
Parts (see Motorcraft parts) ....310
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
323
