check engine LINCOLN MARK LT 2008 Owner's Guide

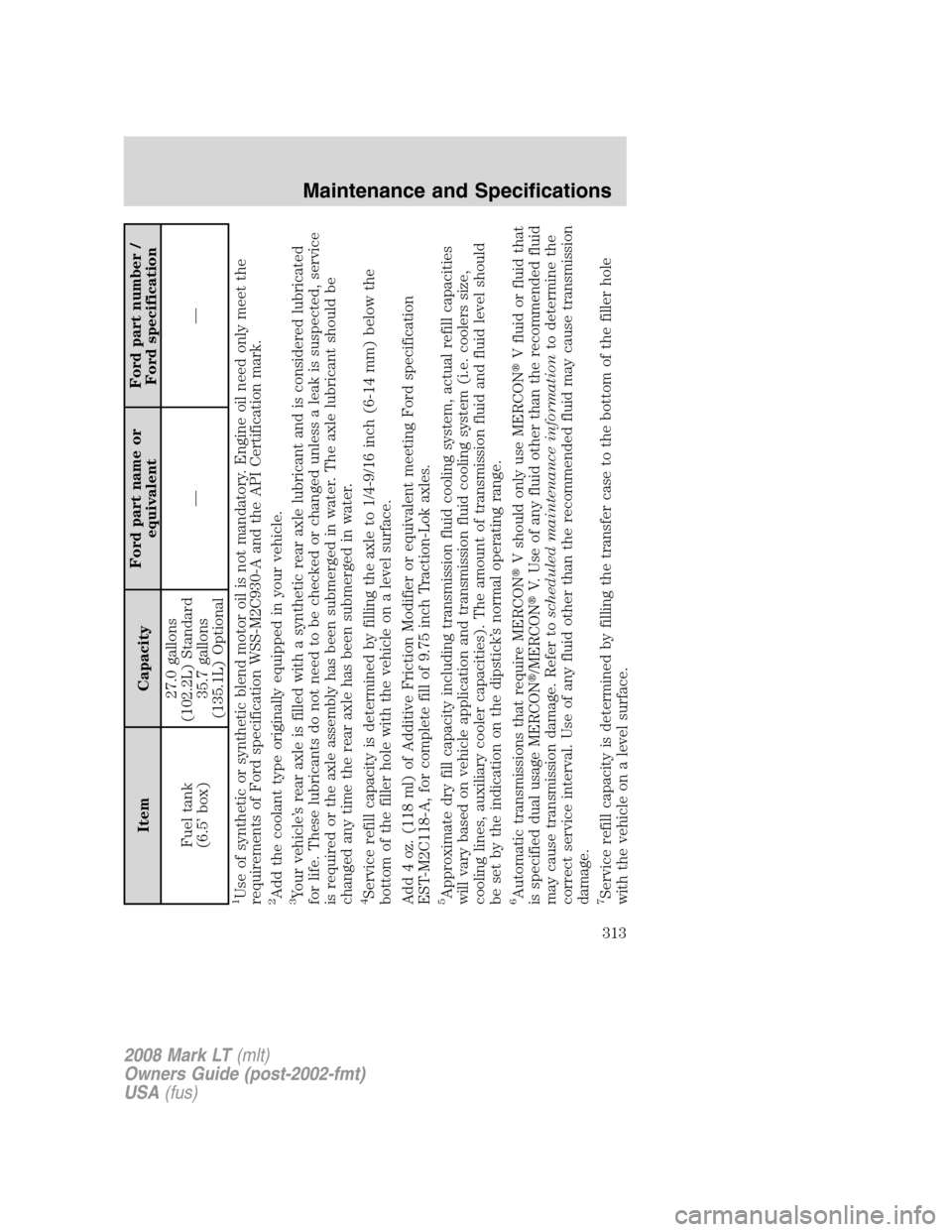

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
(6.5’ box)27.0 gallons
(102.2L) Standard
35.7 gallons
(135.1L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.4Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 9.75 inch Traction-Lok axles.5Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.6Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/MERCONV. Use of any fluid other than the recommended fluid
may cause transmission damage. Refer toscheduled maintenance informationto determine the
correct service interval. Use of any fluid other than the recommended fluid may cause transmission
damage.7Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
313

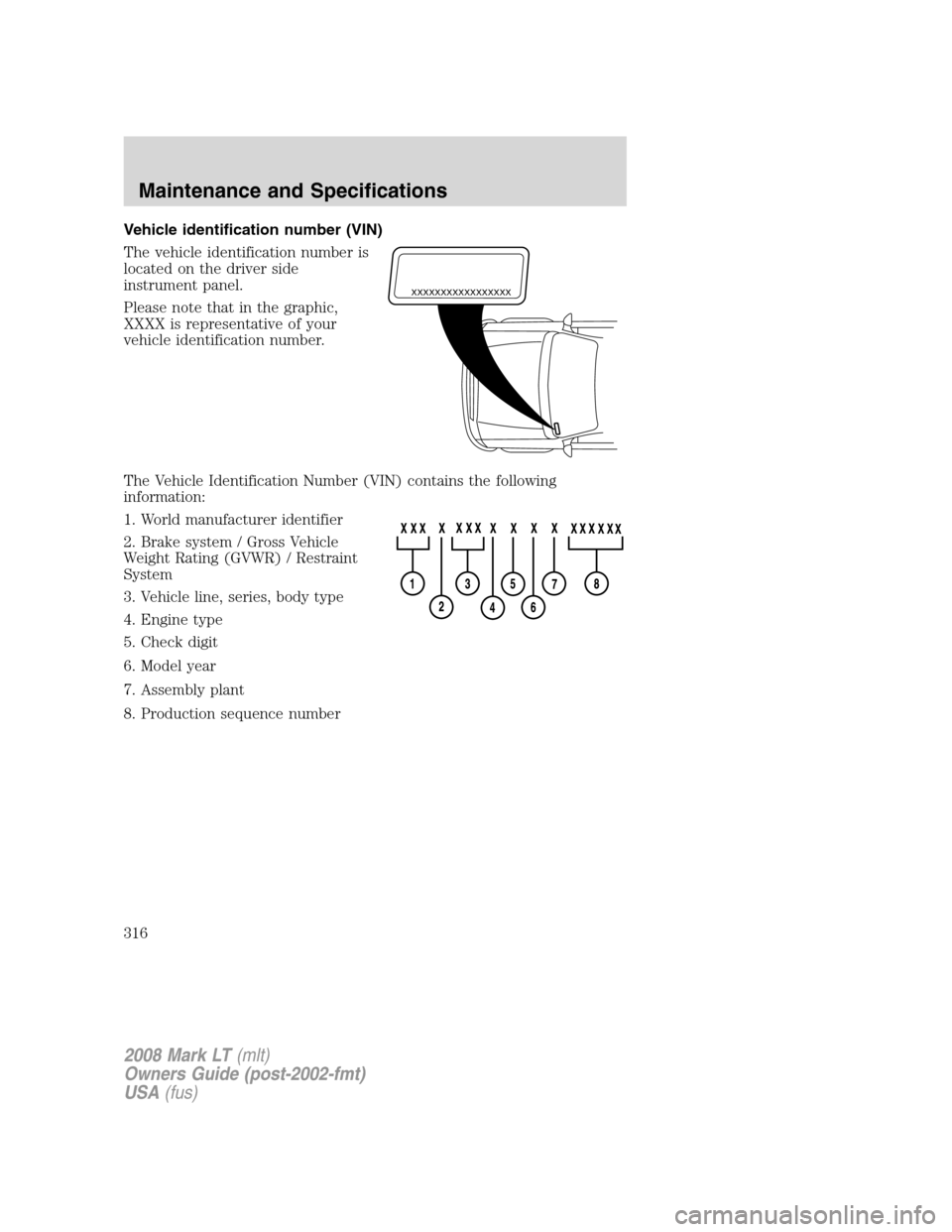

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
316

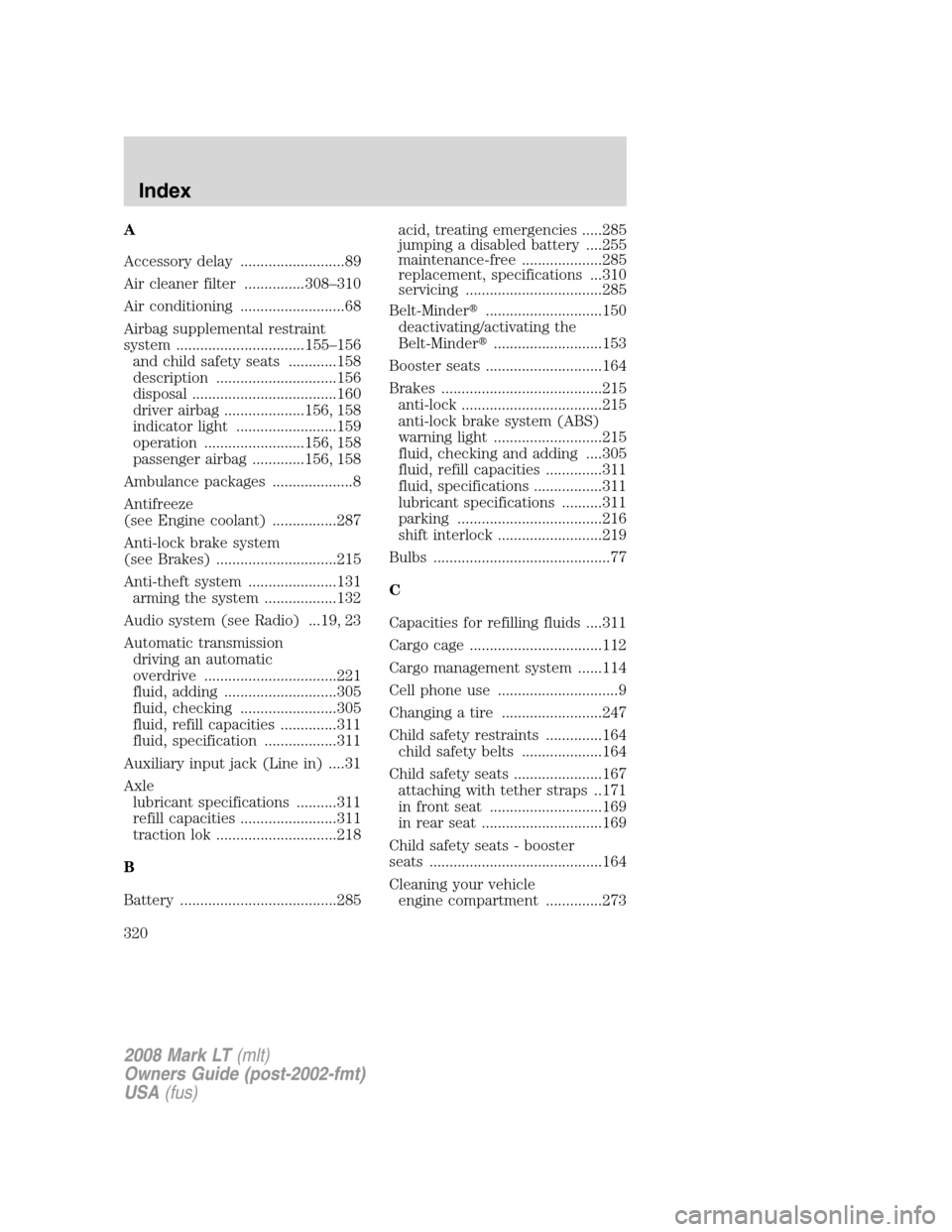

A
Accessory delay ..........................89
Air cleaner filter ...............308–310
Air conditioning ..........................68
Airbag supplemental restraint
system ................................155–156
and child safety seats ............158
description ..............................156
disposal ....................................160
driver airbag ....................156, 158
indicator light .........................159
operation .........................156, 158
passenger airbag .............156, 158
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................287
Anti-lock brake system
(see Brakes) ..............................215
Anti-theft system ......................131
arming the system ..................132
Audio system (see Radio) ...19, 23
Automatic transmission
driving an automatic
overdrive .................................221
fluid, adding ............................305
fluid, checking ........................305
fluid, refill capacities ..............311
fluid, specification ..................311
Auxiliary input jack (Line in) ....31
Axle
lubricant specifications ..........311
refill capacities ........................311
traction lok ..............................218
B
Battery .......................................285acid, treating emergencies .....285
jumping a disabled battery ....255
maintenance-free ....................285
replacement, specifications ...310
servicing ..................................285
Belt-Minder.............................150
deactivating/activating the
Belt-Minder...........................153
Booster seats .............................164
Brakes ........................................215
anti-lock ...................................215
anti-lock brake system (ABS)
warning light ...........................215
fluid, checking and adding ....305
fluid, refill capacities ..............311
fluid, specifications .................311
lubricant specifications ..........311
parking ....................................216
shift interlock ..........................219
Bulbs ............................................77
C
Capacities for refilling fluids ....311
Cargo cage .................................112
Cargo management system ......114
Cell phone use ..............................9
Changing a tire .........................247
Child safety restraints ..............164
child safety belts ....................164
Child safety seats ......................167
attaching with tether straps ..171
in front seat ............................169
in rear seat ..............................169
Child safety seats - booster
seats ...........................................164
Cleaning your vehicle
engine compartment ..............273
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
320

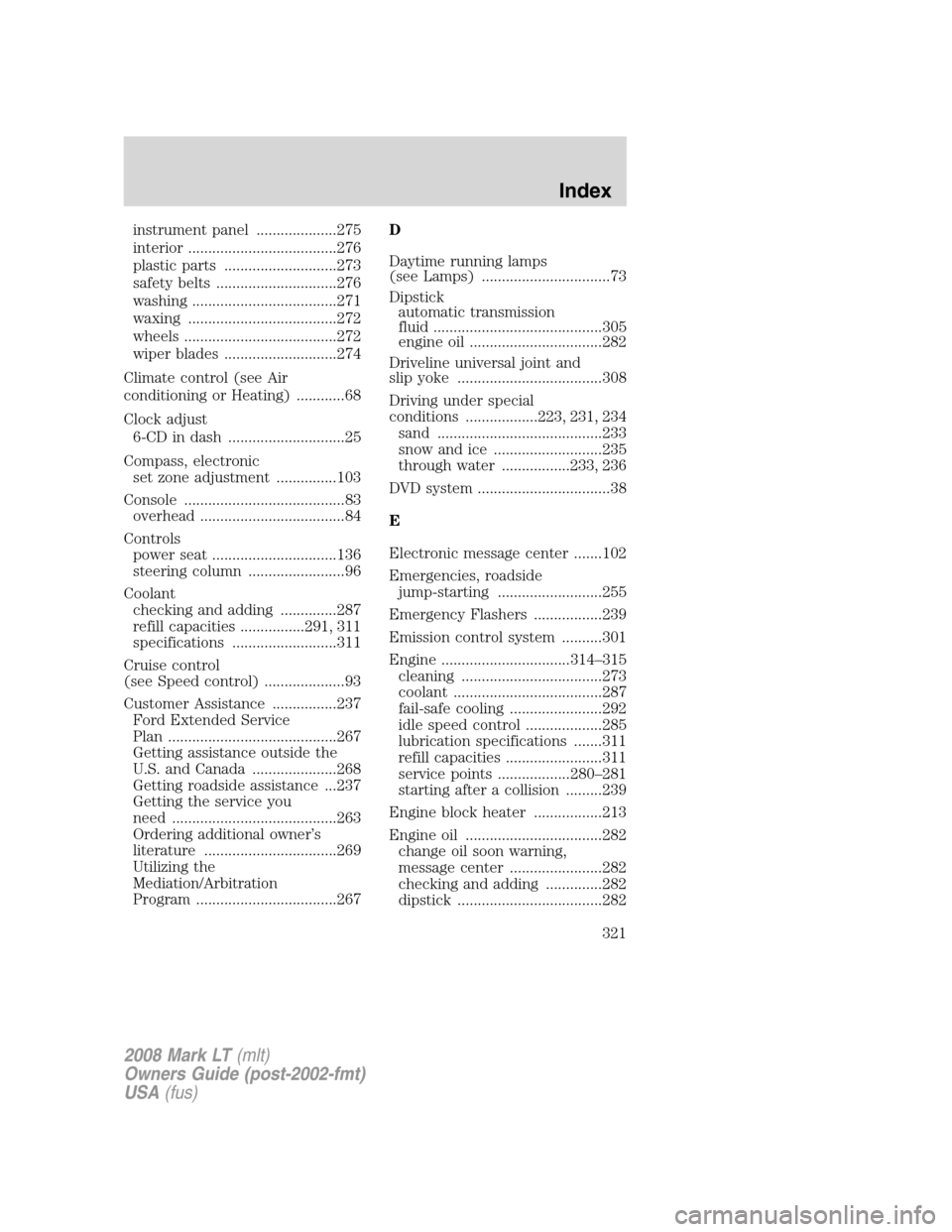

instrument panel ....................275
interior .....................................276
plastic parts ............................273
safety belts ..............................276
washing ....................................271
waxing .....................................272
wheels ......................................272
wiper blades ............................274
Climate control (see Air
conditioning or Heating) ............68
Clock adjust
6-CD in dash .............................25
Compass, electronic
set zone adjustment ...............103
Console ........................................83
overhead ....................................84
Controls
power seat ...............................136
steering column ........................96
Coolant
checking and adding ..............287
refill capacities ................291, 311
specifications ..........................311
Cruise control
(see Speed control) ....................93
Customer Assistance ................237
Ford Extended Service
Plan ..........................................267
Getting assistance outside the
U.S. and Canada .....................268
Getting roadside assistance ...237
Getting the service you
need .........................................263
Ordering additional owner’s
literature .................................269
Utilizing the
Mediation/Arbitration
Program ...................................267D
Daytime running lamps
(see Lamps) ................................73
Dipstick
automatic transmission
fluid ..........................................305
engine oil .................................282
Driveline universal joint and
slip yoke ....................................308
Driving under special
conditions ..................223, 231, 234
sand .........................................233
snow and ice ...........................235
through water .................233, 236
DVD system .................................38
E
Electronic message center .......102
Emergencies, roadside
jump-starting ..........................255
Emergency Flashers .................239
Emission control system ..........301
Engine ................................314–315
cleaning ...................................273
coolant .....................................287
fail-safe cooling .......................292
idle speed control ...................285
lubrication specifications .......311
refill capacities ........................311
service points ..................280–281
starting after a collision .........239
Engine block heater .................213
Engine oil ..................................282
change oil soon warning,
message center .......................282
checking and adding ..............282
dipstick ....................................282
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
321

Instrument panel
cleaning ...................................275
cluster ........................................12
lighting up panel and
interior .......................................74
J
Jack ............................................247
positioning ...............................247
storage .............................247, 250
Jump-starting your vehicle ......255
K
Keyless entry system ...............129
autolock ...................................120
keypad .....................................129
locking and unlocking doors ..131
programming entry code .......129
Keys ...................................120, 132
positions of the ignition .........210
L
Lamps
autolamp system .......................72
bulb replacement
specifications chart ..................77
daytime running light ...............73
fog lamps ...................................72
headlamps .................................72
headlamps, flash to pass ..........73
instrument panel, dimming .....74
interior lamps ...........................76
replacing bulbs ...................78, 81
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........215
Load limits .................................198
Loading instructions .................204Locks
autolock ...................................120
childproof ................................122
doors ........................................120
Lubricant specifications ...........311
Lug nuts ....................................254
Lumbar support, seats .............136
M
Message center .........................102
english/metric button .............106
system check button ..............106
warning messages ...................107
Mirrors ...................................90–91
automatic dimming rearview
mirror ........................................90
fold away ...................................91
heated ........................................92
programmable memory ..125, 137
side view mirrors (power) .......91
signal .........................................92
Moon roof ....................................97
Motorcraft parts ........277, 293, 310
N
Navigation system .......................67
O
Octane rating ............................297
Oil (see Engine oil) ..................282
P
Parking brake ............................216
Parts (see Motorcraft parts) ....310
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
323
