display LINCOLN MKC 2016 Owners Manual

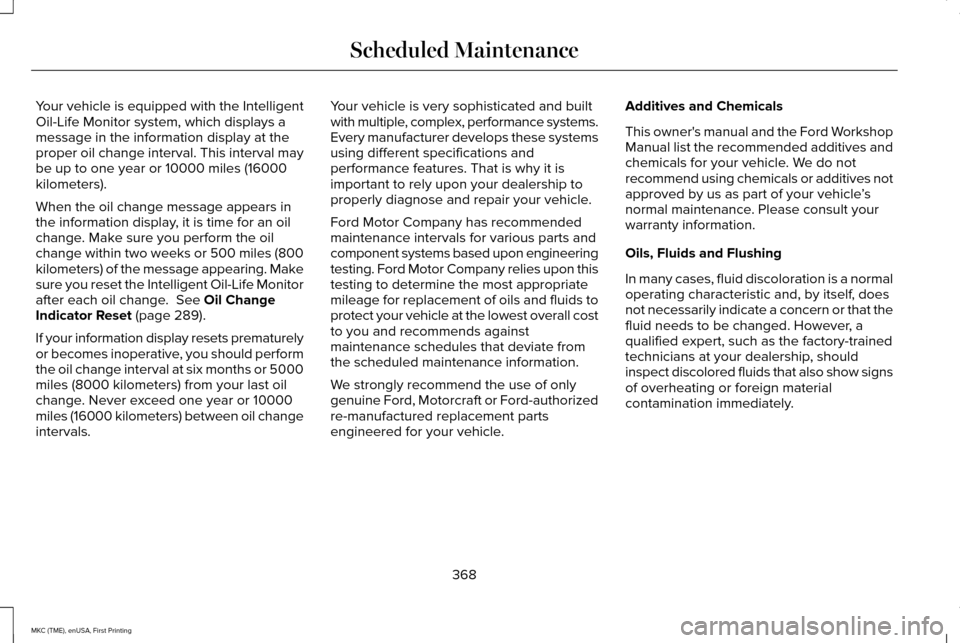

Your vehicle is equipped with the Intelligent
Oil-Life Monitor system, which displays a
message in the information display at the
proper oil change interval. This interval may
be up to one year or 10000 miles (16000
kilometers).
When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 miles (800
kilometers) of the message appearing. Make
sure you reset the Intelligent Oil-Life Monitor
after each oil change. See Oil Change
Indicator Reset (page 289).
If your information display resets prematurely
or becomes inoperative, you should perform
the oil change interval at six months or 5000
miles (8000 kilometers) from your last oil
change. Never exceed one year or 10000
miles (16000 kilometers) between oil change
intervals. Your vehicle is very sophisticated and built
with multiple, complex, performance systems.
Every manufacturer develops these systems
using different specifications and
performance features. That is why it is
important to rely upon your dealership to
properly diagnose and repair your vehicle.
Ford Motor Company has recommended
maintenance intervals for various parts and
component systems based upon engineering
testing. Ford Motor Company relies upon this
testing to determine the most appropriate
mileage for replacement of oils and fluids to
protect your vehicle at the lowest overall cost
to you and recommends against
maintenance schedules that deviate from
the scheduled maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or Ford-authorized
re-manufactured replacement parts
engineered for your vehicle.Additives and Chemicals
This owner's manual and the Ford Workshop
Manual list the recommended additives and
chemicals for your vehicle. We do not
recommend using chemicals or additives not
approved by us as part of your vehicle
’s
normal maintenance. Please consult your
warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal
operating characteristic and, by itself, does
not necessarily indicate a concern or that the
fluid needs to be changed. However, a
qualified expert, such as the factory-trained
technicians at your dealership, should
inspect discolored fluids that also show signs
of overheating or foreign material
contamination immediately.
368
MKC (TME), enUSA, First Printing Scheduled Maintenance

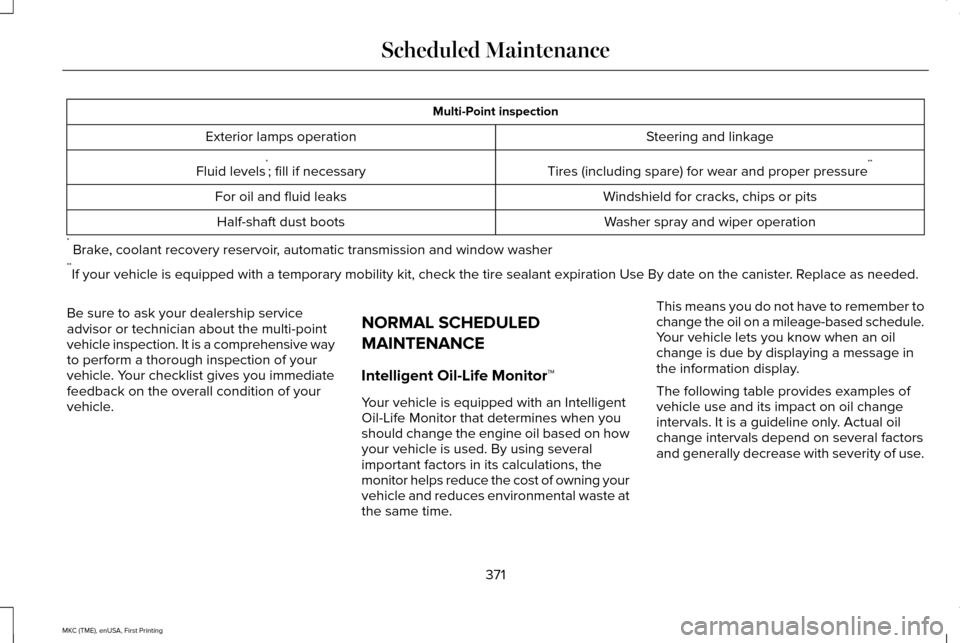

Multi-Point inspection
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and proper pressure**
Fluid levels *
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
* Brake, coolant recovery reservoir, automatic transmission and window washer
** If your vehicle is equipped with a temporary mobility kit, check the tir\
e sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive way
to perform a thorough inspection of your
vehicle. Your checklist gives you immediate
feedback on the overall condition of your
vehicle. NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle is equipped with an Intelligent
Oil-Life Monitor that determines when you
should change the engine oil based on how
your vehicle is used. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning your
vehicle and reduces environmental waste at
the same time.This means you do not have to remember to
change the oil on a mileage-based schedule.
Your vehicle lets you know when an oil
change is due by displaying a message in
the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of use.
371
MKC (TME), enUSA, First Printing Scheduled Maintenance

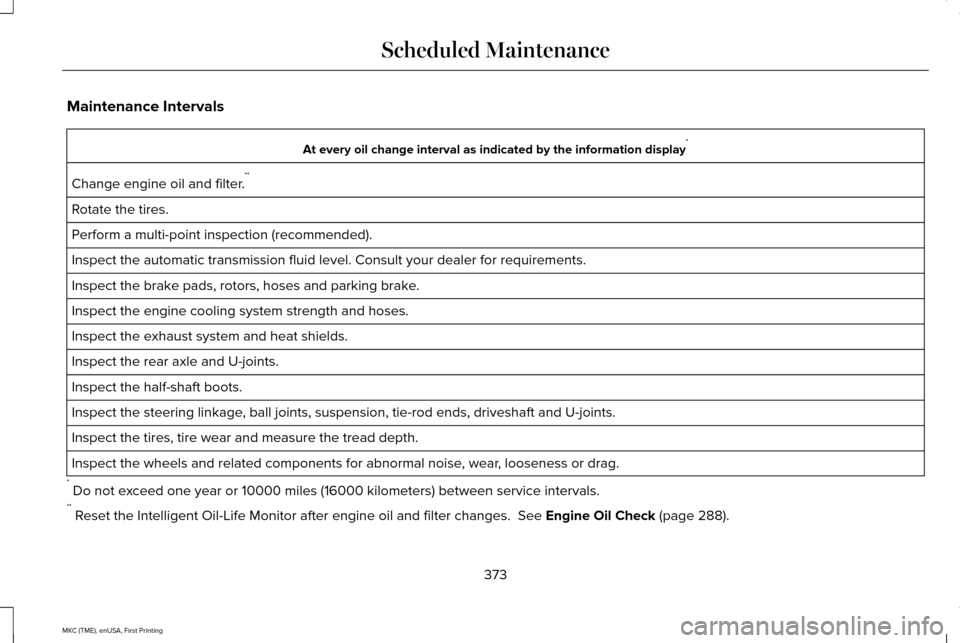

Maintenance Intervals
At every oil change interval as indicated by the information display
*
Change engine oil and filter. **
Rotate the tires.
Perform a multi-point inspection (recommended).
Inspect the automatic transmission fluid level. Consult your dealer for \
requirements.
Inspect the brake pads, rotors, hoses and parking brake.
Inspect the engine cooling system strength and hoses.
Inspect the exhaust system and heat shields.
Inspect the rear axle and U-joints.
Inspect the half-shaft boots.
Inspect the steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints.
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
* Do not exceed one year or 10000 miles (16000 kilometers) between service interv\
als.
** Reset the Intelligent Oil-Life Monitor after engine oil and filter change\
s. See Engine Oil Check (page 288).
373
MKC (TME), enUSA, First Printing Scheduled Maintenance

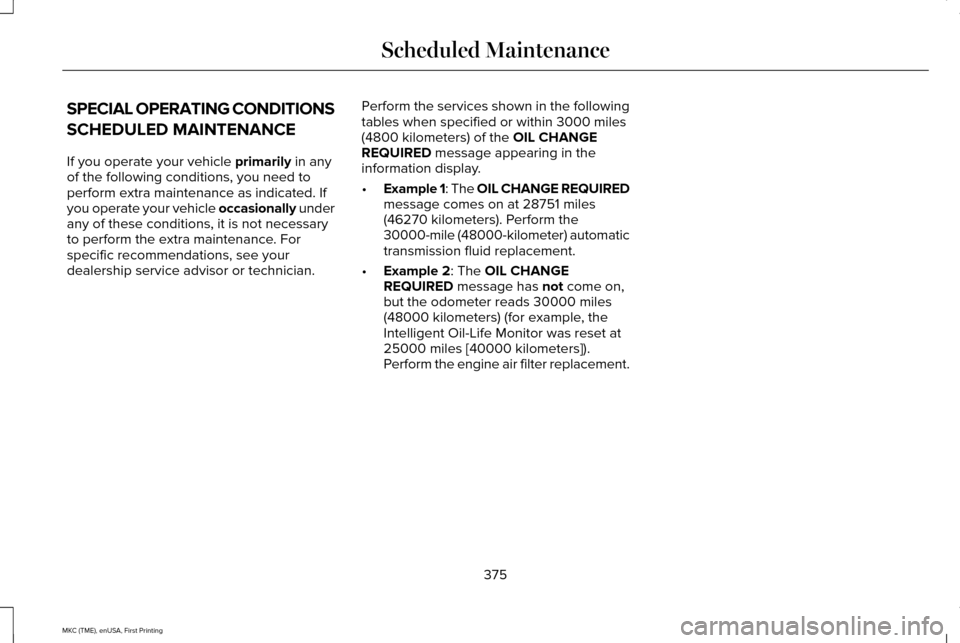

SPECIAL OPERATING CONDITIONS
SCHEDULED MAINTENANCE
If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance as indicated. If
you operate your vehicle occasionally under
any of these conditions, it is not necessary
to perform the extra maintenance. For
specific recommendations, see your
dealership service advisor or technician. Perform the services shown in the following
tables when specified or within 3000 miles
(4800 kilometers) of the
OIL CHANGE
REQUIRED message appearing in the
information display.
• Example 1: The OIL CHANGE REQUIRED
message comes on at 28751 miles
(46270 kilometers). Perform the
30000-mile (48000-kilometer) automatic
transmission fluid replacement.
• Example 2
: The OIL CHANGE
REQUIRED message has not come on,
but the odometer reads 30000 miles
(48000 kilometers) (for example, the
Intelligent Oil-Life Monitor was reset at
25000 miles [40000 kilometers]).
Perform the engine air filter replacement.
375
MKC (TME), enUSA, First Printing Scheduled Maintenance

Towing a trailer or using a car-top carrier
Change engine oil and filter as indicated by the information display and\
perform services listed in the Normal
Scheduled Maintenance chart.
As required
Inspect and lubricate U-joints.
Inspect frequently, service
as required
See axle maintenance items under Exceptions.
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Replace spark plugs.
Every 60000 miles (96000
km) Extensive idling or low-speed driving for long distances, as in heavy co\
mmercial use (such as delivery, taxi, patrol car or livery)
Change engine oil and filter as indicated by the information display and\
perform services listed in the Normal
Scheduled Maintenance chart.
As required
Replace cabin air filter.*
Inspect frequently, service
as required
Replace engine air filter.
376
MKC (TME), enUSA, First Printing Scheduled Maintenance

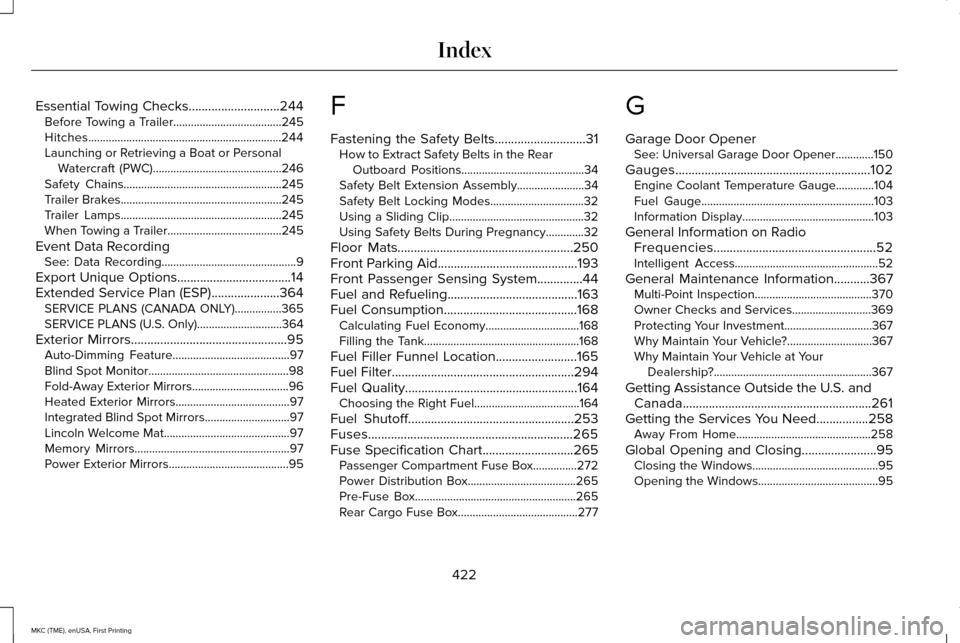

Essential Towing Checks............................244
Before Towing a Trailer.....................................245
Hitches..................................................................244
Launching or Retrieving a Boat or Personal
Watercraft (PWC)............................................246
Safety Chains......................................................245
Trailer Brakes.......................................................245
Trailer Lamps.......................................................245
When Towing a Trailer.......................................245
Event Data Recording See: Data Recording..............................................9
Export Unique Options...................................14
Extended Service Plan (ESP).....................364 SERVICE PLANS (CANADA ONLY)................365
SERVICE PLANS (U.S. Only).............................364
Exterior Mirrors................................................95 Auto-Dimming Feature........................................97
Blind Spot Monitor................................................98
Fold-Away Exterior Mirrors.................................96
Heated Exterior Mirrors.......................................97
Integrated Blind Spot Mirrors.............................97
Lincoln Welcome Mat...........................................97
Memory Mirrors.....................................................97
Power Exterior Mirrors.........................................95 F
Fastening the Safety Belts............................31
How to Extract Safety Belts in the Rear
Outboard Positions..........................................34
Safety Belt Extension Assembly.......................
34
Safety Belt Locking Modes................................32
Using a Sliding Clip..............................................32
Using Safety Belts During Pregnancy.............32
Floor Mats......................................................250
Front Parking Aid...........................................193
Front Passenger Sensing System..............44
Fuel and Refueling........................................163
Fuel Consumption.........................................168 Calculating Fuel Economy................................168
Filling the Tank.....................................................168
Fuel Filler Funnel Location.........................165
Fuel Filter
........................................................294
Fuel Quality.....................................................164
Choosing the Right Fuel....................................164
Fuel Shutoff...................................................253
Fuses...............................................................265
Fuse Specification Chart............................265 Passenger Compartment Fuse Box...............272
Power Distribution Box.....................................265
Pre-Fuse Box.......................................................265
Rear Cargo Fuse Box.........................................277 G
Garage Door Opener
See: Universal Garage Door Opener.............150
Gauges............................................................102 Engine Coolant Temperature Gauge.............104
Fuel Gauge...........................................................103
Information Display.............................................103
General Information on Radio Frequencies..................................................52
Intelligent Access.................................................52
General Maintenance Information
...........367
Multi-Point Inspection........................................370
Owner Checks and Services...........................
369
Protecting Your Investment..............................367
Why Maintain Your Vehicle?.............................367
Why Maintain Your Vehicle at Your Dealership?......................................................367
Getting Assistance Outside the U.S. and Canada
..........................................................261
Getting the Services You Need................258 Away From Home..............................................258
Global Opening and Closing.......................95 Closing the Windows...........................................95
Opening the Windows.........................................95
422
MKC (TME), enUSA, First Printing Index

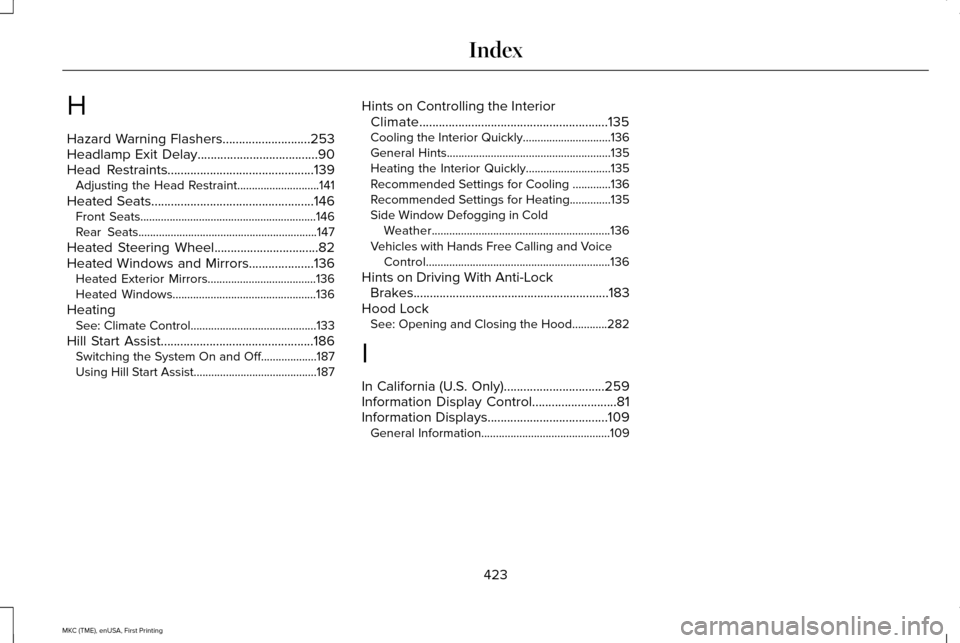

H
Hazard Warning Flashers...........................253
Headlamp Exit Delay.....................................90
Head Restraints
.............................................139
Adjusting the Head Restraint............................141
Heated Seats..................................................146 Front Seats............................................................146
Rear Seats.............................................................147
Heated Steering Wheel
................................82
Heated Windows and Mirrors....................136 Heated Exterior Mirrors.....................................
136
Heated Windows.................................................136
Heating See: Climate Control...........................................133
Hill Start Assist...............................................186 Switching the System On and Off...................187
Using Hill Start Assist..........................................187 Hints on Controlling the Interior
Climate..........................................................135
Cooling the Interior Quickly..............................136
General Hints........................................................135
Heating the Interior Quickly.............................135
Recommended Settings for Cooling .............136
Recommended Settings for Heating..............135
Side Window Defogging in Cold Weather.............................................................136
Vehicles with Hands Free Calling and Voice Control...............................................................136
Hints on Driving With Anti-Lock Brakes............................................................183
Hood Lock See: Opening and Closing the Hood............282
I
In California (U.S. Only)...............................259
Information Display Control
..........................81
Information Displays.....................................109 General Information............................................109
423
MKC (TME), enUSA, First Printing Index

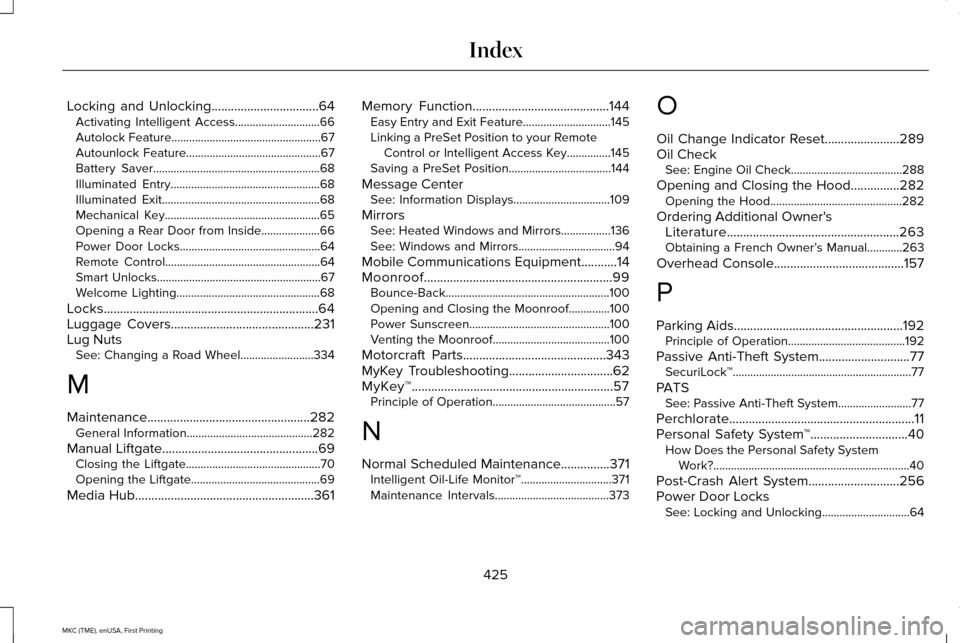

Locking and Unlocking.................................64
Activating Intelligent Access.............................66
Autolock Feature...................................................67
Autounlock Feature..............................................67
Battery Saver.........................................................68
Illuminated Entry...................................................68
Illuminated Exit......................................................68
Mechanical Key.....................................................65
Opening a Rear Door from Inside....................66
Power Door Locks................................................64
Remote Control.....................................................64
Smart Unlocks........................................................67
Welcome Lighting.................................................68
Locks..................................................................64
Luggage Covers............................................231
Lug Nuts See: Changing a Road Wheel.........................334
M
Maintenance..................................................282 General Information...........................................282
Manual Liftgate
................................................69
Closing the Liftgate..............................................70
Opening the Liftgate............................................69
Media Hub.......................................................361 Memory Function
..........................................144
Easy Entry and Exit Feature..............................145
Linking a PreSet Position to your Remote
Control or Intelligent Access Key...............145
Saving a PreSet Position...................................144
Message Center See: Information Displays.................................109
Mirrors See: Heated Windows and Mirrors.................136
See: Windows and Mirrors.................................94
Mobile Communications Equipment
...........14
Moonroof..........................................................99 Bounce-Back........................................................100
Opening and Closing the Moonroof..............100
Power Sunscreen................................................100
Venting the Moonroof........................................100
Motorcraft Parts............................................343
MyKey Troubleshooting
................................62
MyKey™..............................................................57 Principle of Operation..........................................57
N
Normal Scheduled Maintenance...............371 Intelligent Oil-Life Monitor™...............................371
Maintenance Intervals.......................................373 O
Oil Change Indicator Reset.......................289
Oil Check
See: Engine Oil Check......................................288
Opening and Closing the Hood...............282 Opening the Hood.............................................282
Ordering Additional Owner's Literature.....................................................263
Obtaining a French Owner’ s Manual............263
Overhead Console........................................157
P
Parking Aids
....................................................192
Principle of Operation........................................192
Passive Anti-Theft System............................77 SecuriLock™.............................................................77
PATS See: Passive Anti-Theft System.........................77
Perchlorate.........................................................11
Personal Safety System ™
..............................40
How Does the Personal Safety System
Work?...................................................................40
Post-Crash Alert System............................256
Power Door Locks See: Locking and Unlocking..............................
64
425
MKC (TME), enUSA, First Printing Index

Towing the Vehicle on Four Wheels........247
Emergency Towing.............................................247
Recreational Towing..........................................248
Towing.............................................................240
Traction Control.............................................188
Principle of Operation........................................188
Trailer Sway Control.....................................241
Transmission Code Designation
..............345
Transmission...................................................172
Transmission See: Transmission................................................172
Transporting the Vehicle.............................247
U
Under Hood Overview - 2.0L EcoBoost™....................................................284
Under Hood Overview - 2.3L EcoBoost™...................................................286
Universal Garage Door Opener................150 HomeLink Wireless Control System...............150 Using Adaptive Cruise Control.................204
Automatic Cancellation....................................208
Blocked Sensor...................................................210
Canceling the Set Speed.................................208
Changing the Set Speed..................................208
Detection Issues.................................................209
Disengaging the System..................................207
Following a Vehicle...........................................205
Hilly Condition Usage.......................................208
Overriding the System......................................207
Resuming the Set Speed.................................208
Setting a Speed..................................................205
Setting the Gap Distance.................................206
Switching the System Off.................................208
Switching the System On.................................204
Switching to Normal Cruise Control................211
System Not Available.........................................210
Using All-Wheel Drive
..................................178
Driving in Special Conditions With All-Wheel
Drive...................................................................178
Using Cruise Control...................................203 Switching Cruise Control Off...........................204
Switching Cruise Control On...........................203
Using MyKey With Remote Start Systems..........................................................62
Using Snow Chains......................................329 Using Stability Control..................................191
AdvanceTrac® with Roll Stability Control™
(RSC®)..................................................................191
Using Traction Control.................................188 Switching the System Off..................................188
System Indicator Lights and Messages.........188
Using a Switch.....................................................188
Using the Information Display Controls........
188
Utilizing the Mediation/Arbitration Program (Canada Only)
..............................................261
V
Vehicle Care
..................................................304
General Information...........................................304
Vehicle Certification Label.........................344
Vehicle Identification Number...................344
Vehicle Storage
...............................................311
Battery....................................................................312
Body........................................................................\
.311
Brakes....................................................................312
Cooling system....................................................312
Engine.....................................................................311
Fuel system............................................................311
General....................................................................311
Miscellaneous......................................................312
Removing Vehicle From Storage.....................312
Tires........................................................................\
312
428
MKC (TME), enUSA, First Printing Index

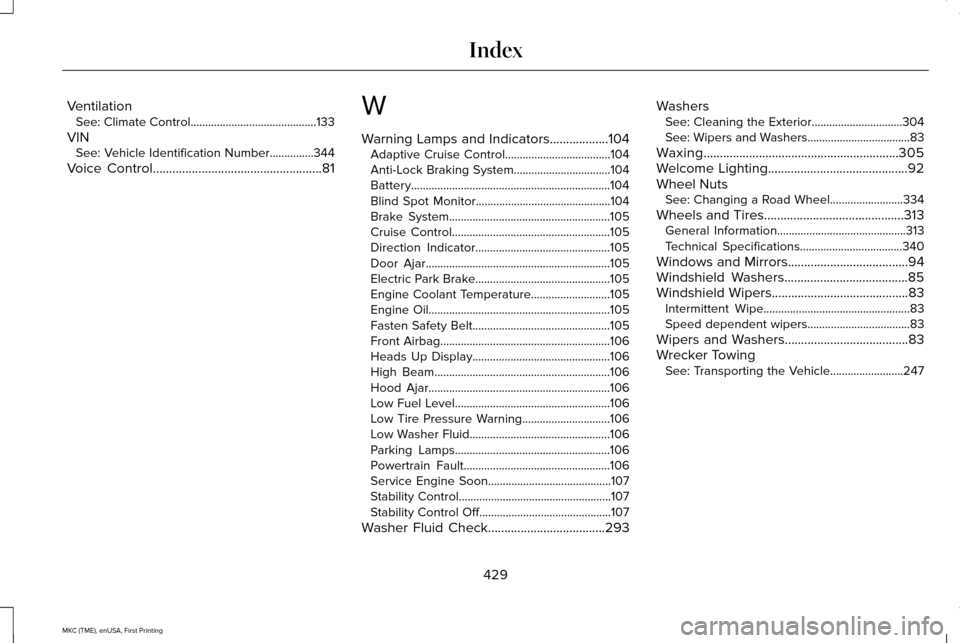

Ventilation
See: Climate Control...........................................133
VIN See: Vehicle Identification Number...............344
Voice Control
....................................................81 W
Warning Lamps and Indicators..................104
Adaptive Cruise Control....................................104
Anti-Lock Braking System.................................104
Battery....................................................................104
Blind Spot Monitor..............................................104
Brake System.......................................................105
Cruise Control......................................................105
Direction Indicator..............................................105
Door Ajar...............................................................105
Electric Park Brake..............................................105
Engine Coolant Temperature...........................105
Engine Oil..............................................................105
Fasten Safety Belt...............................................105
Front Airbag..........................................................106
Heads Up Display...............................................106
High Beam............................................................106
Hood Ajar..............................................................106
Low Fuel Level.....................................................106
Low Tire Pressure Warning..............................106
Low Washer Fluid................................................106
Parking Lamps.....................................................106
Powertrain Fault..................................................106
Service Engine Soon..........................................107
Stability Control....................................................107
Stability Control Off.............................................107
Washer Fluid Check....................................293 Washers
See: Cleaning the Exterior...............................304
See: Wipers and Washers...................................83
Waxing............................................................305
Welcome Lighting...........................................92
Wheel Nuts See: Changing a Road Wheel.........................334
Wheels and Tires
...........................................313
General Information............................................313
Technical Specifications...................................340
Windows and Mirrors
.....................................94
Windshield Washers......................................85
Windshield Wipers..........................................83
Intermittent Wipe..................................................83
Speed dependent wipers...................................
83
Wipers and Washers......................................83
Wrecker Towing See: Transporting the Vehicle.........................247
429
MKC (TME), enUSA, First Printing Index
