If you drive in extremely hot climates:
•
It may be necessary to have a Ford
authorized dealer decrease the coolant
concentration to 40%.
• A coolant concentration of 40% will
provide improved overheat protection.
Engine coolant concentrations below
40% will decrease the freeze and
corrosion protection characteristics of
the engine coolant and may cause
engine damage.
Vehicles driven year-round in non-extreme
climates should use prediluted engine
coolant for optimum cooling system and
engine protection.
What You Should Know About Fail-Safe
Cooling
If the engine coolant supply is depleted, this
feature allows the vehicle to be driven
temporarily before incremental component
damage is incurred. The “fail-safe ” distance
depends on ambient temperatures, vehicle
load and terrain. How Fail-Safe Cooling Works
If the engine begins to overheat, the engine
coolant temperature gauge will move to the
red (hot) area and: A high engine temperature
message will appear in the
information display.
The service engine soon indicator
will light.
If the engine reaches a preset
over-temperature condition, the engine will
automatically switch to alternating cylinder
operation. Each disabled cylinder acts as an
air pump and cools the engine.
When this occurs the vehicle will still operate.
However:
• The engine power will be limited.
• The air conditioning system will be
disabled.
Continued operation will increase the engine
temperature and the engine will completely
shut down, causing steering and braking
effort to increase. Once the engine temperature cools, the
engine can be re-started. Take your vehicle
to an authorized dealer as soon as possible
to minimize engine damage.
When Fail-Safe Mode Is Activated
WARNINGS
Fail-safe mode is for use during
emergencies only. Operate your
vehicle in fail-safe mode only as long as
necessary to bring your vehicle to rest in a
safe location and seek immediate repairs.
When in fail-safe mode, the vehicle will have
limited power, will not be able to maintain
high-speed operation, and may completely
shut down without warning, potentially losing
engine power, power steering assist, and
power brake assist, which may increase the
possibility of a crash resulting in serious
injury. Never remove the coolant reservoir
cap while the engine is running or hot.
292
MKC (TME), enUSA, First Printing Maintenance

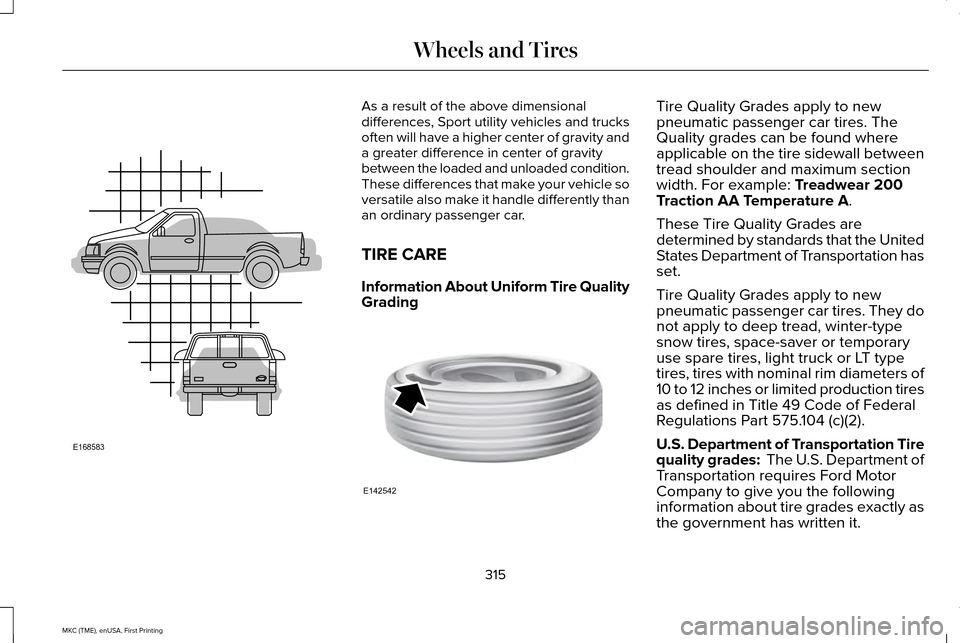

As a result of the above dimensional
differences, Sport utility vehicles and trucks
often will have a higher center of gravity and
a greater difference in center of gravity
between the loaded and unloaded condition.
These differences that make your vehicle so
versatile also make it handle differently than
an ordinary passenger car.
TIRE CARE
Information About Uniform Tire Quality
Grading
Tire Quality Grades apply to new
pneumatic passenger car tires. The
Quality grades can be found where
applicable on the tire sidewall between
tread shoulder and maximum section
width. For example: Treadwear 200
Traction AA Temperature A.
These Tire Quality Grades are
determined by standards that the United
States Department of Transportation has
set.
Tire Quality Grades apply to new
pneumatic passenger car tires. They do
not apply to deep tread, winter-type
snow tires, space-saver or temporary
use spare tires, light truck or LT type
tires, tires with nominal rim diameters of
10 to 12 inches or limited production tires
as defined in Title 49 Code of Federal
Regulations Part 575.104 (c)(2).
U.S. Department of Transportation Tire
quality grades: The U.S. Department of
Transportation requires Ford Motor
Company to give you the following
information about tire grades exactly as
the government has written it.
315
MKC (TME), enUSA, First Printing Wheels and TiresE168583 E142542

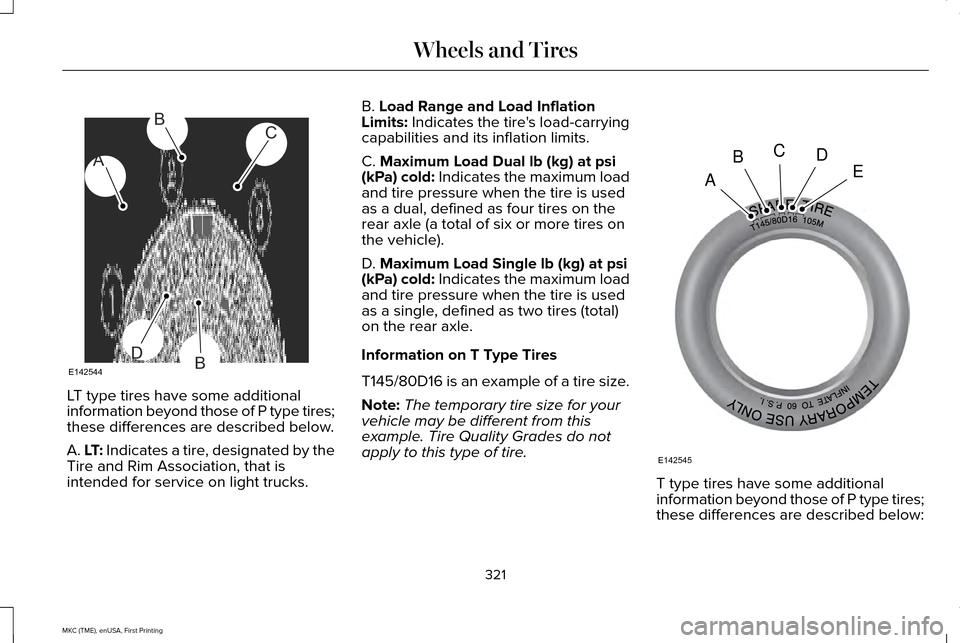

LT type tires have some additional
information beyond those of P type tires;
these differences are described below.
A. LT: Indicates a tire, designated by the
Tire and Rim Association, that is
intended for service on light trucks. B. Load Range and Load Inflation
Limits: Indicates the tire's load-carrying
capabilities and its inflation limits.
C.
Maximum Load Dual lb (kg) at psi
(kPa) cold: Indicates the maximum load
and tire pressure when the tire is used
as a dual, defined as four tires on the
rear axle (a total of six or more tires on
the vehicle).
D.
Maximum Load Single lb (kg) at psi
(kPa) cold: Indicates the maximum load
and tire pressure when the tire is used
as a single, defined as two tires (total)
on the rear axle.
Information on T Type Tires
T145/80D16 is an example of a tire size.
Note: The temporary tire size for your
vehicle may be different from this
example. Tire Quality Grades do not
apply to this type of tire. T type tires have some additional
information beyond those of P type tires;
these differences are described below:
321
MKC (TME), enUSA, First Printing Wheels and TiresA
BC
BDE142544 A
BCDE
E142545

•

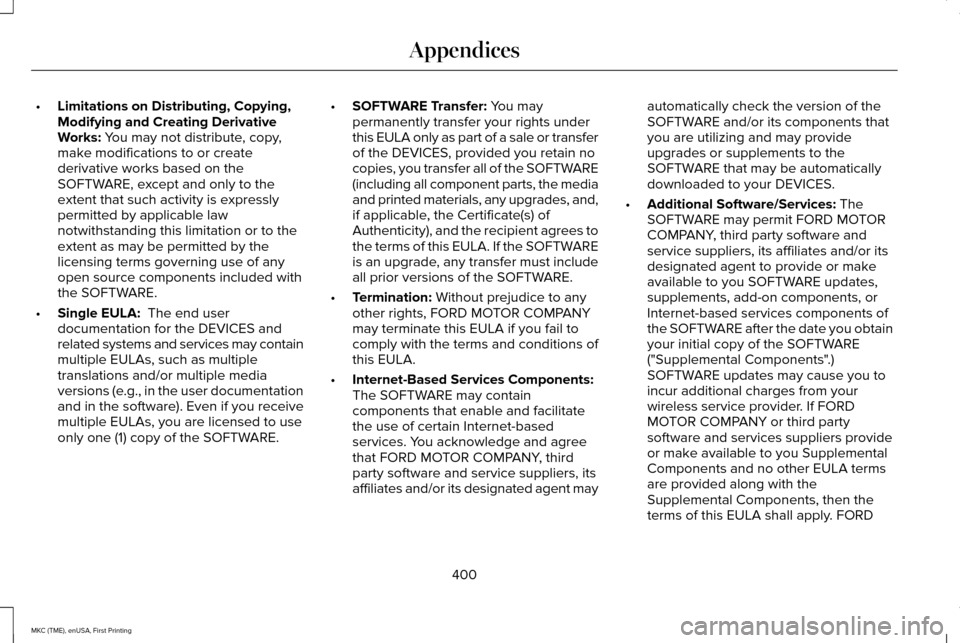

Limitations on Distributing, Copying,
Modifying and Creating Derivative
Works: You may not distribute, copy,
make modifications to or create
derivative works based on the
SOFTWARE, except and only to the
extent that such activity is expressly
permitted by applicable law
notwithstanding this limitation or to the
extent as may be permitted by the
licensing terms governing use of any
open source components included with
the SOFTWARE.
• Single EULA:
The end user
documentation for the DEVICES and
related systems and services may contain
multiple EULAs, such as multiple
translations and/or multiple media
versions (e.g., in the user documentation
and in the software). Even if you receive
multiple EULAs, you are licensed to use
only one (1) copy of the SOFTWARE. •
SOFTWARE Transfer:
You may
permanently transfer your rights under
this EULA only as part of a sale or transfer
of the DEVICES, provided you retain no
copies, you transfer all of the SOFTWARE
(including all component parts, the media
and printed materials, any upgrades, and,
if applicable, the Certificate(s) of
Authenticity), and the recipient agrees to
the terms of this EULA. If the SOFTWARE
is an upgrade, any transfer must include
all prior versions of the SOFTWARE.
• Termination:
Without prejudice to any
other rights, FORD MOTOR COMPANY
may terminate this EULA if you fail to
comply with the terms and conditions of
this EULA.
• Internet-Based Services Components:
The SOFTWARE may contain
components that enable and facilitate
the use of certain Internet-based
services. You acknowledge and agree
that FORD MOTOR COMPANY, third
party software and service suppliers, its
affiliates and/or its designated agent may automatically check the version of the
SOFTWARE and/or its components that
you are utilizing and may provide
upgrades or supplements to the
SOFTWARE that may be automatically
downloaded to your DEVICES.
• Additional Software/Services:
The
SOFTWARE may permit FORD MOTOR
COMPANY, third party software and
service suppliers, its affiliates and/or its
designated agent to provide or make
available to you SOFTWARE updates,
supplements, add-on components, or
Internet-based services components of
the SOFTWARE after the date you obtain
your initial copy of the SOFTWARE
("Supplemental Components".)
SOFTWARE updates may cause you to
incur additional charges from your
wireless service provider. If FORD
MOTOR COMPANY or third party
software and services suppliers provide
or make available to you Supplemental
Components and no other EULA terms
are provided along with the
Supplemental Components, then the
terms of this EULA shall apply. FORD
400
MKC (TME), enUSA, First Printing Appendices

•

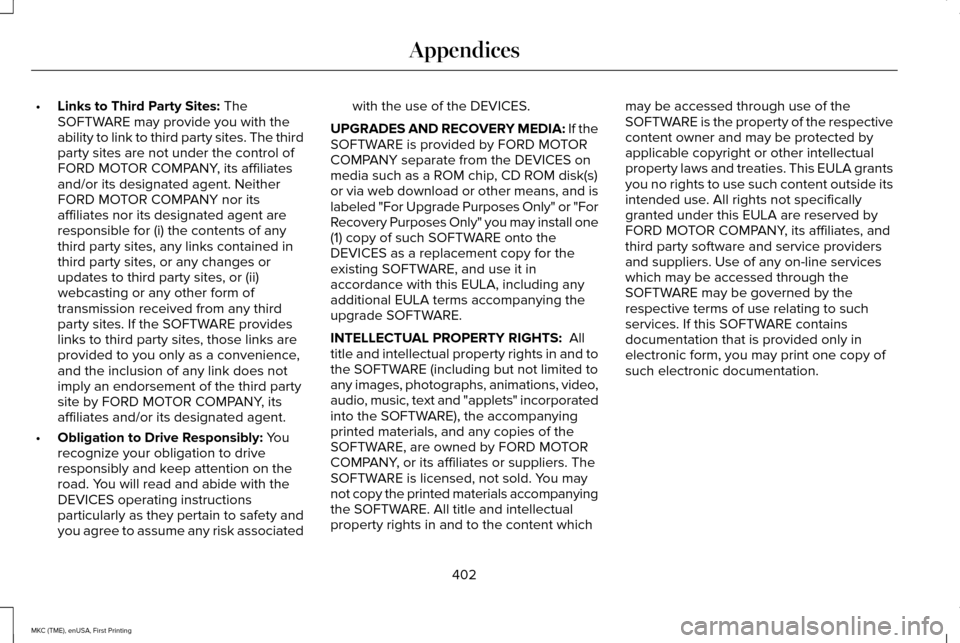

Links to Third Party Sites: The
SOFTWARE may provide you with the
ability to link to third party sites. The third
party sites are not under the control of
FORD MOTOR COMPANY, its affiliates
and/or its designated agent. Neither
FORD MOTOR COMPANY nor its
affiliates nor its designated agent are
responsible for (i) the contents of any
third party sites, any links contained in
third party sites, or any changes or
updates to third party sites, or (ii)
webcasting or any other form of
transmission received from any third
party sites. If the SOFTWARE provides
links to third party sites, those links are
provided to you only as a convenience,
and the inclusion of any link does not
imply an endorsement of the third party
site by FORD MOTOR COMPANY, its
affiliates and/or its designated agent.
• Obligation to Drive Responsibly:
You
recognize your obligation to drive
responsibly and keep attention on the
road. You will read and abide with the
DEVICES operating instructions
particularly as they pertain to safety and
you agree to assume any risk associated with the use of the DEVICES.
UPGRADES AND RECOVERY MEDIA: If the
SOFTWARE is provided by FORD MOTOR
COMPANY separate from the DEVICES on
media such as a ROM chip, CD ROM disk(s)
or via web download or other means, and is
labeled "For Upgrade Purposes Only" or "For
Recovery Purposes Only" you may install one
(1) copy of such SOFTWARE onto the
DEVICES as a replacement copy for the
existing SOFTWARE, and use it in
accordance with this EULA, including any
additional EULA terms accompanying the
upgrade SOFTWARE.
INTELLECTUAL PROPERTY RIGHTS:
All
title and intellectual property rights in and to
the SOFTWARE (including but not limited to
any images, photographs, animations, video,
audio, music, text and "applets" incorporated
into the SOFTWARE), the accompanying
printed materials, and any copies of the
SOFTWARE, are owned by FORD MOTOR
COMPANY, or its affiliates or suppliers. The
SOFTWARE is licensed, not sold. You may
not copy the printed materials accompanying
the SOFTWARE. All title and intellectual
property rights in and to the content which may be accessed through use of the
SOFTWARE is the property of the respective
content owner and may be protected by
applicable copyright or other intellectual
property laws and treaties. This EULA grants
you no rights to use such content outside its
intended use. All rights not specifically
granted under this EULA are reserved by
FORD MOTOR COMPANY, its affiliates, and
third party software and service providers
and suppliers. Use of any on-line services
which may be accessed through the
SOFTWARE may be governed by the
respective terms of use relating to such
services. If this SOFTWARE contains
documentation that is provided only in
electronic form, you may print one copy of
such electronic documentation.
402
MKC (TME), enUSA, First Printing Appendices

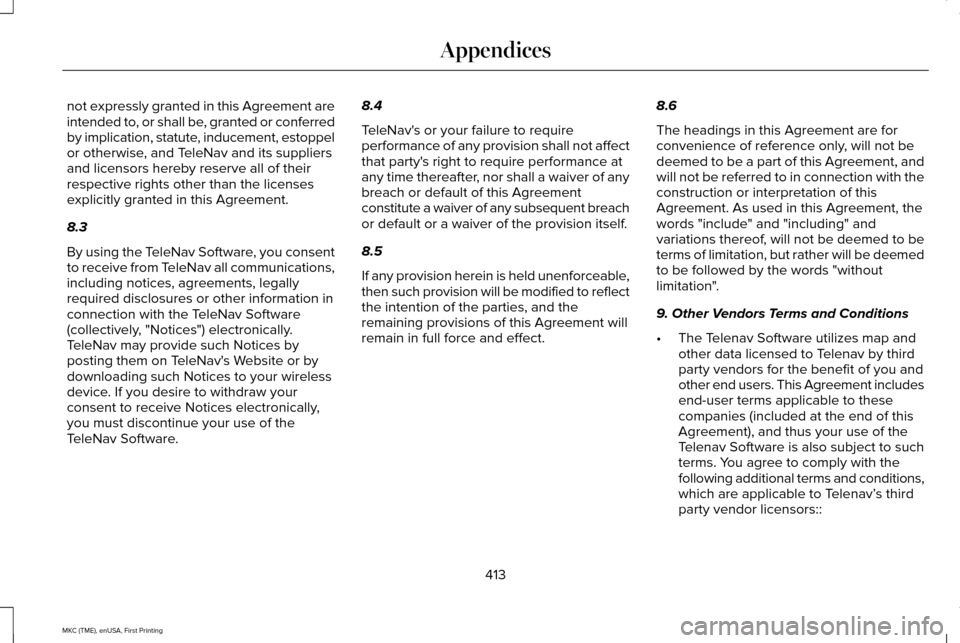

not expressly granted in this Agreement are
intended to, or shall be, granted or conferred
by implication, statute, inducement, estoppel
or otherwise, and TeleNav and its suppliers
and licensors hereby reserve all of their
respective rights other than the licenses
explicitly granted in this Agreement.
8.3
By using the TeleNav Software, you consent
to receive from TeleNav all communications,
including notices, agreements, legally
required disclosures or other information in
connection with the TeleNav Software
(collectively, "Notices") electronically.
TeleNav may provide such Notices by
posting them on TeleNav's Website or by
downloading such Notices to your wireless
device. If you desire to withdraw your
consent to receive Notices electronically,
you must discontinue your use of the
TeleNav Software.
8.4
TeleNav's or your failure to require
performance of any provision shall not affect
that party's right to require performance at
any time thereafter, nor shall a waiver of any
breach or default of this Agreement
constitute a waiver of any subsequent breach
or default or a waiver of the provision itself.
8.5
If any provision herein is held unenforceable,
then such provision will be modified to reflect
the intention of the parties, and the
remaining provisions of this Agreement will
remain in full force and effect.
8.6
The headings in this Agreement are for
convenience of reference only, will not be
deemed to be a part of this Agreement, and
will not be referred to in connection with the
construction or interpretation of this
Agreement. As used in this Agreement, the
words "include" and "including" and
variations thereof, will not be deemed to be
terms of limitation, but rather will be deemed
to be followed by the words "without
limitation".
9. Other Vendors Terms and Conditions
•
The Telenav Software utilizes map and
other data licensed to Telenav by third
party vendors for the benefit of you and
other end users. This Agreement includes
end-user terms applicable to these
companies (included at the end of this
Agreement), and thus your use of the
Telenav Software is also subject to such
terms. You agree to comply with the
following additional terms and conditions,
which are applicable to Telenav’ s third
party vendor licensors::
413
MKC (TME), enUSA, First Printing Appendices

Information Messages..................................115
Active Park.............................................................115
Adaptive Cruise Control.....................................116
AdvanceTrac ™.........................................................117
Airbag......................................................................117
Alarm........................................................................\
117
All-Wheel Drive.....................................................118
Automatic Engine Shutdown.............................
118
Battery and Charging System...........................119
Blind Spot Information and Cross Traffic Alert System...............................................................120
Collision Warning System.................................120
Doors and Locks...................................................121
Driver Alert.............................................................121
Fuel........................................................................\
.122
Hill Start Assist.....................................................122
Keys and Intelligent Access.............................
122
Lane Keeping System........................................123
Maintenance.........................................................124
MyKey.....................................................................125
Park Aid..................................................................126
Park Brake.............................................................126
Power Steering.....................................................127
Remote Start.........................................................128
Seats.......................................................................128
Starting System ...................................................128
Tire Pressure Monitoring System....................
129
Traction Control...................................................129 Trailer.................................................................130
Transmission.........................................................130
Installing Child Seats......................................18 Child Seats...............................................................18
Using Lap and Shoulder Belts............................18
Using Lower Anchors and Tethers for
CHildren (LATCH)..............................................21
Using Tether Straps..............................................23
Instrument Cluster
........................................102
Instrument Lighting Dimmer........................89
Interior Lamps
..................................................93
Front Interior Lamp ..............................................93
Rear Interior Lamp................................................93
Interior Mirror
...................................................98
Auto-Dimming Mirror...........................................98
Introduction
.........................................................7
J
Jump Starting the Vehicle
..........................254
Connecting the Jumper Cables.....................255
Jump Starting......................................................256
Preparing Your Vehicle.....................................254
Removing the Jumper Cables........................
256 K
Keyless Entry
....................................................73
SECURICODE™ KEYLESS ENTRY
KEYPAD...............................................................73
Keyless Starting
.............................................158
Ignition Modes.....................................................158
Keys and Remote Controls..........................52
L
Lane Keeping System..................................214 Switching the System On and Off...................214
Lighting Control
...............................................87
Headlamp Flasher................................................88
High Beams............................................................88
Lighting
..............................................................87
General Information..............................................87
Lincoln Automotive Financial Services
.......11
Load Carriers See: Roof Racks and Load Carriers................231
Load Carrying
.................................................231
Load Limit.......................................................232
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................239
Vehicle Loading - with and without a Trailer................................................................232
424
MKC (TME), enUSA, First Printing Index

Safety Belt Warning Lamp and Indicator
Chime..............................................................35
Conditions of operation......................................36
Safety Canopy™...............................................48
Safety Precautions........................................163
Scheduled Maintenance Record..............379
Scheduled Maintenance.............................367
Seats.................................................................139
Security..............................................................77
Side Airbags.....................................................47
Sitting in the Correct Position....................139
Snow Chains See: Using Snow Chains..................................329
Special Notices
.................................................13
New Vehicle Limited Warranty...........................13
Notice to Owners of Pickup Trucks and Utility Type Vehicles.....................................................13
On-board Diagnostics (OBD-II)...........................13
Special Instructions...............................................13
Using Your Vehicle as an Ambulance...............13
Using Your Vehicle With a Snowplow...............13
Special Operating Conditions Scheduled Maintenance...............................................375
Exceptions............................................................378
Speed Control See: Cruise Control...........................................203
Stability Control
.............................................190
Principle of Operation........................................190 Starting a Gasoline Engine.........................159
Automatic Engine Shutdown...........................160
Failure to Start......................................................160
Fast Restart...........................................................159
Guarding Against Exhaust Fumes...................161
Important Ventilating Information....................161
Stopping the Engine When Your Vehicle is
Moving................................................................161
Stopping the Engine When Your Vehicle is Stationary...........................................................161
Starting and Stopping the Engine.............158 General Information............................................158
Steering..........................................................225 Electric Power Steering....................................225
Steering Wheel
................................................79
Storage Compartments................................157
Sunroof See: Moonroof.......................................................99
Sun Visors
.........................................................99
Illuminated Vanity Mirror.....................................99
Supplementary Restraints System
..............41
Principle of Operation...........................................41
Symbols Glossary
..............................................7 T
Tailgate
See: Manual Liftgate............................................69
See: Power Liftgate..............................................70
Technical Specifications See: Capacities and Specifications...............342
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)
.........................260
Ticket Holders................................................157
Tire Care..........................................................315
Glossary of Tire Terminology...........................316
Information About Uniform Tire Quality
Grading..............................................................315
Information Contained on the Tire Sidewall.............................................................317
Temperature A B C..............................................316
Traction AA A B C................................................316
Treadwear.............................................................316
Tire Pressure Monitoring System.............330 Changing Tires With a Tire Pressure
Monitoring System..........................................331
Understanding Your Tire Pressure Monitoring System ..............................................................331
Tires See: Wheels and Tires.......................................313
Towing a Trailer.............................................240 Load Placement..................................................240
427
MKC (TME), enUSA, First Printing Index
