Recommendations for attaching child safety restraints for children
Use any attachment method as indicated below by X
Combined weight ofchild and child seatRestraint TypeSafety belt onlySafety belt andLATCH (loweranchors and toptether anchor)
Safety belt and toptether anchorLATCH (loweranchors only)LATCH (loweranchors and toptether anchor)
XXUp to 65 lb(29.5 kg)Rear facing childseat
XOver 65 lb(29.5 kg)Rear facing childseat
XXXUp to 65 lb(29.5 kg)Forward facingchild seat
XXOver 65 lb(29.5 kg)Forward facingchild seat
Note:The child seat must rest tightly againstthe vehicle seat upon which it is installed. Itmay be necessary to lift or remove the headrestraint. See Seats (page 138).
CHILD SAFETY LOCKS
When these locks are set, the rear doorscannot be opened from the inside.
31
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
Child Safety

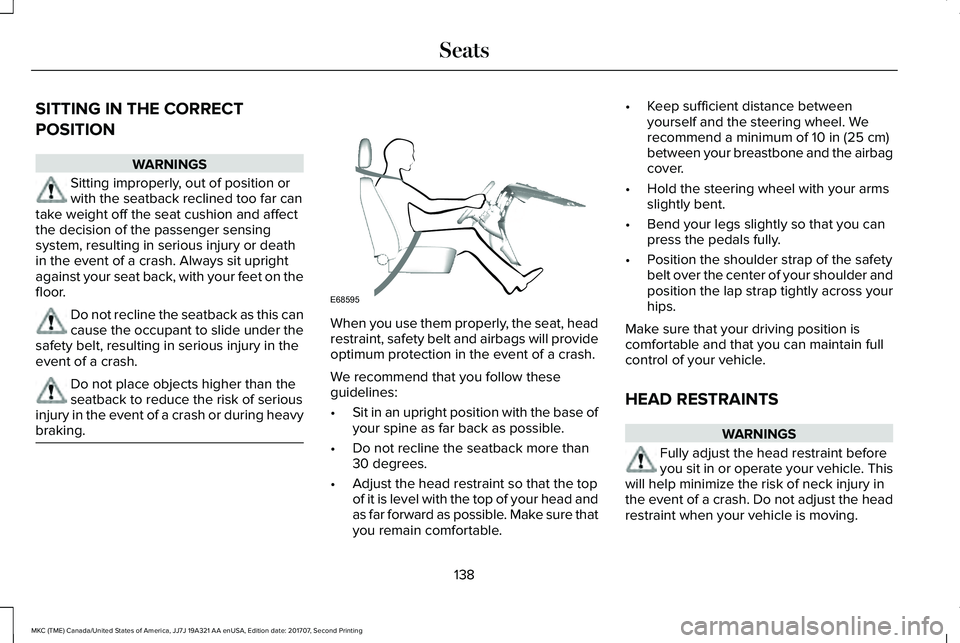

SITTING IN THE CORRECT
POSITION
WARNINGS
Sitting improperly, out of position orwith the seatback reclined too far cantake weight off the seat cushion and affectthe decision of the passenger sensingsystem, resulting in serious injury or deathin the event of a crash. Always sit uprightagainst your seat back, with your feet on thefloor.
Do not recline the seatback as this cancause the occupant to slide under thesafety belt, resulting in serious injury in theevent of a crash.
Do not place objects higher than theseatback to reduce the risk of seriousinjury in the event of a crash or during heavybraking.
When you use them properly, the seat, headrestraint, safety belt and airbags will provideoptimum protection in the event of a crash.
We recommend that you follow theseguidelines:
•Sit in an upright position with the base ofyour spine as far back as possible.
•Do not recline the seatback more than30 degrees.
•Adjust the head restraint so that the topof it is level with the top of your head andas far forward as possible. Make sure thatyou remain comfortable.
•Keep sufficient distance betweenyourself and the steering wheel. Werecommend a minimum of 10 in (25 cm)between your breastbone and the airbagcover.
•Hold the steering wheel with your armsslightly bent.
•Bend your legs slightly so that you canpress the pedals fully.
•Position the shoulder strap of the safetybelt over the center of your shoulder andposition the lap strap tightly across yourhips.
Make sure that your driving position iscomfortable and that you can maintain fullcontrol of your vehicle.
HEAD RESTRAINTS
WARNINGS
Fully adjust the head restraint beforeyou sit in or operate your vehicle. Thiswill help minimize the risk of neck injury inthe event of a crash. Do not adjust the headrestraint when your vehicle is moving.
138
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
SeatsE68595

WARNINGS
The head restraint is a safety device.Whenever possible it should beinstalled and properly adjusted when theseat is occupied. Failure to adjust the headrestraint properly could reduce itseffectiveness during certain impacts.
Note:Adjust the seat backrest (front seatsonly) to an upright driving position beforeadjusting the head restraint. Adjust the headrestraint so that the top of it is level with thetop of your head and as far forward aspossible. Make sure that you remaincomfortable. If you are extremely tall, adjustthe head restraint to its highest position.

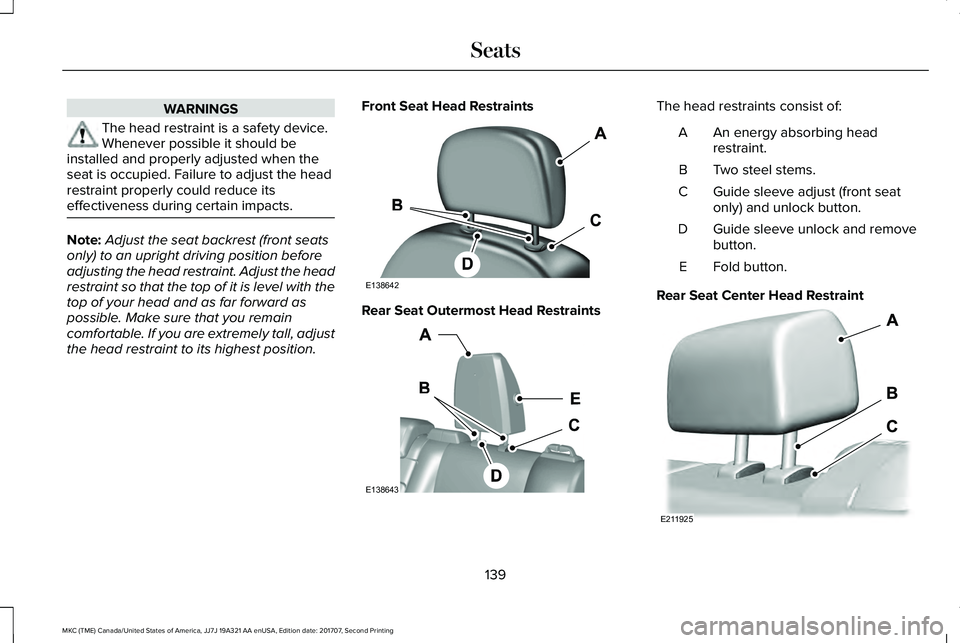

Front Seat Head Restraints
Rear Seat Outermost Head Restraints
The head restraints consist of:
An energy absorbing headrestraint.A
Two steel stems.B
Guide sleeve adjust (front seatonly) and unlock button.C
Guide sleeve unlock and removebutton.D
Fold button.E
Rear Seat Center Head Restraint
139
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
SeatsE138642 E138643 E211925

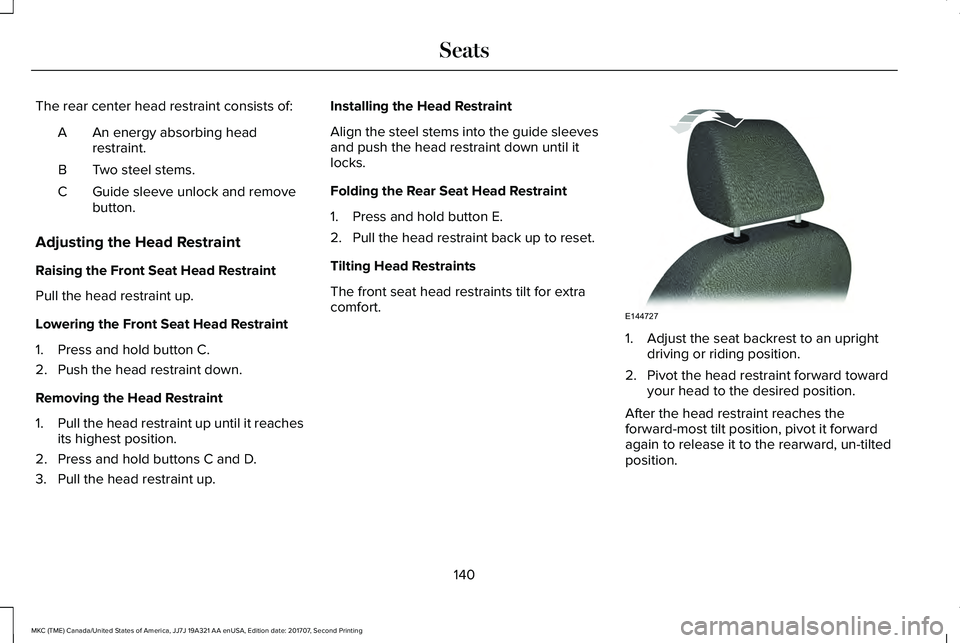

The rear center head restraint consists of:
An energy absorbing headrestraint.A
Two steel stems.B
Guide sleeve unlock and removebutton.C
Adjusting the Head Restraint
Raising the Front Seat Head Restraint
Pull the head restraint up.
Lowering the Front Seat Head Restraint
1. Press and hold button C.
2. Push the head restraint down.
Removing the Head Restraint
1.Pull the head restraint up until it reachesits highest position.
2. Press and hold buttons C and D.
3. Pull the head restraint up.
Installing the Head Restraint
Align the steel stems into the guide sleevesand push the head restraint down until itlocks.
Folding the Rear Seat Head Restraint
1. Press and hold button E.
2. Pull the head restraint back up to reset.
Tilting Head Restraints
The front seat head restraints tilt for extracomfort.
1. Adjust the seat backrest to an uprightdriving or riding position.
2. Pivot the head restraint forward towardyour head to the desired position.
After the head restraint reaches theforward-most tilt position, pivot it forwardagain to release it to the rearward, un-tiltedposition.
140
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
SeatsE144727

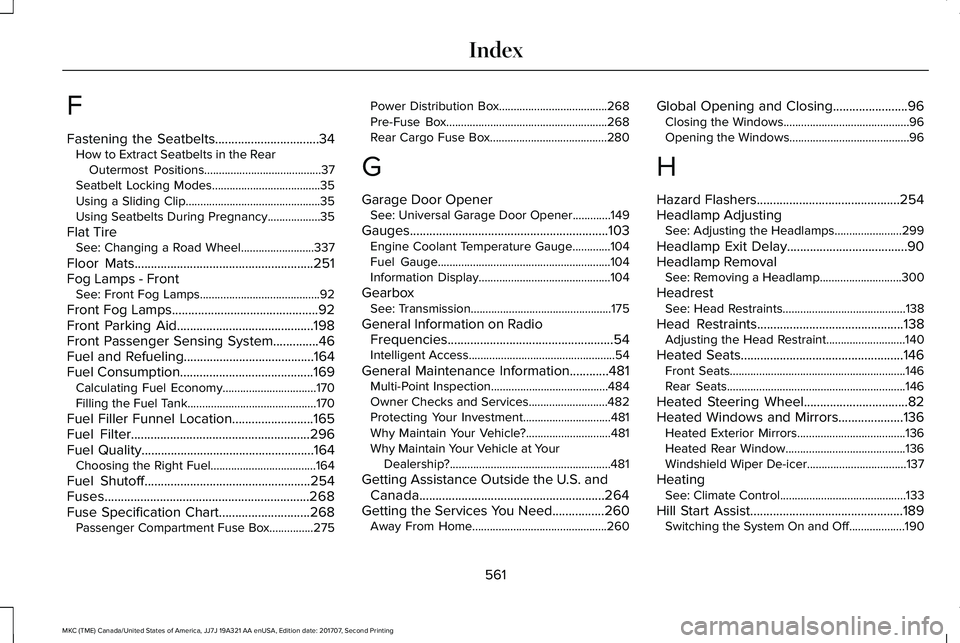

F
Fastening the Seatbelts................................34How to Extract Seatbelts in the RearOutermost Positions........................................37Seatbelt Locking Modes.....................................35Using a Sliding Clip..............................................35Using Seatbelts During Pregnancy..................35
Flat TireSee: Changing a Road Wheel.........................337
Floor Mats.......................................................251Fog Lamps - FrontSee: Front Fog Lamps.........................................92
Front Fog Lamps.............................................92Front Parking Aid..........................................198Front Passenger Sensing System..............46Fuel and Refueling........................................164Fuel Consumption.........................................169Calculating Fuel Economy................................170Filling the Fuel Tank............................................170
Fuel Filler Funnel Location.........................165Fuel Filter.......................................................296Fuel Quality.....................................................164Choosing the Right Fuel....................................164
Fuel Shutoff...................................................254Fuses...............................................................268Fuse Specification Chart............................268Passenger Compartment Fuse Box...............275
Power Distribution Box.....................................268Pre-Fuse Box.......................................................268Rear Cargo Fuse Box........................................280
G
Garage Door OpenerSee: Universal Garage Door Opener.............149
Gauges.............................................................103Engine Coolant Temperature Gauge.............104Fuel Gauge...........................................................104Information Display.............................................104
GearboxSee: Transmission................................................175
General Information on RadioFrequencies...................................................54Intelligent Access..................................................54
General Maintenance Information............481Multi-Point Inspection........................................484Owner Checks and Services...........................482Protecting Your Investment..............................481Why Maintain Your Vehicle?.............................481Why Maintain Your Vehicle at YourDealership?.......................................................481
Getting Assistance Outside the U.S. andCanada.........................................................264Getting the Services You Need................260Away From Home..............................................260
Global Opening and Closing.......................96Closing the Windows...........................................96Opening the Windows.........................................96
H
Hazard Flashers............................................254Headlamp AdjustingSee: Adjusting the Headlamps.......................299
Headlamp Exit Delay.....................................90Headlamp RemovalSee: Removing a Headlamp............................300
HeadrestSee: Head Restraints..........................................138
Head Restraints.............................................138Adjusting the Head Restraint...........................140
Heated Seats..................................................146Front Seats............................................................146Rear Seats.............................................................146
Heated Steering Wheel................................82Heated Windows and Mirrors....................136Heated Exterior Mirrors.....................................136Heated Rear Window.........................................136Windshield Wiper De-icer..................................137
HeatingSee: Climate Control...........................................133
Hill Start Assist...............................................189Switching the System On and Off...................190
561
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
Index
