compression ratio LINCOLN MKC 2019 Owners Manual

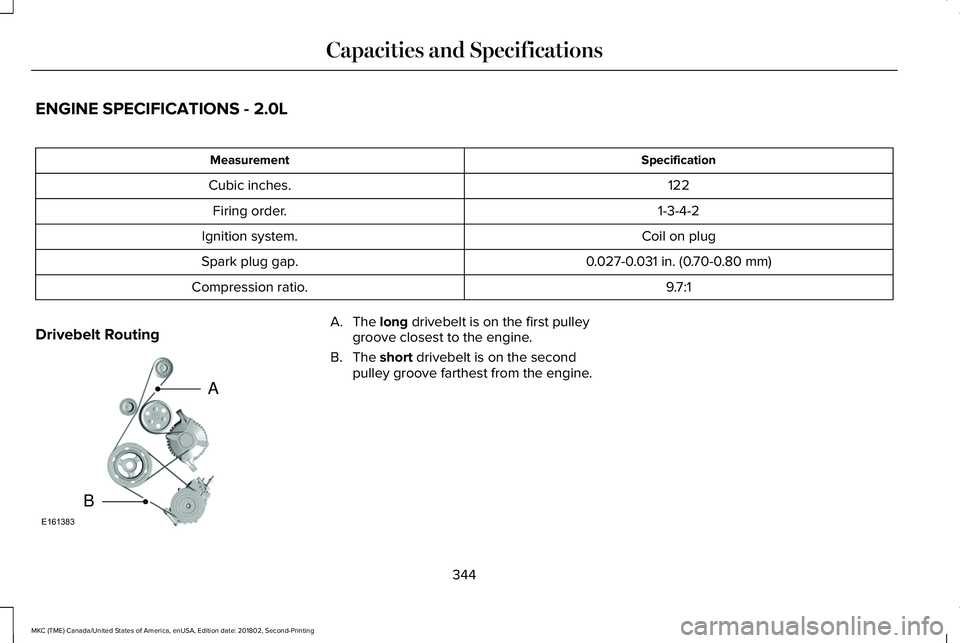

ENGINE SPECIFICATIONS - 2.0L
SpecificationMeasurement
122Cubic inches.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.027-0.031 in. (0.70-0.80 mm)Spark plug gap.
9.7:1Compression ratio.
Drivebelt RoutingA. The long drivebelt is on the first pulleygroove closest to the engine.
B. The short drivebelt is on the secondpulley groove farthest from the engine.
344
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and SpecificationsE161383
A
B

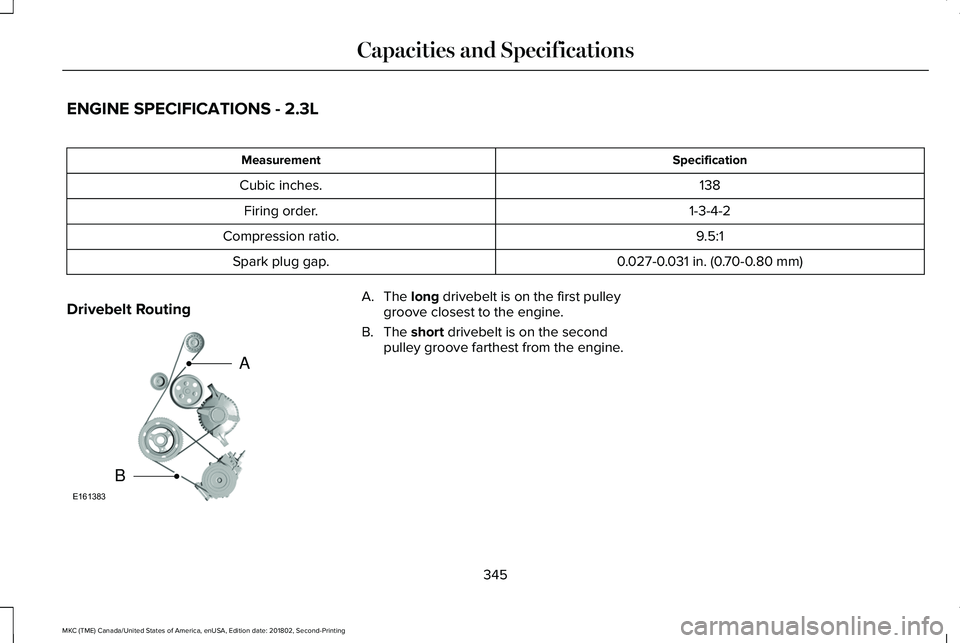

ENGINE SPECIFICATIONS - 2.3L
SpecificationMeasurement
138Cubic inches.
1-3-4-2Firing order.
9.5:1Compression ratio.
0.027-0.031 in. (0.70-0.80 mm)Spark plug gap.
Drivebelt RoutingA. The long drivebelt is on the first pulleygroove closest to the engine.
B. The short drivebelt is on the secondpulley groove farthest from the engine.
345
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Capacities and SpecificationsE161383
A
B
