FUSE SPECIFICATION CHART
Pre-Fuse Box
The pre-fuse box is in the enginecompartment attached to the positive batterypost. This box contains several high currentfuses. If you need to replace one of thesehigh current fuses, see an authorized dealer.
Power Distribution Box
WARNING: Always disconnect thebattery before servicing high current fuses.
WARNING: To reduce risk of electricalshock, always replace the cover to the powerdistribution box before reconnecting thebattery or refilling fluid reservoirs.
The power distribution box is in the enginecompartment. It has high-current fuses thatprotect your vehicle's main electrical systemsfrom overloads.
You will need to reset some features if youdisconnect and reconnect the battery. SeeChanging the 12V Battery (page 297).
Lift the release lever at the rear of the coverto remove it.
268
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

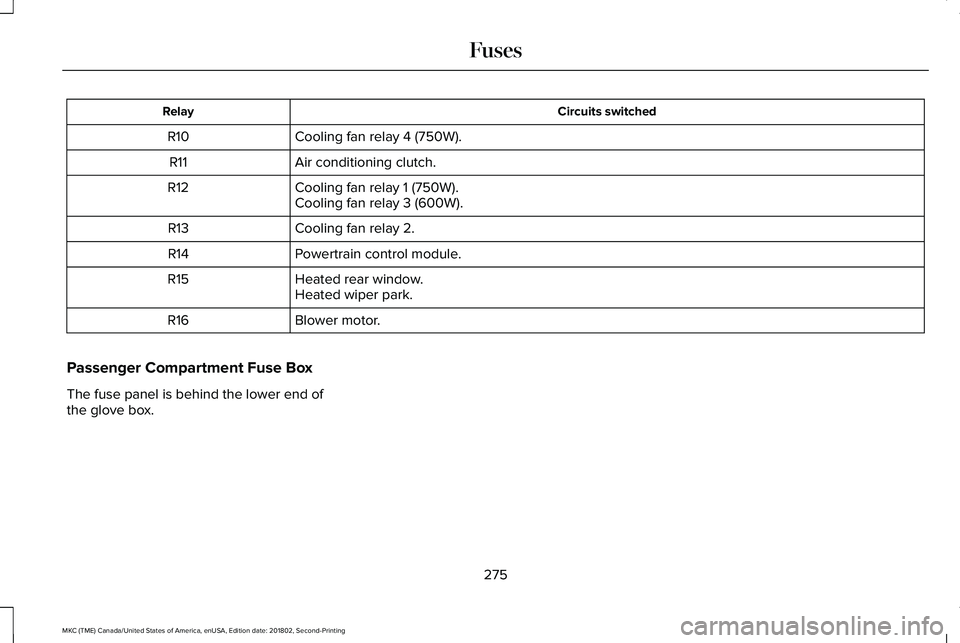

Circuits switchedRelay
Cooling fan relay 4 (750W).R10
Air conditioning clutch.R11
Cooling fan relay 1 (750W).R12Cooling fan relay 3 (600W).
Cooling fan relay 2.R13
Powertrain control module.R14
Heated rear window.R15Heated wiper park.
Blower motor.R16
Passenger Compartment Fuse Box
The fuse panel is behind the lower end ofthe glove box.
275
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

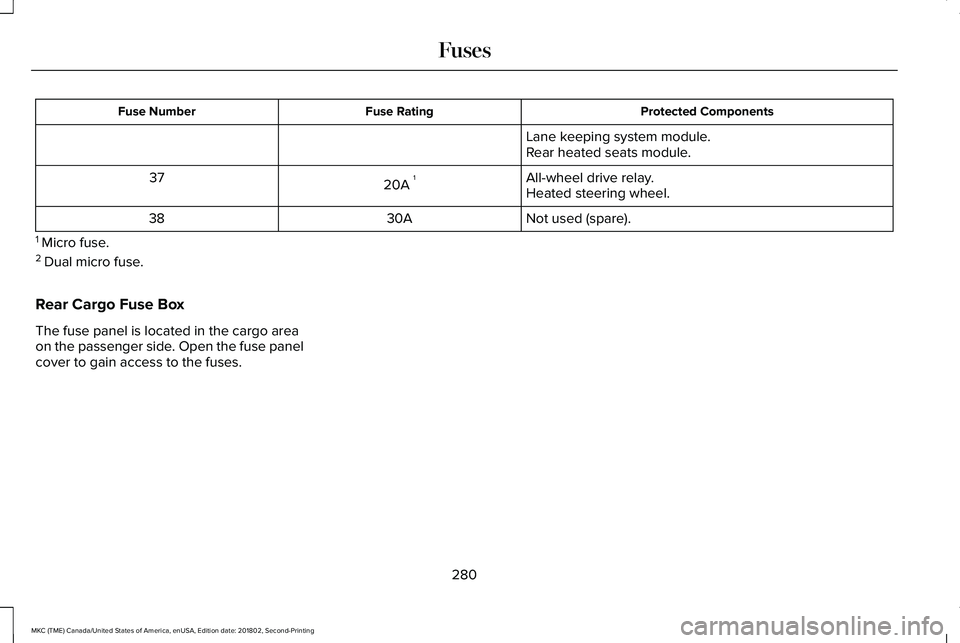

Protected ComponentsFuse RatingFuse Number
Lane keeping system module.Rear heated seats module.
All-wheel drive relay.20A 137Heated steering wheel.
Not used (spare).30A38
1 Micro fuse.2 Dual micro fuse.
Rear Cargo Fuse Box
The fuse panel is located in the cargo areaon the passenger side. Open the fuse panelcover to gain access to the fuses.
280
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Fuses

Engine coolant reservoir. SeeEngine Coolant Check (page 292).A
Engine oil dipstick. See Engine OilDipstick (page 290).B
Engine oil filler cap. See EngineOil Check (page 290).C
Brake fluid reservoir. See BrakeFluid Check (page 296).D
Battery. See Changing the 12VBattery (page 297).E
Power distribution box. See Fuses(page 268).F
Air filter assembly. See Changingthe Engine Air Filter (page 302).G
Windshield washer fluid reservoir.See Washer Fluid Check (page296).
H

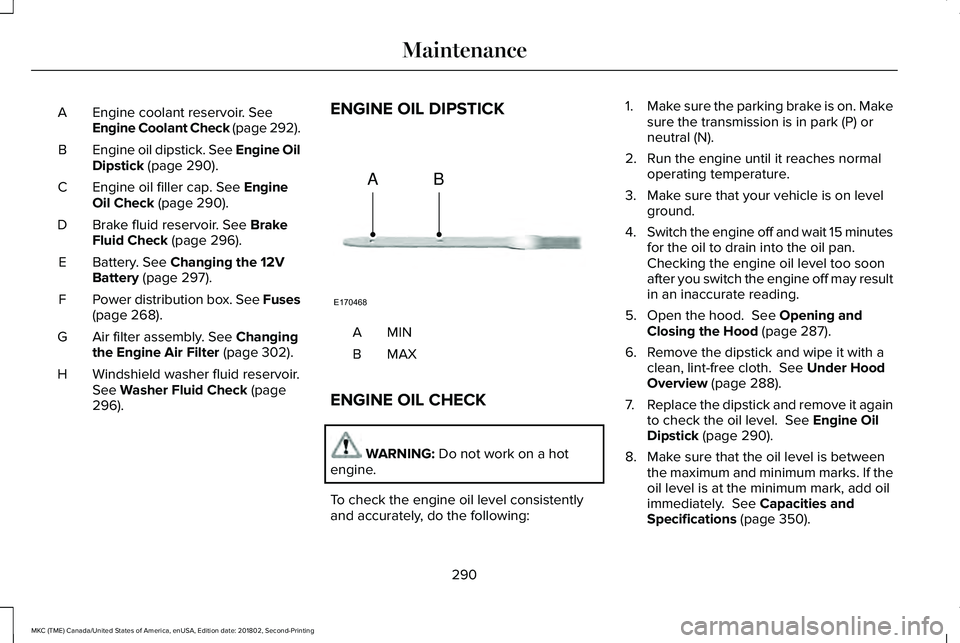

ENGINE OIL DIPSTICK
MINA
MAXB
ENGINE OIL CHECK
WARNING: Do not work on a hotengine.
To check the engine oil level consistentlyand accurately, do the following:
1.Make sure the parking brake is on. Makesure the transmission is in park (P) orneutral (N).
2. Run the engine until it reaches normaloperating temperature.
3. Make sure that your vehicle is on levelground.
4.Switch the engine off and wait 15 minutesfor the oil to drain into the oil pan. Checking the engine oil level too soonafter you switch the engine off may resultin an inaccurate reading.
5. Open the hood. See Opening andClosing the Hood (page 287).
6. Remove the dipstick and wipe it with aclean, lint-free cloth. See Under HoodOverview (page 288).
7.Replace the dipstick and remove it againto check the oil level. See Engine OilDipstick (page 290).
8. Make sure that the oil level is betweenthe maximum and minimum marks. If theoil level is at the minimum mark, add oilimmediately. See Capacities andSpecifications (page 350).
290
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
MaintenanceE170468
AB

Apps.......................................................................420Bluetooth Stereo or USB...................................418CD (If equipped)...................................................417HD Radio™ Information (If Available)...............413SiriusXM® Satellite Radio (If Activated).........409Sources.................................................................408Supported Media Players, Formats andMetadata Information...................................420USB Ports.............................................................420
Environment......................................................17EPBSee: Electric Parking Brake..............................189
Essential Towing Checks............................248Before Towing a Trailer.....................................249Hitches..................................................................248Launching or Retrieving a Boat or PersonalWatercraft (PWC)............................................249Safety Chains......................................................248Trailer Brakes.......................................................248Trailer Lamps.......................................................248When Towing a Trailer.......................................249
Event Data RecordingSee: Data Recording.............................................10
Export Unique Options...................................16Exterior Mirrors................................................96Auto-Dimming Feature........................................98Auto-Folding Mirrors............................................97Blind Spot Monitor................................................99
Fold-Away Exterior Mirrors.................................97Heated Exterior Mirrors.......................................98Integrated Blind Spot Mirrors............................98Lincoln Welcome Mat..........................................98Memory Mirrors.....................................................98Power Exterior Mirrors.........................................96Signal Indicator Mirrors.......................................98
