•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
The Electronic Stability Control system may be deactivated in certain
situations. See theSwitching Off AdvanceTrac
section below.
Switching Off AdvanceTrac

If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off certain features of the AdvanceTrac
system may be
beneficial because the wheels are allowed to spin. This will restore full
engine power and will enhance momentum through the obstacle. To
switch off the AdvanceTrac
system press the AdvanceTrac
Off
button. Full features of the AdvanceTrac
system can be restored by
pressing the AdvanceTrac
Offbutton again or by switching off and
restarting the engine.
If you switch off the AdvanceTrac
system the AdvanceTrac “Off” button
will illuminate and the sliding caricon
will illuminate steadily.
Pressing the AdvanceTrac
Offbutton again will turn off the lighted
button and thesliding caricon
.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, ESC is disabled.
AdvanceTrac
with RSC Features
Button functions“Sliding car”
icon
ESCTraction
Control
Default at start-upIlluminated
during bulb
checkEnabled Enabled
Button pressed
momentarilyIlluminated solid Enabled Disabled
Button pressed
again after
deactivationNot illuminated Enabled Enabled
STEERING
To help prevent damage to the power steering system, never hold the
steering wheel at its furthest turning points (until it stops) for more than
a few seconds when the engine is running.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
221

It is also important to maintain a proper power steering fluid level in the
power steering fluid reservoir:
•Do not operate the vehicle with a low power steering pump fluid level.
SeePower steering fluidin theMaintenance and Specifications
chapter.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the maximum
level, as this may result in leaks from the reservoir. SeePower
steering fluidin theMaintenance and Specificationschapter.
If the power steering system breaks down (or if the engine is off), you
can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is applied. If you cannot move
the gear lever out of P (Park) when the ignition is on and the brake
pedal applied, it is possible that a fuse has blown or the vehicle’s brake
lamps are not operating properly. Refer toFuses and relaysin the
Roadside Emergencieschapter.
WARNING:Do not drive your vehicle until you verify that the
brakelamps are working.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
222

WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Switch the ignition to off,
and remove the key whenever you leave your vehicle.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer.
Understanding the gearshift positions of the 6–speed automatic
transmission
P (Park)
This position locks the transmission and prevents the front wheels from
turning.
To put your vehicle in gear:
•Depress the brake pedal
•Move the gearshift lever into the desired gear
To put your vehicle in P (Park):
•Come to a complete stop
•Move the gearshift lever and securely latch it in P (Park)
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
223

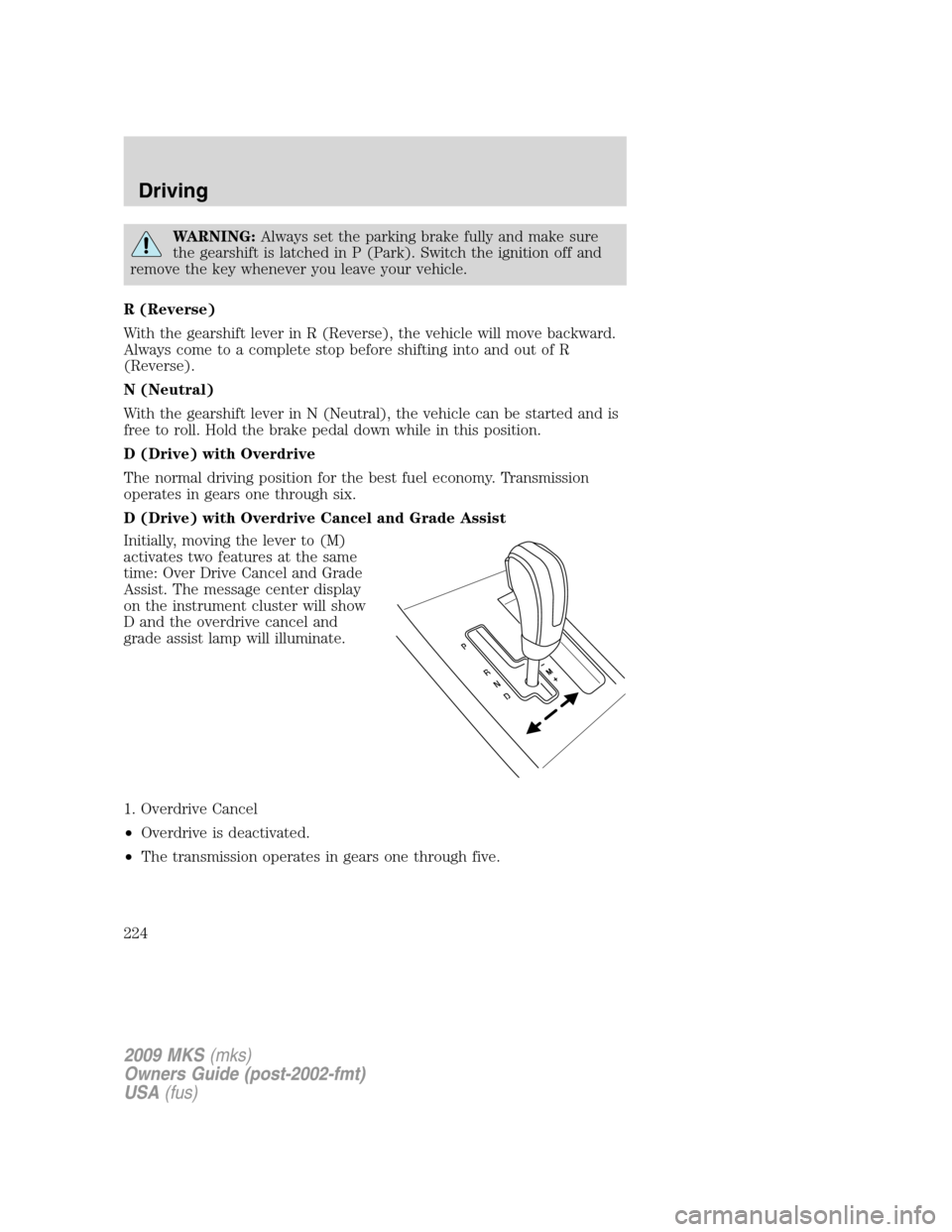

WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Switch the ignition off and
remove the key whenever you leave your vehicle.
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R
(Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive) with Overdrive
The normal driving position for the best fuel economy. Transmission
operates in gears one through six.
D (Drive) with Overdrive Cancel and Grade Assist
Initially, moving the lever to (M)
activates two features at the same
time: Over Drive Cancel and Grade
Assist. The message center display
on the instrument cluster will show
D and the overdrive cancel and
grade assist lamp will illuminate.
1. Overdrive Cancel
•Overdrive is deactivated.
•The transmission operates in gears one through five.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
224

•The overdrive cancel and grade
assist lamp in the instrument
cluster is illuminated.
2. Grade Assist
•Improves driving experience in hilly terrain or mountainous areas by
providing additional grade (engine) braking and extends lower gear
operation on uphill climbs.
•Provides additional engine braking through the automatic transmission
shift strategy which reacts to vehicle inputs (vehicle acceleration,
accelerator pedal, brake pedal and vehicle speed).
•Allows the transmission to select gears that will provide the desired
engine braking based on the vehicle inputs mentioned above. This will
increase engine RPM during engine braking.
Overdrive Cancel with Grade Assist is designed to provide optimal gear
selection in hilly terrain or mountainous areas. It is recommended that
you return to O/D (overdrive mode) on flat terrain to provide the best
fuel economy and transmission function.
To return to O/D (overdrive mode), move the shift lever back fromM
toD.
•The overdrive cancel and grade assist lamp in the instrument cluster
will not be illuminated.
•The transmission will operate in gears one through six.
O/D (overdrive mode) is automatically returned each time the ignition is
off.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
225

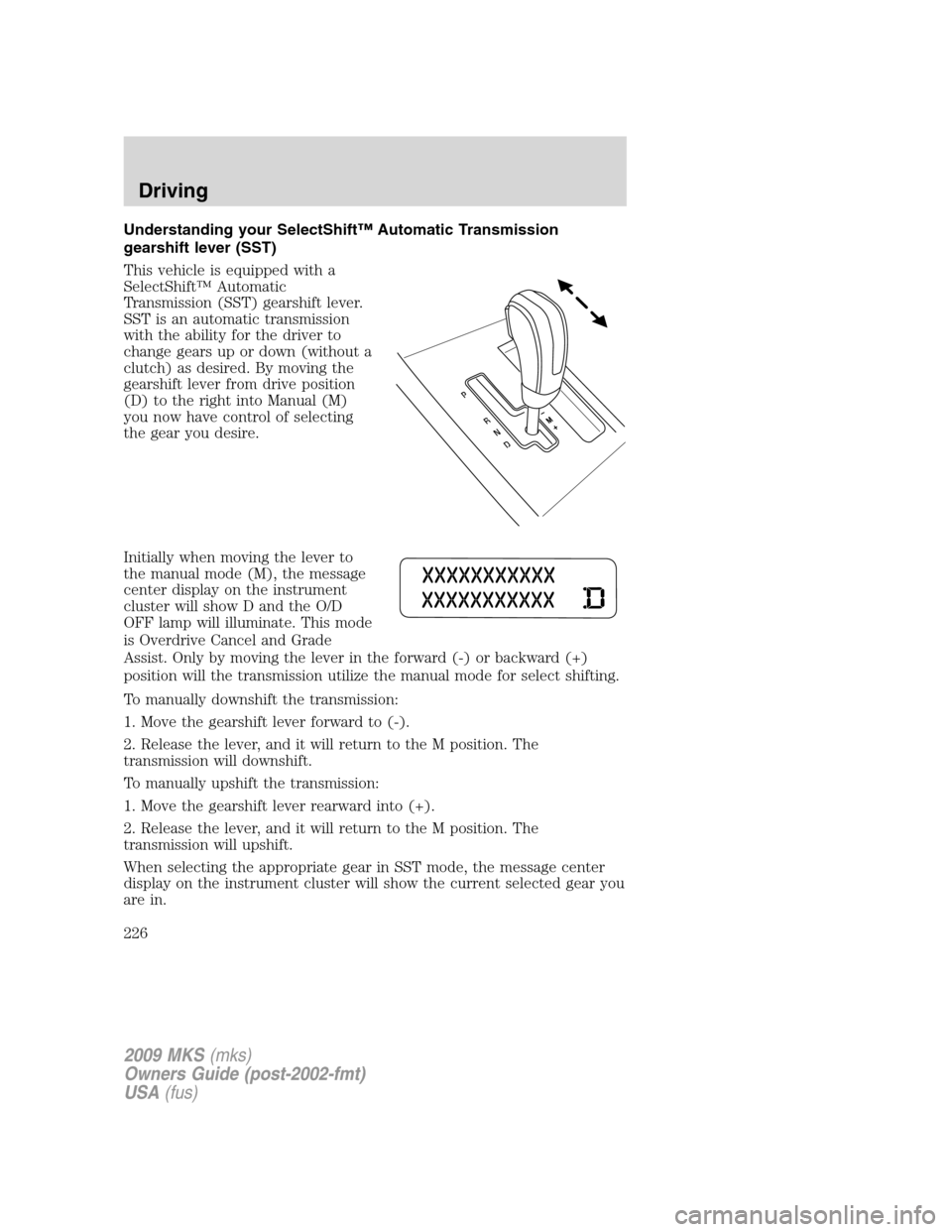

Understanding your SelectShift™ Automatic Transmission
gearshift lever (SST)
This vehicle is equipped with a
SelectShift™ Automatic
Transmission (SST) gearshift lever.
SST is an automatic transmission
with the ability for the driver to
change gears up or down (without a
clutch) as desired. By moving the
gearshift lever from drive position
(D) to the right into Manual (M)
you now have control of selecting
the gear you desire.
Initially when moving the lever to
the manual mode (M), the message
center display on the instrument
cluster will show D and the O/D
OFF lamp will illuminate. This mode
is Overdrive Cancel and Grade
Assist. Only by moving the lever in the forward (-) or backward (+)
position will the transmission utilize the manual mode for select shifting.
To manually downshift the transmission:
1. Move the gearshift lever forward to (-).
2. Release the lever, and it will return to the M position. The
transmission will downshift.
To manually upshift the transmission:
1. Move the gearshift lever rearward into (+).
2. Release the lever, and it will return to the M position. The
transmission will upshift.
When selecting the appropriate gear in SST mode, the message center
display on the instrument cluster will show the current selected gear you
are in.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
226

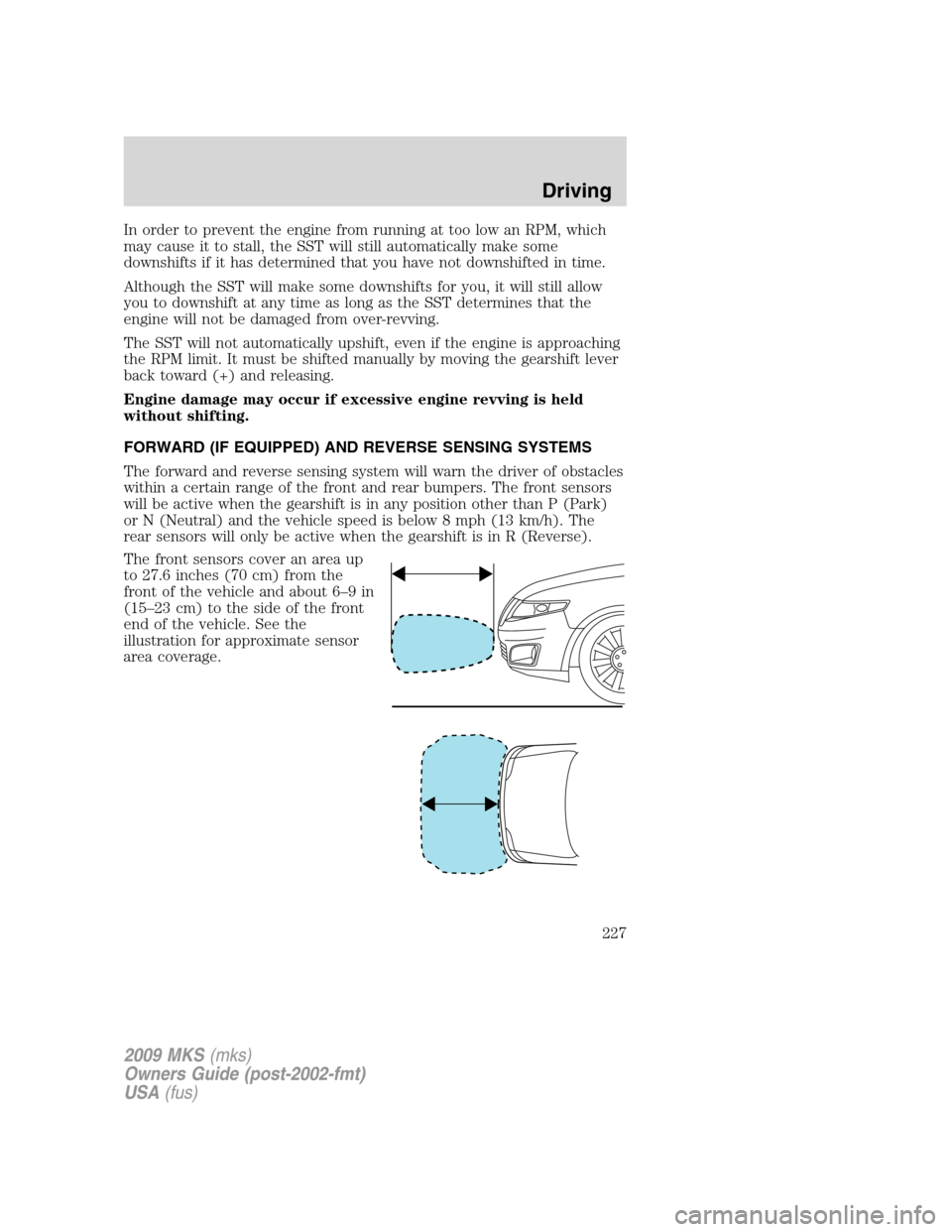

In order to prevent the engine from running at too low an RPM, which
may cause it to stall, the SST will still automatically make some
downshifts if it has determined that you have not downshifted in time.
Although the SST will make some downshifts for you, it will still allow
you to downshift at any time as long as the SST determines that the
engine will not be damaged from over-revving.
The SST will not automatically upshift, even if the engine is approaching
the RPM limit. It must be shifted manually by moving the gearshift lever
back toward (+) and releasing.
Engine damage may occur if excessive engine revving is held
without shifting.
FORWARD (IF EQUIPPED) AND REVERSE SENSING SYSTEMS
The forward and reverse sensing system will warn the driver of obstacles
within a certain range of the front and rear bumpers. The front sensors
will be active when the gearshift is in any position other than P (Park)
or N (Neutral) and the vehicle speed is below 8 mph (13 km/h). The
rear sensors will only be active when the gearshift is in R (Reverse).
The front sensors cover an area up
to 27.6 inches (70 cm) from the
front of the vehicle and about 6–9 in
(15–23 cm) to the side of the front
end of the vehicle. See the
illustration for approximate sensor
area coverage.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
227

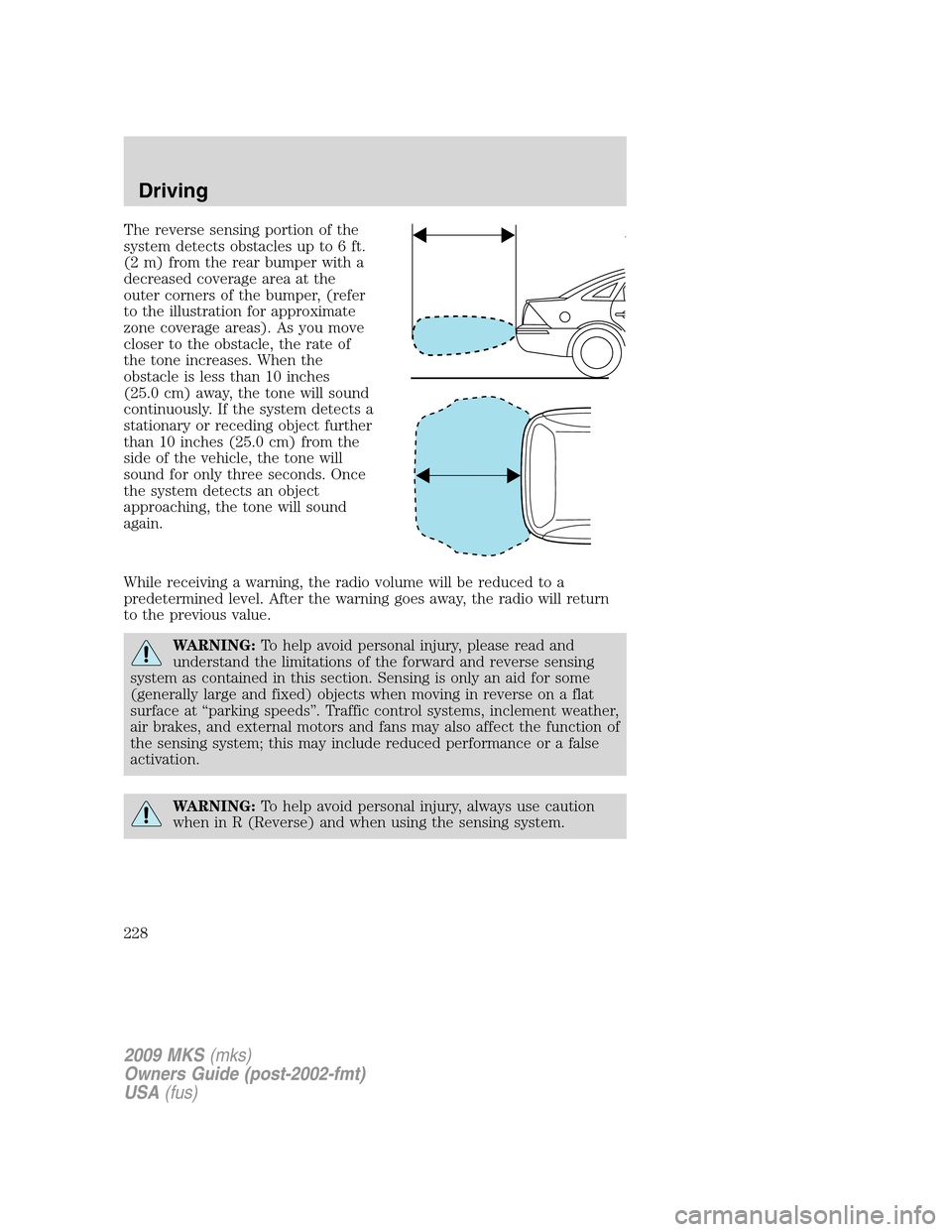

The reverse sensing portion of the
system detects obstacles up to 6 ft.
(2 m) from the rear bumper with a
decreased coverage area at the
outer corners of the bumper, (refer
to the illustration for approximate
zone coverage areas). As you move
closer to the obstacle, the rate of
the tone increases. When the
obstacle is less than 10 inches
(25.0 cm) away, the tone will sound
continuously. If the system detects a
stationary or receding object further
than 10 inches (25.0 cm) from the
side of the vehicle, the tone will
sound for only three seconds. Once
the system detects an object
approaching, the tone will sound
again.
While receiving a warning, the radio volume will be reduced to a
predetermined level. After the warning goes away, the radio will return
to the previous value.
WARNING:To help avoid personal injury, please read and
understand the limitations of the forward and reverse sensing
system as contained in this section. Sensing is only an aid for some
(generally large and fixed) objects when moving in reverse on a flat
surface at “parking speeds”. Traffic control systems, inclement weather,
air brakes, and external motors and fans may also affect the function of
the sensing system; this may include reduced performance or a false
activation.
WARNING:To help avoid personal injury, always use caution
when in R (Reverse) and when using the sensing system.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
228

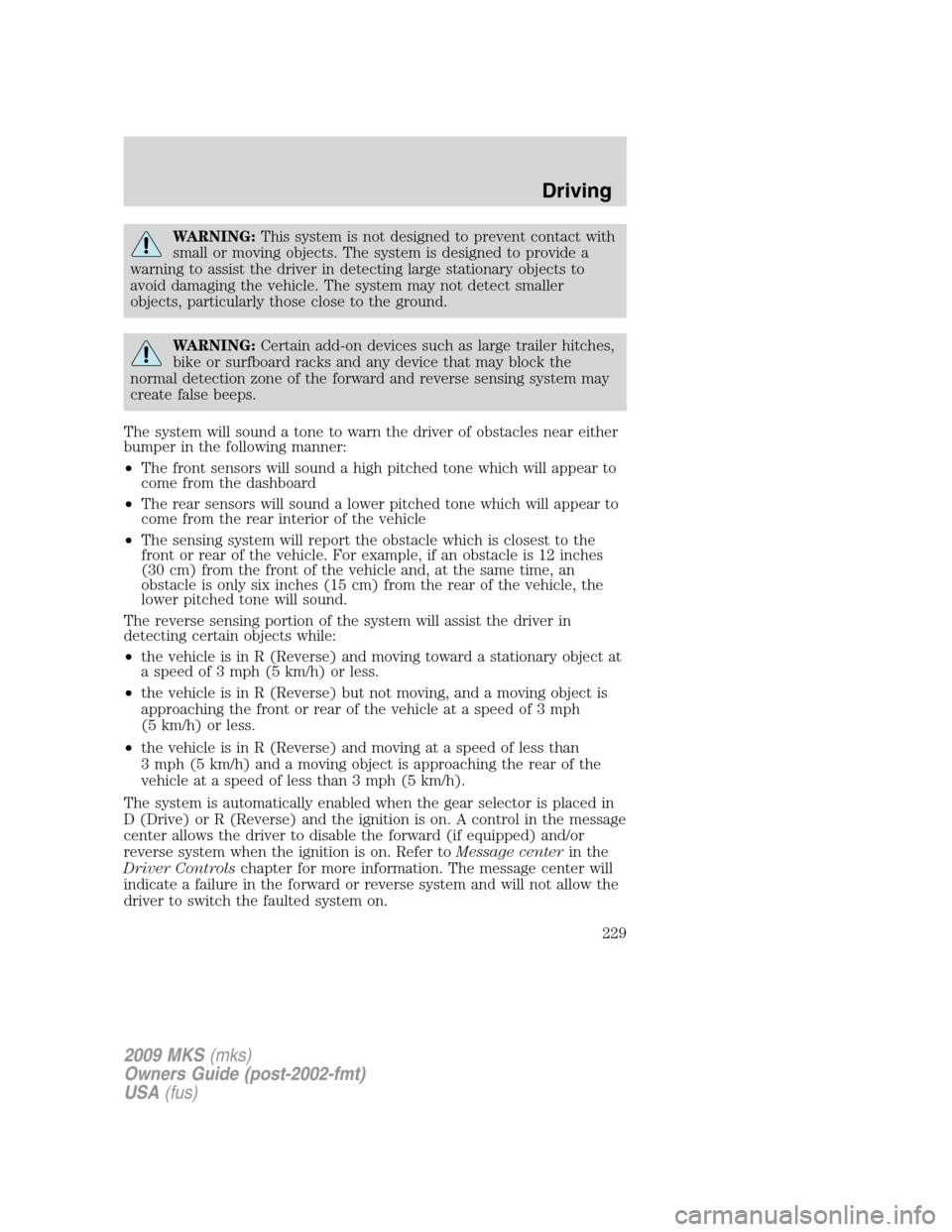

WARNING:This system is not designed to prevent contact with
small or moving objects. The system is designed to provide a
warning to assist the driver in detecting large stationary objects to
avoid damaging the vehicle. The system may not detect smaller
objects, particularly those close to the ground.
WARNING:Certain add-on devices such as large trailer hitches,
bike or surfboard racks and any device that may block the
normal detection zone of the forward and reverse sensing system may
create false beeps.
The system will sound a tone to warn the driver of obstacles near either
bumper in the following manner:
•The front sensors will sound a high pitched tone which will appear to
come from the dashboard
•The rear sensors will sound a lower pitched tone which will appear to
come from the rear interior of the vehicle
•The sensing system will report the obstacle which is closest to the
front or rear of the vehicle. For example, if an obstacle is 12 inches
(30 cm) from the front of the vehicle and, at the same time, an
obstacle is only six inches (15 cm) from the rear of the vehicle, the
lower pitched tone will sound.
The reverse sensing portion of the system will assist the driver in
detecting certain objects while:
•the vehicle is in R (Reverse) and moving toward a stationary object at
a speed of 3 mph (5 km/h) or less.
•the vehicle is in R (Reverse) but not moving, and a moving object is
approaching the front or rear of the vehicle at a speed of 3 mph
(5 km/h) or less.
•the vehicle is in R (Reverse) and moving at a speed of less than
3 mph (5 km/h) and a moving object is approaching the rear of the
vehicle at a speed of less than 3 mph (5 km/h).
The system is automatically enabled when the gear selector is placed in
D (Drive) or R (Reverse) and the ignition is on. A control in the message
center allows the driver to disable the forward (if equipped) and/or
reverse system when the ignition is on. Refer toMessage centerin the
Driver Controlschapter for more information. The message center will
indicate a failure in the forward or reverse system and will not allow the
driver to switch the faulted system on.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
229

The system defaults toenabledevery time the ignition is switched on.
Press the control to disable or enable the system
Keep the sensors (located on the front and rear bumper/fascia)
free from snow, ice and large accumulations of dirt (do not clean
the sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the sensing system.
If your vehicle sustains damage to the front or rear
bumper/fascia, leaving it misaligned or bent, the sensing zone may
be altered causing inaccurate measurement of obstacles or false
alarms.
REAR-VIEW CAMERA SYSTEM (IF EQUIPPED)
The rear-view camera system,
located on the trunk just above the
license plate, provides a video image
which appears on the navigation
screen of the area behind the
vehicle. It adds assistance to the
driver while reversing or reverse
parking the vehicle.
To use the reverse camera system,
place the transmission in R
(Reverse); an image will display on
the navigation system screen. The
area displayed on the screen may
vary according to the vehicle
orientation and/or road condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
Always use caution while backing.
Objects in the red zone are closest to your vehicle and objects in the
green zone are further away. Objects are getting closer to your vehicle as
they move from the green zone to the yellow or red zones.
Use the side mirrors and rear view mirror to get better coverage on both
sides and rear of the vehicle.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
230
