LINCOLN MKS 2009 Owners Manual

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidBetween MAX
and MIN on
reservoirMotorcraft High
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood latch,
auxiliary hood latch, seat
tracks, trunk and liftgate
latches— Multi-Purpose GreaseXG-4 or XL-5 /
ESA-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid10.0 quarts
(9.5L)
1
Motorcraft
MERCON
VATF
2
XT-5-QM /
MERCON
V
Rear differential (AWD)
fluid2.4 pints
(1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
5
18 ounces
(0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Engine oil5.5 quarts
(5.2L)Motorcraft SAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor Oil
(Canada)
3
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A and API
Certification Mark
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
311

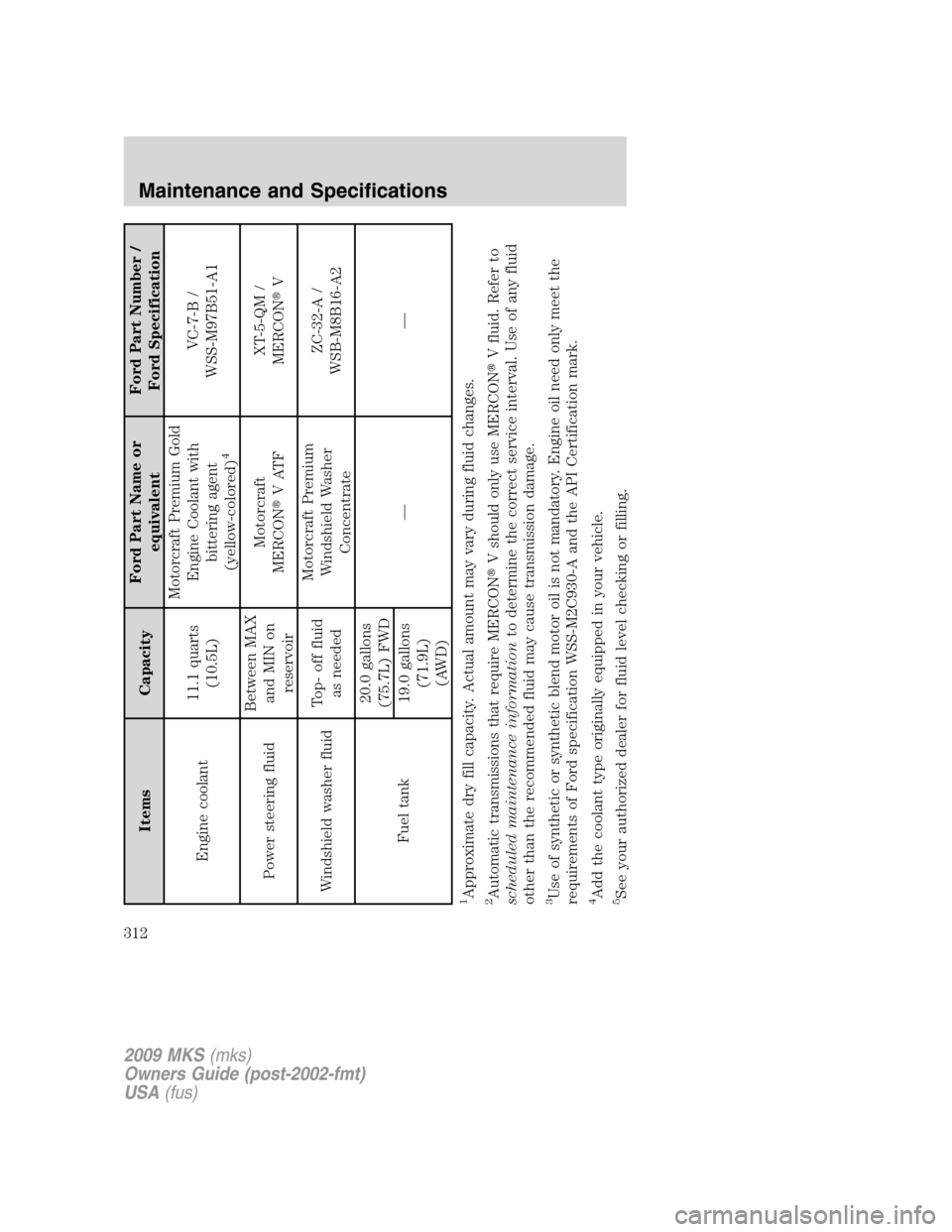

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant11.1 quarts
(10.5L)Motorcraft Premium Gold
Engine Coolant with
bittering agent
(yellow-colored)
4
VC-7-B /
WSS-M97B51-A1
Power steering fluidBetween MAX
and MIN on
reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Windshield washer fluidTop- off fluid
as neededMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank20.0 gallons
(75.7L) FWD
——
19.0 gallons
(71.9L)
(AWD)
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
V should only use MERCON
V fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle.5See your authorized dealer for fluid level checking or filling.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
312

ENGINE DATA
Engine 3.7L-DOHC V6 engine
Displacement 3.7L
Fuel 87 octane (normal operation) or91 octane (maximum
performance)
Firing order 1–4–2–5–3–6
Spark plug gap 0.052–0.056 inch (1.32–1.42 mm)
Ignition system Coil on plug
Compression ratio 10.3:1
Engine drivebelt routing
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
2009 MKS (mks)
Owners Guide (post-2002-fmt)
USA (fus)
Maintenance and Specifications
313

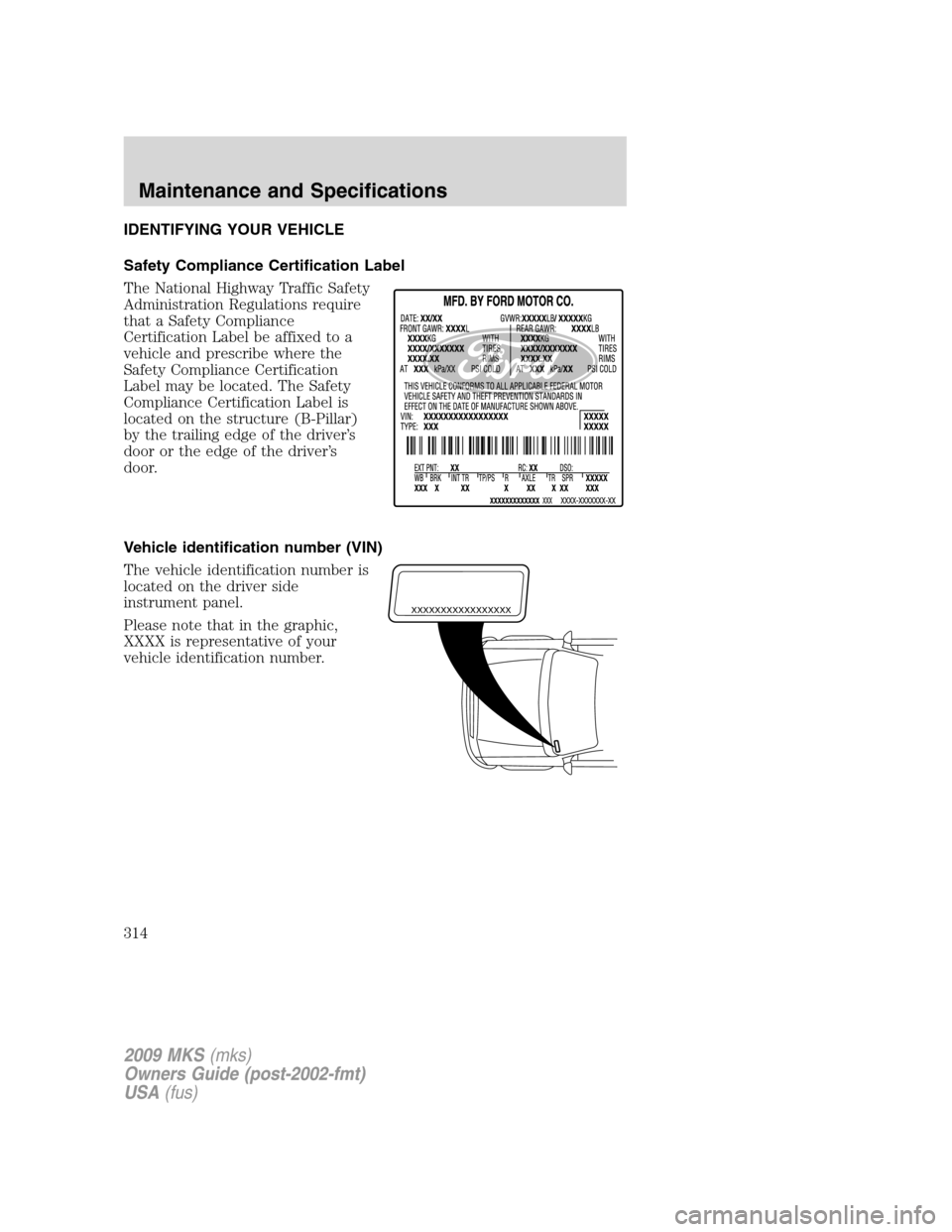

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
314

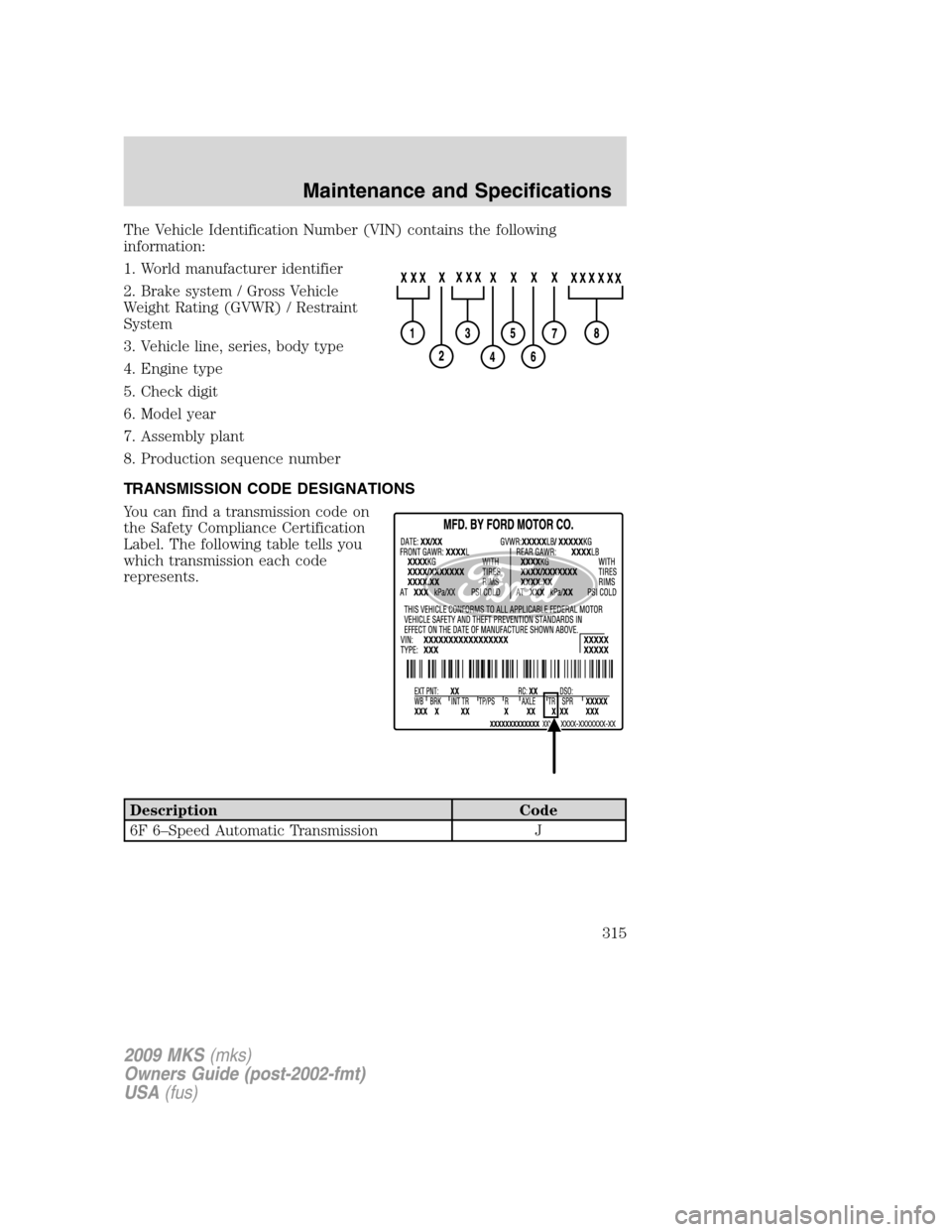

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6F 6–Speed Automatic Transmission J
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
315

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Moonroof deflector
Side window deflector
Splash guards
Interior style
All weather floor mats
Electrochromatic compass/temperature interior mirrors
Carpeted floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
316

Peace of mind
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
317

A
Accessory delay ..........................58
Adaptive Cruise Control .............63
AdvanceTrac ..............................218
Air cleaner filter ...............309–310
Air conditioning ....................32, 35
Airbag supplemental restraint
system ................144–145, 153, 155
and child safety seats ............146
description ..............145, 153, 155
disposal ....................................159
driver airbag ............147, 154, 157
indicator light .................153, 159
operation .................147, 154, 157
passenger airbag .....147, 154, 157
side airbag ...............................153
All Wheel Drive (AWD),
driving off road .........................232
AM/FM .........................................16
Antifreeze (see Engine
coolant) .....................................288
Anti-lock brake system
(see Brakes) ......................215–216
Anti-theft system ..............113, 117
arming the system ..................117
disarming a triggered
system .....................................118
triggering .................................119
Audio system (see Radio) .........16
Automatic transaxle
fluid, refill capacities ..............311
fluid, specification ..................311
Automatic transmission
driving an automatic
overdrive .................................223
fluid, adding ............................307
fluid, checking ........................307Selectshift (SST) ....................226
Auxiliary input jack (Line in) ....23
B
Battery .......................................286
acid, treating emergencies .....286
jumping a disabled battery ....256
maintenance-free ....................286
replacement, specifications ...310
servicing ..................................286
Belt-Minder
.............................140
Booster seats .............................172
Brakes ........................................215
anti-lock ...........................215–216
anti-lock brake system (ABS)
warning light ...........................216
fluid, checking and adding ....307
fluid, refill capacities ..............311
fluid, specifications .................311
lubricant specifications ..........311
parking ....................................217
shift interlock ..........................222
Bulbs ............................................48
C
Capacities for refilling fluids ....311
Cargo cover .................................58
Cargo net .....................................90
CD ................................................16
Cell phone use ..............................7
Changing a tire .........................248
Child safety seats ......................164
attaching with tether straps ..170
in front seat ............................165
in rear seat ..............................165
LATCH .....................................168
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
318

recommendations ...................162
Child safety seats - booster
seats ...........................................172
Cleaning your vehicle
engine compartment ..............274
instrument panel ....................275
interior .....................................276
plastic parts ............................274
washing ....................................272
waxing .....................................273
wheels ......................................273
wiper blades ............................275
Climate control (see Air
conditioning or Heating) ......32, 35
Clock ............................................16
Clock adjust
AM/FM/CD/MP3 ........................16
Console
overhead ....................................54
Controls
power seat ...............................123
steering column ........................72
Coolant
checking and adding ..............288
refill capacities ................292, 311
specifications ..........................311
Cooled Seats ..............................125
Cruise control
(see Speed control) ....................60
Cupholder(s) .............................129
Customer Assistance ................239
Ford Extended Service
Plan ..........................................268
Getting assistance outside
the U.S. and Canada ..............269
Getting roadside assistance ...239
Getting the service you
need .........................................264Ordering additional owner’s
literature .................................269
Utilizing the
Mediation/Arbitration
Program ...................................267
D
Daytime running lamps
(see Lamps) ................................45
Defrost
rear window ..............................32
rear window and rearview
mirrors .......................................35
windshield ...........................32, 35
Dipstick
automatic transmission
fluid ..........................................307
engine oil .................................283
Doors
central unlocking ......................96
Driving under special
conditions ..........................233, 236
sand .........................................234
snow and ice ...........................237
through water .................235, 238
E
Electronic message center .........78
Emergencies, roadside
jump-starting ..........................256
running out of fuel .........256, 298
Emission control system ..........303
Engine ........................................313
cleaning ...................................274
coolant .....................................288
fail-safe cooling .......................293
idle speed control ...................286
lubrication specifications .......311
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
319

refill capacities ........................311
service points ..................281–282
Engine block heater .................214
Engine oil ..................................283
change oil soon warning,
message center .......................283
checking and adding ..............283
dipstick ....................................283
filter, specifications ........285, 310
recommendations ...................285
refill capacities ........................311
specifications ..........................311
Event data recording ....................6
Exhaust fumes ..........................213
F
Fail safe cooling ........................293
Fluid capacities .........................311
Foglamps .....................................41
Four-Wheel Drive vehicles
driving off road .......................233
Fuel ............................................294
calculating fuel
economy ............................80, 300
cap ...........................................296
capacity ...................................311
choosing the right fuel ...........297
comparisons with EPA fuel
economy estimates .................303
detergent in fuel .....................298
filler funnel .............................298
filling your vehicle with
fuel ...........................294, 296, 300
filter, specifications ........294, 310
improving fuel economy ........300
octane rating ...................298, 313
quality ......................................298
running out of fuel .........256, 298safety information relating to
automotive fuels .....................294
Fuses ..........................................241
G
Gas cap (see Fuel cap) ............296
Gas mileage
(see Fuel economy) .................300
Gauges .........................................14
H
Hazard flashers .........................240
Headlamps ...................................40
aiming ........................................46
autolamp system .......................40
bulb specifications ....................48
daytime running lights .............45
flash to pass ..............................45
high beam .................................42
turning on and off ....................40
Heated Seats .....................125–126
Heating
heating and air conditioning
system .................................32, 35
Homelink wireless control
system ..........................................75
Hood ..........................................280
I
Ignition ...............................208, 313
Illuminated visor mirror .............53
Infant seats (see Safety seats)...164
Inspection/maintenance (I/M)
testing ........................................305
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
320
