Introduction 4
Instrument Cluster 10
Warning lights and chimes 10
Gauges 14
Entertainment Systems 16
AM/FM stereo with CDX6/MP3 16
Auxiliary input jack (Line in) 23
USB port 25
Satellite radio information 28
Navigation system 31
SYNC 31
Climate Controls 32
Dual automatic temperature control 32
Navigation system based climate control 35
Rear window defroster 39
Lights 40
Headlamps 40
Turn signal control 47
Bulb replacement 48
Driver Controls 52
Windshield wiper/washer control 52
Steering wheel adjustment 53
Power windows 56
Mirrors 58
Speed control 60
Adaptive cruise control 63
Moon roof 73
Message center 78
Table of Contents
1
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)

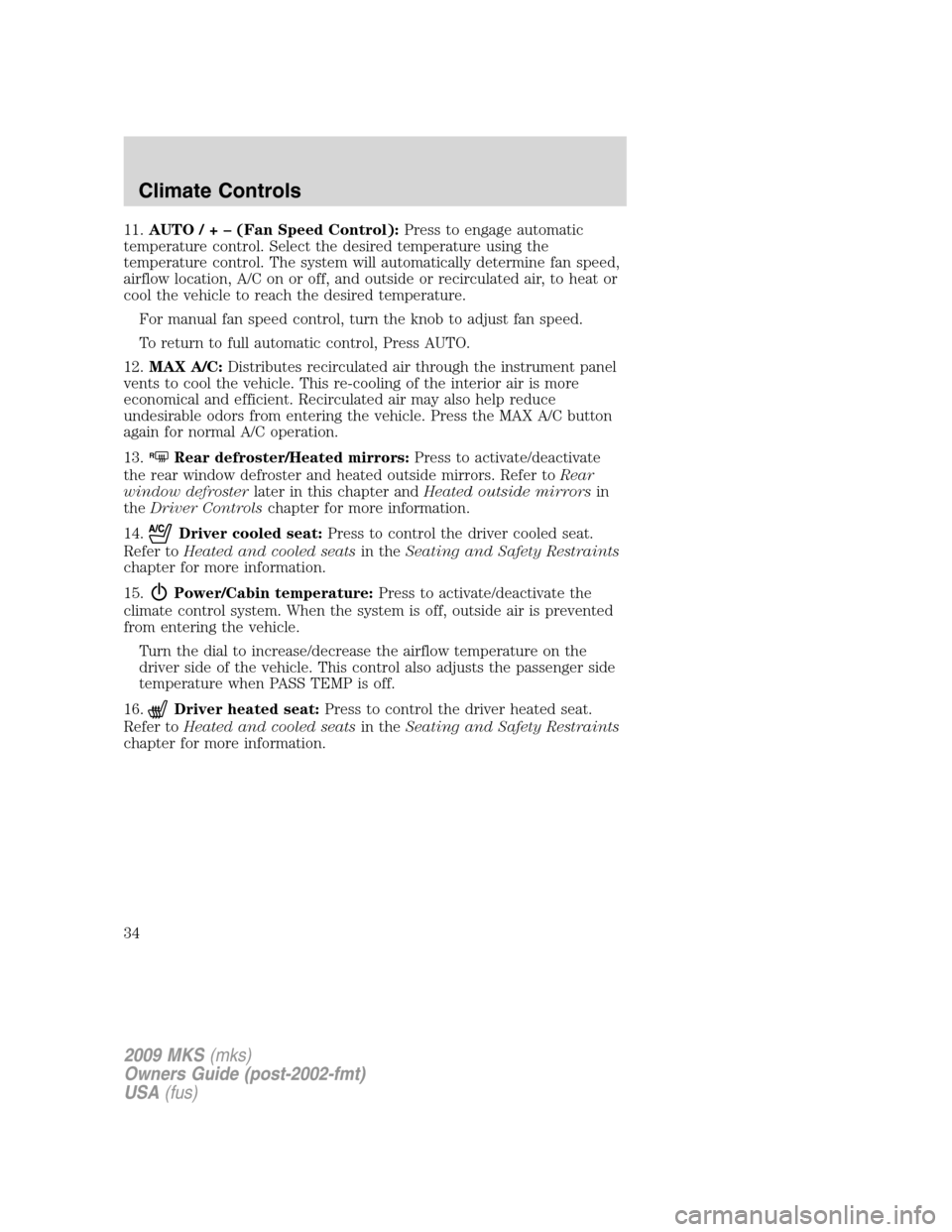

11.AUTO/+–(Fan Speed Control):Press to engage automatic
temperature control. Select the desired temperature using the
temperature control. The system will automatically determine fan speed,
airflow location, A/C on or off, and outside or recirculated air, to heat or
cool the vehicle to reach the desired temperature.
For manual fan speed control, turn the knob to adjust fan speed.
To return to full automatic control, Press AUTO.
12.MAX A/C:Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle. Press the MAX A/C button
again for normal A/C operation.
13.
RRear defroster/Heated mirrors:Press to activate/deactivate
the rear window defroster and heated outside mirrors. Refer toRear
window defrosterlater in this chapter andHeated outside mirrorsin
theDriver Controlschapter for more information.
14.
Driver cooled seat:Press to control the driver cooled seat.
Refer toHeated and cooled seatsin theSeating and Safety Restraints
chapter for more information.
15.
Power/Cabin temperature:Press to activate/deactivate the
climate control system. When the system is off, outside air is prevented
from entering the vehicle.
Turn the dial to increase/decrease the airflow temperature on the
driver side of the vehicle. This control also adjusts the passenger side
temperature when PASS TEMP is off.
16.
Driver heated seat:Press to control the driver heated seat.
Refer toHeated and cooled seatsin theSeating and Safety Restraints
chapter for more information.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
34

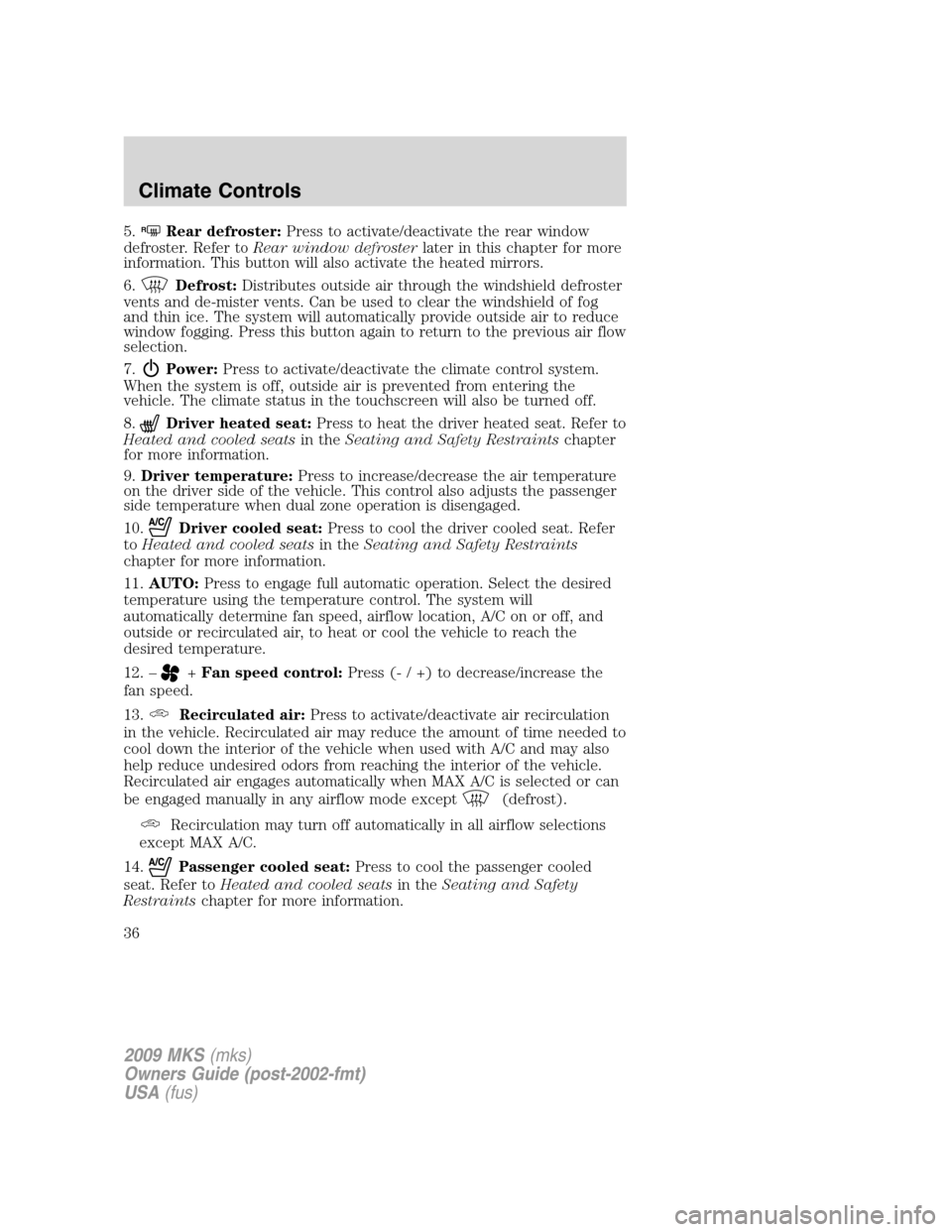

5.RRear defroster:Press to activate/deactivate the rear window
defroster. Refer toRear window defrosterlater in this chapter for more
information. This button will also activate the heated mirrors.
6.
Defrost:Distributes outside air through the windshield defroster
vents and de-mister vents. Can be used to clear the windshield of fog
and thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection.
7.
Power:Press to activate/deactivate the climate control system.
When the system is off, outside air is prevented from entering the
vehicle. The climate status in the touchscreen will also be turned off.
8.
Driver heated seat:Press to heat the driver heated seat. Refer to
Heated and cooled seatsin theSeating and Safety Restraintschapter
for more information.
9.Driver temperature:Press to increase/decrease the air temperature
on the driver side of the vehicle. This control also adjusts the passenger
side temperature when dual zone operation is disengaged.
10.
Driver cooled seat:Press to cool the driver cooled seat. Refer
toHeated and cooled seatsin theSeating and Safety Restraints
chapter for more information.
11.AUTO:Press to engage full automatic operation. Select the desired
temperature using the temperature control. The system will
automatically determine fan speed, airflow location, A/C on or off, and
outside or recirculated air, to heat or cool the vehicle to reach the
desired temperature.
12. –
+Fan speed control:Press (- / +) to decrease/increase the
fan speed.
13.
Recirculated air:Press to activate/deactivate air recirculation
in the vehicle. Recirculated air may reduce the amount of time needed to
cool down the interior of the vehicle when used with A/C and may also
help reduce undesired odors from reaching the interior of the vehicle.
Recirculated air engages automatically when MAX A/C is selected or can
be engaged manually in any airflow mode except
(defrost).
Recirculation may turn off automatically in all airflow selections
except MAX A/C.
14.
Passenger cooled seat:Press to cool the passenger cooled
seat. Refer toHeated and cooled seatsin theSeating and Safety
Restraintschapter for more information.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
36

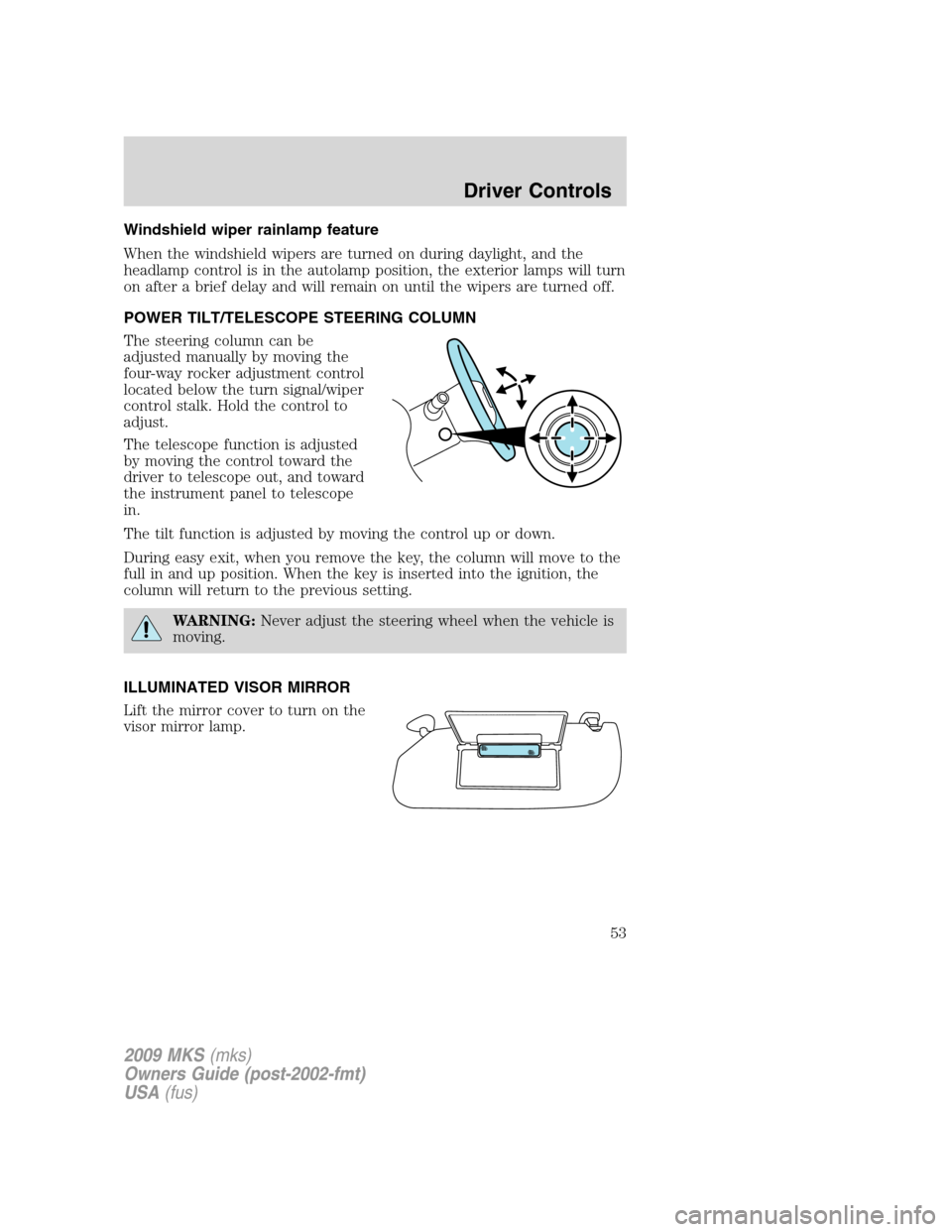

Windshield wiper rainlamp feature
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
POWER TILT/TELESCOPE STEERING COLUMN
The steering column can be
adjusted manually by moving the
four-way rocker adjustment control
located below the turn signal/wiper
control stalk. Hold the control to
adjust.
The telescope function is adjusted
by moving the control toward the
driver to telescope out, and toward
the instrument panel to telescope
in.
The tilt function is adjusted by moving the control up or down.
During easy exit, when you remove the key, the column will move to the
full in and up position. When the key is inserted into the ignition, the
column will return to the previous setting.
WARNING:Never adjust the steering wheel when the vehicle is
moving.
ILLUMINATED VISOR MIRROR
Lift the mirror cover to turn on the
visor mirror lamp.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
53

Window lock
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
(except for the driver’s) press the
right side of the control. Press the
left side to restore the window
controls.
Accessory delay
With accessory delay, the radio, Family Entertainment DVD System (if
equipped), power windows, and moon roof (if equipped) operate for up
to 10 minutes after the ignition switch is turned from on to off or until
one of the front doors are opened.
POWER REAR SUNSHADE (IF EQUIPPED)
Your vehicle may be equipped with a
power rear sunshade that covers the
rear window of your vehicle. The
control is located in the center
console access bin next to the
power point.
Press the control to move the shade
up or down.
The power sunshade is equipped
with an automatic, one-touch, auto
down feature. To stop motion at any time during the auto down
operation, press the control a second time. To activate the automatic,
one-touch, auto down feature, press the control and release quickly.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
Automatic dimming interior rear view mirror
Your vehicle is equipped with an interior rear view mirror and a driver’s
side exterior mirror that have auto-dimming function. The electronic
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
58

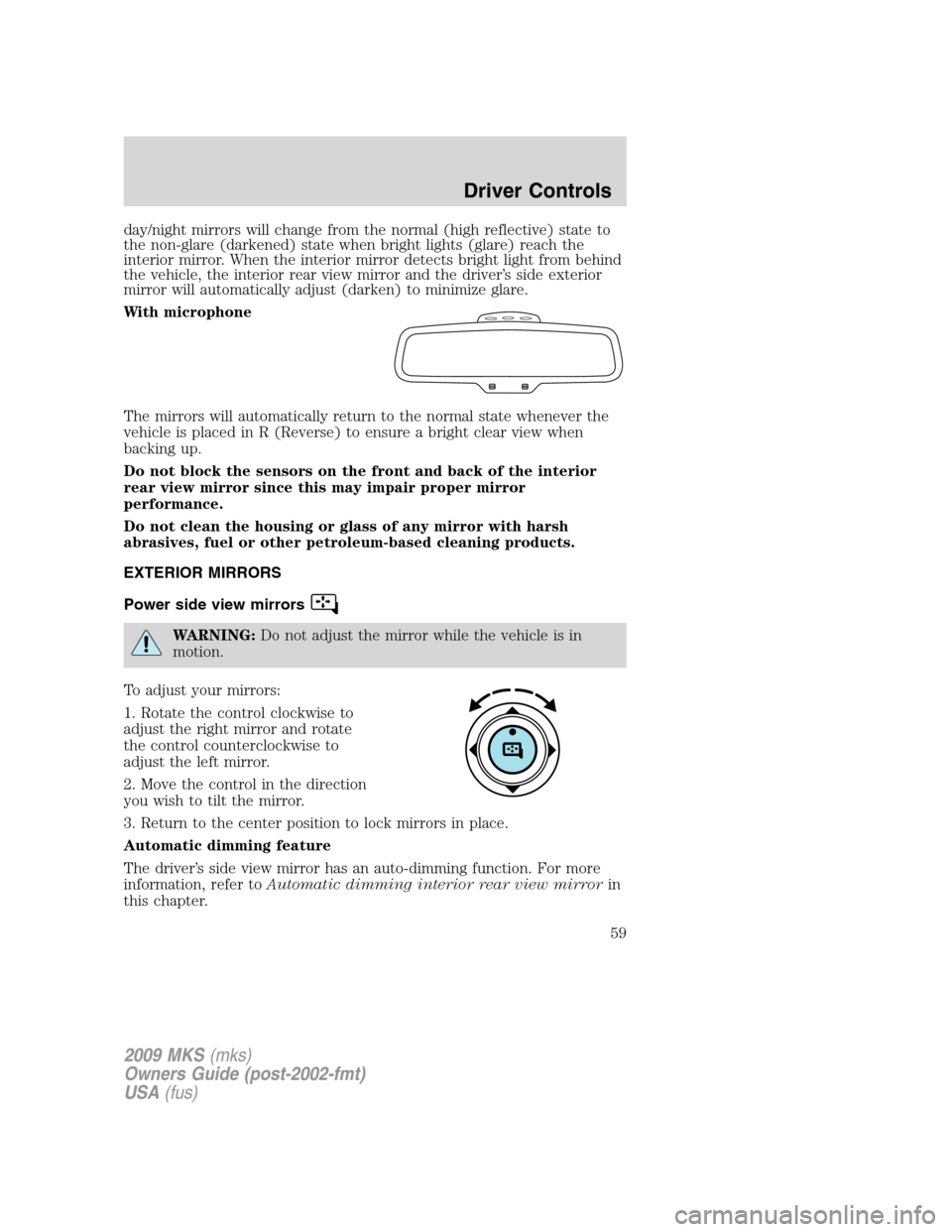

day/night mirrors will change from the normal (high reflective) state to
the non-glare (darkened) state when bright lights (glare) reach the
interior mirror. When the interior mirror detects bright light from behind
the vehicle, the interior rear view mirror and the driver’s side exterior
mirror will automatically adjust (darken) to minimize glare.
With microphone
The mirrors will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
59

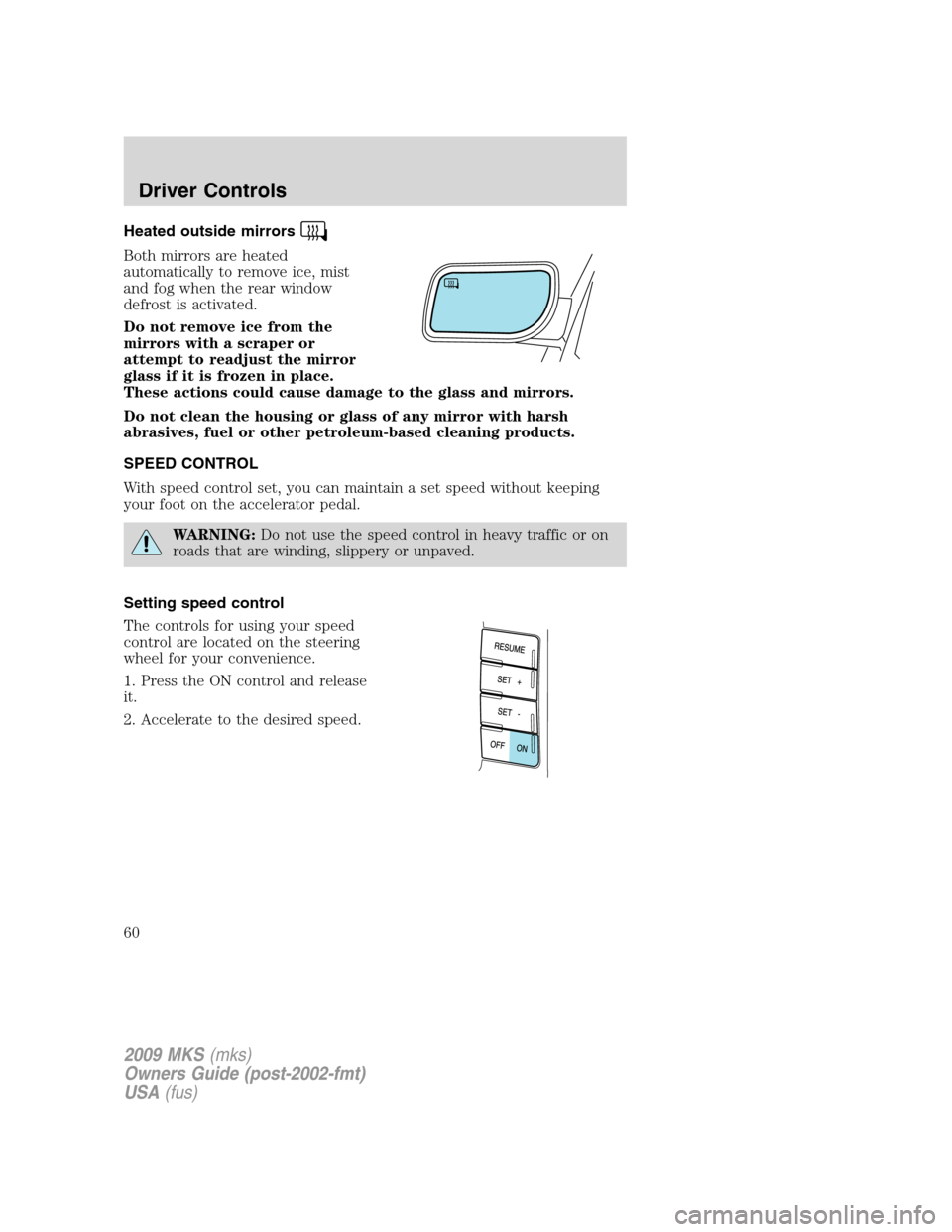

Heated outside mirrors
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Setting speed control
The controls for using your speed
control are located on the steering
wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
60

Memory seats/power mirrors/steering column
This system allows automatic
positioning of the driver seat, power
mirrors, and steering column to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position 1, move the
driver seat, mirrors and steering
column to the desired position
using the associated controls.
Press and hold control button 1 for at least two seconds.
•To program position 2, repeat the previous procedure using control
button 2.
A position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
A memory seat position may be programmed at any time.
The memory positions are also recalled when you press your remote
entry transmitter
(unlock) control (if the transmitter is programmed
to a memory position) or, when you enter a valid personal entry code
that is programmed to a memory position.
To program the memory feature to a remote entry transmitter and for
more information on how to use the keypad, refer toRemote entry
systemin theLocks and Securitychapter.
Easy-entry/easy-exit feature
This feature automatically moves the steering wheel all the way up and
in and moves the driver’s seat rearward 2 in (5 cm) when:
•the transmission is in N (Neutral) or P (Park)
•the key is removed from the ignition cylinder or the push button start
system (if equipped) is switched off (refer toPush button start
systemin theDrivingchapter).
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
128

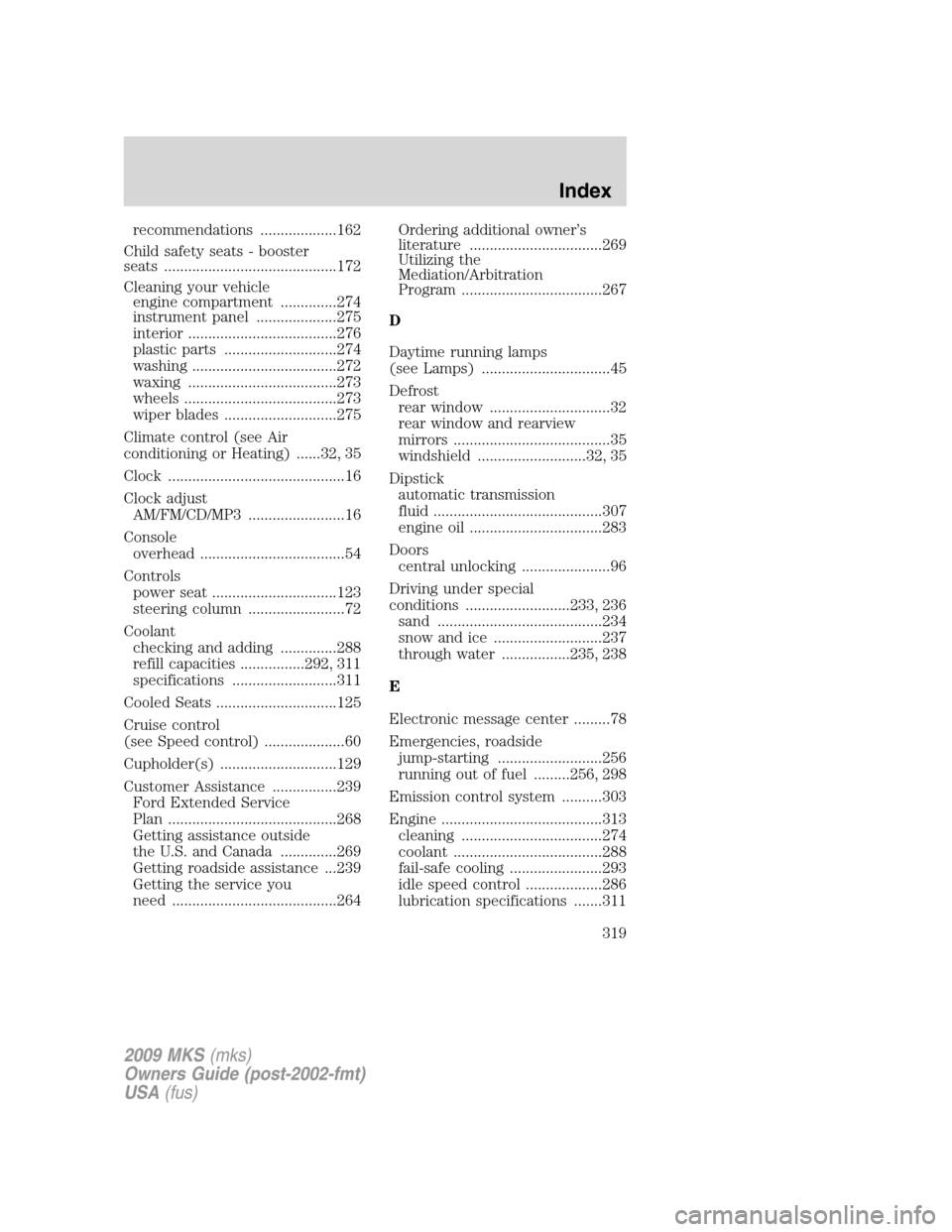

recommendations ...................162
Child safety seats - booster
seats ...........................................172
Cleaning your vehicle
engine compartment ..............274
instrument panel ....................275
interior .....................................276
plastic parts ............................274
washing ....................................272
waxing .....................................273
wheels ......................................273
wiper blades ............................275
Climate control (see Air
conditioning or Heating) ......32, 35
Clock ............................................16
Clock adjust
AM/FM/CD/MP3 ........................16
Console
overhead ....................................54
Controls
power seat ...............................123
steering column ........................72
Coolant
checking and adding ..............288
refill capacities ................292, 311
specifications ..........................311
Cooled Seats ..............................125
Cruise control
(see Speed control) ....................60
Cupholder(s) .............................129
Customer Assistance ................239
Ford Extended Service
Plan ..........................................268
Getting assistance outside
the U.S. and Canada ..............269
Getting roadside assistance ...239
Getting the service you
need .........................................264Ordering additional owner’s
literature .................................269
Utilizing the
Mediation/Arbitration
Program ...................................267
D
Daytime running lamps
(see Lamps) ................................45
Defrost
rear window ..............................32
rear window and rearview
mirrors .......................................35
windshield ...........................32, 35
Dipstick
automatic transmission
fluid ..........................................307
engine oil .................................283
Doors
central unlocking ......................96
Driving under special
conditions ..........................233, 236
sand .........................................234
snow and ice ...........................237
through water .................235, 238
E
Electronic message center .........78
Emergencies, roadside
jump-starting ..........................256
running out of fuel .........256, 298
Emission control system ..........303
Engine ........................................313
cleaning ...................................274
coolant .....................................288
fail-safe cooling .......................293
idle speed control ...................286
lubrication specifications .......311
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
319
