Fuse/Relay
LocationFuse Amp
RatingProtected Components
32 10A Restraint control module
33 10A Adaptive Lighting
34 5A AdvanceTrac, Adaptive cruise
control module, Electronic power
assist steering
35 10A AWD, DHRSM, Absolute steering
angle switch, Park aid (run/start)
36 5A Passive anti-theft system (PATS)
module
37 10A Not used (spare)
38 20A Amplifier (THX or 6 channel)
39 20A Radio/Navigation
40 20A Amplifier (THX or 2 channel)
41 15A Delayed Accessory
42 10A Not used (spare)
43 10A Rear window defroster relay, Rain
sensor
44 10A Not used (spare)
45 5A Wiper relay and module, Blower
relay
46 7.5A Occupant classification sensor
(OCS), Electronic finish panel,
Climate control
47 30A Circuit
BreakerNot used
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
Roadside Emergencies
271
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

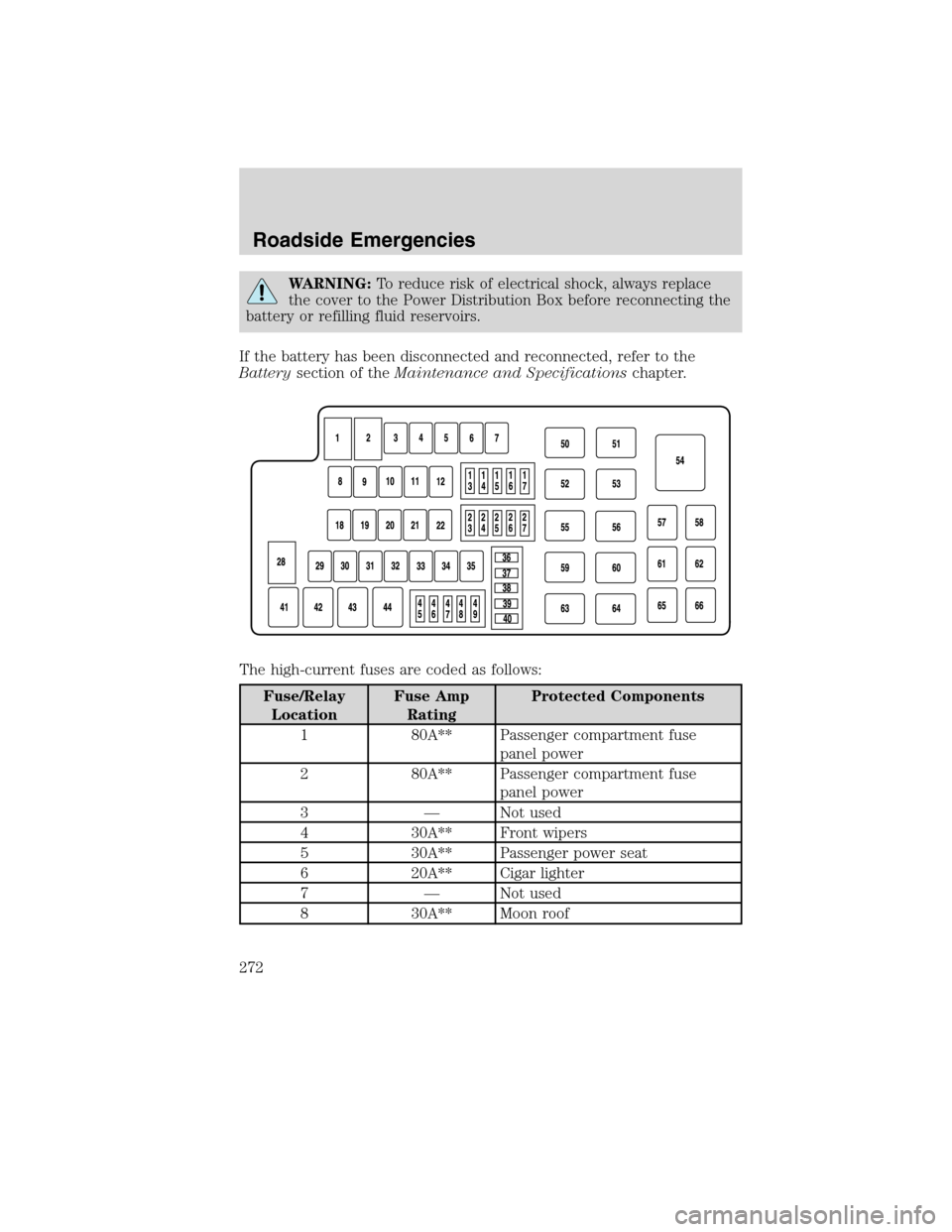

Page 272 of 358
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Components
1 80A** Passenger compartment fuse
panel power
2 80A** Passenger compartment fuse
panel power
3 — Not used
4 30A** Front wipers
5 30A** Passenger power seat
6 20A** Cigar lighter
7 — Not used
8 30A** Moon roof
Roadside Emergencies
272
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)
