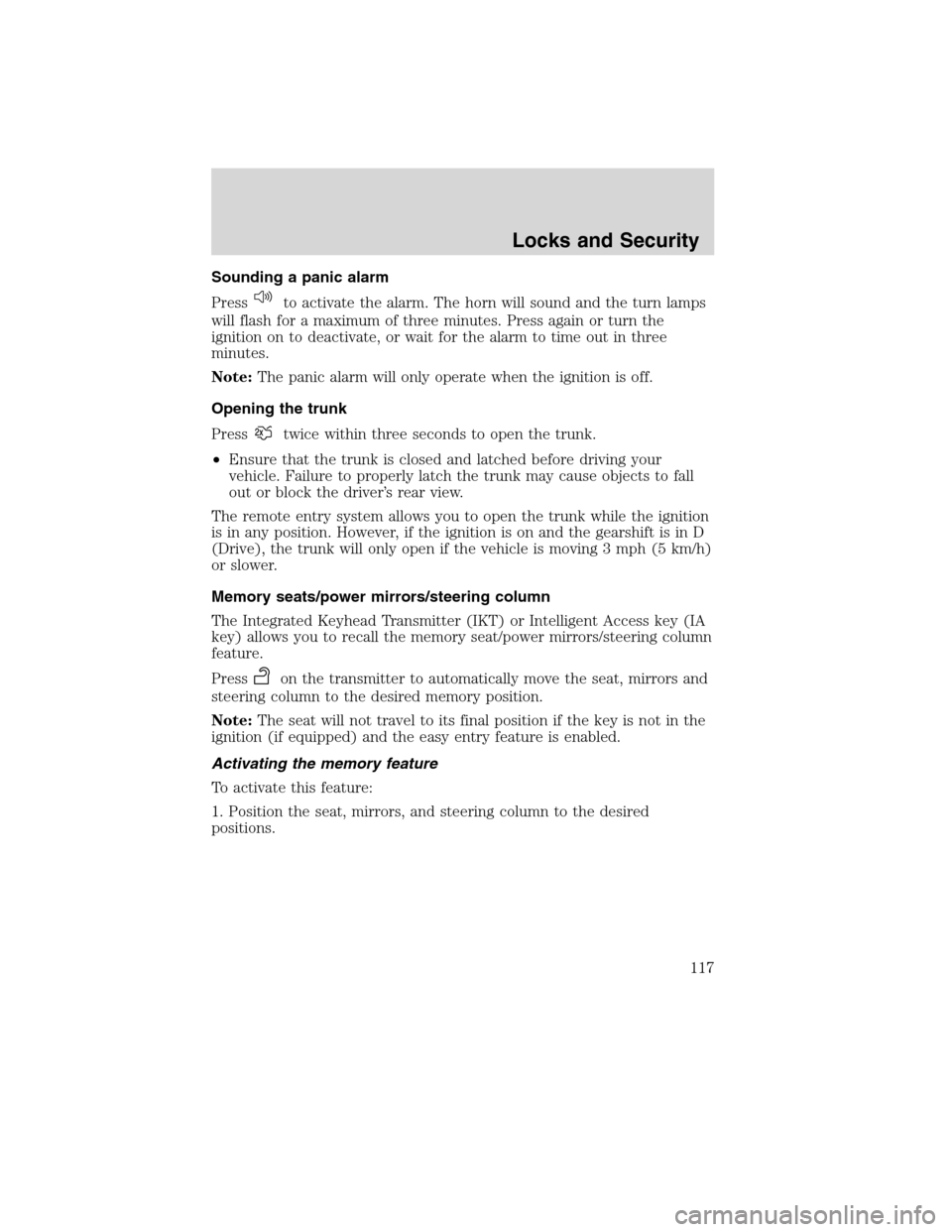

Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of three minutes. Press again or turn the
ignition on to deactivate, or wait for the alarm to time out in three
minutes.
Note:The panic alarm will only operate when the ignition is off.
Opening the trunk
Press
twice within three seconds to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
The remote entry system allows you to open the trunk while the ignition
is in any position. However, if the ignition is on and the gearshift is in D
(Drive), the trunk will only open if the vehicle is moving 3 mph (5 km/h)
or slower.
Memory seats/power mirrors/steering column
The Integrated Keyhead Transmitter (IKT) or Intelligent Access key (IA
key) allows you to recall the memory seat/power mirrors/steering column
feature.
Press
on the transmitter to automatically move the seat, mirrors and
steering column to the desired memory position.
Note:The seat will not travel to its final position if the key is not in the
ignition (if equipped) and the easy entry feature is enabled.
Activating the memory feature
To activate this feature:
1. Position the seat, mirrors, and steering column to the desired
positions.
Locks and Security
117
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

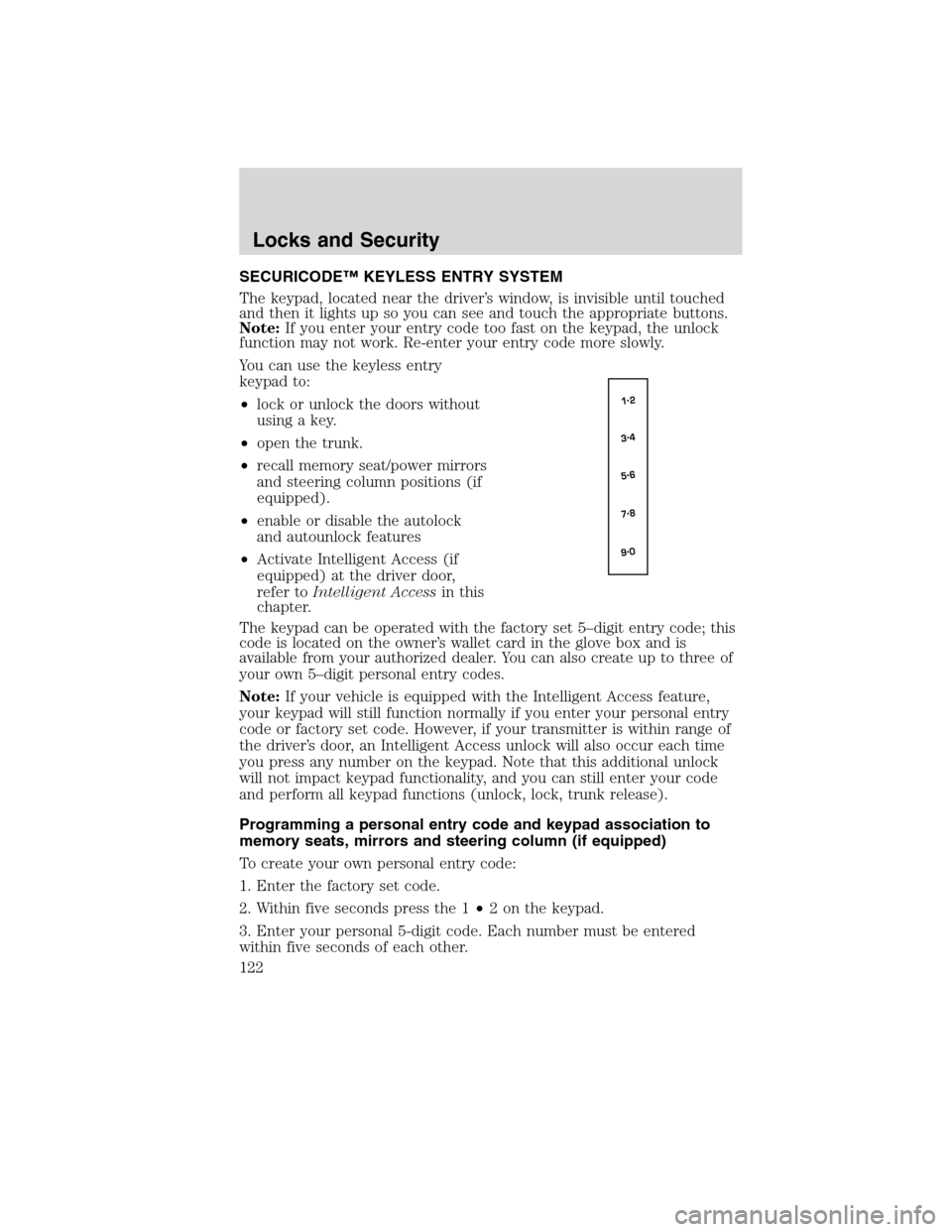

SECURICODE™ KEYLESS ENTRY SYSTEM
The keypad, located near the driver’s window, is invisible until touched
and then it lights up so you can see and touch the appropriate buttons.
Note:If you enter your entry code too fast on the keypad, the unlock
function may not work. Re-enter your entry code more slowly.
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the trunk.
•recall memory seat/power mirrors
and steering column positions (if
equipped).
•enable or disable the autolock
and autounlock features
•Activate Intelligent Access (if
equipped) at the driver door,
refer toIntelligent Accessin this
chapter.
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to three of
your own 5–digit personal entry codes.
Note:If your vehicle is equipped with the Intelligent Access feature,
your keypad will still function normally if you enter your personal entry
code or factory set code. However, if your transmitter is within range of
the driver’s door, an Intelligent Access unlock will also occur each time
you press any number on the keypad. Note that this additional unlock
will not impact keypad functionality, and you can still enter your code
and perform all keypad functions (unlock, lock, trunk release).
Programming a personal entry code and keypad association to
memory seats, mirrors and steering column (if equipped)
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
Locks and Security
122
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

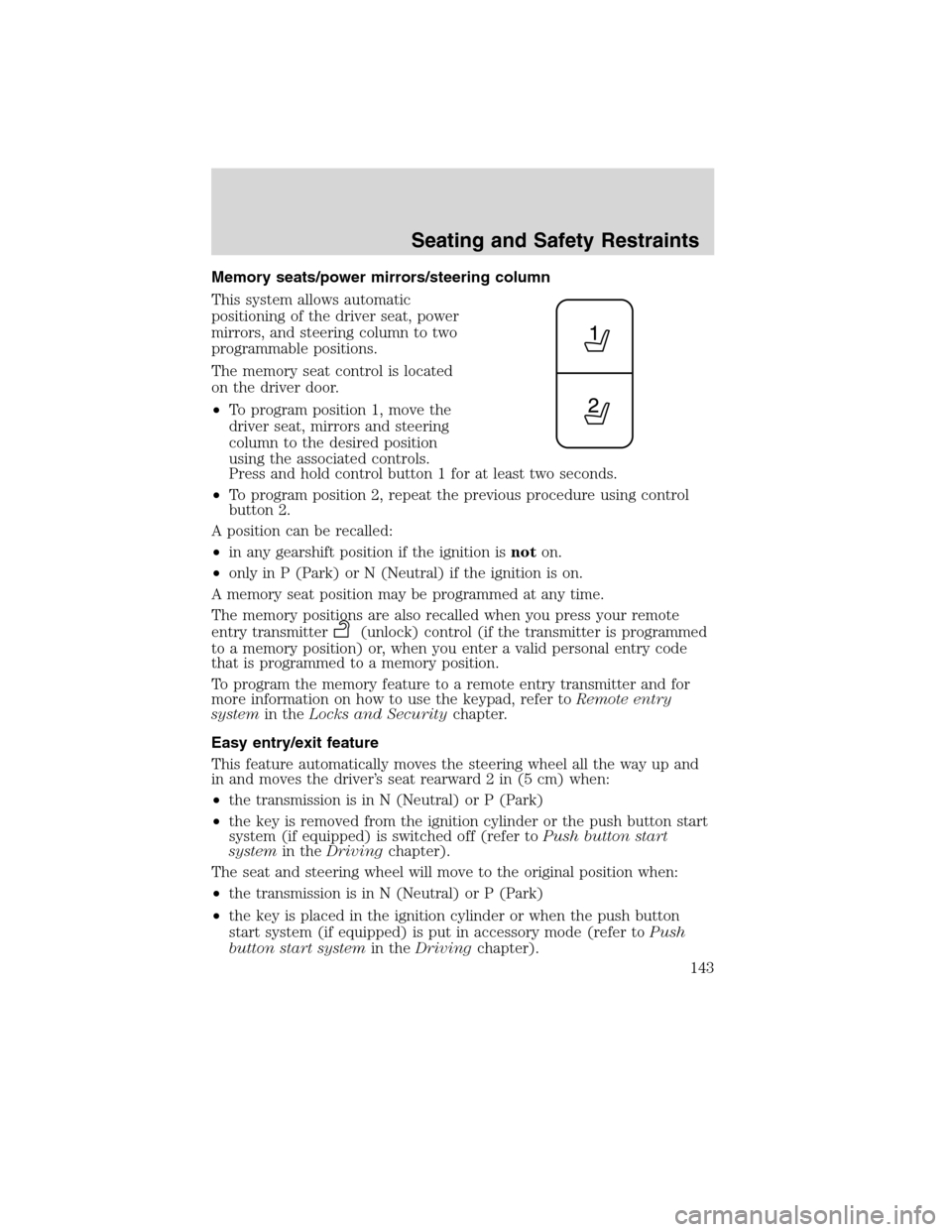

Memory seats/power mirrors/steering column
This system allows automatic
positioning of the driver seat, power
mirrors, and steering column to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position 1, move the
driver seat, mirrors and steering
column to the desired position
using the associated controls.
Press and hold control button 1 for at least two seconds.
•To program position 2, repeat the previous procedure using control
button 2.
A position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
A memory seat position may be programmed at any time.
The memory positions are also recalled when you press your remote
entry transmitter
(unlock) control (if the transmitter is programmed
to a memory position) or, when you enter a valid personal entry code
that is programmed to a memory position.
To program the memory feature to a remote entry transmitter and for
more information on how to use the keypad, refer toRemote entry
systemin theLocks and Securitychapter.
Easy entry/exit feature
This feature automatically moves the steering wheel all the way up and
in and moves the driver’s seat rearward 2 in (5 cm) when:
•the transmission is in N (Neutral) or P (Park)
•the key is removed from the ignition cylinder or the push button start
system (if equipped) is switched off (refer toPush button start
systemin theDrivingchapter).
The seat and steering wheel will move to the original position when:
•the transmission is in N (Neutral) or P (Park)
•the key is placed in the ignition cylinder or when the push button
start system (if equipped) is put in accessory mode (refer toPush
button start systemin theDrivingchapter).
Seating and Safety Restraints
143
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

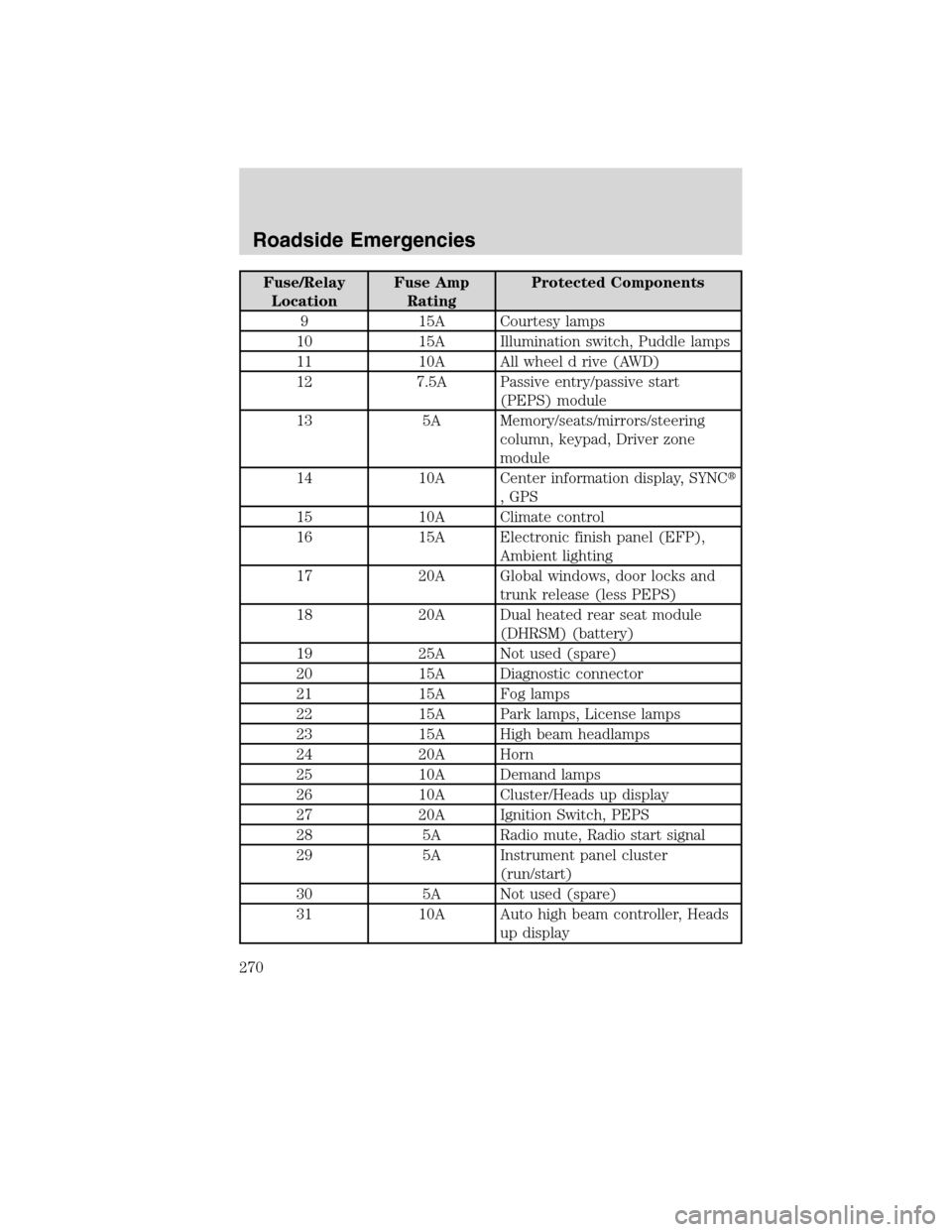

Fuse/Relay
LocationFuse Amp
RatingProtected Components
9 15A Courtesy lamps
10 15A Illumination switch, Puddle lamps
11 10A All wheel d rive (AWD)
12 7.5A Passive entry/passive start
(PEPS) module
13 5A Memory/seats/mirrors/steering
column, keypad, Driver zone
module
14 10A Center information display, SYNC
, GPS
15 10A Climate control
16 15A Electronic finish panel (EFP),
Ambient lighting
17 20A Global windows, door locks and
trunk release (less PEPS)
18 20A Dual heated rear seat module
(DHRSM) (battery)
19 25A Not used (spare)
20 15A Diagnostic connector
21 15A Fog lamps
22 15A Park lamps, License lamps
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps
26 10A Cluster/Heads up display
27 20A Ignition Switch, PEPS
28 5A Radio mute, Radio start signal
29 5A Instrument panel cluster
(run/start)
30 5A Not used (spare)
31 10A Auto high beam controller, Heads
up display
Roadside Emergencies
270
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

Illuminated visor mirror .............70
Infant seats
(see Safety seats) .....................180
Inspection/maintenance (I/M)
testing ........................................333
Instrument panel
cleaning ...................................302
cluster ........................................12
lighting up panel and
interior .......................................61
Intelligent Access Key ..............105
Intelligent Access with push
button start ...............................115
J
Jack ............................................275
positioning ...............................275
storage .....................................275
Jump-starting your vehicle ......283
K
Keyless entry system
autolock ...................................107
keypad .....................................122
locking and unlocking doors ..123
programming entry code .......122
Keys ...................................104, 126
positions of the ignition .........224
L
Lamps
autolamp system .......................56
bulb replacement
specifications chart ..................65
daytime running light ...............61
fog lamps ...................................57
headlamps .................................56headlamps, flash to pass ..........61
instrument panel, dimming .....61
interior lamps .....................63, 65
LATCH anchors .........................184
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........233
Load limits .................................214
Locks
autolock ...................................107
childproof ................................111
doors ........................................106
Lubricant specifications ...........340
Lug nuts ....................................282
Lumbar support, seats .............140
M
Message center .....................18–19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors ...................................77–78
automatic dimming rearview
mirror ........................................78
heated ............................48, 51, 79
programmable memory ..........117
side view mirrors (power) .......78
Moon roof ....................................91
Motorcraft parts ................304, 339
MyKey ........................................129
N
Navigation system .......................47
O
Octane rating ............................325
Index
355
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

Oil (see Engine oil) ..................311
P
Parental MyKey
programming .............................129
Park Assist ................................252
Parking brake ............................233
Parts (see Motorcraft parts) ....339
Passenger Occupant
Classification Sensor .................149
Power distribution box
(see Fuses) ...............................271
Power door locks ......................106
Power mirrors .............................78
Power point .................................73
Power steering ..........................238
fluid, checking and adding ....334
fluid, refill capacity ................340
fluid, specifications .................340
Power Windows ...........................74
Push button start system .........227
R
Radio ............................................31
6-CD in dash .............................31
Rear heated seats .....................146
Rear-view camera system .........247
Recommendations for
attaching safety restraints for
children ......................................178
Relays ........................................267
Remote entry system .......113, 115
illuminated entry ....................120
locking/unlocking doors .........116
opening the trunk ...................117panic alarm .............................117
replacement/additional
transmitters .............................120
replacing the batteries ...........118
Reverse sensing system ...........244
Roadside assistance ..................265
S
Safety belts (see Safety
restraints) ..................147, 151–155
Safety Canopy ...................170, 172
Safety defects, reporting ..........297
Safety restraints ........147, 151–155
Belt-Minder...........................156
extension assembly ................155
for adults .........................152–154
for children .............................176
Occupant Classification
Sensor ......................................149
warning light and chime ........156
Safety restraints - LATCH
anchors ......................................184
Safety seats for children ..........180
Safety Compliance
Certification Label ....................344
Satellite Radio Information ........44
Seats ..........................................135
child safety seats ....................180
climate control ............48, 51, 141
Cooled .....................................140
easy access/easyout feature ..143
front seats ...............................140
heated ......................................146
Heated and Cooled .................140
memory seat ...................117, 143
SecuriCode keyless entry
system ........................................122
Index
356
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)
