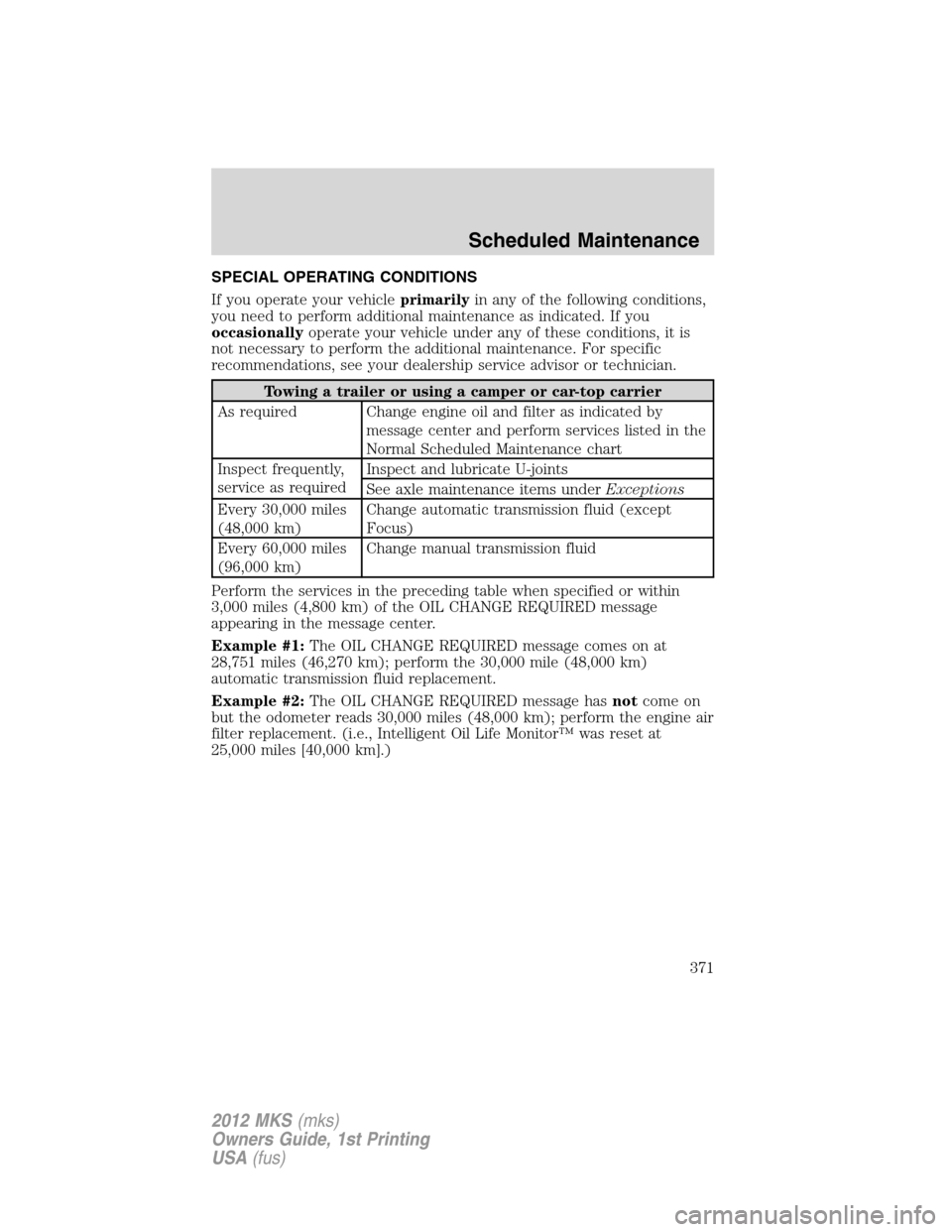

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
message center and perform services listed in the
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Focus)
Every 60,000 miles
(96,000 km)Change manual transmission fluid
Perform the services in the preceding table when specified or within
3,000 miles (4,800 km) of the OIL CHANGE REQUIRED message
appearing in the message center.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance
371
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
As required Change engine oil and filter as indicated by
message center and perform services listed in the
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Focus)
Every 60,000 miles
(96,000 km)Replace spark plugs
Perform the services in the preceding table when specified or within
3,000 miles (4,800 km) of the OIL CHANGE REQUIRED message
appearing in the message center.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance
372
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

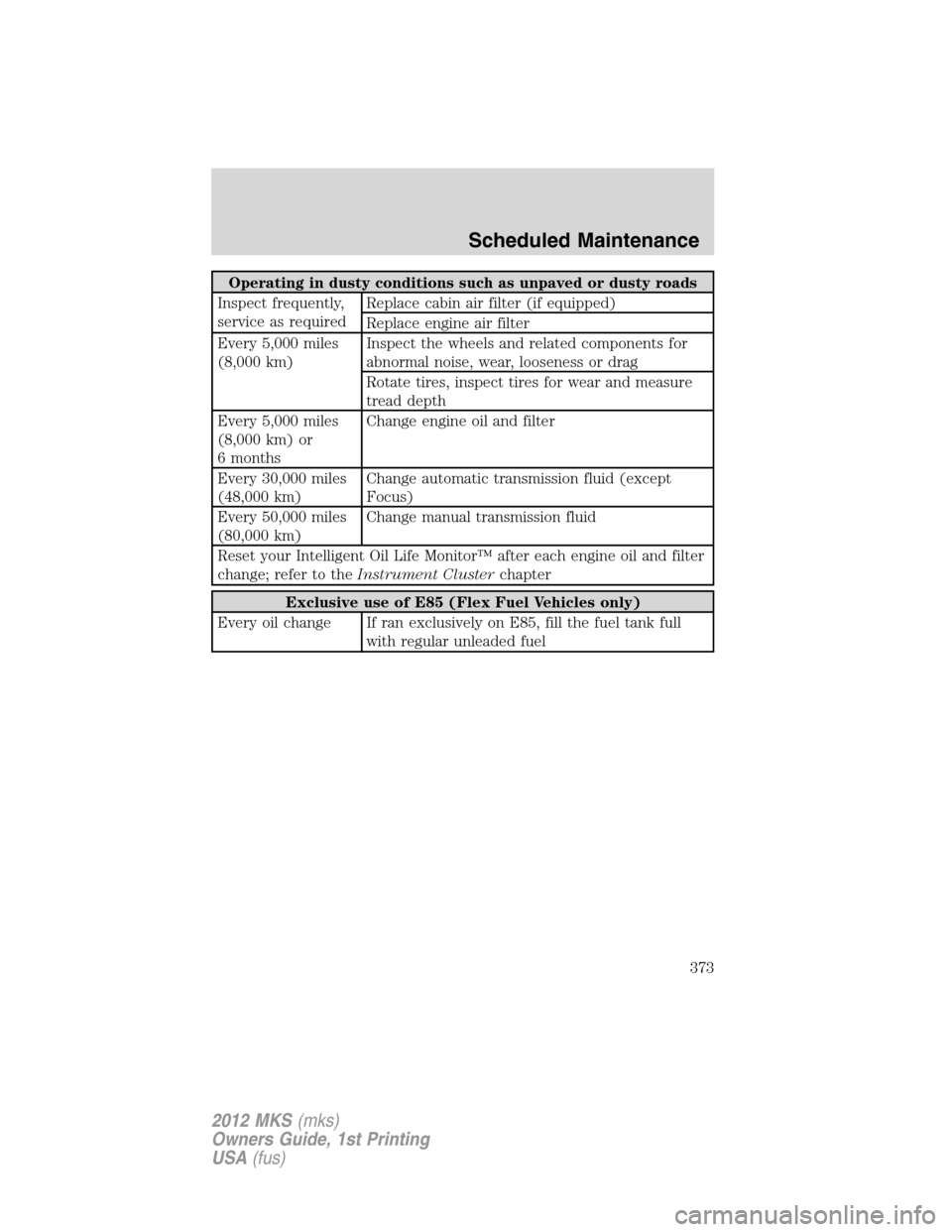

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Focus)
Every 50,000 miles
(80,000 km)Change manual transmission fluid
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change If ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
Scheduled Maintenance
373
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

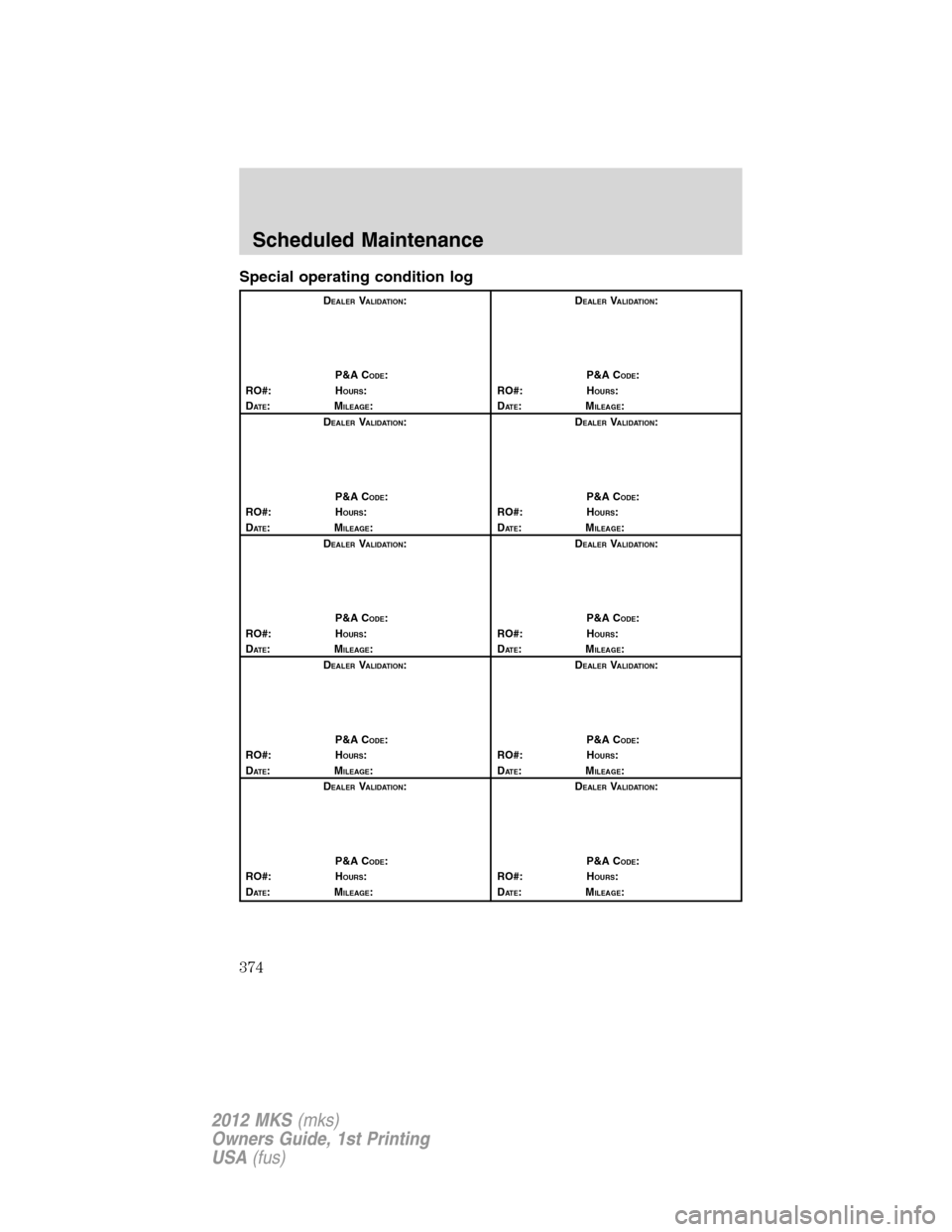

Special operating condition log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
374
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

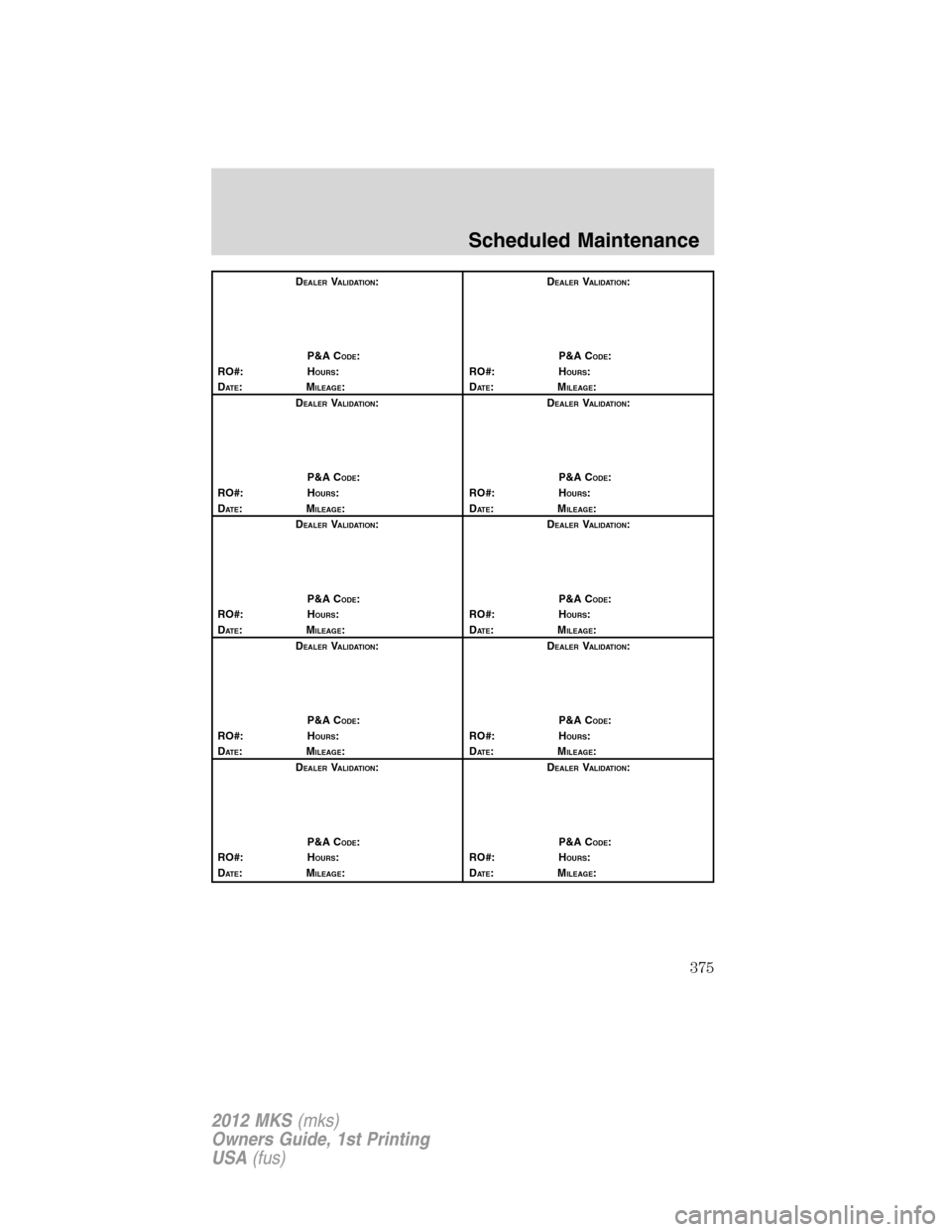

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
375
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

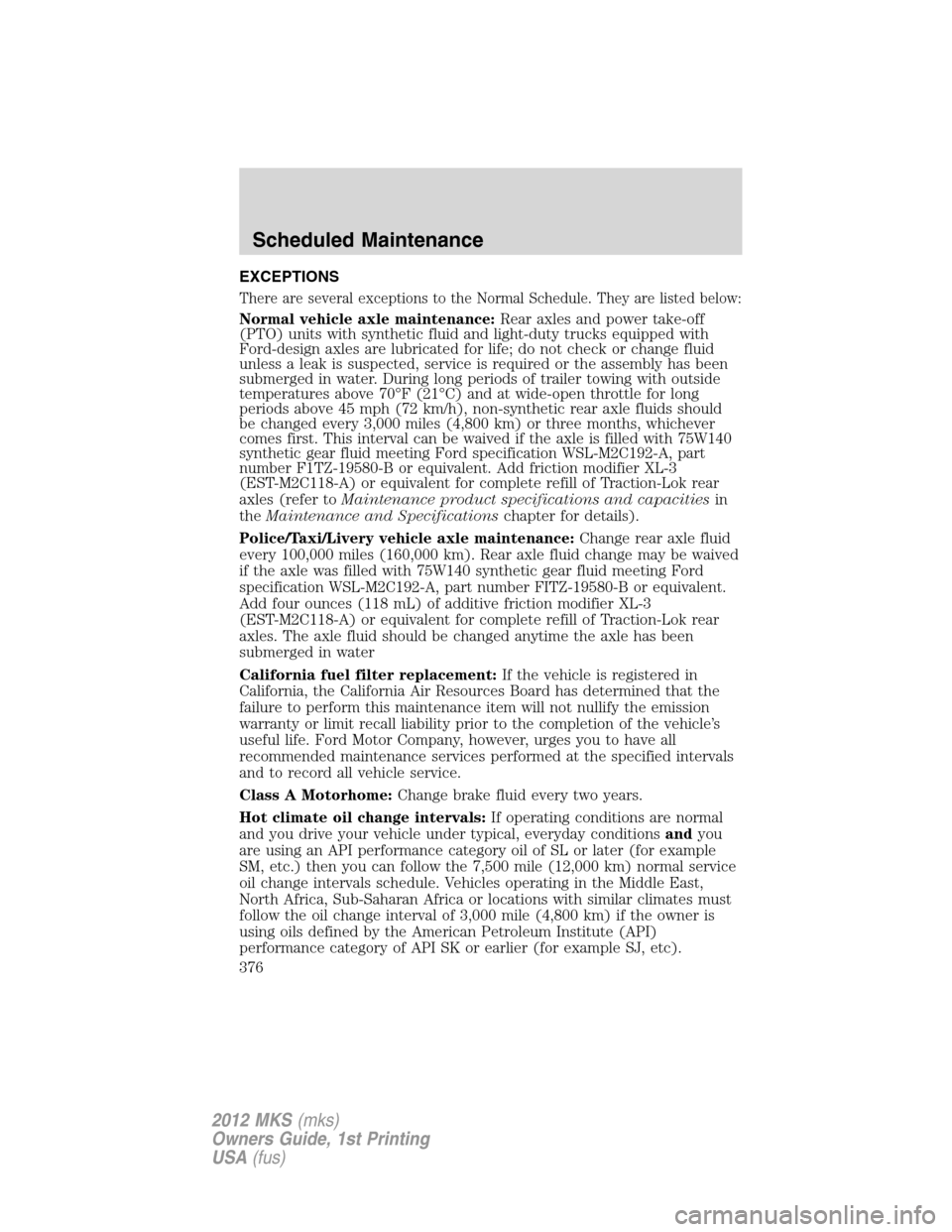

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc).
Scheduled Maintenance
376
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

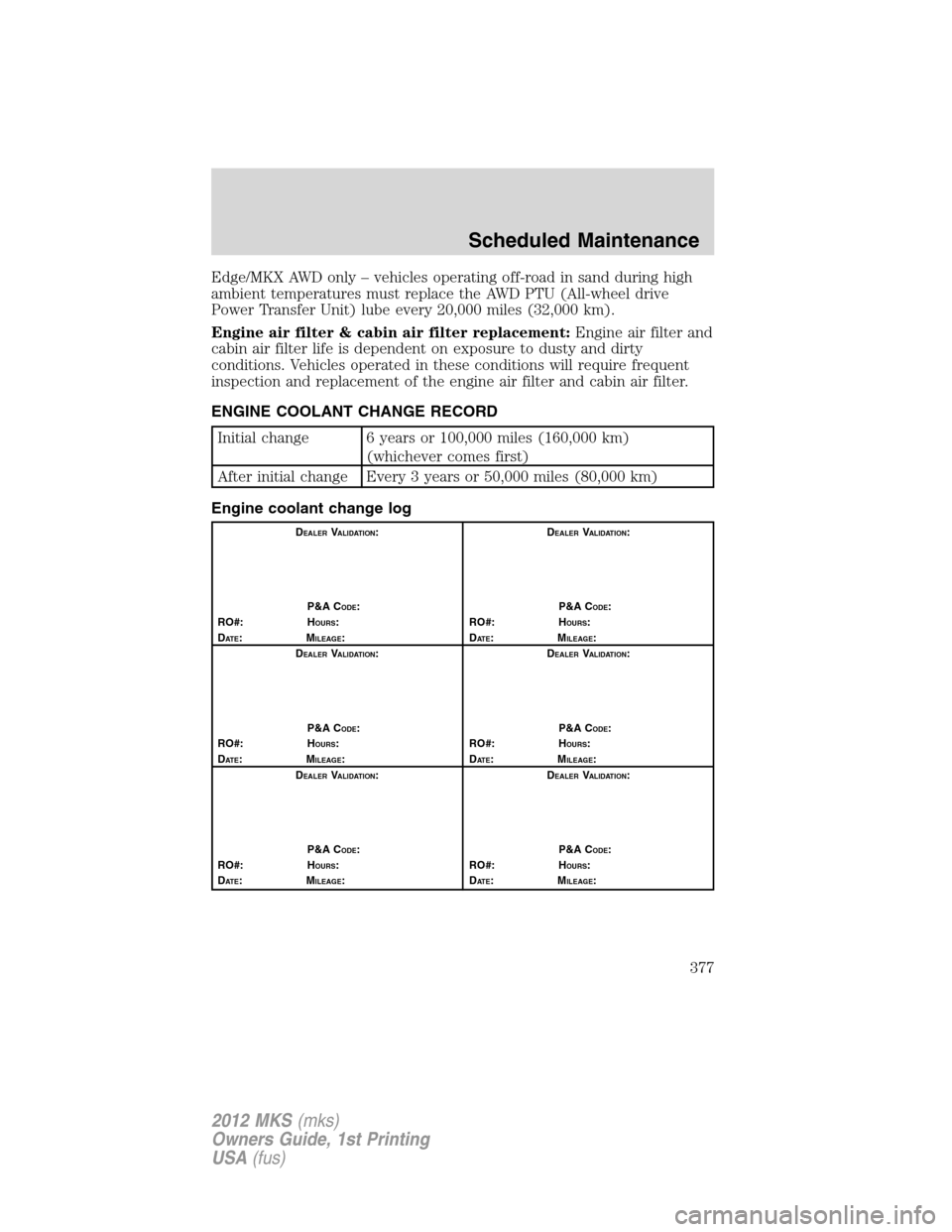

Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
377
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

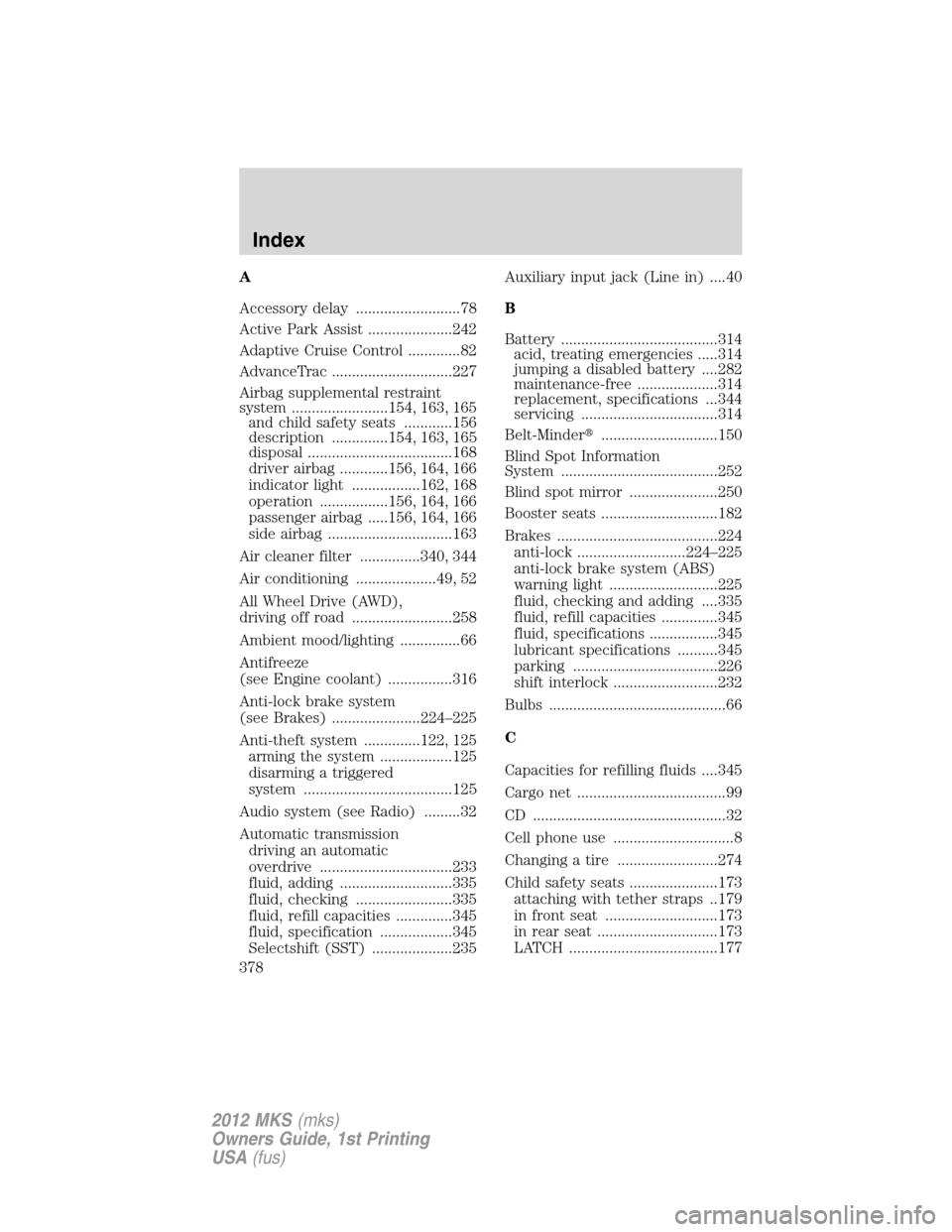

A
Accessory delay ..........................78
Active Park Assist .....................242
Adaptive Cruise Control .............82
AdvanceTrac ..............................227
Airbag supplemental restraint
system ........................154, 163, 165
and child safety seats ............156
description ..............154, 163, 165
disposal ....................................168
driver airbag ............156, 164, 166
indicator light .................162, 168
operation .................156, 164, 166
passenger airbag .....156, 164, 166
side airbag ...............................163
Air cleaner filter ...............340, 344
Air conditioning ....................49, 52
All Wheel Drive (AWD),
driving off road .........................258
Ambient mood/lighting ...............66
Antifreeze
(see Engine coolant) ................316
Anti-lock brake system
(see Brakes) ......................224–225
Anti-theft system ..............122, 125
arming the system ..................125
disarming a triggered
system .....................................125
Audio system (see Radio) .........32
Automatic transmission
driving an automatic
overdrive .................................233
fluid, adding ............................335
fluid, checking ........................335
fluid, refill capacities ..............345
fluid, specification ..................345
Selectshift (SST) ....................235Auxiliary input jack (Line in) ....40
B
Battery .......................................314
acid, treating emergencies .....314
jumping a disabled battery ....282
maintenance-free ....................314
replacement, specifications ...344
servicing ..................................314
Belt-Minder.............................150
Blind Spot Information
System .......................................252
Blind spot mirror ......................250
Booster seats .............................182
Brakes ........................................224
anti-lock ...........................224–225
anti-lock brake system (ABS)
warning light ...........................225
fluid, checking and adding ....335
fluid, refill capacities ..............345
fluid, specifications .................345
lubricant specifications ..........345
parking ....................................226
shift interlock ..........................232
Bulbs ............................................66
C
Capacities for refilling fluids ....345
Cargo net .....................................99
CD ................................................32
Cell phone use ..............................8
Changing a tire .........................274
Child safety seats ......................173
attaching with tether straps ..179
in front seat ............................173
in rear seat ..............................173
LATCH .....................................177
Index
378
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

recommendations ...................171
Child safety seats - booster
seats ...........................................182
Cleaning your vehicle
engine compartment ..............299
instrument panel ....................301
interior .....................................302
plastic parts ............................300
washing ....................................297
waxing .....................................298
wheels ......................................298
wiper blades ............................300
Climate control (see Air
conditioning or Heating) ......49, 52
Clock ............................................33
Collision Warning System .........247
Compass, electronic ....................73
calibration .................................74
set zone adjustment .................74
Console
overhead ....................................72
Controls
power seat ...............................130
steering column ........................91
Coolant
checking and adding ..............316
refill capacities ................319, 345
specifications ..........................345
Cooled Seats ..............................133
Cross Traffic Alert ....................252
Cruise control
(see Speed control) ....................81
Cupholder(s) .............................138
Customer Assistance ................265
Ford Extended Service
Plan ..................................355, 358Getting assistance outside the
U.S. and Canada .....................293
Getting roadside assistance ...265
Getting the service you
need .........................................288
Ordering additional owner’s
literature .................................295
Utilizing the
Mediation/Arbitration
Program ...................................293
D
Daytime running lamps
(see Lamps) ................................63
Defrost
rear window ..............................49
rear window and rearview
mirrors .......................................52
windshield ...........................49, 52
Dipstick
automatic transmission
fluid ..........................................335
engine oil .................................310
Doors
central unlocking ....................107
Driving under special
conditions ..........................260, 262
sand .........................................261
snow and ice ...........................263
through water .................261, 264
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................282
running out of fuel .........282, 327
Emission control system ..........331
Engine ........................................349
Index
379
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)

cleaning ...................................299
coolant .....................................316
fail-safe cooling .......................320
lubrication specifications .......345
refill capacities ........................345
service points ..................307–308
Engine block heater .................222
Engine oil ..................................310
checking and adding ..............310
dipstick ....................................310
filter, specifications ................344
refill capacities ........................345
specifications ..........................345
Event data recording ....................7
Exhaust fumes ..........................222
F
Fail safe cooling ........................320
Fleet MyKey programming ......101
Floor mats .............................98–99
Fluid capacities .........................345
Fog lamps ....................................59
Four-Wheel Drive vehicles
driving off road .......................259
Fuel ............................................322
calculating fuel
economy ............................20, 328
cap ...........................................324
capacity ...................................345
choosing the right fuel ...........325
detergent in fuel .....................326
filler funnel .............................327
filling your vehicle with
fuel ...........................322, 324, 328
filter, specifications ........322, 344
fuel pump shut-off ..................266
improving fuel economy ........328
octane rating ...................326, 349quality ......................................326
running out of fuel .........282, 327
safety information relating to
automotive fuels .....................322
Fuses ..........................................267
G
Garage door opener ....................94
Gas cap (see Fuel cap) ............324
Gas mileage
(see Fuel economy) .................328
Gauges .........................................17
H
Hazard flashers .........................266
Headlamps ...................................57
aiming ........................................63
autolamp system .......................58
bulb specifications ....................67
daytime running lights .............63
flash to pass ..............................62
high beam .................................59
turning on and off ....................57
Heated Seats .....................133–134
Heating
heating and air conditioning
system .................................49, 52
Homelink wireless control
system ..........................................94
Hood ..........................................306
I
Ignition ...............................218, 349
Illuminated visor mirror .............72
Index
380
2012 MKS(mks)
Owners Guide, 1st Printing
USA(fus)
