compression ratio LINCOLN MKS 2013 Owners Manual

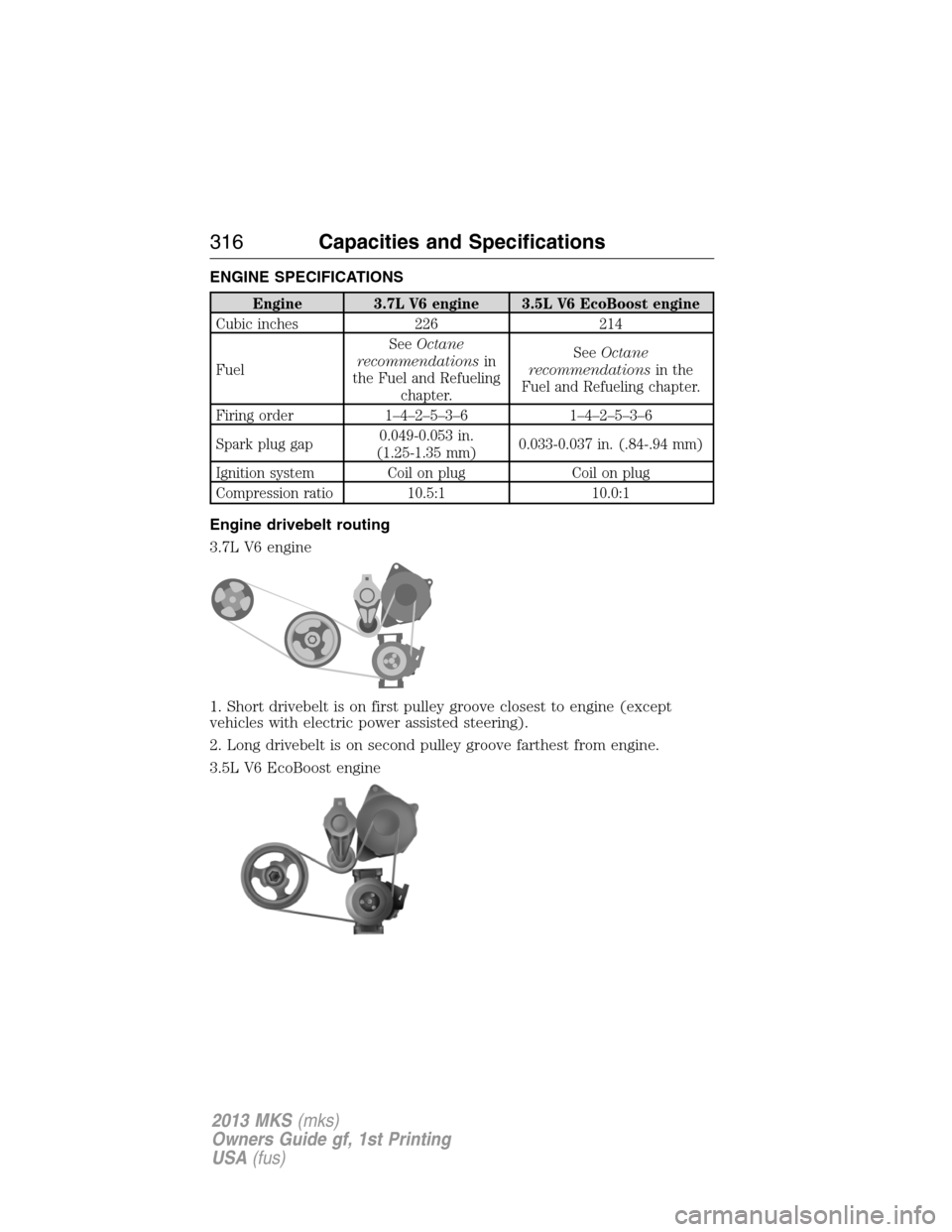

ENGINE SPECIFICATIONS
Engine 3.7L V6 engine 3.5L V6 EcoBoost engine
Cubic inches 226 214
FuelSeeOctane
recommendationsin
the Fuel and Refueling
chapter.SeeOctane
recommendationsin the
Fuel and Refueling chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Spark plug gap0.049-0.053 in.
(1.25-1.35 mm)0.033-0.037 in. (.84-.94 mm)
Ignition system Coil on plug Coil on plug
Compression ratio 10.5:1 10.0:1
Engine drivebelt routing
3.7L V6 engine
1. Short drivebelt is on first pulley groove closest to engine (except
vehicles with electric power assisted steering).
2. Long drivebelt is on second pulley groove farthest from engine.
3.5L V6 EcoBoost engine
316Capacities and Specifications
2013 MKS(mks)
Owners Guide gf, 1st Printing
USA(fus)
