Adding Engine Oil
Note:Do not remove the filler cap when the engine is running.
Note:Do not add engine oil further than the MAX mark. Oil levels above
the MAX mark may cause engine damage.
Only use oils certified for gasoline engines by the
American Petroleum Institute (API). An oil with this
trademark symbol conforms to the current engine and
emission system protection standards and fuel
economy requirements of the International Lubricants
Specification Advisory Council (ILSAC), comprised of
U.S. and Japanese automobile manufacturers.
1. Remove the filler cap.
2. Add engine oil that meets Ford specifications. SeeCapacities and
Specificationsfor more information.
3. Replace the filler cap. Turn it until you feel a strong resistance.
ENGINE COOLANT CHECK
Checking the Engine Coolant
The concentration and level of engine coolant should be checked at the
intervals listed inScheduled Maintenance Information.
Note:Make sure that the level is at the FULL COLD level or within the
COLD FILL RANGE in the coolant reservoir.
Note:Coolant expands when it is hot. The level may extend beyond the
COLD FILL RANGE.
If the level is below the COLD FILL RANGE, add coolant immediately.
SeeAdding Engine Coolantin this chapter.
The coolant concentration should be maintained within 50%, which
equates to a freeze point between -34°F (-37°C).
Note:For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool 300ROB75240 available from your
dealer. Ford does not recommend the use of hydrometers or coolant test
strips for measuring coolant concentrations.
Note:Automotive fluids are not interchangeable; do not use engine
coolant/antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Maintenance267
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

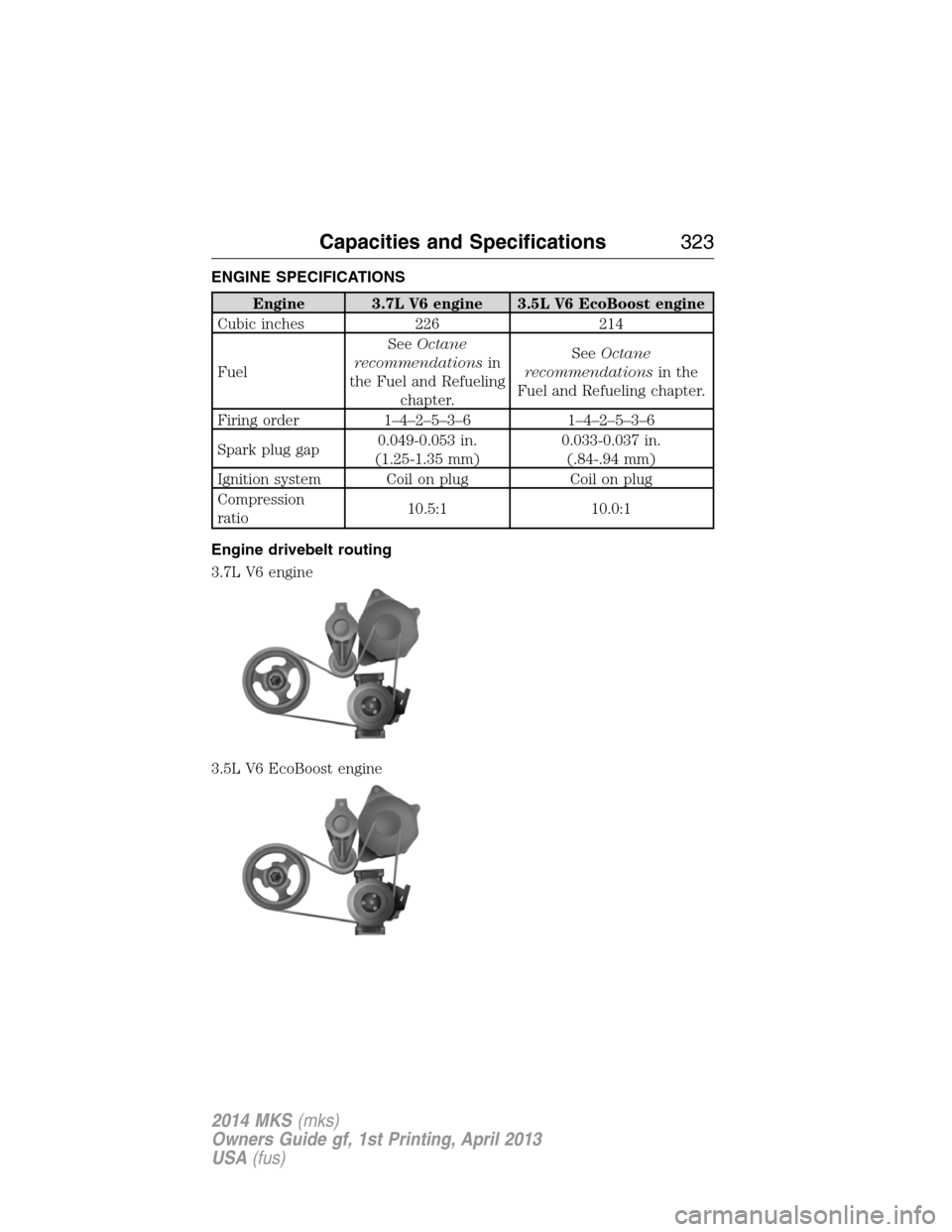

ENGINE SPECIFICATIONS
Engine 3.7L V6 engine 3.5L V6 EcoBoost engine
Cubic inches 226 214
FuelSeeOctane
recommendationsin
the Fuel and Refueling
chapter.SeeOctane
recommendationsin the
Fuel and Refueling chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Spark plug gap0.049-0.053 in.
(1.25-1.35 mm)0.033-0.037 in.
(.84-.94 mm)
Ignition system Coil on plug Coil on plug
Compression
ratio10.5:1 10.0:1
Engine drivebelt routing
3.7L V6 engine
3.5L V6 EcoBoost engine
Capacities and Specifications323
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

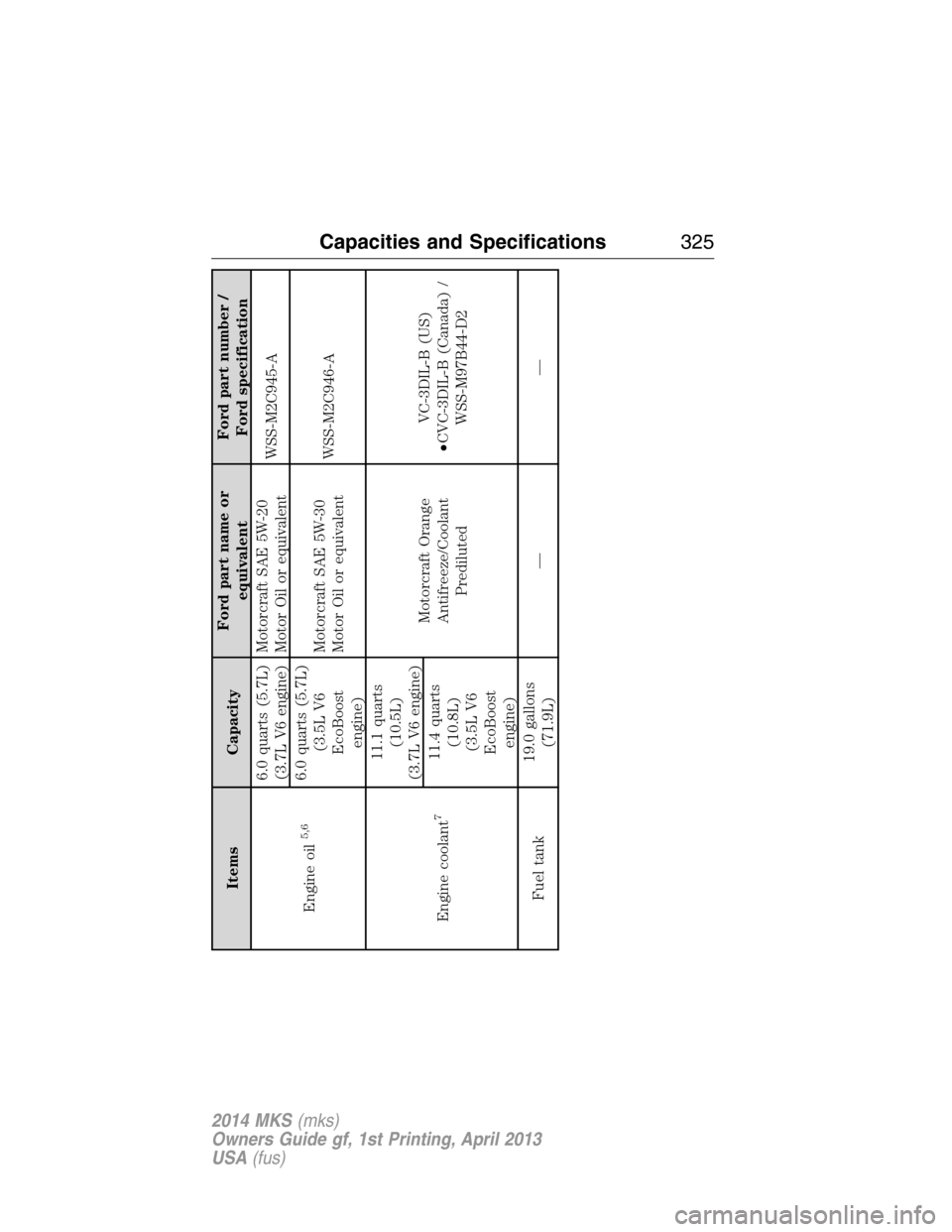

Items CapacityFord part name or
equivalentFord part number /
Ford specification
Engine oil
5,6
6.0 quarts (5.7L)
(3.7L V6 engine)Motorcraft SAE 5W-20
Motor Oil or equivalentWSS-M2C945-A
6.0 quarts (5.7L)
(3.5L V6
EcoBoost
engine)Motorcraft SAE 5W-30
Motor Oil or equivalentWSS-M2C946-A
Engine coolant
7
11.1 quarts
(10.5L)
(3.7L V6 engine)
Motorcraft Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
•CVC-3DIL-B (Canada) /
WSS-M97B44-D2 11.4 quarts
(10.8L)
(3.5L V6
EcoBoost
engine)
Fuel tank19.0 gallons
(71.9L)——
Capacities and Specifications325
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrates (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A1 or ZC-32-B1
(US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
A/C Refrigerant and
Oil Capacity
8
3.5L GTDI
1.62 lb (0.74kg)
3.7L TiVCT
1.43 lb (0.65kg)Motorcraft R–134a
RefrigerantYN-19 (US)(US)
CYN-16–R (Canada)
WSH-M17B19–A,
A/C Refrigerant
Compressor Oil3.5L GTDI &
3.7L TiVCT
155 fl oz (4.58 L)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D
WSH-M1C231–B
1Use only Motorcraft DOT 4 LV High Performance Brake Fluid or equivalent meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause brake system damage.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.5Your engine has been designed to use Motorcraft engine oils or equivalent oils that meet Ford
specifications. It is also acceptable to use an engine oil of recommended viscosity grade that
meets API SN requirements and displays the API Certification Mark for gasoline engines.
326Capacities and Specifications
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification

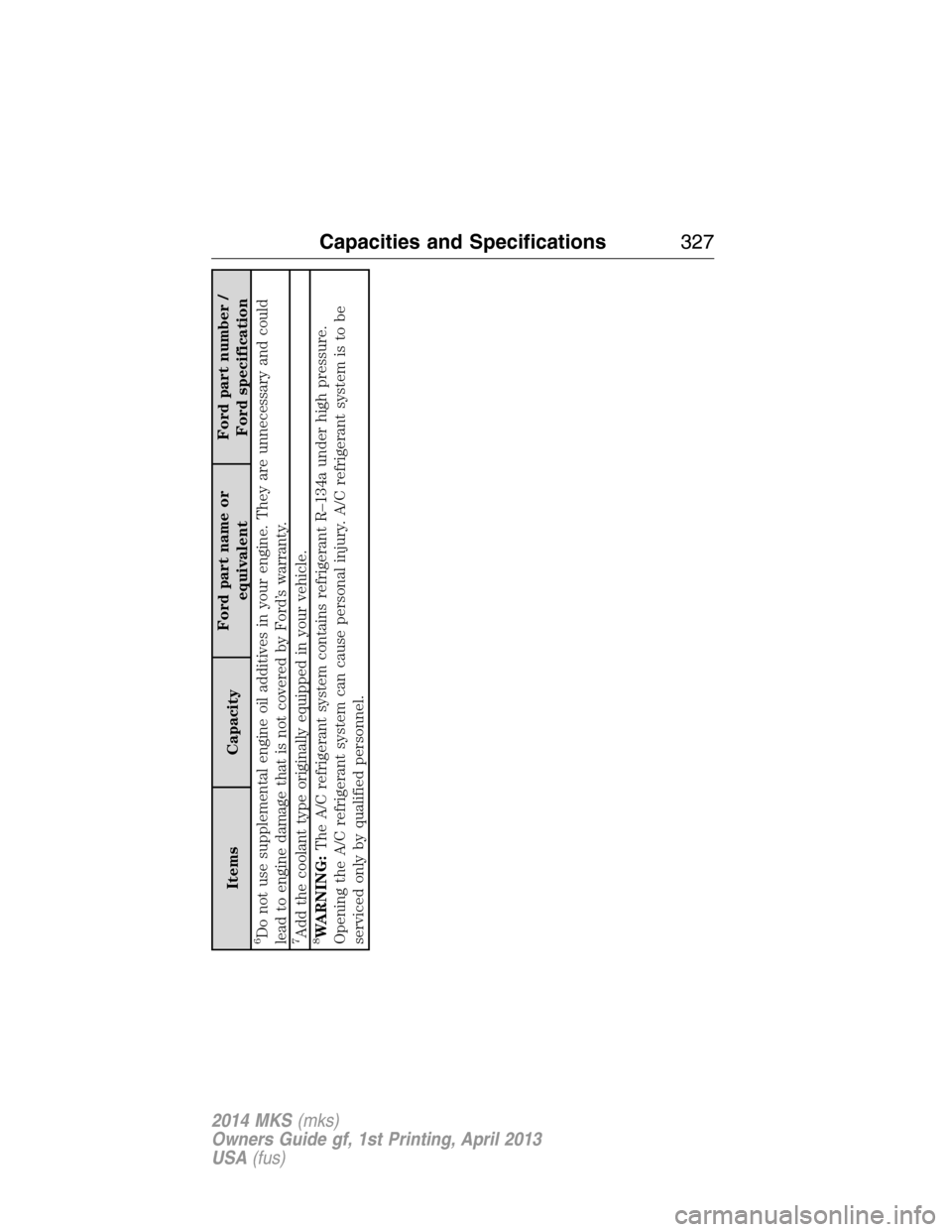

6Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage that is not covered by Ford’s warranty.7Add the coolant type originally equipped in your vehicle.8WARNING:The A/C refrigerant system contains refrigerant R–134a under high pressure.
Opening the A/C refrigerant system can cause personal injury. A/C refrigerant system is to be
serviced only by qualified personnel.
Capacities and Specifications327
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

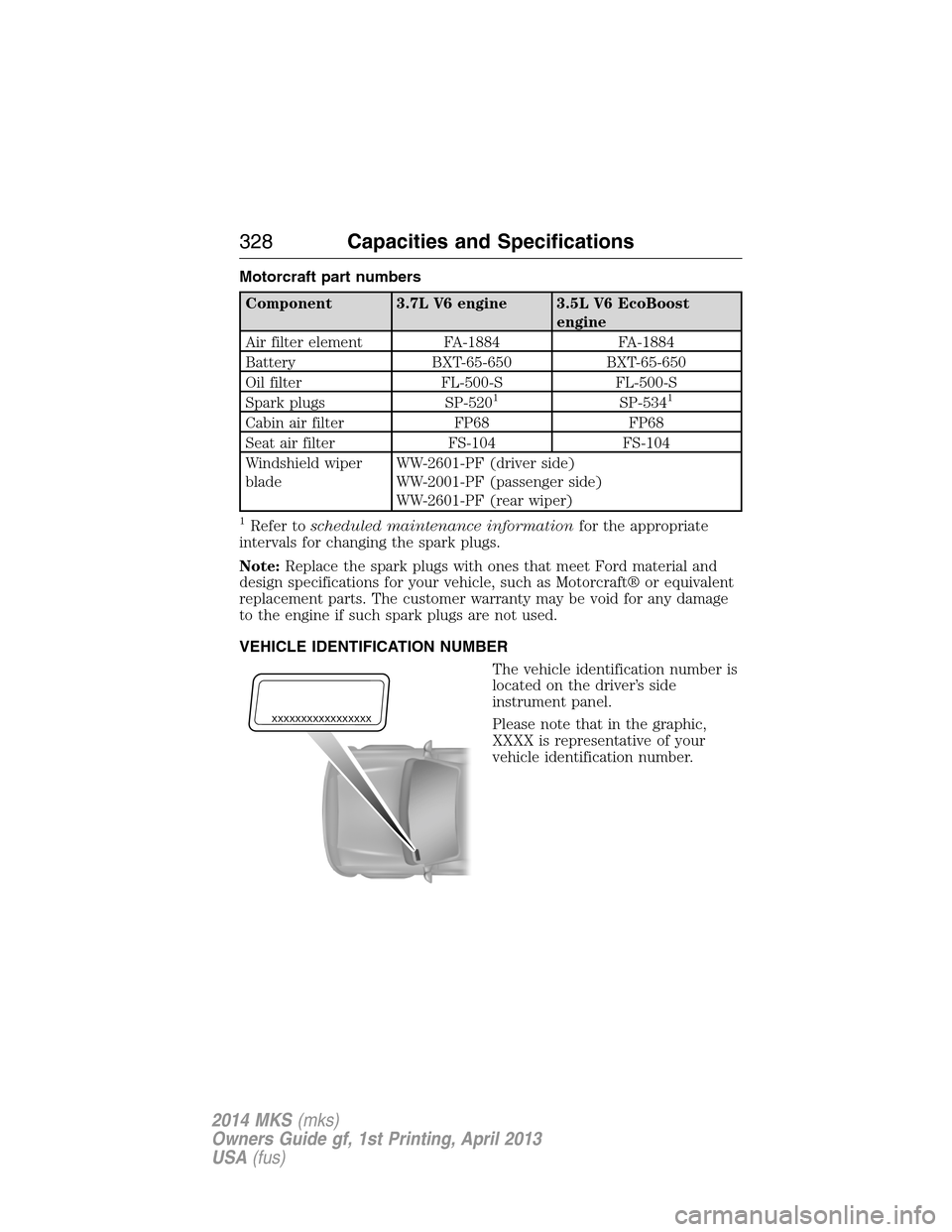

Motorcraft part numbers
Component 3.7L V6 engine 3.5L V6 EcoBoost
engine
Air filter element FA-1884 FA-1884
Battery BXT-65-650 BXT-65-650
Oil filter FL-500-S FL-500-S
Spark plugs SP-520
1SP-5341
Cabin air filter FP68 FP68
Seat air filter FS-104 FS-104
Windshield wiper
bladeWW-2601-PF (driver side)
WW-2001-PF (passenger side)
WW-2601-PF (rear wiper)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft® or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
328Capacities and Specifications
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

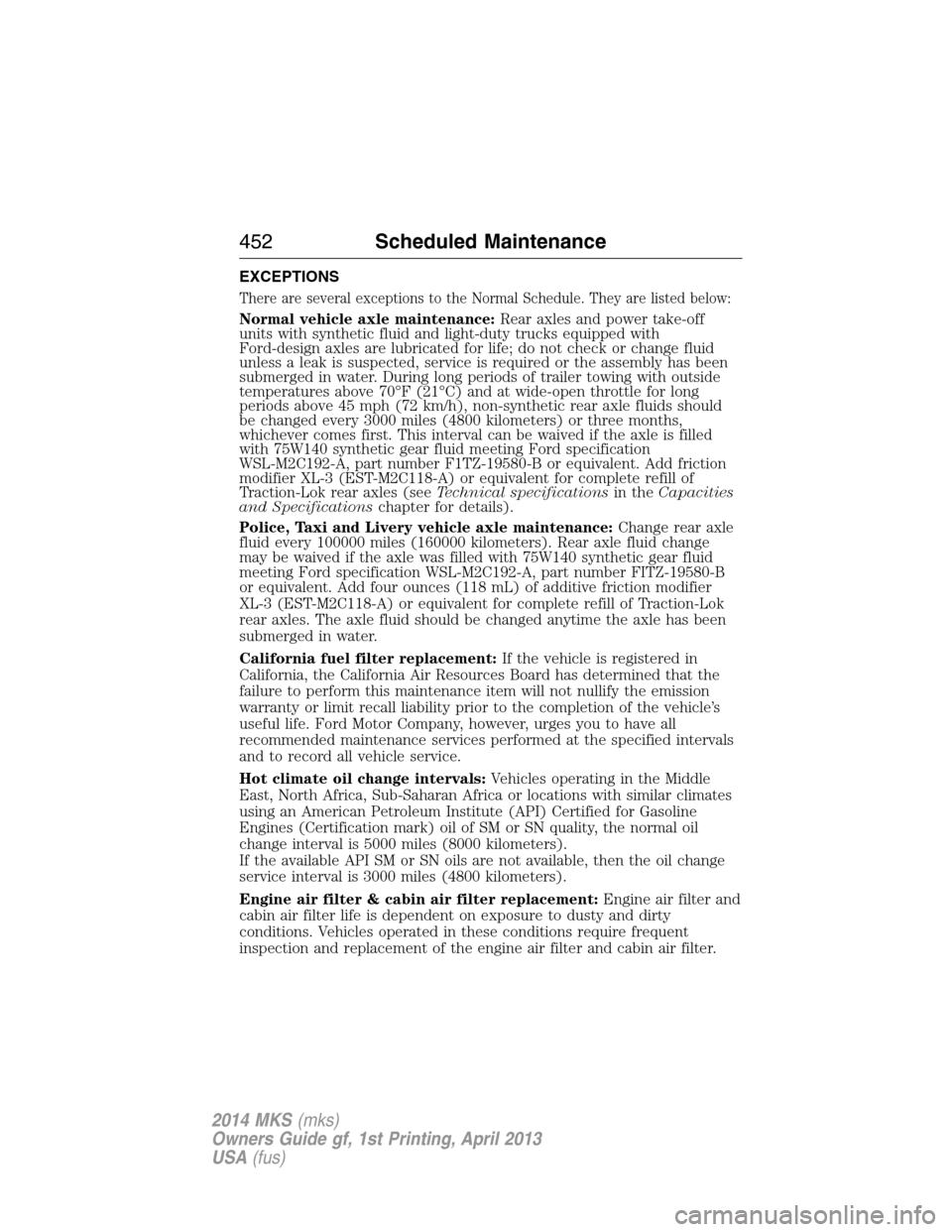

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3000 miles (4800 kilometers) or three months,
whichever comes first. This interval can be waived if the axle is filled
with 75W140 synthetic gear fluid meeting Ford specification
WSL-M2C192-A, part number F1TZ-19580-B or equivalent. Add friction
modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of
Traction-Lok rear axles (seeTechnical specificationsin theCapacities
and Specificationschapter for details).
Police, Taxi and Livery vehicle axle maintenance:Change rear axle
fluid every 100000 miles (160000 kilometers). Rear axle fluid change
may be waived if the axle was filled with 75W140 synthetic gear fluid
meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B
or equivalent. Add four ounces (118 mL) of additive friction modifier
XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok
rear axles. The axle fluid should be changed anytime the axle has been
submerged in water.
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API SM or SN oils are not available, then the oil change
service interval is 3000 miles (4800 kilometers).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions require frequent
inspection and replacement of the engine air filter and cabin air filter.
452Scheduled Maintenance
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

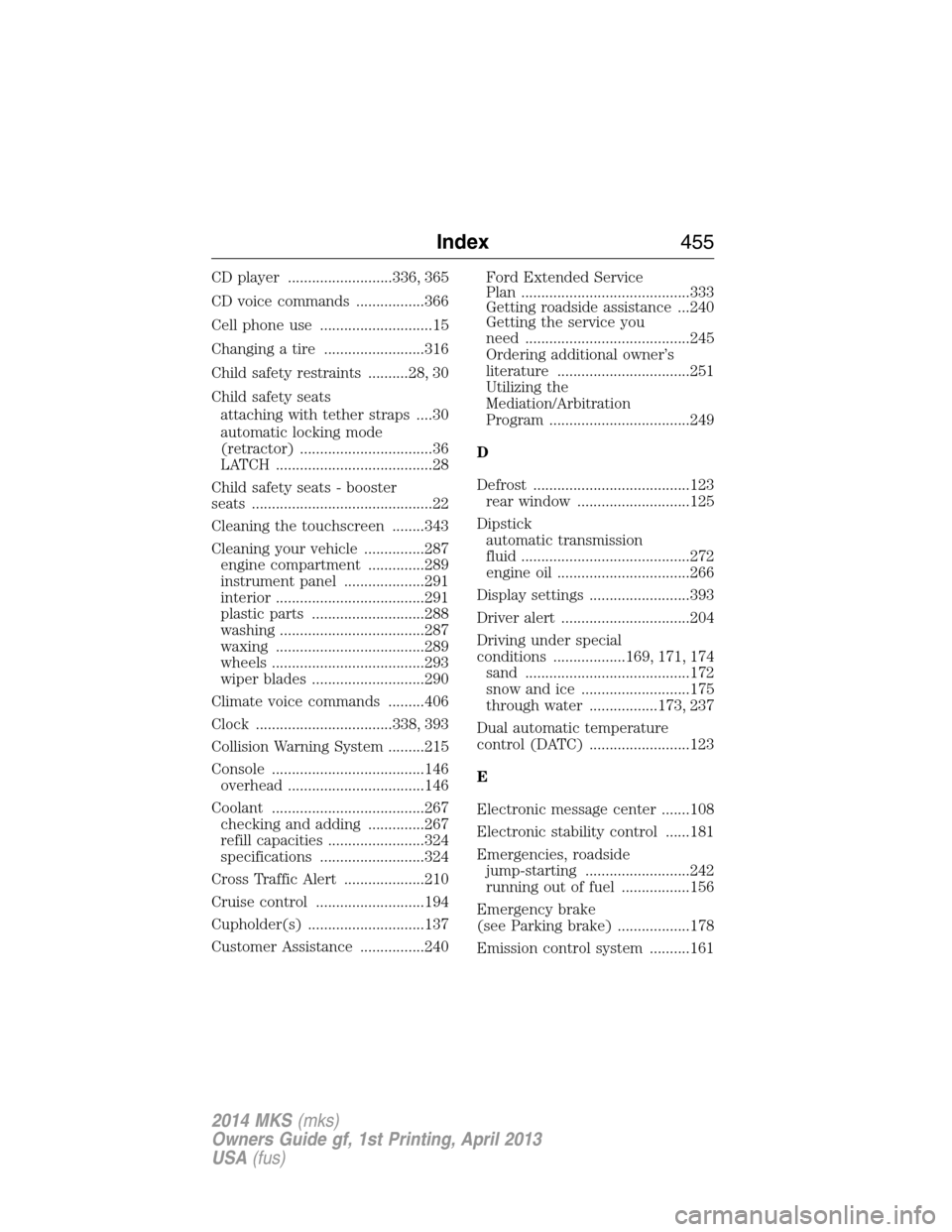

CD player ..........................336, 365
