open hood LINCOLN MKS 2014 Owners Manual

Fuses 253
Changing a fuse......................................253
Fuse specification chart................................254
Maintenance 262
General information...................................262
Opening and closing the hood............................263
Under hood overview..................................264
Engine oil dipstick....................................266
Engine oil check......................................266
Engine coolant check..................................267
Automatic transmission fluid check........................272
Brake fluid check.....................................277
Fuel filter...........................................277
Washer fluid check....................................278
Battery ............................................278
Checking the wiper blades..............................279
Air filter(s).........................................280
Adjusting the headlamps................................282
Changing a bulb......................................283
Bulb specification chart.................................286
Vehicle Care 287
Cleaning products.....................................287
Cleaning the exterior..................................287
Waxing.............................................289
Repairing minor paint damage............................289
Cleaning the engine...................................289
Cleaning the windows and wiper blades.....................290
Cleaning the interior...................................291
Cleaning the instrument panel and instrument cluster lens.......291
Cleaning leather seats..................................292
Cleaning the alloy wheels...............................293
Vehicle storage.......................................293
6Table of Contents
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

The Safety Canopy will deploy during significant side crashes or when a
certain likelihood of a rollover event is detected by the rollover sensor.
The Safety Canopy is mounted to the roof side-rail sheet metal, behind
the headliner, above each row of seats. In certain sideways crashes or
rollover events, the Safety Canopy will be activated, regardless of which
seats are occupied. The Safety Canopy is designed to inflate between the
side window area and occupants to further enhance protection provided
in side impact crashes and rollover events.
The system consists of:
•safety canopy curtain airbags
located above the trim panels
over the front and rear side
windows identified by wording on
the B-pillar trim.
•a flexible headliner which opens above the side doors to allow air
curtain deployment.
•crash sensors and monitoring system with readiness
indicator. SeeCrash Sensors and Airbag Indicatorin this
chapter.
Children 12 years old and under should always be properly restrained in
the rear seats. The Safety Canopy will not interfere with children
restrained using a properly installed child or booster seat because it is
designed to inflate downward from the headliner above the doors along
the side window opening.
The design and development of the Safety Canopy included
recommended testing procedures that were developed by a group of
automotive safety experts known as the Side Airbag Technical Working
Group. These recommended testing procedures help reduce the risk of
injuries related to the deployment of side airbags (including the Safety
Canopy).
54Supplementary Restraints System
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

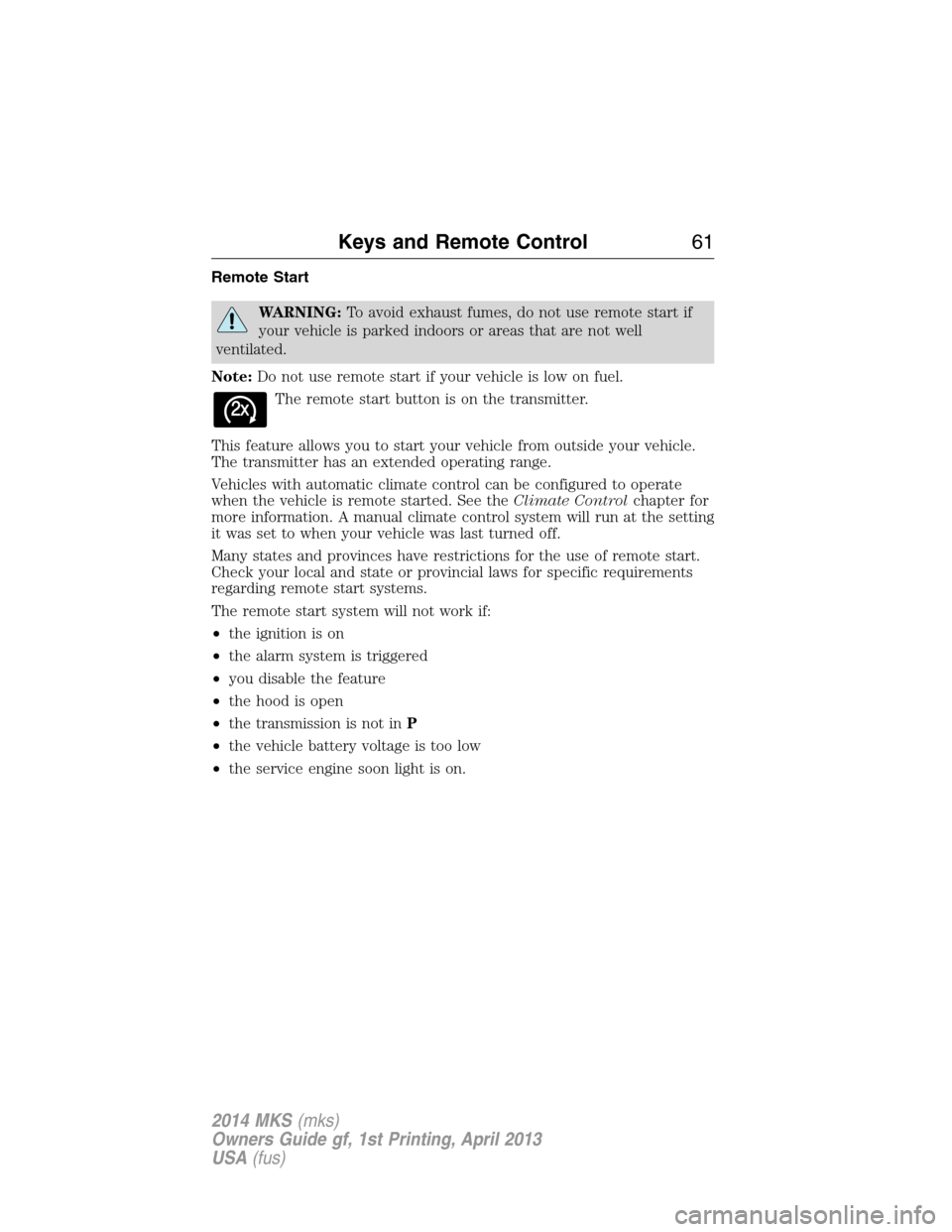

Remote Start
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
The remote start button is on the transmitter.
This feature allows you to start your vehicle from outside your vehicle.
The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. See theClimate Controlchapter for
more information. A manual climate control system will run at the setting
it was set to when your vehicle was last turned off.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•you disable the feature
•the hood is open
•the transmission is not inP
•the vehicle battery voltage is too low
•the service engine soon light is on.
Keys and Remote Control61
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Note:If any door or the luggage compartment is open, or if the hood is
open on vehicles with an anti-theft alarm or remote start, the horn
sounds twice and the lamps will not flash.
Opening the Trunk
Press the button twice within three seconds to open the trunk.
Make sure to close and latch the trunk before driving your vehicle. An
unlatched trunk may cause objects to fall out or block your view.
Activating Intelligent Access
The intelligent access key must be within 3 feet (1 meter) of your
vehicle.
At the Front Doors
Pull a front exterior door handle to unlock and open the door.
Press and hold the door handle lock
sensor to lock your vehicle. To avoid
unlocking the door inadvertently,
make sure to only touch the lock
sensor and not other areas of the
door handle.
Note:Keep the door handle surface clean to avoid issues with operation.
At the Trunk
Press the exterior trunk release button hidden near the license plate.
Smart Unlocks
The smart unlock feature is intended to prevent you from unintentionally
locking your intelligent access key inside your vehicle’s passenger
compartment or rear cargo area.
When you lock your vehicle using the driver or passenger power door
lock control (with the door open, transmission is inPand ignition off),
after you close the door your vehicle will search for an intelligent access
key in the passenger compartment. If your vehicle finds a key, all of the
doors will immediately unlock and the horn will sound, indicating that a
key is inside.
Locks69
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

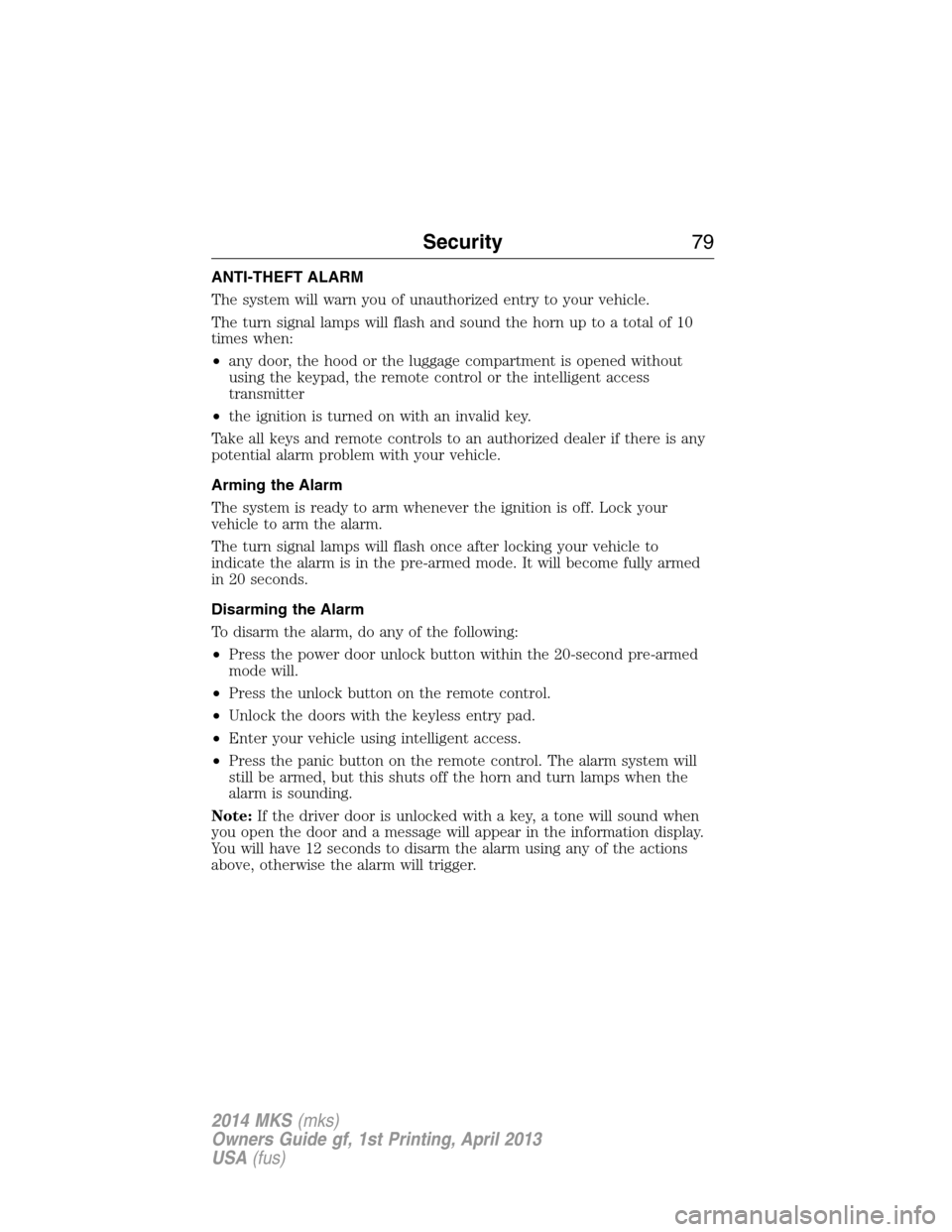

ANTI-THEFT ALARM
The system will warn you of unauthorized entry to your vehicle.
The turn signal lamps will flash and sound the horn up to a total of 10
times when:
•any door, the hood or the luggage compartment is opened without
using the keypad, the remote control or the intelligent access
transmitter
•the ignition is turned on with an invalid key.
Take all keys and remote controls to an authorized dealer if there is any
potential alarm problem with your vehicle.
Arming the Alarm
The system is ready to arm whenever the ignition is off. Lock your
vehicle to arm the alarm.
The turn signal lamps will flash once after locking your vehicle to
indicate the alarm is in the pre-armed mode. It will become fully armed
in 20 seconds.
Disarming the Alarm
To disarm the alarm, do any of the following:
•Press the power door unlock button within the 20-second pre-armed
mode will.
•Press the unlock button on the remote control.
•Unlock the doors with the keyless entry pad.
•Enter your vehicle using intelligent access.
•Press the panic button on the remote control. The alarm system will
still be armed, but this shuts off the horn and turn lamps when the
alarm is sounding.
Note:If the driver door is unlocked with a key, a tone will sound when
you open the door and a message will appear in the information display.
You will have 12 seconds to disarm the alarm using any of the actions
above, otherwise the alarm will trigger.
Security79
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

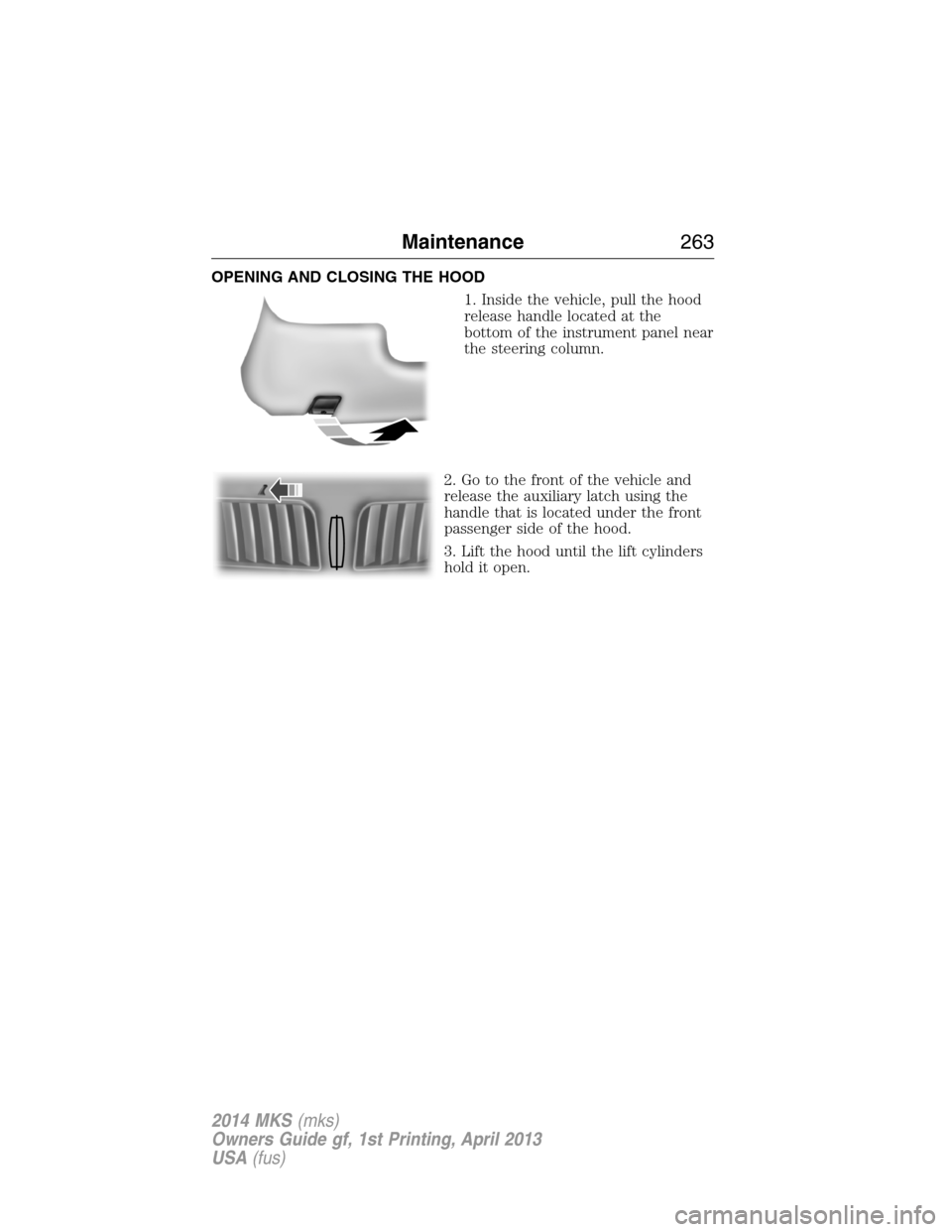

OPENING AND CLOSING THE HOOD
1. Inside the vehicle, pull the hood
release handle located at the
bottom of the instrument panel near
the steering column.
2. Go to the front of the vehicle and
release the auxiliary latch using the
handle that is located under the front
passenger side of the hood.
3. Lift the hood until the lift cylinders
hold it open.
Maintenance263
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

6. Replace the air filter housing cover and secure
the clamps. Be sure that the air cleaner cover tabs
are engaged into the slots of the air cleaner housing.
ADJUSTING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical Aim Adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height (a piece of masking tape works well). The center of the lamp is
marked bya3millimeter circle on the headlamp lens.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
282Maintenance
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

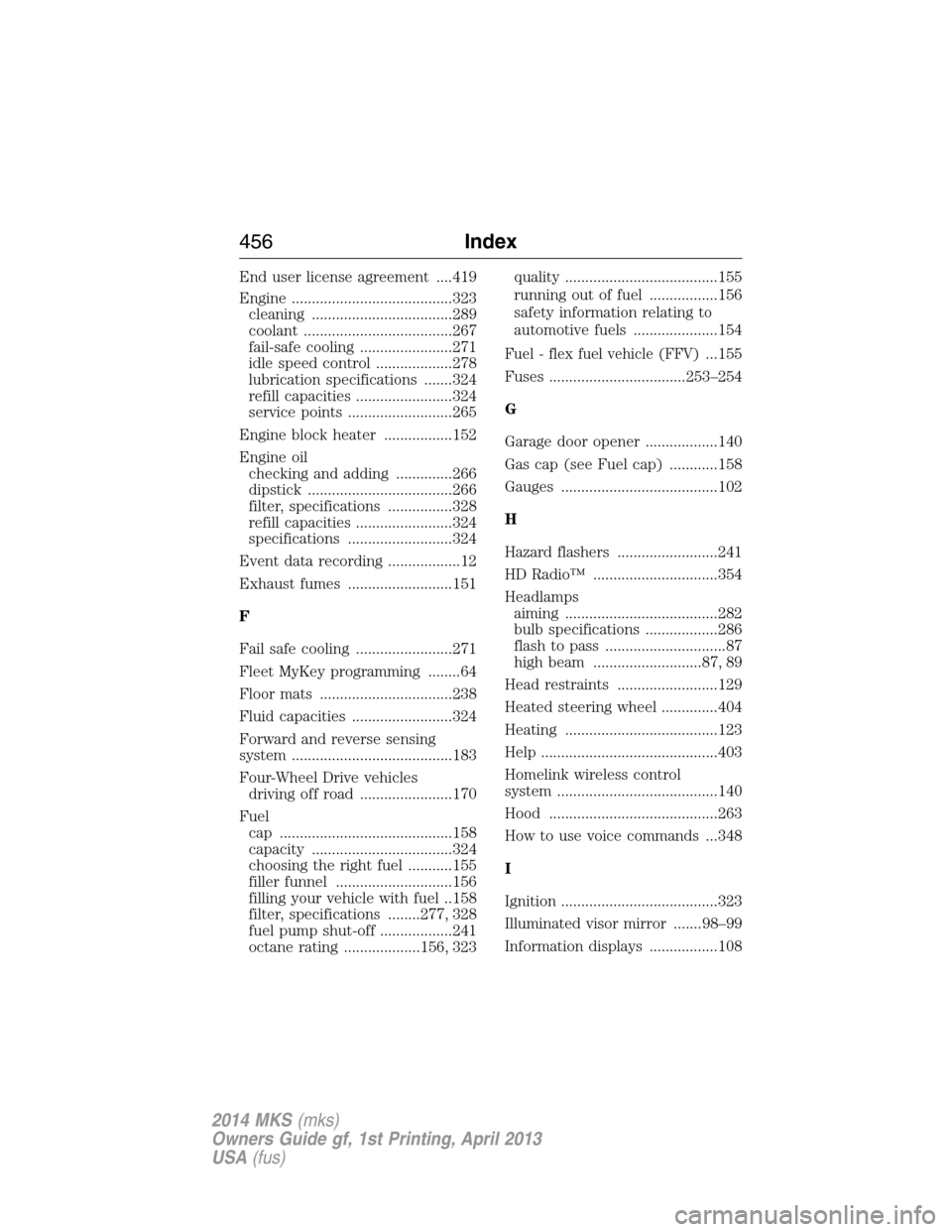

End user license agreement ....419
Engine ........................................323
cleaning ...................................289
coolant .....................................267
fail-safe cooling .......................271
idle speed control ...................278
lubrication specifications .......324
refill capacities ........................324
service points ..........................265
Engine block heater .................152
Engine oil
checking and adding ..............266
dipstick ....................................266
filter, specifications ................328
refill capacities ........................324
specifications ..........................324
Event data recording ..................12
Exhaust fumes ..........................151
F
Fail safe cooling ........................271
Fleet MyKey programming ........64
Floor mats .................................238
Fluid capacities .........................324
Forward and reverse sensing
system ........................................183
Four-Wheel Drive vehicles
driving off road .......................170
Fuel
cap ...........................................158
capacity ...................................324
choosing the right fuel ...........155
filler funnel .............................156
filling your vehicle with fuel ..158
filter, specifications ........277, 328
fuel pump shut-off ..................241
octane rating ...................156, 323quality ......................................155
running out of fuel .................156
safety information relating to
automotive fuels .....................154
Fuel - flex fuel vehicle (FFV)...155
Fuses ..................................253–254
G
Garage door opener ..................140
Gas cap (see Fuel cap) ............158
Gauges .......................................102
H
Hazard flashers .........................241
HD Radio™ ...............................354
Headlamps
aiming ......................................282
bulb specifications ..................286
flash to pass ..............................87
high beam ...........................87, 89
Head restraints .........................129
Heated steering wheel ..............404
Heating ......................................123
Help ............................................403
Homelink wireless control
system ........................................140
Hood ..........................................263
How to use voice commands ...348
I
Ignition .......................................323
Illuminated visor mirror .......98–99
Information displays .................108
456Index
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
