TOWING A TRAILER
WARNING:Do not exceed the GVWR or the GAWR specified on
the certification label.
WARNING:Towing trailers beyond the maximum recommended
gross trailer weight exceeds the limit of your vehicle and could
result in engine damage, transmission damage, structural damage, loss
of vehicle control, vehicle rollover and personal injury.
Note:For information on electrical items such as fuses or relays, see the
Fuseschapter.
Your vehicle’s load capacity designation is by weight, not by volume, so
you cannot necessarily use all available space when loading a vehicle.
Towing a trailer places an extra load on your vehicle’s engine,
transmission, axle, brakes, tires and suspension. Inspect these
components periodically during, and after, any towing operation.
Load Placement
To help minimize how trailer movement affects your vehicle when
driving:
•Load the heaviest items closest to the trailer floor.
•Load the heaviest items centered between the left and right side
trailer tires.
•Load the heaviest items above the trailer axles or just slightly forward
toward the trailer tongue. Do not allow the final trailer tongue weight
to go above or below 10–15% of the loaded trailer weight.
•Select a tow bar with the correct rise or drop. When both the loaded
vehicle and trailer are connected, the trailer frame should be level, or
slightly angled down toward your vehicle, when viewed from the side.
When driving with a trailer or payload, a slight takeoff vibration or
shudder may be present due to the increased payload weight. You can
find more information about proper trailer loading and setting your
vehicle up for towing underLoad limitin theLoad Carryingchapter
and in theRV & Trailer Towing Guide,available at an authorized
dealer.
Towing229
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, seeChanging the
Vehicle Batteryin theMaintenancechapter.
The high-current fuses are coded as follows:
Fuse or relay
numberFuse amp
ratingProtected components
1 — Not used
2 — Not used
3 — Not used
97
98
77969594
93 92 91 90 89
88
66
4478
56
39
26
18 1617
312 4 5 6 7 8 919 20 21 22 23 2427 28 29 30 3140 41 42 4355
57 58 59 60 61 62 63 64 6579 80 81 82 83 84 85 86 87
67
45
32
10 11 12 1333 34 3546 47 48 49 50 5168 69 70 71 72 74
73 76
75
53
37 36 54
38
25
151452
254Fuses
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

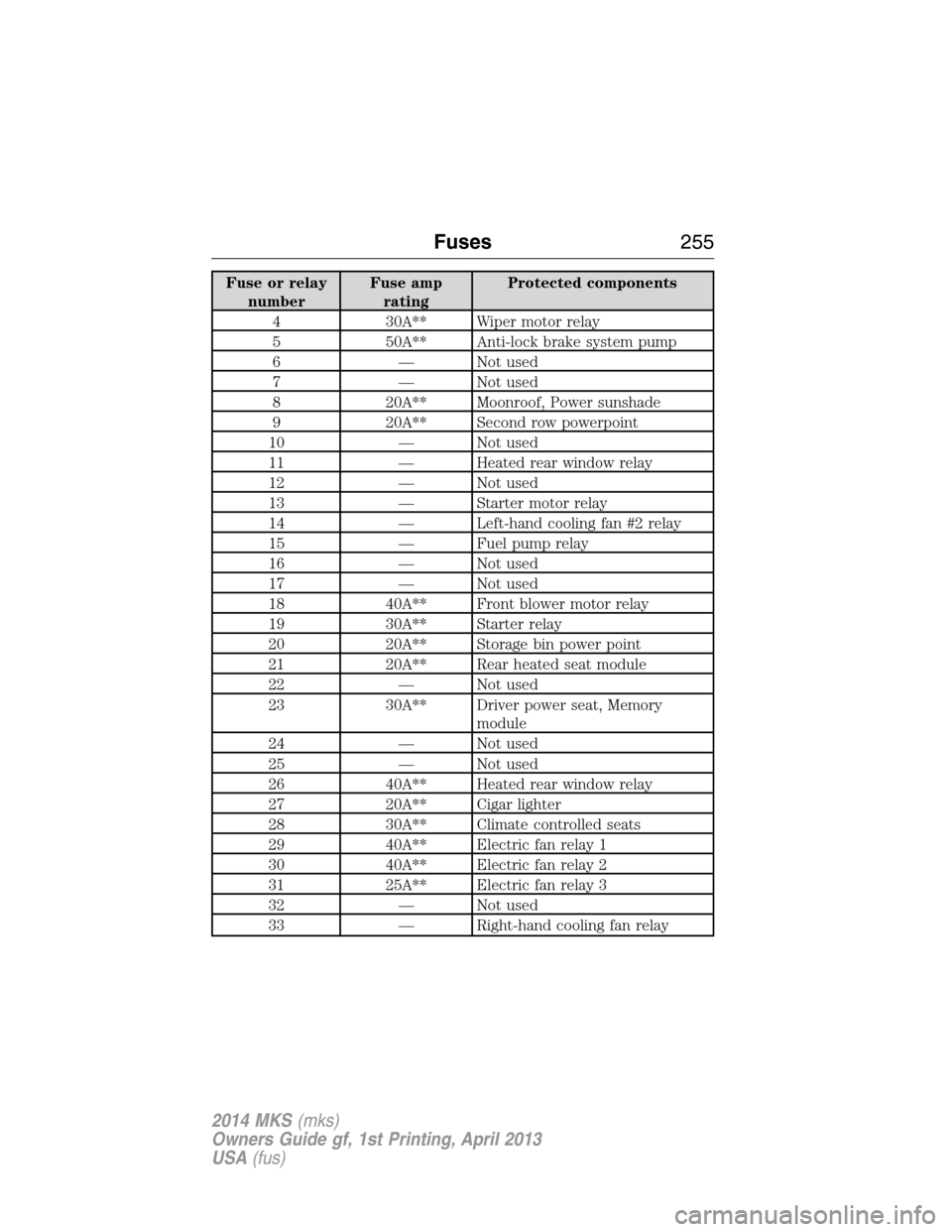

Fuse or relay
numberFuse amp
ratingProtected components
4 30A** Wiper motor relay
5 50A** Anti-lock brake system pump
6 — Not used
7 — Not used
8 20A** Moonroof, Power sunshade
9 20A** Second row powerpoint
10 — Not used
11 — Heated rear window relay
12 — Not used
13 — Starter motor relay
14 — Left-hand cooling fan #2 relay
15 — Fuel pump relay
16 — Not used
17 — Not used
18 40A** Front blower motor relay
19 30A** Starter relay
20 20A** Storage bin power point
21 20A** Rear heated seat module
22 — Not used
23 30A** Driver power seat, Memory
module
24 — Not used
25 — Not used
26 40A** Heated rear window relay
27 20A** Cigar lighter
28 30A** Climate controlled seats
29 40A** Electric fan relay 1
30 40A** Electric fan relay 2
31 25A** Electric fan relay 3
32 — Not used
33 — Right-hand cooling fan relay
Fuses255
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

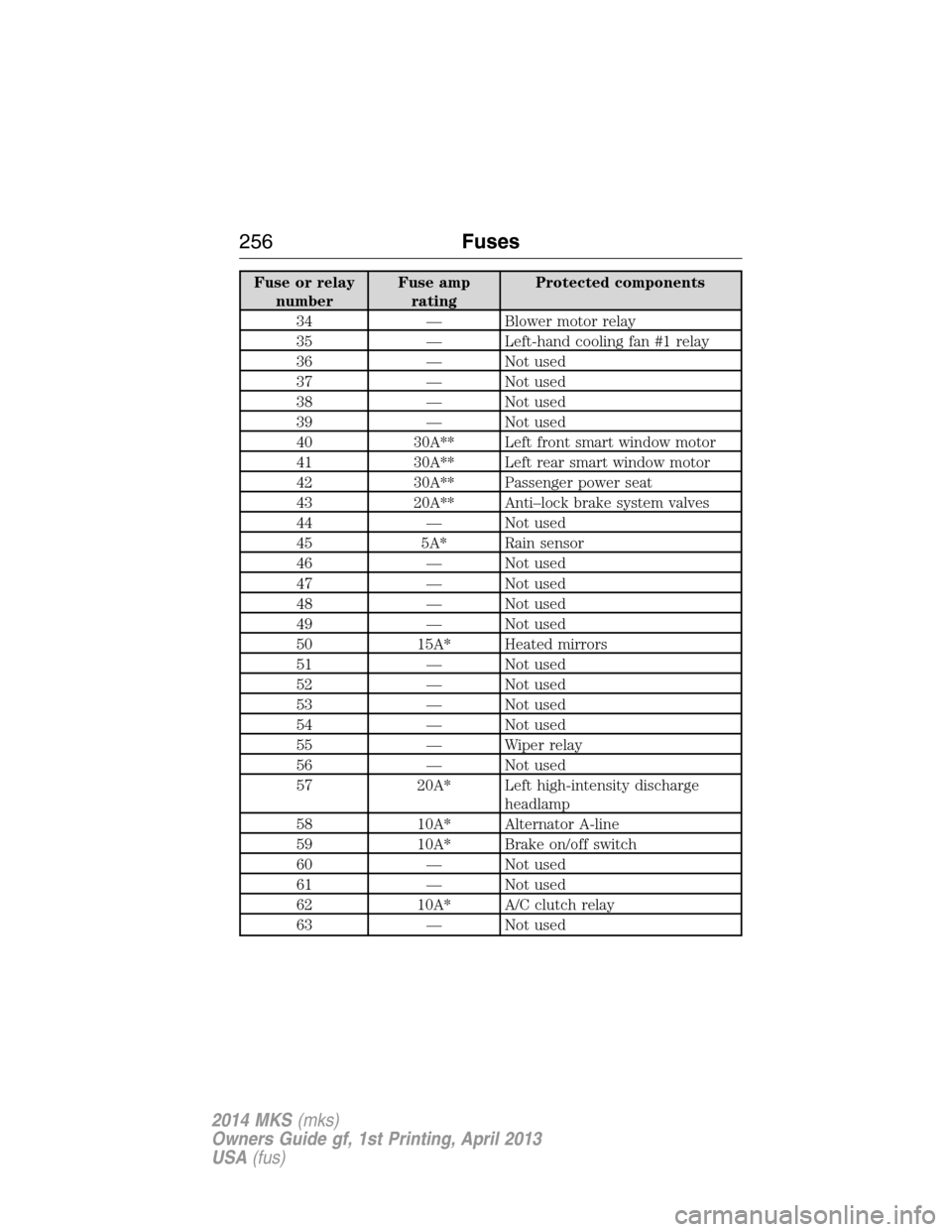

Fuse or relay
numberFuse amp
ratingProtected components
34 — Blower motor relay
35 — Left-hand cooling fan #1 relay
36 — Not used
37 — Not used
38 — Not used
39 — Not used
40 30A** Left front smart window motor
41 30A** Left rear smart window motor
42 30A** Passenger power seat
43 20A** Anti–lock brake system valves
44 — Not used
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirrors
51 — Not used
52 — Not used
53 — Not used
54 — Not used
55 — Wiper relay
56 — Not used
57 20A* Left high-intensity discharge
headlamp
58 10A* Alternator A-line
59 10A* Brake on/off switch
60 — Not used
61 — Not used
62 10A* A/C clutch relay
63 — Not used
256Fuses
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

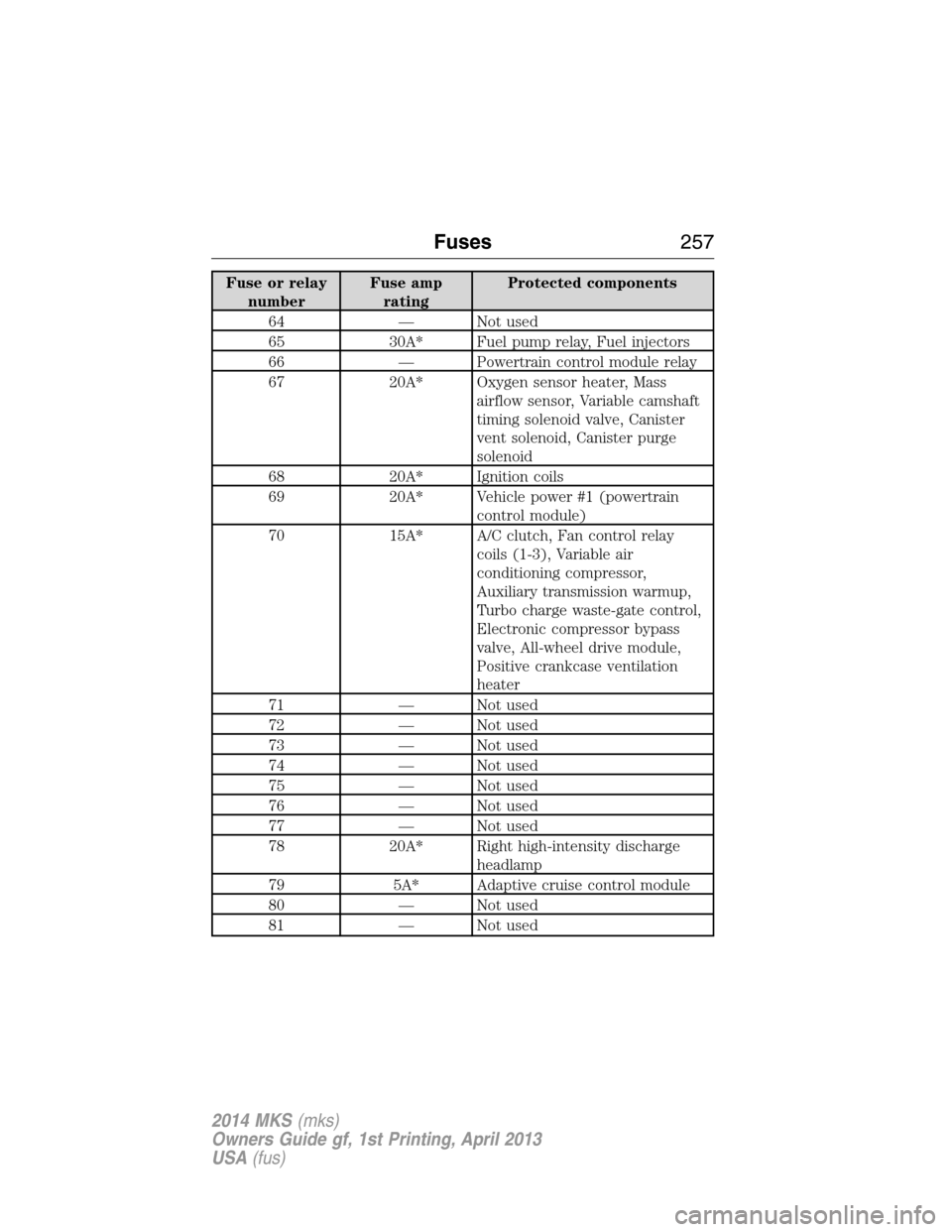

Fuse or relay
numberFuse amp
ratingProtected components
64 — Not used
65 30A* Fuel pump relay, Fuel injectors
66 — Powertrain control module relay
67 20A* Oxygen sensor heater, Mass
airflow sensor, Variable camshaft
timing solenoid valve, Canister
vent solenoid, Canister purge
solenoid
68 20A* Ignition coils
69 20A* Vehicle power #1 (powertrain
control module)
70 15A* A/C clutch, Fan control relay
coils (1-3), Variable air
conditioning compressor,
Auxiliary transmission warmup,
Turbo charge waste-gate control,
Electronic compressor bypass
valve, All-wheel drive module,
Positive crankcase ventilation
heater
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — Not used
76 — Not used
77 — Not used
78 20A* Right high-intensity discharge
headlamp
79 5A* Adaptive cruise control module
80 — Not used
81 — Not used
Fuses257
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

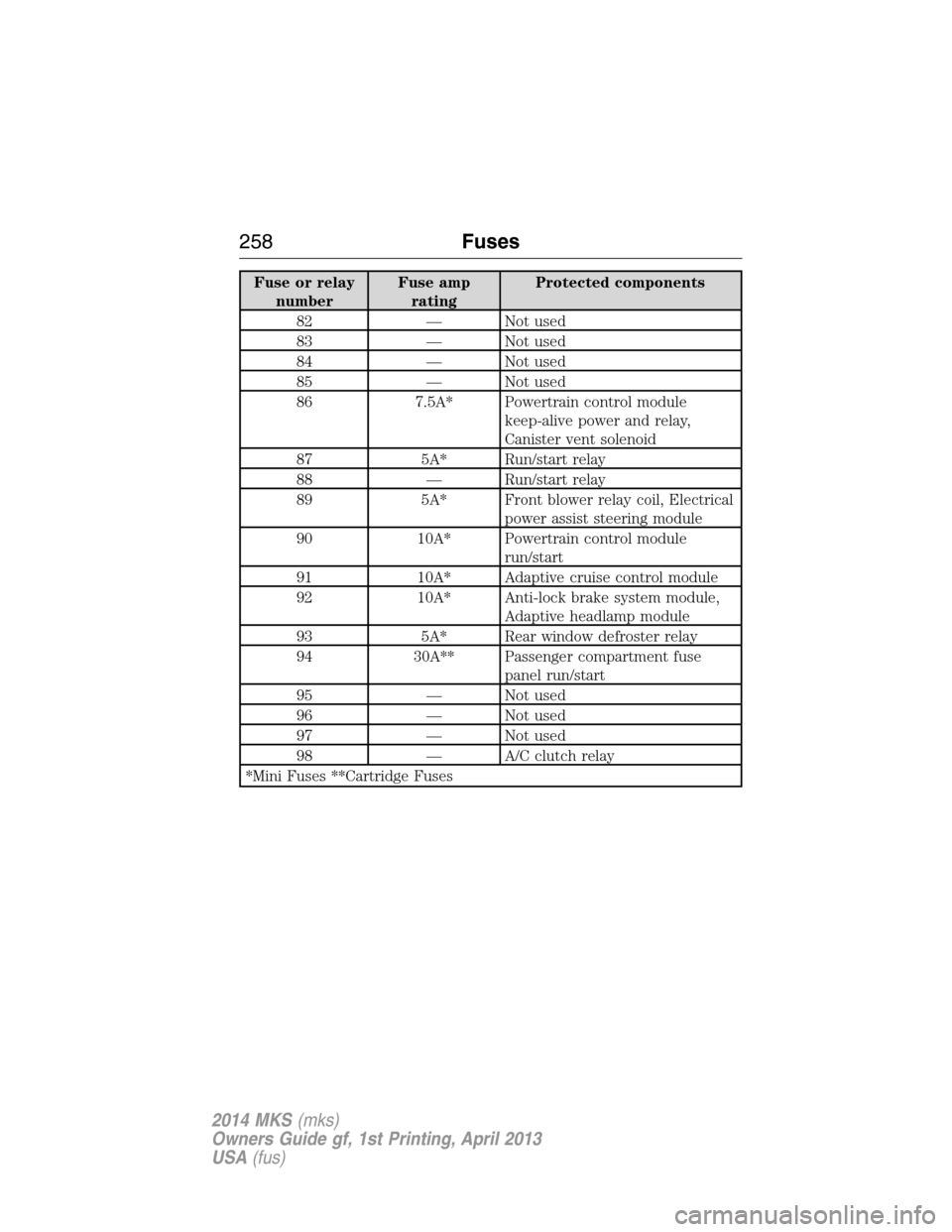

Fuse or relay
numberFuse amp
ratingProtected components
82 — Not used
83 — Not used
84 — Not used
85 — Not used
86 7.5A* Powertrain control module
keep-alive power and relay,
Canister vent solenoid
87 5A* Run/start relay
88 — Run/start relay
89 5A* Front blower relay coil, Electrical
power assist steering module
90 10A* Powertrain control module
run/start
91 10A* Adaptive cruise control module
92 10A* Anti-lock brake system module,
Adaptive headlamp module
93 5A* Rear window defroster relay
94 30A** Passenger compartment fuse
panel run/start
95 — Not used
96 — Not used
97 — Not used
98 — A/C clutch relay
*Mini Fuses **Cartridge Fuses
258Fuses
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

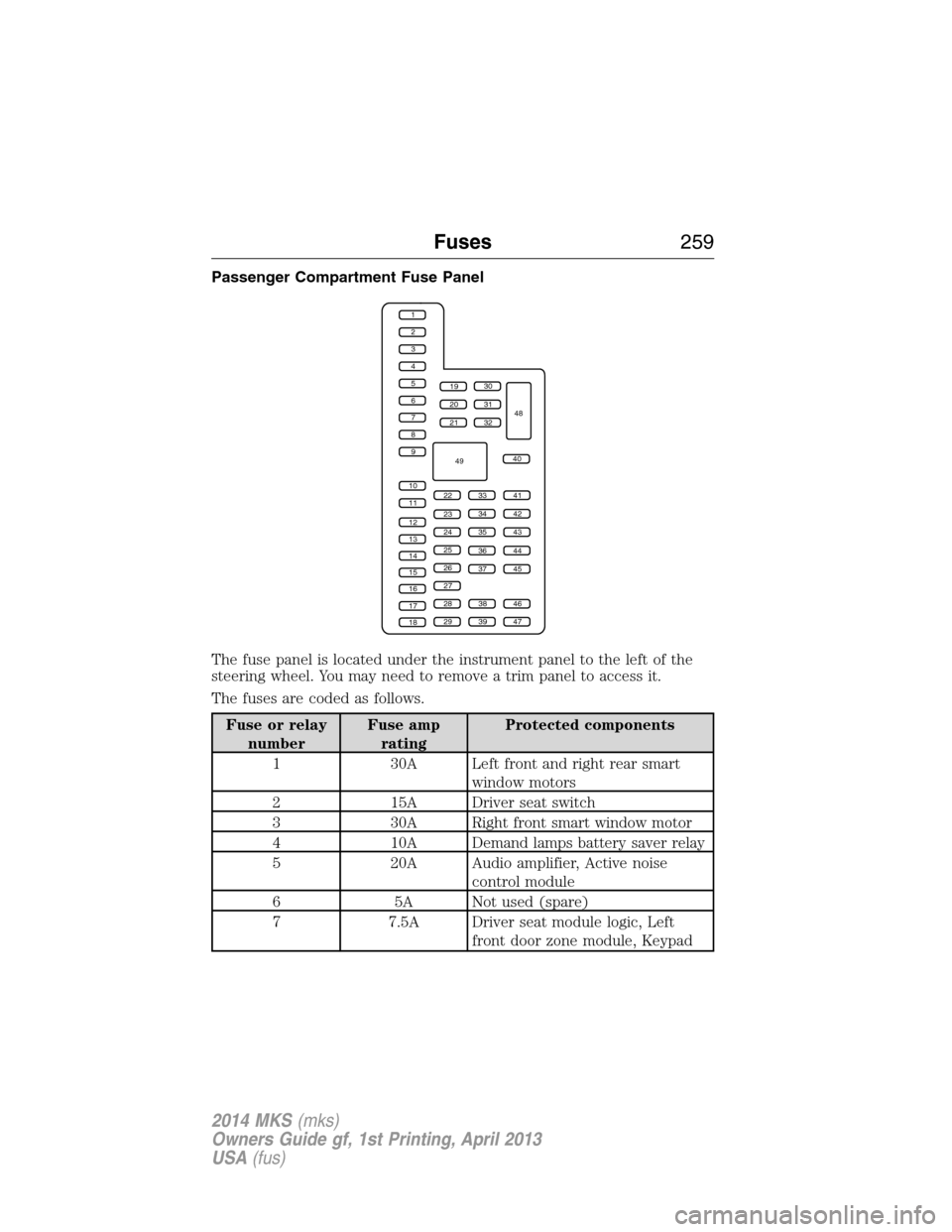

Passenger Compartment Fuse Panel
The fuse panel is located under the instrument panel to the left of the
steering wheel. You may need to remove a trim panel to access it.
The fuses are coded as follows.
Fuse or relay
numberFuse amp
ratingProtected components
1 30A Left front and right rear smart
window motors
2 15A Driver seat switch
3 30A Right front smart window motor
4 10A Demand lamps battery saver relay
5 20A Audio amplifier, Active noise
control module
6 5A Not used (spare)
7 7.5A Driver seat module logic, Left
front door zone module, Keypad
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
223341
42
43
44
45
34
35
36
37
23
24
25
26
27
283846
394729
32
40
31
30
48
49
Fuses259
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

Fuse or relay
numberFuse amp
ratingProtected components
8 10A Not used (spare)
9 10A SYNC module, Electronic finish
panel, Radio frequency
transceiver module
10 10A Run accessory relay, Wiper relay,
Rain-sense subfuse
11 10A Intelligent access module logic,
Heads-up display
12 15A Puddle lamp, Backlighting LED,
Interior lighting
13 15A Right turn signals
14 15A Left turn signals
15 15A Stop lamp, Backup lamp
16 10A Right front low beam
17 10A Left front low beam
18 10A Start button, Keypad illumination,
Brake shift interlock, Powertrain
control module wake-up,
Immobilizer transceiver module
19 20A Audio amplifiers
20 20A All lock motor relay and coil,
Driver lock motor relay and coil
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control module
logic, Instrument cluster
24 15A Steering wheel control module,
Datalink
25 15A Decklid release
26 5A Push button start switch
27 20A Intelligent access module power
28 15A Not used (spare)
260Fuses
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

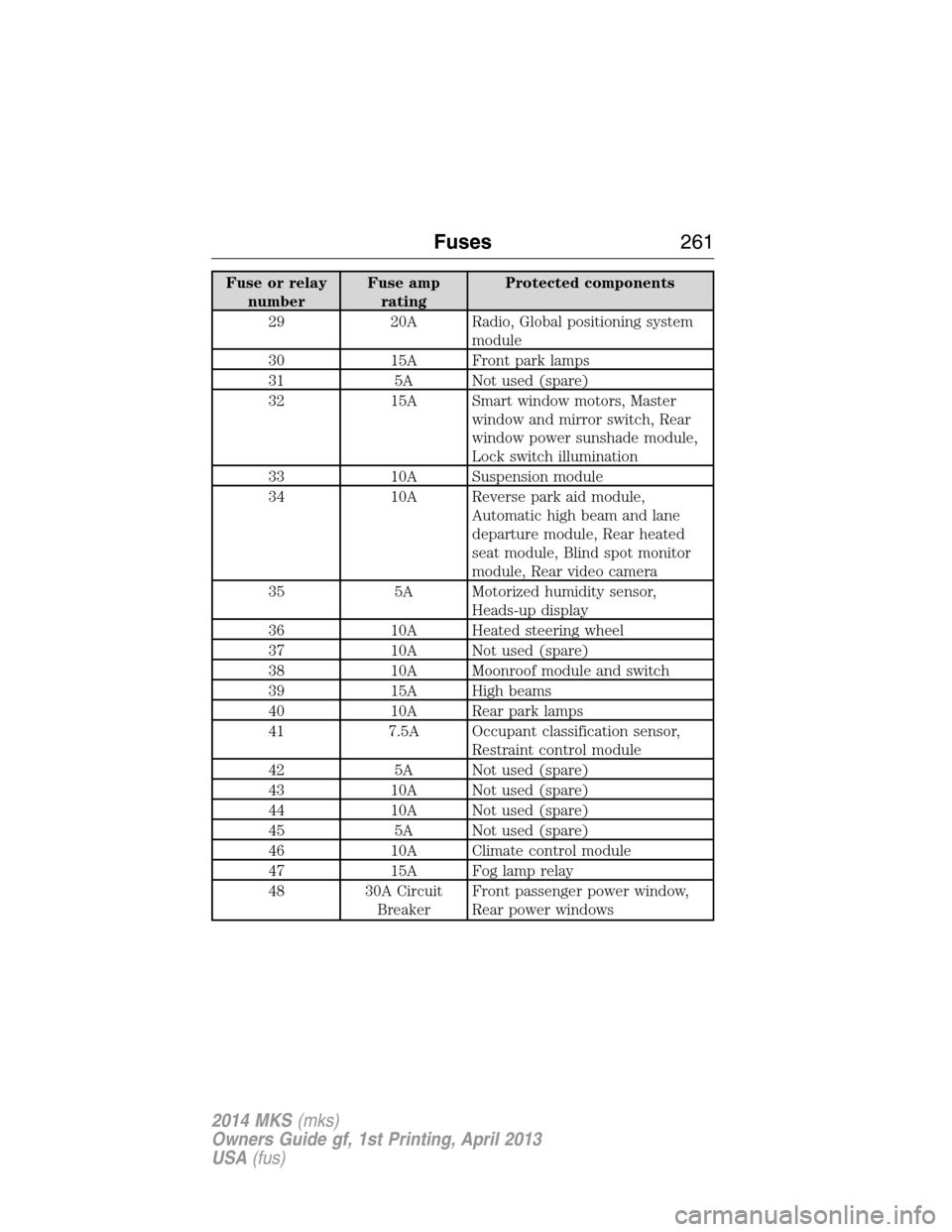

Fuse or relay
numberFuse amp
ratingProtected components
29 20A Radio, Global positioning system
module
30 15A Front park lamps
31 5A Not used (spare)
32 15A Smart window motors, Master
window and mirror switch, Rear
window power sunshade module,
Lock switch illumination
33 10A Suspension module
34 10A Reverse park aid module,
Automatic high beam and lane
departure module, Rear heated
seat module, Blind spot monitor
module, Rear video camera
35 5A Motorized humidity sensor,
Heads-up display
36 10A Heated steering wheel
37 10A Not used (spare)
38 10A Moonroof module and switch
39 15A High beams
40 10A Rear park lamps
41 7.5A Occupant classification sensor,
Restraint control module
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control module
47 15A Fog lamp relay
48 30A Circuit
BreakerFront passenger power window,
Rear power windows
Fuses261
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

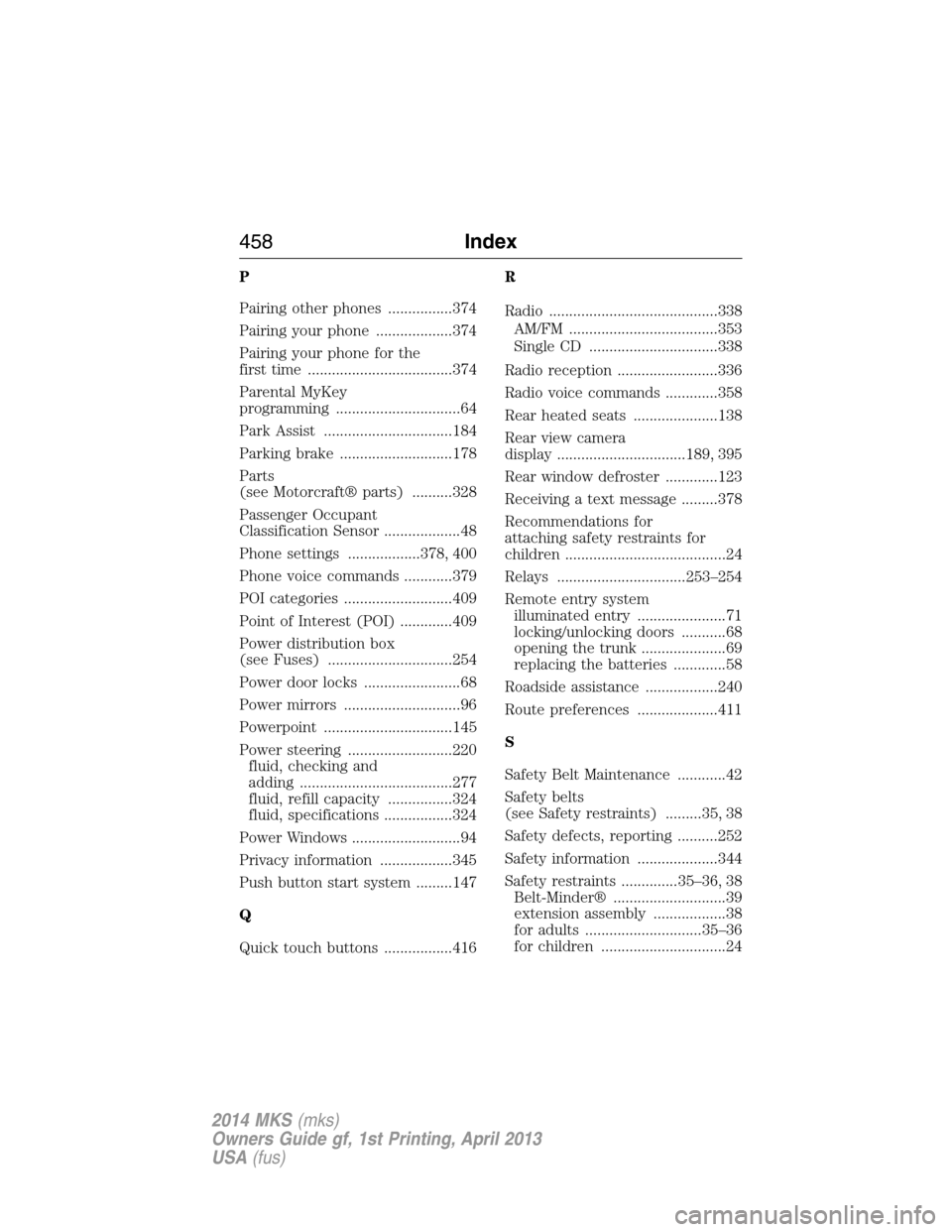

P
Pairing other phones ................374
Pairing your phone ...................374
Pairing your phone for the
first time ....................................374
Parental MyKey
programming ...............................64
Park Assist ................................184
Parking brake ............................178
Parts
(see Motorcraft® parts) ..........328
Passenger Occupant
Classification Sensor ...................48
Phone settings ..................378, 400
Phone voice commands ............379
POI categories ...........................409
Point of Interest (POI) .............409
Power distribution box
(see Fuses) ...............................254
Power door locks ........................68
Power mirrors .............................96
Powerpoint ................................145
Power steering ..........................220
fluid, checking and
adding ......................................277
fluid, refill capacity ................324
fluid, specifications .................324
Power Windows ...........................94
Privacy information ..................345
Push button start system .........147
Q
Quick touch buttons .................416R
Radio ..........................................338
AM/FM .....................................353
Single CD ................................338
Radio reception .........................336
Radio voice commands .............358
Rear heated seats .....................138
Rear view camera
display ................................189, 395
Rear window defroster .............123
Receiving a text message .........378
Recommendations for
attaching safety restraints for
children ........................................24
Relays ................................253–254
Remote entry system
illuminated entry ......................71
locking/unlocking doors ...........68
opening the trunk .....................69
replacing the batteries .............58
Roadside assistance ..................240
Route preferences ....................411
S
Safety Belt Maintenance ............42
Safety belts
(see Safety restraints) .........35, 38
Safety defects, reporting ..........252
Safety information ....................344
Safety restraints ..............35–36, 38
Belt-Minder® ............................39
extension assembly ..................38
for adults .............................35–36
for children ...............................24
458Index
2014 MKS(mks)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
