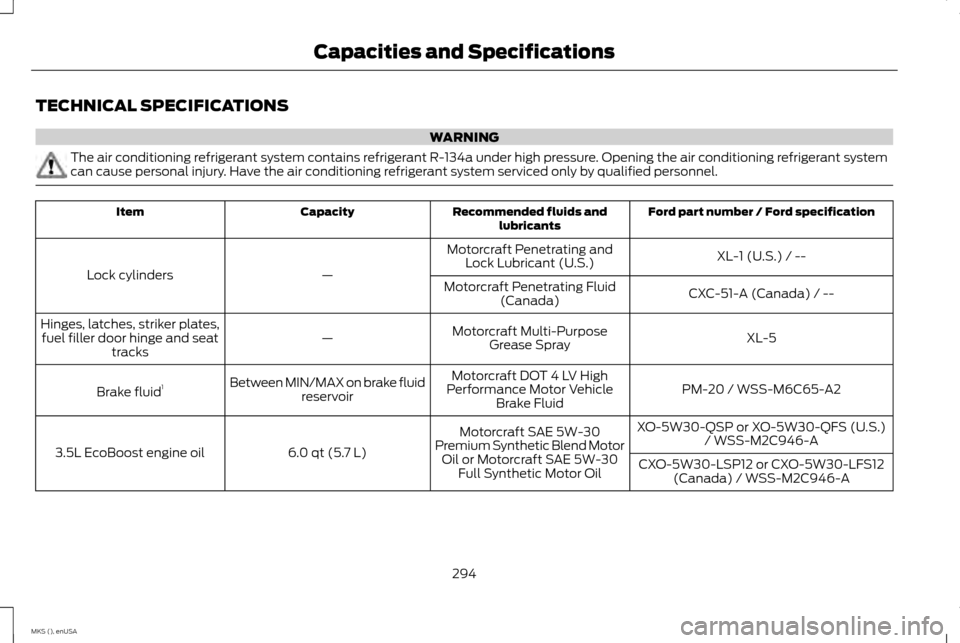

TECHNICAL SPECIFICATIONS
WARNING
The air conditioning refrigerant system contains refrigerant R-134a under high pressure. Opening the air conditioning refrigerant system
can cause personal injury. Have the air conditioning refrigerant system serviced only by qualified personnel.
Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
XL-1 (U.S.) / --
Motorcraft Penetrating and
Lock Lubricant (U.S.)
—
Lock cylinders
CXC-51-A (Canada) / --
Motorcraft Penetrating Fluid
(Canada)
XL-5
Motorcraft Multi-Purpose
Grease Spray
—
Hinges, latches, striker plates,
fuel filler door hinge and seat tracks
PM-20 / WSS-M6C65-A2
Motorcraft DOT 4 LV High
Performance Motor Vehicle Brake Fluid
Between MIN/MAX on brake fluid
reservoir
Brake fluid 1
XO-5W30-QSP or XO-5W30-QFS (U.S.)/ WSS-M2C946-A
Motorcraft SAE 5W-30
Premium Synthetic Blend Motor Oil or Motorcraft SAE 5W-30 Full Synthetic Motor Oil
6.0 qt (5.7 L)
3.5L EcoBoost engine oil
CXO-5W30-LSP12 or CXO-5W30-LFS12
(Canada) / WSS-M2C946-A
294
MKS (), enUSA Capacities and Specifications

Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
XO-5W20-QSP or XO-5W20-QFS (U.S.)/ WSS-M2C945-A
Motorcraft SAE 5W-20
Premium Synthetic Blend Motor Oil or Motorcraft SAE 5W-20 Full Synthetic Motor Oil
6.0 qt (5.7 L)
3.7L engine oil
CXO-5W20-LSP12 or CXO-5W20-LFS12
(Canada) / WSS-M2C945-A
VC-3DIL-B (U.S.) / WSS-M97B44-D2
Motorcraft Orange Antifreeze/
Coolant Prediluted
11.4 qt (10.8 L)
3.5L EcoBoost engine coolant 2
CVC-3DIL-B (Canada) / WSS-M97B44-
D2
VC-3DIL-B (U.S.) / WSS-M97B44-D2
Motorcraft Orange Antifreeze/
Coolant Prediluted
11.1 qt (10.5 L)
3.7L engine coolant 2
CVC-3DIL-B (Canada) / WSS-M97B44-
D2
XY-80W90-QL (U.S.) / WSP-M2C197-A
Motorcraft SAE 80W-90
Premium Rear Axle Lubricant
2.4 pt (1.15L)
Rear differential (AWD) fluid
CXY-80W90-1L (Canada) / WSP-M2C197-
A
XY-75W140-QL / WSP-M2C197-A
Motorcraft SAE 75W-140
Synthetic Rear Axle Lubricant
18 fl oz (0.53 L)
Power Transfer Unit (PTU)
fluid (AWD) 3
XT-10-QLVC (U.S.);
Motorcraft MERCON LV
11.6 qt (11 L)
3.5L EcoBoost engine
CXT-10-LV12 (Canada) / MERCON LV
Automatic transmission fluid
4,5
10.9 qt (10.3 L)
3.7L engine
295
MKS (), enUSA Capacities and Specifications

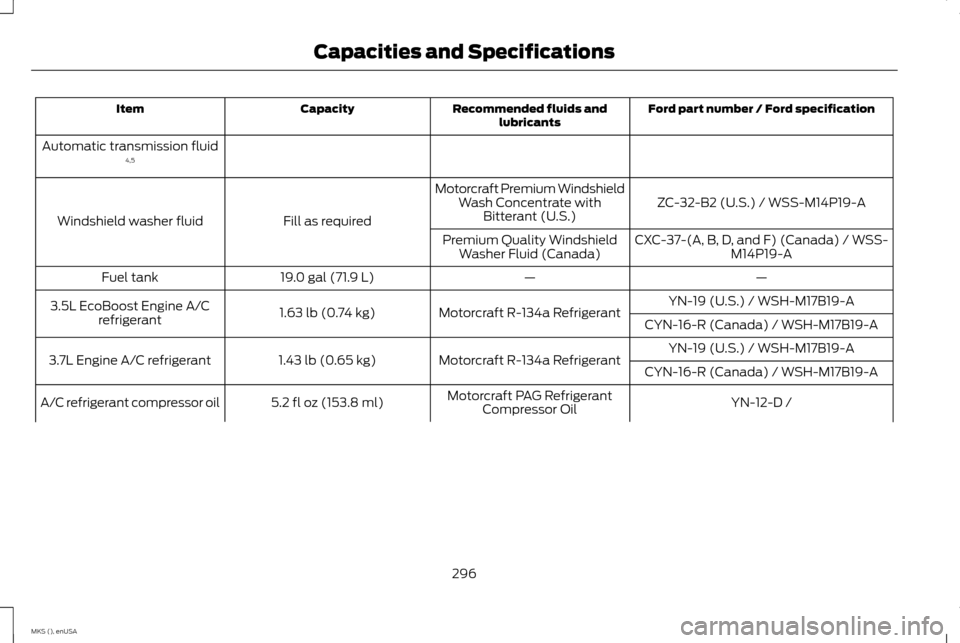

Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
Automatic transmission fluid 4,5
ZC-32-B2 (U.S.) / WSS-M14P19-A
Motorcraft Premium Windshield
Wash Concentrate with Bitterant (U.S.)
Fill as required
Windshield washer fluid
CXC-37-(A, B, D, and F) (Canada) / WSS-M14P19-A
Premium Quality Windshield
Washer Fluid (Canada)
—
—
19.0 gal (71.9 L)
Fuel tank
YN-19 (U.S.) / WSH-M17B19-A
Motorcraft R-134a Refrigerant
1.63 lb (0.74 kg)
3.5L EcoBoost Engine A/C
refrigerant CYN-16-R (Canada) / WSH-M17B19-A
YN-19 (U.S.) / WSH-M17B19-A
Motorcraft R-134a Refrigerant
1.43 lb (0.65 kg)
3.7L Engine A/C refrigerant
CYN-16-R (Canada) / WSH-M17B19-A
YN-12-D /
Motorcraft PAG Refrigerant
Compressor Oil
5.2 fl oz (153.8 ml)
A/C refrigerant compressor oil
296
MKS (), enUSA Capacities and Specifications

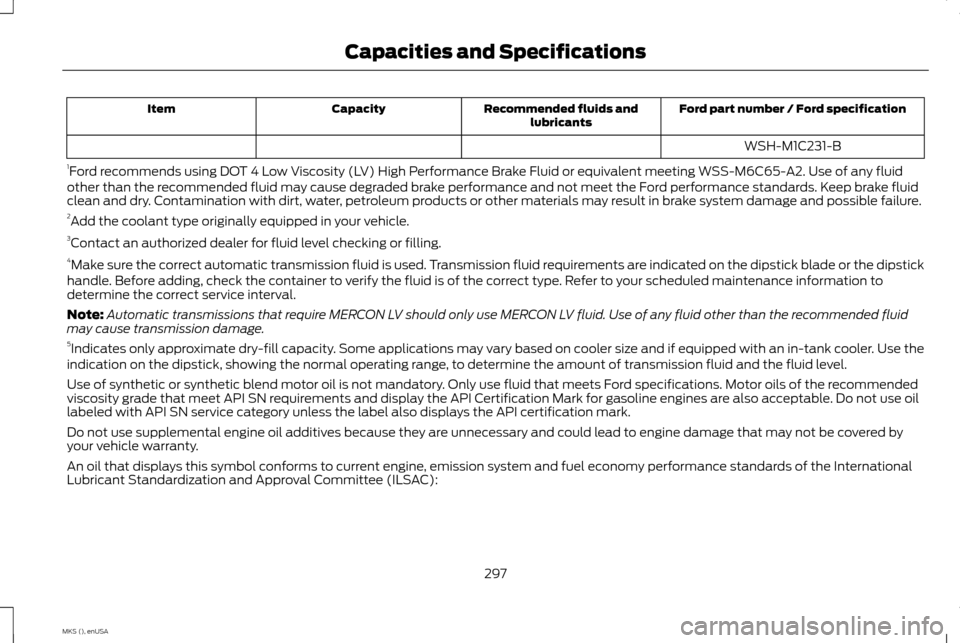

Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
WSH-M1C231-B
1 Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid
other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid
clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
2 Add the coolant type originally equipped in your vehicle.
3 Contact an authorized dealer for fluid level checking or filling.
4 Make sure the correct automatic transmission fluid is used. Transmission fluid requirements are indicated on the dipstick blade or the dipstick
handle. Before adding, check the container to verify the fluid is of the correct type. Refer to your scheduled maintenance information to
determine the correct service interval.
Note: Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Use of any fluid other than the recommended fluid
may cause transmission damage.
5 Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and if equipped with an in-tank cooler. Use the
indication on the dipstick, showing the normal operating range, to determine the amount of transmission fluid and the fluid level.
Use of synthetic or synthetic blend motor oil is not mandatory. Only use fluid that meets Ford specifications. Motor oils of the recommended
viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines are also acceptable. Do not use oil
labeled with API SN service category unless the label also displays the API certification mark.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by
your vehicle warranty.
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of the International
Lubricant Standardization and Approval Committee (ILSAC):
297
MKS (), enUSA Capacities and Specifications
