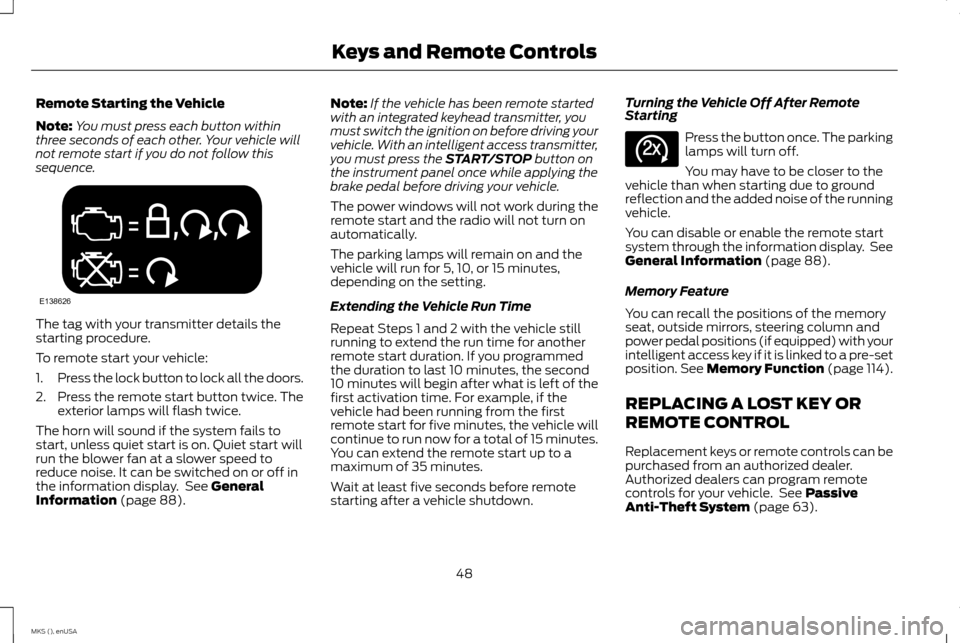

Remote Starting the Vehicle
Note:
You must press each button within
three seconds of each other. Your vehicle will
not remote start if you do not follow this
sequence. The tag with your transmitter details the
starting procedure.
To remote start your vehicle:
1.
Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash twice.
The horn will sound if the system fails to
start, unless quiet start is on. Quiet start will
run the blower fan at a slower speed to
reduce noise. It can be switched on or off in
the information display. See General
Information (page 88). Note:
If the vehicle has been remote started
with an integrated keyhead transmitter, you
must switch the ignition on before driving your
vehicle. With an intelligent access transmitter,
you must press the
START/STOP button on
the instrument panel once while applying the
brake pedal before driving your vehicle.
The power windows will not work during the
remote start and the radio will not turn on
automatically.
The parking lamps will remain on and the
vehicle will run for 5, 10, or 15 minutes,
depending on the setting.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle still
running to extend the run time for another
remote start duration. If you programmed
the duration to last 10 minutes, the second
10 minutes will begin after what is left of the
first activation time. For example, if the
vehicle had been running from the first
remote start for five minutes, the vehicle will
continue to run now for a total of 15 minutes.
You can extend the remote start up to a
maximum of 35 minutes.
Wait at least five seconds before remote
starting after a vehicle shutdown. Turning the Vehicle Off After Remote
Starting Press the button once. The parking
lamps will turn off.
You may have to be closer to the
vehicle than when starting due to ground
reflection and the added noise of the running
vehicle.
You can disable or enable the remote start
system through the information display. See
General Information
(page 88).
Memory Feature
You can recall the positions of the memory
seat, outside mirrors, steering column and
power pedal positions (if equipped) with your
intelligent access key if it is linked to a pre-set
position.
See Memory Function (page 114).
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement keys or remote controls can be
purchased from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle. See
Passive
Anti-Theft System (page 63).
48
MKS (), enUSA Keys and Remote ControlsE138626 E138625

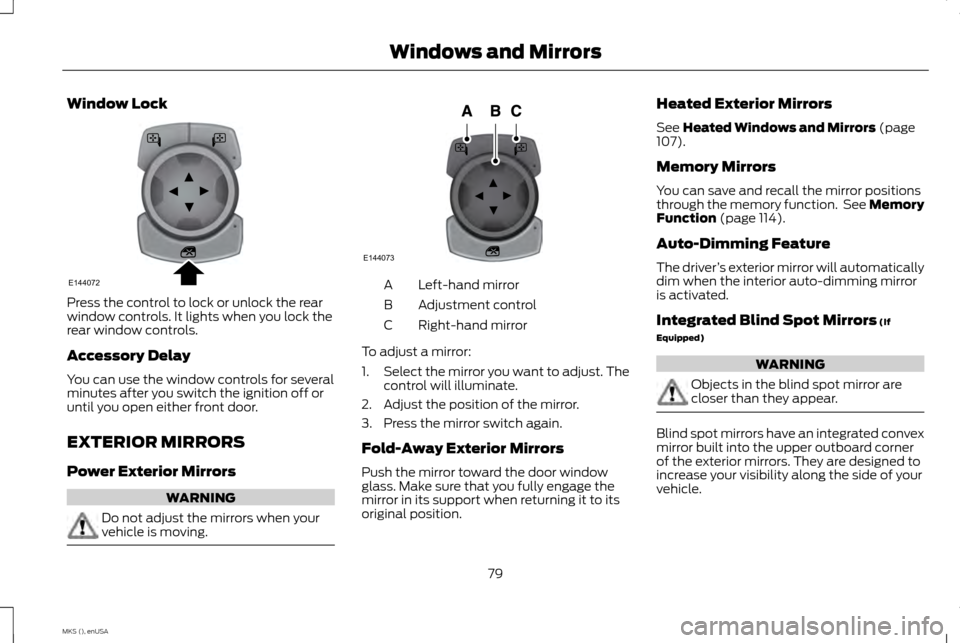

Window Lock
Press the control to lock or unlock the rear
window controls. It lights when you lock the
rear window controls.
Accessory Delay
You can use the window controls for several
minutes after you switch the ignition off or
until you open either front door.
EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING
Do not adjust the mirrors when your
vehicle is moving. Left-hand mirror
A
Adjustment control
B
Right-hand mirror
C
To adjust a mirror:
1. Select the mirror you want to adjust. The
control will illuminate.
2. Adjust the position of the mirror.
3. Press the mirror switch again.
Fold-Away Exterior Mirrors
Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position. Heated Exterior Mirrors
See Heated Windows and Mirrors (page
107).
Memory Mirrors
You can save and recall the mirror positions
through the memory function. See Memory
Function
(page 114).
Auto-Dimming Feature
The driver ’s exterior mirror will automatically
dim when the interior auto-dimming mirror
is activated.
Integrated Blind Spot Mirrors
(If
Equipped) WARNING
Objects in the blind spot mirror are
closer than they appear.
Blind spot mirrors have an integrated convex
mirror built into the upper outboard corner
of the exterior mirrors. They are designed to
increase your visibility along the side of your
vehicle.
79
MKS (), enUSA Windows and MirrorsE144072 E144073

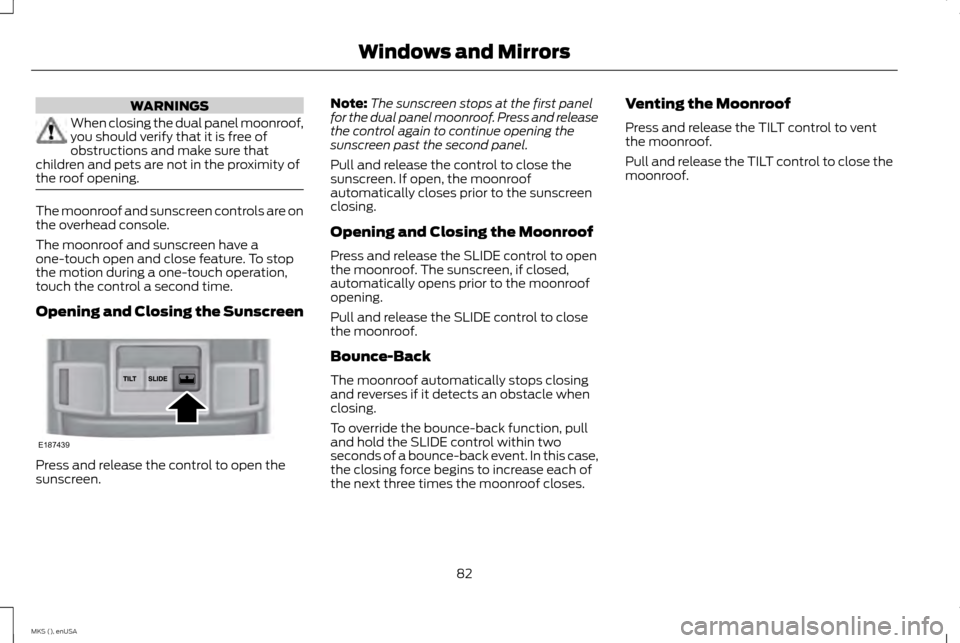

WARNINGS
When closing the dual panel moonroof,
you should verify that it is free of
obstructions and make sure that
children and pets are not in the proximity of
the roof opening. The moonroof and sunscreen controls are on
the overhead console.
The moonroof and sunscreen have a
one-touch open and close feature. To stop
the motion during a one-touch operation,
touch the control a second time.
Opening and Closing the Sunscreen
Press and release the control to open the
sunscreen. Note:
The sunscreen stops at the first panel
for the dual panel moonroof. Press and release
the control again to continue opening the
sunscreen past the second panel.
Pull and release the control to close the
sunscreen. If open, the moonroof
automatically closes prior to the sunscreen
closing.
Opening and Closing the Moonroof
Press and release the SLIDE control to open
the moonroof. The sunscreen, if closed,
automatically opens prior to the moonroof
opening.
Pull and release the SLIDE control to close
the moonroof.
Bounce-Back
The moonroof automatically stops closing
and reverses if it detects an obstacle when
closing.
To override the bounce-back function, pull
and hold the SLIDE control within two
seconds of a bounce-back event. In this case,
the closing force begins to increase each of
the next three times the moonroof closes. Venting the Moonroof
Press and release the TILT control to vent
the moonroof.
Pull and release the TILT control to close the
moonroof.
82
MKS (), enUSA Windows and MirrorsE187439

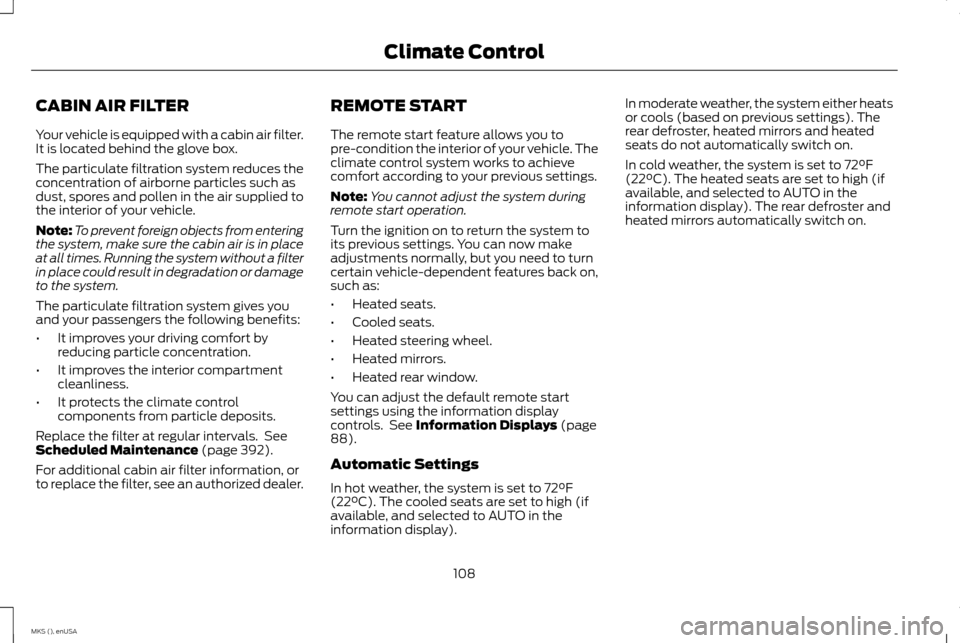

CABIN AIR FILTER
Your vehicle is equipped with a cabin air filter.
It is located behind the glove box.
The particulate filtration system reduces the
concentration of airborne particles such as
dust, spores and pollen in the air supplied to
the interior of your vehicle.
Note:
To prevent foreign objects from entering
the system, make sure the cabin air is in place
at all times. Running the system without a filter
in place could result in degradation or damage
to the system.
The particulate filtration system gives you
and your passengers the following benefits:
• It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
Replace the filter at regular intervals. See
Scheduled Maintenance (page 392).
For additional cabin air filter information, or
to replace the filter, see an authorized dealer. REMOTE START
The remote start feature allows you to
pre-condition the interior of your vehicle. The
climate control system works to achieve
comfort according to your previous settings.
Note:
You cannot adjust the system during
remote start operation.
Turn the ignition on to return the system to
its previous settings. You can now make
adjustments normally, but you need to turn
certain vehicle-dependent features back on,
such as:
• Heated seats.
• Cooled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window.
You can adjust the default remote start
settings using the information display
controls. See
Information Displays (page
88).
Automatic Settings
In hot weather, the system is set to 72°F
(22°C). The cooled seats are set to high (if
available, and selected to AUTO in the
information display). In moderate weather, the system either heats
or cools (based on previous settings). The
rear defroster, heated mirrors and heated
seats do not automatically switch on.
In cold weather, the system is set to 72°F
(22°C). The heated seats are set to high (if
available, and selected to AUTO in the
information display). The rear defroster and
heated mirrors automatically switch on.
108
MKS (), enUSA Climate Control

•

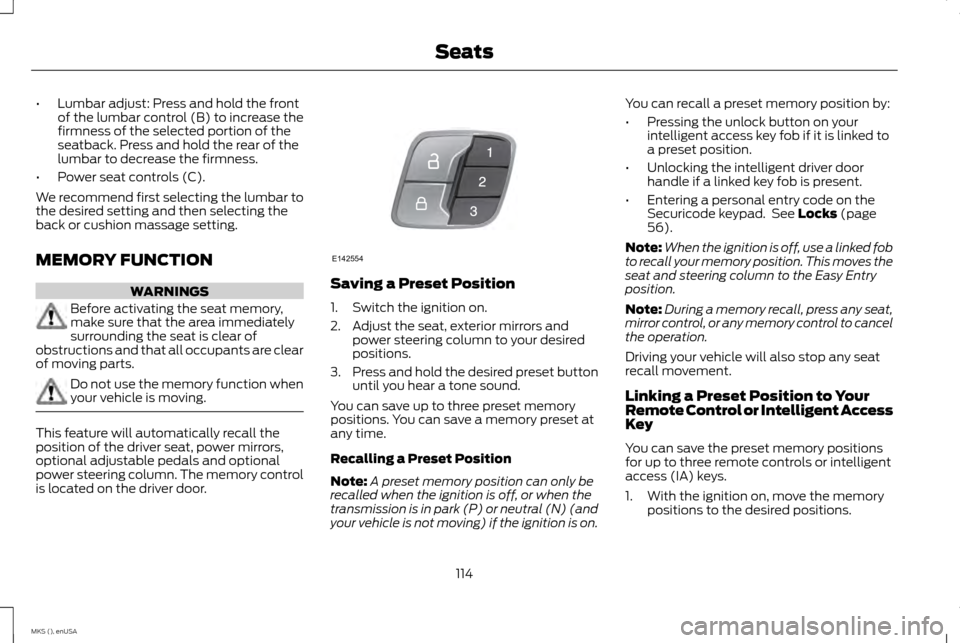

Lumbar adjust: Press and hold the front
of the lumbar control (B) to increase the
firmness of the selected portion of the
seatback. Press and hold the rear of the
lumbar to decrease the firmness.
• Power seat controls (C).
We recommend first selecting the lumbar to
the desired setting and then selecting the
back or cushion massage setting.
MEMORY FUNCTION WARNINGS
Before activating the seat memory,
make sure that the area immediately
surrounding the seat is clear of
obstructions and that all occupants are clear
of moving parts. Do not use the memory function when
your vehicle is moving.
This feature will automatically recall the
position of the driver seat, power mirrors,
optional adjustable pedals and optional
power steering column. The memory control
is located on the driver door. Saving a Preset Position
1. Switch the ignition on.
2. Adjust the seat, exterior mirrors and
power steering column to your desired
positions.
3. Press and hold the desired preset button
until you hear a tone sound.
You can save up to three preset memory
positions. You can save a memory preset at
any time.
Recalling a Preset Position
Note: A preset memory position can only be
recalled when the ignition is off, or when the
transmission is in park (P) or neutral (N) (and
your vehicle is not moving) if the ignition is on. You can recall a preset memory position by:
•
Pressing the unlock button on your
intelligent access key fob if it is linked to
a preset position.
• Unlocking the intelligent driver door
handle if a linked key fob is present.
• Entering a personal entry code on the
Securicode keypad. See Locks (page
56).
Note: When the ignition is off, use a linked fob
to recall your memory position. This moves the
seat and steering column to the Easy Entry
position.
Note: During a memory recall, press any seat,
mirror control, or any memory control to cancel
the operation.
Driving your vehicle will also stop any seat
recall movement.
Linking a Preset Position to Your
Remote Control or Intelligent Access
Key
You can save the preset memory positions
for up to three remote controls or intelligent
access (IA) keys.
1. With the ignition on, move the memory positions to the desired positions.
114
MKS (), enUSA SeatsE142554

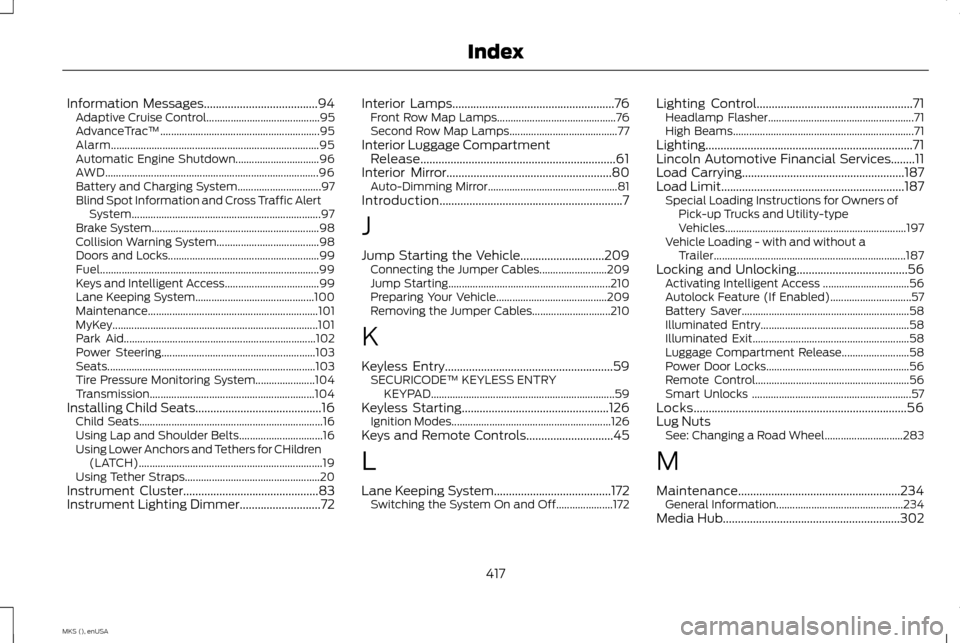

Information Messages......................................94
Adaptive Cruise Control.......................................... 95
AdvanceTrac ™........................................................... 95
Alarm........................................................................\
..... 95
Automatic Engine Shutdown............................... 96
AWD........................................................................\
....... 96
Battery and Charging System............................... 97
Blind Spot Information and Cross Traffic Alert System...................................................................... 97
Brake System.............................................................. 98
Collision Warning System...................................... 98
Doors and Locks........................................................ 99
Fuel........................................................................\
......... 99
Keys and Intelligent Access................................... 99
Lane Keeping System............................................ 100
Maintenance............................................................... 101
MyKey........................................................................\
.... 101
Park Aid....................................................................... 102
Power Steering......................................................... 103
Seats........................................................................\
..... 103
Tire Pressure Monitoring System...................... 104
Transmission............................................................. 104
Installing Child Seats
..........................................16
Child Seats.................................................................... 16
Using Lap and Shoulder Belts............................... 16
Using Lower Anchors and Tethers for CHildren (LATCH).................................................................... 19
Using Tether Straps.................................................. 20
Instrument Cluster
.............................................83
Instrument Lighting Dimmer...........................72 Interior Lamps......................................................76
Front Row Map Lamps............................................ 76
Second Row Map Lamps........................................ 77
Interior Luggage Compartment Release.................................................................61
Interior Mirror
.......................................................80
Auto-Dimming Mirror................................................ 81
Introduction.............................................................7
J
Jump Starting the Vehicle............................209 Connecting the Jumper Cables......................... 209
Jump Starting............................................................ 210
Preparing Your Vehicle......................................... 209
Removing the Jumper Cables............................. 210
K
Keyless Entry........................................................59 SECURICODE™ KEYLESS ENTRY
KEYPAD.................................................................... 59
Keyless Starting
.................................................126
Ignition Modes........................................................... 126
Keys and Remote Controls.............................45
L
Lane Keeping System
.......................................172
Switching the System On and Off..................... 172Lighting Control
....................................................71
Headlamp Flasher...................................................... 71
High Beams................................................................... 71
Lighting.....................................................................71
Lincoln Automotive Financial Services........11
Load Carrying
......................................................187
Load Limit.............................................................187
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles................................................................... 197
Vehicle Loading - with and without a Trailer....................................................................... 187
Locking and Unlocking.....................................56 Activating Intelligent Access ................................ 56
Autolock Feature (If Enabled).............................. 57
Battery Saver.............................................................. 58
Illuminated Entry....................................................... 58
Illuminated Exit.......................................................... 58
Luggage Compartment Release......................... 58
Power Door Locks..................................................... 56
Remote Control......................................................... 56
Smart Unlocks ........................................................... 57
Locks.......................................................................56
Lug Nuts See: Changing a Road Wheel............................. 283
M
Maintenance......................................................234 General Information............................................... 234
Media Hub
...........................................................302
417
MKS (), enUSA Index

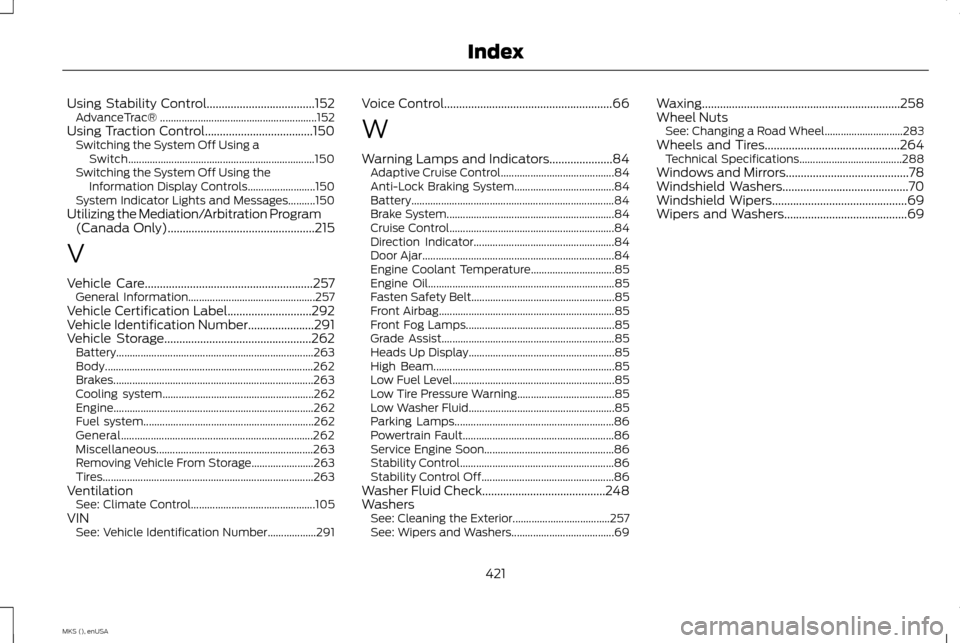

Using Stability Control....................................152
AdvanceTrac® .......................................................... 152
Using Traction Control....................................150 Switching the System Off Using a
Switch..................................................................... 150
Switching the System Off Using the Information Display Controls......................... 150
System Indicator Lights and Messages..........150
Utilizing the Mediation/Arbitration Program (Canada Only).................................................215
V
Vehicle Care
........................................................257
General Information............................................... 257
Vehicle Certification Label
............................292
Vehicle Identification Number......................291
Vehicle Storage
.................................................262
Battery........................................................................\
. 263
Body........................................................................\
..... 262
Brakes........................................................................\
.. 263
Cooling system........................................................ 262
Engine........................................................................\
.. 262
Fuel system............................................................... 262
General....................................................................... 262
Miscellaneous.......................................................... 263
Removing Vehicle From Storage....................... 263
Tires........................................................................\
...... 263
Ventilation See: Climate Control.............................................. 105
VIN See: Vehicle Identification Number.................. 291Voice Control
........................................................66
W
Warning Lamps and Indicators.....................84 Adaptive Cruise Control.......................................... 84
Anti-Lock Braking System..................................... 84
Battery........................................................................\
... 84
Brake System.............................................................. 84
Cruise Control............................................................. 84
Direction Indicator.................................................... 84
Door Ajar....................................................................... 84
Engine Coolant Temperature............................... 85
Engine Oil..................................................................... 85
Fasten Safety Belt..................................................... 85
Front Airbag................................................................. 85
Front Fog Lamps....................................................... 85
Grade Assist................................................................ 85
Heads Up Display...................................................... 85
High Beam................................................................... 85
Low Fuel Level............................................................ 85
Low Tire Pressure Warning.................................... 85
Low Washer Fluid...................................................... 85
Parking Lamps........................................................... 86
Powertrain Fault........................................................ 86
Service Engine Soon................................................ 86
Stability Control......................................................... 86
Stability Control Off................................................. 86
Washer Fluid Check
.........................................248
Washers See: Cleaning the Exterior.................................... 257
See: Wipers and Washers...................................... 69Waxing
..................................................................
258
Wheel Nuts See: Changing a Road Wheel............................. 283
Wheels and Tires.............................................264 Technical Specifications...................................... 288
Windows and Mirrors.........................................78
Windshield Washers
..........................................70
Windshield Wipers.............................................69
Wipers and Washers.........................................69
421
MKS (), enUSA Index
