LINCOLN MKS 2016 Owner's Manual

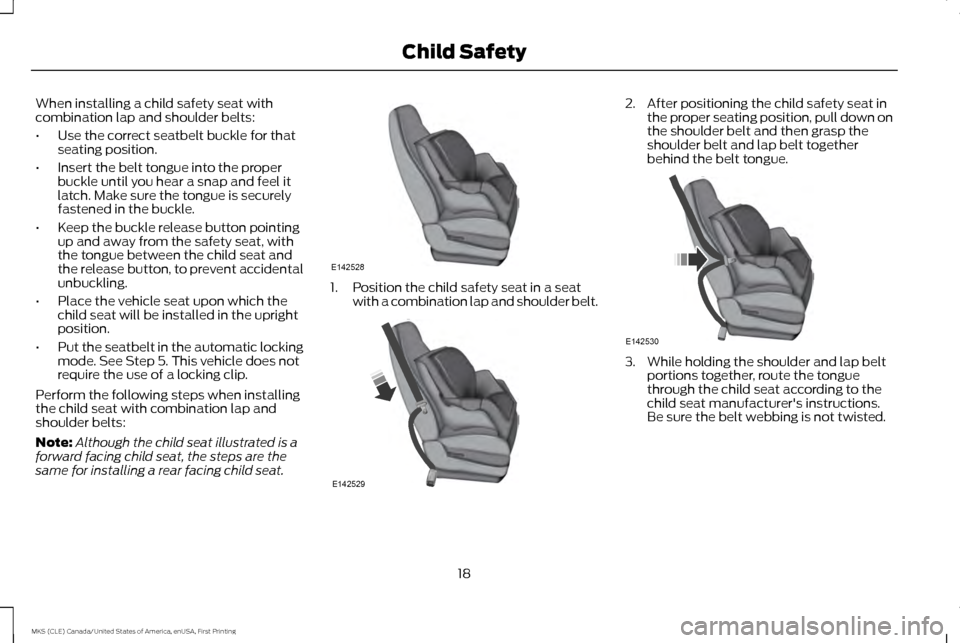

When installing a child safety seat with
combination lap and shoulder belts:
•
Use the correct seatbelt buckle for that
seating position.
• Insert the belt tongue into the proper
buckle until you hear a snap and feel it
latch. Make sure the tongue is securely
fastened in the buckle.
• Keep the buckle release button pointing
up and away from the safety seat, with
the tongue between the child seat and
the release button, to prevent accidental
unbuckling.
• Place the vehicle seat upon which the
child seat will be installed in the upright
position.
• Put the seatbelt in the automatic locking
mode. See Step 5. This vehicle does not
require the use of a locking clip.
Perform the following steps when installing
the child seat with combination lap and
shoulder belts:
Note: Although the child seat illustrated is a
forward facing child seat, the steps are the
same for installing a rear facing child seat. 1. Position the child safety seat in a seat
with a combination lap and shoulder belt. 2. After positioning the child safety seat in
the proper seating position, pull down on
the shoulder belt and then grasp the
shoulder belt and lap belt together
behind the belt tongue. 3. While holding the shoulder and lap belt
portions together, route the tongue
through the child seat according to the
child seat manufacturer's instructions.
Be sure the belt webbing is not twisted.
18
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE142528 E142529 E142530

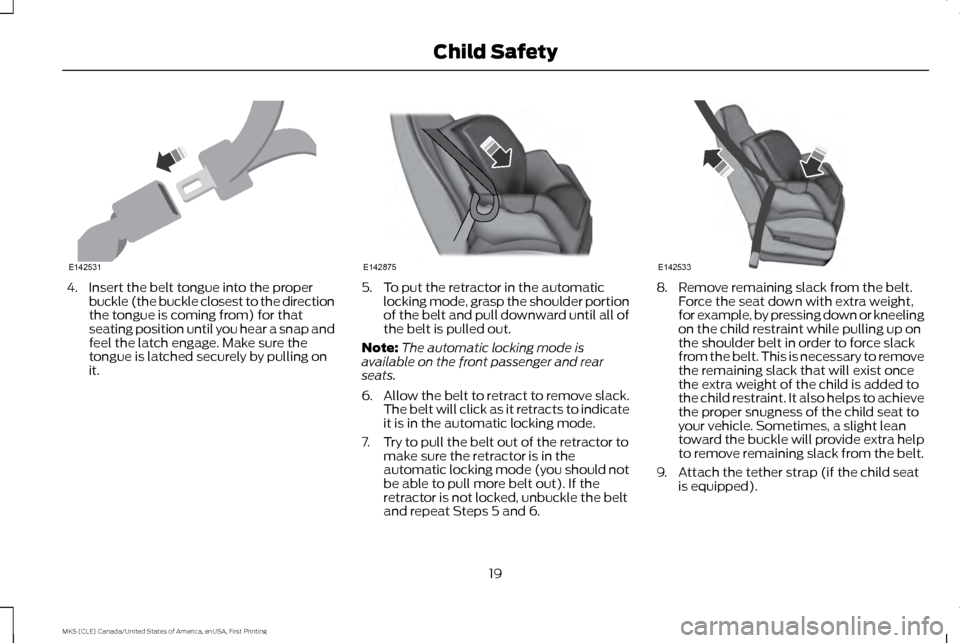

4. Insert the belt tongue into the proper
buckle (the buckle closest to the direction
the tongue is coming from) for that
seating position until you hear a snap and
feel the latch engage. Make sure the
tongue is latched securely by pulling on
it. 5. To put the retractor in the automatic
locking mode, grasp the shoulder portion
of the belt and pull downward until all of
the belt is pulled out.
Note: The automatic locking mode is
available on the front passenger and rear
seats.
6. Allow the belt to retract to remove slack.
The belt will click as it retracts to indicate
it is in the automatic locking mode.
7. Try to pull the belt out of the retractor to make sure the retractor is in the
automatic locking mode (you should not
be able to pull more belt out). If the
retractor is not locked, unbuckle the belt
and repeat Steps 5 and 6. 8. Remove remaining slack from the belt.
Force the seat down with extra weight,
for example, by pressing down or kneeling
on the child restraint while pulling up on
the shoulder belt in order to force slack
from the belt. This is necessary to remove
the remaining slack that will exist once
the extra weight of the child is added to
the child restraint. It also helps to achieve
the proper snugness of the child seat to
your vehicle. Sometimes, a slight lean
toward the buckle will provide extra help
to remove remaining slack from the belt.
9. Attach the tether strap (if the child seat is equipped).
19
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE142531 E142875 E142533

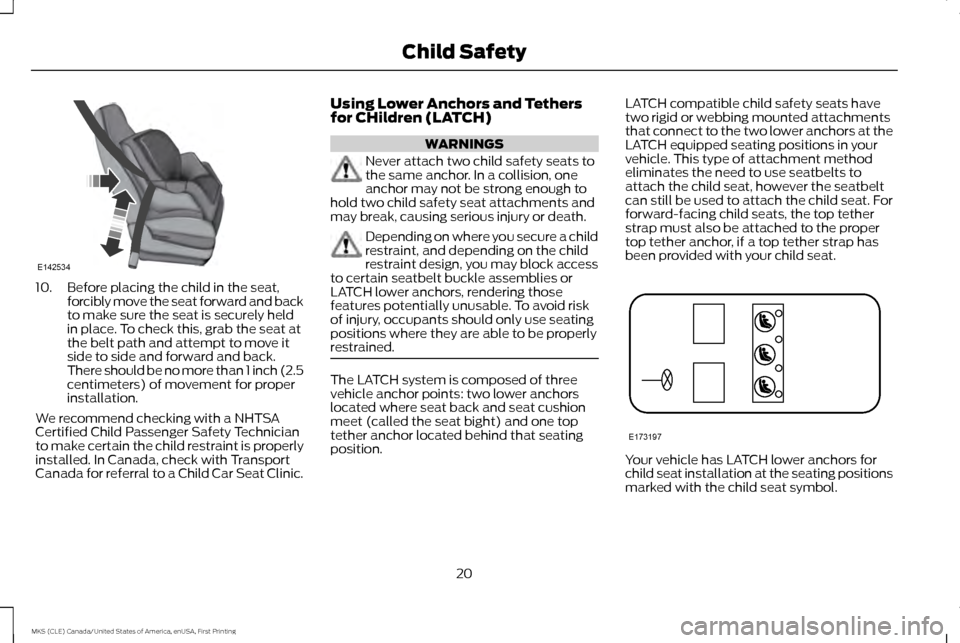

10. Before placing the child in the seat,
forcibly move the seat forward and back
to make sure the seat is securely held
in place. To check this, grab the seat at
the belt path and attempt to move it
side to side and forward and back.
There should be no more than 1 inch (2.5
centimeters) of movement for proper
installation.
We recommend checking with a NHTSA
Certified Child Passenger Safety Technician
to make certain the child restraint is properly
installed. In Canada, check with Transport
Canada for referral to a Child Car Seat Clinic. Using Lower Anchors and Tethers
for CHildren (LATCH) WARNINGS
Never attach two child safety seats to
the same anchor. In a collision, one
anchor may not be strong enough to
hold two child safety seat attachments and
may break, causing serious injury or death. Depending on where you secure a child
restraint, and depending on the child
restraint design, you may block access
to certain seatbelt buckle assemblies or
LATCH lower anchors, rendering those
features potentially unusable. To avoid risk
of injury, occupants should only use seating
positions where they are able to be properly
restrained. The LATCH system is composed of three
vehicle anchor points: two lower anchors
located where seat back and seat cushion
meet (called the seat bight) and one top
tether anchor located behind that seating
position.LATCH compatible child safety seats have
two rigid or webbing mounted attachments
that connect to the two lower anchors at the
LATCH equipped seating positions in your
vehicle. This type of attachment method
eliminates the need to use seatbelts to
attach the child seat, however the seatbelt
can still be used to attach the child seat. For
forward-facing child seats, the top tether
strap must also be attached to the proper
top tether anchor, if a top tether strap has
been provided with your child seat.
Your vehicle has LATCH lower anchors for
child seat installation at the seating positions
marked with the child seat symbol.
20
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE142534 E173197

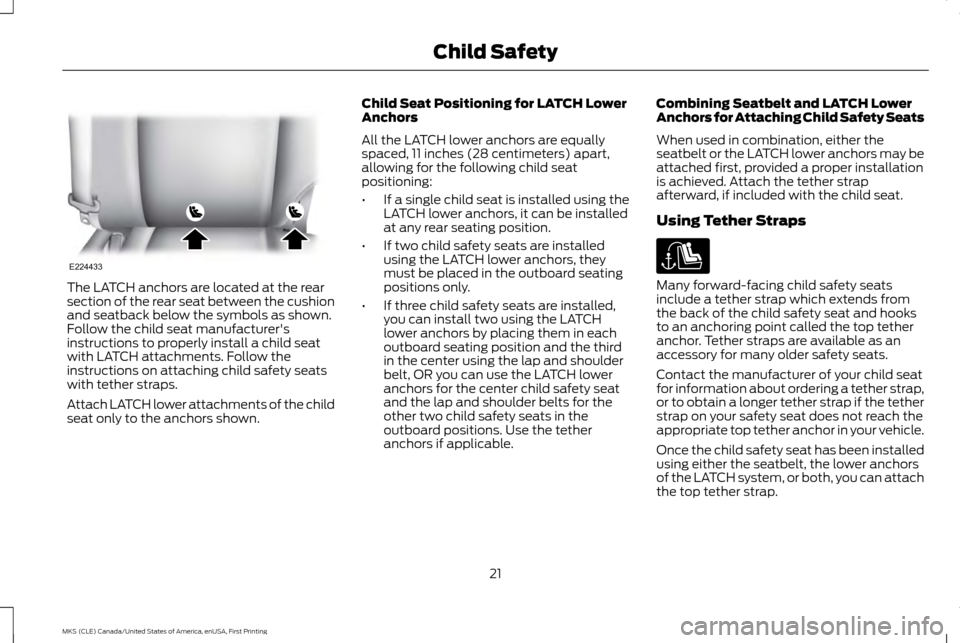

The LATCH anchors are located at the rear
section of the rear seat between the cushion
and seatback below the symbols as shown.
Follow the child seat manufacturer's
instructions to properly install a child seat
with LATCH attachments. Follow the
instructions on attaching child safety seats
with tether straps.
Attach LATCH lower attachments of the child
seat only to the anchors shown.
Child Seat Positioning for LATCH Lower
Anchors
All the LATCH lower anchors are equally
spaced, 11 inches (28 centimeters) apart,
allowing for the following child seat
positioning:
•
If a single child seat is installed using the
LATCH lower anchors, it can be installed
at any rear seating position.
• If two child safety seats are installed
using the LATCH lower anchors, they
must be placed in the outboard seating
positions only.
• If three child safety seats are installed,
you can install two using the LATCH
lower anchors by placing them in each
outboard seating position and the third
in the center using the lap and shoulder
belt, OR you can use the LATCH lower
anchors for the center child safety seat
and the lap and shoulder belts for the
other two child safety seats in the
outboard positions. Use the tether
anchors if applicable. Combining Seatbelt and LATCH Lower
Anchors for Attaching Child Safety Seats
When used in combination, either the
seatbelt or the LATCH lower anchors may be
attached first, provided a proper installation
is achieved. Attach the tether strap
afterward, if included with the child seat.
Using Tether Straps
Many forward-facing child safety seats
include a tether strap which extends from
the back of the child safety seat and hooks
to an anchoring point called the top tether
anchor. Tether straps are available as an
accessory for many older safety seats.
Contact the manufacturer of your child seat
for information about ordering a tether strap,
or to obtain a longer tether strap if the tether
strap on your safety seat does not reach the
appropriate top tether anchor in your vehicle.
Once the child safety seat has been installed
using either the seatbelt, the lower anchors
of the LATCH system, or both, you can attach
the top tether strap.
21
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE224433

The tether strap anchors in your vehicle are
in the following positions (shown from top
view):
Perform the following steps to install a child
safety seat with tether anchors:
Note:
If you install a child seat with rigid
LATCH attachments, do not tighten the tether
strap enough to lift the child seat off your
vehicle seat cushion when the child is seated
in it. Keep the tether strap just snug without
lifting the front of the child seat. Keeping the
child seat just touching your vehicle seat gives
the best protection in a severe crash.
1. Route the child safety seat tether strap over the back of the seat. 2.
Locate the correct anchor for the selected
seating position, then open the tether
anchor cover. 3. Open the tether anchor cover. 4. Clip the tether strap to the anchor as
shown.
5. Tighten the child safety seat tether strap
according to the manufacturer's
instructions.
If your child restraint system is equipped with
a tether strap, and the child restraint
manufacturer recommends its use, we also
recommend its use.
22
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE142537 E173198 E173199 E173200

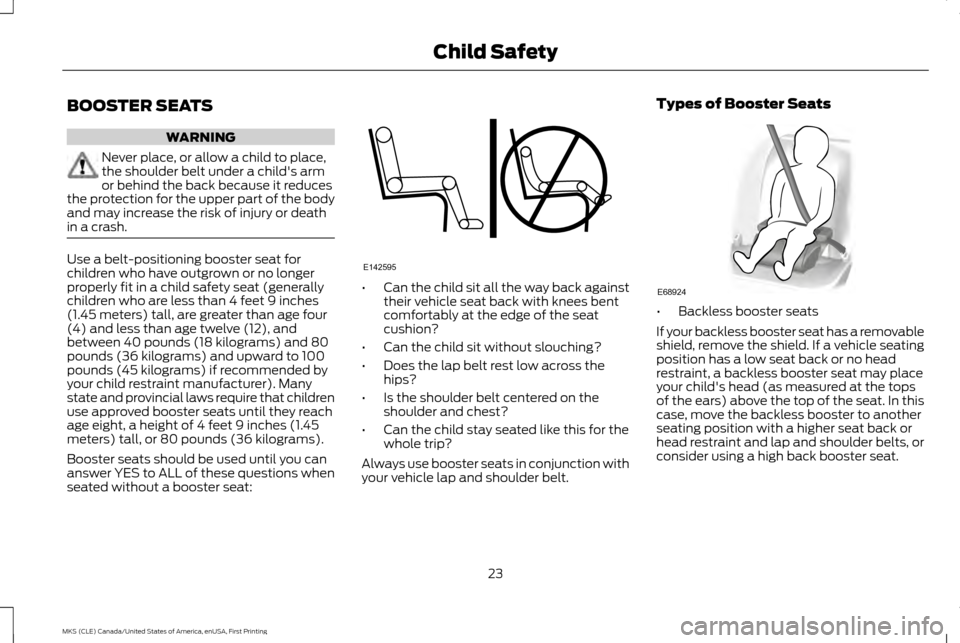

BOOSTER SEATS
WARNING
Never place, or allow a child to place,
the shoulder belt under a child's arm
or behind the back because it reduces
the protection for the upper part of the body
and may increase the risk of injury or death
in a crash. Use a belt-positioning booster seat for
children who have outgrown or no longer
properly fit in a child safety seat (generally
children who are less than 4 feet 9 inches
(1.45 meters) tall, are greater than age four
(4) and less than age twelve (12), and
between 40 pounds (18 kilograms) and 80
pounds (36 kilograms) and upward to 100
pounds (45 kilograms) if recommended by
your child restraint manufacturer). Many
state and provincial laws require that children
use approved booster seats until they reach
age eight, a height of 4 feet 9 inches (1.45
meters) tall, or 80 pounds (36 kilograms).
Booster seats should be used until you can
answer YES to ALL of these questions when
seated without a booster seat:
•
Can the child sit all the way back against
their vehicle seat back with knees bent
comfortably at the edge of the seat
cushion?
• Can the child sit without slouching?
• Does the lap belt rest low across the
hips?
• Is the shoulder belt centered on the
shoulder and chest?
• Can the child stay seated like this for the
whole trip?
Always use booster seats in conjunction with
your vehicle lap and shoulder belt. Types of Booster Seats
•
Backless booster seats
If your backless booster seat has a removable
shield, remove the shield. If a vehicle seating
position has a low seat back or no head
restraint, a backless booster seat may place
your child's head (as measured at the tops
of the ears) above the top of the seat. In this
case, move the backless booster to another
seating position with a higher seat back or
head restraint and lap and shoulder belts, or
consider using a high back booster seat.
23
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE142595 E68924

•

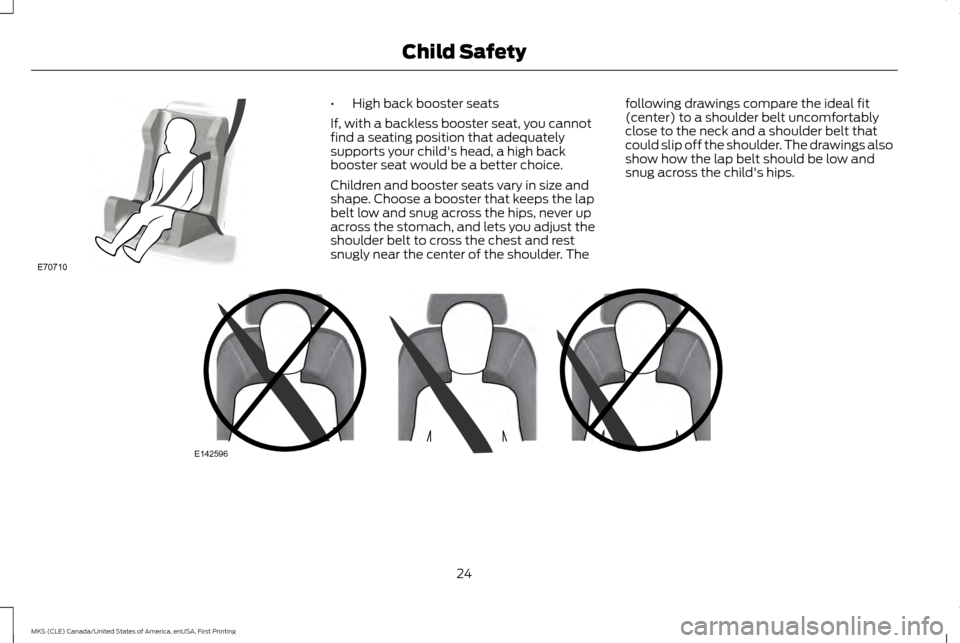

High back booster seats
If, with a backless booster seat, you cannot
find a seating position that adequately
supports your child's head, a high back
booster seat would be a better choice.
Children and booster seats vary in size and
shape. Choose a booster that keeps the lap
belt low and snug across the hips, never up
across the stomach, and lets you adjust the
shoulder belt to cross the chest and rest
snugly near the center of the shoulder. The following drawings compare the ideal fit
(center) to a shoulder belt uncomfortably
close to the neck and a shoulder belt that
could slip off the shoulder. The drawings also
show how the lap belt should be low and
snug across the child's hips.
24
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE70710 E142596

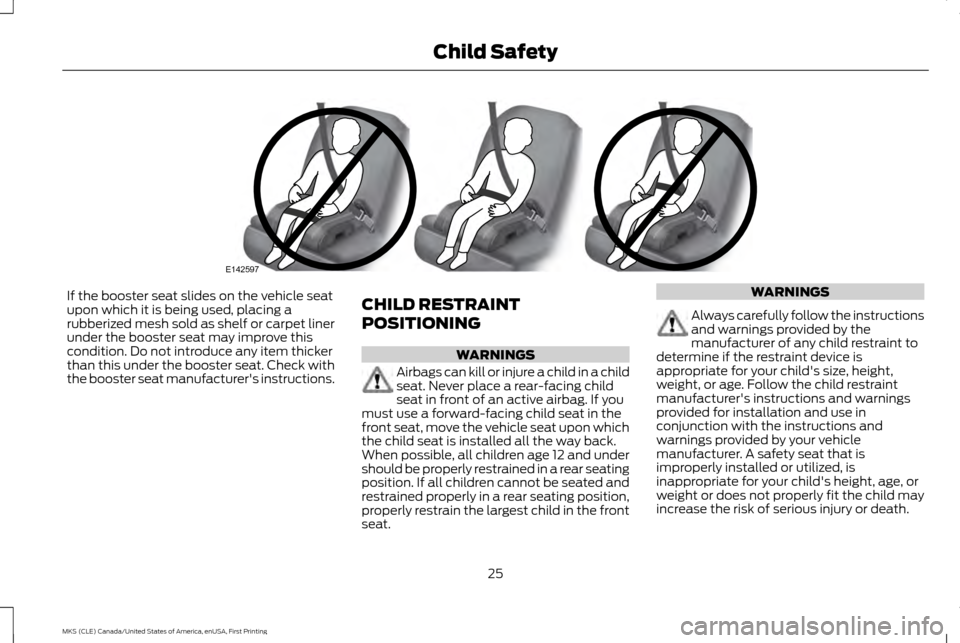

If the booster seat slides on the vehicle seat
upon which it is being used, placing a
rubberized mesh sold as shelf or carpet liner
under the booster seat may improve this
condition. Do not introduce any item thicker
than this under the booster seat. Check with
the booster seat manufacturer's instructions.
CHILD RESTRAINT
POSITIONING WARNINGS
Airbags can kill or injure a child in a child
seat. Never place a rear-facing child
seat in front of an active airbag. If you
must use a forward-facing child seat in the
front seat, move the vehicle seat upon which
the child seat is installed all the way back.
When possible, all children age 12 and under
should be properly restrained in a rear seating
position. If all children cannot be seated and
restrained properly in a rear seating position,
properly restrain the largest child in the front
seat. WARNINGS
Always carefully follow the instructions
and warnings provided by the
manufacturer of any child restraint to
determine if the restraint device is
appropriate for your child's size, height,
weight, or age. Follow the child restraint
manufacturer's instructions and warnings
provided for installation and use in
conjunction with the instructions and
warnings provided by your vehicle
manufacturer. A safety seat that is
improperly installed or utilized, is
inappropriate for your child's height, age, or
weight or does not properly fit the child may
increase the risk of serious injury or death.
25
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE142597

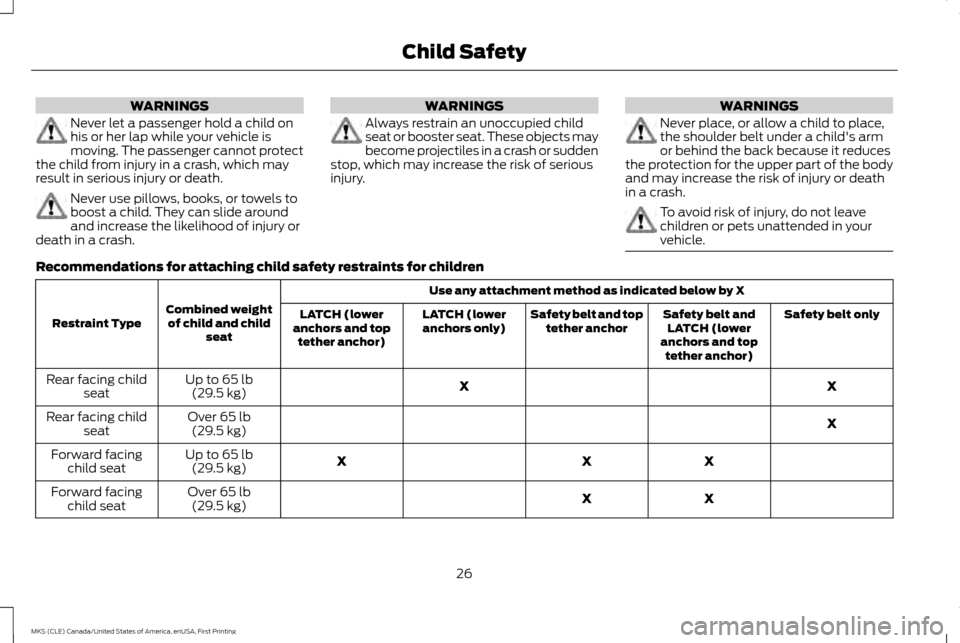

WARNINGS
Never let a passenger hold a child on
his or her lap while your vehicle is
moving. The passenger cannot protect
the child from injury in a crash, which may
result in serious injury or death. Never use pillows, books, or towels to
boost a child. They can slide around
and increase the likelihood of injury or
death in a crash. WARNINGS
Always restrain an unoccupied child
seat or booster seat. These objects may
become projectiles in a crash or sudden
stop, which may increase the risk of serious
injury. WARNINGS
Never place, or allow a child to place,
the shoulder belt under a child's arm
or behind the back because it reduces
the protection for the upper part of the body
and may increase the risk of injury or death
in a crash. To avoid risk of injury, do not leave
children or pets unattended in your
vehicle.
Recommendations for attaching child safety restraints for children
Use any attachment method as indicated below by X
Combined weight of child and child seat
Restraint Type
Safety belt only
Safety belt and
LATCH (lower
anchors and top tether anchor)
Safety belt and top
tether anchor
LATCH (lower
anchors only)
LATCH (lower
anchors and top tether anchor)
X
X
Up to 65 lb
(29.5 kg)
Rear facing child
seat
X
Over
65 lb
(29.5 kg)
Rear facing child
seat
X
X
X
Up to
65 lb
(29.5 kg)
Forward facing
child seat
X
X
Over
65 lb
(29.5 kg)
Forward facing
child seat
26
MKS (CLE) Canada/United States of America, enUSA, First Printing Child Safety

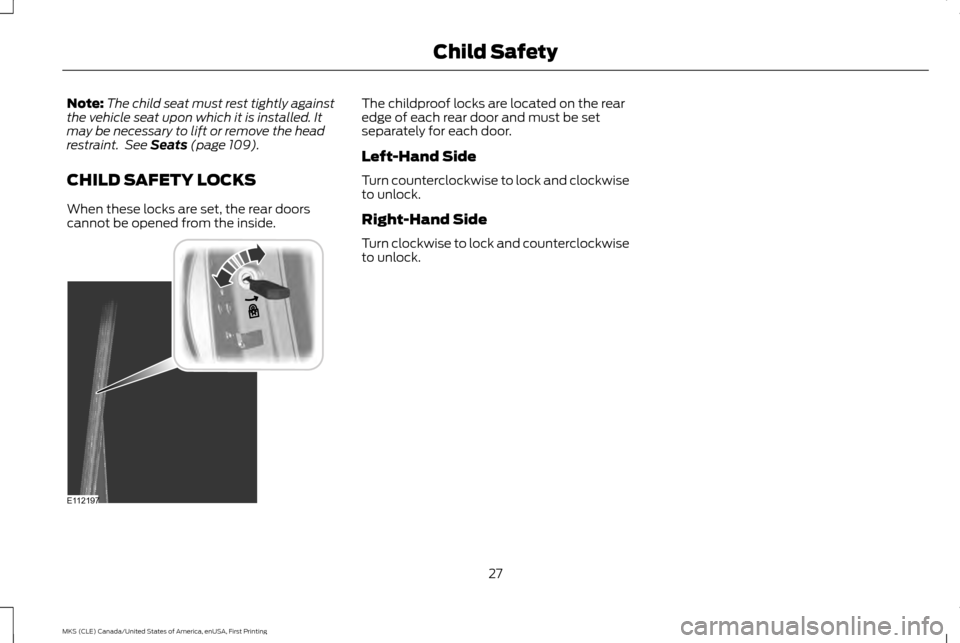

Note:
The child seat must rest tightly against
the vehicle seat upon which it is installed. It
may be necessary to lift or remove the head
restraint. See Seats (page 109).
CHILD SAFETY LOCKS
When these locks are set, the rear doors
cannot be opened from the inside. The childproof locks are located on the rear
edge of each rear door and must be set
separately for each door.
Left-Hand Side
Turn counterclockwise to lock and clockwise
to unlock.
Right-Hand Side
Turn clockwise to lock and counterclockwise
to unlock.
27
MKS (CLE) Canada/United States of America, enUSA, First Printing Child SafetyE112197
