headlamp LINCOLN MKT 2012 Owner's Manual

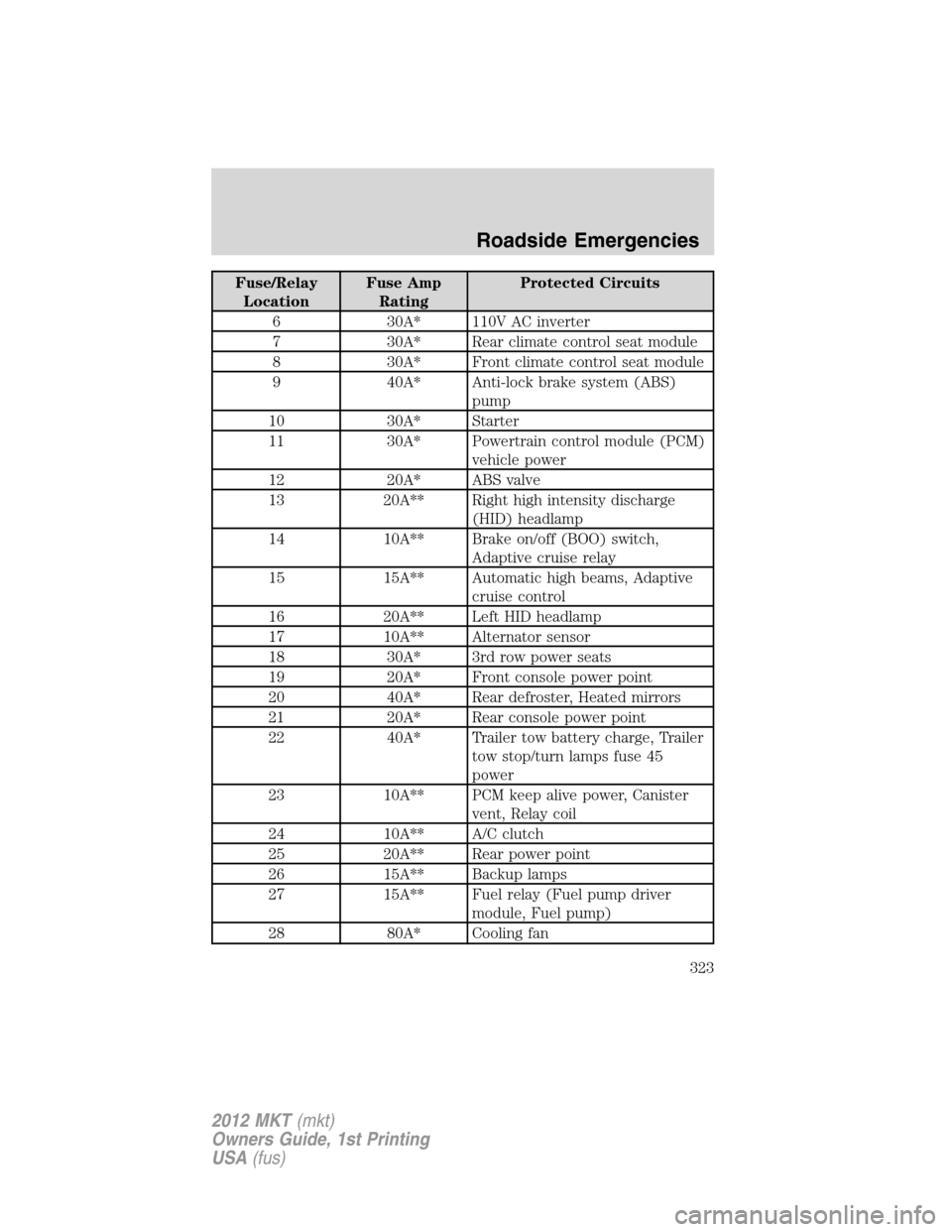

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
6 30A* 110V AC inverter
7 30A* Rear climate control seat module
8 30A* Front climate control seat module
9 40A* Anti-lock brake system (ABS)
pump
10 30A* Starter
11 30A* Powertrain control module (PCM)
vehicle power
12 20A* ABS valve
13 20A** Right high intensity discharge
(HID) headlamp
14 10A** Brake on/off (BOO) switch,
Adaptive cruise relay
15 15A** Automatic high beams, Adaptive
cruise control
16 20A** Left HID headlamp
17 10A** Alternator sensor
18 30A* 3rd row power seats
19 20A* Front console power point
20 40A* Rear defroster, Heated mirrors
21 20A* Rear console power point
22 40A* Trailer tow battery charge, Trailer
tow stop/turn lamps fuse 45
power
23 10A** PCM keep alive power, Canister
vent, Relay coil
24 10A** A/C clutch
25 20A** Rear power point
26 15A** Backup lamps
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 80A* Cooling fan
Roadside Emergencies
323
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

E

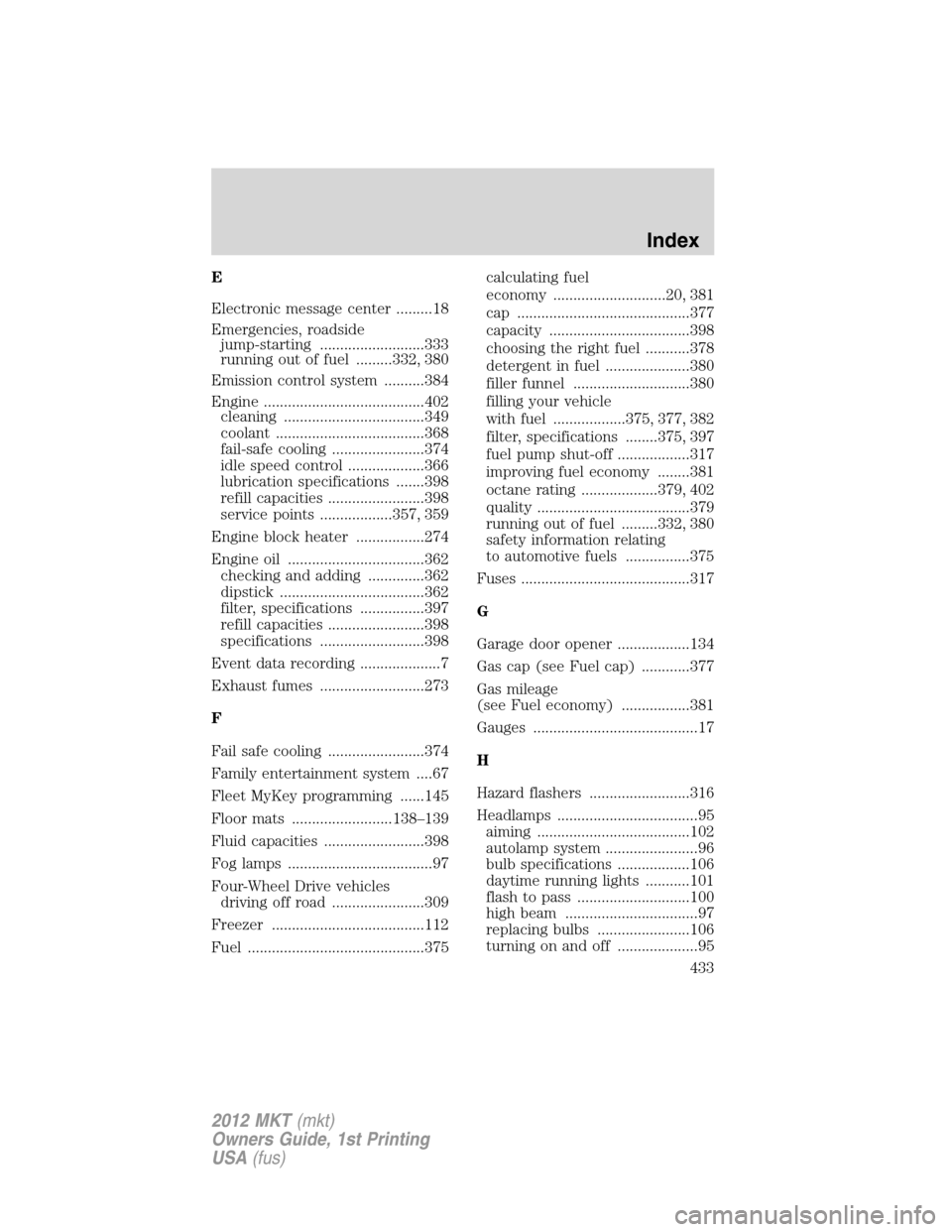

Electronic message center .........18
Emergencies, roadside
jump-starting ..........................333
running out of fuel .........332, 380
Emission control system ..........384
Engine ........................................402
cleaning ...................................349
coolant .....................................368
fail-safe cooling .......................374
idle speed control ...................366
lubrication specifications .......398
refill capacities ........................398
service points ..................357, 359
Engine block heater .................274
Engine oil ..................................362
checking and adding ..............362
dipstick ....................................362
filter, specifications ................397
refill capacities ........................398
specifications ..........................398
Event data recording ....................7
Exhaust fumes ..........................273
F
Fail safe cooling ........................374
Family entertainment system ....67
Fleet MyKey programming ......145
Floor mats .........................138–139
Fluid capacities .........................398
Fog lamps ....................................97
Four-Wheel Drive vehicles
driving off road .......................309
Freezer ......................................112
Fuel ............................................375calculating fuel
economy ............................20, 381
cap ...........................................377
capacity ...................................398
choosing the right fuel ...........378
detergent in fuel .....................380
filler funnel .............................380
filling your vehicle
with fuel ..................375, 377, 382
filter, specifications ........375, 397
fuel pump shut-off ..................317
improving fuel economy ........381
octane rating ...................379, 402
quality ......................................379
running out of fuel .........332, 380
safety information relating
to automotive fuels ................375
Fuses ..........................................317
G
Garage door opener ..................134
Gas cap (see Fuel cap) ............377
Gas mileage
(see Fuel economy) .................381
Gauges .........................................17
H
Hazard flashers .........................316
Headlamps ...................................95
aiming ......................................102
autolamp system .......................96
bulb specifications ..................106
daytime running lights ...........101
flash to pass ............................100
high beam .................................97
replacing bulbs .......................106
turning on and off ....................95
Index
433
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

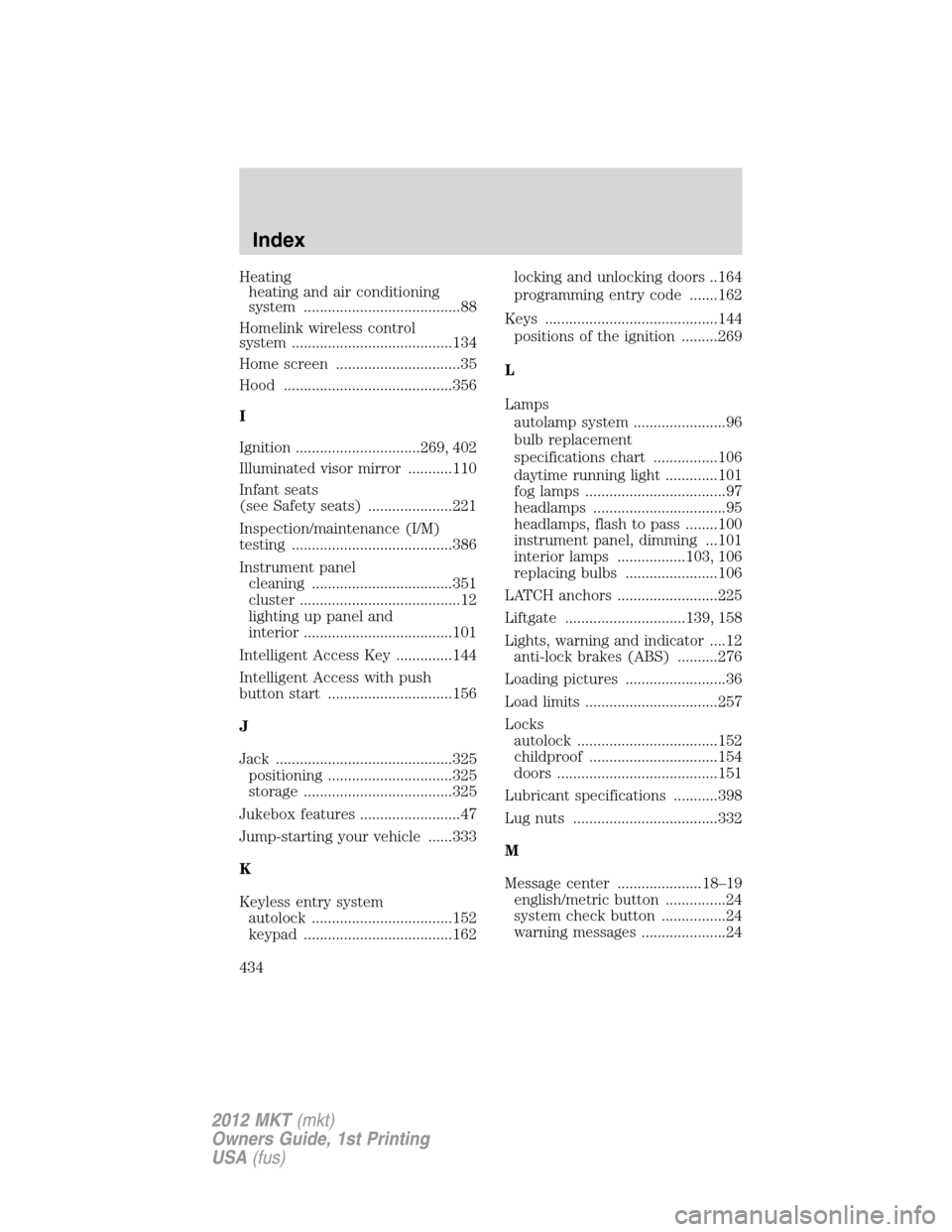

Heating
heating and air conditioning
system .......................................88
Homelink wireless control
system ........................................134
Home screen ...............................35
Hood ..........................................356
I
Ignition ...............................269, 402
Illuminated visor mirror ...........110
Infant seats
(see Safety seats) .....................221
Inspection/maintenance (I/M)
testing ........................................386
Instrument panel
cleaning ...................................351
cluster ........................................12
lighting up panel and
interior .....................................101
Intelligent Access Key ..............144
Intelligent Access with push
button start ...............................156
J
Jack ............................................325
positioning ...............................325
storage .....................................325
Jukebox features .........................47
Jump-starting your vehicle ......333
K
Keyless entry system
autolock ...................................152
keypad .....................................162locking and unlocking doors ..164
programming entry code .......162
Keys ...........................................144
positions of the ignition .........269
L
Lamps
autolamp system .......................96
bulb replacement
specifications chart ................106
daytime running light .............101
fog lamps ...................................97
headlamps .................................95
headlamps, flash to pass ........100
instrument panel, dimming ...101
interior lamps .................103, 106
replacing bulbs .......................106
LATCH anchors .........................225
Liftgate ..............................139, 158
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........276
Loading pictures .........................36
Load limits .................................257
Locks
autolock ...................................152
childproof ................................154
doors ........................................151
Lubricant specifications ...........398
Lug nuts ....................................332
M
Message center .....................18–19
english/metric button ...............24
system check button ................24
warning messages .....................24
Index
434
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
