sensor LINCOLN MKT 2012 Owner's Guide

LINCOLN MKT 2012 Owner's Guide MKT 2012 LINCOLN LINCOLN https://www.carmanualsonline.info/img/15/6927/w960_6927-0.png LINCOLN MKT 2012 Owner's Guide

Page 304 of 437

LINCOLN MKT 2012 Owners Guide Cross traffic alert (CTA) system operation
The CTA system warns the driver of approaching vehicles when R
(Reverse) is selected and the vehicle is backing out of a front-in parking
spot. It sounds a s

Page 305 of 437

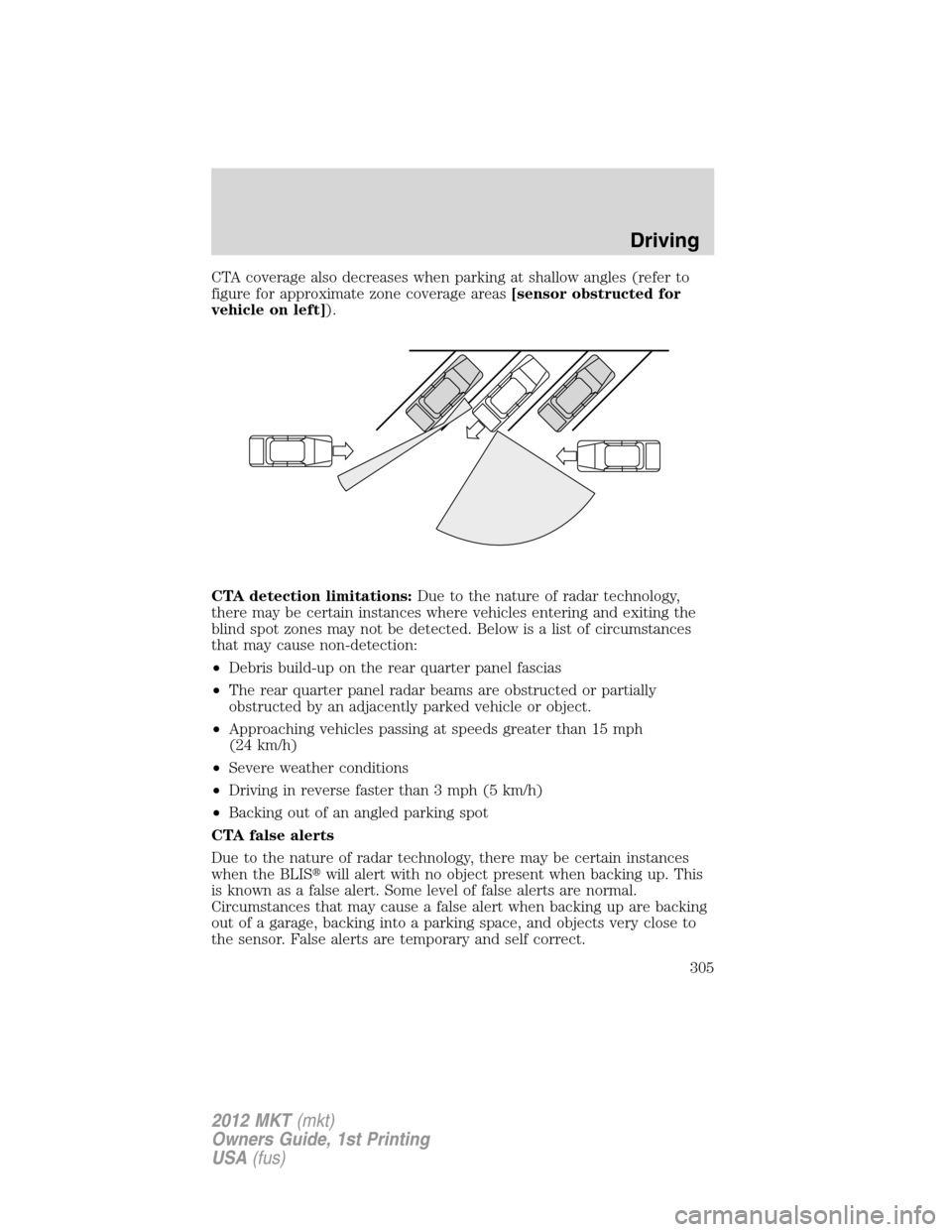

LINCOLN MKT 2012 Owners Guide CTA coverage also decreases when parking at shallow angles (refer to
figure for approximate zone coverage areas[sensor obstructed for
vehicle on left]).
CTA detection limitations:Due to the nature of

Page 306 of 437

LINCOLN MKT 2012 Owners Guide CTA and reverse sensing system (RSS) interaction
CTA works along with the reverse sensing system (RSS) (if equipped).
Become familiar with the warning tones of both systems.
BLISand/or CTA on/off and

Page 308 of 437

LINCOLN MKT 2012 Owners Guide Trailer tow false alerts
When towing a trailer, the sensors may detect the trailer thus causing a
false alert. It may be desirable to turn the BLISoff if the false alerts
become annoying.
Day and nig

Page 321 of 437

LINCOLN MKT 2012 Owners Guide Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
27 20A Ignition Switch, IA
28 5A Radio mute
29 5A Instrument panel cluster
30 5A Transmission shifter
31 10A Steering angle sensor, Heads-up
displa

Page 323 of 437

LINCOLN MKT 2012 Owners Guide Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
6 30A* 110V AC inverter
7 30A* Rear climate control seat module
8 30A* Front climate control seat module
9 40A* Anti-lock brake system (ABS)
pump
1

Page 325 of 437

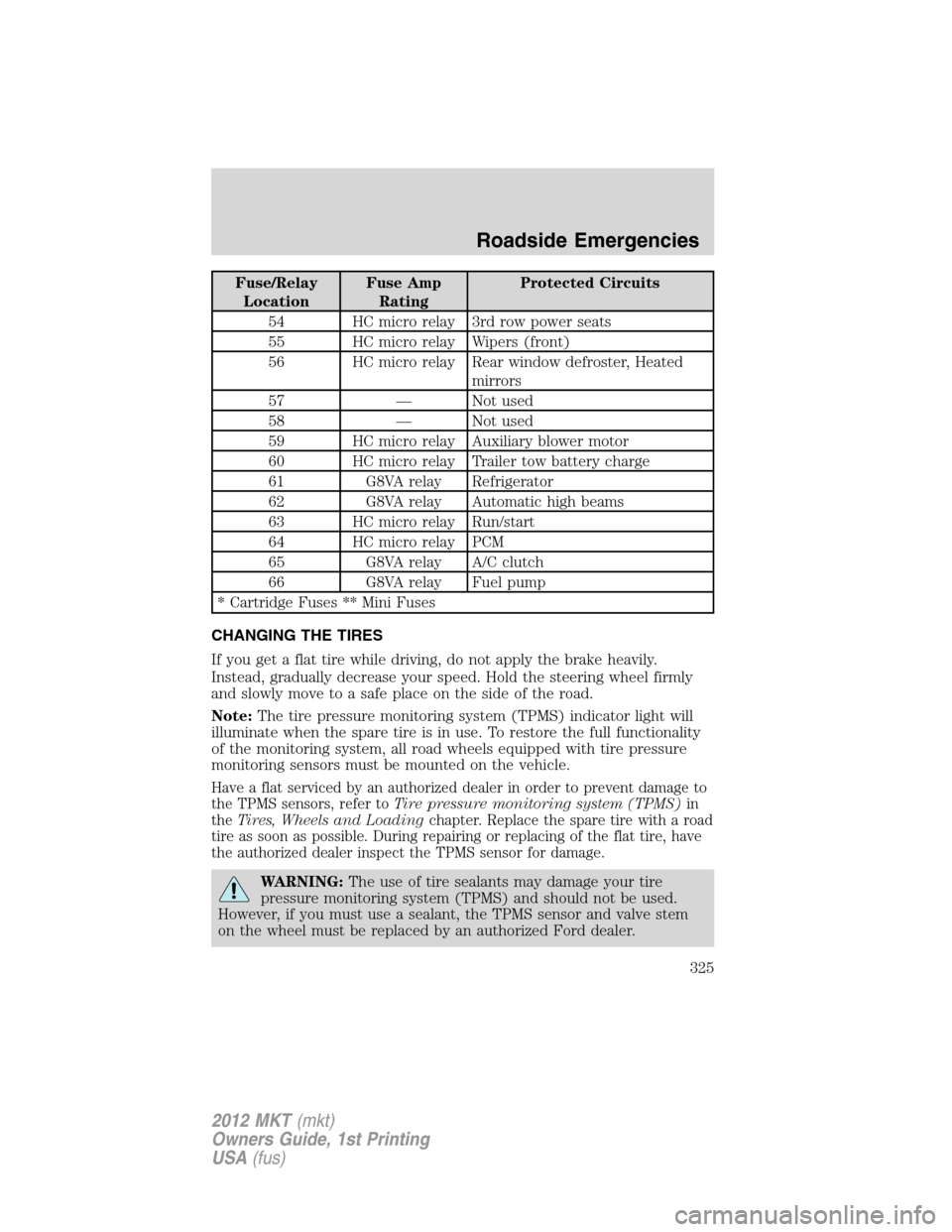

LINCOLN MKT 2012 Owners Guide Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
54 HC micro relay 3rd row power seats
55 HC micro relay Wipers (front)
56 HC micro relay Rear window defroster, Heated
mirrors
57 — Not used
58

Page 326 of 437

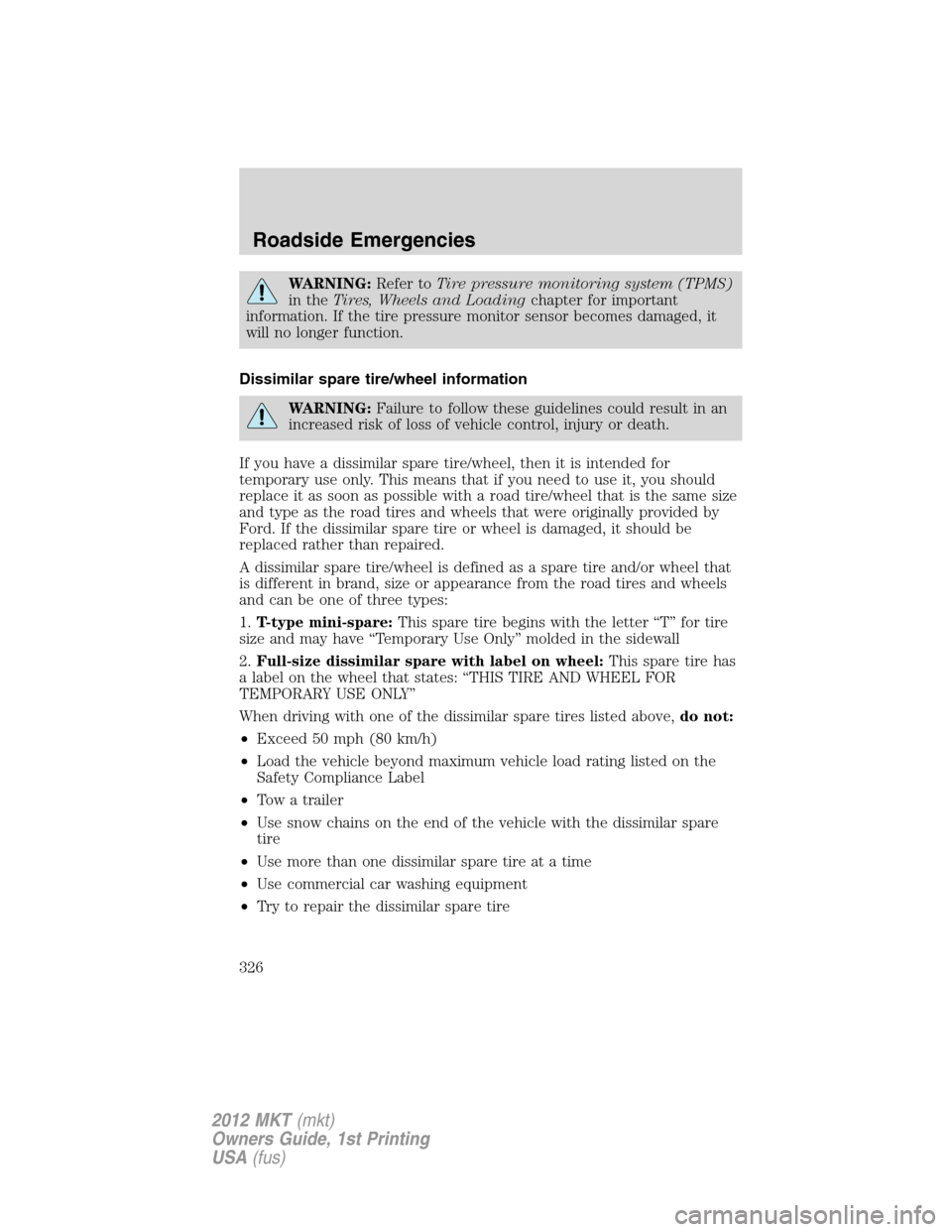

LINCOLN MKT 2012 Owners Guide WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function

Page 390 of 437

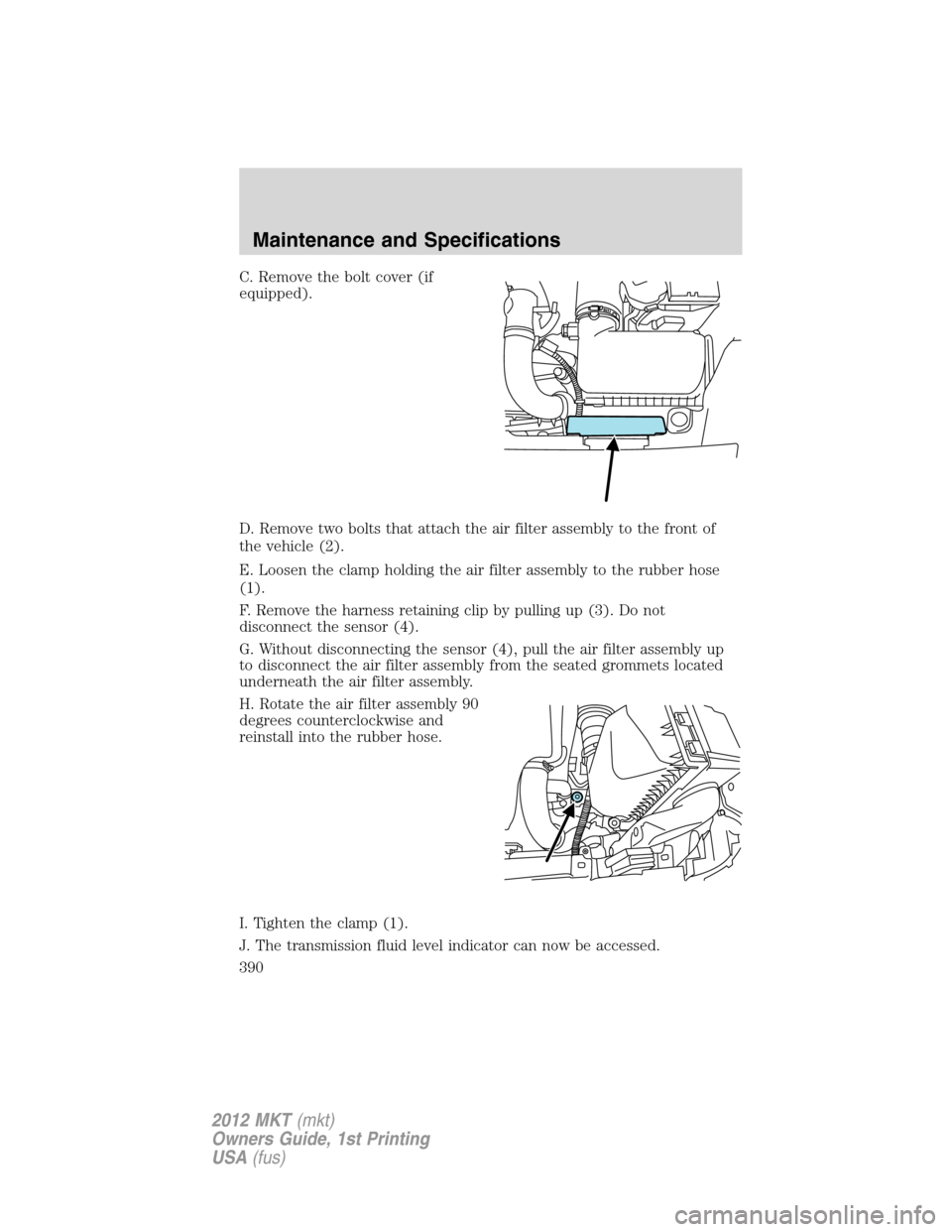

LINCOLN MKT 2012 Owners Guide C. Remove the bolt cover (if
equipped).
D. Remove two bolts that attach the air filter assembly to the front of
the vehicle (2).
E. Loosen the clamp holding the air filter assembly to the rubber hose

Page 392 of 437

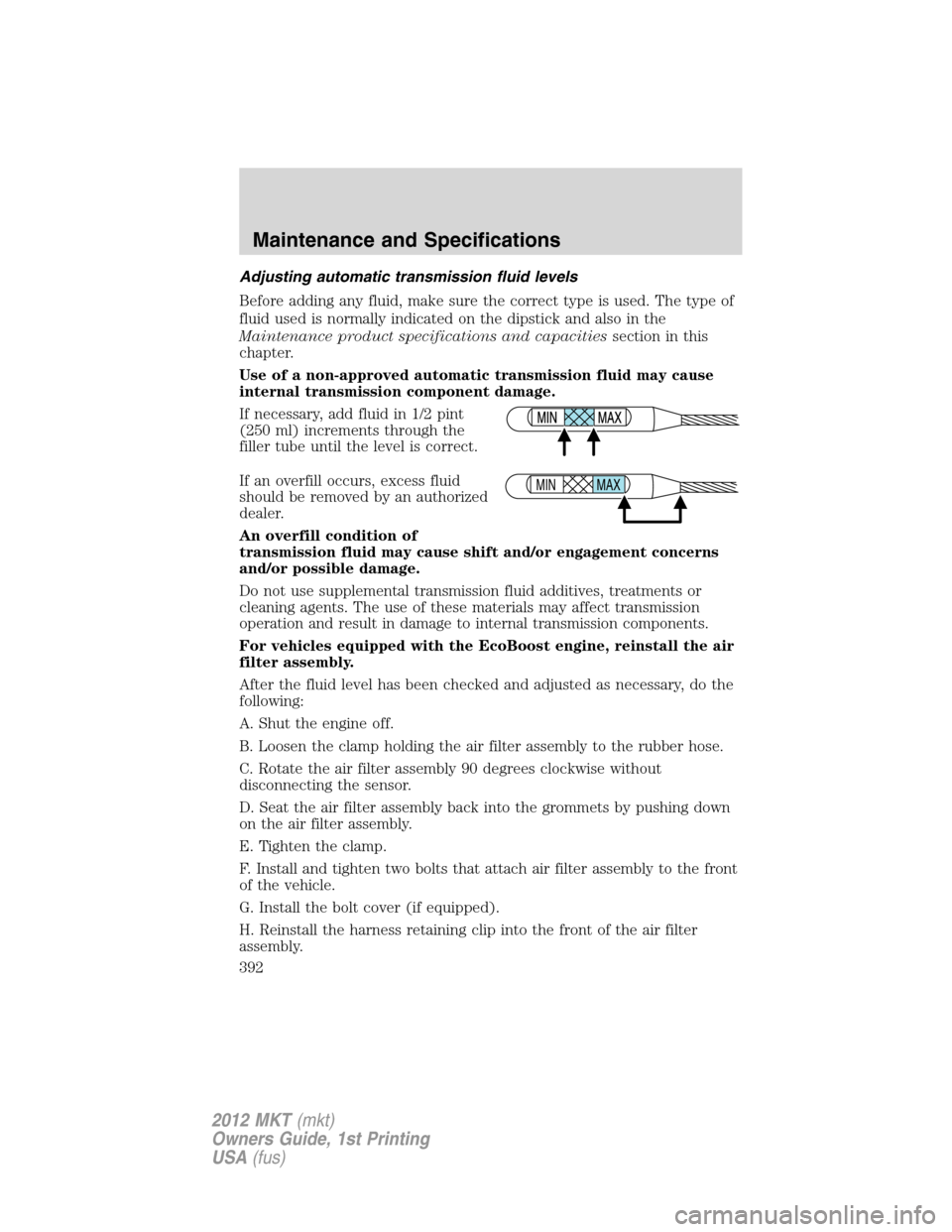

LINCOLN MKT 2012 Owners Guide Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance prod
