LINCOLN MKT 2012 Owners Manual

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)MotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Add the coolant type originally equipped in your vehicle.4Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A (3.7L V6 engine) or WSS-M2C946-A (3.5L V6
EcoBoost™ engine) and the API Certification mark.5See your authorized dealer for fluid level checking or filling.
Maintenance and Specifications
401
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

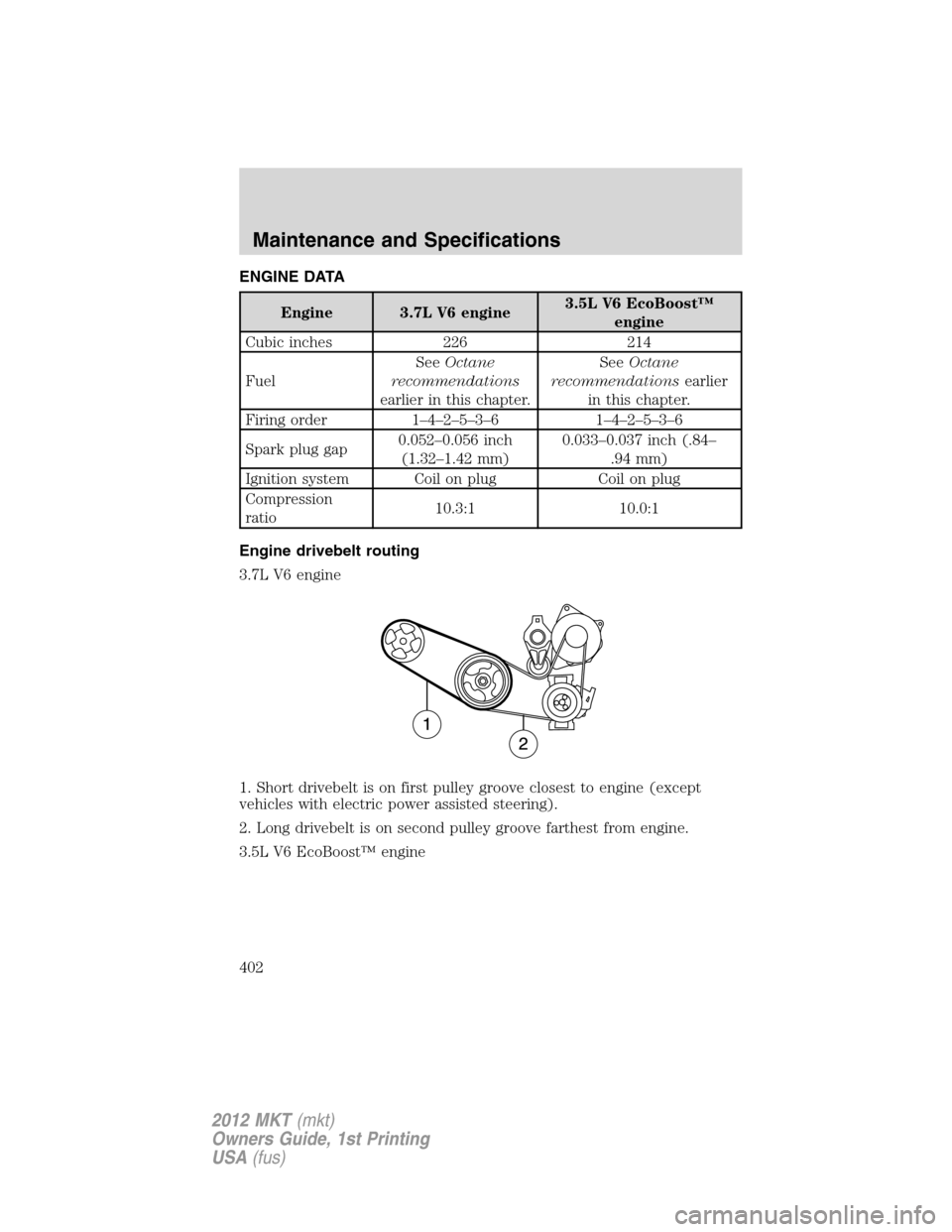

ENGINE DATA
Engine 3.7L V6 engine3.5L V6 EcoBoost™
engine
Cubic inches 226 214
FuelSeeOctane
recommendations
earlier in this chapter.SeeOctane
recommendationsearlier
in this chapter.
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Spark plug gap0.052–0.056 inch
(1.32–1.42 mm)0.033–0.037 inch (.84–
.94 mm)
Ignition system Coil on plug Coil on plug
Compression
ratio10.3:1 10.0:1
Engine drivebelt routing
3.7L V6 engine
1. Short drivebelt is on first pulley groove closest to engine (except
vehicles with electric power assisted steering).
2. Long drivebelt is on second pulley groove farthest from engine.
3.5L V6 EcoBoost™ engine
Maintenance and Specifications
402
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

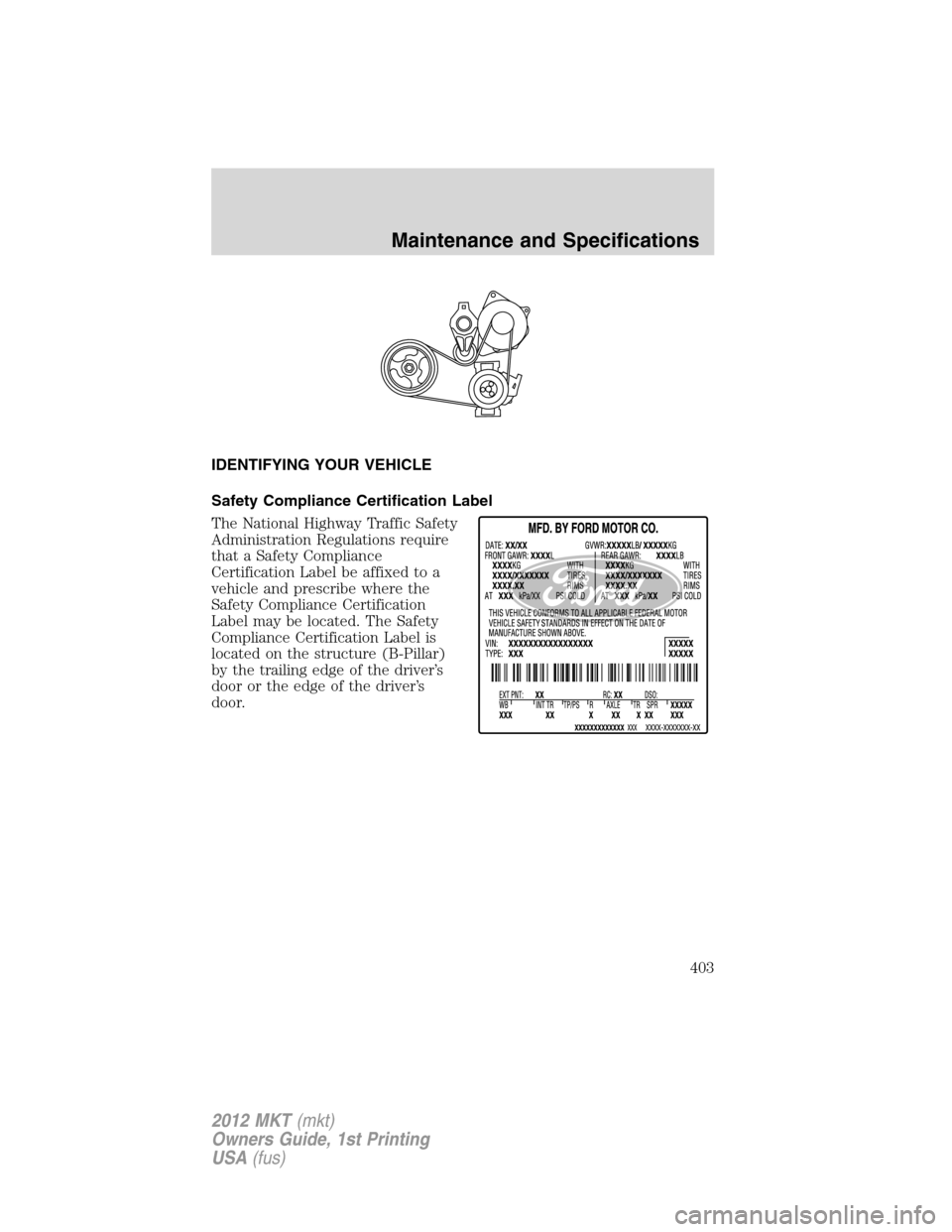

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
403
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

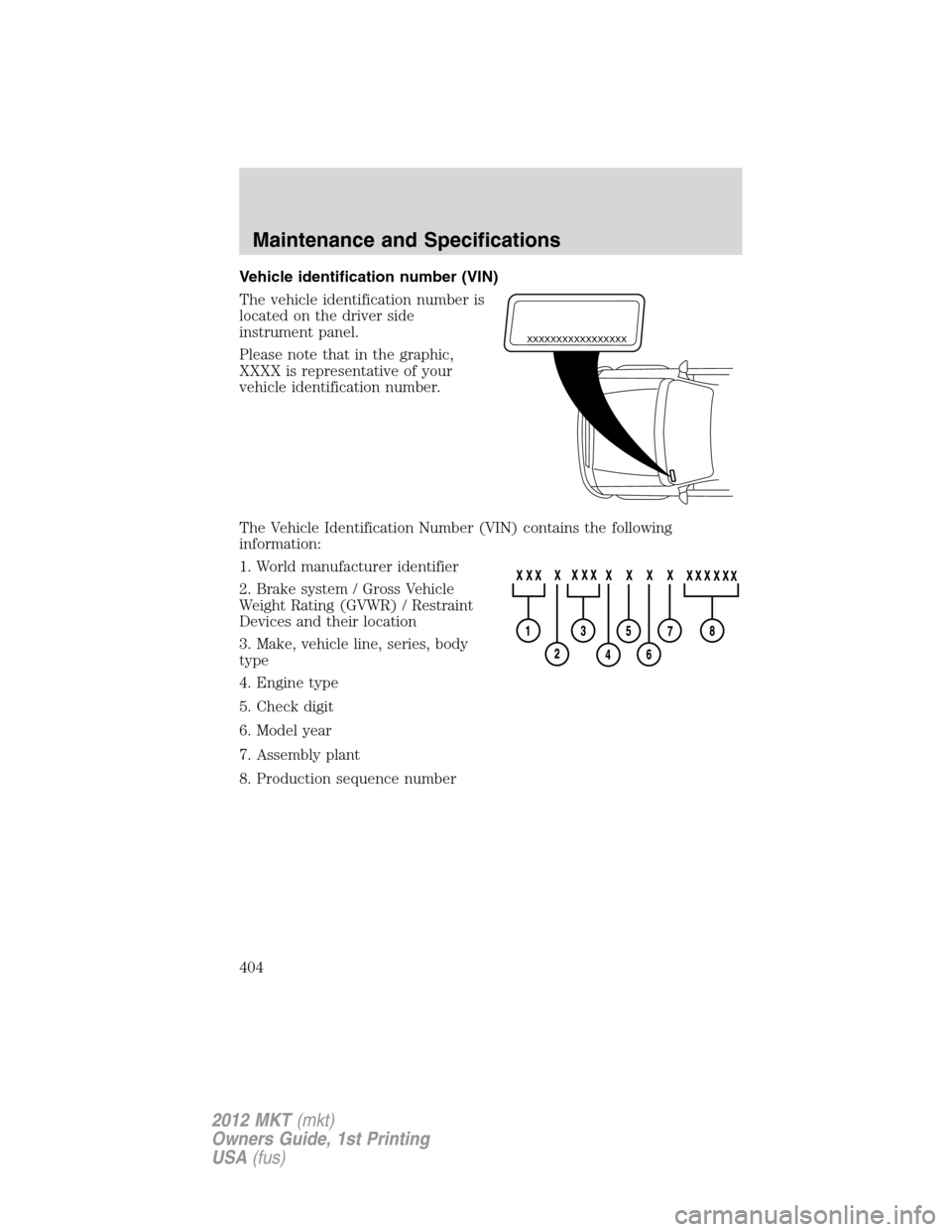

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
404
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

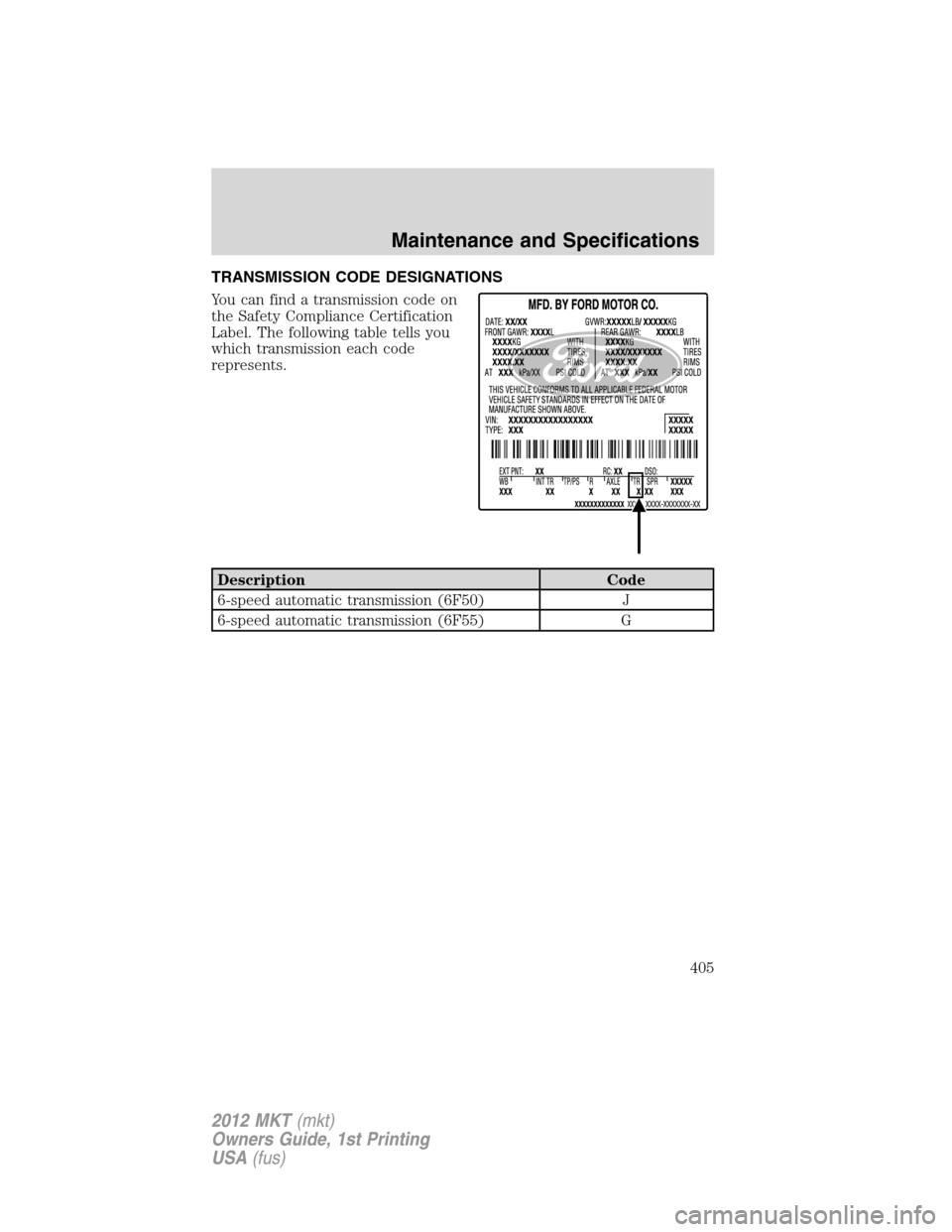

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) G
Maintenance and Specifications
405
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

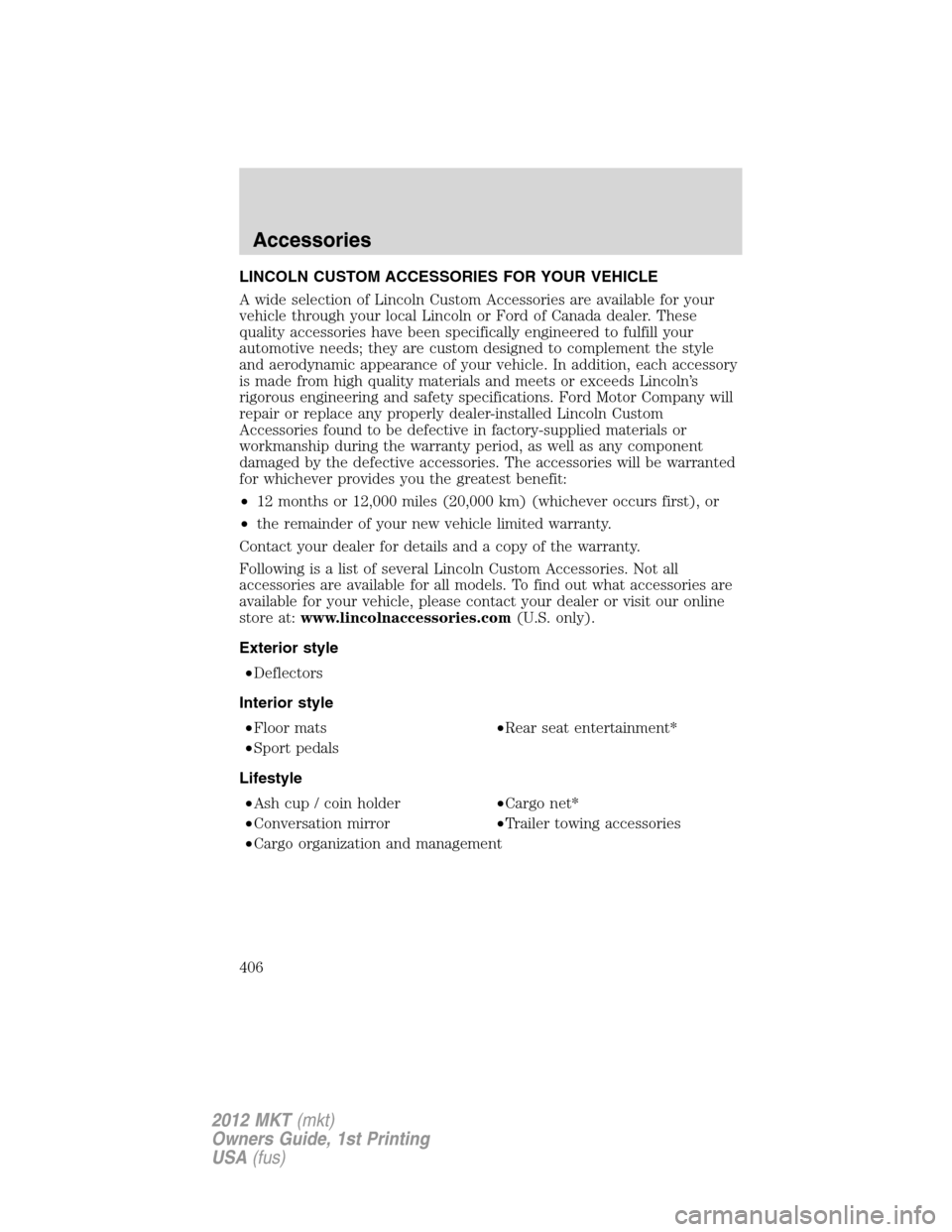

LINCOLN CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Lincoln Custom Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Lincoln Custom
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Lincoln Custom Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at:www.lincolnaccessories.com(U.S. only).
Exterior style
•Deflectors
Interior style
•Floor mats•Rear seat entertainment*
•Sport pedals
Lifestyle
•Ash cup / coin holder•Cargo net*
•Conversation mirror•Trailer towing accessories
•Cargo organization and management
Accessories
406
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

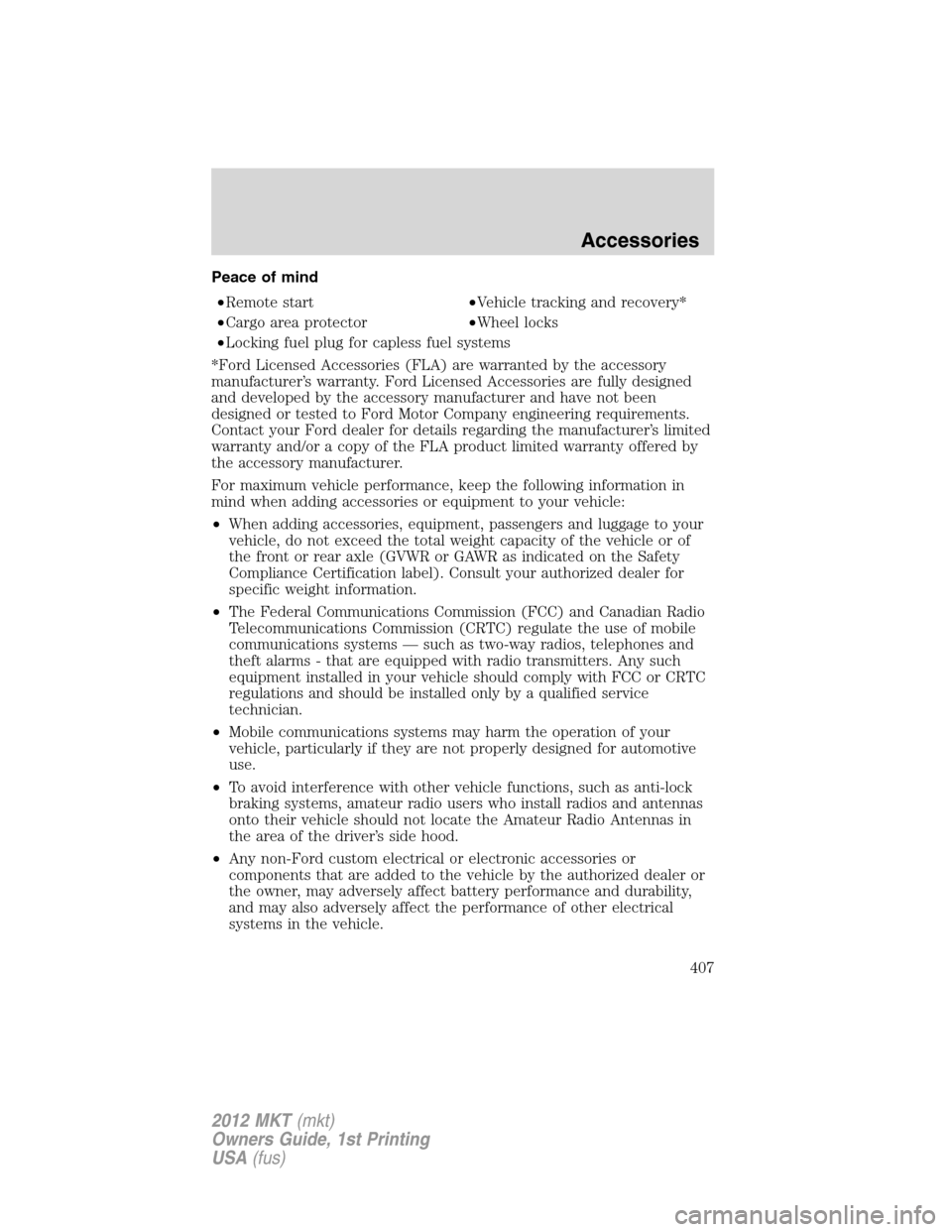

Peace of mind
•Remote start•Vehicle tracking and recovery*
•Cargo area protector•Wheel locks
•Locking fuel plug for capless fuel systems
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Any non-Ford custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner, may adversely affect battery performance and durability,
and may also adversely affect the performance of other electrical
systems in the vehicle.
Accessories
407
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

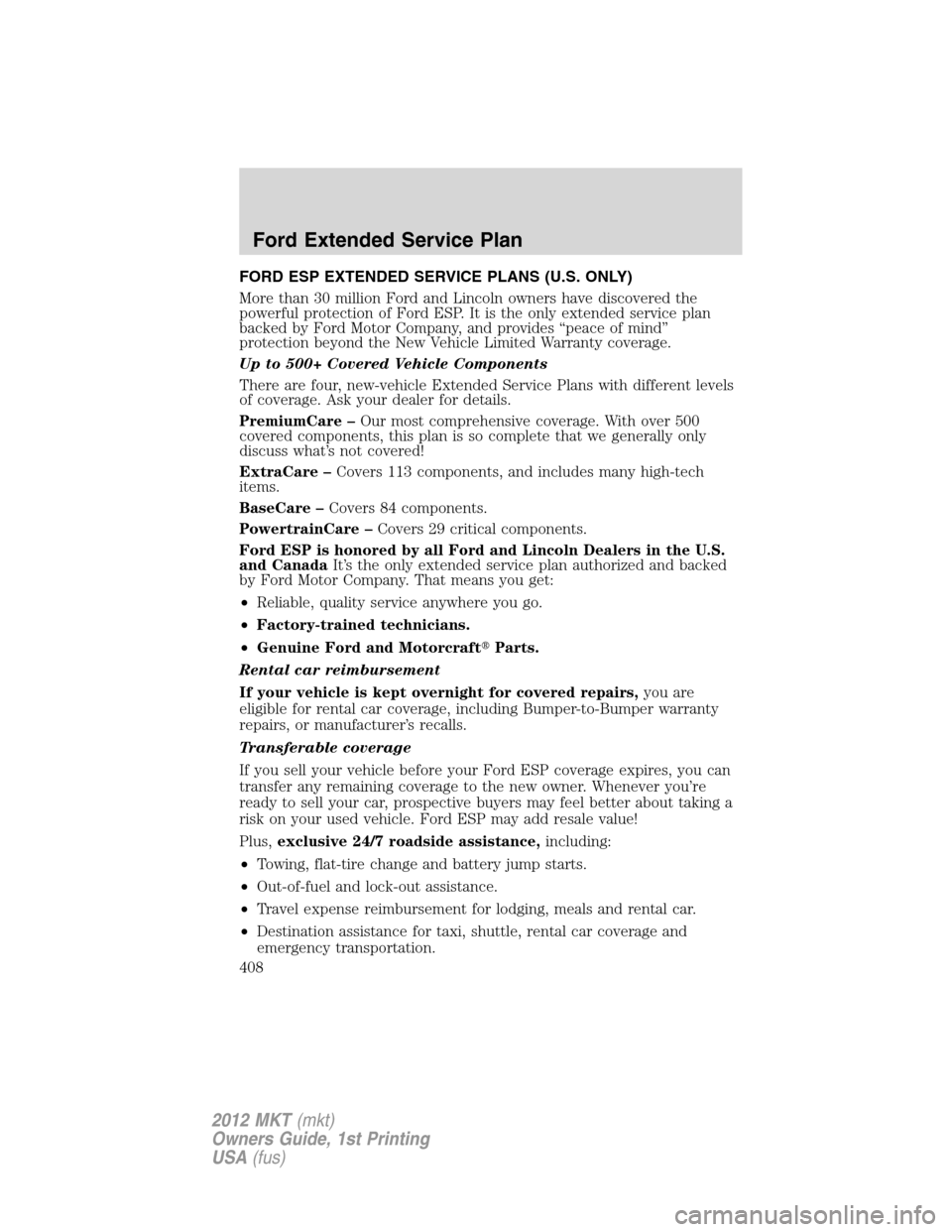

FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 30 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and CanadaIt’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and MotorcraftParts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
408
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
409
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

Ford Extended Service Plan
