Page 81 of 437
2. Press/to ’highlight’ the monitor icon. (A disc will appear
beneath the icon signifying it is the current selection.)
3. Press
to select and enter the OSD language menu.
4. When OSD Lang is highlighted, press
to access the menu.
5. Press
/to select from all available languages.
6. When the desired language is highlighted, press ENTER on the remote
to confirm the selection.
Note:The default language is English.
Angle mark
This feature allows you to select
from different viewing angles that
may be found on the disc. This is a
disc dependent feature. If the DVD
does not have this capability, it will
not be available.
Note:This is a disc dependent
feature.
To access:
1. Press SETUP on the remote to access the menu options.
2. Press
/to ’highlight’ the monitor icon. (A disc will appear
beneath the icon signifying it is the current selection.)
3. Press
to select and enter the TV display menu.
4. When Angle Mark is highlighted, press
to access the menu.
5. Press
/to select from all available angles.
6. When the desired language is highlighted, press ENTER on the remote
to confirm the selection.
Entertainment Systems
81
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
Page 82 of 437
Speaker setup
This screen allows you to adjust the
audio balance for your speakers. To
access:
1. Press SETUP on the remote to access the menu options.
2. Press
/to ’highlight’ the speaker icon. (A disc will appear
beneath the icon signifying it is the current selection.)
3. Press
to select and enter the Speaker setup menu.
4. When Downmix is highlighted, press
to access the menu.
5. Press
/to select from left/right and stereo.
6. When the desired selection is highlighted, press ENTER on the remote
to confirm.
Video setup
The video setup screen allows you
to adjust the quality of the video
image for each headrest monitor. To
access:
1. Press SETUP on the remote to access the menu options.
2. Press
/to ’highlight’ the film reel icon. (A disc will appear
beneath the icon signifying it is the current selection.)
3. Press
to select and enter the Video setup menu.
Entertainment Systems
82
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

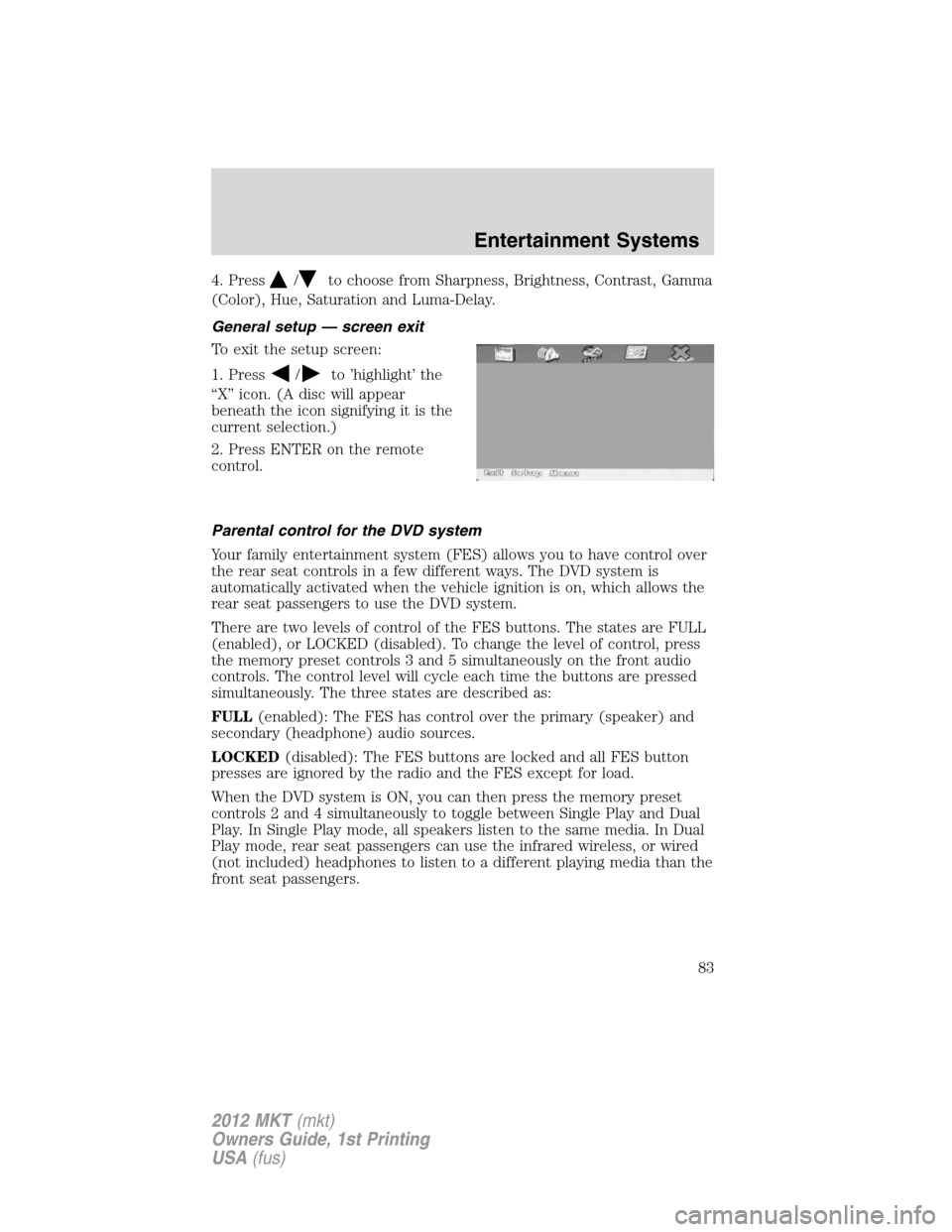

Page 83 of 437
4. Press/to choose from Sharpness, Brightness, Contrast, Gamma
(Color), Hue, Saturation and Luma-Delay.
General setup — screen exit
To exit the setup screen:
1. Press
/to ’highlight’ the
“X” icon. (A disc will appear
beneath the icon signifying it is the
current selection.)
2. Press ENTER on the remote
control.
Parental control for the DVD system
Your family entertainment system (FES) allows you to have control over
the rear seat controls in a few different ways. The DVD system is
automatically activated when the vehicle ignition is on, which allows the
rear seat passengers to use the DVD system.
There are two levels of control of the FES buttons. The states are FULL
(enabled), or LOCKED (disabled). To change the level of control, press
the memory preset controls 3 and 5 simultaneously on the front audio
controls. The control level will cycle each time the buttons are pressed
simultaneously. The three states are described as:
FULL(enabled): The FES has control over the primary (speaker) and
secondary (headphone) audio sources.
LOCKED(disabled): The FES buttons are locked and all FES button
presses are ignored by the radio and the FES except for load.
When the DVD system is ON, you can then press the memory preset
controls 2 and 4 simultaneously to toggle between Single Play and Dual
Play. In Single Play mode, all speakers listen to the same media. In Dual
Play mode, rear seat passengers can use the infrared wireless, or wired
(not included) headphones to listen to a different playing media than the
front seat passengers.
Entertainment Systems
83
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

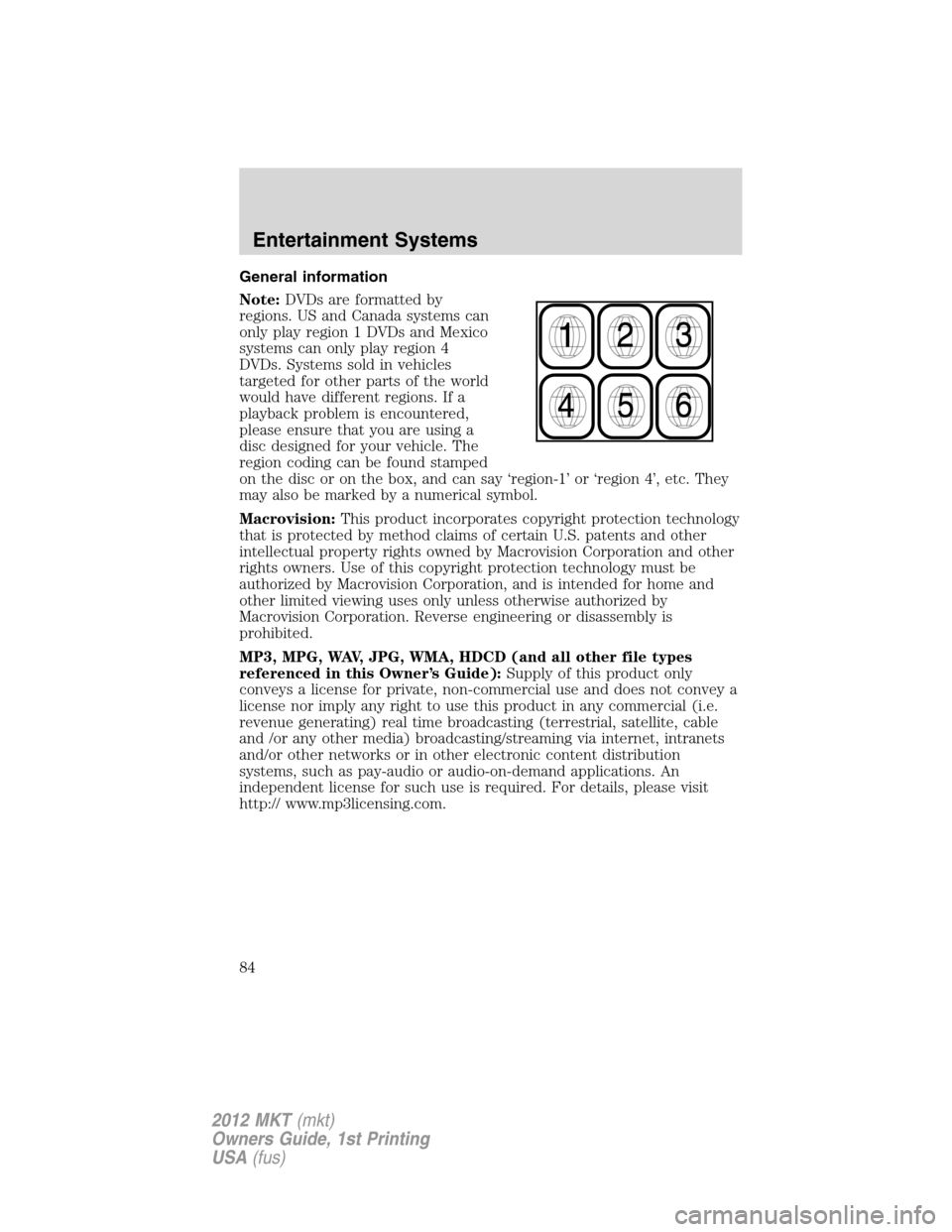

Page 84 of 437
General information
Note:DVDs are formatted by
regions. US and Canada systems can
only play region 1 DVDs and Mexico
systems can only play region 4
DVDs. Systems sold in vehicles
targeted for other parts of the world
would have different regions. If a
playback problem is encountered,
please ensure that you are using a
disc designed for your vehicle. The
region coding can be found stamped
on the disc or on the box, and can say ‘region-1’ or ‘region 4’, etc. They
may also be marked by a numerical symbol.
Macrovision:This product incorporates copyright protection technology
that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended for home and
other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
MP3, MPG, WAV, JPG, WMA, HDCD (and all other file types
referenced in this Owner’s Guide):Supply of this product only
conveys a license for private, non-commercial use and does not convey a
license nor imply any right to use this product in any commercial (i.e.
revenue generating) real time broadcasting (terrestrial, satellite, cable
and /or any other media) broadcasting/streaming via internet, intranets
and/or other networks or in other electronic content distribution
systems, such as pay-audio or audio-on-demand applications. An
independent license for such use is required. For details, please visit
http:// www.mp3licensing.com.
Entertainment Systems
84
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
Page 85 of 437
Safety information
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any handheld
device while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect the use of electronic devices while driving.
Read all of the safety and operating instructions before operating the
system and retain for future reference.
Do not attempt to service, repair or modify the Family Entertainment
System (FES). See your dealer.
Do not insert foreign objects into the DVD compartment.
WARNING:Do not leave children unattended in the vehicle and
do not let children operate the system while unsupervised. If
wired headphones or auxiliary systems are used, children may become
entangled in the cords and seriously injure themselves.
WARNING:The front glass on the liquid crystal display (LCD)
flip-down screen may break when hit with a hard surface. If the
glass breaks, do not touch the liquid crystalline material. In case of
contact with skin, wash immediately with soap and water.
WARNING:The driver should not attempt to operate any
function of the DVD system while the vehicle is in motion. Give
full attention to driving and to the road. Pull off the road in a safe
place before inserting or extracting DVDs from the system. A remote
control is included in the system to allow the rear seat occupants to
operate the FES functions without distracting the driver.
Do not expose the liquid crystal display (LCD) flip-down screen
to direct sunlight or intensive ultraviolet rays for extensive
periods of time. Ultraviolet rays deteriorate the liquid crystal.
Be sure to review User Manuals for video games and video game
equipment when used as auxiliary inputs for your Family Entertainment
System (FES).
Entertainment Systems
85
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

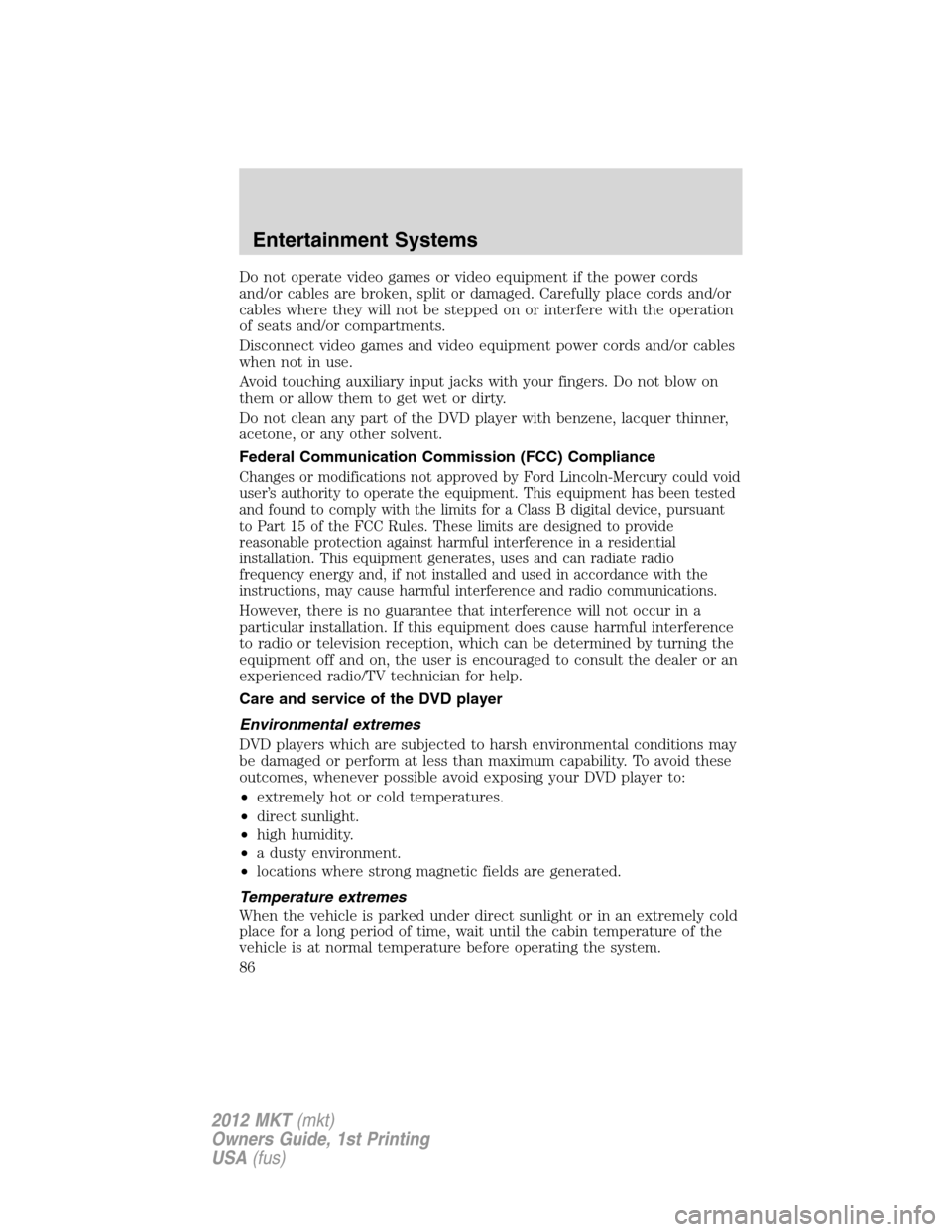

Page 86 of 437
Do not operate video games or video equipment if the power cords
and/or cables are broken, split or damaged. Carefully place cords and/or
cables where they will not be stepped on or interfere with the operation
of seats and/or compartments.
Disconnect video games and video equipment power cords and/or cables
when not in use.
Avoid touching auxiliary input jacks with your fingers. Do not blow on
them or allow them to get wet or dirty.
Do not clean any part of the DVD player with benzene, lacquer thinner,
acetone, or any other solvent.
Federal Communication Commission (FCC) Compliance
Changes or modifications not approved by Ford Lincoln-Mercury could void
user’s authority to operate the equipment. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference and radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Care and service of the DVD player
Environmental extremes
DVD players which are subjected to harsh environmental conditions may
be damaged or perform at less than maximum capability. To avoid these
outcomes, whenever possible avoid exposing your DVD player to:
•extremely hot or cold temperatures.
•direct sunlight.
•high humidity.
•a dusty environment.
•locations where strong magnetic fields are generated.
Temperature extremes
When the vehicle is parked under direct sunlight or in an extremely cold
place for a long period of time, wait until the cabin temperature of the
vehicle is at normal temperature before operating the system.
Entertainment Systems
86
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
Page 87 of 437
Humidity and moisture condensation
Moisture in the air will condense in the DVD player under extremely
humid conditions or when moving from a cold place to a warm one.
Moisture condensation may cause damage to the DVD and/or player. If
moisture condensation occurs, do not insert a CD or DVD into the
player. If one is already in the player, remove it. Turn the DVD player ON
to dry the moisture before inserting a DVD. This could take an hour or
more.
Foreign substances
Exercise care to prevent dirt and foreign objects from entering the DVD
player compartment. Be especially careful not to spill liquids of any kind
onto the media controls or into the system. If liquid is accidentally
spilled onto the system, immediately turn the system OFF and consult a
qualified service technician.
Cleaning the liquid crystal display (LCD) screen
Clean the display screen by applying a small amount of water or any
ammonia-based household glass cleaner directly to a soft cloth. Rub the
screen gently until the dust, dirt or fingerprints are removed. Do not
spray the screen directly with water or glass cleaning solvents. Overspray
from these fluids could drip down into the internal electronics of the
screen and cause damage. Do not apply excessive pressure while
cleaning the screen.
Cleaning DVD and CD discs
Inspect all discs for contamination before playing. If necessary, clean
discs only with an approved DVD and CD cleaner and wipe from the
center out to the edge. Do not use circular motion.
NAVIGATION SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a navigation system. Refer to the
Navigation Systemsupplement for further information.
SYNC
Your vehicle is equipped with SYNC, a hands-free communications and
entertainment system with special phone and media features. For more
information, please refer to theSYNCsupplement or to theSYNC
section in theNavigation Systemsupplement (if equipped).
Entertainment Systems
87
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
Page 88 of 437
DUAL ZONE AUTOMATIC TEMPERATURE CONTROL
Climate system without navigation system shown; with navigation similar.
Temperature conversion:To switch between Fahrenheit and Celsius,
refer toMessage centerin theInstrument Clusterchapter.
1.Climate:Press to control the climate control system through the
touch display screen. SeeTouchscreen functionslater in this section.
2.Passenger temperature:Press to activate separate passenger
temperature control and turn the knob to increase/decrease the air
temperature on the passenger side of the vehicle.
3.
Passenger heated seat:Press to activate. Refer toFront seating
in theSeating and Safety Restraintschapter for more information.
4.A/C:Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C,
(defrost) and
(floor/defrost).
5.
RRear defroster:Press to activate/deactivate the rear window
defroster. Refer toRear window defrosterlater in this chapter for more
information. This button will also activate the heated mirrors.
Climate Controls
88
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
Page 89 of 437

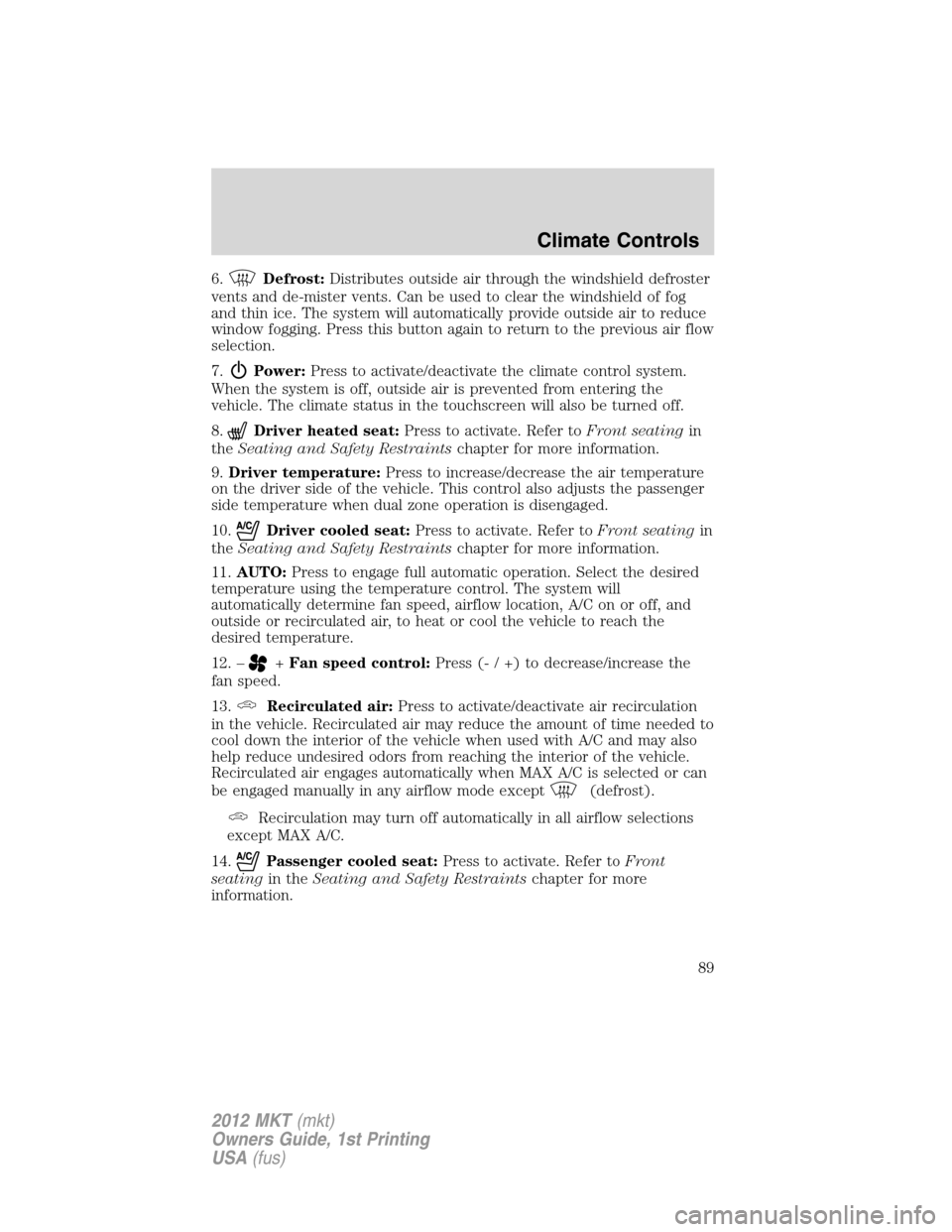

6.Defrost:Distributes outside air through the windshield defroster
vents and de-mister vents. Can be used to clear the windshield of fog
and thin ice. The system will automatically provide outside air to reduce
window fogging. Press this button again to return to the previous air flow
selection.
7.
Power:Press to activate/deactivate the climate control system.
When the system is off, outside air is prevented from entering the
vehicle. The climate status in the touchscreen will also be turned off.
8.
Driver heated seat:Press to activate. Refer toFront seatingin
theSeating and Safety Restraintschapter for more information.
9.Driver temperature:Press to increase/decrease the air temperature
on the driver side of the vehicle. This control also adjusts the passenger
side temperature when dual zone operation is disengaged.
10.
Driver cooled seat:Press to activate. Refer toFront seatingin
theSeating and Safety Restraintschapter for more information.
11.AUTO:Press to engage full automatic operation. Select the desired
temperature using the temperature control. The system will
automatically determine fan speed, airflow location, A/C on or off, and
outside or recirculated air, to heat or cool the vehicle to reach the
desired temperature.
12. –
+Fan speed control:Press (- / +) to decrease/increase the
fan speed.
13.
Recirculated air:Press to activate/deactivate air recirculation
in the vehicle. Recirculated air may reduce the amount of time needed to
cool down the interior of the vehicle when used with A/C and may also
help reduce undesired odors from reaching the interior of the vehicle.
Recirculated air engages automatically when MAX A/C is selected or can
be engaged manually in any airflow mode except
(defrost).
Recirculation may turn off automatically in all airflow selections
except MAX A/C.
14.
Passenger cooled seat:Press to activate. Refer toFront
seatingin theSeating and Safety Restraintschapter for more
information.
Climate Controls
89
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
Page 90 of 437

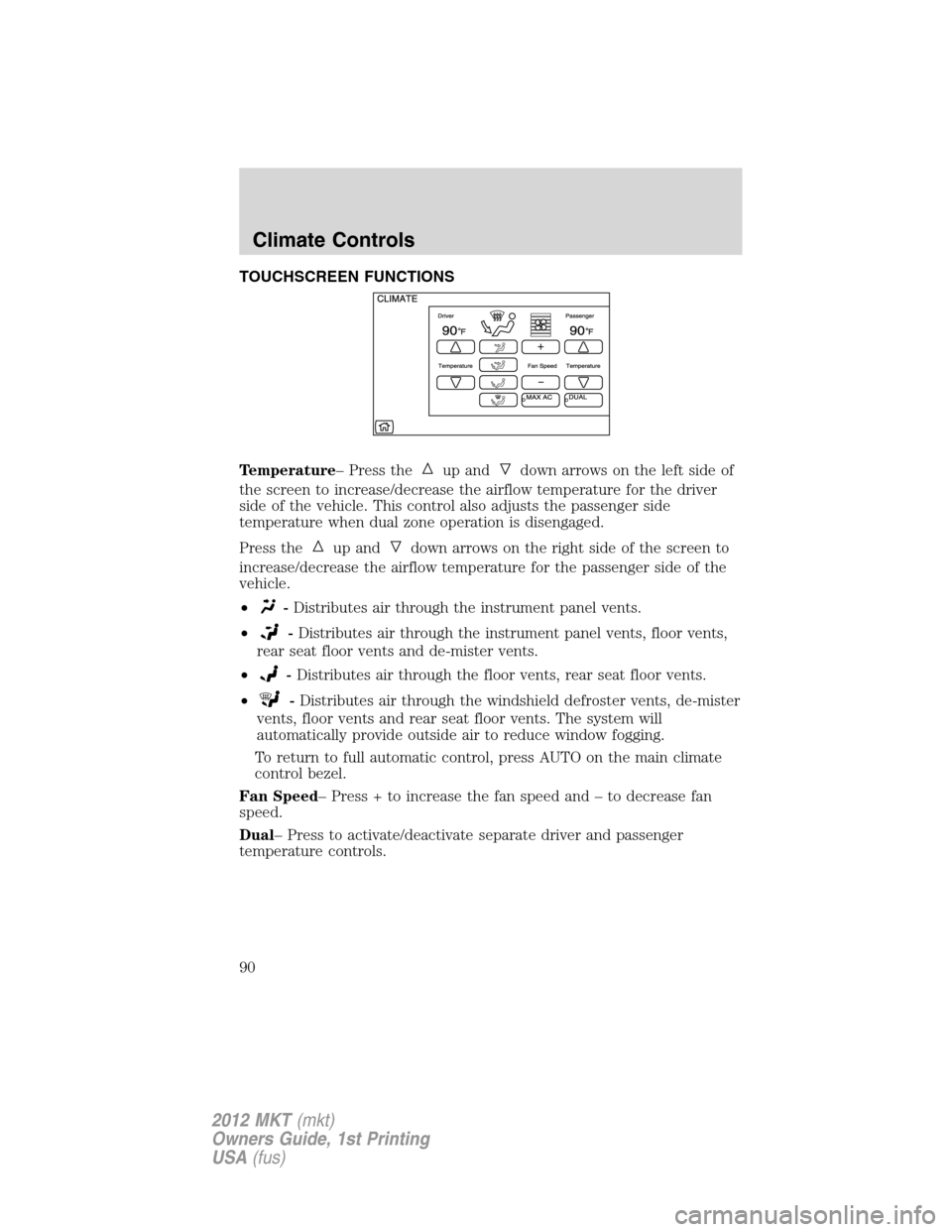

TOUCHSCREEN FUNCTIONS
Temperature– Press the
up anddown arrows on the left side of
the screen to increase/decrease the airflow temperature for the driver
side of the vehicle. This control also adjusts the passenger side
temperature when dual zone operation is disengaged.
Press the
up anddown arrows on the right side of the screen to
increase/decrease the airflow temperature for the passenger side of the
vehicle.
•
-Distributes air through the instrument panel vents.
•
-Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
•
-Distributes air through the floor vents, rear seat floor vents.
•
-Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging.
To return to full automatic control, press AUTO on the main climate
control bezel.
Fan Speed– Press + to increase the fan speed and – to decrease fan
speed.
Dual– Press to activate/deactivate separate driver and passenger
temperature controls.
Climate Controls
90
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
