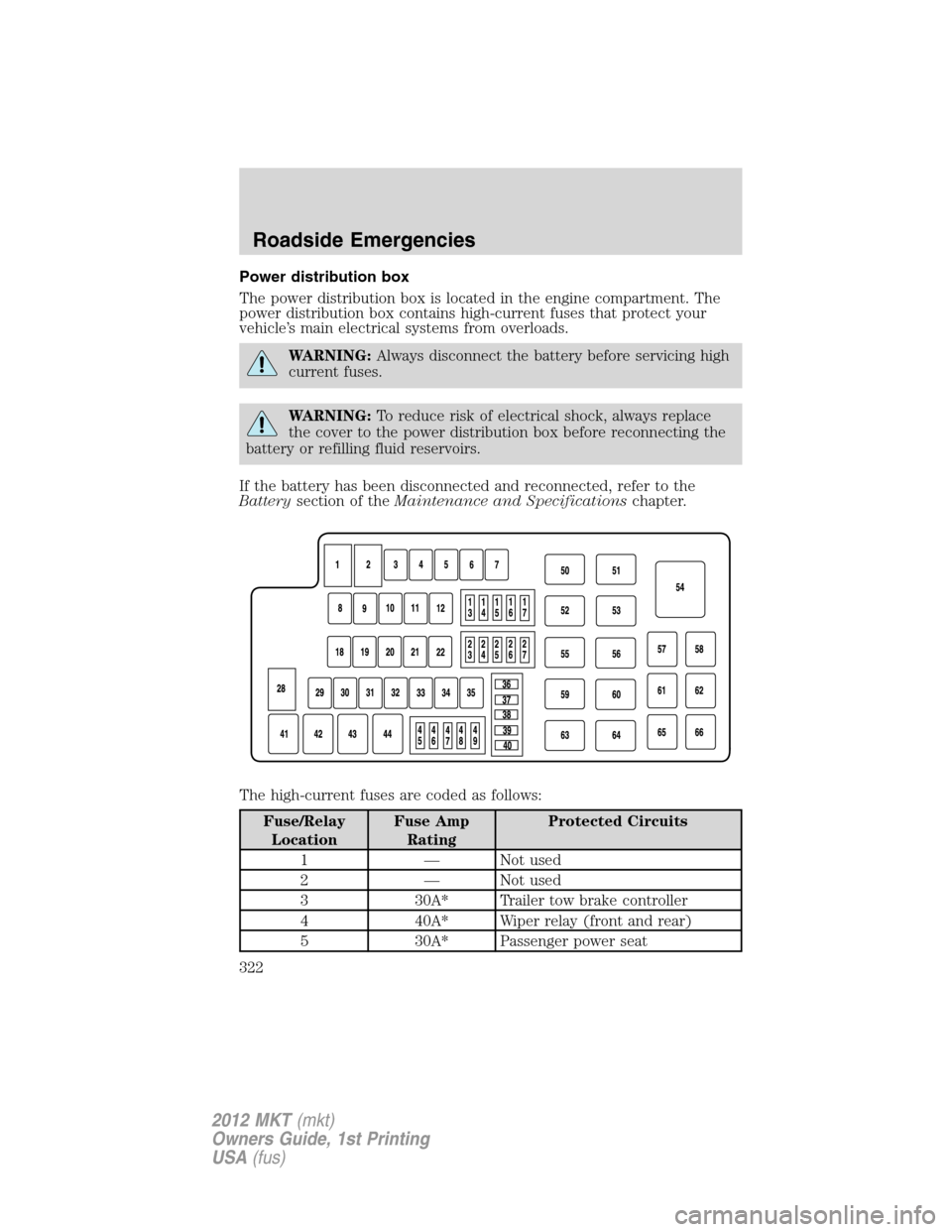

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 — Not used
2 — Not used
3 30A* Trailer tow brake controller
4 40A* Wiper relay (front and rear)
5 30A* Passenger power seat
Roadside Emergencies
322
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

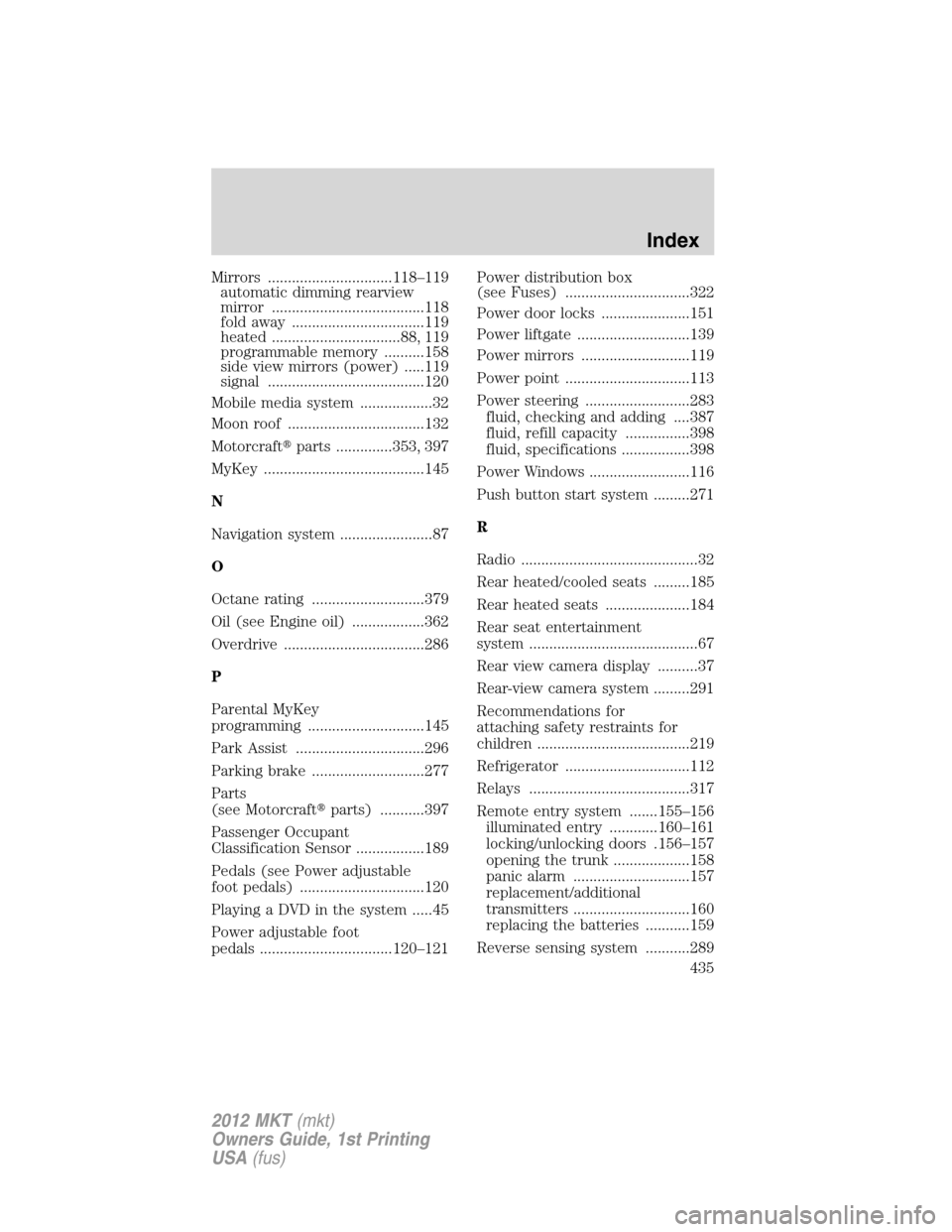

Mirrors ...............................118–119
automatic dimming rearview
mirror ......................................118
fold away .................................119
heated ................................88, 119
programmable memory ..........158
side view mirrors (power) .....119
signal .......................................120
Mobile media system ..................32
Moon roof ..................................132
Motorcraftparts ..............353, 397
MyKey ........................................145
N
Navigation system .......................87
O
Octane rating ............................379
Oil (see Engine oil) ..................362
Overdrive ...................................286
P
Parental MyKey
programming .............................145
Park Assist ................................296
Parking brake ............................277
Parts
(see Motorcraftparts) ...........397
Passenger Occupant
Classification Sensor .................189
Pedals (see Power adjustable
foot pedals) ...............................120
Playing a DVD in the system .....45
Power adjustable foot
pedals .................................120–121Power distribution box
(see Fuses) ...............................322
Power door locks ......................151
Power liftgate ............................139
Power mirrors ...........................119
Power point ...............................113
Power steering ..........................283
fluid, checking and adding ....387
fluid, refill capacity ................398
fluid, specifications .................398
Power Windows .........................116
Push button start system .........271
R
Radio ............................................32
Rear heated/cooled seats .........185
Rear heated seats .....................184
Rear seat entertainment
system ..........................................67
Rear view camera display ..........37
Rear-view camera system .........291
Recommendations for
attaching safety restraints for
children ......................................219
Refrigerator ...............................112
Relays ........................................317
Remote entry system .......155–156
illuminated entry ............160–161
locking/unlocking doors .156–157
opening the trunk ...................158
panic alarm .............................157
replacement/additional
transmitters .............................160
replacing the batteries ...........159
Reverse sensing system ...........289
Index
435
2012 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
