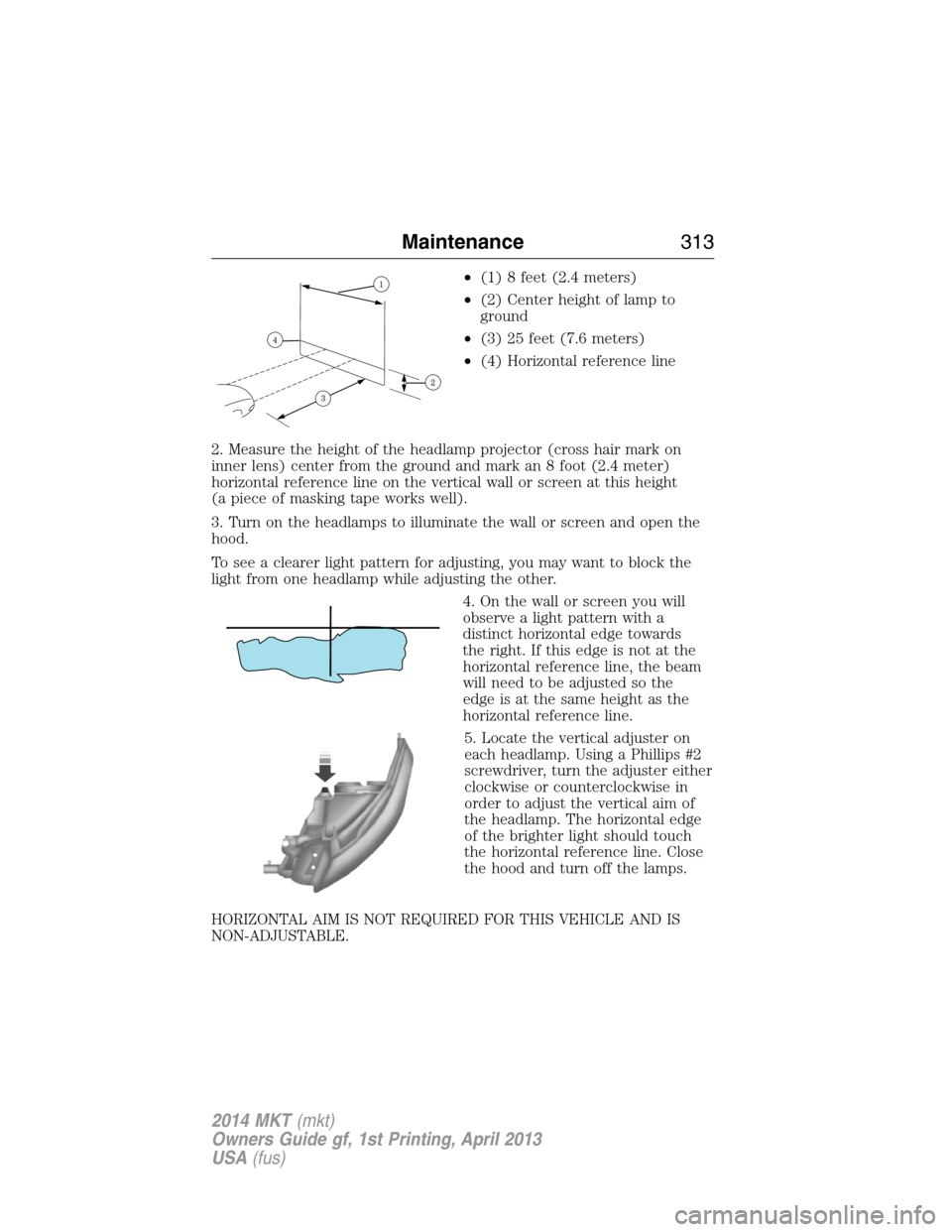

headlamp LINCOLN MKT 2014 Owner's Manual

•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the headlamp projector (cross hair mark on
inner lens) center from the ground and mark an 8 foot (2.4 meter)
horizontal reference line on the vertical wall or screen at this height
(a piece of masking tape works well).
3. Turn on the headlamps to illuminate the wall or screen and open the
hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge towards
the right. If this edge is not at the
horizontal reference line, the beam
will need to be adjusted so the
edge is at the same height as the
horizontal reference line.
5. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in
order to adjust the vertical aim of
the headlamp. The horizontal edge
of the brighter light should touch
the horizontal reference line. Close
the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
Maintenance313
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

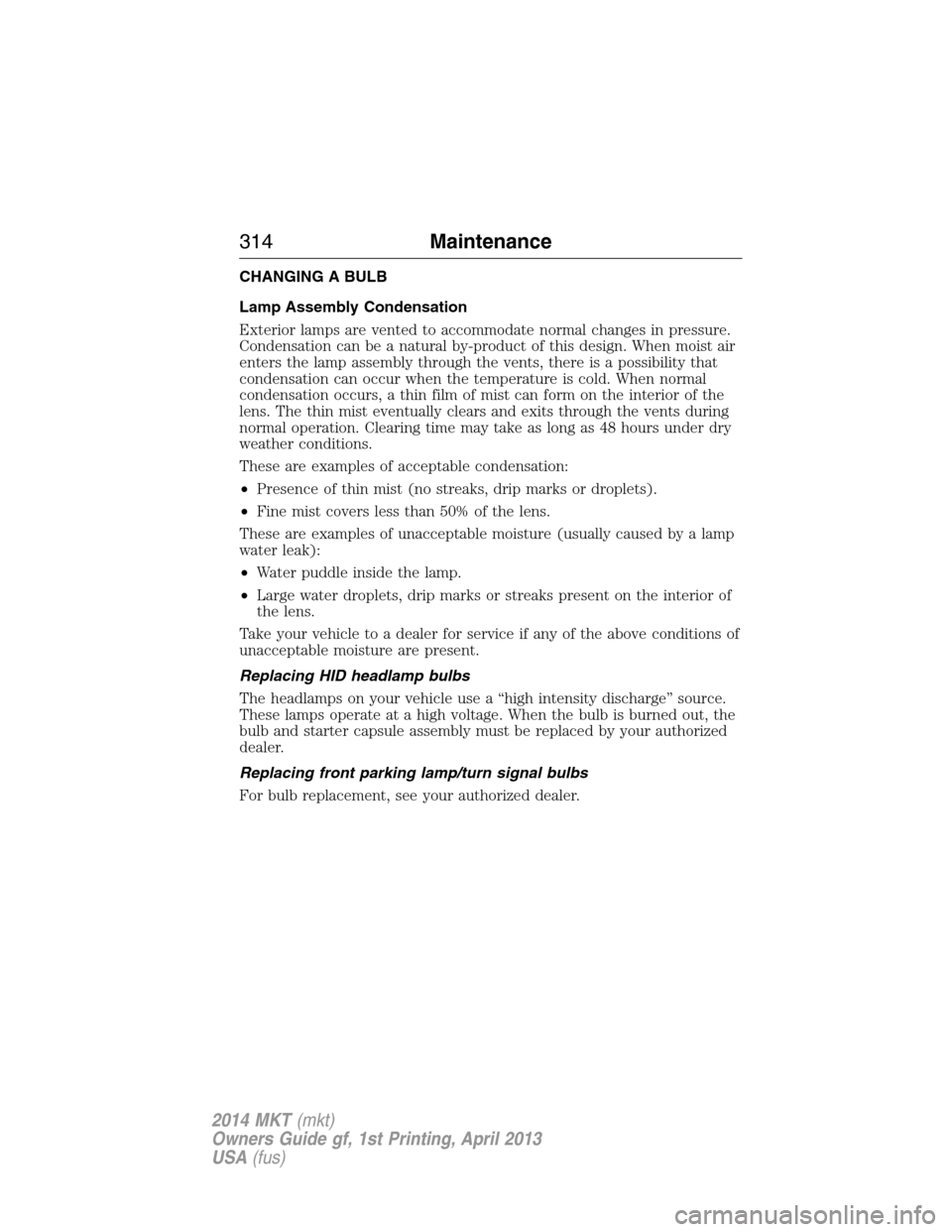

CHANGING A BULB
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
These are examples of acceptable condensation:
•Presence of thin mist (no streaks, drip marks or droplets).
•Fine mist covers less than 50% of the lens.
These are examples of unacceptable moisture (usually caused by a lamp
water leak):
•Water puddle inside the lamp.
•Large water droplets, drip marks or streaks present on the interior of
the lens.
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Replacing HID headlamp bulbs
The headlamps on your vehicle use a “high intensity discharge” source.
These lamps operate at a high voltage. When the bulb is burned out, the
bulb and starter capsule assembly must be replaced by your authorized
dealer.
Replacing front parking lamp/turn signal bulbs
For bulb replacement, see your authorized dealer.
314Maintenance
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

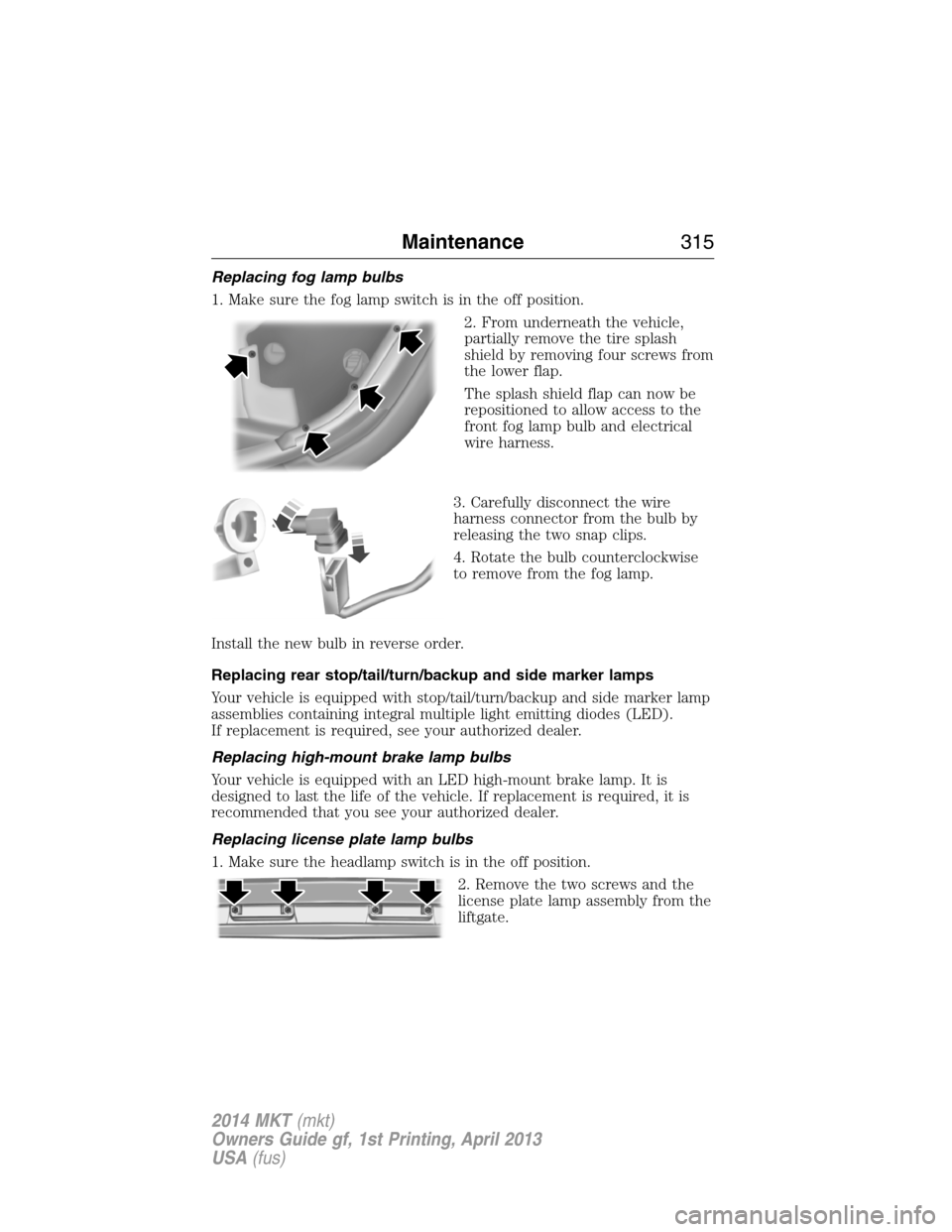

Replacing fog lamp bulbs
1. Make sure the fog lamp switch is in the off position.
2. From underneath the vehicle,
partially remove the tire splash
shield by removing four screws from
the lower flap.
The splash shield flap can now be
repositioned to allow access to the
front fog lamp bulb and electrical
wire harness.
3. Carefully disconnect the wire
harness connector from the bulb by
releasing the two snap clips.
4. Rotate the bulb counterclockwise
to remove from the fog lamp.
Install the new bulb in reverse order.
Replacing rear stop/tail/turn/backup and side marker lamps
Your vehicle is equipped with stop/tail/turn/backup and side marker lamp
assemblies containing integral multiple light emitting diodes (LED).
If replacement is required, see your authorized dealer.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED high-mount brake lamp. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is in the off position.
2. Remove the two screws and the
license plate lamp assembly from the
liftgate.
Maintenance315
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

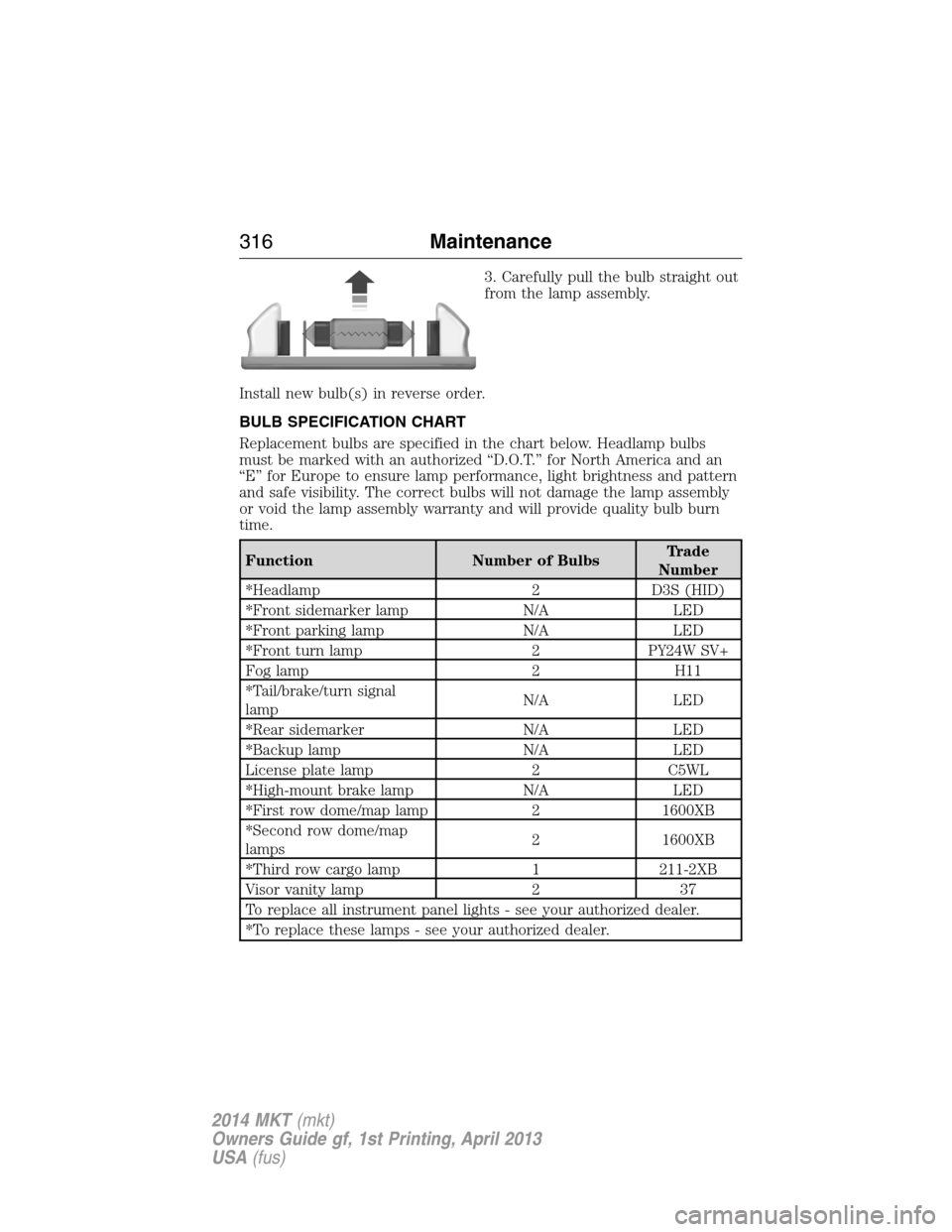

3. Carefully pull the bulb straight out
from the lamp assembly.
Install new bulb(s) in reverse order.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of BulbsTrade
Number
*Headlamp 2 D3S (HID)
*Front sidemarker lamp N/A LED
*Front parking lamp N/A LED
*Front turn lamp 2 PY24W SV+
Fog lamp 2 H11
*Tail/brake/turn signal
lampN/A LED
*Rear sidemarker N/A LED
*Backup lamp N/A LED
License plate lamp 2 C5WL
*High-mount brake lamp N/A LED
*First row dome/map lamp 2 1600XB
*Second row dome/map
lamps2 1600XB
*Third row cargo lamp 1 211-2XB
Visor vanity lamp 2 37
To replace all instrument panel lights - see your authorized dealer.
*To replace these lamps - see your authorized dealer.
316Maintenance
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

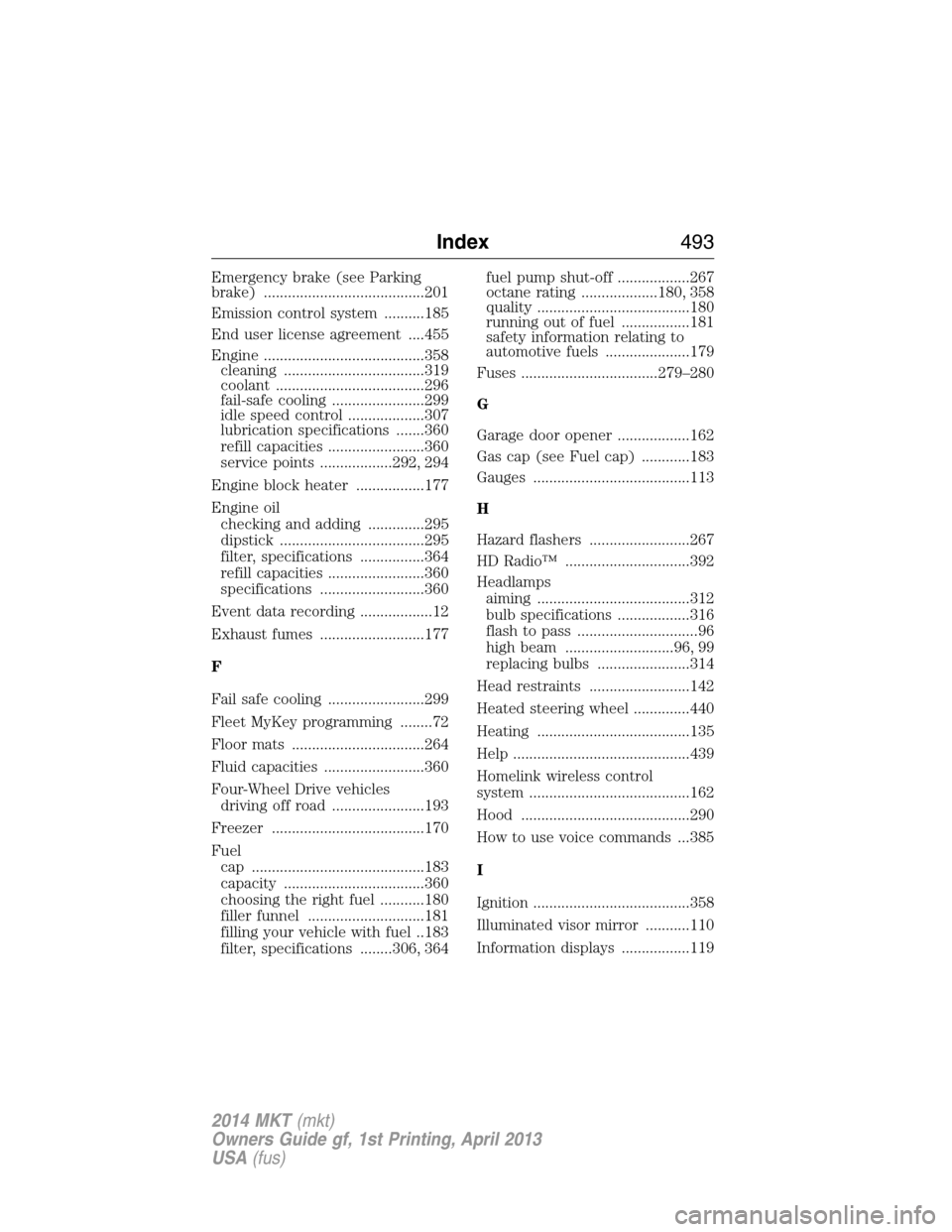

Emergency brake (see Parking
brake) ........................................201
Emission control system ..........185
End user license agreement ....455
Engine ........................................358
cleaning ...................................319
coolant .....................................296
fail-safe cooling .......................299
idle speed control ...................307
lubrication specifications .......360
refill capacities ........................360
service points ..................292, 294
Engine block heater .................177
Engine oil
checking and adding ..............295
dipstick ....................................295
filter, specifications ................364
refill capacities ........................360
specifications ..........................360
Event data recording ..................12
Exhaust fumes ..........................177
F
Fail safe cooling ........................299
Fleet MyKey programming ........72
Floor mats .................................264
Fluid capacities .........................360
Four-Wheel Drive vehicles
driving off road .......................193
Freezer ......................................170
Fuel
cap ...........................................183
capacity ...................................360
choosing the right fuel ...........180
filler funnel .............................181
filling your vehicle with fuel ..183
filter, specifications ........306, 364fuel pump shut-off ..................267
octane rating ...................180, 358
quality ......................................180
running out of fuel .................181
safety information relating to
automotive fuels .....................179
Fuses ..................................279–280
G
Garage door opener ..................162
Gas cap (see Fuel cap) ............183
Gauges .......................................113
H
Hazard flashers .........................267
HD Radio™ ...............................392
Headlamps
aiming ......................................312
bulb specifications ..................316
flash to pass ..............................96
high beam ...........................96, 99
replacing bulbs .......................314
Head restraints .........................142
Heated steering wheel ..............440
Heating ......................................135
Help ............................................439
Homelink wireless control
system ........................................162
Hood ..........................................290
How to use voice commands ...385
I
Ignition .......................................358
Illuminated visor mirror ...........110
Information displays .................119
Index493
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

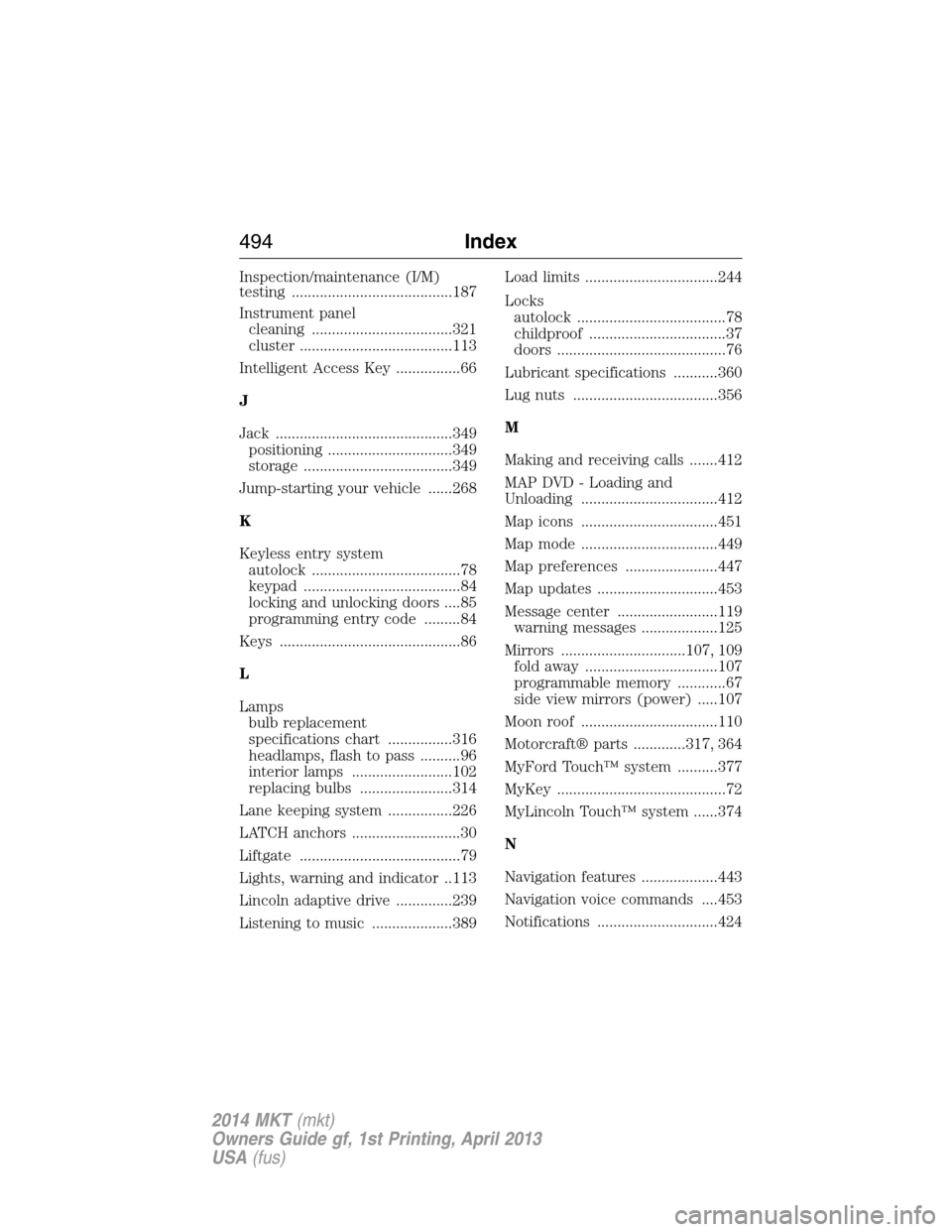

Inspection/maintenance (I/M)
testing ........................................187
Instrument panel
cleaning ...................................321
cluster ......................................113
Intelligent Access Key ................66
J
Jack ............................................349
positioning ...............................349
storage .....................................349
Jump-starting your vehicle ......268
K
Keyless entry system
autolock .....................................78
keypad .......................................84
locking and unlocking doors ....85
programming entry code .........84
Keys .............................................86
L
Lamps
bulb replacement
specifications chart ................316
headlamps, flash to pass ..........96
interior lamps .........................102
replacing bulbs .......................314
Lane keeping system ................226
LATCH anchors ...........................30
Liftgate ........................................79
Lights, warning and indicator ..113
Lincoln adaptive drive ..............239
Listening to music ....................389Load limits .................................244
Locks
autolock .....................................78
childproof ..................................37
doors ..........................................76
Lubricant specifications ...........360
Lug nuts ....................................356
M
Making and receiving calls .......412
MAP DVD - Loading and
Unloading ..................................412
Map icons ..................................451
Map mode ..................................449
Map preferences .......................447
Map updates ..............................453
Message center .........................119
warning messages ...................125
Mirrors ...............................107, 109
fold away .................................107
programmable memory ............67
side view mirrors (power) .....107
Moon roof ..................................110
Motorcraft® parts .............317, 364
MyFord Touch™ system ..........377
MyKey ..........................................72
MyLincoln Touch™ system ......374
N
Navigation features ...................443
Navigation voice commands ....453
Notifications ..............................424
494Index
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
