LINCOLN MKT 2014 Owner's Guide

Using Lower Anchors and Tethers for CHildren (LATCH)
WARNING:Never attach two child safety seats to the same
anchor. In a crash, one anchor may not be strong enough to hold
two child safety seat attachments and may break, causing serious injury
or death.
WARNING:Depending on where you secure a child restraint,
and depending on the child restraint design, you may block
access to certain safety belt buckle assemblies or LATCH lower
anchors, rendering those features potentially unusable. To avoid risk of
injury, occupants should only use seating positions where they are able
to be properly restrained.
The LATCH system is composed of three vehicle anchor points: two
lower anchors located where seat back and seat cushion meet (called
the seat bight) and one top tether anchor located behind that seating
position.
LATCH compatible child safety seats have two rigid or webbing mounted
attachments that connect to the two lower anchors at the LATCH
equipped seating positions in your vehicle. This type of attachment
method eliminates the need to use safety belts to attach the child seat,
however the safety belt can still be used to attach the child seat. For
forward-facing child seats, the top tether strap must also be attached to
the proper top tether anchor, if a top tether strap has been provided
with your child seat.
Your vehicle has LATCH lower anchors for child seat installation at the
seating positions marked with the child seat symbol.
•Second row bucket seats and
third-row passenger side
30Child Safety
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

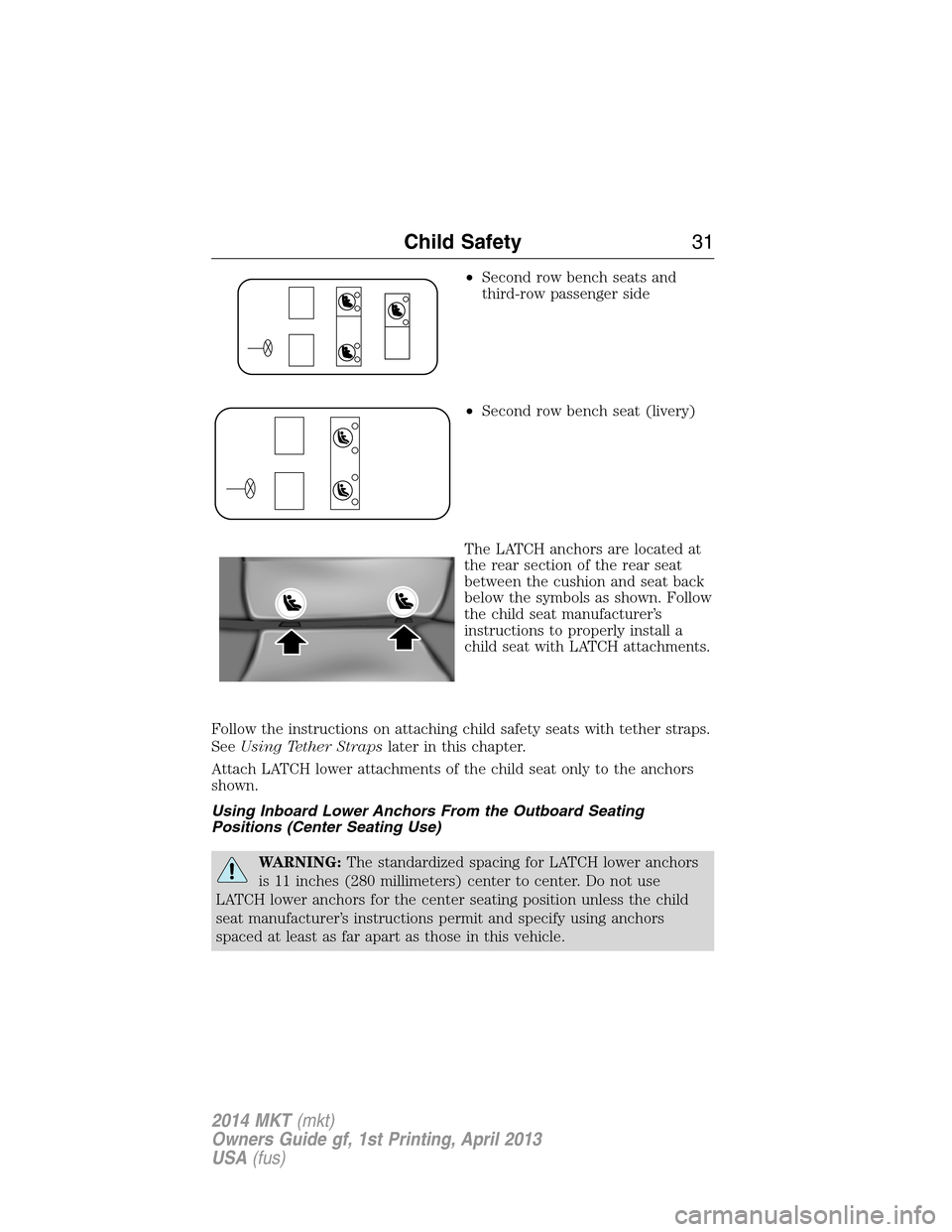

•Second row bench seats and
third-row passenger side
•Second row bench seat (livery)
The LATCH anchors are located at
the rear section of the rear seat
between the cushion and seat back
below the symbols as shown. Follow
the child seat manufacturer’s
instructions to properly install a
child seat with LATCH attachments.
Follow the instructions on attaching child safety seats with tether straps.
SeeUsing Tether Strapslater in this chapter.
Attach LATCH lower attachments of the child seat only to the anchors
shown.
Using Inboard Lower Anchors From the Outboard Seating
Positions (Center Seating Use)
WARNING:The standardized spacing for LATCH lower anchors
is 11 inches (280 millimeters) center to center. Do not use
LATCH lower anchors for the center seating position unless the child
seat manufacturer’s instructions permit and specify using anchors
spaced at least as far apart as those in this vehicle.
Child Safety31
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

The lower anchors at the center of the second row rear seat are spaced
20.5 inches (520 millimeters apart). The standardized spacing for LATCH
lower anchors is 11 inches (280 millimeters) center to center. A child
seat with rigid LATCH attachments cannot be installed at the center
seating position. LATCH compatible child seats (with attachments on belt
webbing) can only be used at this seating position provided that the
child seat manufacturer’s instructions permit use with the anchor spacing
stated. Do not attach a child seat to any lower anchor if an adjacent
child seat is attached to that anchor.
Each time you use the safety seat, check that the seat is properly
attached to the lower anchors and tether anchor, if applicable. Tug the
child seat from side to side and forward and back where it is secured to
the vehicle. The seat should move less than one inch when you do this
for a proper installation.
If the safety seat is not anchored properly, the risk of a child being
injured in a crash greatly increases.
Combining Safety Belt and LATCH Lower Anchors for Attaching
Child Safety Seats
When used in combination, either the safety belt or the LATCH lower
anchors may be attached first, provided a proper installation is achieved.
Attach the tether strap afterward, if included with the child seat.
Using Tether Straps
Many forward-facing child safety seats include a tether strap
which extends from the back of the child safety seat and hooks
to an anchoring point called the top tether anchor. Tether
straps are available as an accessory for many older safety seats.
Contact the manufacturer of your child seat for information about
ordering a tether strap, or to obtain a longer tether strap if the tether
strap on your safety seat does not reach the appropriate top tether
anchor in your vehicle.
Once the child safety seat has been installed using either the safety belt,
the lower anchors of the LATCH system, or both, you can attach the top
tether strap.
32Child Safety
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

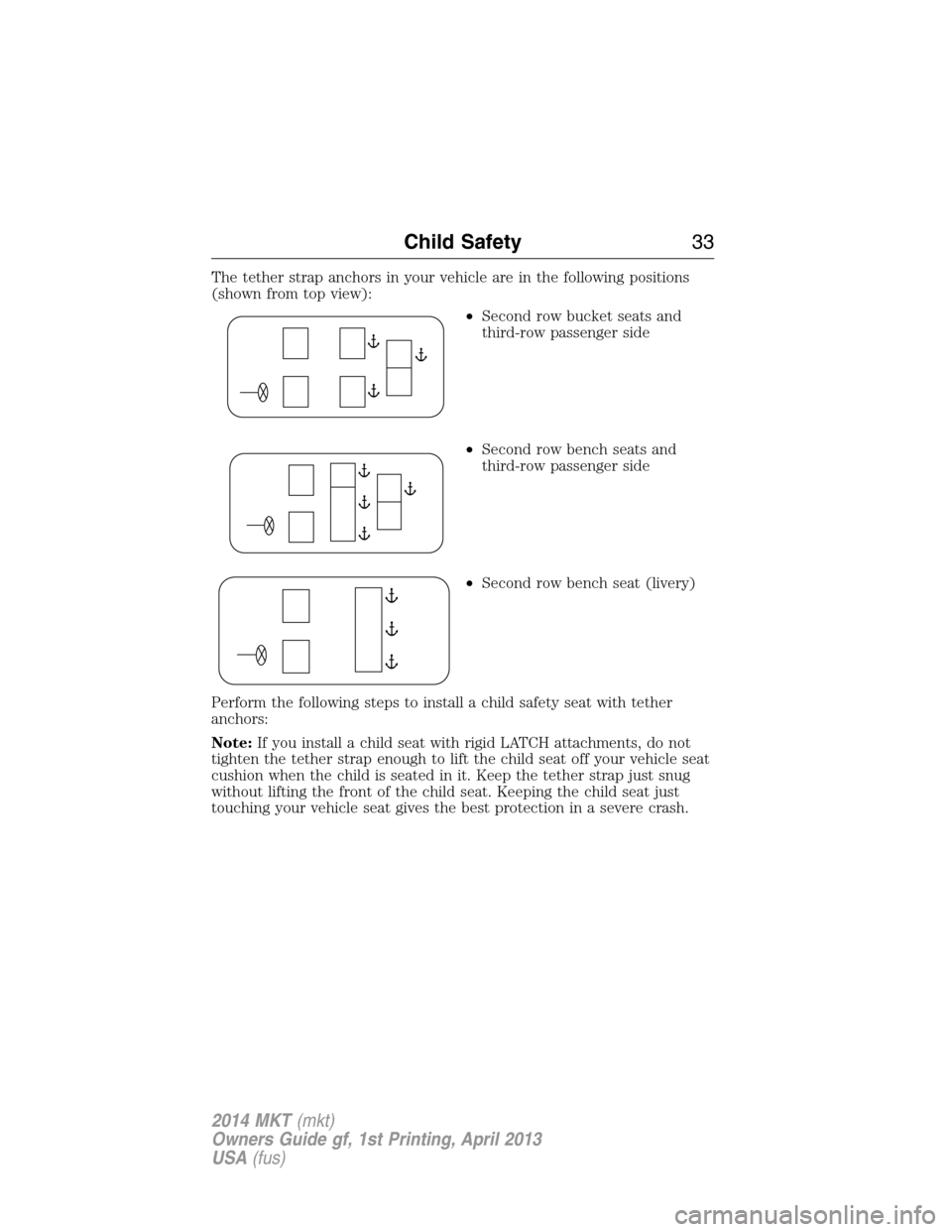

The tether strap anchors in your vehicle are in the following positions
(shown from top view):
•Second row bucket seats and
third-row passenger side
•Second row bench seats and
third-row passenger side
•Second row bench seat (livery)
Perform the following steps to install a child safety seat with tether
anchors:
Note:If you install a child seat with rigid LATCH attachments, do not
tighten the tether strap enough to lift the child seat off your vehicle seat
cushion when the child is seated in it. Keep the tether strap just snug
without lifting the front of the child seat. Keeping the child seat just
touching your vehicle seat gives the best protection in a severe crash.
Child Safety33
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

1. Route the tether strap.
•Second-row outboard seat positions: Route the child safety seat tether
strap over the seat back, under the head restraint and between the
head restraint posts. If needed, remove the head restraint to improve
the fit of the child safety seat or tether strap.
•Second-row center seat positions: Route the child safety seat tether
strap over the top of the head restraint. If needed, remove the head
restraint to improve the fit of the child safety seat or tether strap.
SeeRear Seatsin this chapter for head restraint information.
•Third-row seat position: Route the child safety seat tether strap
over the seat back, under the head restraint and between the head
restraint posts. If needed, fold the head restraint down to improve the
fit of the child safety seat or tether strap. SeeRear seatsin theSeats
chapter for head restraint information.
2. Locate the correct anchor for the selected rear seating position.
34Child Safety
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

•Second-row bucket (40/40)
•Second-row bench (60/40)
•Third-row seat
Note:The cargo tie-downs at the rear edge of the floor are not tether
anchors.
Child Safety35
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

3. Clip the tether hook to the anchor as shown. The tether hook may be
twisted 1/2 turn to improve installation.
If the tether strap is clipped incorrectly, the child safety seat may not be
retained properly in the event of a crash.
4. Tighten the child safety seat tether strap according to the
manufacturer’s instructions.
If the safety seat is not anchored properly, the risk of a child being
injured in a crash greatly increases.
If your child restraint system is equipped with a tether strap, and the
child restraint manufacturer recommends its use, Ford also recommends
its use.
36Child Safety
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

CHILD SAFETY LOCKS
The childproof locks are located on the rear edge of each rear door and
must be set separately for each door. Setting the lock for one door will
not automatically set the lock for both doors.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to
disengage the childproof locks.
When these locks are set, the rear
doors cannot be opened from the
inside.
The rear doors can be opened from
the outside when the childproof
door locks are set, but the doors are
unlocked.
Child Safety37
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

PRINCIPLES OF OPERATION
WARNING:Always drive and ride with your seat back upright
and the lap belt snug and low across the hips.
WARNING:To reduce the risk of injury, make sure children sit
where they can be properly restrained.
WARNING:Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING:All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an
airbag supplemental restraint system is provided. Failure to properly
wear your safety belt could seriously increase the risk of injury or
death.
WARNING:It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people riding in these
areas are more likely to be seriously injured or killed. Do not allow
people to ride in any area of your vehicle that is not equipped with
seats and safety belts. Be sure everyone in your vehicle is in a seat
and using a safety belt properly.
WARNING:In a rollover crash, an unbelted person is significantly
more likely to die than a person wearing a safety belt.
WARNING:Each seating position in your vehicle has a specific
safety belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the shoulder belt
on the outside shoulder only. Never wear the shoulder belt under the
arm. 2) Never swing the safety belt around your neck over the inside
shoulder. 3) Never use a single belt for more than one person.
38Safety Belts
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

WARNING:When possible, all children 12 years old and under
should be properly restrained in a rear seating position. Failure
to follow this could seriously increase the risk of injury or death.
WARNING:Safety belts and seats can become hot in a vehicle
that has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you place a child
anywhere near them.
WARNING:Front and rear seat occupants, including pregnant
women, should wear safety belts for optimum protection in an
accident.
All seating positions in this vehicle have lap and shoulder safety belts. All
occupants of the vehicle should always properly wear their safety belts,
even when an airbag supplemental restraint system is provided.
The safety belt system consists of:
•lap and shoulder safety belts.
•shoulder safety belt with automatic locking mode (except driver and
rear inflatable safety belt).
•height adjuster at the front outboard seating positions
•safety belt pretensioner at the front outboard seating positions.
•belt tension sensor at the front outboard passenger seating position.
•Safety belt warning light and chime. SeeSafety Belt
Warning Light and Indicator Chimelater in this chapter.
•Crash sensors and monitoring system with readiness
indicator. SeeCrash Sensors and Airbag Indicatorin the
Supplemental Restraint Systemchapter.
The safety belt pretensioners and rear inflatable safety belts are designed
to activate in frontal, near-frontal and side crashes, and in rollovers. The
safety belt pretensioners at the front seating positions are designed to
tighten the safety belts firmly against the occupant’s body when activated.
This helps increase the effectiveness of the safety belts. In frontal crashes,
the safety belt pretensioners can be activated alone or, if the crash is of
sufficient severity, together with the front airbags.
Safety Belts39
2014 MKT(mkt)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
