LINCOLN MKT 2017 Owners Manual

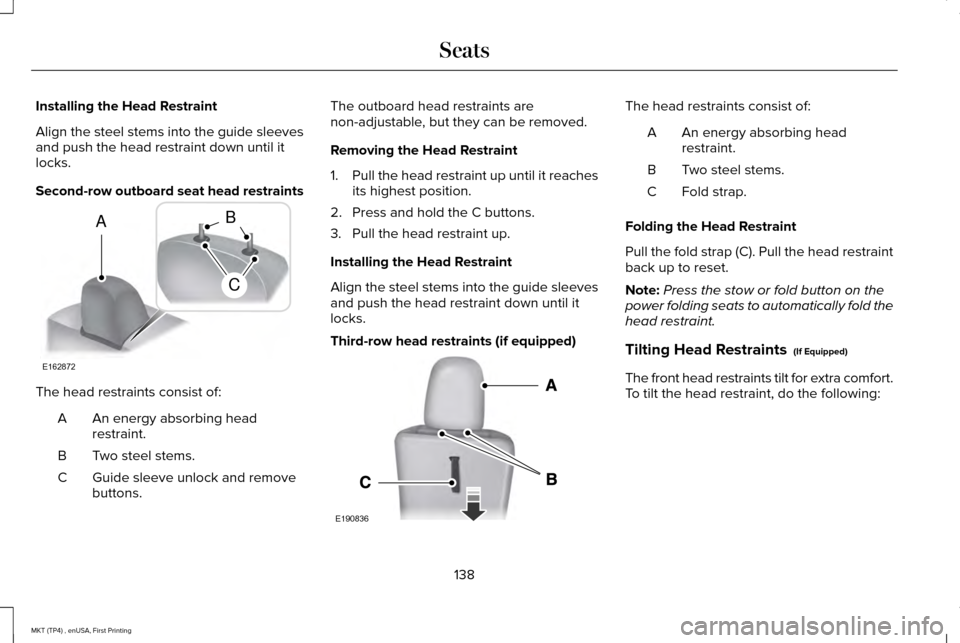

Installing the Head Restraint
Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.
Second-row outboard seat head restraints
The head restraints consist of:
An energy absorbing head
restraint.
A
Two steel stems.
B
Guide sleeve unlock and remove
buttons.
C The outboard head restraints are
non-adjustable, but they can be removed.
Removing the Head Restraint
1.
Pull the head restraint up until it reaches
its highest position.
2. Press and hold the C buttons.
3. Pull the head restraint up.
Installing the Head Restraint
Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.
Third-row head restraints (if equipped) The head restraints consist of:
An energy absorbing head
restraint.
A
Two steel stems.
B
Fold strap.
C
Folding the Head Restraint
Pull the fold strap (C). Pull the head restraint
back up to reset.
Note: Press the stow or fold button on the
power folding seats to automatically fold the
head restraint.
Tilting Head Restraints (If Equipped)
The front head restraints tilt for extra comfort.
To tilt the head restraint, do the following:
138
MKT (TP4) , enUSA, First Printing SeatsE162872
A
C
B E190836

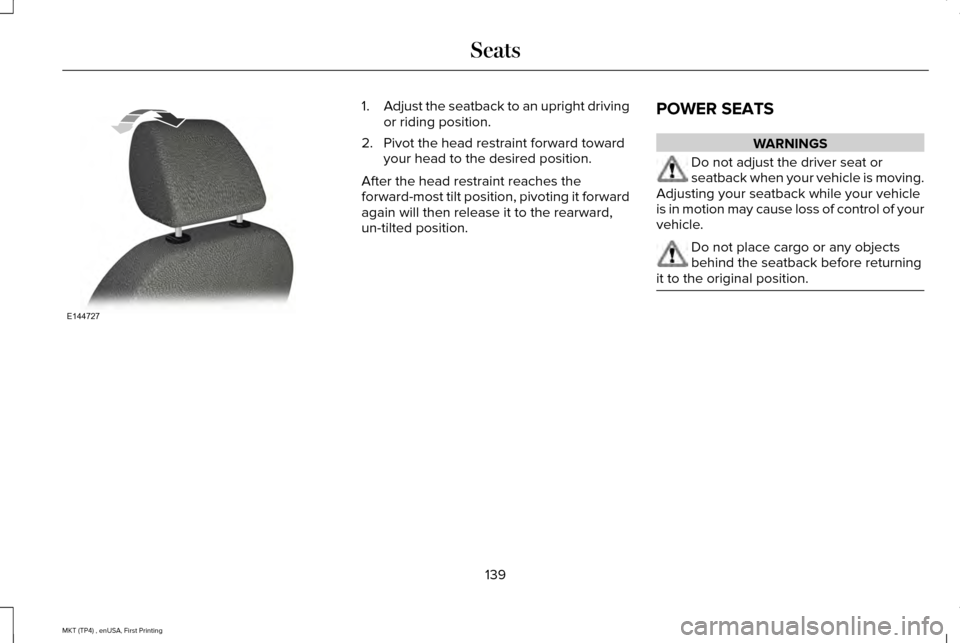

1.
Adjust the seatback to an upright driving
or riding position.
2. Pivot the head restraint forward toward your head to the desired position.
After the head restraint reaches the
forward-most tilt position, pivoting it forward
again will then release it to the rearward,
un-tilted position. POWER SEATS WARNINGS
Do not adjust the driver seat or
seatback when your vehicle is moving.
Adjusting your seatback while your vehicle
is in motion may cause loss of control of your
vehicle. Do not place cargo or any objects
behind the seatback before returning
it to the original position. 139
MKT (TP4) , enUSA, First Printing SeatsE144727

140
MKT (TP4) , enUSA, First Printing SeatsE210821

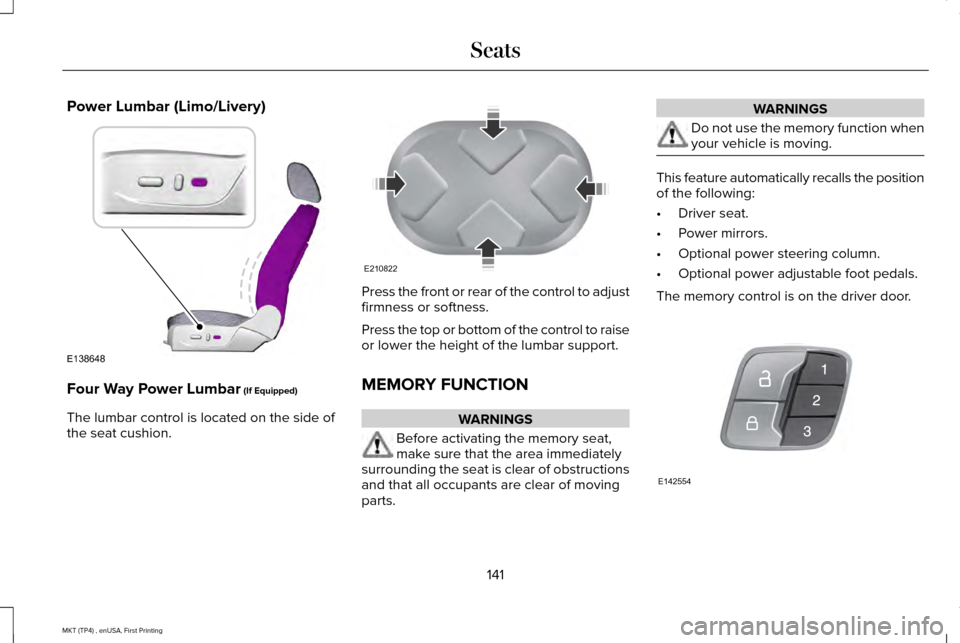

Power Lumbar (Limo/Livery)
Four Way Power Lumbar (If Equipped)
The lumbar control is located on the side of
the seat cushion. Press the front or rear of the control to adjust
firmness or softness.
Press the top or bottom of the control to raise
or lower the height of the lumbar support.
MEMORY FUNCTION
WARNINGS
Before activating the memory seat,
make sure that the area immediately
surrounding the seat is clear of obstructions
and that all occupants are clear of moving
parts. WARNINGS
Do not use the memory function when
your vehicle is moving.
This feature automatically recalls the position
of the following:
•
Driver seat.
• Power mirrors.
• Optional power steering column.
• Optional power adjustable foot pedals.
The memory control is on the driver door. 141
MKT (TP4) , enUSA, First Printing SeatsE138648 E210822 E142554

Saving a PreSet Position
1. Switch the ignition on.
2. Adjust the memory features to your
desired position.
3. Press and hold the desired preset button
until you hear a single tone.
You can save up to three preset memory
positions. You can save a memory preset at
any time.
Recalling a PreSet Position
Press and release the preset button
associated with your desired driving position.
The memory features move to the position
stored for that preset.
You can recall a programmed memory
position:
• Only in park (P) or neutral (N) if the
ignition is on.
• In any gearshift position if the ignition is
not on. You can also recall a programmed memory
position by:
•
Pressing your remote control transmitter
unlock button (if the remote control is
programmed to a memory position).
• Unlocking your vehicle with an intelligent
access key (if it is programmed to a
memory position).
• Entering a programmed personal entry
code on the Securicode keypad. See
Doors and Locks (page 72).
Note: Using a linked keyfob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position.
Note: Adjusting any active memory feature
or pressing a memory switch during a
memory recall cancels the operation.
Linking a PreSet Position to your
Remote Control or Intelligent Access
Key Fob
Your vehicle can save the preset memory
positions for up to two remote controls.
1. With the ignition on, move the memory positions to the desired positions. 2.
Press and hold the desired preset button
for about five seconds. A tone sounds
after about two seconds. Continue
holding until you hear a second tone.
3. Within three seconds, press the lock button on the remote control you are
linking.
To unlink a remote control, follow the same
procedure – except in step 3, press the
unlock button on the remote control.
Note: If more than one linked remote control
or intelligent access key is in range, the
memory function moves to the settings of
the first key to initiate a memory recall.
Easy Entry and Exit Feature
(If Equipped)
This feature adjusts the position of the seat
and steering column to allow easier exit and
entry to the vehicle.
The driver seat automatically moves
2 in
(5 cm) rearward when the transmission is in
park (P) and you remove the key from the
ignition or you switch the ignition off.
142
MKT (TP4) , enUSA, First Printing Seats

The driver seat and steering wheel return to
their previous positions when you put the
key in the ignition or switch the ignition on.
You can enable or disable this feature in the
information display. See Information
Displays (page 110).
REAR SEATS
Adjusting the Rear Seats
Second Row Seats WARNINGS
Always drive and ride with your
seatback upright and the lap belt snug
and low across the hips. Reclining the seatback can cause an
occupant to slide under the seat's
seatbelt, resulting in severe personal injuries
in the event of a crash. Recline Adjustment
Note:
For the bench seat only, make sure
the center seatbelt is unbuckled before
folding the seatback.
Lift the handle to adjust the seatback
rearward or forward. You can also fold the
seatback forward until it is flat. For the Town
Car livery version only, you cannot fold the
seatback flat or tumble it forward. Moving the Seats Backward and Forward
(Six-Passenger Vehicles Only)
Second-Row Power Lumbar Support
(Six-Passenger Vehicles Only)
The power lumbar control is on the outboard
side of the seat.
143
MKT (TP4) , enUSA, First Printing SeatsE209847 E190838

Press the top of the control to adjust
firmness. Press the bottom of the control to
adjust softness.
Moving the Front Passenger Seat Backward
and Forward (Town Car Livery) Press the control on the passenger side rear
door to move the front passenger seat
backward and forward.
Power Fold and Tumble Seat (If Equipped)
WARNING
Do not fold a seat if it is occupied.
Failure to follow this instruction could
result in personal injury. This feature is available for the right-hand
seat on seven-passenger vehicles and on
both sides for six-passenger vehicles.
The control is at the back of the rear door
opening. Press it to fold the seatback down
and tumble the seat forward for access to
the third row.
144
MKT (TP4) , enUSA, First Printing SeatsE210823 E210824 E190848

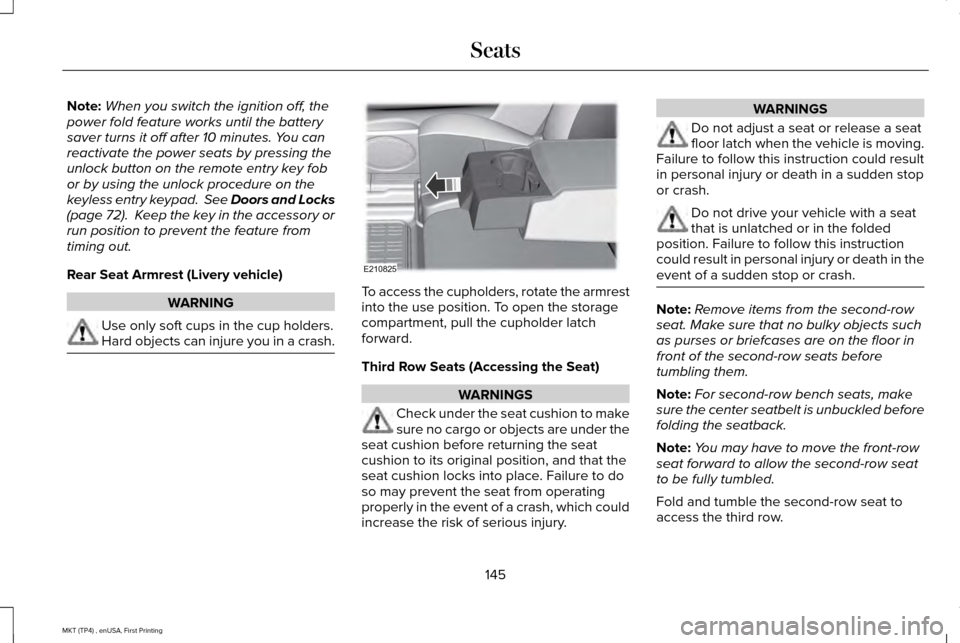

Note:
When you switch the ignition off, the
power fold feature works until the battery
saver turns it off after 10 minutes. You can
reactivate the power seats by pressing the
unlock button on the remote entry key fob
or by using the unlock procedure on the
keyless entry keypad. See Doors and Locks
(page 72). Keep the key in the accessory or
run position to prevent the feature from
timing out.
Rear Seat Armrest (Livery vehicle) WARNING
Use only soft cups in the cup holders.
Hard objects can injure you in a crash. To access the cupholders, rotate the armrest
into the use position. To open the storage
compartment, pull the cupholder latch
forward.
Third Row Seats (Accessing the Seat)
WARNINGS
Check under the seat cushion to make
sure no cargo or objects are under the
seat cushion before returning the seat
cushion to its original position, and that the
seat cushion locks into place. Failure to do
so may prevent the seat from operating
properly in the event of a crash, which could
increase the risk of serious injury. WARNINGS
Do not adjust a seat or release a seat
floor latch when the vehicle is moving.
Failure to follow this instruction could result
in personal injury or death in a sudden stop
or crash. Do not drive your vehicle with a seat
that is unlatched or in the folded
position. Failure to follow this instruction
could result in personal injury or death in the
event of a sudden stop or crash. Note:
Remove items from the second-row
seat. Make sure that no bulky objects such
as purses or briefcases are on the floor in
front of the second-row seats before
tumbling them.
Note: For second-row bench seats, make
sure the center seatbelt is unbuckled before
folding the seatback.
Note: You may have to move the front-row
seat forward to allow the second-row seat
to be fully tumbled.
Fold and tumble the second-row seat to
access the third row.
145
MKT (TP4) , enUSA, First Printing SeatsE210825

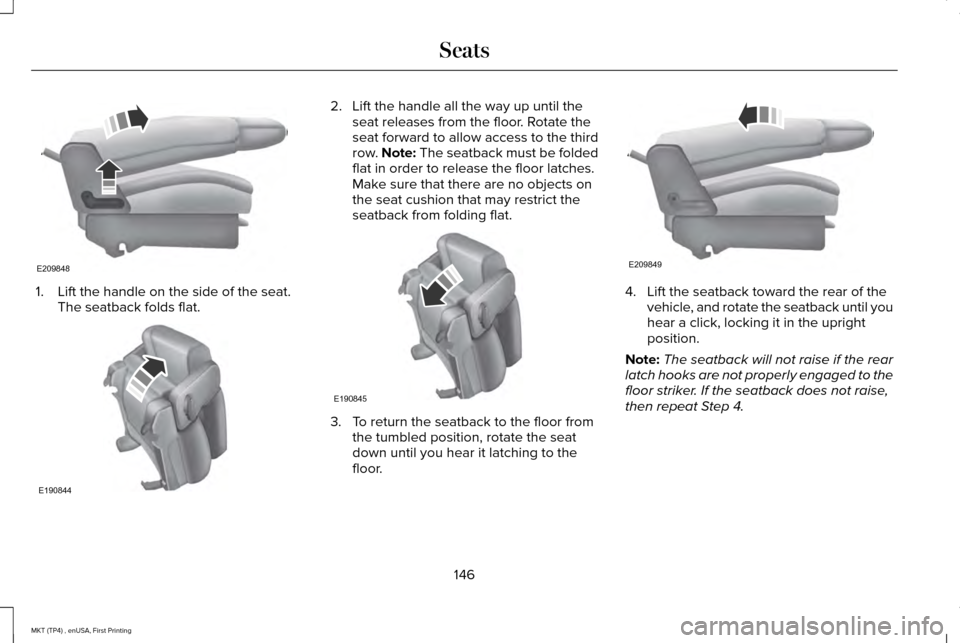

1. Lift the handle on the side of the seat.
The seatback folds flat. 2. Lift the handle all the way up until the
seat releases from the floor. Rotate the
seat forward to allow access to the third
row. Note: The seatback must be folded
flat in order to release the floor latches.
Make sure that there are no objects on
the seat cushion that may restrict the
seatback from folding flat. 3. To return the seatback to the floor from
the tumbled position, rotate the seat
down until you hear it latching to the
floor. 4. Lift the seatback toward the rear of the
vehicle, and rotate the seatback until you
hear a click, locking it in the upright
position.
Note: The seatback will not raise if the rear
latch hooks are not properly engaged to the
floor striker. If the seatback does not raise,
then repeat Step 4.
146
MKT (TP4) , enUSA, First Printing SeatsE209848 E190844 E190845 E209849

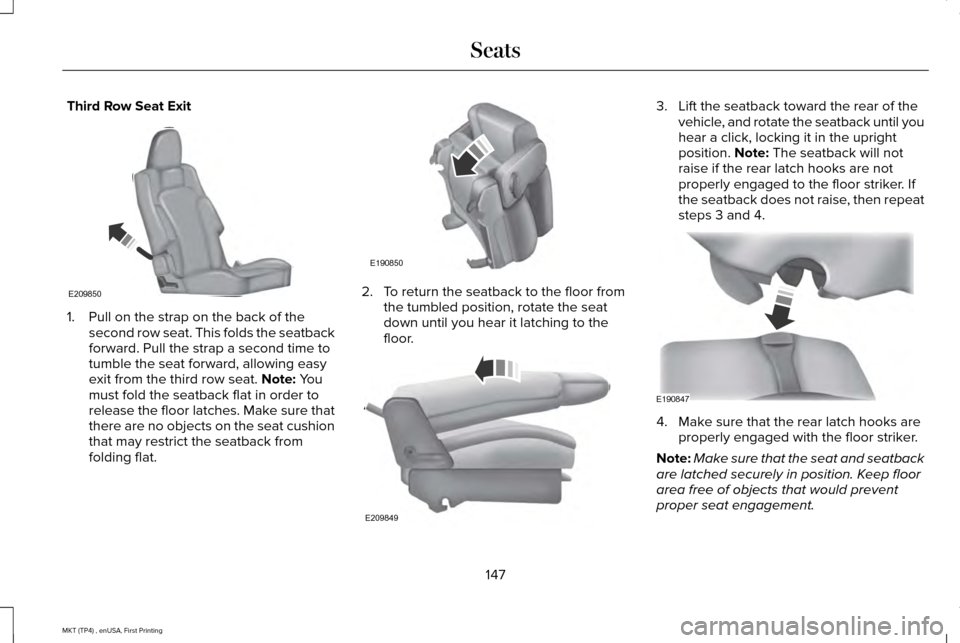

Third Row Seat Exit
1. Pull on the strap on the back of the
second row seat. This folds the seatback
forward. Pull the strap a second time to
tumble the seat forward, allowing easy
exit from the third row seat. Note: You
must fold the seatback flat in order to
release the floor latches. Make sure that
there are no objects on the seat cushion
that may restrict the seatback from
folding flat. 2. To return the seatback to the floor from
the tumbled position, rotate the seat
down until you hear it latching to the
floor. 3. Lift the seatback toward the rear of the
vehicle, and rotate the seatback until you
hear a click, locking it in the upright
position.
Note: The seatback will not
raise if the rear latch hooks are not
properly engaged to the floor striker. If
the seatback does not raise, then repeat
steps 3 and 4. 4. Make sure that the rear latch hooks are
properly engaged with the floor striker.
Note: Make sure that the seat and seatback
are latched securely in position. Keep floor
area free of objects that would prevent
proper seat engagement.
147
MKT (TP4) , enUSA, First Printing SeatsE209850 E190850 E209849 E190847
