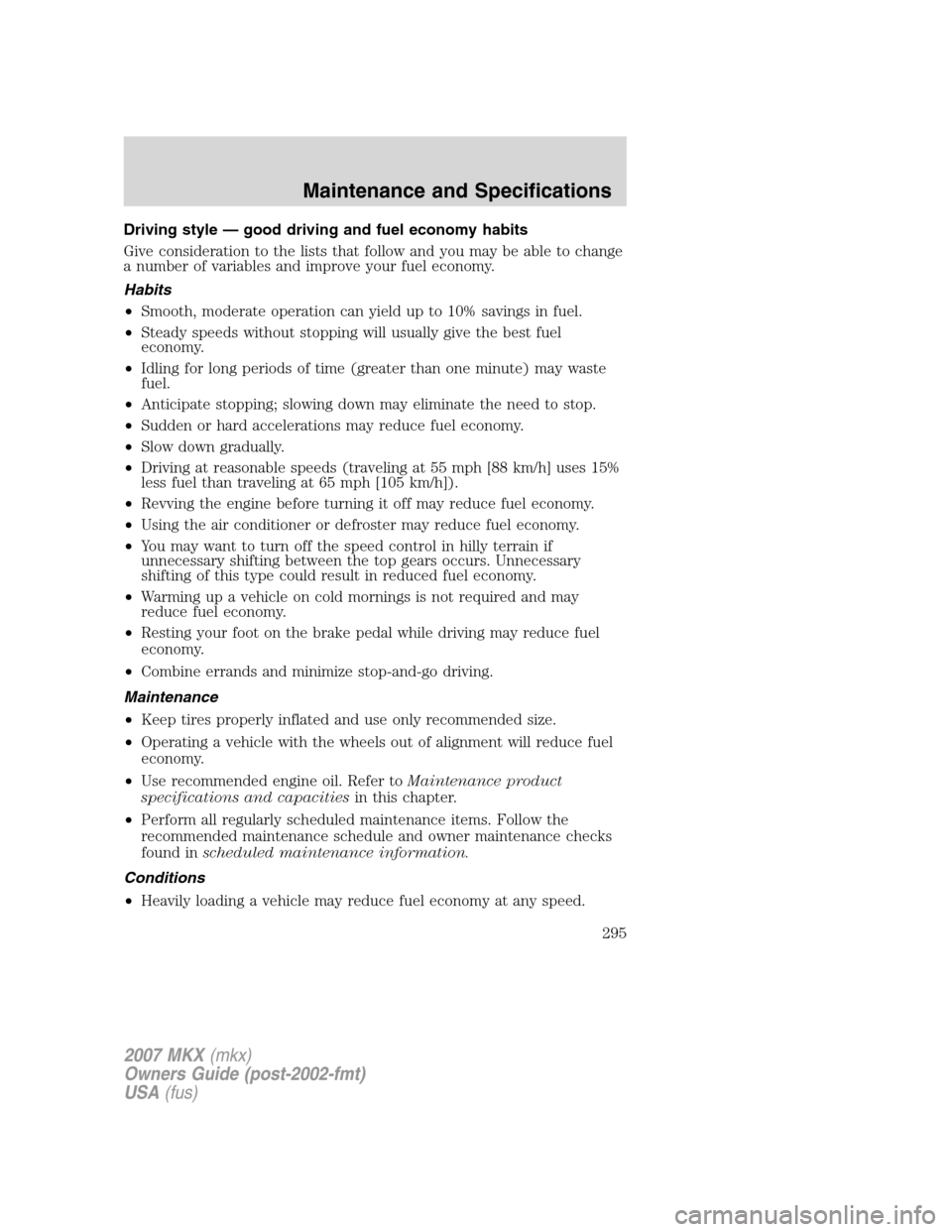

Driving style — good driving and fuel economy habits
Give consideration to the lists that follow and you may be able to change
a number of variables and improve your fuel economy.
Habits
•Smooth, moderate operation can yield up to 10% savings in fuel.
•Steady speeds without stopping will usually give the best fuel
economy.
•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle may reduce fuel economy at any speed.
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
295

2. Poor fuel quality or water in the fuel—the engine may misfire or run
poorly.
3. The fuel cap may not have been securely tightened. SeeFuel filler
capin this chapter.
4. Driving through deep water—the electrical system may be wet.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly tightening the fuel cap or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, the
indicator should stay off
the next time the engine is started. A driving cycle consists of a cold
engine startup followed by mixed city/highway driving. No additional
vehicle service is required.
If the
indicator remains on, have your vehicle serviced at the first
available opportunity. Although some malfunctions detected by the
OBD-II may not have symptoms that are apparent, continued driving
with the
indicator on can result in increased emissions, lower fuel
economy, reduced engine and transmission smoothness, and lead to more
costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the
indicator is on or not working properly (bulb is burned
out), or if the OBD-II system has determined that some of the emission
control systems have not been properly checked. In this case, the vehicle
is considered not ready for I/M testing.
If the
indicator is on or the bulb does not work, the vehicle may
need to be serviced. Refer to the On board diagnostics (OBD-II)
description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the ON position
for 15 seconds without cranking the engine. If the
indicator blinks
eight times, it means that the vehicle is not ready for I/M testing; if
the
indicator stays on solid, it means that the vehicle is ready for
I/M testing.
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
298

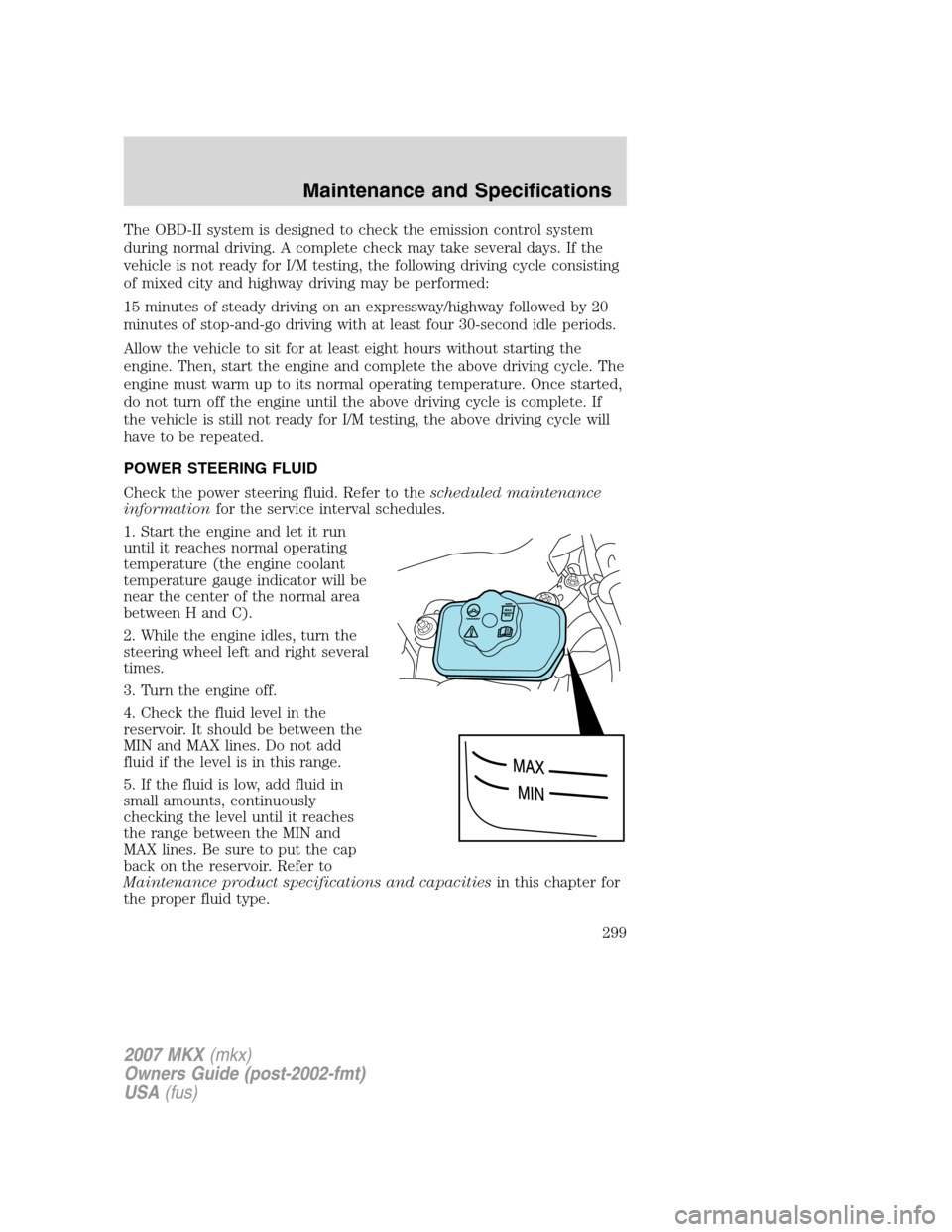

The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by 20
minutes of stop-and-go driving with at least four 30-second idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID
Check the power steering fluid. Refer to thescheduled maintenance
informationfor the service interval schedules.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in
small amounts, continuously
checking the level until it reaches
the range between the MIN and
MAX lines. Be sure to put the cap
back on the reservoir. Refer to
Maintenance product specifications and capacitiesin this chapter for
the proper fluid type.
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
299

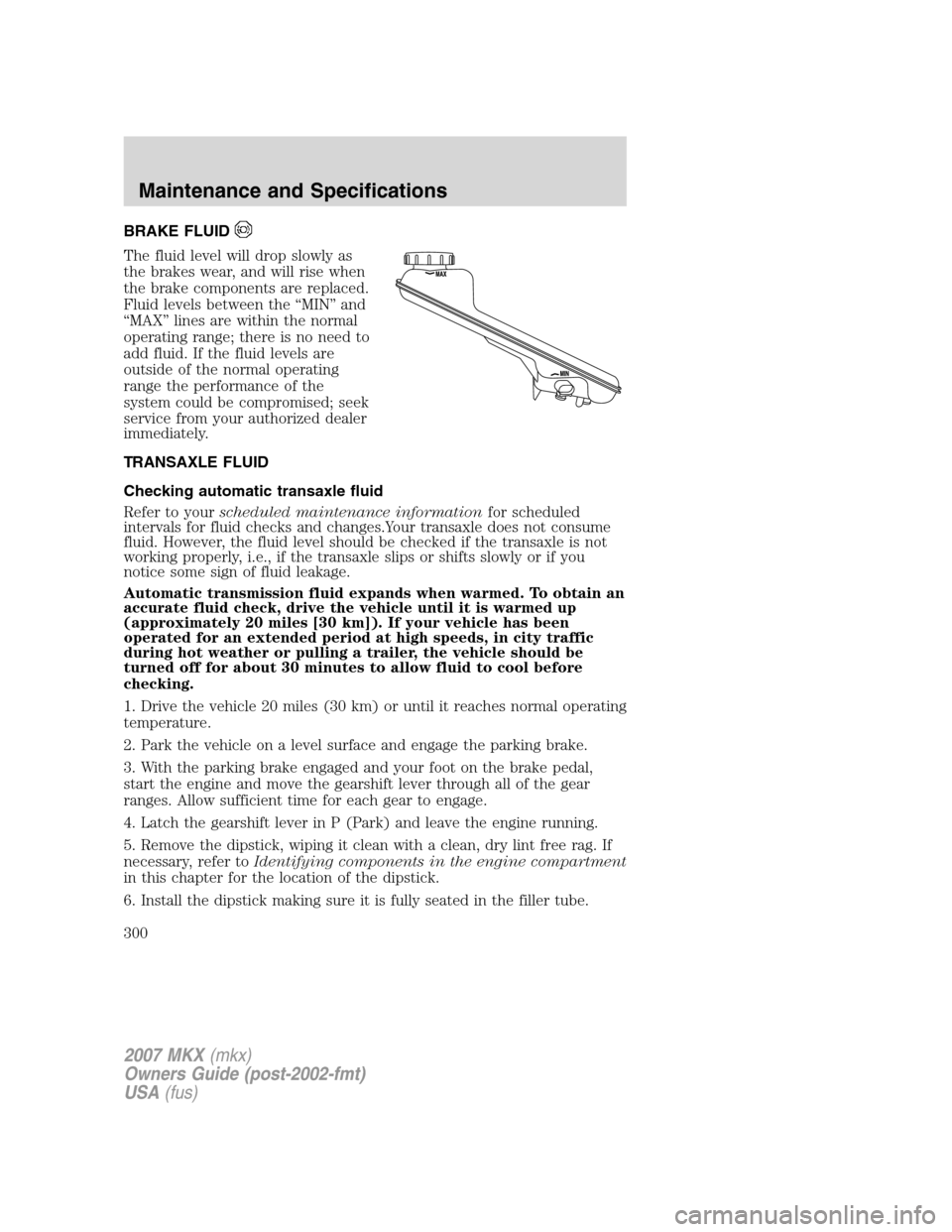

BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSAXLE FLUID
Checking automatic transaxle fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes.Your transaxle does not consume
fluid. However, the fluid level should be checked if the transaxle is not
working properly, i.e., if the transaxle slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
300

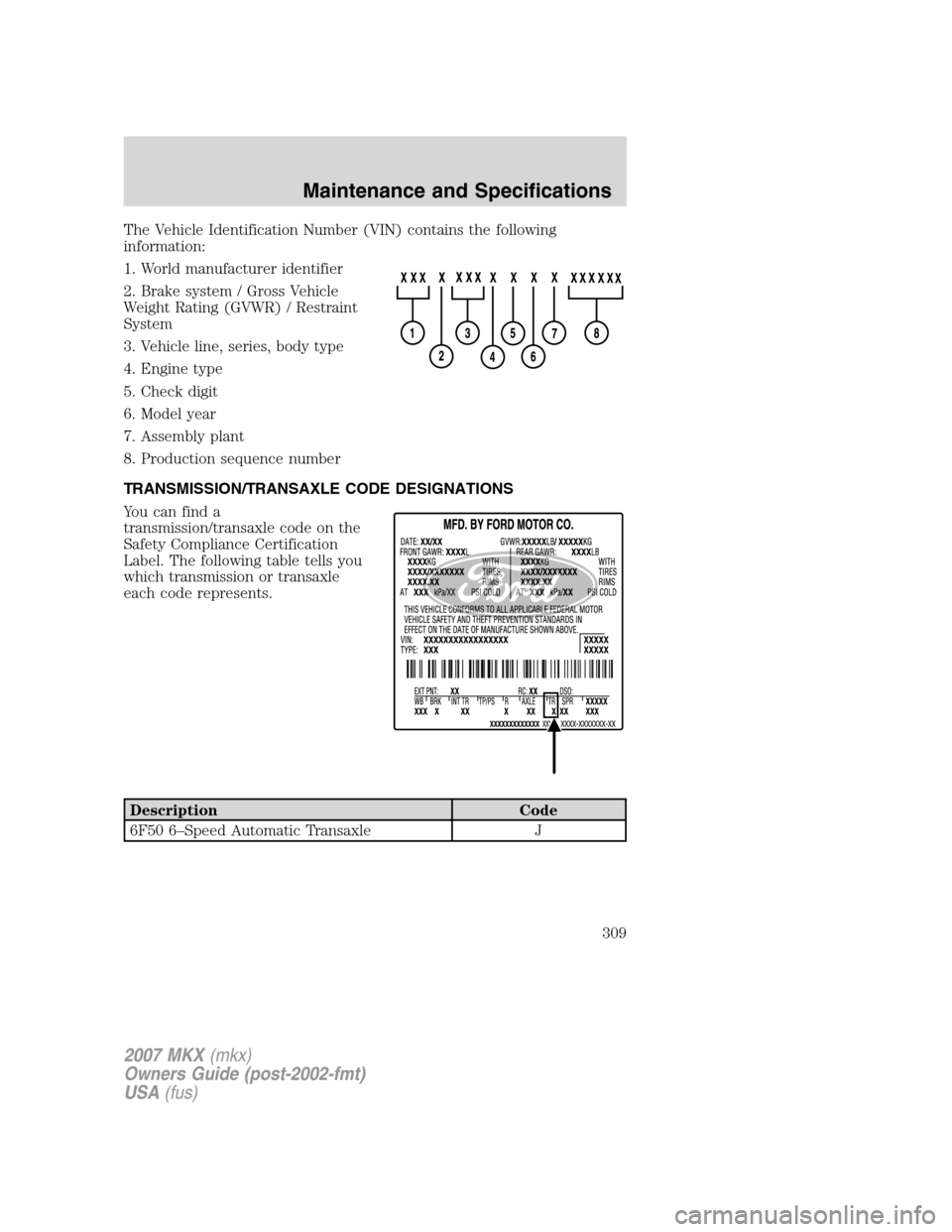

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
6F50 6–Speed Automatic Transaxle J
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
309

A
Accessory delay ..........................81
AdvanceTrac ..............................219
Air cleaner filter ...............302–303
Air conditioning ..............54, 56, 58
Airbag supplemental restraint
system ........................155, 164, 167
and child safety seats ............157
description ..............155, 164, 167
disposal ....................................170
driver airbag ............157, 165, 168
indicator light .........163, 166, 169
operation .................157, 165, 168
passenger airbag .....157, 165, 168
side airbag ...............................164
All Wheel Drive (AWD),
driving off road .........................229
Antifreeze
(see Engine coolant) ................283
Anti-lock brake system
(see Brakes) ..............................218
Anti-theft system ..............123, 127
arming the system ..................127
disarming a triggered
system .....................................128
Audio system (see Radio) .........16
Automatic transaxle
fluid, adding ............................300
fluid, checking ........................300
Automatic transmission
driving an automatic
overdrive .................................225
fluid, refill capacities ..............304
fluid, specification ..................304
Auxiliary input jack (Line in) ....22
Auxiliary power point .................78Axle
lubricant specifications ..........304
B
Battery .......................................281
acid, treating emergencies .....281
jumping a disabled battery ....251
maintenance-free ....................281
replacement, specifications ...303
servicing ..................................281
Belt-Minder
.............................151
Booster seats .............................171
Brakes ........................................217
anti-lock ...................................218
anti-lock brake system (ABS)
warning light ...........................218
fluid, checking and adding ....300
fluid, refill capacities ..............304
fluid, specifications .................304
lubricant specifications ..........304
parking ....................................219
shift interlock ..........................223
Bulbs ............................................68
C
Capacities for refilling fluids ....304
Cargo management system ......107
Cell phone use ..............................7
Changing a tire .................245, 248
Child safety restraints ..............171
child safety belts ....................171
Child safety seats ......................174
attaching with tether straps ..178
in front seat ............................175
in rear seat ..............................175
Child safety seats - booster
seats ...........................................171
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Index
312

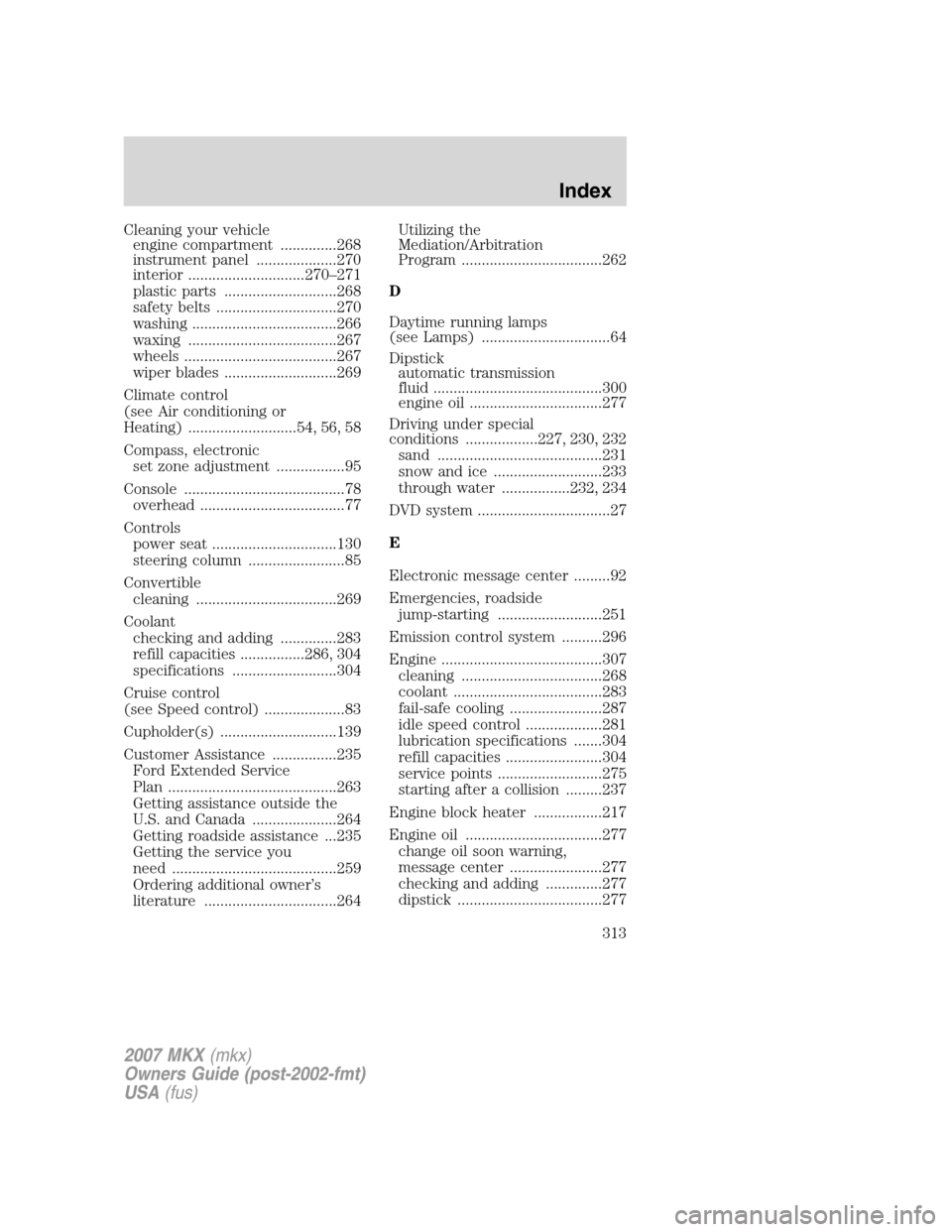

Cleaning your vehicle
engine compartment ..............268
instrument panel ....................270
interior .............................270–271
plastic parts ............................268
safety belts ..............................270
washing ....................................266
waxing .....................................267
wheels ......................................267
wiper blades ............................269
Climate control
(see Air conditioning or
Heating) ...........................54, 56, 58
Compass, electronic
set zone adjustment .................95
Console ........................................78
overhead ....................................77
Controls
power seat ...............................130
steering column ........................85
Convertible
cleaning ...................................269
Coolant
checking and adding ..............283
refill capacities ................286, 304
specifications ..........................304
Cruise control
(see Speed control) ....................83
Cupholder(s) .............................139
Customer Assistance ................235
Ford Extended Service
Plan ..........................................263
Getting assistance outside the
U.S. and Canada .....................264
Getting roadside assistance ...235
Getting the service you
need .........................................259
Ordering additional owner’s
literature .................................264Utilizing the
Mediation/Arbitration
Program ...................................262
D
Daytime running lamps
(see Lamps) ................................64
Dipstick
automatic transmission
fluid ..........................................300
engine oil .................................277
Driving under special
conditions ..................227, 230, 232
sand .........................................231
snow and ice ...........................233
through water .................232, 234
DVD system .................................27
E
Electronic message center .........92
Emergencies, roadside
jump-starting ..........................251
Emission control system ..........296
Engine ........................................307
cleaning ...................................268
coolant .....................................283
fail-safe cooling .......................287
idle speed control ...................281
lubrication specifications .......304
refill capacities ........................304
service points ..........................275
starting after a collision .........237
Engine block heater .................217
Engine oil ..................................277
change oil soon warning,
message center .......................277
checking and adding ..............277
dipstick ....................................277
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Index
313

positioning ...............................245
storage .....................................245
Jump-starting your vehicle ......251
K
Keyless entry system ...............122
autolock ...................................110
keypad .....................................122
locking and unlocking doors ..123
programming entry code .......122
Keys ...................................108, 125
positions of the ignition .........214
L
Lamps
autolamp system .......................63
bulb replacement
specifications chart ..................68
daytime running light ...............64
fog lamps ...................................64
headlamps .................................63
headlamps, flash to pass ..........64
instrument panel, dimming .....65
interior lamps .....................67, 69
replacing bulbs .........................69
Lane change indicator
(see Turn signal) ........................67
Liftgate ......................103, 106, 117
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........218
Load limits .................................202
Locks
autolock ...................................110
childproof ................................114
doors ........................................110
Lubricant specifications ...........304
Lug nuts ....................................251Lumbar support, seats .....130, 132
M
Message center .....................92–93
english/metric button ...............98
system check button ................97
warning messages ...................100
Mirrors .........................................82
automatic dimming rearview
mirror ........................................81
fold away ...................................82
heated ........................................82
programmable memory ..........118
side view mirrors (power) .......82
Moon roof ............................87, 116
Motorcraft parts ........272, 288, 303
N
Navigation system .......................53
O
Octane rating ............................292
Oil (see Engine oil) ..................277
Overdrive ...................................224
P
Parking brake ............................219
Parts (see Motorcraft parts) ....303
Passenger Occupant
Classification Sensor .................142
Power distribution box
(see Fuses) ...............................241
Power door locks ......................110
Power liftgate ............................103
Power mirrors .............................82
2007 MKX(mkx)
Owners Guide (post-2002-fmt)
USA(fus)
Index
315
