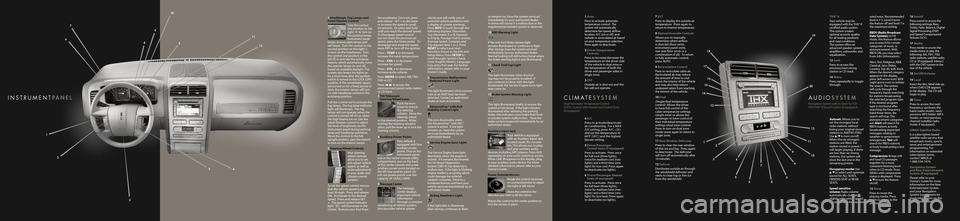

i n sT RuM e n TP A nE L c LiM A T eSy S T E M
Dual Automatic Temperature Control (DATC) System with Heated and Cooled Seats(if equipped)
Navigation System with In-Dash Six CD/MP3 THX® II Sound System (if equipped)
A u d i OSy S T E M
THX® II
Your vehicle may be equipped with the THX® II certified audio system. This system creates optimal acoustic quality for all seating positions and road conditions. The system offers an advanced speaker system, amplifiers, subwoofer, and equalization.
13 Seek
Press to access the previous/next strong station or CD track.
14 Menu
Press repeatedly to toggle through:
Autoset: Allows you to set the strongest local radio stations without losing your original stored stations in AM/FM1/FM2. Use / to turn on/off. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.
Occupancy mode: Use / to select and optimize sound for ALL SEATS, DRIVERS SEAT or REAR SEATS.
Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and
wind noise. Recommended level is 1-3. Level 0 turns the feature off and level 7 is the maximum setting.
RBDS (Radio Broadcast Data System): In FM mode, this feature allows you to search for certain categories of music or announcements. With RBDS ON, you may select from: Info (Information),
Alert, Test, Religious, R&B, Classical, Jazz, Oldies, Country, Top 40, Soft, Rock. When the desired category appears in the display, press (left arrow icon) SEEK (right arrow icon) to initiate the search. The system will cycle through the frequency bands searching for stations broadcasting the selected program type. If the desired program type is not found after searching the frequency band three times, the search will stop. The announcement categories are: Alert will search for RBDS stations actively broadcasting important messages relating to weather or government emergencies. Test will search for RBDS stations actively broadcasting a test message.
Compression: Brings soft and loud CD passages together for a more consistent listening level when in CD mode. Press MENU until compression status is displayed. Press / to turn the feature on/off.
15 Mute
Press to mute the playing media. Press again to return to the playing media.
16 Sound
Press sound to access the following settings; Bass, Treble, Fade, Balance, Digital Signal Processing (DSP) and Speed Compensated Volume (SCV).
17 Media
Press media to access the media menu to play the following: AM, FM1, FM2 radio stations, satellite radio, CD or (if equipped) interact with the DVD system in the rear of the vehicle.
18 On/Off/Volume
19 Load
Insert the disc, label side up, when LOAD CD# appears in the display. The CD will begin to play.
20 Tune
Press to access the next frequency up/down the band (radio mode), next/previous MP3 folder (MP3 mode), or next/previous channel (satellite radio mode, if equipped).
SIRIUS Satellite Radio
Is a subscription based satellite radio service that broadcasts music, sports, news and entertainment programming. For information on extended subscription terms, contact SIRIUS at 1-888-539-7474.
Navigation System and Rear Entertainment System (if equipped)
Please refer to your Owner’s Guide for more information on the Rear Entertainment System and your Navigation System Supplement for more information on the Navigation System.
1 Headlamps, Fog Lamps and Panel Dimmer Control
Turn the control one position to the right to turn on the parking lamps, instrument panel lamps, license plate lamps and tail lamps. Turn the control to the second position on the right to turn on the headlamps. Turn the control one position to the left to activate the autolamp feature, which automatically turns the exterior lamps on and off, based on available daylight. The system also keeps the lights on for a short time after the ignition switch is turned to the LOCK (OFF) position. If the windshield wipers are turned on for a fixed period of time, the exterior lamps will turn on with headlamp control in the autolamp position.
Pull the control out to activate the fog lamps. The fog lamp indicator light will illuminate. The fog lamps will not operate when the control is turned off (O) or when the high beams are on. Use the panel dimmer control to adjust the level of brightness on the instrument panel during parking lamp and headlamp operation. Move the control to the full upright position, past the detent, to turn on the interior lamps.
2 Steering Wheel Controls
Your steering wheel controls allow you to set and adjust vehicle speed, as well as make adjustments in your audio and climate control systems.
To set the speed control, ensure that the vehicle speed is at least 30 mph. Press and release ON. Accelerate to the desired speed. Press and release SET +. The speed control indicator light will illuminate in the cluster. Remove your foot from
the accelerator. Once set, press and release - SET + to decrease or increase the speed in small increments. Or, press and hold until you reach the desired speed. To disengage speed control but not erase the previous set speed, press the brake pedal. To disengage and erase the speed, press OFF or turn off the ignition.
Press – TEMP + to decrease/increase the cabin temperature.
Press – FAN + to decrease/increase fan speed.
Press – VOL + to decrease/increase audio volume.
Press MEDIA to select AM, FM1, FM2 or CD.
Press to access the previous/next preset radio station or CD track.
3
Tilt/Telescopic Steering Wheel Lever
Push the lever down to unlock the steering column. Move the steering wheel to the desired position. While holding the steering wheel in place, pull the lever up to lock the steering column.
4 Auxiliary Power Points
Your vehicle is equipped with four auxiliary power points. One on the instrument panel, one in the center console utility compartment, one on the back of the center console and a rear auxiliary power point located on the left rear quarter panel. Do not use power points over the capacity of 12VDC/180W.
5 Message Center
The message center displays important vehicle information through a constant monitoring of vehicle systems. Also provides vehicle system
checks and will notify you of potential vehicle problems with a display of system warnings. Press INFO to scroll through the following displays: Odometer, Trip Odometer A or B, Distance to Empty, Average Fuel Economy, Average Speed, Compass and Trip elapsed time 1 or 2. Press RESET to select and reset functions shown in the Info and Setup Menu. Press SETUP to scroll through: System Check, Units (English/Metric), Language, Easy entry/Exit seat. For further information, please refer to your Owner’s Guide.
6
Transmission Malfunction/Reduced Power Light

This light illuminates when a power train or an AWD fault has been detected. Contact an authorized dealer as soon as possible.
7 AdvanceTrac® with Roll Stability Control Light
This icon illuminates when the AdvanceTrac® with RSC® system is active. If the light remains on, have the system serviced immediately by an authorized dealer.
8 Service Engine Soon Light
The Service Engine Soon light illuminates when the engine is started. If it remains illuminated, the On Board Diagnostics System (OBD-II) has detected a malfunction. If the light is blinking, engine misfire is occurring which could damage the vehicle’s catalytic converter. Drive in a moderate fashion and have your vehicle serviced immediately by an authorized dealer.
9 Airbag Readiness Light
If this light fails to illuminate after startup, continues to flash
or remains on, have the system serviced immediately by your authorized dealer. A chime will sound if a malfunction in the supplemental restraint system is detected.
10 ABS Warning Light
If the Anti-lock Brake System light remains illuminated or continues to flash after startup, have the system serviced immediately by your authorized dealer. Normal braking will still be functional unless the brake warning light is also illuminated.
11 Check Fuel Cap Light
This light illuminates when the fuel cap may not be properly installed. If you continue to drive with this light illuminated, the Service Engine Soon light may come on.
12 Brake System Warning Light
This light illuminates briefly to ensure the system is functional. If the light remains illuminated after releasing the parking brake, this indicates a low brake fluid level or a brake system malfunction. Have the brake system inspected immediately by an authorized dealer.
Auxiliary Input Jack
Your vehicle is equipped with an Auxiliary Input Jack located inside the console bin. This allows you to plug and play auxiliary audio devices, including MP3 players. Press AUX repeatedly on your audio system to access. When LINE IN appears in the display, plug in your auxiliary audio device. For more detailed information, please refer to your Owner’s Guide.
Power Outside Mirrors
Rotate the control clockwise or counterclockwise to adjust the right or left mirror.
Move the control in the direction you wish to tilt the mirror.
Return the control to the center position to lock the mirrors in place.
1 Auto
Press to activate automatic temperature control. The system will automatically determine fan speed, airflow location, A/C (on or off ) and outside or recirculated air based on your temperature selection. Press again to deactivate.
2 Driver Temperature Controls
Press to increase/decrease the temperature on the driver side of the vehicle in dual zone or the temperature of both the driver and passenger sides in single zone.
3 OFF
Outside air is shut out and the fan will not operate.
4 A/C
Press to activate/deactivate air conditioning. For a MAX A/C setting, press A/C, and set the temperature to 60ºF (16ºC) and the highest blower setting.
5 Driver/Passenger Cooled Seats (if equipped)
Press to activate. Press once for full cool (three lights), twice for medium cool (two lights) and a third time (one light) for low cool. Press again to deactivate (no lights).
6 Driver/Passenger Heated Seats (if equipped)
Press to activate. Press once for full heat (three lights), twice for medium heat (two lights) and a third time (one light) for low heat. Press again to deactivate (no lights).
7 EXT
Press to display the outside air temperature. Press again to return to interior temperature.
8 Manual Override Controls
Allows you to manually determine where airflow is directed (floor vents, instrument panel vents, rear seat floor vents or a combination of all). To return to fully automatic control, press AUTO.
9 Recirculation Control
Press to recirculate cabin air. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle.
10 Dual
(Single/dual temperature control): Allows the driver to have full control of the cabin temperature settings (single zone) or allows the passenger to have control of their individual temperature settings (dual zone control). Press to turn on dual zone mode; press again to return to single zone.
11 Rear Window Defroster
Press to clear the rear window of thin ice and fog. Press again to deactivate. The defroster will turn off automatically after 10 minutes.
12 Defrost
Distributes outside air through the windshield defroster and vents to clear fog or thin ice from the windshield.
