engine LINCOLN MKX 2009 Owners Manual

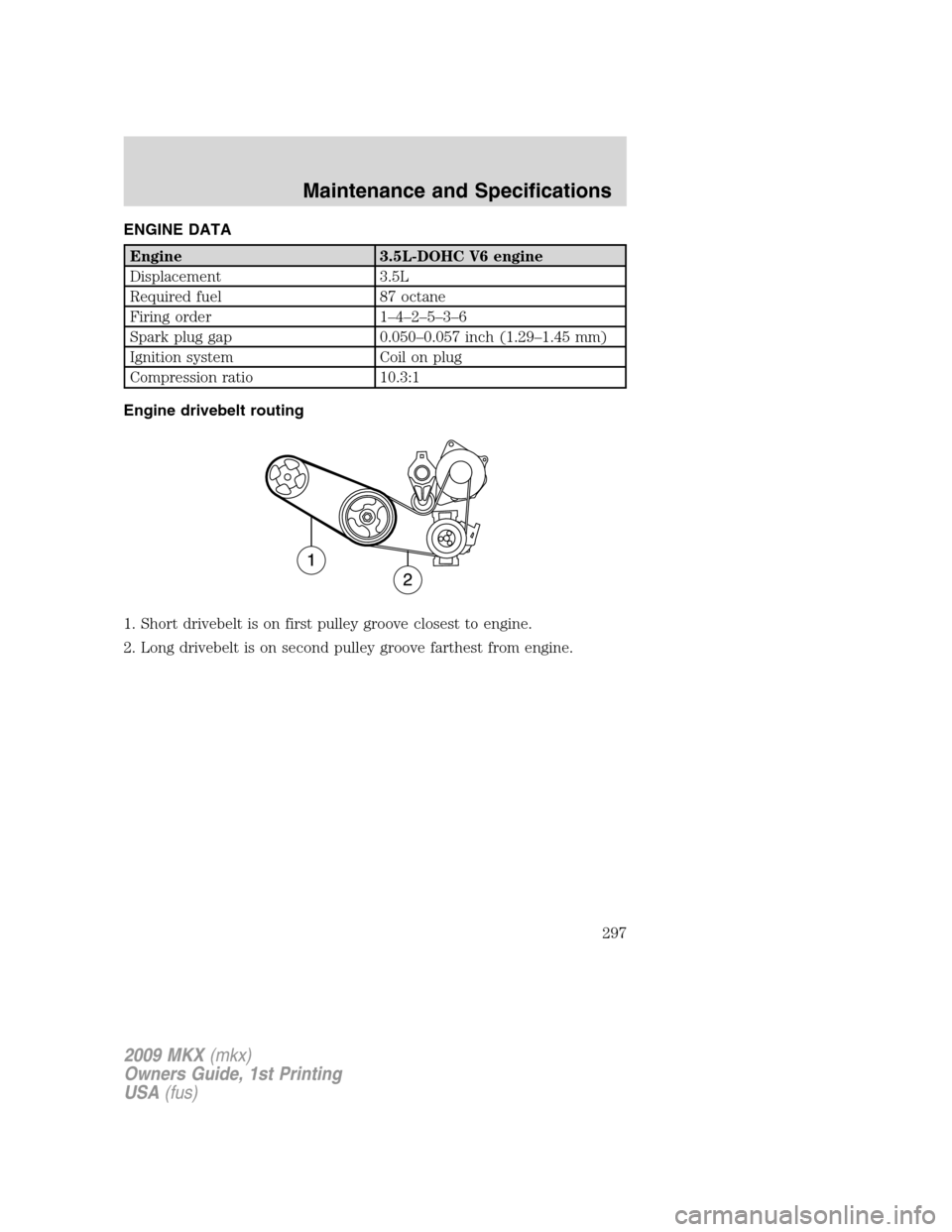

ENGINE DATA
Engine 3.5L-DOHC V6 engine
Displacement 3.5L
Required fuel 87 octane
Firing order 1–4–2–5–3–6
Spark plug gap 0.050–0.057 inch (1.29–1.45 mm)
Ignition system Coil on plug
Compression ratio 10.3:1
Engine drivebelt routing
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
297

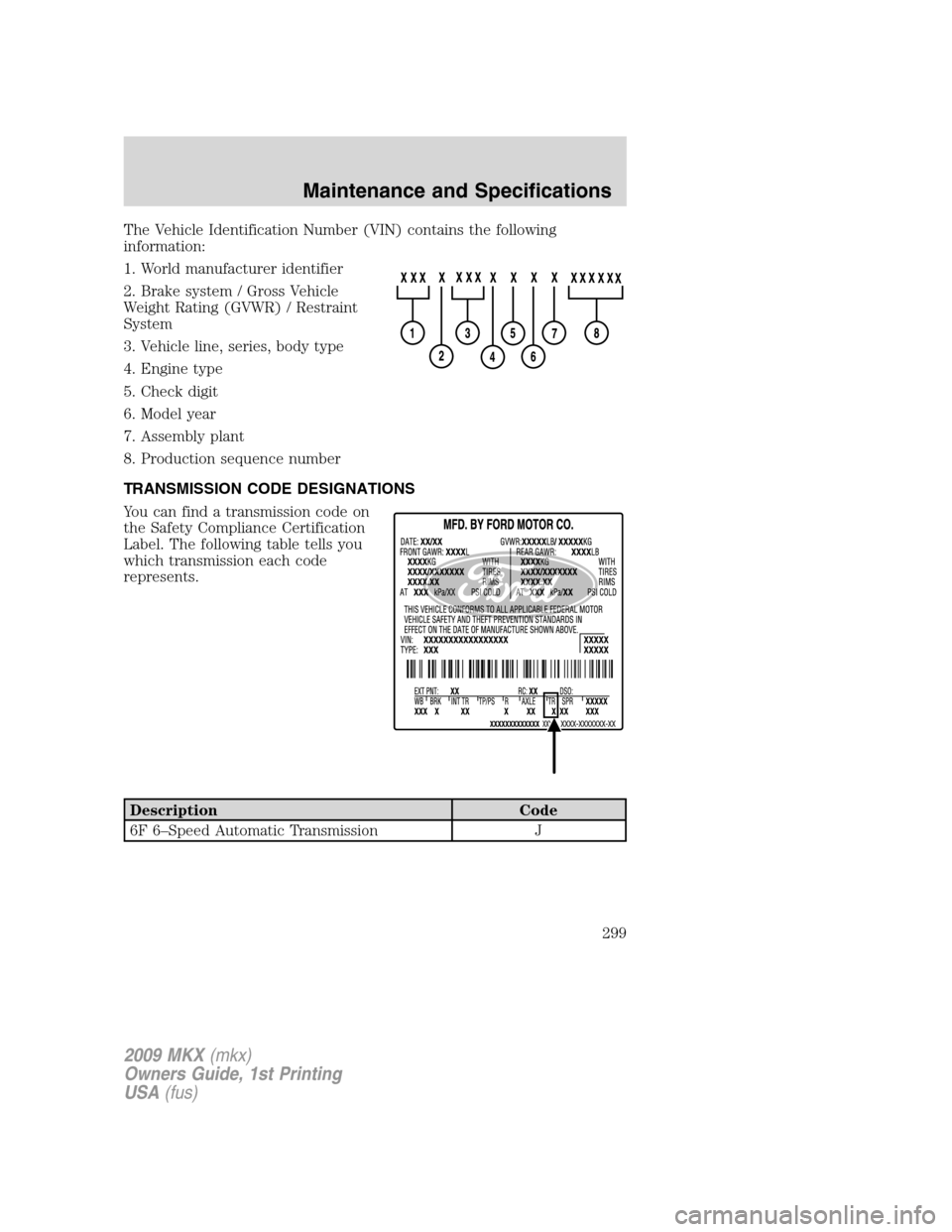

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6F 6–Speed Automatic Transmission J
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
299

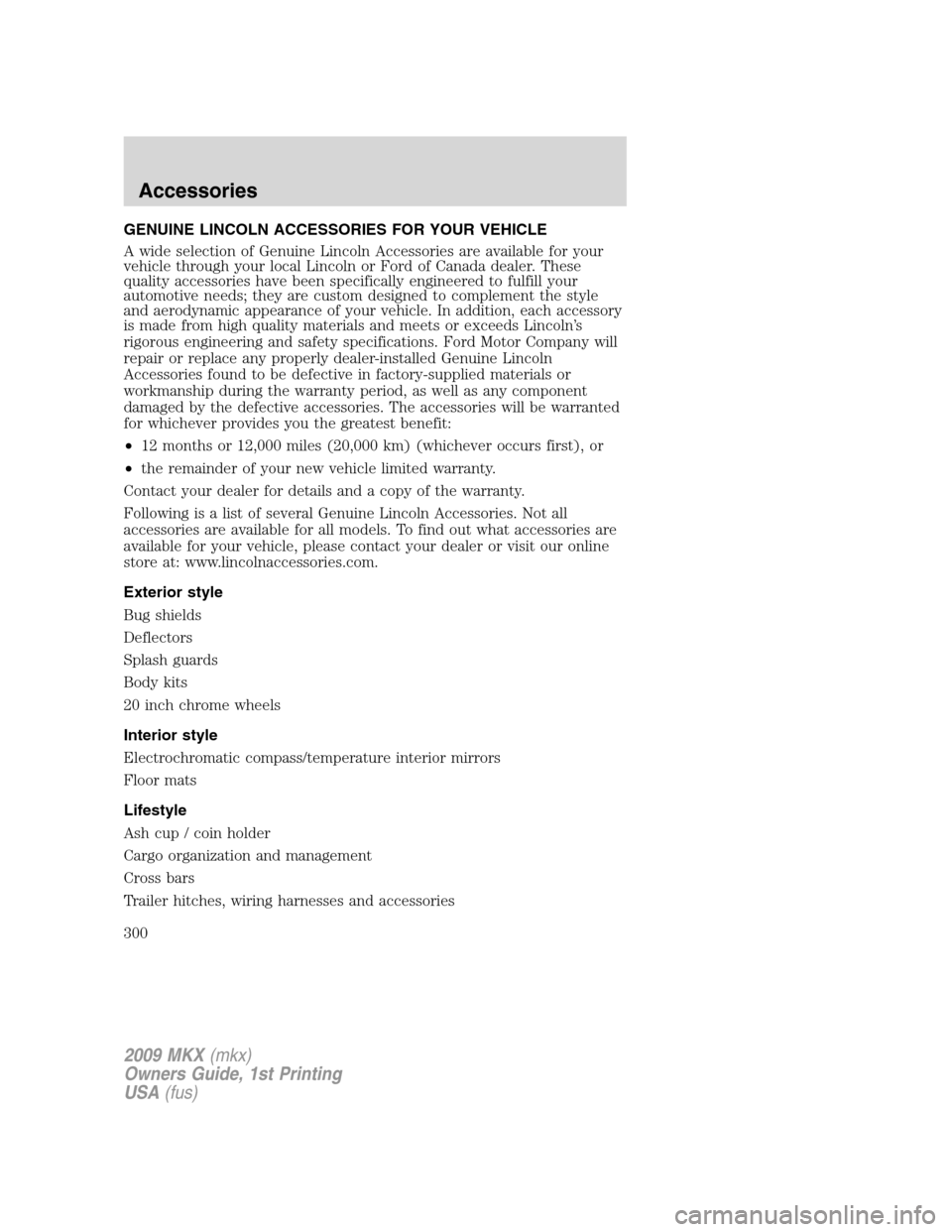

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Deflectors
Splash guards
Body kits
20 inch chrome wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / coin holder
Cargo organization and management
Cross bars
Trailer hitches, wiring harnesses and accessories
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Accessories
300

A
Accessory delay ..........................55
AdvanceTrac ..............................206
Air cleaner filter ...............292–293
Air conditioning ..........................32
Airbag supplemental restraint
system ................133–134, 142, 145
and child safety seats ............135
description ..............134, 142, 145
disposal ....................................148
driver airbag ............136, 143, 146
indicator light .........142, 144, 147
operation .................136, 143, 146
passenger airbag .....136, 143, 146
side airbag ...............................142
All Wheel Drive (AWD),
driving off road .........................218
Ambient mood/lighting ...............41
Antifreeze (see Engine
coolant) .....................................273
Anti-lock brake system (see
Brakes) ......................................204
Anti-theft system ..............101, 104
arming the system ..................104
disarming a triggered
system .....................................105
Audio system (see Radio) .........18
Automatic transmission
driving an automatic
overdrive .................................213
fluid, adding ............................290
fluid, checking ........................290
fluid, refill capacities ..............295
fluid, specification ..................295
Auxiliary input jack (Line in) ....25
Auxiliary power point .................52Axle
lubricant specifications ..........295
B
Battery .......................................271
acid, treating emergencies .....271
jumping a disabled battery ....241
maintenance-free ....................271
replacement, specifications ...293
servicing ..................................271
Belt-Minder.............................129
Booster seats .............................161
Brakes ........................................204
anti-lock ...................................204
anti-lock brake system (ABS)
warning light ...........................205
fluid, checking and adding ....290
fluid, refill capacities ..............295
fluid, specifications .................295
lubricant specifications ..........295
parking ....................................205
shift interlock ..........................212
Bulbs ............................................42
C
Capacities for refilling fluids ....295
Cargo management system ........83
Cargo net .....................................83
Cell phone use ..............................8
Changing a tire .................234, 238
Child safety seats ......................152
attaching with tether straps ..159
in front seat ............................153
in rear seat ..............................153
LATCH .....................................156
recommendations ...................150
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Index
302

Child safety seats - booster
seats ...........................................161
Cleaning your vehicle
engine compartment ..............257
instrument panel ....................258
interior .............................259–260
plastic parts ............................257
safety belts ..............................259
washing ....................................255
waxing .....................................256
wheels ......................................256
wiper blades ............................258
Climate control (see Air
conditioning or Heating) ............32
Clock ............................................20
Compass, electronic
set zone adjustment .................69
Console ........................................52
overhead ....................................51
Controls
power seat ...............................110
steering column ........................60
Convertible
cleaning ...................................258
Coolant
checking and adding ..............273
refill capacities ................276, 295
specifications ..........................295
Cruise control (see Speed
control) ........................................57
Cupholder(s) .............................118
Customer Assistance ................225
Ford Extended Service
Plan ..........................................252
Getting assistance outside the
U.S. and Canada .....................252
Getting roadside assistance ...225Getting the service you
need .........................................248
Ordering additional owner’s
literature .................................253
Utilizing the
Mediation/Arbitration
Program ...................................251
D
Daytime running lamps (see
Lamps) .........................................38
Dipstick
automatic transmission
fluid ..........................................290
engine oil .................................267
Driving under special
conditions ..................215, 220, 222
sand .........................................221
snow and ice ...........................223
through water .................221, 224
E
Electronic message center .........67
Emergencies, roadside
jump-starting ..........................241
Emission control system ..........286
Engine ........................................297
cleaning ...................................257
coolant .....................................273
fail-safe cooling .......................277
idle speed control ...................271
lubrication specifications .......295
refill capacities ........................295
service points ..................264–265
starting after a collision .........226
Engine block heater .................202
Engine oil ..................................267
change oil soon warning,
message center .......................267
checking and adding ..............267
dipstick ....................................267
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Index
303

lighting up panel and
interior .......................................39
J
Jack ............................................234
positioning ...............................234
storage .....................................234
Jump-starting your vehicle ......241
K
Keyless entry system
autolock .....................................87
keypad .......................................99
locking and unlocking doors ..100
programming entry code .........99
Keys .....................................85, 102
positions of the ignition .........199
L
Lamps
autolamp system .......................37
bulb replacement
specifications chart ..................43
daytime running light ...............38
fog lamps ...................................38
headlamps .................................37
headlamps, flash to pass ..........38
instrument panel, dimming .....39
interior lamps .....................41–43
replacing bulbs .........................44
LATCH anchors .........................156
Liftgate ................77–78, 81, 84, 94
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........205
Load limits .................................187
Locks
autolock .....................................87childproof ..................................91
doors ..........................................87
Lubricant specifications ...........295
Lug nuts ....................................240
Lumbar support, seats .............111
M
Message center ...........................67
english/metric button ...............72
system check button ................71
warning messages .....................74
Mirrors ...................................55–56
automatic dimming rearview
mirror ........................................55
fold away ...................................57
heated ........................................57
programmable memory ............95
side view mirrors (power) .......56
Moon roof ..............................62, 93
Motorcraft parts ........260, 278, 293
N
Navigation system .......................31
O
Octane rating ............................282
Oil (see Engine oil) ..................267
Overdrive ...................................213
P
Parking brake ............................205
Parts (see Motorcraft parts) ....293
Passenger Occupant
Classification Sensor .................121
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Index
305
