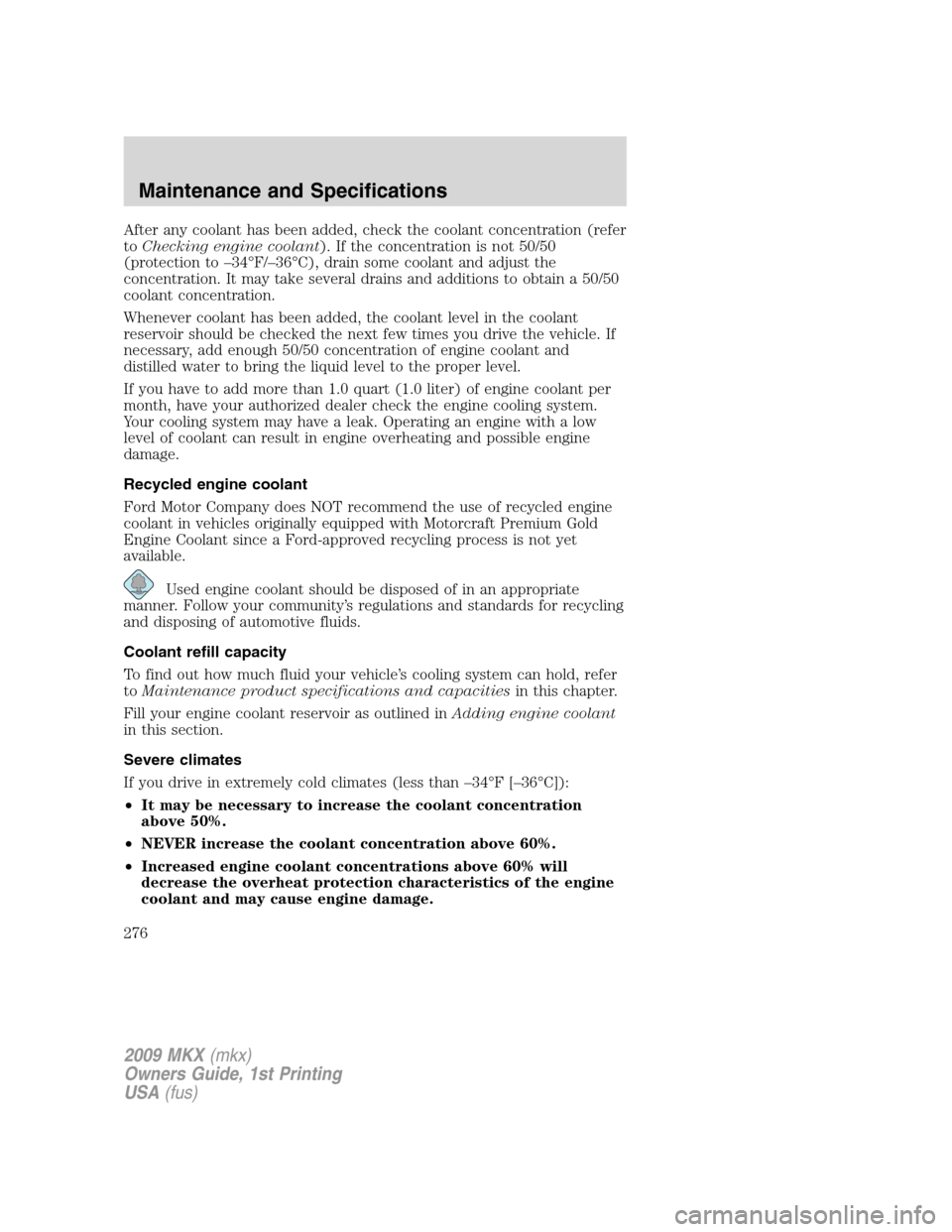

coolant LINCOLN MKX 2009 User Guide

After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant in vehicles originally equipped with Motorcraft Premium Gold
Engine Coolant since a Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
Severe climates
If you drive in extremely cold climates (less than –34°F [–36°C]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
276

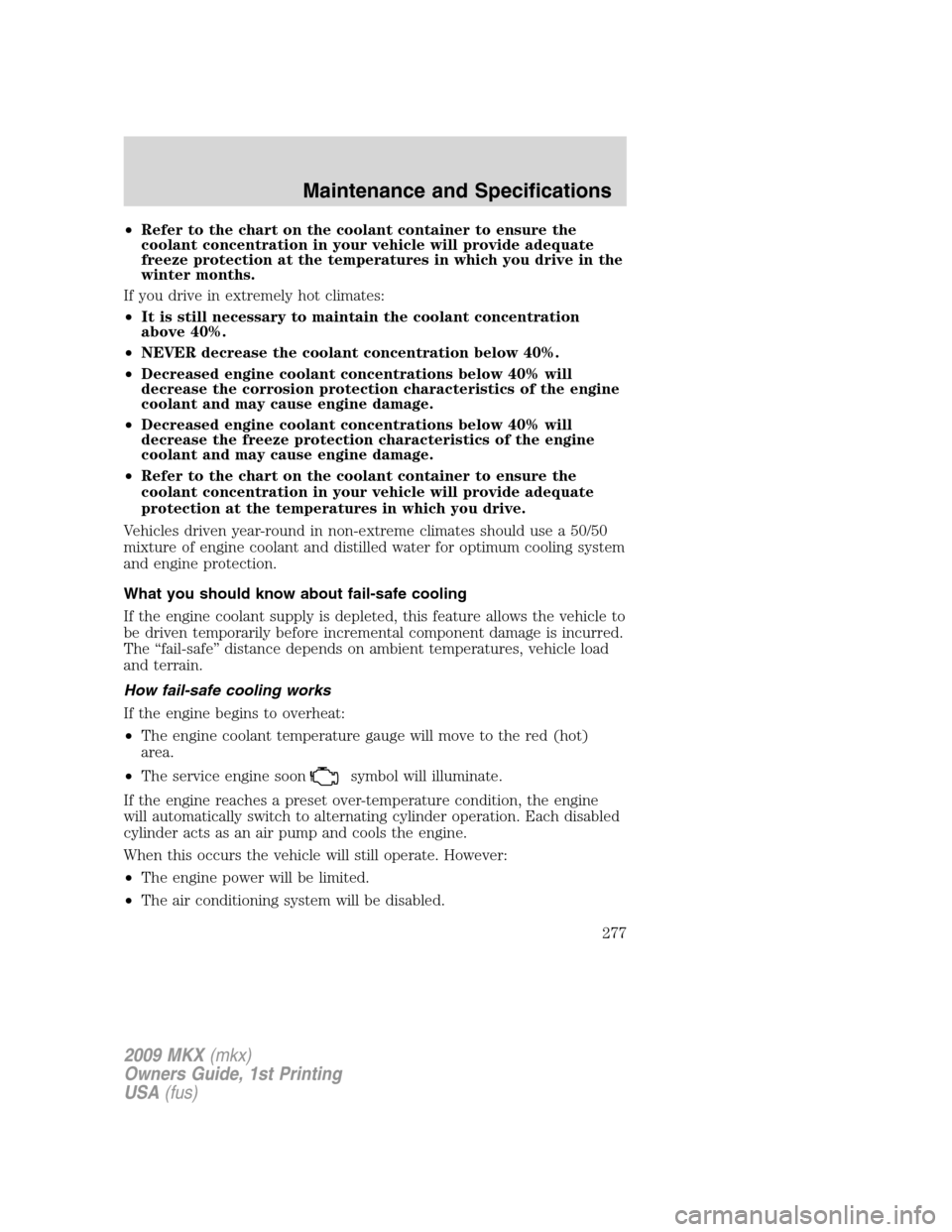

•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature gauge will move to the red (hot)
area.
•The service engine soon
symbol will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
277

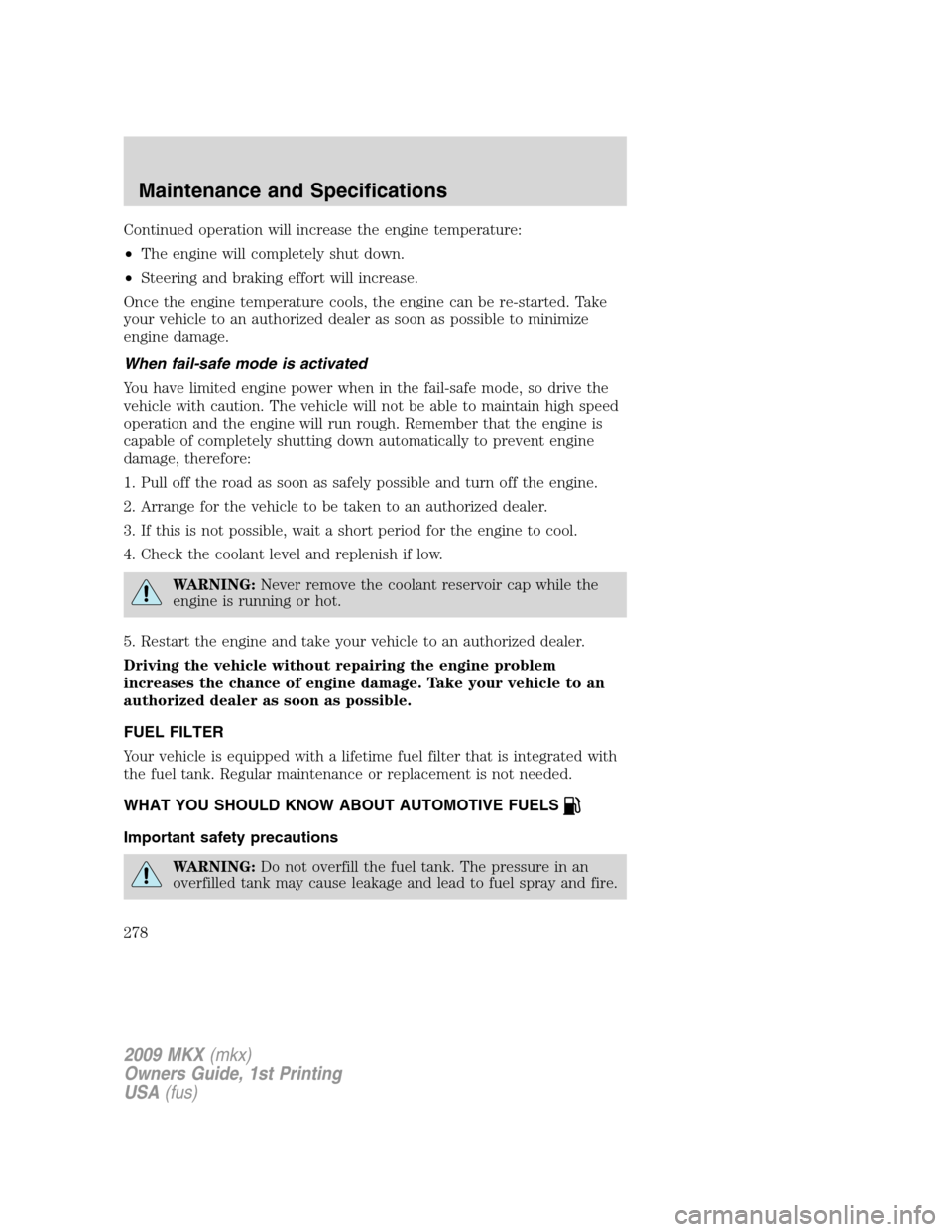

Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
278

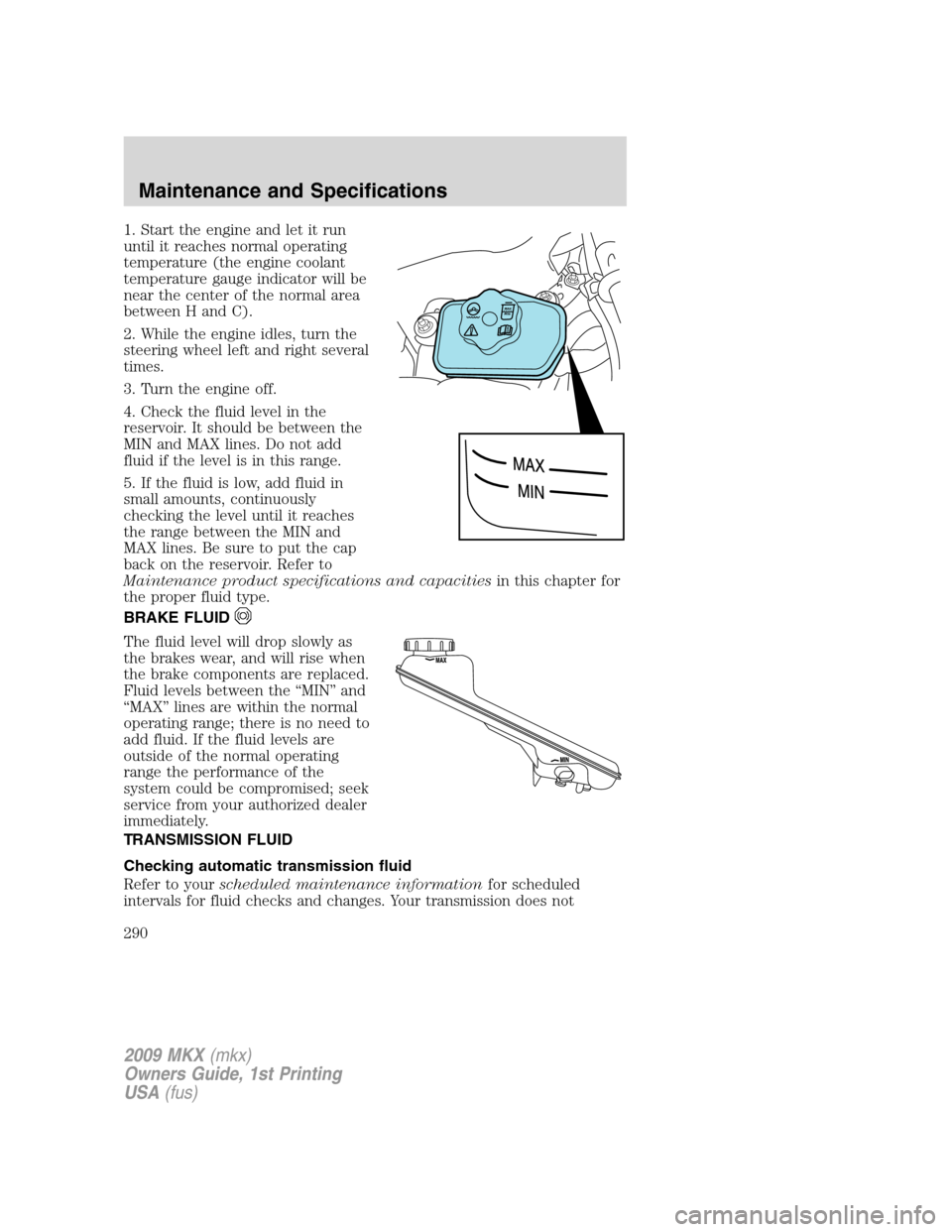

1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in
small amounts, continuously
checking the level until it reaches
the range between the MIN and
MAX lines. Be sure to put the cap
back on the reservoir. Refer to
Maintenance product specifications and capacitiesin this chapter for
the proper fluid type.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
290

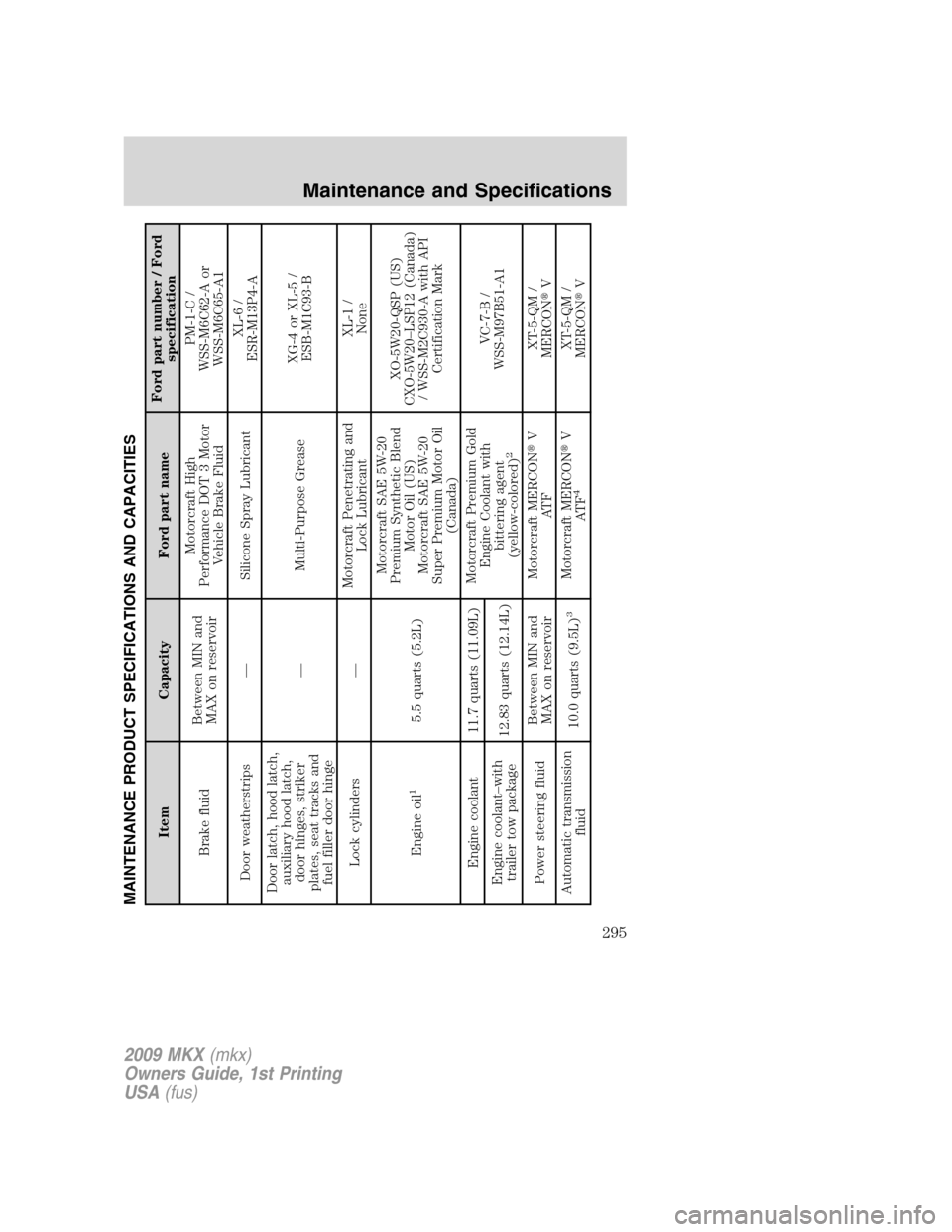

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number / Ford
specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Door latch, hood latch,
auxiliary hood latch,
door hinges, striker
plates, seat tracks and
fuel filler door hinge— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating and
Lock LubricantXL-1 /
None
Engine oil
1
5.5 quarts (5.2L)Motorcraft SAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor Oil
(Canada)XO-5W20-QSP (US)
CXO-5W20–LSP12 (Canada)
/ WSS-M2C930-A with API
Certification Mark
Engine coolant 11.7 quarts (11.09L)Motorcraft Premium Gold
Engine Coolant with
bittering agent
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1 Engine coolant–with
trailer tow package12.83 quarts (12.14L)
Power steering fluidBetween MIN and
MAX on reservoirMotorcraft MERCONV
AT FXT-5-QM /
MERCONV
Automatic transmission
fluid10.0 quarts (9.5L)
3
Motorcraft MERCONV
AT F
4
XT-5-QM /
MERCONV
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
295

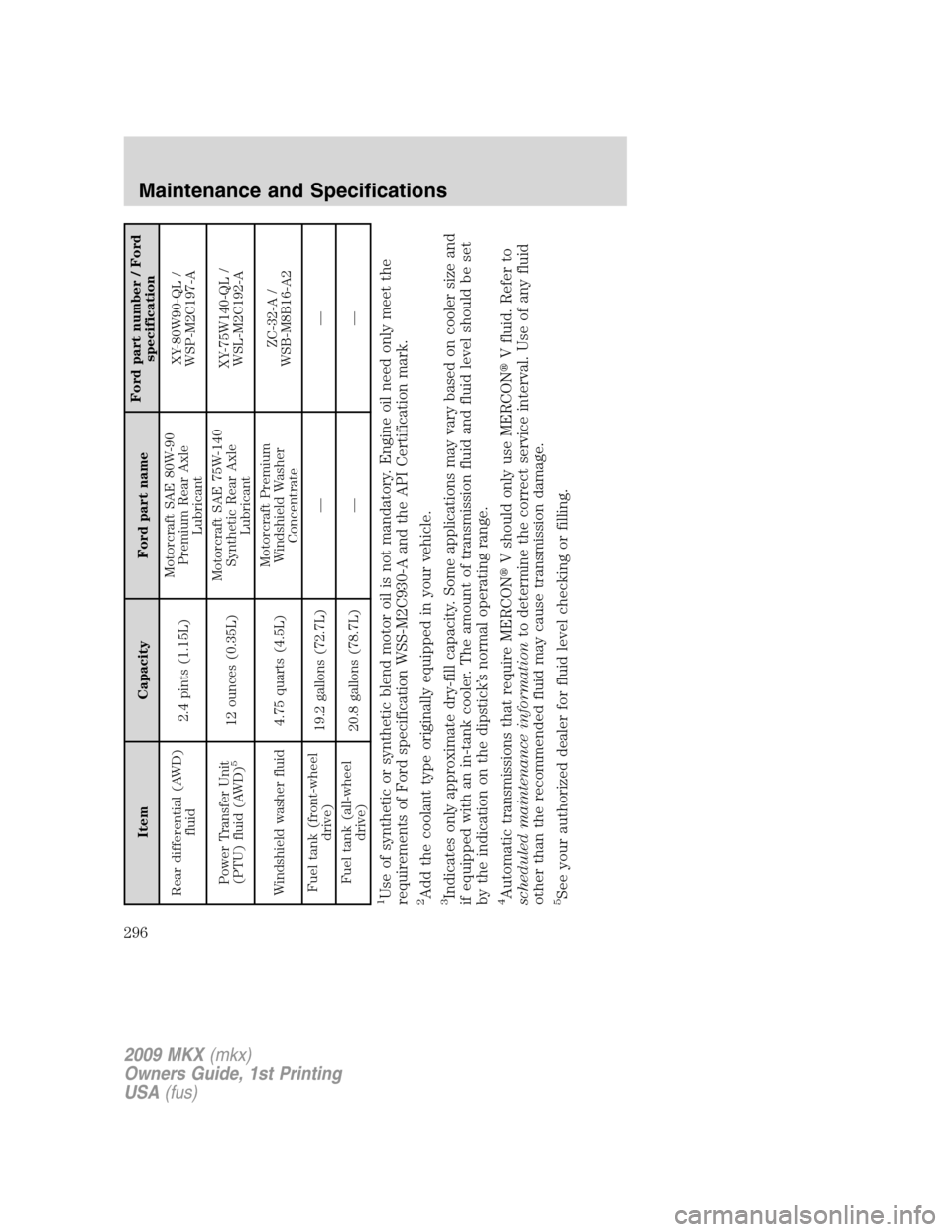

Item Capacity Ford part nameFord part number / Ford
specification
Rear differential (AWD)
fluid2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
5
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer fluid 4.75 quarts (4.5L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (front-wheel
drive)19.2 gallons (72.7L) — —
Fuel tank (all-wheel
drive)20.8 gallons (78.7L) — —
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4Automatic transmissions that require MERCONV should only use MERCONV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5See your authorized dealer for fluid level checking or filling.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
296

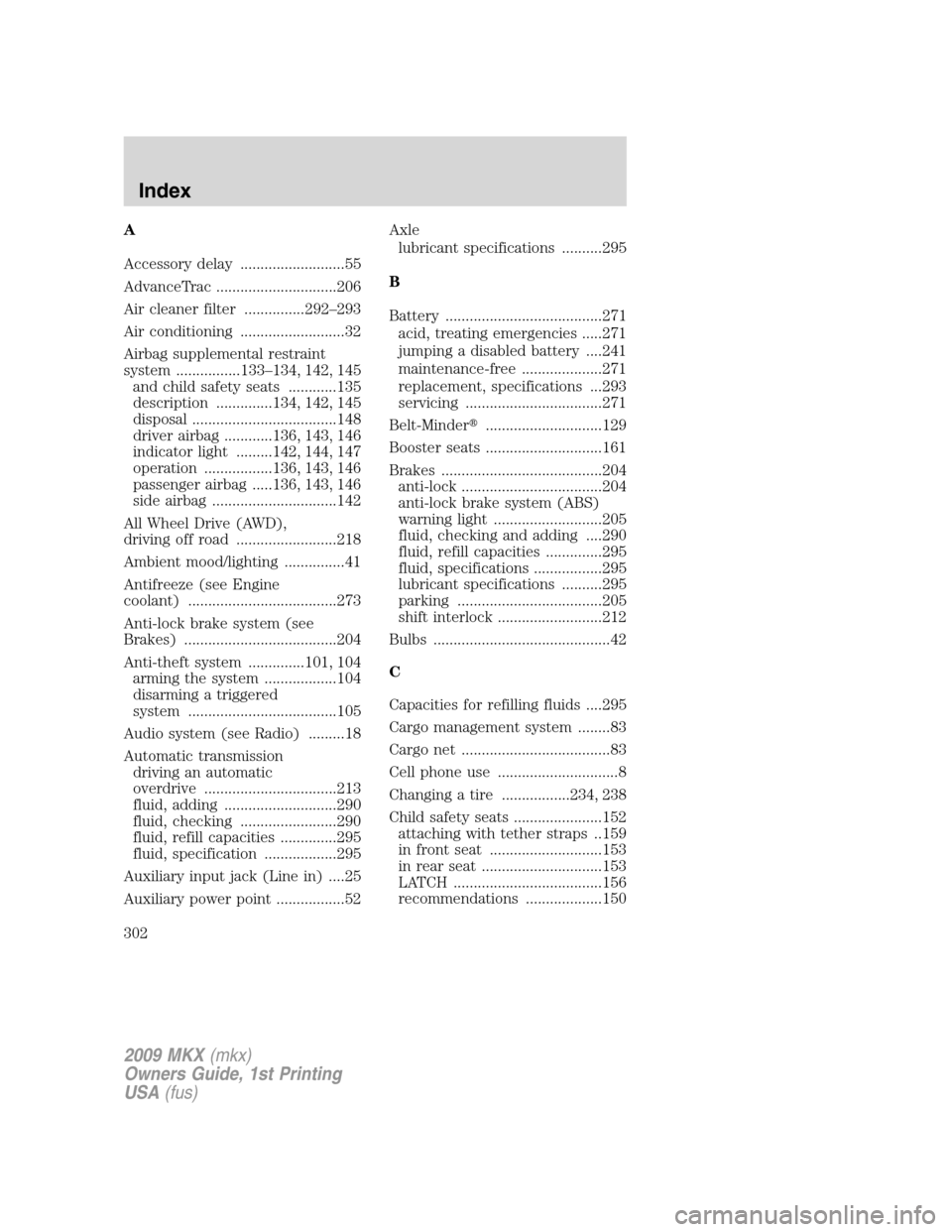

A
Accessory delay ..........................55
AdvanceTrac ..............................206
Air cleaner filter ...............292–293
Air conditioning ..........................32
Airbag supplemental restraint
system ................133–134, 142, 145
and child safety seats ............135
description ..............134, 142, 145
disposal ....................................148
driver airbag ............136, 143, 146
indicator light .........142, 144, 147
operation .................136, 143, 146
passenger airbag .....136, 143, 146
side airbag ...............................142
All Wheel Drive (AWD),
driving off road .........................218
Ambient mood/lighting ...............41
Antifreeze (see Engine
coolant) .....................................273
Anti-lock brake system (see
Brakes) ......................................204
Anti-theft system ..............101, 104
arming the system ..................104
disarming a triggered
system .....................................105
Audio system (see Radio) .........18
Automatic transmission
driving an automatic
overdrive .................................213
fluid, adding ............................290
fluid, checking ........................290
fluid, refill capacities ..............295
fluid, specification ..................295
Auxiliary input jack (Line in) ....25
Auxiliary power point .................52Axle
lubricant specifications ..........295
B
Battery .......................................271
acid, treating emergencies .....271
jumping a disabled battery ....241
maintenance-free ....................271
replacement, specifications ...293
servicing ..................................271
Belt-Minder.............................129
Booster seats .............................161
Brakes ........................................204
anti-lock ...................................204
anti-lock brake system (ABS)
warning light ...........................205
fluid, checking and adding ....290
fluid, refill capacities ..............295
fluid, specifications .................295
lubricant specifications ..........295
parking ....................................205
shift interlock ..........................212
Bulbs ............................................42
C
Capacities for refilling fluids ....295
Cargo management system ........83
Cargo net .....................................83
Cell phone use ..............................8
Changing a tire .................234, 238
Child safety seats ......................152
attaching with tether straps ..159
in front seat ............................153
in rear seat ..............................153
LATCH .....................................156
recommendations ...................150
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Index
302

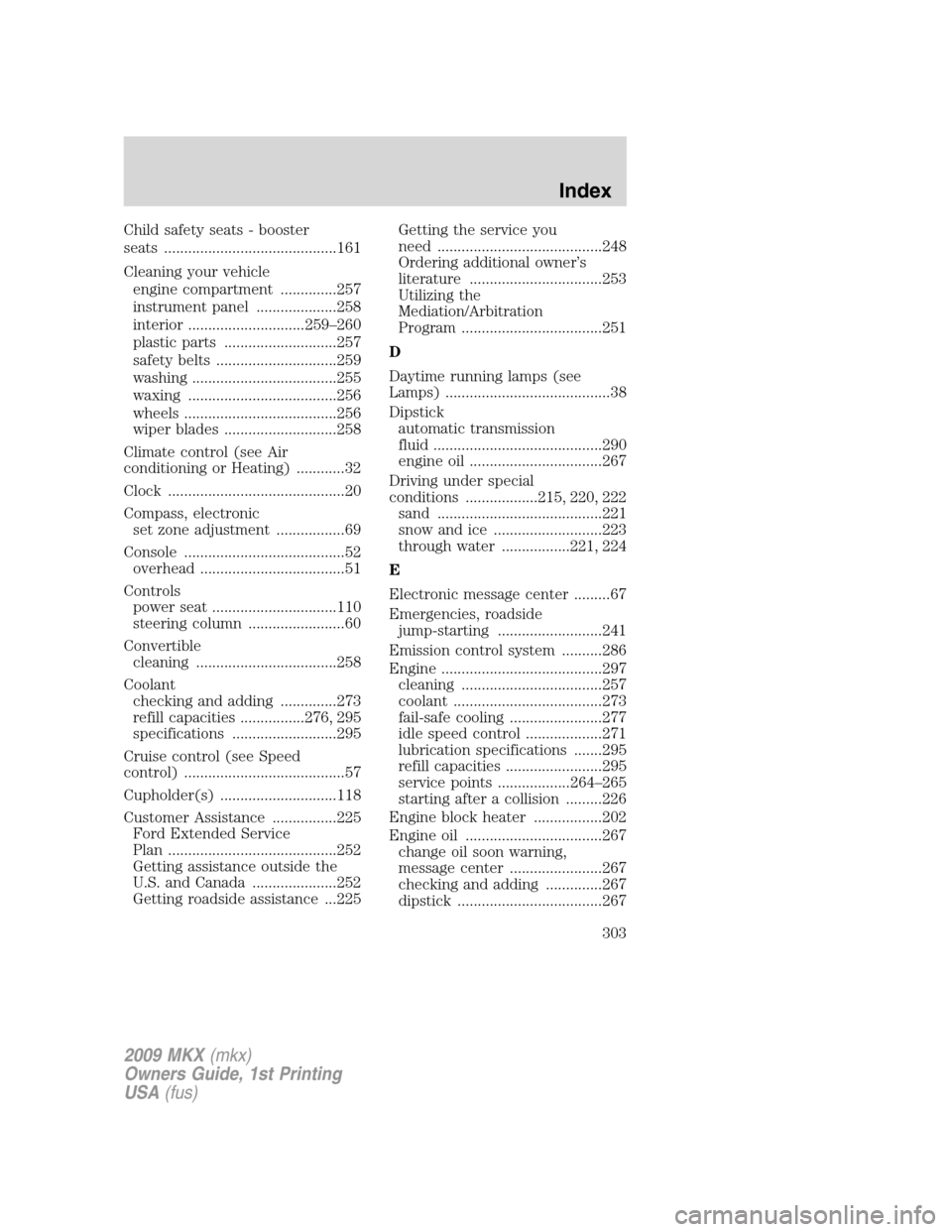

Child safety seats - booster
seats ...........................................161
Cleaning your vehicle
engine compartment ..............257
instrument panel ....................258
interior .............................259–260
plastic parts ............................257
safety belts ..............................259
washing ....................................255
waxing .....................................256
wheels ......................................256
wiper blades ............................258
Climate control (see Air
conditioning or Heating) ............32
Clock ............................................20
Compass, electronic
set zone adjustment .................69
Console ........................................52
overhead ....................................51
Controls
power seat ...............................110
steering column ........................60
Convertible
cleaning ...................................258
Coolant
checking and adding ..............273
refill capacities ................276, 295
specifications ..........................295
Cruise control (see Speed
control) ........................................57
Cupholder(s) .............................118
Customer Assistance ................225
Ford Extended Service
Plan ..........................................252
Getting assistance outside the
U.S. and Canada .....................252
Getting roadside assistance ...225Getting the service you
need .........................................248
Ordering additional owner’s
literature .................................253
Utilizing the
Mediation/Arbitration
Program ...................................251
D
Daytime running lamps (see
Lamps) .........................................38
Dipstick
automatic transmission
fluid ..........................................290
engine oil .................................267
Driving under special
conditions ..................215, 220, 222
sand .........................................221
snow and ice ...........................223
through water .................221, 224
E
Electronic message center .........67
Emergencies, roadside
jump-starting ..........................241
Emission control system ..........286
Engine ........................................297
cleaning ...................................257
coolant .....................................273
fail-safe cooling .......................277
idle speed control ...................271
lubrication specifications .......295
refill capacities ........................295
service points ..................264–265
starting after a collision .........226
Engine block heater .................202
Engine oil ..................................267
change oil soon warning,
message center .......................267
checking and adding ..............267
dipstick ....................................267
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Index
303
