spark plugs replace LINCOLN MKX 2009 Owners Manual

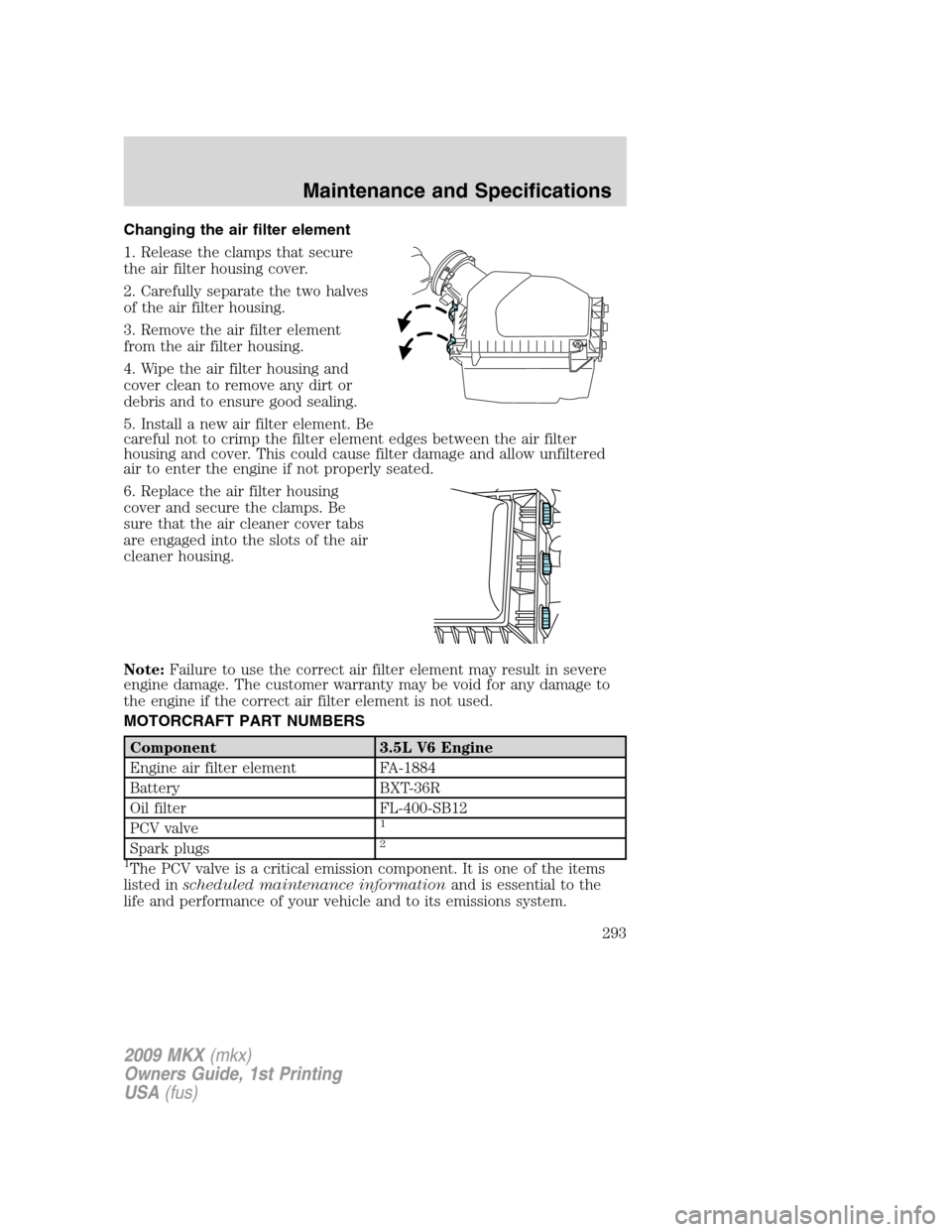

Changing the air filter element
1. Release the clamps that secure
the air filter housing cover.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the air filter housing.
4. Wipe the air filter housing and
cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be
careful not to crimp the filter element edges between the air filter
housing and cover. This could cause filter damage and allow unfiltered
air to enter the engine if not properly seated.
6. Replace the air filter housing
cover and secure the clamps. Be
sure that the air cleaner cover tabs
are engaged into the slots of the air
cleaner housing.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
MOTORCRAFT PART NUMBERS
Component 3.5L V6 Engine
Engine air filter element FA-1884
Battery BXT-36R
Oil filter FL-400-SB12
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
293

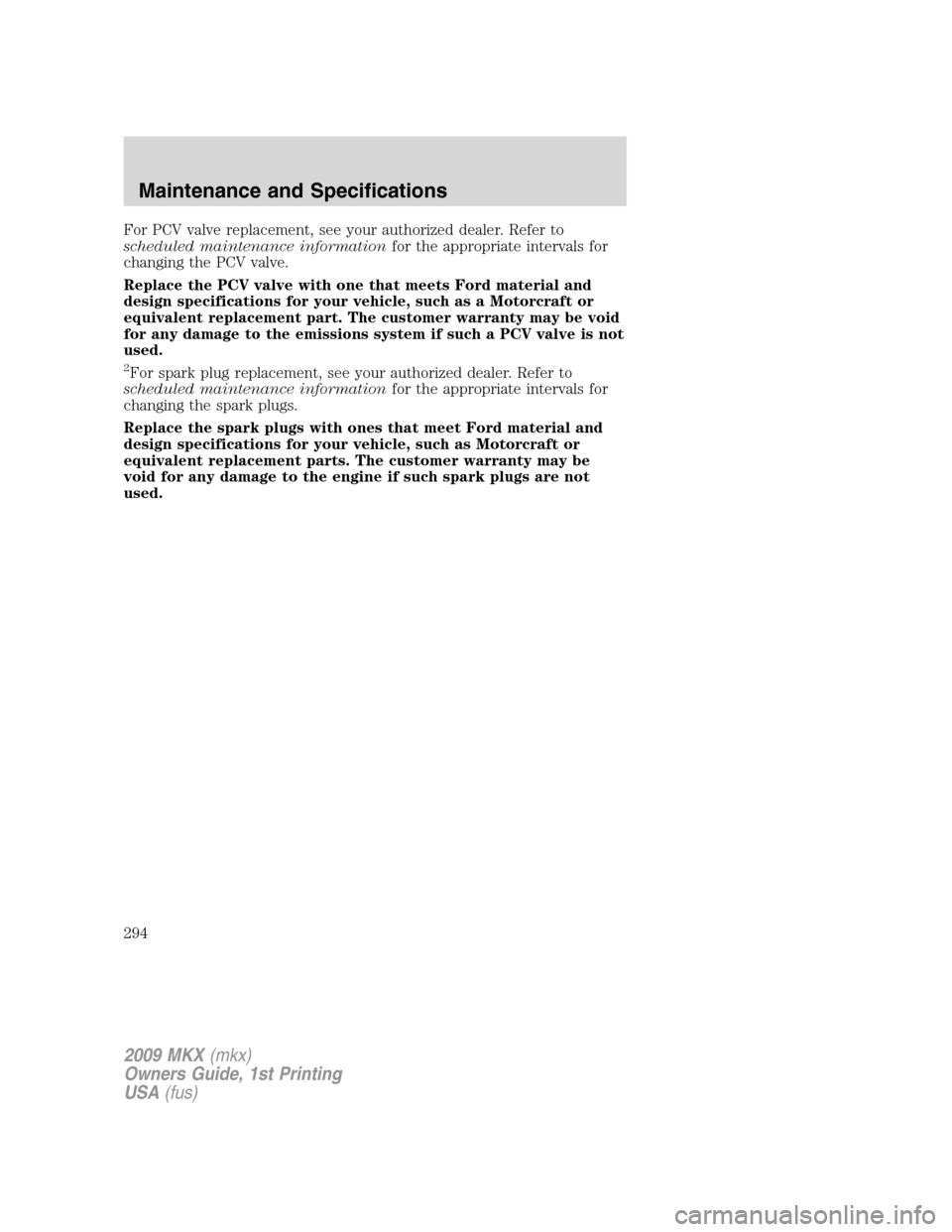

For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
294

Power distribution box (see
Fuses) ........................................231
Power door locks ........................87
Power liftgate ..............................78
Power mirrors .............................56
Power point .................................52
Power steering ..........................211
fluid, checking and adding ....289
fluid, refill capacity ................295
fluid, specifications .................295
Power Windows ...........................54
R
Radio ............................................18
Recommendations for
attaching safety restraints for
children ......................................150
Relays ........................................227
Remote entry system ...........91, 93
illuminated entry ................97–98
locking/unlocking doors .....93–94
opening the trunk .....................94
panic alarm ...............................95
replacement/additional
transmitters ...............................96
replacing the batteries .............96
Reverse sensing system ...........216
Roadside assistance ..................225
S
Safety belts (see Safety
restraints) ..................120, 123–127
Safety Canopy ...................142, 145
Safety defects, reporting ..........254Safety restraints ........120, 123–127
Belt-Minder...........................129
extension assembly ................129
for adults .........................124–127
for children .............................148
Occupant Classification
Sensor ......................................121
warning light and chime ........129
Safety restraints - LATCH
anchors ......................................156
Safety seats for children ..........152
Safety Compliance
Certification Label ....................298
Satellite Radio Information ........29
Seats ..........................................107
child safety seats ....................152
climate control ........................114
easy access/easyout feature ..112
front seats ...............................113
heated ......................................119
memory seat .....................95, 112
SecuriCode keyless entry
system ..........................................99
SecuriLock passive anti-theft
system ........................................101
Servicing your vehicle ..............262
Spare tire (see Changing the
Tire) ...........................................238
Spark plugs,
specifications .....................293, 297
Specification chart,
lubricants ...................................295
Speed control ..............................57
Starting your vehicle ........199–201
jump starting ..........................241
Steering wheel
controls ......................................60
tilting .........................................50
SYNC..........................................31
2009 MKX(mkx)
Owners Guide, 1st Printing
USA(fus)
Index
306
