Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
38 20A Subwoofer/amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming rear view
mirror
42 10A Not used (spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI) light
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
235
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

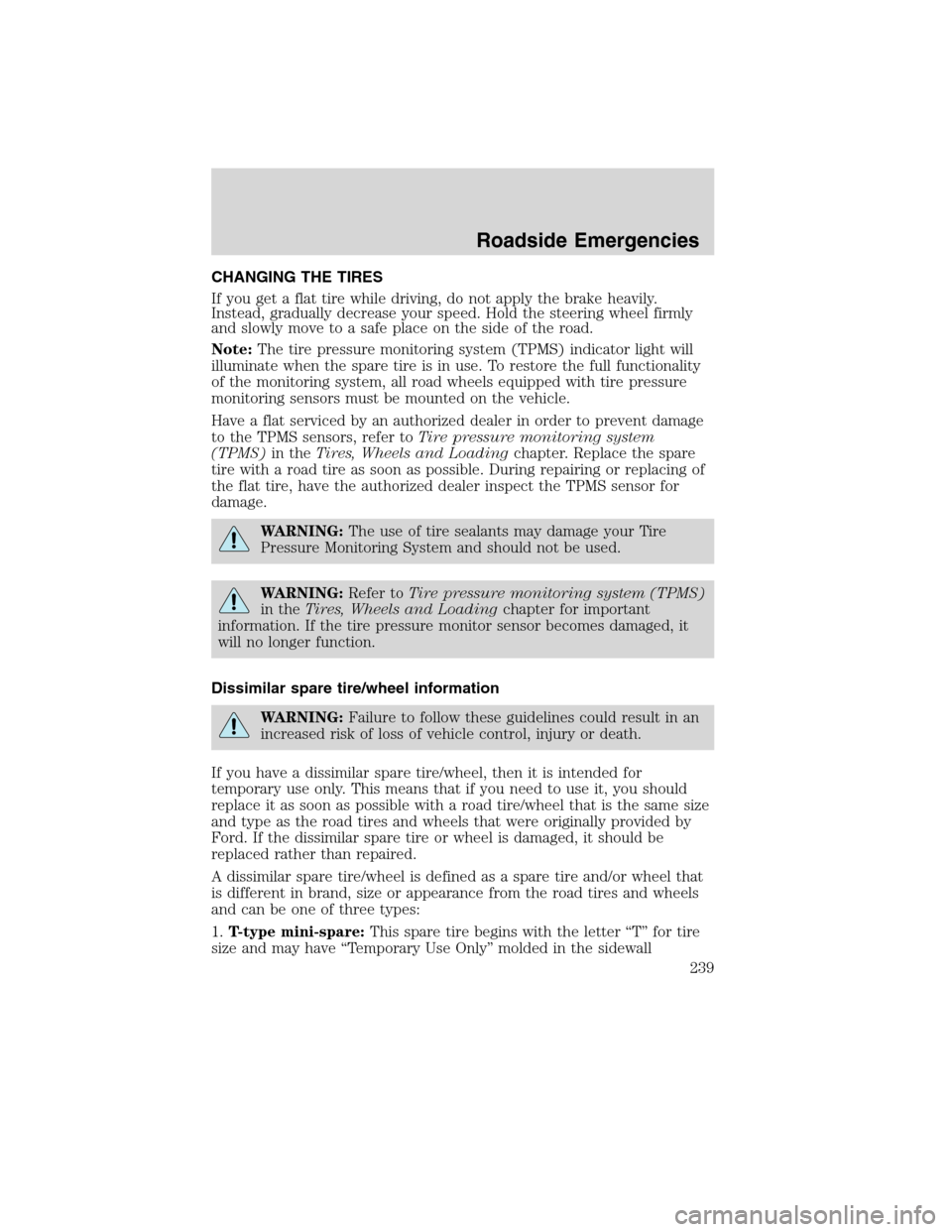

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
Roadside Emergencies
239
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

cluster ........................................12
lighting up panel and
interior .......................................47
J
Jack ............................................239
positioning ...............................239
storage .....................................239
Jump-starting your vehicle ......246
K
Keyless entry system
autolock .....................................88
keypad .......................................99
locking and unlocking
doors ........................................100
programming entry code .........99
Keys .....................................87, 102
positions of the ignition .........202
L
Lamps
autolamp system .......................45
bulb replacement
specifications chart ..................51
daytime running light ...............46
fog lamps ...................................46
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps ...............49–50, 52
replacing bulbs .........................52
LATCH anchors .........................158
Liftgate ......................79, 83, 85, 94
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........208
Load limits .................................189Locks
autolock .....................................88
childproof ..................................92
doors ..........................................88
Lubricant specifications ...........300
Lug nuts ....................................245
Lumbar support, seats .............111
M
Message center ...........................18
english/metric button ...............22
system check button ................22
Mirrors ...................................63–64
automatic dimming rearview
mirror ........................................63
fold away ...................................64
heated ........................................64
programmable memory ............95
side view mirrors (power) .......64
Moon roof ..............................68, 94
Motorcraft parts ................266, 299
N
Navigation system .......................39
O
Octane rating ............................287
Oil (see Engine oil) ..................272
Overdrive ...................................216
P
Parking brake ............................208
Parts (see Motorcraft parts) ....299
Passenger Occupant
Classification Sensor .................121
Index
314
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Power distribution box
(see Fuses) ...............................235
Power door locks ........................88
Power liftgate ..............................79
Power mirrors .............................64
Power point .................................60
Power steering ..........................214
fluid, checking and adding ....294
fluid, refill capacity ................300
fluid, specifications .................300
Power Windows ...........................61
R
Radio ............................................25
Recommendations for
attaching safety restraints for
children ......................................152
Relays ........................................231
Remote entry system ...........92–93
illuminated entry ................97–98
locking/unlocking doors .....93–94
opening the trunk .....................94
panic alarm ...............................95
replacement/additional
transmitters ...............................96
replacing the batteries .............96
Reverse sensing system ...........218
Roadside assistance ..................229
Roof rack .....................................86
S
Safety belts (see Safety
restraints) ..................120, 123–127
Safety Canopy ...................143, 146
Safety defects, reporting ..........259Safety restraints ........120, 123–127
Belt-Minder...........................130
extension assembly ................129
for adults .........................124–127
for children .............................149
Occupant Classification
Sensor ......................................121
warning light and chime ........129
Safety restraints - LATCH
anchors ......................................158
Safety seats for children ..........155
Safety Compliance
Certification Label ....................304
Satellite Radio Information ........36
Seats ..........................................107
child safety seats ....................155
climate control ........................114
easy access/easyout
feature .....................................112
front seats ...............................113
heated ......................................119
memory seat .....................95, 112
Second-row power fold seat ....116
SecuriCode keyless entry
system ..........................................99
SecuriLock passive anti-theft
system ........................................100
Servicing your vehicle ..............267
SOS Post Crash Alert ...............149
Spare tire (see Changing
the Tire) ....................................242
Spark plugs,
specifications .....................299, 303
Specification chart,
lubricants ...................................300
Speed control ..............................65
Starting your vehicle ........202–204
Index
315
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
