Block heater cord LINCOLN MKX 2010 Owners Manual

WARNING:To reduce the risk of electrical shock, do not use
your heater with ungrounded electrical systems or two-pronged
(cheater) adapters.
Prior to using the engine block heater, follow these recommendations for
proper and safe operation:
•For your safety, use an outdoor extension cord that is product
certified by Underwriter’s Laboratory (UL) or Canadian Standards
Association (CSA). Use only an extension cord that can be used
outdoors, in cold temperatures, and is clearly markedSuitable for Use
with Outdoor Appliances.Never use an indoor extension cord
outdoors; it could result in an electric shock or fire hazard.
•Use a 16 gauge outdoor extension cord, minimum.
•Use as short an extension cord as possible.
•Do not use multiple extension cords. Instead, use one extension cord
which is long enough to reach from the engine block heater cord to
the outlet without stretching.
•Make certain that the extension cord is in excellent condition (not
patched or spliced). Store your extension cord indoors at
temperatures above 32°F (0°C). Outdoor conditions can deteriorate
extension cords over a period of time.
•To reduce the risk of electrical shock, do not use your heater with
ungrounded electrical systems or two pronged (cheater) adapters.
Also ensure that the block heater, especially the cord, is in good
condition before use.
•Make sure that when in operation, the extension cord plug /engine
block heater cord plug connection is free and clear of water in order
to prevent possible shock or fire.
•Be sure that areas where the vehicle is parked are clean and clear of
all combustibles such as petroleum products, dust, rags, paper and
similar items.
•Be sure that the engine block heater, heater cord and extension cord
are solidly connected. A poor connection can cause the cord to
become very hot and may result in an electrical shock or fire. Be sure
to check for heat anywhere in the electrical hookup once the system
has been operating for approximately a half hour.
•Finally, have the engine block heater system checked during your fall
tune-up to be sure it’s in good working order.
Driving
206
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

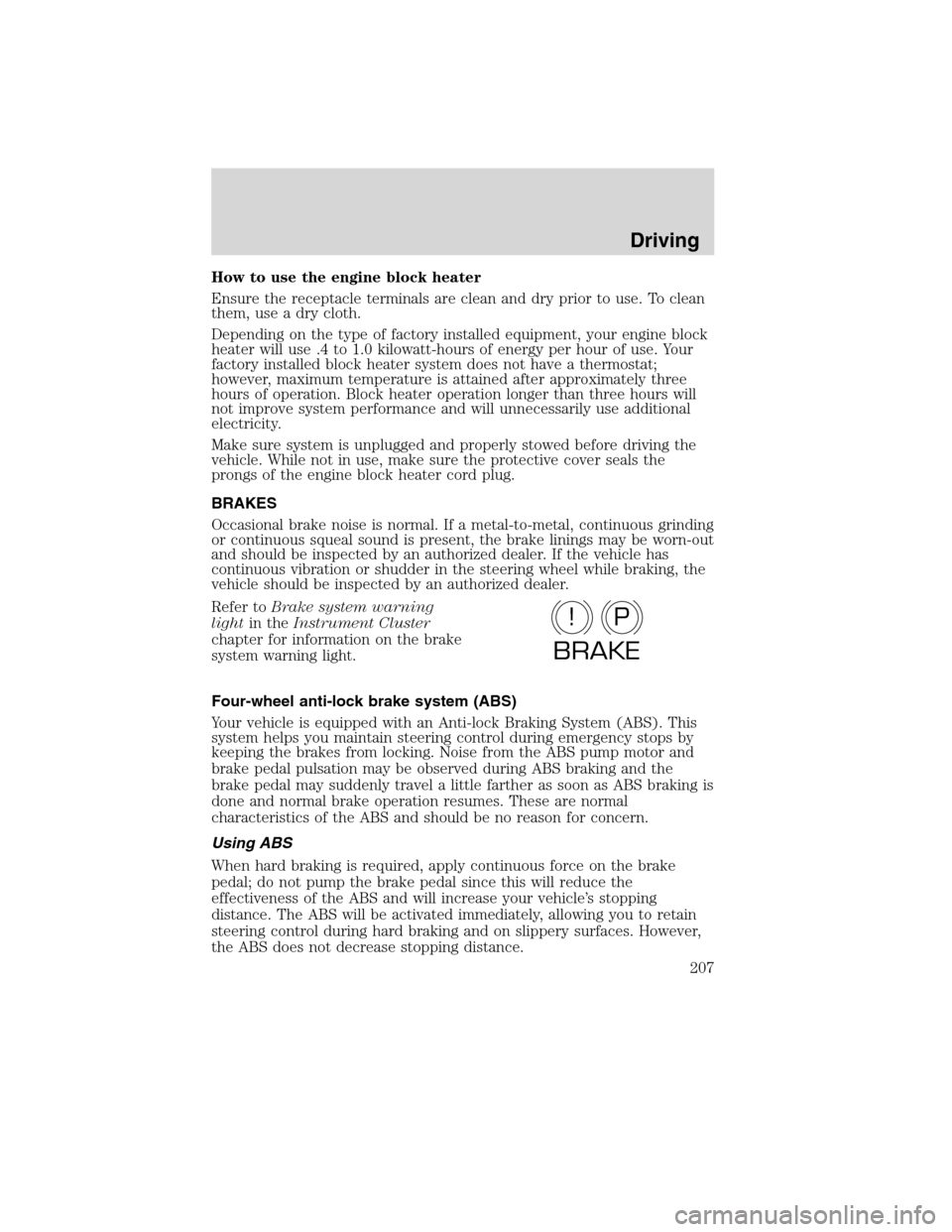

How to use the engine block heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater will use .4 to 1.0 kilowatt-hours of energy per hour of use. Your
factory installed block heater system does not have a thermostat;
however, maximum temperature is attained after approximately three
hours of operation. Block heater operation longer than three hours will
not improve system performance and will unnecessarily use additional
electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toBrake system warning
lightin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an Anti-lock Braking System (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the ABS pump motor and
brake pedal pulsation may be observed during ABS braking and the
brake pedal may suddenly travel a little farther as soon as ABS braking is
done and normal brake operation resumes. These are normal
characteristics of the ABS and should be no reason for concern.
Using ABS
When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
steering control during hard braking and on slippery surfaces. However,
the ABS does not decrease stopping distance.
P!
BRAKE
Driving
207
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Engine block heater .................205
Engine oil ..................................272
change oil soon warning,
message center .......................272
checking and adding ..............272
dipstick ....................................272
filter, specifications ........275, 299
recommendations ...................275
refill capacities ........................300
specifications ..........................300
Event data recording ....................7
Exhaust fumes ..........................205
F
Fail safe cooling ........................282
Fluid capacities .........................300
Fog lamps ....................................46
Four-Wheel Drive vehicles
driving off road .......................222
Fuel ............................................283
calculating fuel
economy ............................20, 288
cap ...........................................286
capacity ...................................300
choosing the right fuel ...........287
comparisons with EPA fuel
economy estimates .................291
detergent in fuel .....................288
filling your vehicle
with fuel ..................283, 286, 288
filter, specifications ........283, 299
fuel pump shut-off switch .....231
improving fuel economy ........288
octane rating ...................287, 303
quality ......................................287
running out of fuel .................288
safety information relating to
automotive fuels .....................283
Fuses ..................................231–232G
Garage door opener ....................70
Gas cap (see Fuel cap) ............286
Gas mileage (see Fuel
economy) ...................................288
Gauges .........................................16
H
Hazard flashers .........................230
Head restraints .........................116
Headlamps ...................................45
aiming ........................................47
autolamp system .......................45
bulb specifications ....................51
daytime running lights .............46
flash to pass ..............................46
high beam .................................46
replacing bulbs .........................52
turning on and off ....................45
Heating
heating and air conditioning
system .......................................40
Homelink wireless control
system ..........................................70
Hood ..........................................268
I
Ignition ...............................202, 303
Illuminated visor mirror .............59
Infant seats
(see Safety seats) .....................155
Inspection/maintenance (I/M)
testing ........................................293
Instrument panel
cleaning ...................................264
Index
313
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
