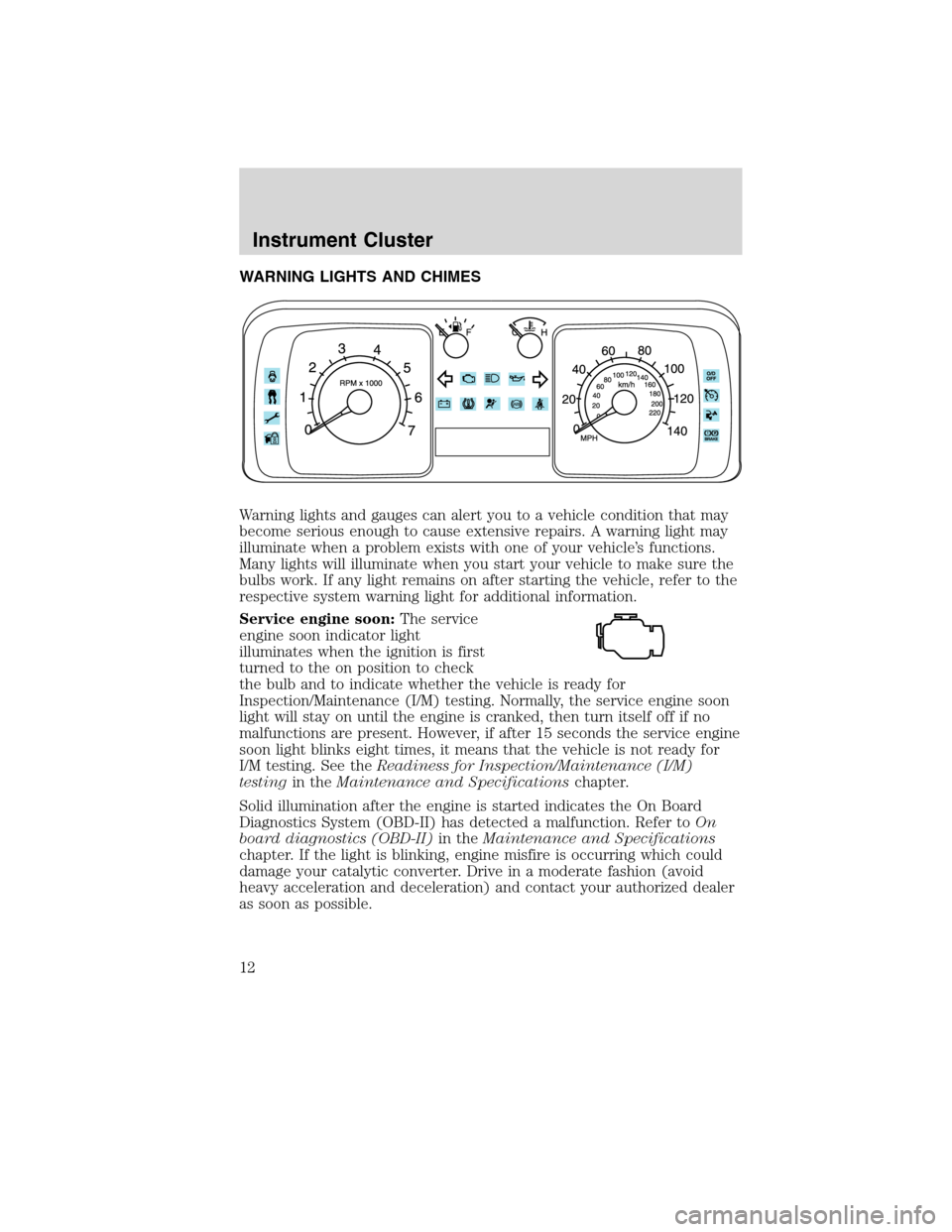

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:The service
engine soon indicator light
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the service engine soon
light will stay on until the engine is cranked, then turn itself off if no
malfunctions are present. However, if after 15 seconds the service engine
soon light blinks eight times, it means that the vehicle is not ready for
I/M testing. See theReadiness for Inspection/Maintenance (I/M)
testingin theMaintenance and Specificationschapter.
Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and contact your authorized dealer
as soon as possible.
Instrument Cluster
12
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
Powertrain malfunction/reduced
power:Illuminates when a
powertrain or a AWD fault has been
detected. Contact your authorized
dealer as soon as possible.
Check fuel cap:Illuminates when
the fuel cap may not be properly
installed. Continued driving with
this light on may cause the service
engine soon warning light to come
on, refer toFuel filler capin the
Maintenance and Specificationchapter.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the on position
when the engine is not running, or in a position between on and start, or
by applying the parking brake when the ignition is turned to the on
position. If the brake system warning light does not illuminate at this
time, contact your authorized dealer as soon as possible. Illumination
after releasing the parking brake indicates low brake fluid level or a
brake system malfunction. Contact your authorized dealer as soon as
possible.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Contact your authorized dealer as soon as possible. Driving extended
distances with the parking brake engaged can cause brake failure and
the risk of personal injury.
P!
BRAKE
Instrument Cluster
13
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

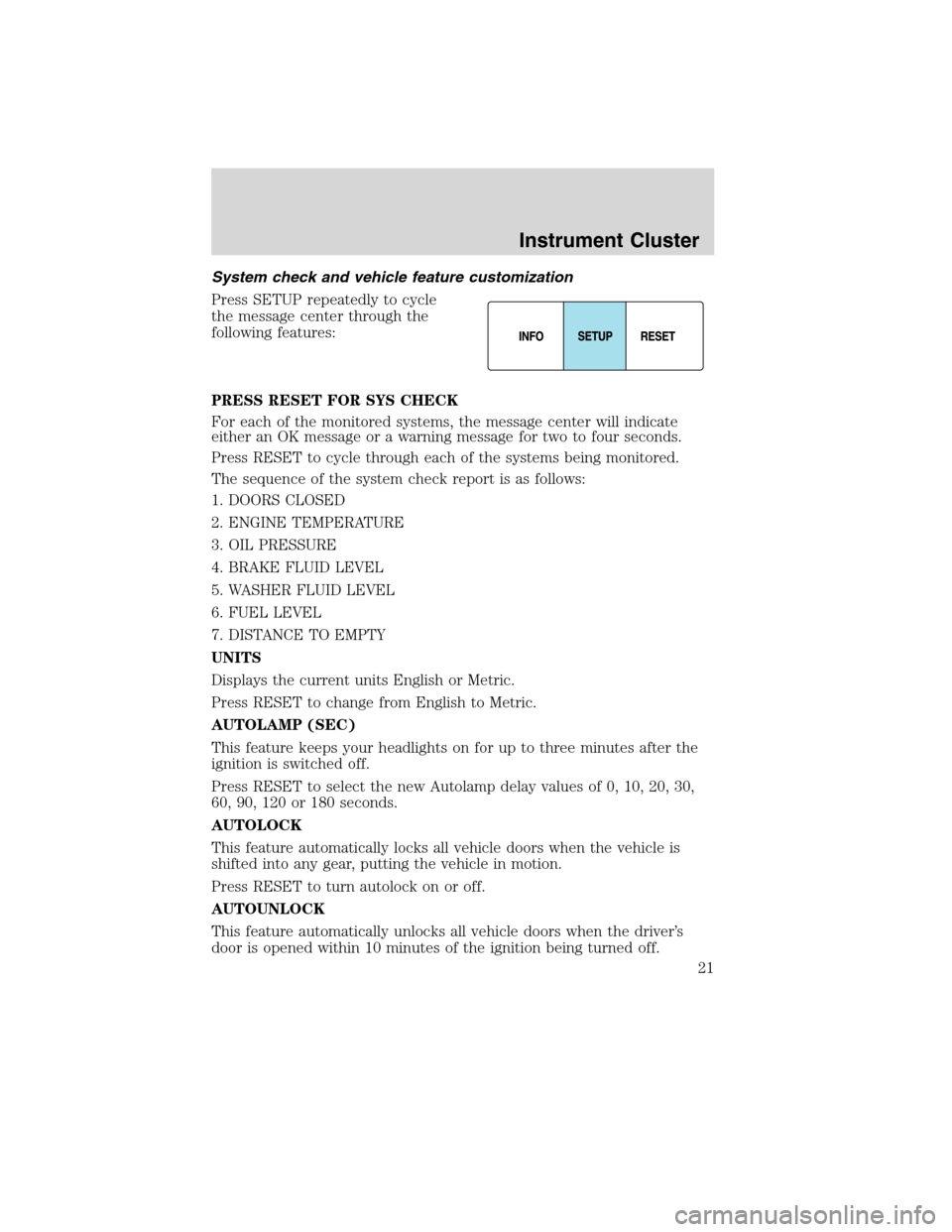

System check and vehicle feature customization
Press SETUP repeatedly to cycle
the message center through the
following features:
PRESS RESET FOR SYS CHECK
For each of the monitored systems, the message center will indicate
either an OK message or a warning message for two to four seconds.
Press RESET to cycle through each of the systems being monitored.
The sequence of the system check report is as follows:
1. DOORS CLOSED
2. ENGINE TEMPERATURE
3. OIL PRESSURE
4. BRAKE FLUID LEVEL
5. WASHER FLUID LEVEL
6. FUEL LEVEL
7. DISTANCE TO EMPTY
UNITS
Displays the current units English or Metric.
Press RESET to change from English to Metric.
AUTOLAMP (SEC)
This feature keeps your headlights on for up to three minutes after the
ignition is switched off.
Press RESET to select the new Autolamp delay values of 0, 10, 20, 30,
60, 90, 120 or 180 seconds.
AUTOLOCK
This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear, putting the vehicle in motion.
Press RESET to turn autolock on or off.
AUTOUNLOCK
This feature automatically unlocks all vehicle doors when the driver’s
door is opened within 10 minutes of the ignition being turned off.
Instrument Cluster
21
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

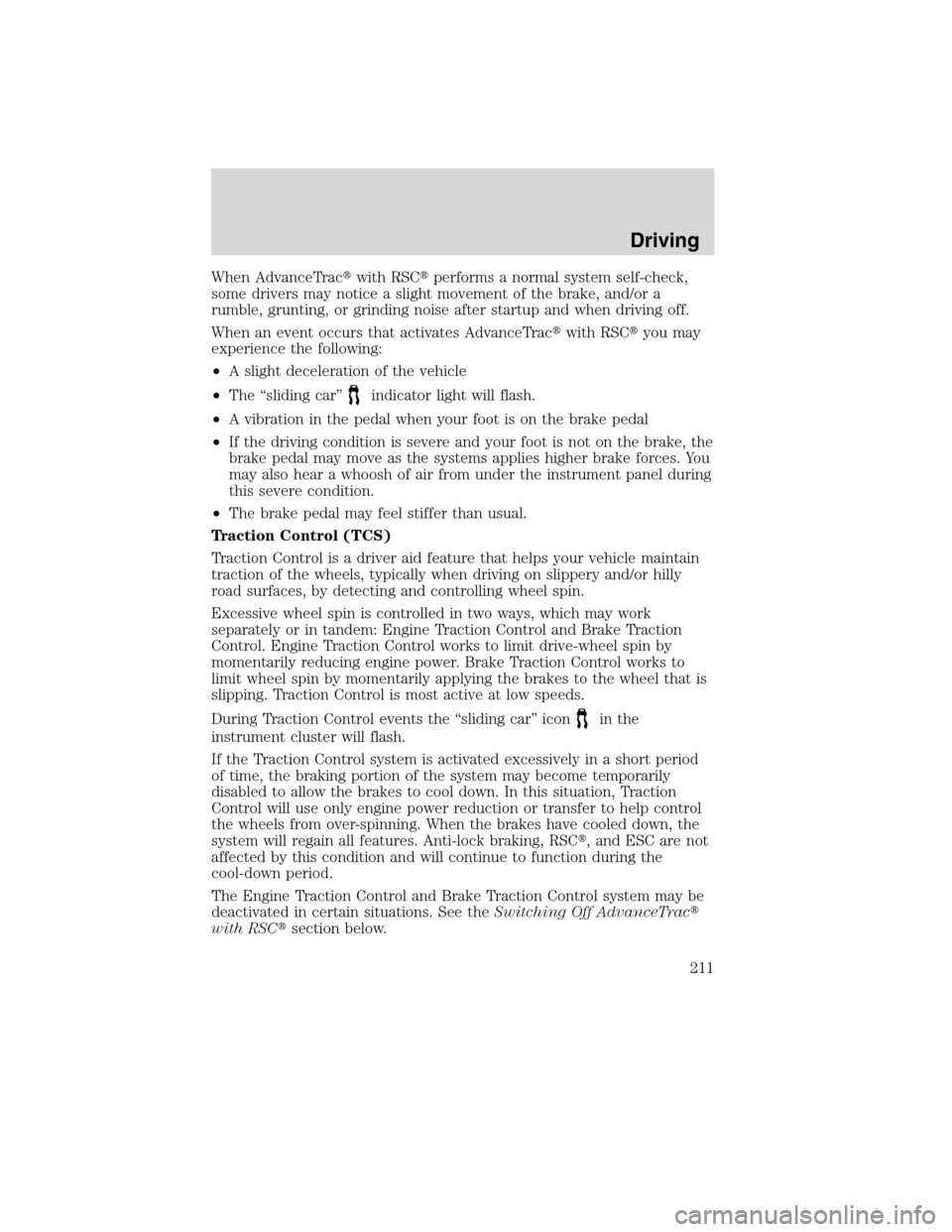

When AdvanceTracwith RSCperforms a normal system self-check,
some drivers may notice a slight movement of the brake, and/or a
rumble, grunting, or grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracwith RSCyou may
experience the following:
•A slight deceleration of the vehicle
•The “sliding car”
indicator light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction Control (TCS)
Traction Control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem: Engine Traction Control and Brake Traction
Control. Engine Traction Control works to limit drive-wheel spin by
momentarily reducing engine power. Brake Traction Control works to
limit wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction Control is most active at low speeds.
During Traction Control events the “sliding car” icon
in the
instrument cluster will flash.
If the Traction Control system is activated excessively in a short period
of time, the braking portion of the system may become temporarily
disabled to allow the brakes to cool down. In this situation, Traction
Control will use only engine power reduction or transfer to help control
the wheels from over-spinning. When the brakes have cooled down, the
system will regain all features. Anti-lock braking, RSC, and ESC are not
affected by this condition and will continue to function during the
cool-down period.
The Engine Traction Control and Brake Traction Control system may be
deactivated in certain situations. See theSwitching Off AdvanceTrac
with RSCsection below.
Driving
211
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

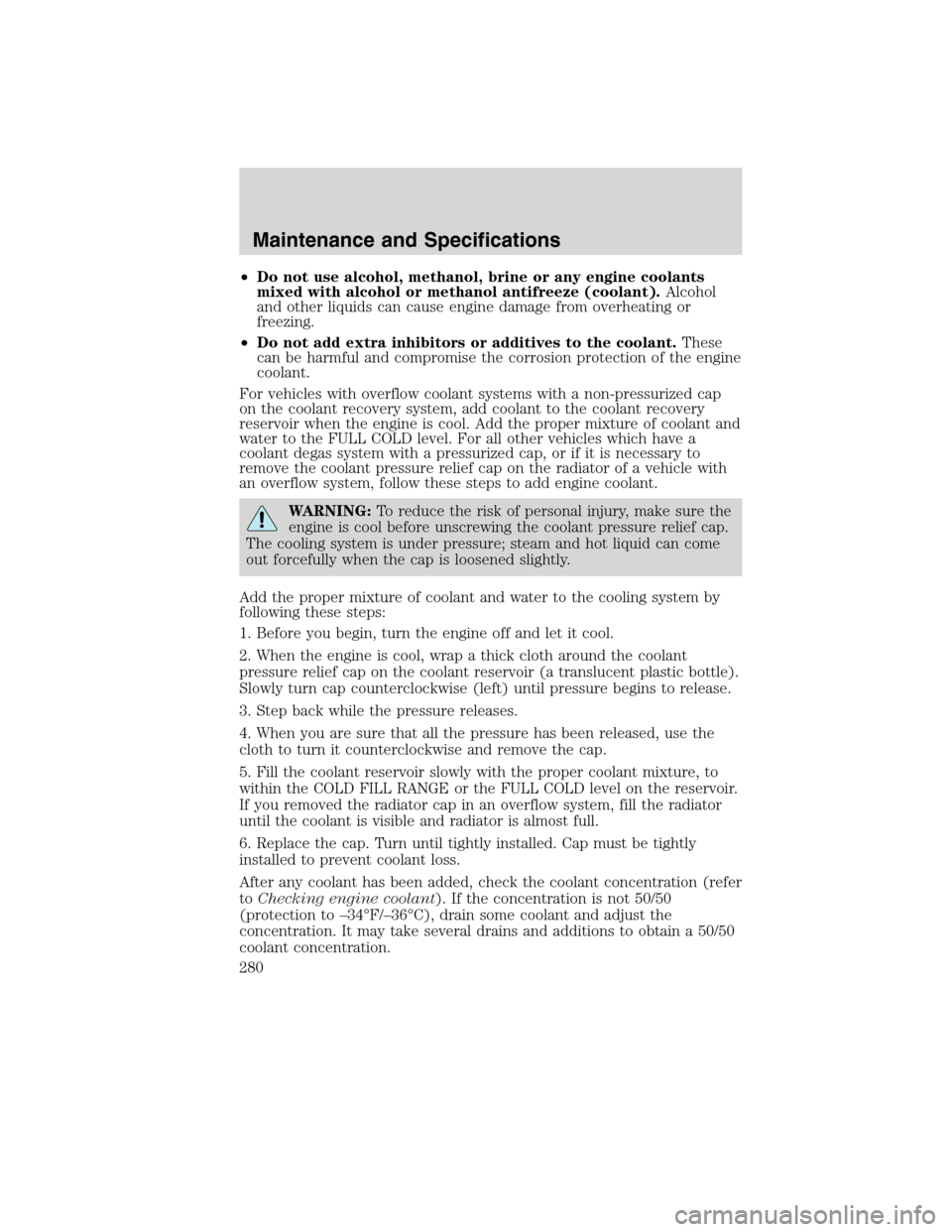

•Do not use alcohol, methanol, brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol
and other liquids can cause engine damage from overheating or
freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
water to the FULL COLD level. For all other vehicles which have a
coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the COLD FILL RANGE or the FULL COLD level on the reservoir.
If you removed the radiator cap in an overflow system, fill the radiator
until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Maintenance and Specifications
280
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuel filler cap
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise until at least a few clicks are heard.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or “check fuel cap” message may not reset immediately; it may
take several driving cycles for the check fuel cap light
or “check fuel
cap” message to turn off. A driving cycle consists of an engine start-up
(after four or more hours with the engine off) followed by city and
highway driving.
Continuing to drive with the check fuel cap light
or “check fuel cap”
message on may cause the service engine soon
light to turn on as
well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a collision, which may result in
personal injury.
Maintenance and Specifications
286
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

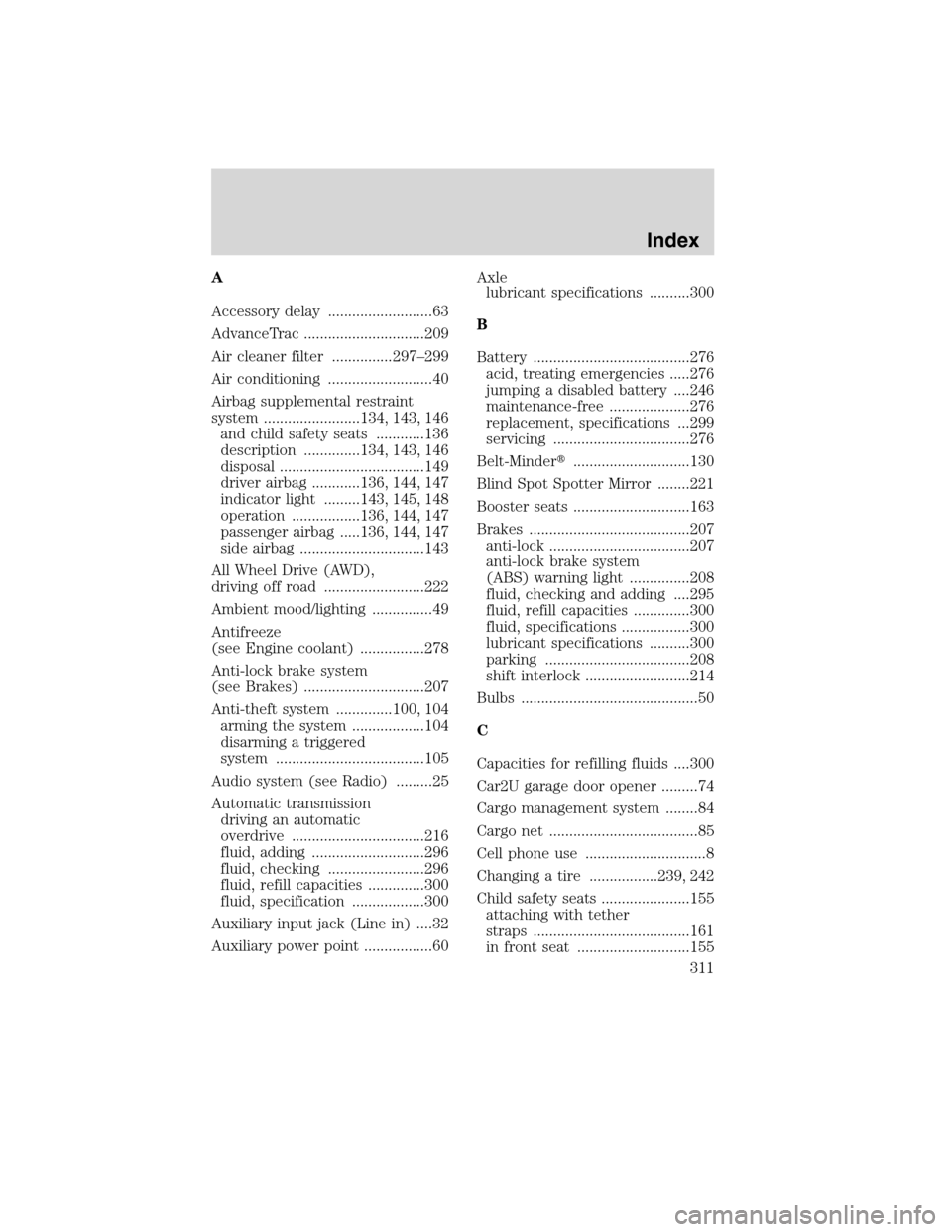

A
Accessory delay ..........................63
AdvanceTrac ..............................209
Air cleaner filter ...............297–299
Air conditioning ..........................40
Airbag supplemental restraint
system ........................134, 143, 146
and child safety seats ............136
description ..............134, 143, 146
disposal ....................................149
driver airbag ............136, 144, 147
indicator light .........143, 145, 148
operation .................136, 144, 147
passenger airbag .....136, 144, 147
side airbag ...............................143
All Wheel Drive (AWD),
driving off road .........................222
Ambient mood/lighting ...............49
Antifreeze
(see Engine coolant) ................278
Anti-lock brake system
(see Brakes) ..............................207
Anti-theft system ..............100, 104
arming the system ..................104
disarming a triggered
system .....................................105
Audio system (see Radio) .........25
Automatic transmission
driving an automatic
overdrive .................................216
fluid, adding ............................296
fluid, checking ........................296
fluid, refill capacities ..............300
fluid, specification ..................300
Auxiliary input jack (Line in) ....32
Auxiliary power point .................60Axle
lubricant specifications ..........300
B
Battery .......................................276
acid, treating emergencies .....276
jumping a disabled battery ....246
maintenance-free ....................276
replacement, specifications ...299
servicing ..................................276
Belt-Minder.............................130
Blind Spot Spotter Mirror ........221
Booster seats .............................163
Brakes ........................................207
anti-lock ...................................207
anti-lock brake system
(ABS) warning light ...............208
fluid, checking and adding ....295
fluid, refill capacities ..............300
fluid, specifications .................300
lubricant specifications ..........300
parking ....................................208
shift interlock ..........................214
Bulbs ............................................50
C
Capacities for refilling fluids ....300
Car2U garage door opener .........74
Cargo management system ........84
Cargo net .....................................85
Cell phone use ..............................8
Changing a tire .................239, 242
Child safety seats ......................155
attaching with tether
straps .......................................161
in front seat ............................155
Index
311
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

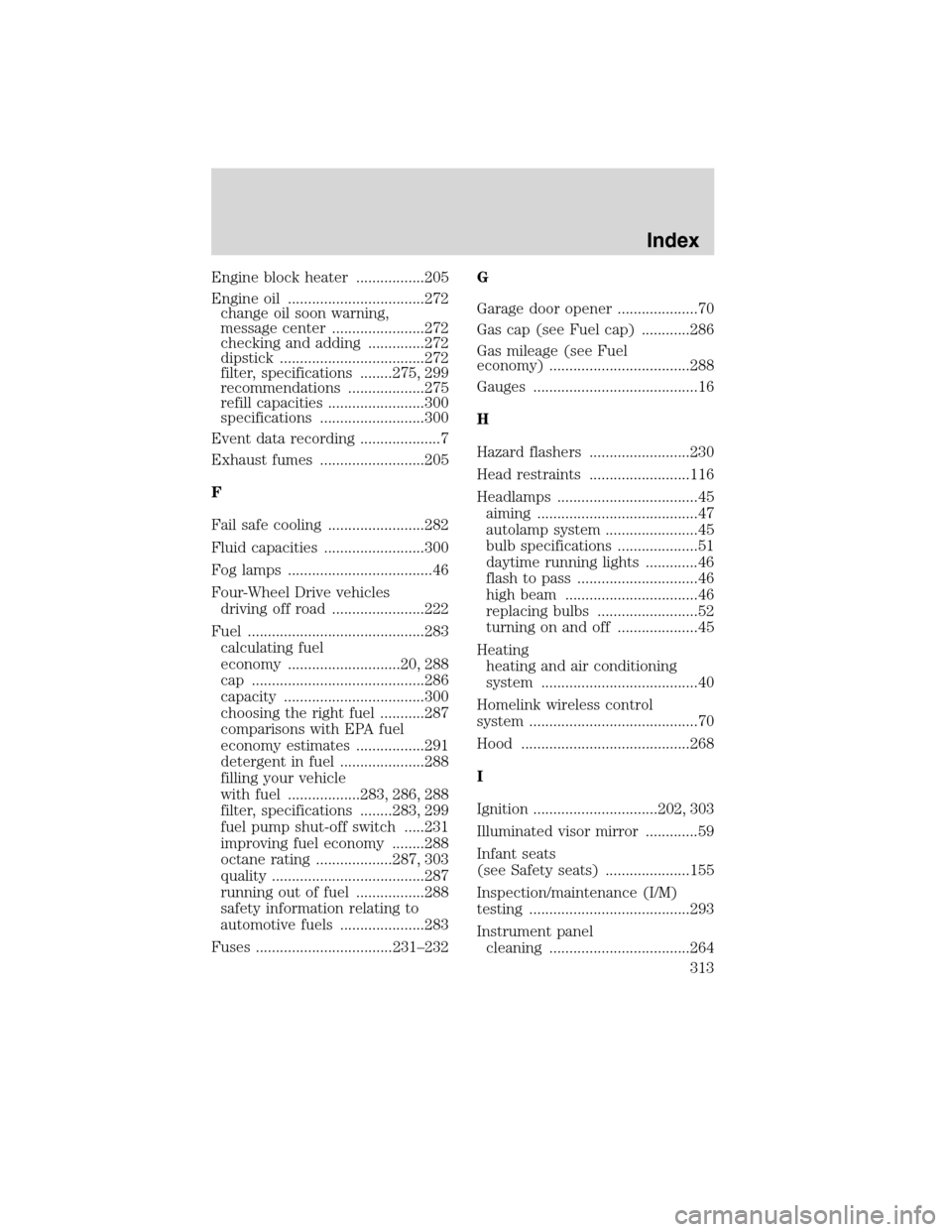

Engine block heater .................205
Engine oil ..................................272
change oil soon warning,
message center .......................272
checking and adding ..............272
dipstick ....................................272
filter, specifications ........275, 299
recommendations ...................275
refill capacities ........................300
specifications ..........................300
Event data recording ....................7
Exhaust fumes ..........................205
F
Fail safe cooling ........................282
Fluid capacities .........................300
Fog lamps ....................................46
Four-Wheel Drive vehicles
driving off road .......................222
Fuel ............................................283
calculating fuel
economy ............................20, 288
cap ...........................................286
capacity ...................................300
choosing the right fuel ...........287
comparisons with EPA fuel
economy estimates .................291
detergent in fuel .....................288
filling your vehicle
with fuel ..................283, 286, 288
filter, specifications ........283, 299
fuel pump shut-off switch .....231
improving fuel economy ........288
octane rating ...................287, 303
quality ......................................287
running out of fuel .................288
safety information relating to
automotive fuels .....................283
Fuses ..................................231–232G
Garage door opener ....................70
Gas cap (see Fuel cap) ............286
Gas mileage (see Fuel
economy) ...................................288
Gauges .........................................16
H
Hazard flashers .........................230
Head restraints .........................116
Headlamps ...................................45
aiming ........................................47
autolamp system .......................45
bulb specifications ....................51
daytime running lights .............46
flash to pass ..............................46
high beam .................................46
replacing bulbs .........................52
turning on and off ....................45
Heating
heating and air conditioning
system .......................................40
Homelink wireless control
system ..........................................70
Hood ..........................................268
I
Ignition ...............................202, 303
Illuminated visor mirror .............59
Infant seats
(see Safety seats) .....................155
Inspection/maintenance (I/M)
testing ........................................293
Instrument panel
cleaning ...................................264
Index
313
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

cluster ........................................12
lighting up panel and
interior .......................................47
J
Jack ............................................239
positioning ...............................239
storage .....................................239
Jump-starting your vehicle ......246
K
Keyless entry system
autolock .....................................88
keypad .......................................99
locking and unlocking
doors ........................................100
programming entry code .........99
Keys .....................................87, 102
positions of the ignition .........202
L
Lamps
autolamp system .......................45
bulb replacement
specifications chart ..................51
daytime running light ...............46
fog lamps ...................................46
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps ...............49–50, 52
replacing bulbs .........................52
LATCH anchors .........................158
Liftgate ......................79, 83, 85, 94
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........208
Load limits .................................189Locks
autolock .....................................88
childproof ..................................92
doors ..........................................88
Lubricant specifications ...........300
Lug nuts ....................................245
Lumbar support, seats .............111
M
Message center ...........................18
english/metric button ...............22
system check button ................22
Mirrors ...................................63–64
automatic dimming rearview
mirror ........................................63
fold away ...................................64
heated ........................................64
programmable memory ............95
side view mirrors (power) .......64
Moon roof ..............................68, 94
Motorcraft parts ................266, 299
N
Navigation system .......................39
O
Octane rating ............................287
Oil (see Engine oil) ..................272
Overdrive ...................................216
P
Parking brake ............................208
Parts (see Motorcraft parts) ....299
Passenger Occupant
Classification Sensor .................121
Index
314
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
